Label from oldest to youngest

Label from oldest to youngest. Oldest A, B, C, D. Label from oldest to youngest. Oldest rocks A, followed by B, C and D. All four sedimentary layers were folded into a syncline. Layers E and F were deposited, at a later time and are the youngest. Label from oldest to youngest.

cormac
Télécharger la présentation

Label from oldest to youngest

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Label from oldest to youngest • Oldest A, B, C, D

  2. Label from oldest to youngest • Oldest rocks A, followed by B, C and D. All four sedimentary layers were folded into a syncline. Layers E and F were deposited, at a later time and are the youngest

  3. Label from oldest to youngest • Oldest to youngest, C E D A B

  4. Label from oldest to youngest • Oldest to youngest, E B C D A

  5. Label from oldest to youngest • Oldest to youngest, C A B

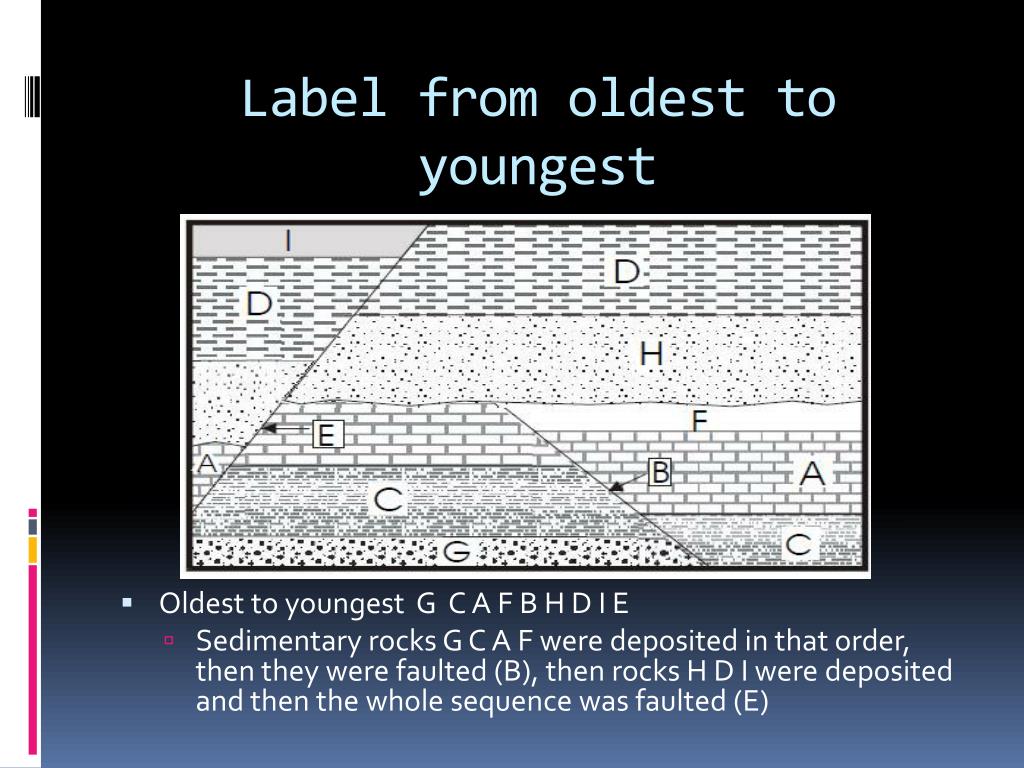

  6. Label from oldest to youngest • Oldest to youngest G CA F B H D I E • Sedimentary rocks G CA F were deposited in that order, then they were faulted (B), then rocks H D I were deposited and then the whole sequence was faulted (E)

  7. Label from oldest to youngest • Oldest to youngest DHACGFIBE • Original rocks were metamorphosed (D), the sediments H and A were deposited on top of them, the sequence was lithified and folded, then an igneous rock (C) intruded into them and they were all faulted (G) . Sandstone (F), limestone (I), and siltstone (B) were deposited, the whole sequence was tilted and finally limestone (E) was deposited

  8. Label from oldest to youngest Oldest to youngest, O H B L J A F M D G N E I C K • Original bedrock Was metamorphosed, then igneous rock (H) intruded into the area, (there was some contact metamorphism), then rocks BL and J were deposited in that order, and then they were folded into a syncline. Next igneous rock (A) intruded into the rocks, then they were all faulted by (F). Sandstone (M) and conglomerate (D) were deposited, the whole sequence was tilted, rocks G N and E were deposited, the sequence was intruded by igneous rock (I), sandstone (C) was deposited and finally conglomerate (K) was deposited, probably in a stream bed
