Lecture 2 Factorization in Inclusive B Decays

Lecture 2 Factorization in Inclusive B Decays. Soft-collinear factorization Factorization in B→X s γ decay m b from B→X s γ moments |V ub | from B→X u l ν decay spectra. Soft-Collinear Factorization.

coty
Télécharger la présentation

Lecture 2 Factorization in Inclusive B Decays

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Lecture 2Factorization in Inclusive B Decays • Soft-collinear factorization • Factorization in B→Xsγ decay • mb from B→Xsγmoments • |Vub| from B→Xulν decay spectra Heraeus Summer School

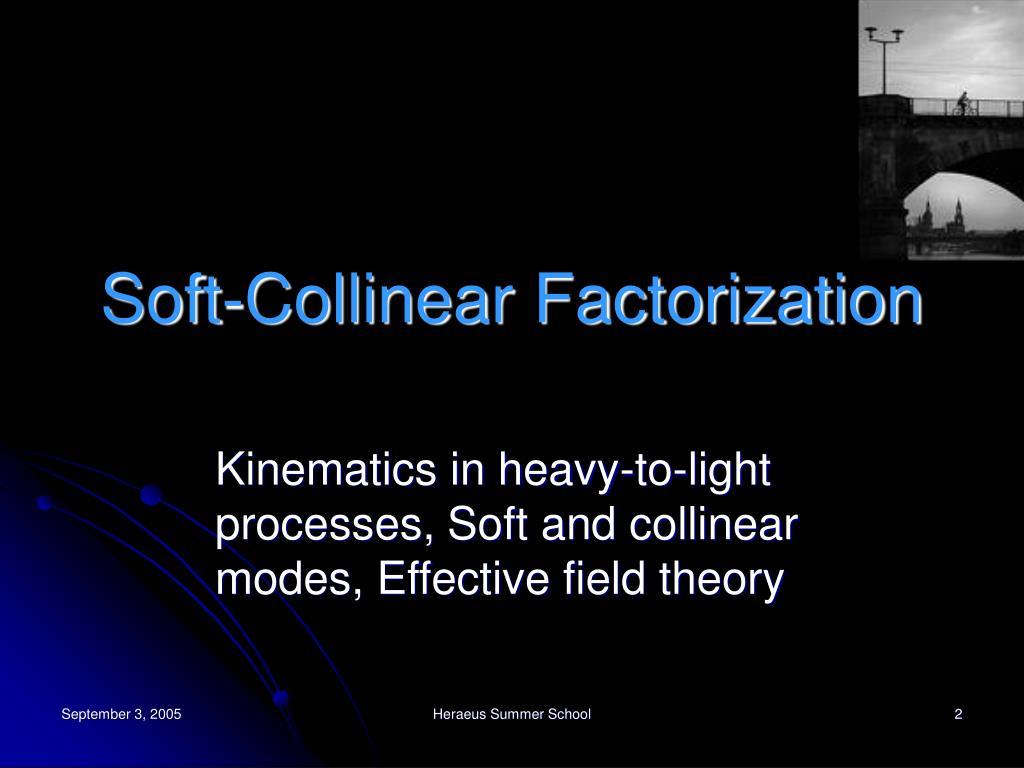

  2. Soft-Collinear Factorization Kinematics in heavy-to-light processes, Soft and collinear modes, Effective field theory Heraeus Summer School

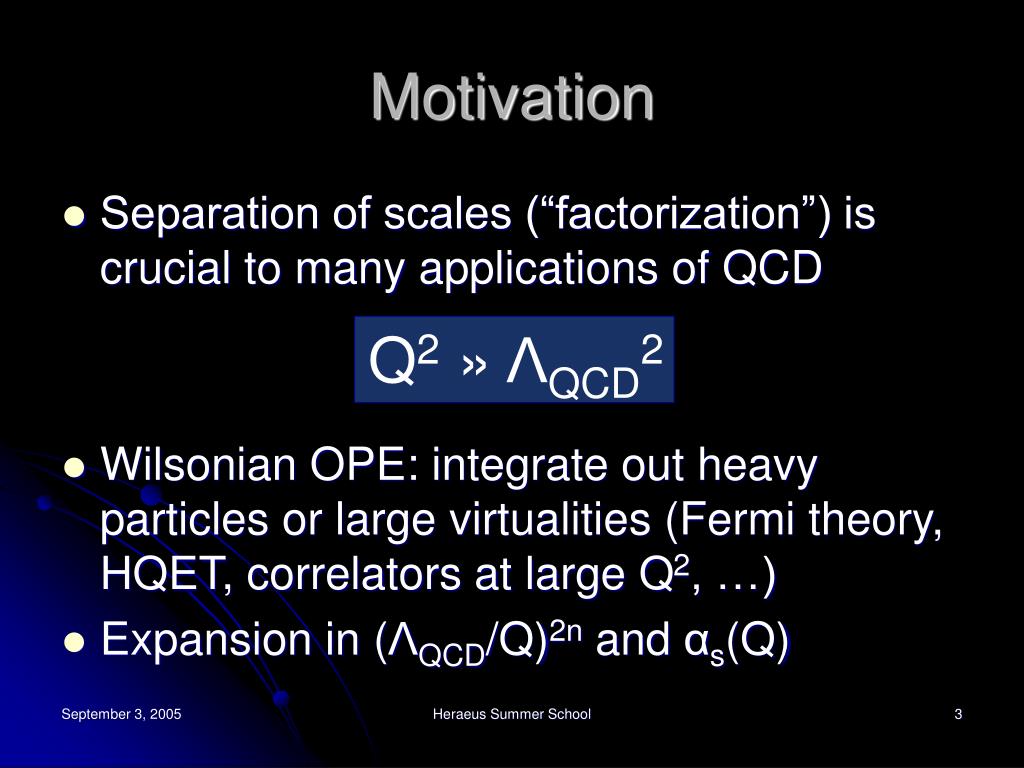

  3. Motivation • Separation of scales (“factorization”) is crucial to many applications of QCD • Wilsonian OPE: integrate out heavy particles or large virtualities (Fermi theory, HQET, correlators at large Q2, …) • Expansion in (ΛQCD/Q)2n and αs(Q) Q2» ΛQCD2 Heraeus Summer School

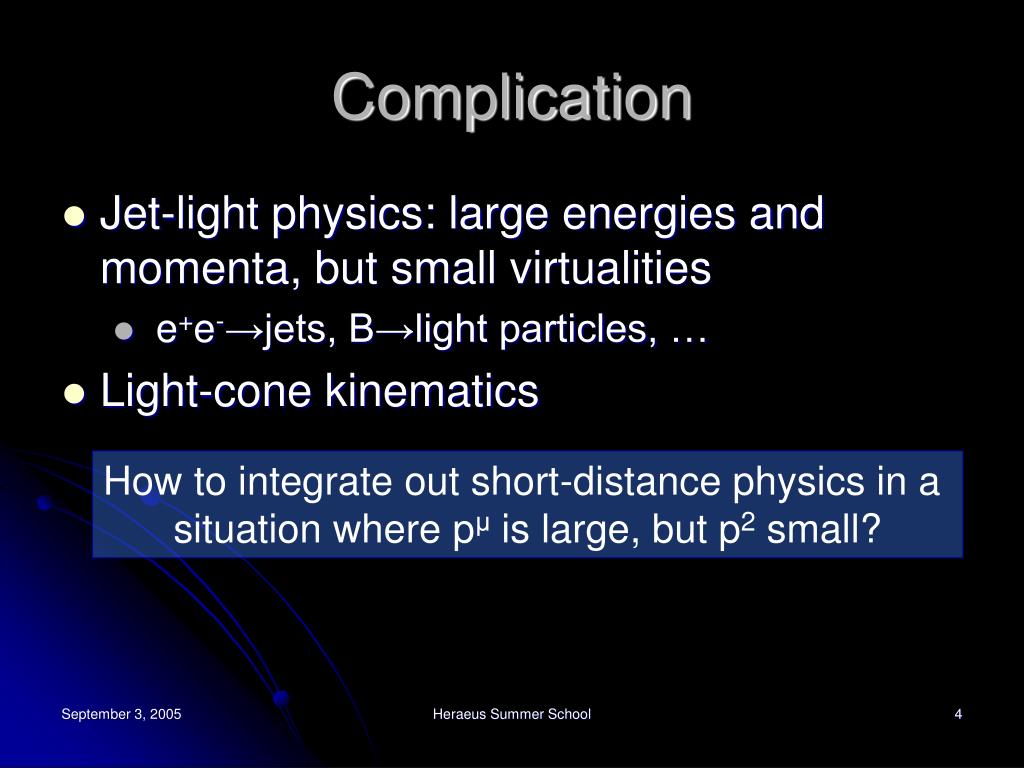

  4. Complication • Jet-light physics: large energies and momenta, but small virtualities • e+e-→jets, B→light particles, … • Light-cone kinematics How to integrate out short-distance physics in a situation where pμ is large, but p2 small? Heraeus Summer School

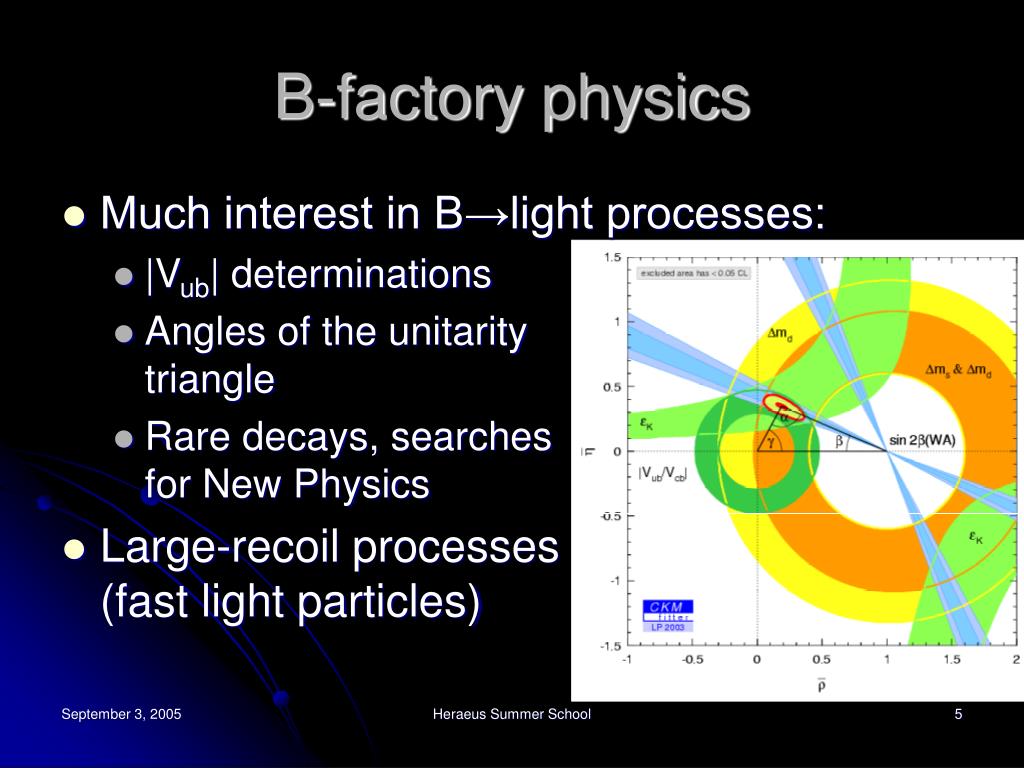

  5. B-factory physics • Much interest in B→light processes: • |Vub| determinations • Angles of the unitarity triangle • Rare decays, searches for New Physics • Large-recoil processes (fast light particles) Heraeus Summer School

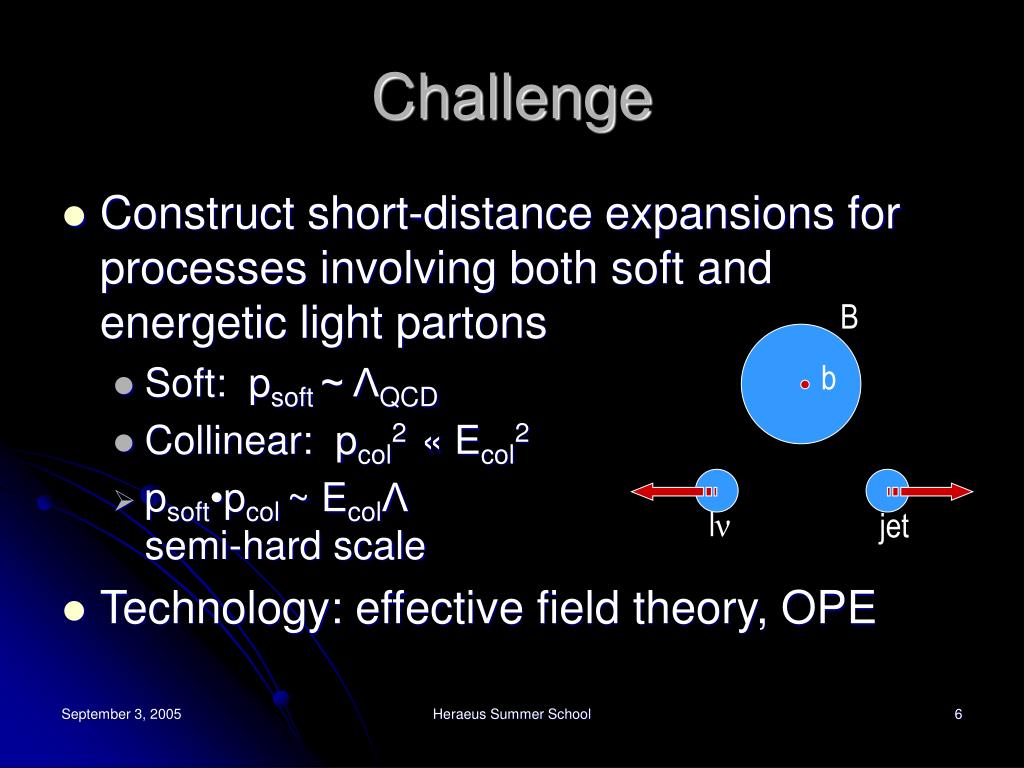

  6. lν jet Challenge • Construct short-distance expansions for processes involving both soft and energetic light partons • Soft: psoft ~ ΛQCD • Collinear: pcol2 « Ecol2 • psoft•pcol ~ EcolΛ semi-hard scale • Technology: effective field theory, OPE B b Heraeus Summer School

  7. Soft-collinear effective theory [Bauer, Pirjol, Stewart & Fleming, Luke] • Systematic power counting in λ=ΛQCD/E • Effective Lagrangians for strong and weak interactions expanded in powers of λ • More complicated than previous heavy-quark expansions • Expansion in non-local string operators integrated over light-like field separation • Many degrees of freedom Heraeus Summer School

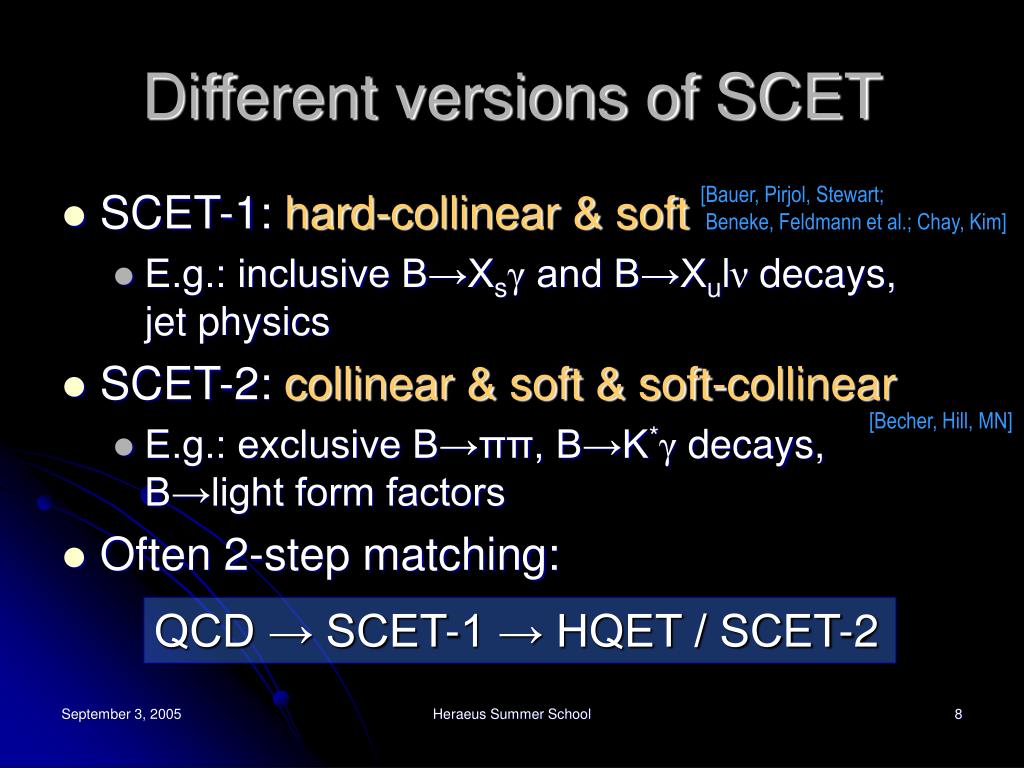

  8. Different versions of SCET [Bauer, Pirjol, Stewart; Beneke, Feldmann et al.; Chay, Kim] • SCET-1: hard-collinear & soft • E.g.: inclusive B→Xsγ and B→Xulν decays, jet physics • SCET-2: collinear & soft & soft-collinear • E.g.: exclusive B→ππ, B→K*γ decays, B→light form factors • Often 2-step matching: [Becher, Hill, MN] QCD → SCET-1 → HQET / SCET-2 Heraeus Summer School

  9. Factorization in B→Xsγ Partially inclusive decay rate γ B Xs FCNC Heraeus Summer School

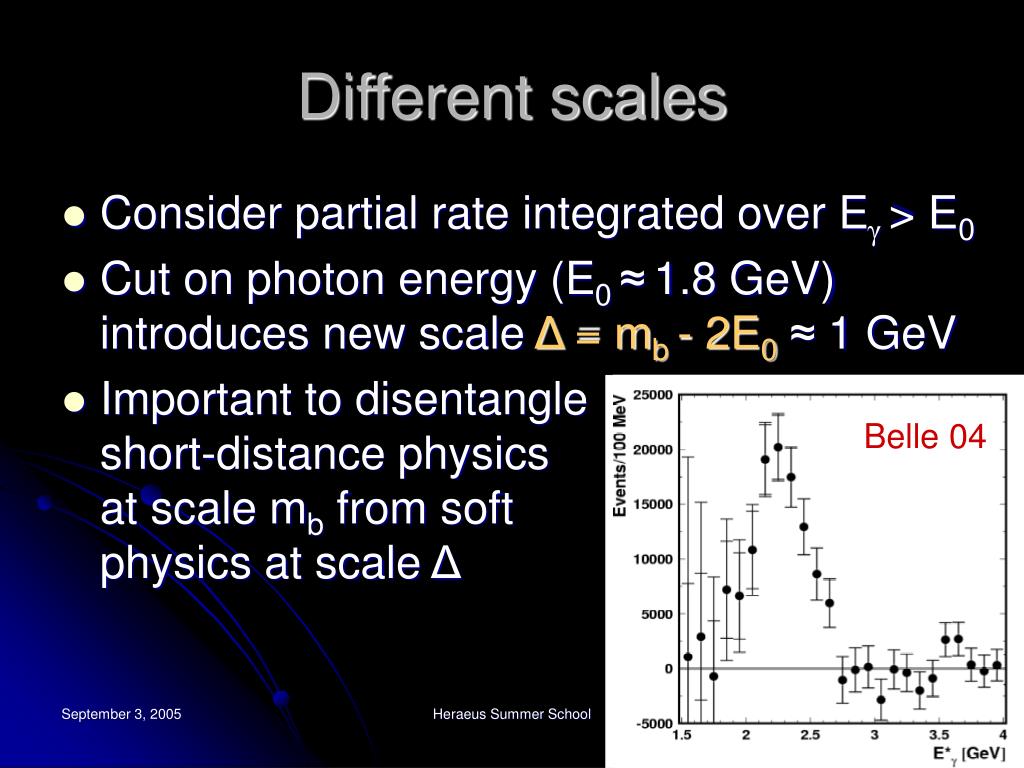

  10. Different scales • Consider partial rate integrated over Eγ> E0 • Cut on photon energy (E0 ≈1.8 GeV) introduces new scaleΔ = mb - 2E0 ≈ 1 GeV • Important to disentangle short-distance physics at scale mb from soft physics at scale Δ Belle 04 Heraeus Summer School

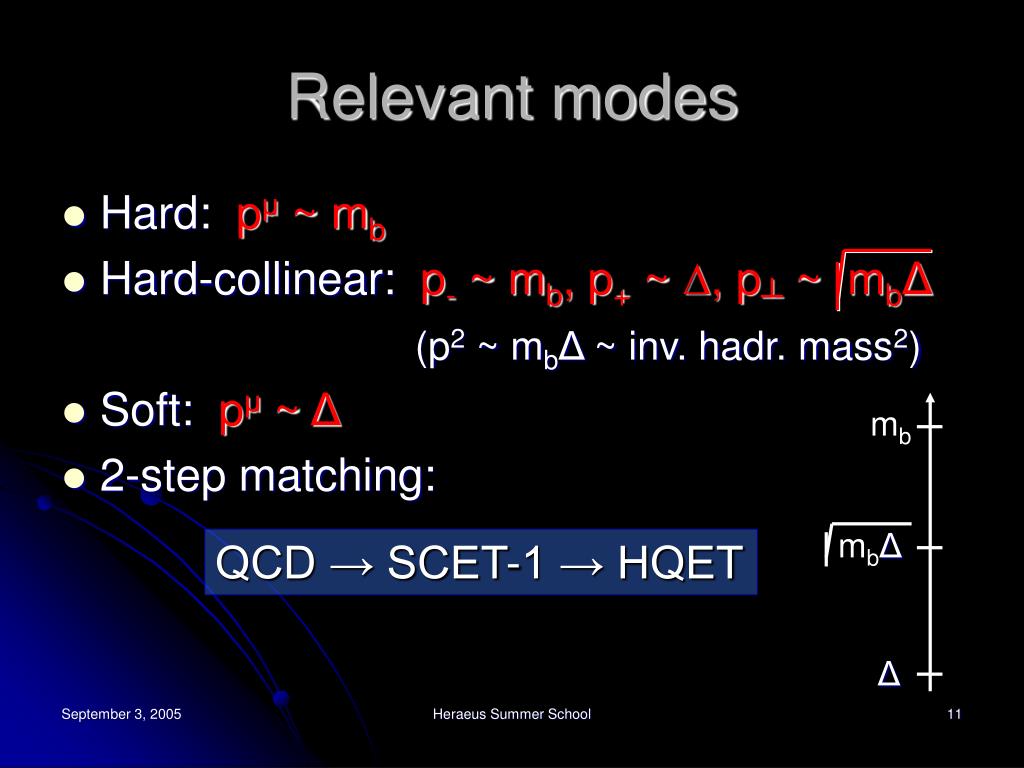

  11. Relevant modes • Hard: pμ ~ mb • Hard-collinear: p- ~ mb, p+ ~ , p┴ ~ mbΔ (p2 ~ mbΔ ~ inv. hadr. mass2) • Soft: pμ ~ Δ • 2-step matching: mb mbΔ QCD → SCET-1 → HQET Δ Heraeus Summer School

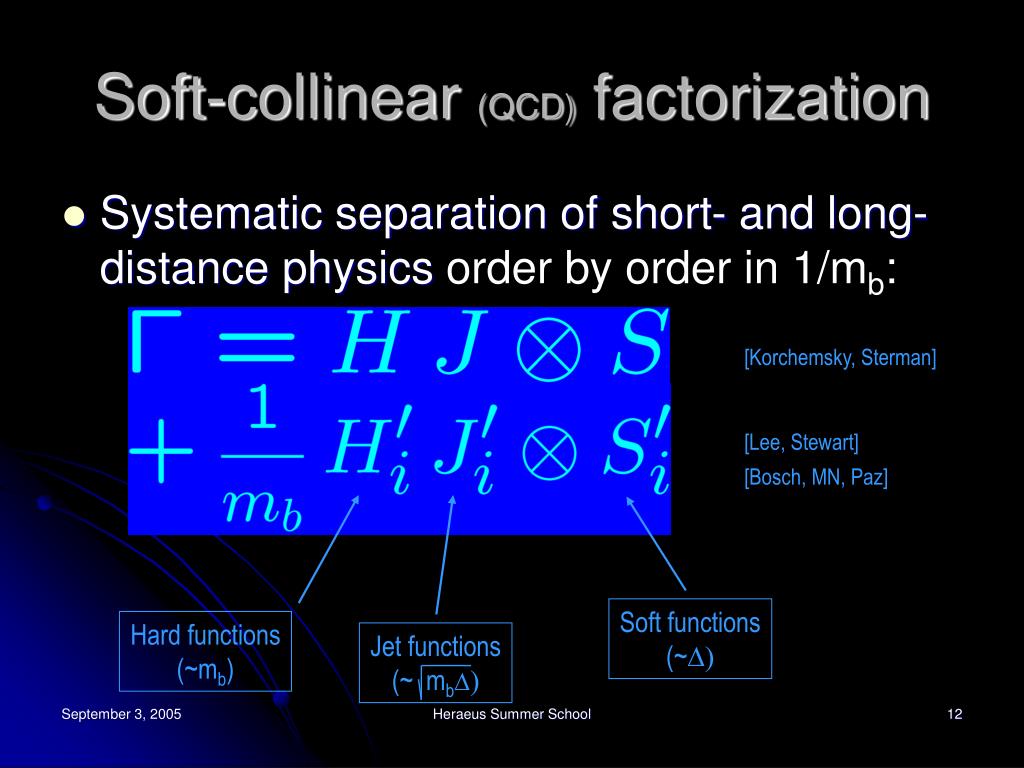

  12. Soft-collinear (QCD) factorization • Systematic separation of short- and long-distance physics order by order in 1/mb: [Korchemsky, Sterman] [Lee, Stewart] [Bosch, MN, Paz] Soft functions (~) Hard functions (~mb) Jet functions (~ mb) Heraeus Summer School

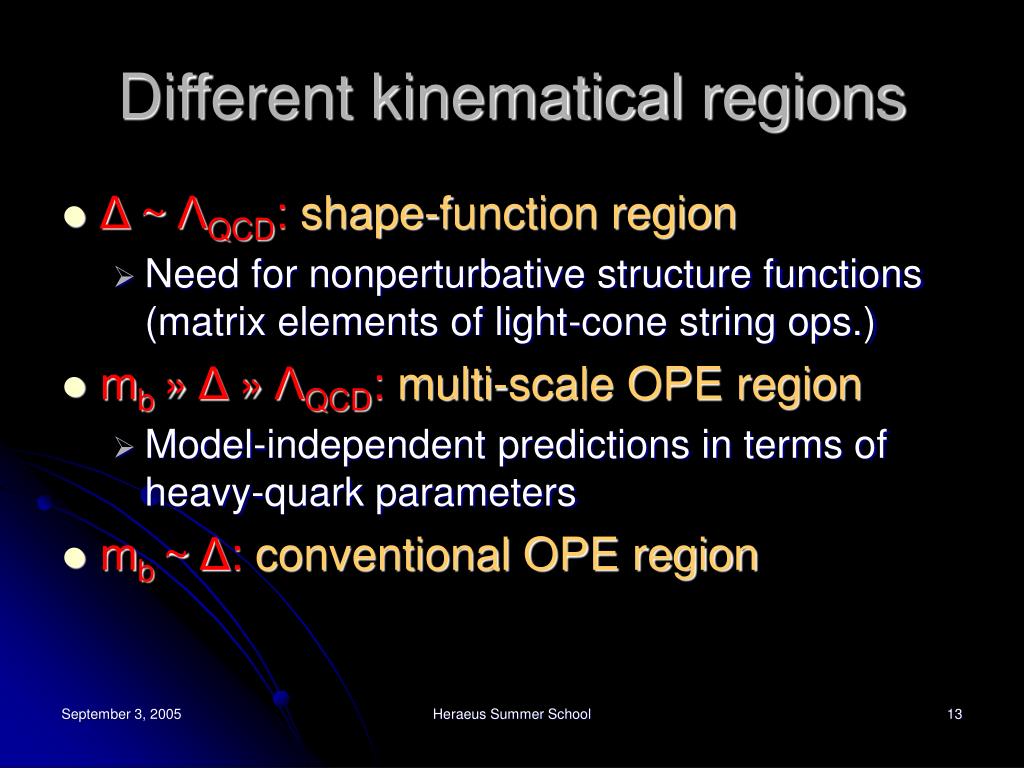

  13. Different kinematical regions • Δ ~ ΛQCD:shape-function region • Need for nonperturbative structure functions (matrix elements of light-cone string ops.) • mb » Δ » ΛQCD:multi-scale OPE region • Model-independent predictions in terms of heavy-quark parameters • mb ~ Δ:conventional OPE region Heraeus Summer School

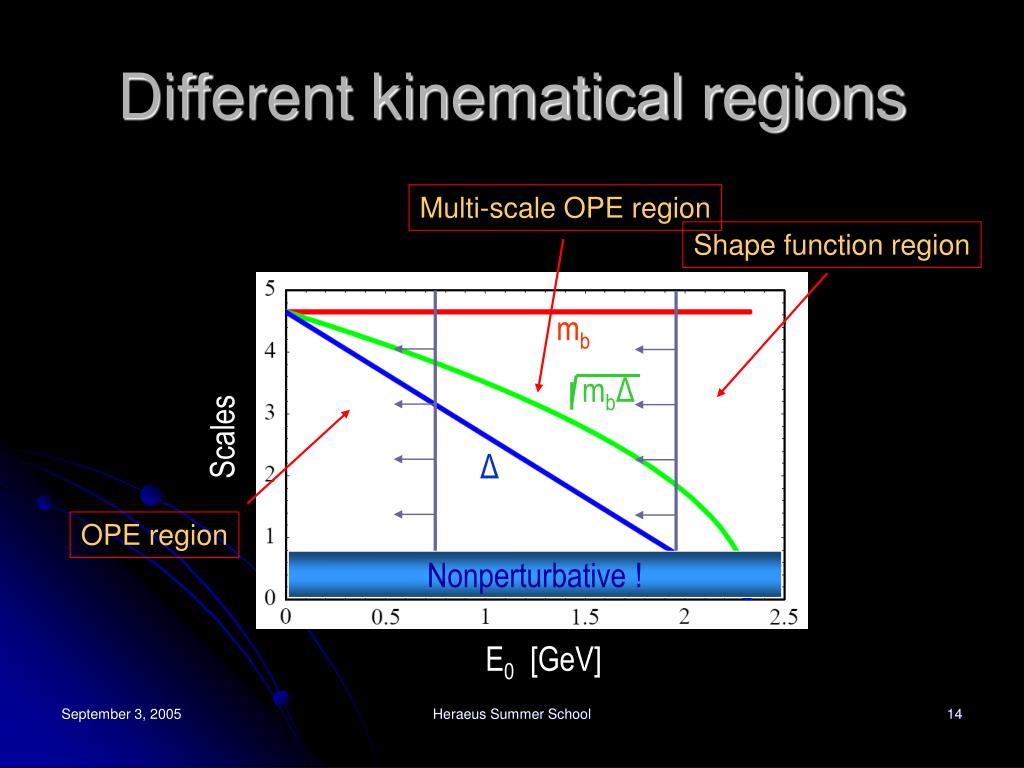

  14. Multi-scale OPE region Shape function region OPE region Different kinematical regions mb mbΔ Scales Δ Nonperturbative ! E0 [GeV] Heraeus Summer School

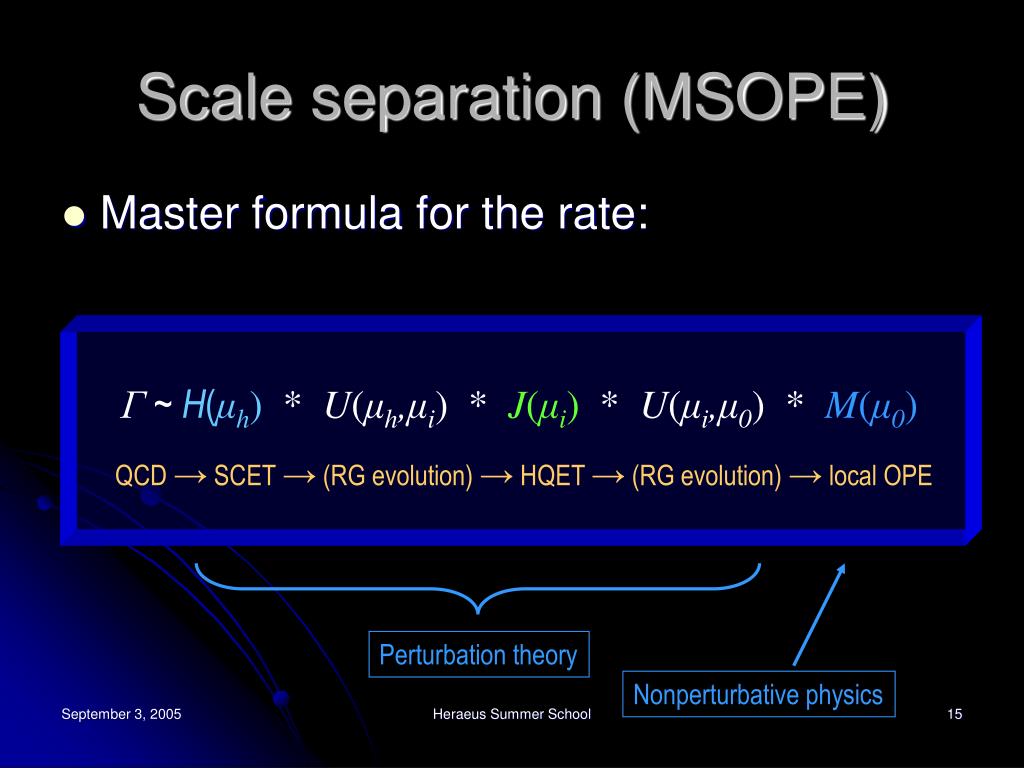

  15. Scale separation (MSOPE) • Master formula for the rate: Γ ~ H(μh) * U(μh,μi) * J(μi) * U(μi,μ0) * M(μ0) QCD → SCET → (RG evolution) → HQET → (RG evolution) → local OPE Perturbation theory Nonperturbative physics Heraeus Summer School

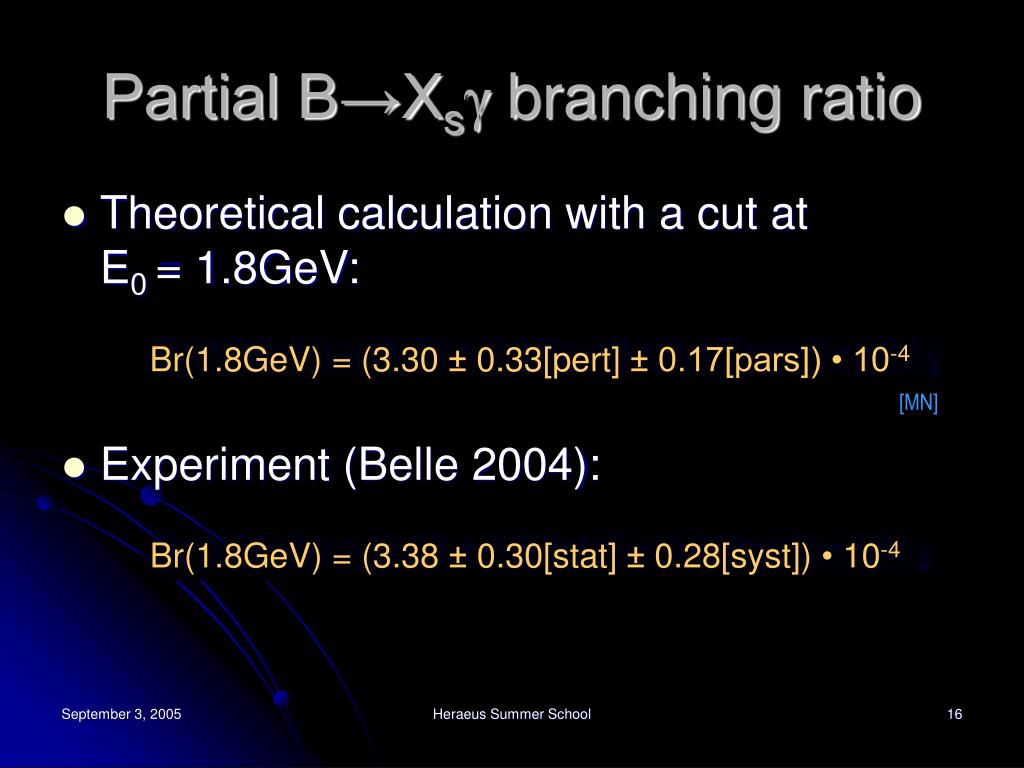

  16. Partial B→Xsγ branching ratio • Theoretical calculation with a cut at E0 = 1.8GeV: • Experiment (Belle 2004): Br(1.8GeV) = (3.30 ± 0.33[pert] ± 0.17[pars]) • 10-4 [MN] Br(1.8GeV) = (3.38 ± 0.30[stat] ± 0.28[syst]) • 10-4 Heraeus Summer School

  17. Implications for New Physics • Larger theory errors, and better agreement between theory and experiment, weaken constraints on parameter space of New Physics models! • E.g., type-II two-Higgs doublet model: • m(H+) > 200 GeV (95% CL) (compared with previous bound of 500 GeV) Heraeus Summer School

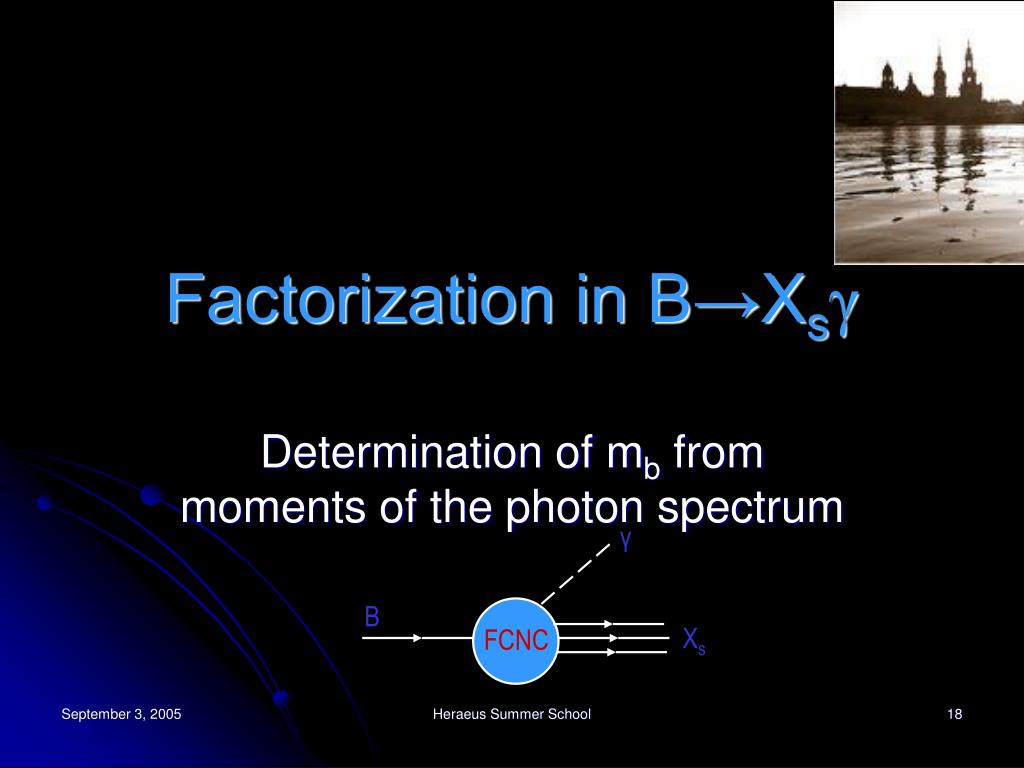

  18. Factorization in B→Xsγ Determination of mb from moments of the photon spectrum γ B Xs FCNC Heraeus Summer School

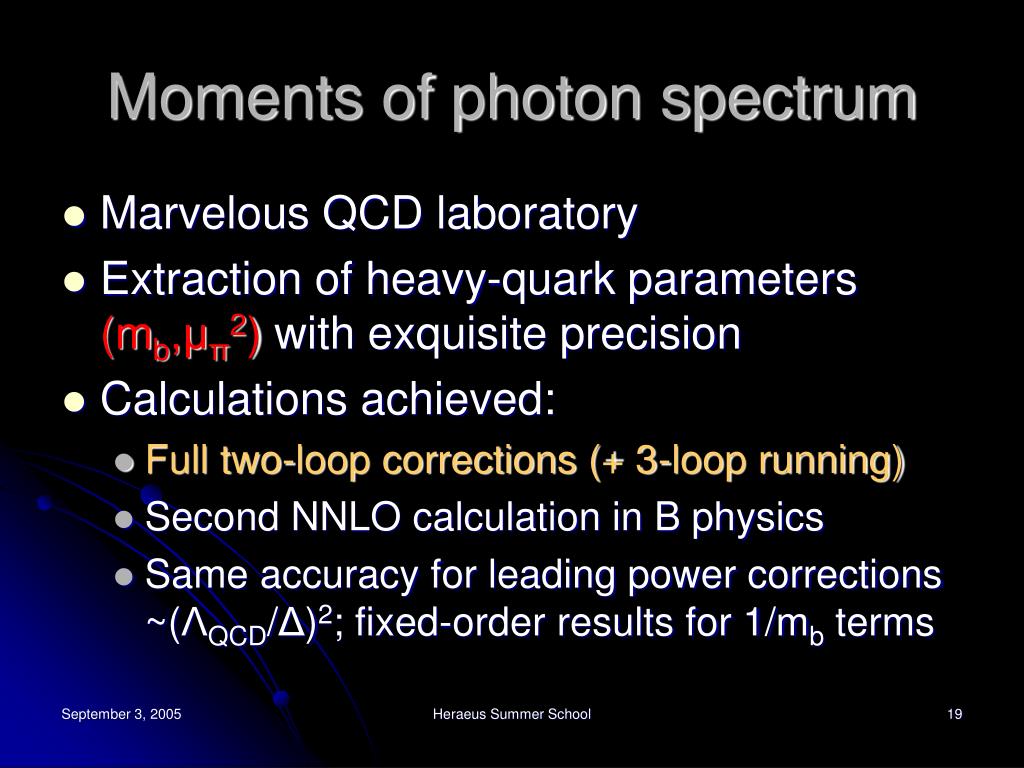

  19. Moments of photon spectrum • Marvelous QCD laboratory • Extraction of heavy-quark parameters (mb,μπ2) with exquisite precision • Calculations achieved: • Full two-loop corrections (+ 3-loop running) • Second NNLO calculation in B physics • Same accuracy for leading power corrections ~(ΛQCD/Δ)2; fixed-order results for 1/mb terms Heraeus Summer School

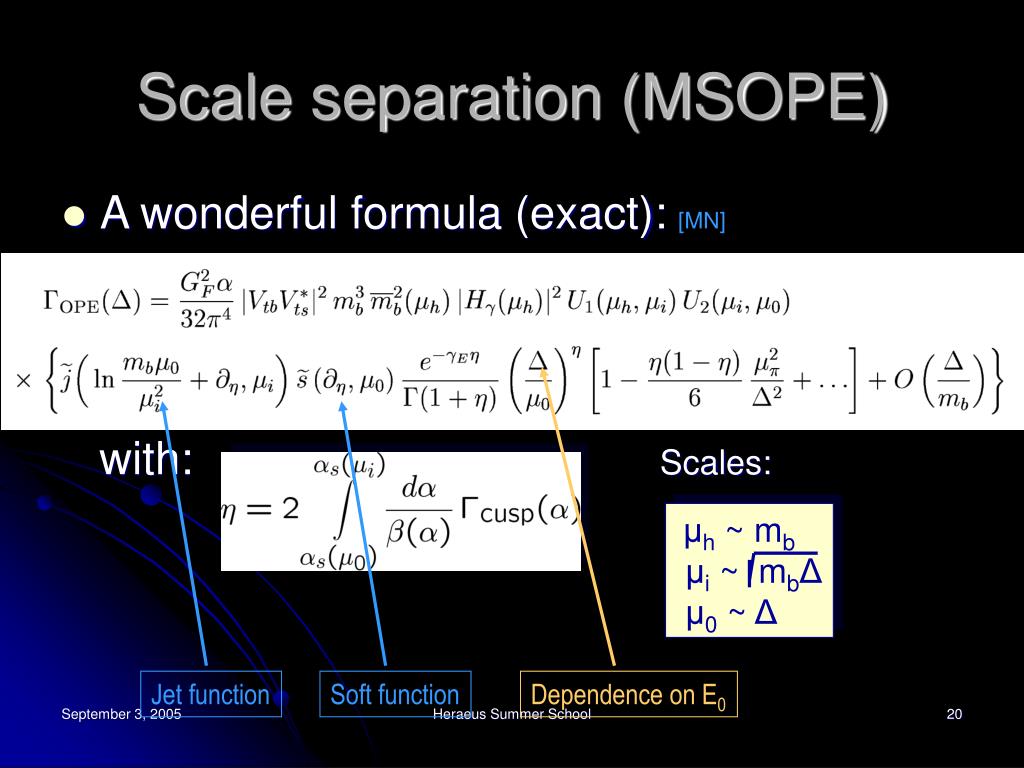

  20. Jet function Soft function Dependence on E0 Scale separation (MSOPE) • A wonderful formula (exact): [MN] with: Scales: μh ~ mb μi ~ mbΔ μ0 ~ Δ Heraeus Summer School

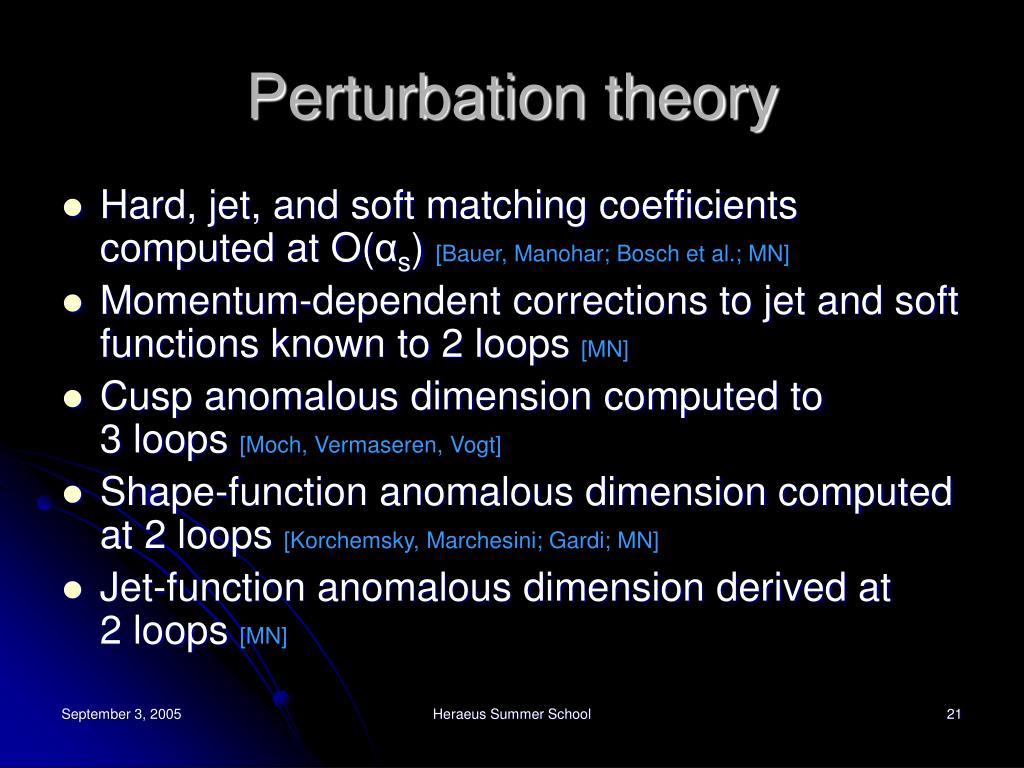

  21. Perturbation theory • Hard, jet, and soft matching coefficients computed at O(αs) [Bauer, Manohar; Bosch et al.; MN] • Momentum-dependent corrections to jet and soft functions known to 2 loops [MN] • Cusp anomalous dimension computed to 3 loops [Moch, Vermaseren, Vogt] • Shape-function anomalous dimension computed at 2 loops [Korchemsky, Marchesini; Gardi; MN] • Jet-function anomalous dimension derived at 2 loops [MN] Heraeus Summer School

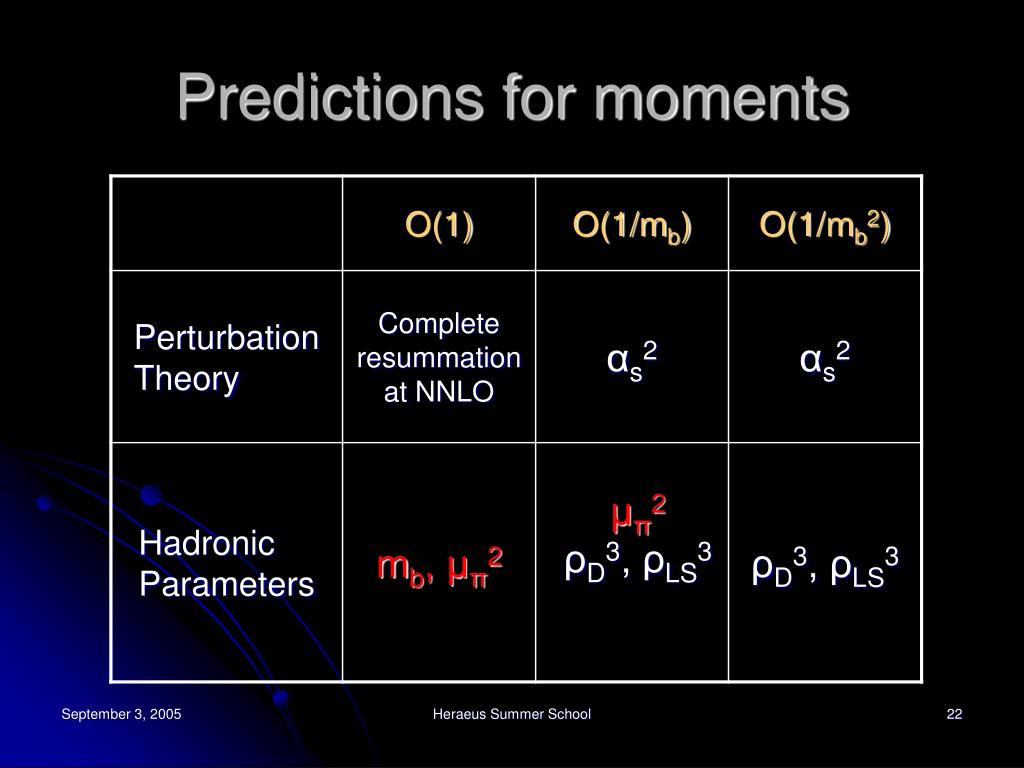

  22. Predictions for moments Heraeus Summer School

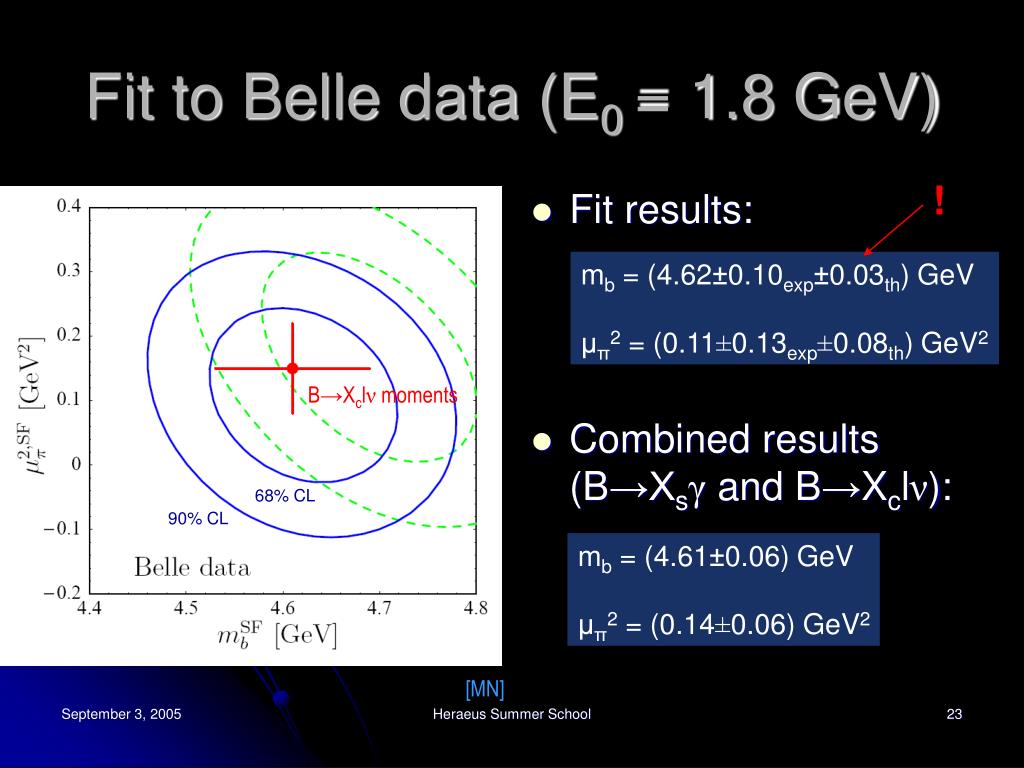

  23. Fit to Belle data (E0= 1.8 GeV) ! • Fit results: • Combined results (B→Xsγ and B→Xclν): mb = (4.62±0.10exp±0.03th) GeV μπ2 = (0.11±0.13exp±0.08th) GeV2 Theory uncertainty B→Xclν moments 68% CL 90% CL mb = (4.61±0.06) GeV μπ2 = (0.14±0.06) GeV2 [MN] Heraeus Summer School

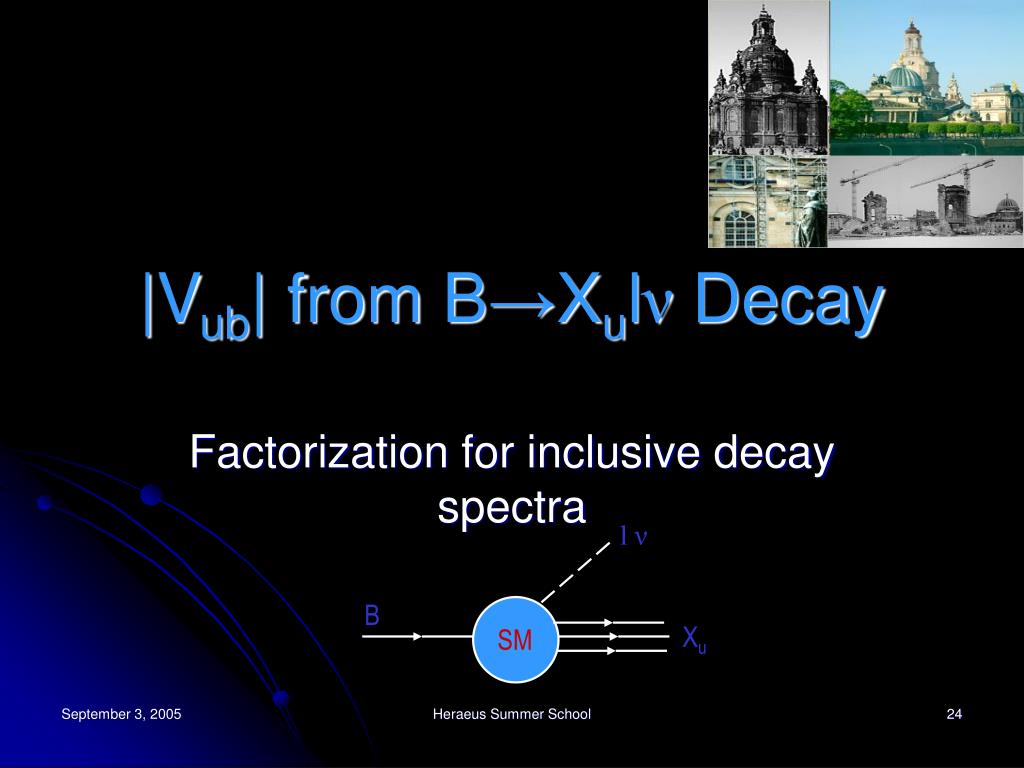

  24. |Vub| from B→Xulν Decay Factorization for inclusive decay spectra l ν B Xu SM Heraeus Summer School

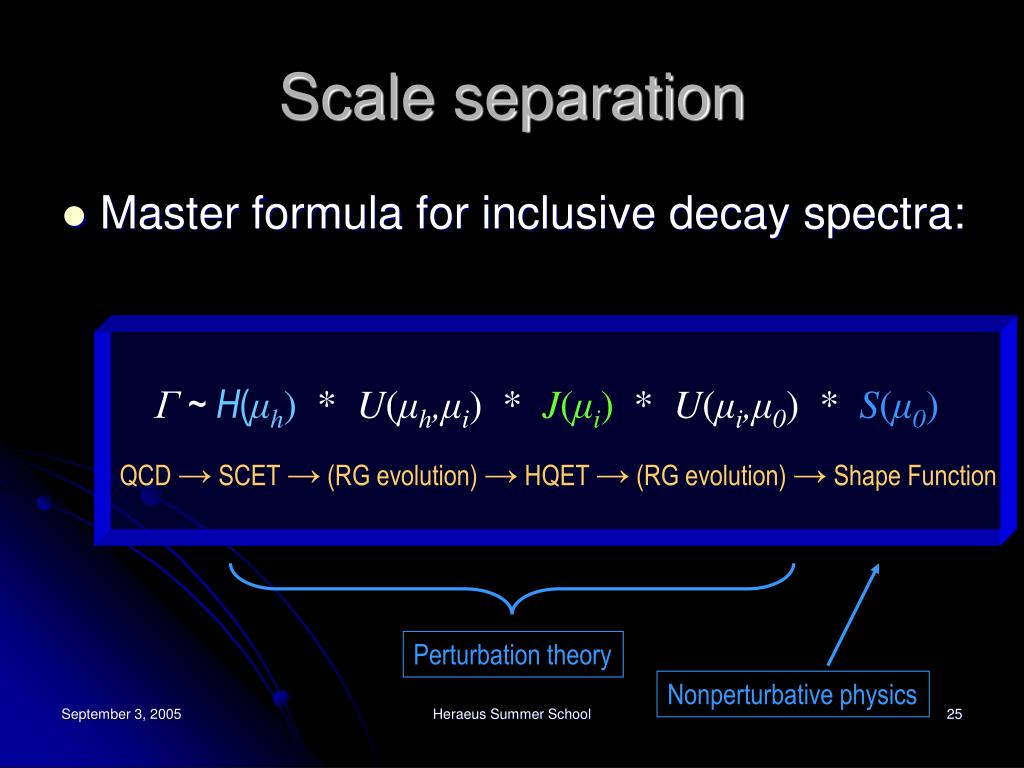

  25. Scale separation • Master formula for inclusive decay spectra: Γ ~ H(μh) * U(μh,μi) * J(μi) * U(μi,μ0) * S(μ0) QCD → SCET → (RG evolution) → HQET → (RG evolution) → Shape Function Perturbation theory Nonperturbative physics Heraeus Summer School

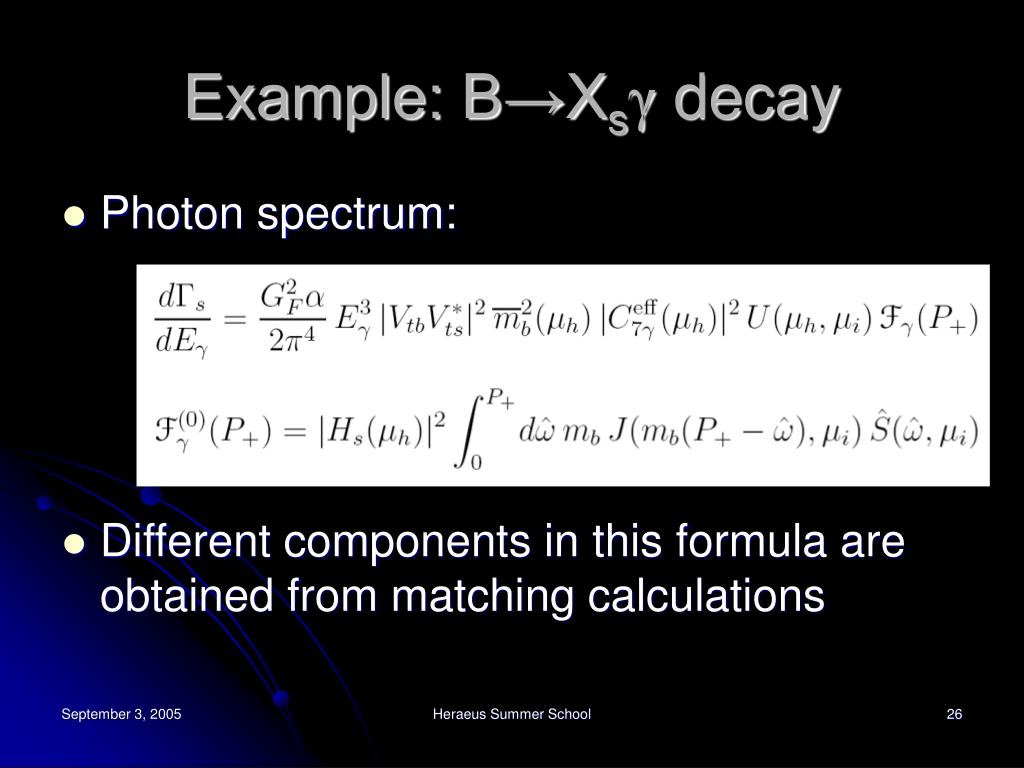

  26. Example: B→Xsγ decay • Photon spectrum: • Different components in this formula are obtained from matching calculations Heraeus Summer School

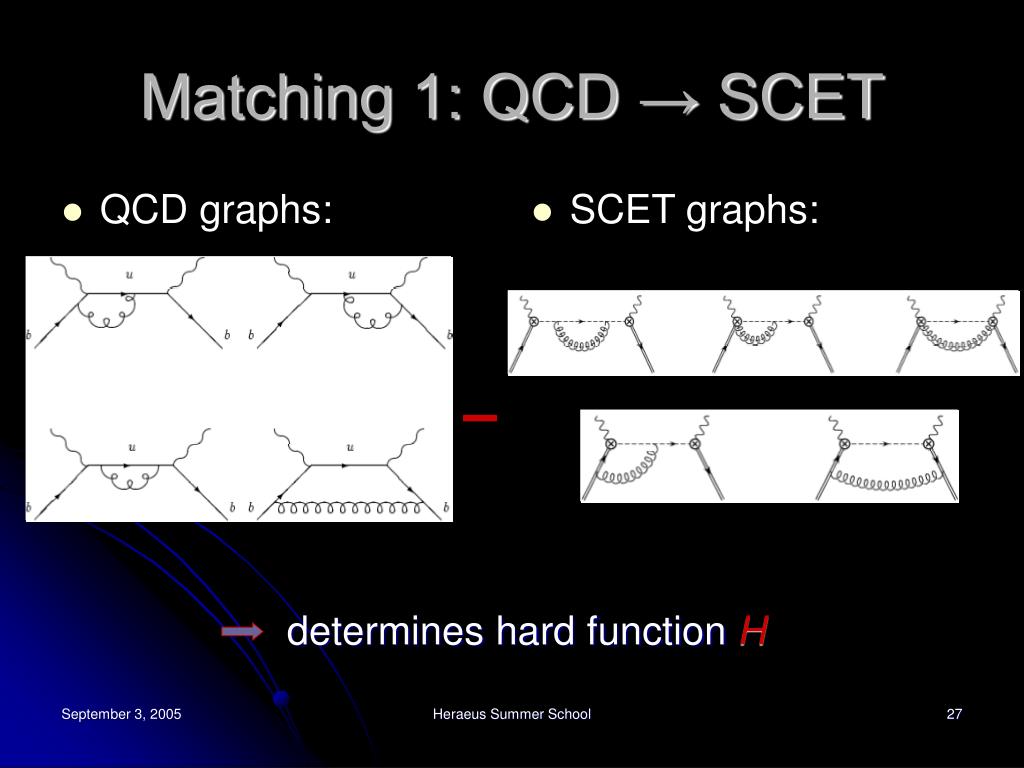

  27. QCD graphs: SCET graphs: Matching 1: QCD → SCET determines hard function H Heraeus Summer School

  28. Matching 1: QCD → SCET • Hard function: Heraeus Summer School

  29. SCET graphs: HQET graphs: Matching 2: SCET → HQET determines jet function J Heraeus Summer School

  30. Nonperturbative input • Shape function of B meson (parton distribution function) can be measured with good precision in B→Xsγ decay • Use result to predict aritrary B→Xulν decay spectra, with arbitrary experimental cuts • Implemented in a generator (“InclusiveBeauty”) • Extraction of |Vub| from a fit to data • Many different strategies • Many cross checks • Conistent results [Lange, MN, Paz] Heraeus Summer School

  31. Inclusive semileptonic decays • Factorization theorem analogous to B→Xsγ • Hadronic phase space most transparent in the variables P= EX ± PX • In practice, Δ = P+ - Λ is always of order ΛQCD for cuts eliminating the charm background Charm background ± OPE region Shape-function region Heraeus Summer School

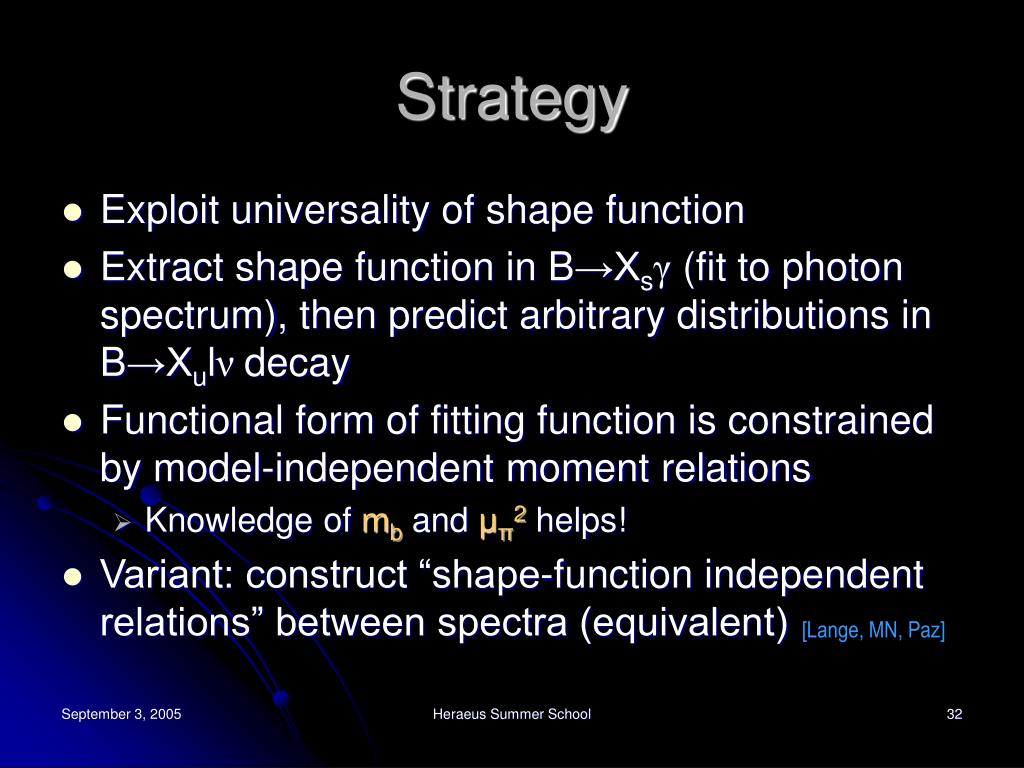

  32. Strategy • Exploit universality of shape function • Extract shape function in B→Xsγ(fit to photon spectrum), then predict arbitrary distributions in B→Xulνdecay • Functional form of fitting function is constrained by model-independent moment relations • Knowledge of mb and μπ2 helps! • Variant: construct “shape-function independent relations” between spectra (equivalent) [Lange, MN, Paz] Heraeus Summer School

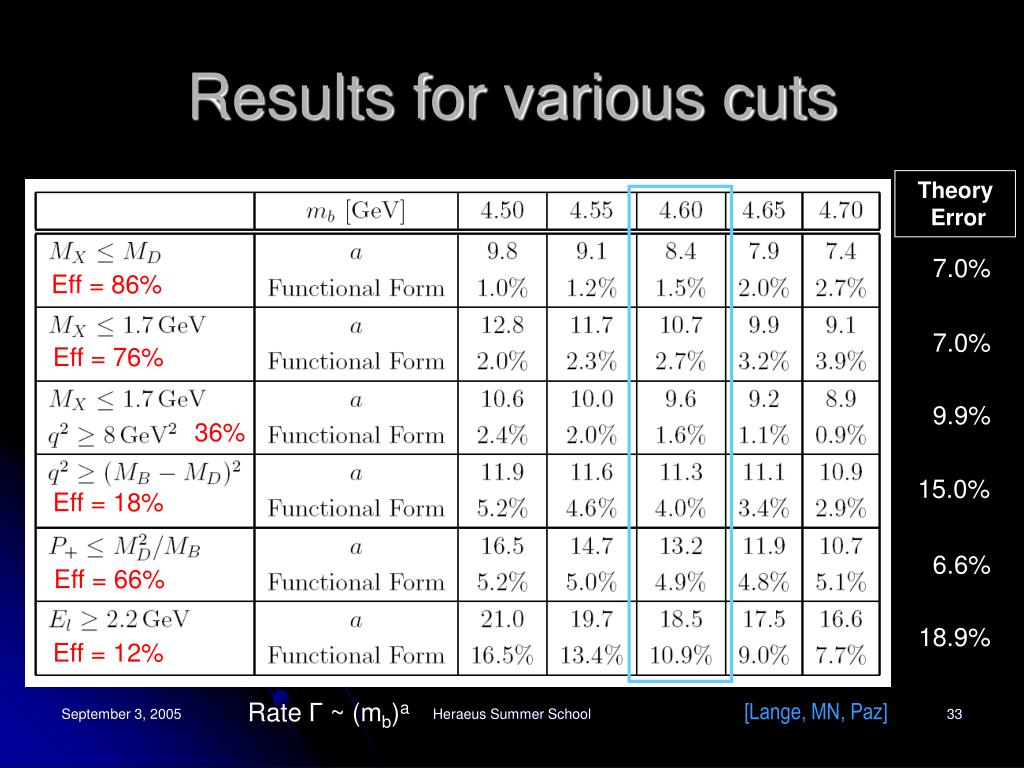

  33. Results for various cuts Theory Error 7.0% Eff = 86% 7.0% Eff = 76% 9.9% 36% 15.0% Eff = 18% 6.6% Eff = 66% 18.9% Eff = 12% Rate Γ ~ (mb)a [Lange, MN, Paz] Heraeus Summer School

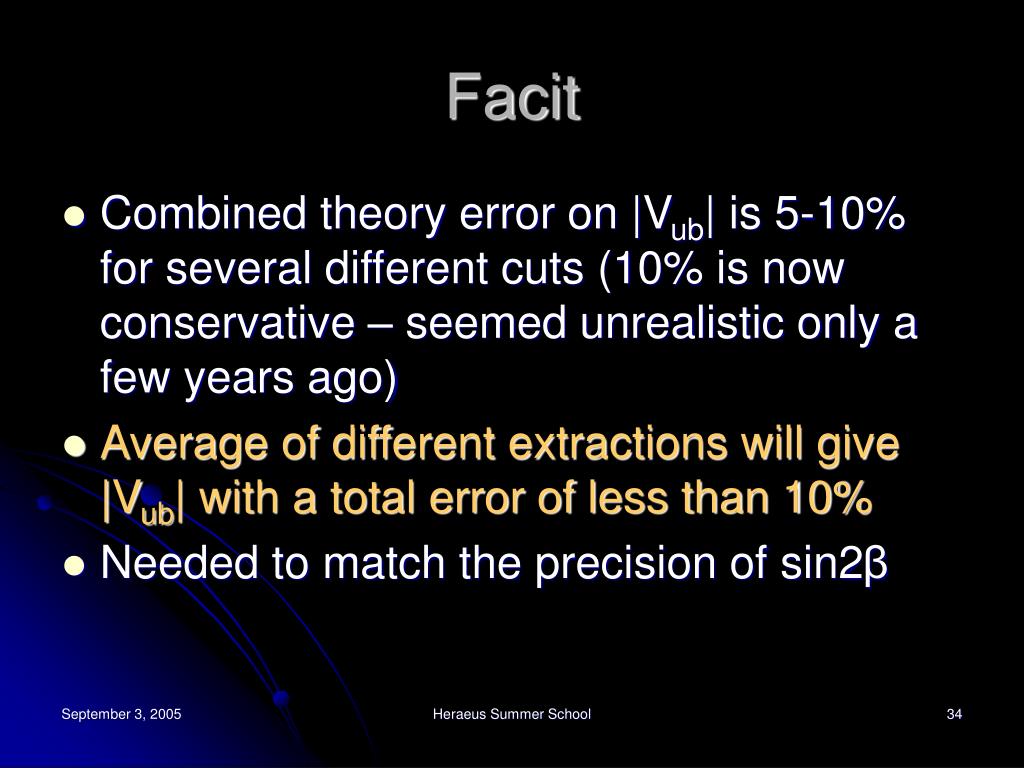

  34. Facit • Combined theory error on |Vub| is 5-10% for several different cuts (10% is now conservative – seemed unrealistic only a few years ago) • Average of different extractions will give |Vub| with a total error of less than 10% • Needed to match the precision of sin2β Heraeus Summer School

  35. Impact of precise |Vub| • Realistic: δ|Vub|: ±7% Heraeus Summer School
