  1. YAFFS: Yet Another Flash File System 2008-01-18 Speaker : Yunjung Yoo

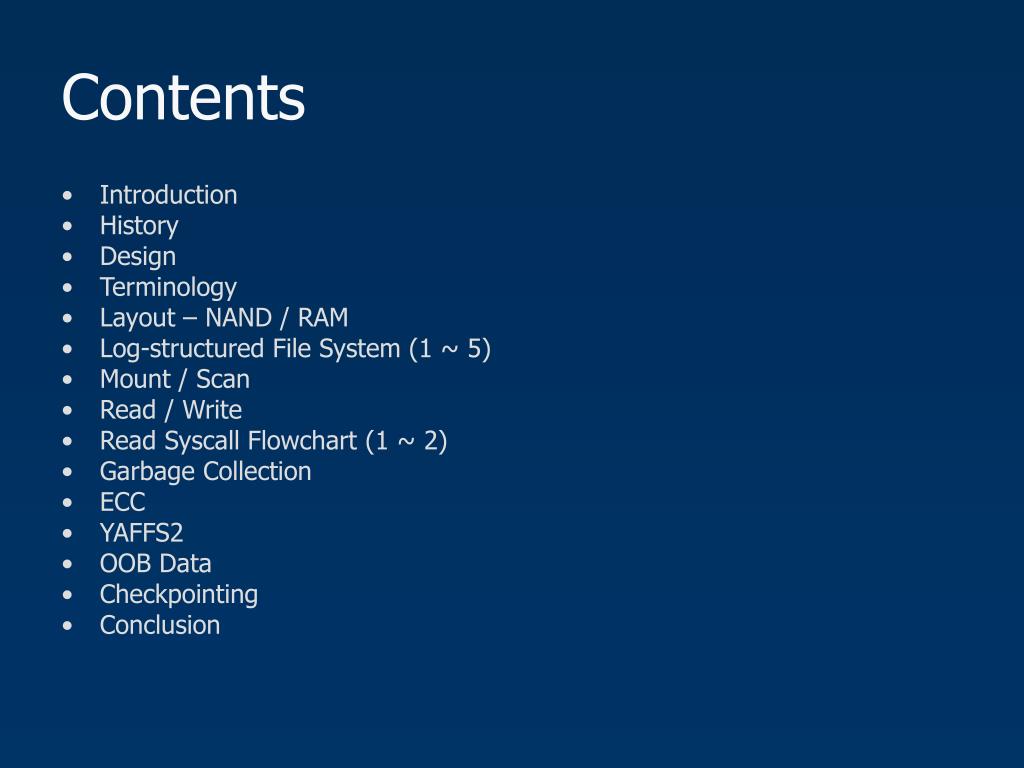

  2. Contents • Introduction • History • Design • Terminology • Layout – NAND / RAM • Log-structured File System (1 ~ 5) • Mount / Scan • Read / Write • Read Syscall Flowchart (1 ~ 2) • Garbage Collection • ECC • YAFFS2 • OOB Data • Checkpointing • Conclusion

  3. Introduction • Charles Manning, Aleph One • The first file system designed for NAND • YAFFS1 : 512 byte pages + 16 byte spare areas • YAFFS2 : 2048 byte pages + 64 byte spare areas • Background • SmartMedia + FAT : low memory footprint / not robust • NOR + JFFS : based on JFS / long boot-time, RAM overhead

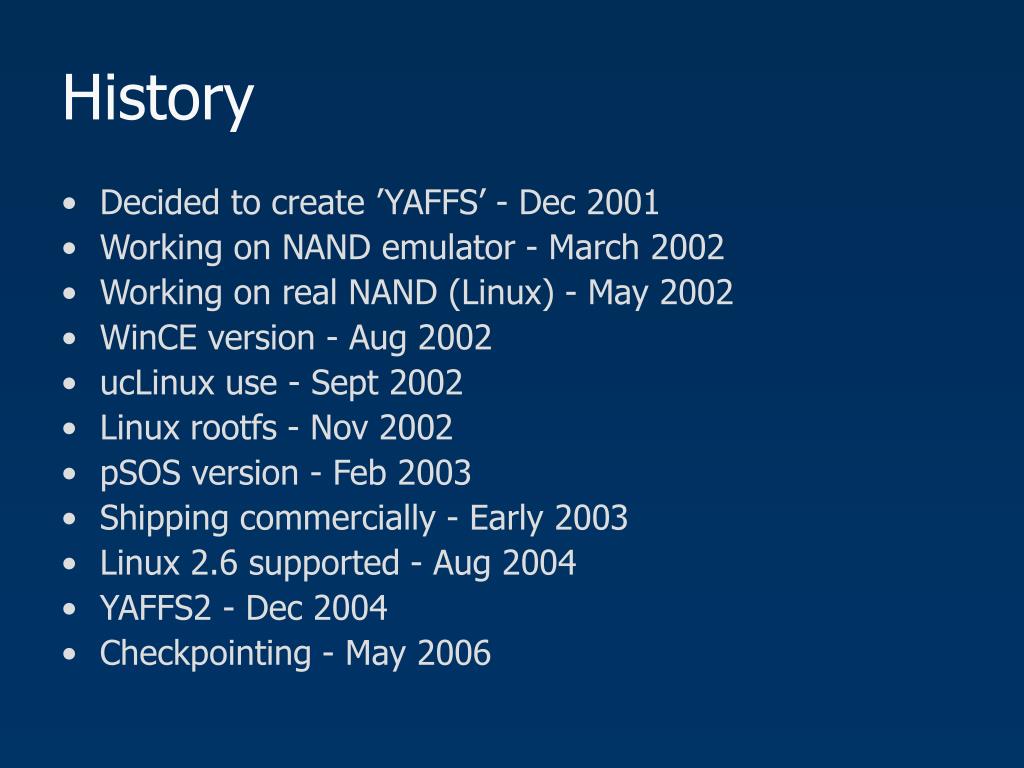

  4. History • Decided to create ’YAFFS’ - Dec 2001 • Working on NAND emulator - March 2002 • Working on real NAND (Linux) - May 2002 • WinCE version - Aug 2002 • ucLinux use - Sept 2002 • Linux rootfs - Nov 2002 • pSOS version - Feb 2003 • Shipping commercially - Early 2003 • Linux 2.6 supported - Aug 2004 • YAFFS2 - Dec 2004 • Checkpointing - May 2006

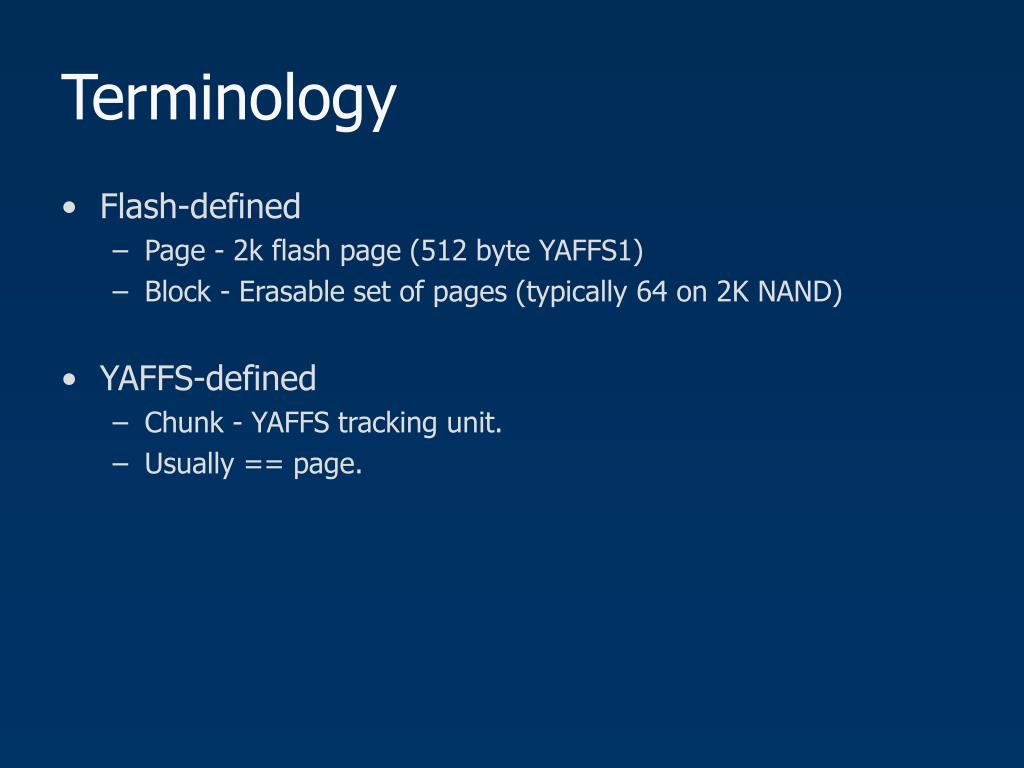

  5. Terminology • Flash-defined • Page - 2k flash page (512 byte YAFFS1) • Block - Erasable set of pages (typically 64 on 2K NAND) • YAFFS-defined • Chunk - YAFFS tracking unit. • Usually == page.

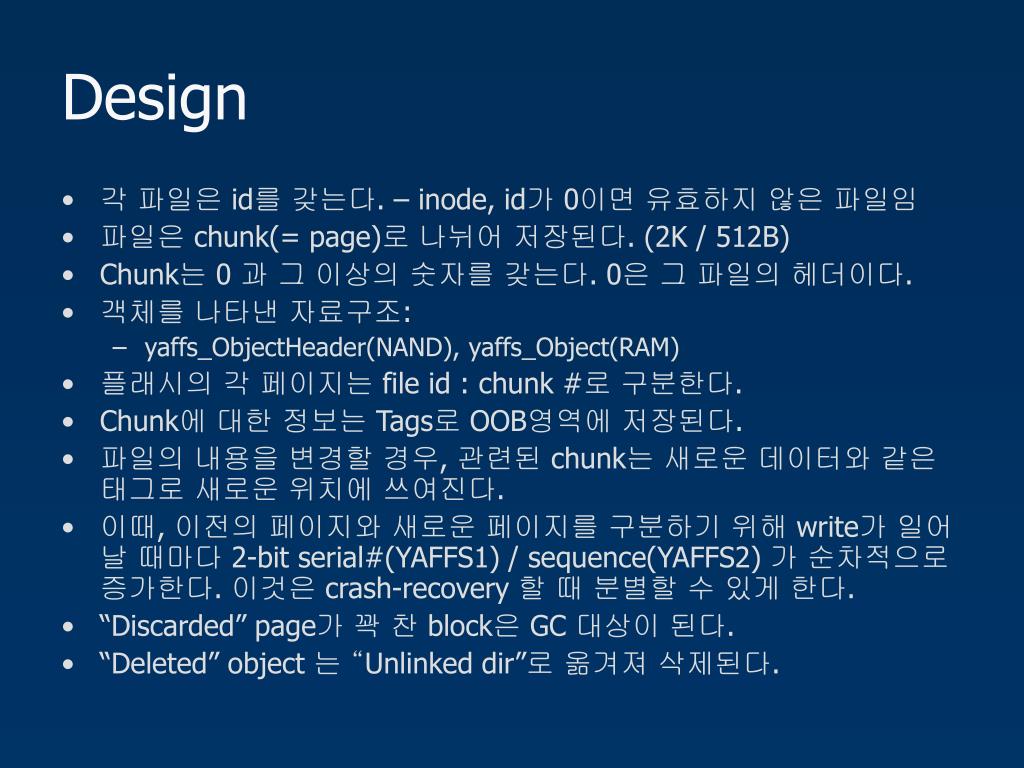

  6. Design • 각 파일은 id를 갖는다. – inode, id가 0이면 유효하지 않은 파일임 • 파일은 chunk(= page)로 나뉘어 저장된다. (2K / 512B) • Chunk는 0 과 그 이상의 숫자를 갖는다. 0은 그 파일의 헤더이다. • 객체를 나타낸 자료구조: • yaffs_ObjectHeader(NAND), yaffs_Object(RAM) • 플래시의 각 페이지는 file id : chunk #로 구분한다. • Chunk에 대한 정보는 Tags로 OOB영역에 저장된다. • 파일의 내용을 변경할 경우, 관련된 chunk는 새로운 데이터와 같은 태그로 새로운 위치에 쓰여진다. • 이때, 이전의 페이지와 새로운 페이지를 구분하기 위해 write가 일어날 때마다 2-bit serial#(YAFFS1) / sequence(YAFFS2) 가 순차적으로 증가한다. 이것은 crash-recovery 할 때 분별할 수 있게 한다. • “Discarded” page가 꽉 찬 block은 GC 대상이 된다. • “Deleted” object 는 “Unlinked dir”로 옮겨져 삭제된다.

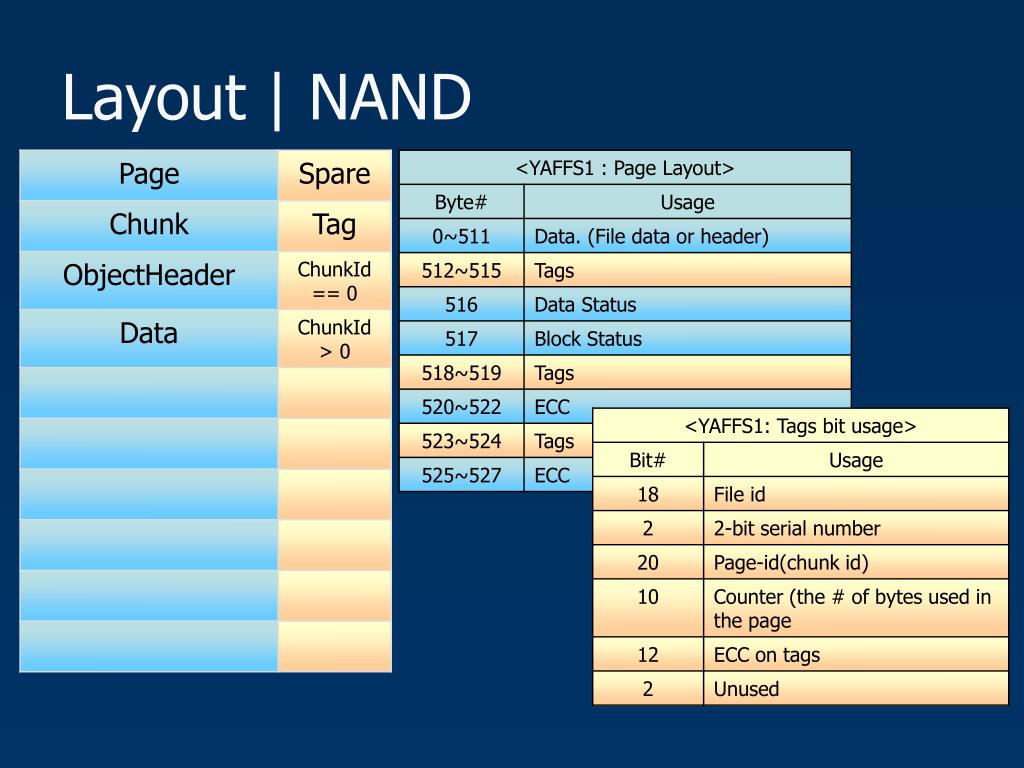

  7. Layout | NAND

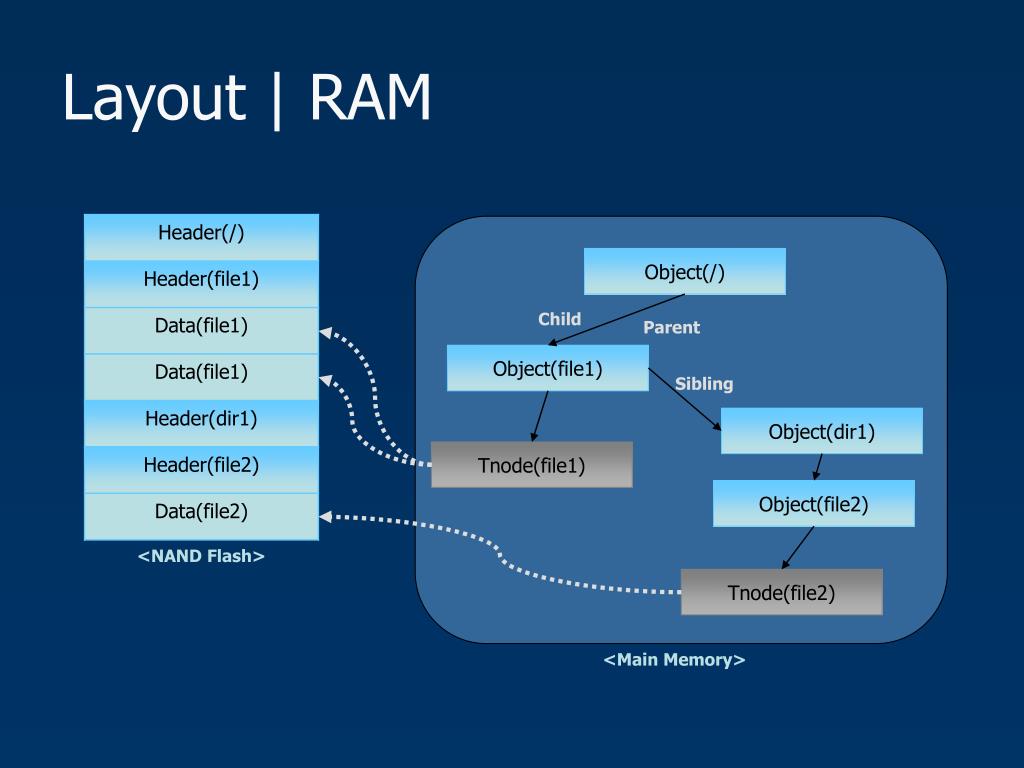

  8. Layout | RAM Object(/) Child Parent Object(file1) Sibling Object(dir1) Tnode(file1) Object(file2) Tnode(file2) <Main Memory>

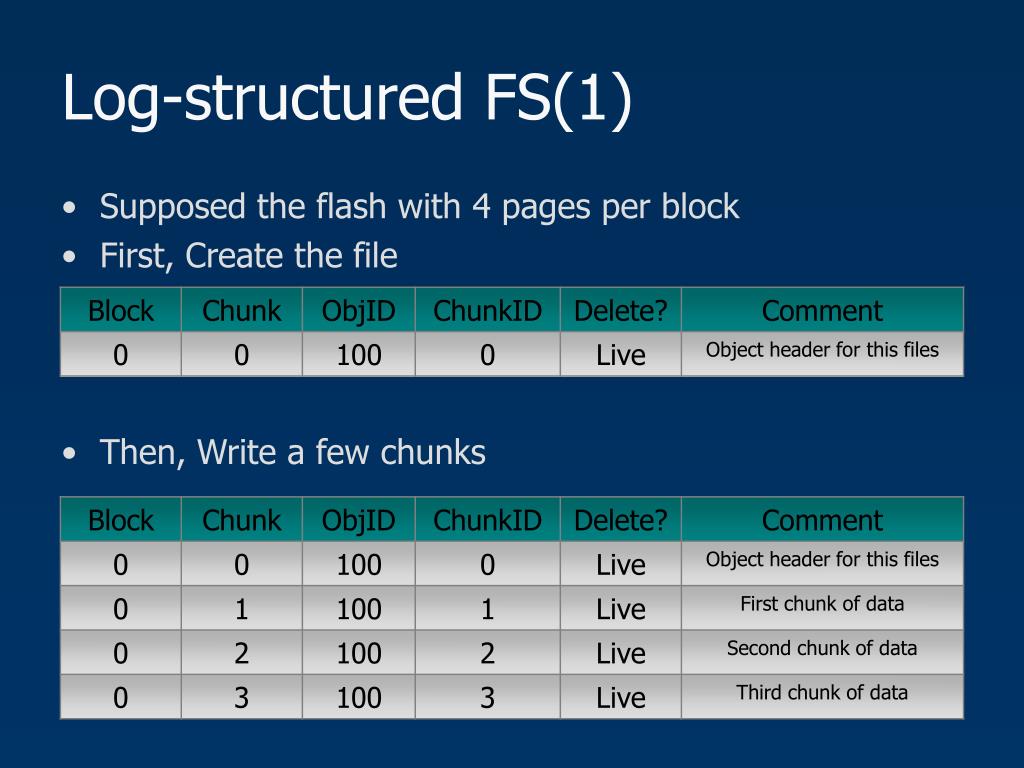

  9. Log-structured FS(1) • Supposed the flash with 4 pages per block • First, Create the file • Then, Write a few chunks

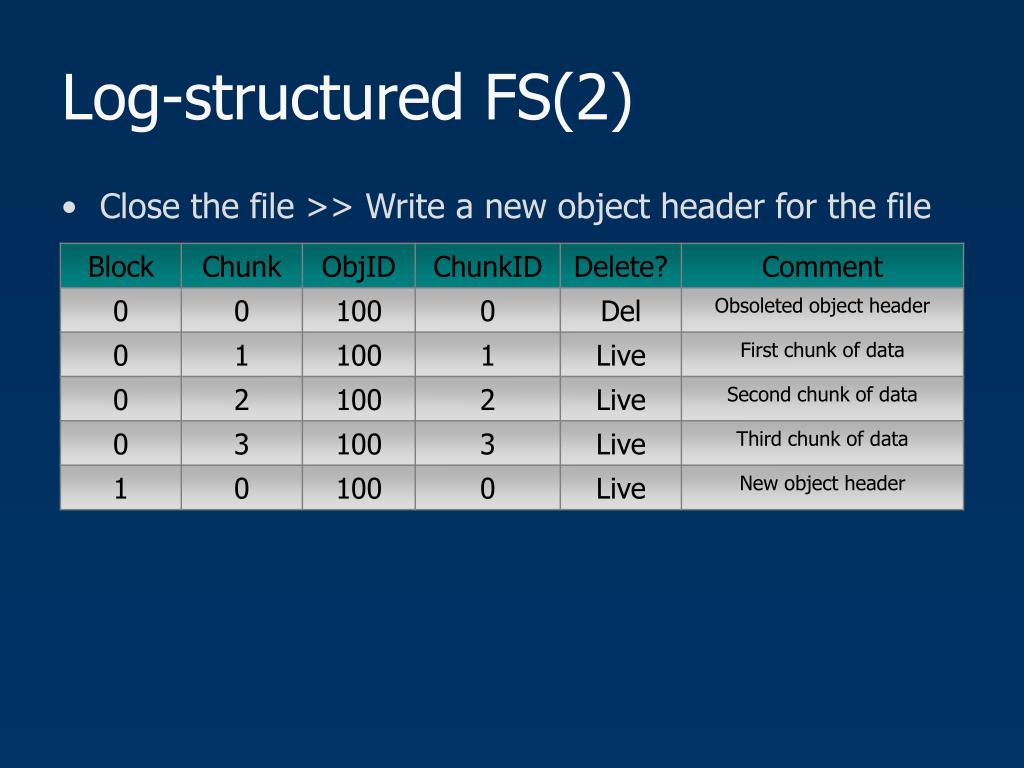

  10. Log-structured FS(2) • Close the file >> Write a new object header for the file

  11. Log-structured FS(3) • Open the file for read/write and overwrite part of the first chunk in the file and close the file. The replaced data and object header chunks become deleted.

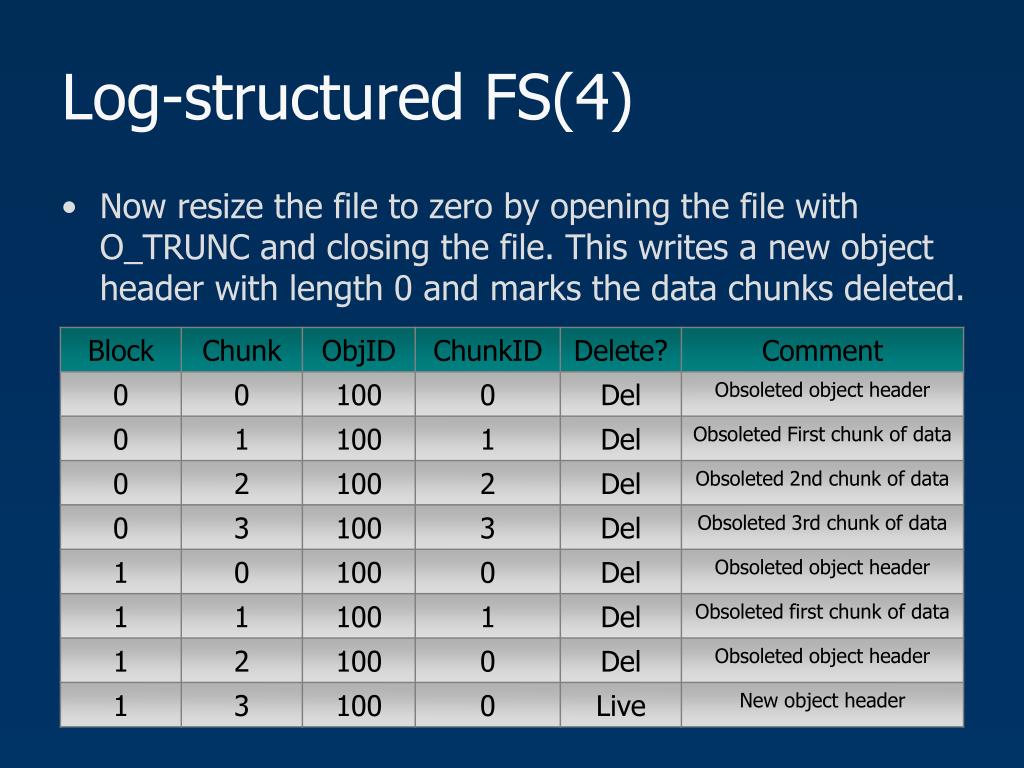

  12. Log-structured FS(4) • Now resize the file to zero by opening the file with O_TRUNC and closing the file. This writes a new object header with length 0 and marks the data chunks deleted.

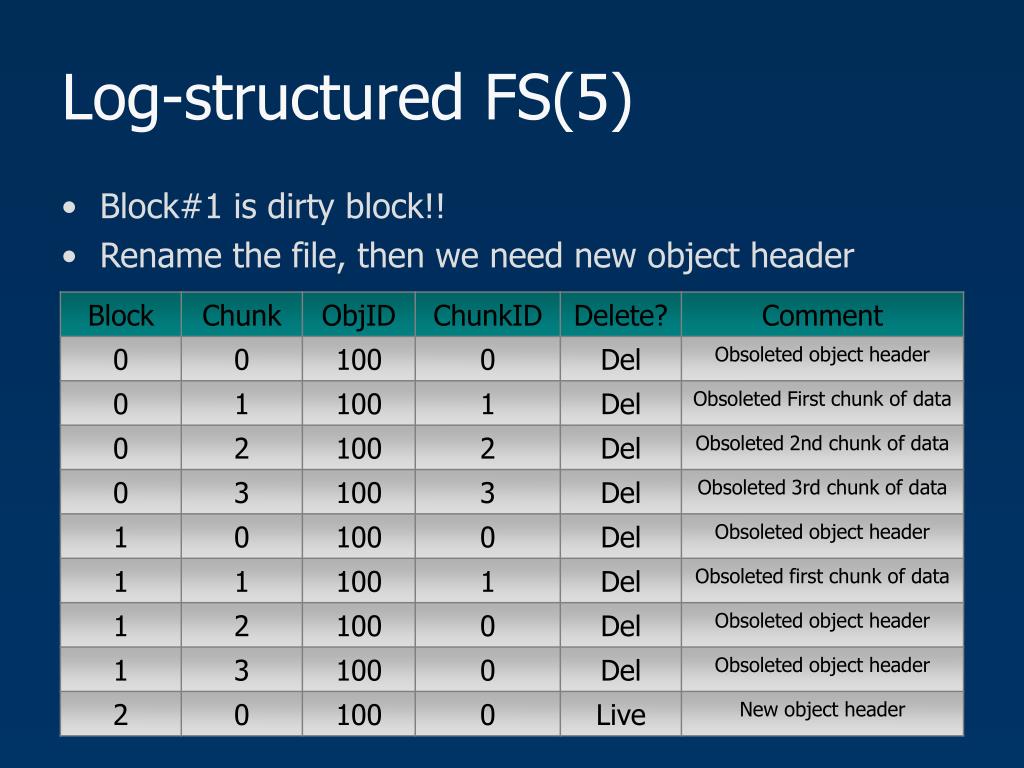

  13. Log-structured FS(5) • Block#1 is dirty block!! • Rename the file, then we need new object header

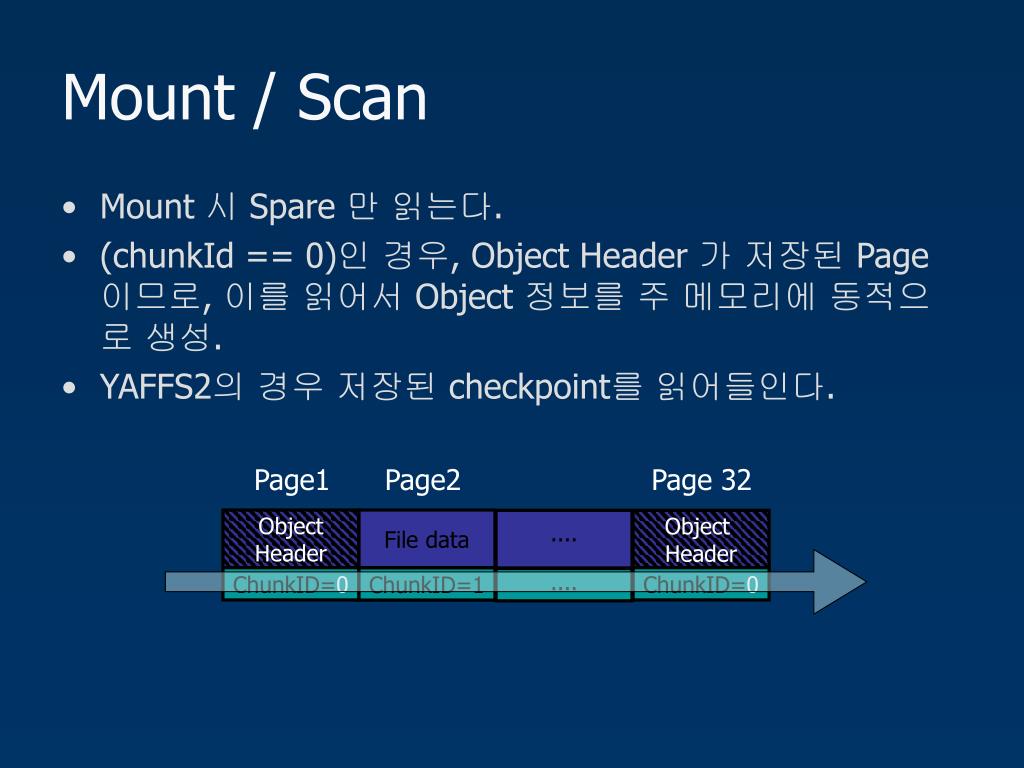

  14. Page1 Page2 Page 32 Object Header File data .... Object Header ChunkID=0 ChunkID=0 ChunkID=1 .... Mount / Scan • Mount 시 Spare 만 읽는다. • (chunkId == 0)인 경우, Object Header 가 저장된 Page 이므로, 이를 읽어서 Object 정보를 주 메모리에 동적으로 생성. • YAFFS2의 경우 저장된 checkpoint를 읽어들인다.

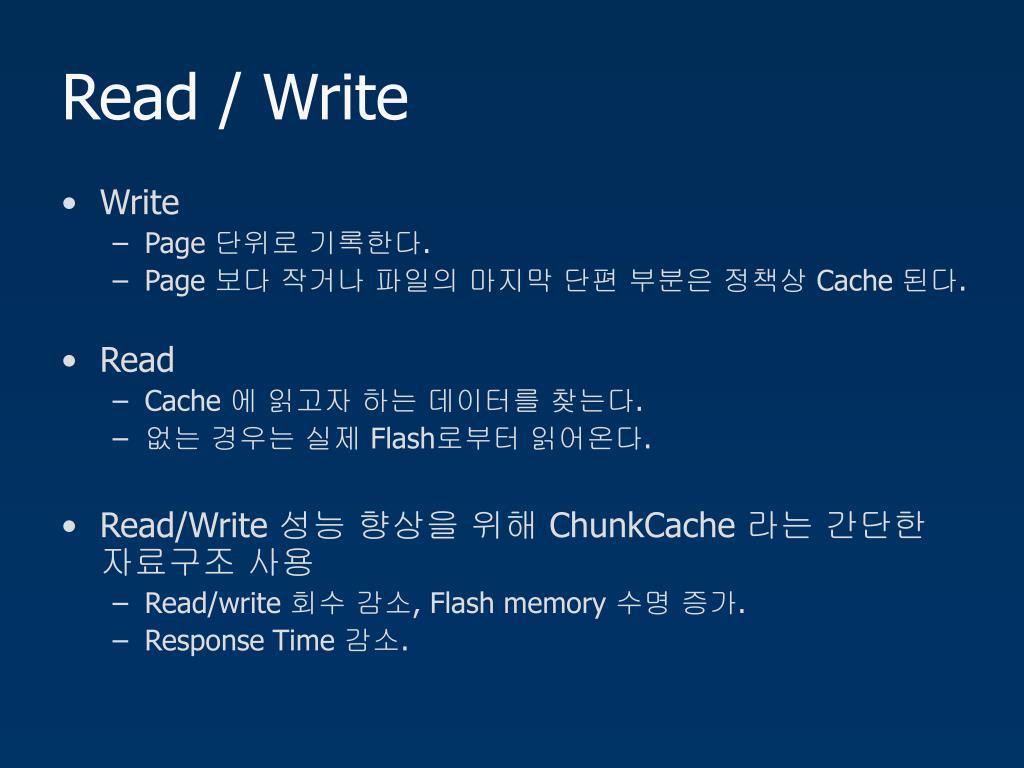

  15. Read / Write • Write • Page 단위로 기록한다. • Page 보다 작거나 파일의 마지막 단편 부분은 정책상 Cache 된다. • Read • Cache 에 읽고자 하는 데이터를 찾는다. • 없는 경우는 실제 Flash로부터 읽어온다. • Read/Write 성능 향상을 위해 ChunkCache 라는 간단한 자료구조 사용 • Read/write 회수 감소, Flash memory 수명 증가. • Response Time 감소.

  16. Read Syscall Flowchart(1) System Call handling Layer sys_read generic_file_read 페이지 캐시를 사용하는가? yes no VFS Layer generic_file_directIO do_generic_file_read 페이지 캐시 해시테이블에 요청된 페이지가 존재하는가? no yes file_read_actor yaffs_readpage 캐시의 내용을 사용자 영역에 복사 File System Specific Layer

  17. Read Syscall Flowchart(2) yaffs_readpage VFS Interface Layer yaffs_readpage_unlock yaffs_readpage_nolock yaffs_ReadDataFromFile Core Layer yaffs_ReadChunkDataFromObject yaffs_ReadChunkWithTagsFromNAND MTD Interface Layer nandmtd2_ReadChunkWithTagsFromNAND

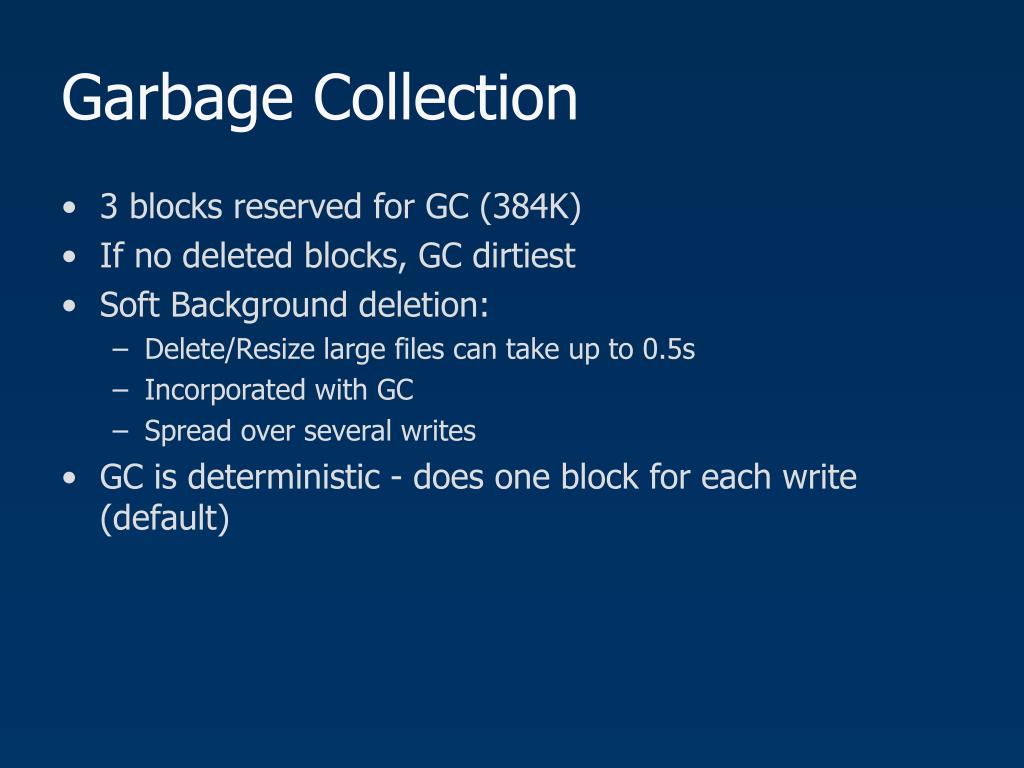

  18. Garbage Collection • 3 blocks reserved for GC (384K) • If no deleted blocks, GC dirtiest • Soft Background deletion: • Delete/Resize large files can take up to 0.5s • Incorporated with GC • Spread over several writes • GC is deterministic - does one block for each write (default)

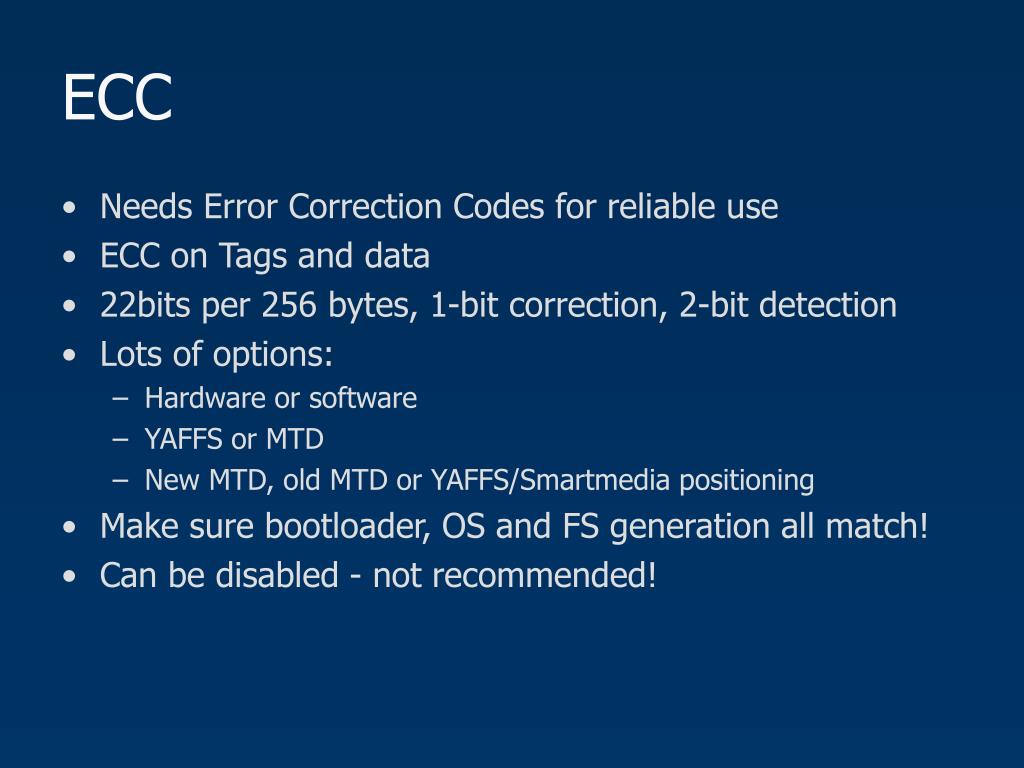

  19. ECC • Needs Error Correction Codes for reliable use • ECC on Tags and data • 22bits per 256 bytes, 1-bit correction, 2-bit detection • Lots of options: • Hardware or software • YAFFS or MTD • New MTD, old MTD or YAFFS/Smartmedia positioning • Make sure bootloader, OS and FS generation all match! • Can be disabled - not recommended!

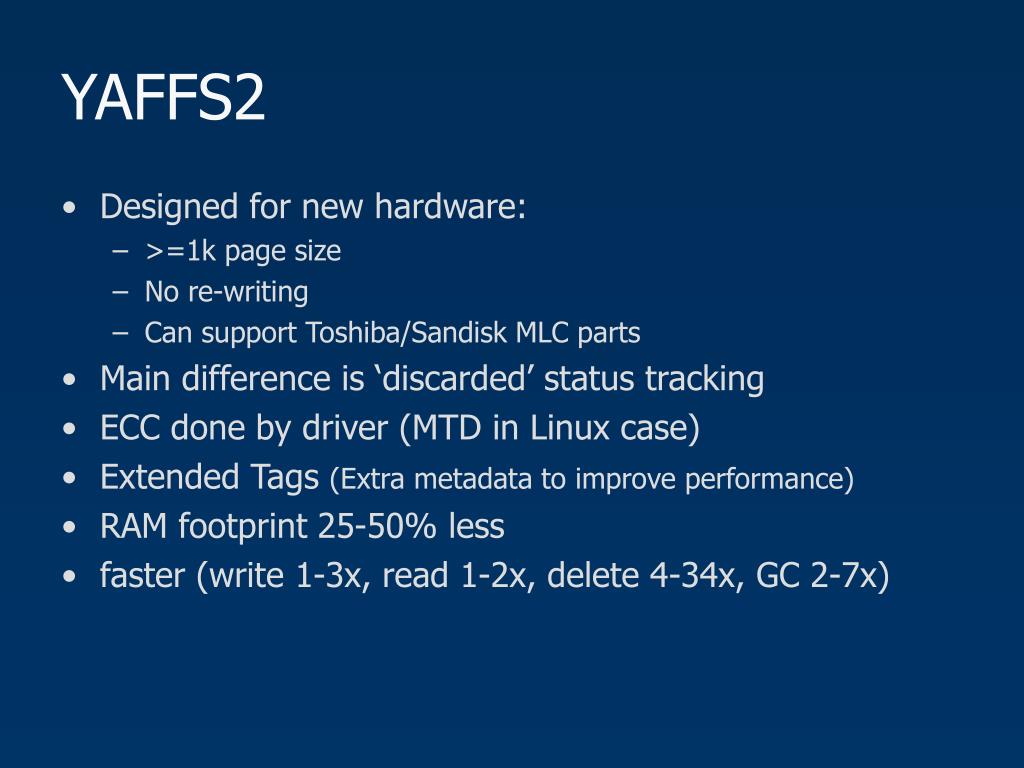

  20. YAFFS2 • Designed for new hardware: • >=1k page size • No re-writing • Can support Toshiba/Sandisk MLC parts • Main difference is ‘discarded’ status tracking • ECC done by driver (MTD in Linux case) • Extended Tags (Extra metadata to improve performance) • RAM footprint 25-50% less • faster (write 1-3x, read 1-2x, delete 4-34x, GC 2-7x)

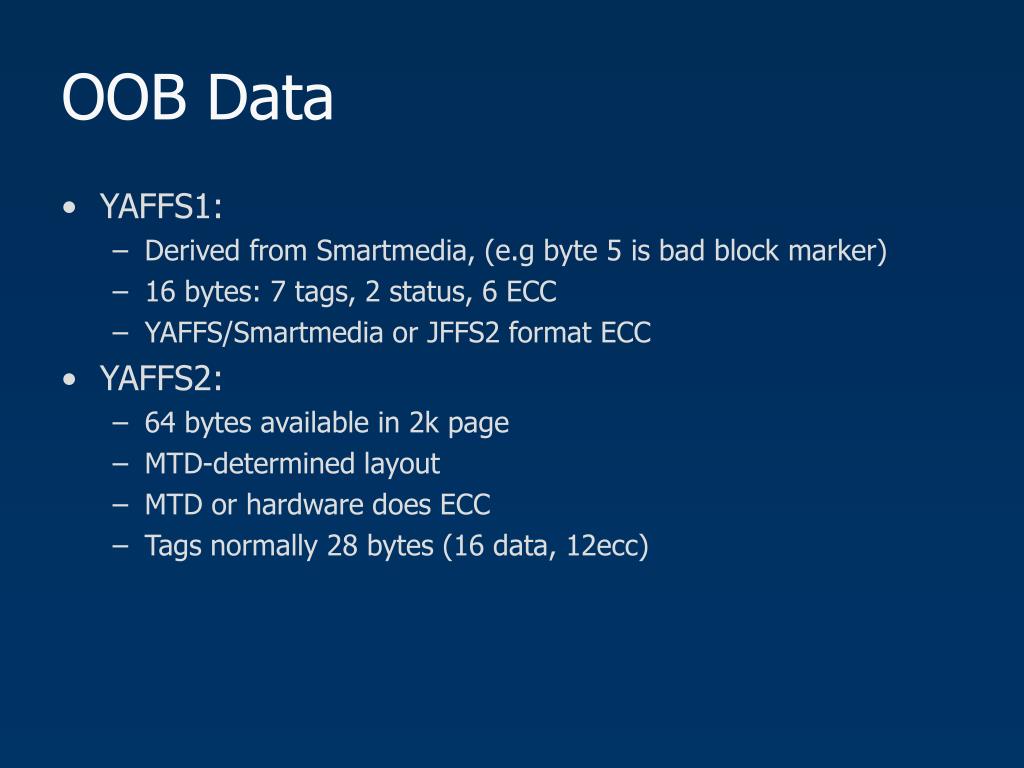

  21. OOB Data • YAFFS1: • Derived from Smartmedia, (e.g byte 5 is bad block marker) • 16 bytes: 7 tags, 2 status, 6 ECC • YAFFS/Smartmedia or JFFS2 format ECC • YAFFS2: • 64 bytes available in 2k page • MTD-determined layout • MTD or hardware does ECC • Tags normally 28 bytes (16 data, 12ecc)

  22. Checkpointing • RAM structures saved on flash at unmount (10 blocks) • Structures re-read, avoiding boot scan • Invalidated by any write • Lazy Loading also reduces mount time.

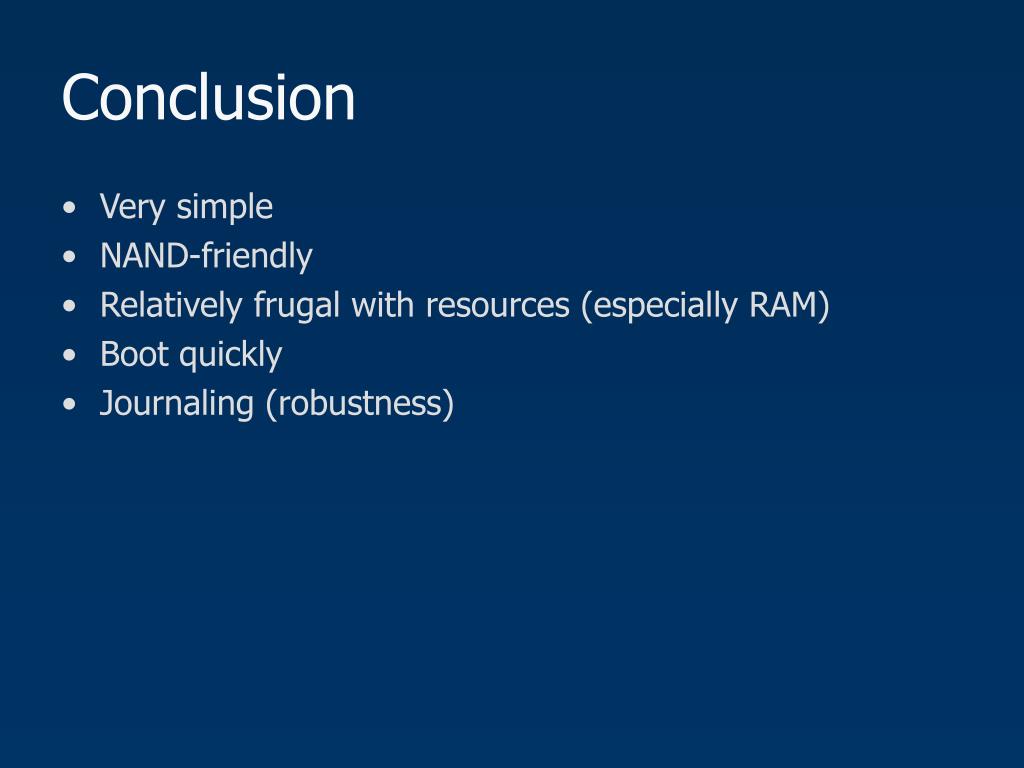

  23. Conclusion • Very simple • NAND-friendly • Relatively frugal with resources (especially RAM) • Boot quickly • Journaling (robustness)
