Spectrum and couplings of SO(5) x U(1) gauge-Higgs unification model in warped spacetime

Spectrum and couplings of SO(5) x U(1) gauge-Higgs unification model in warped spacetime. B-L. Yutaka Sakamura (Osaka Univ.) with Yutaka Hosotani (Osaka Univ.) Phys.Lett.B645 (2007) 442 March 2, 2007@KEK. Introduction. Structure of EW ： unspecified yet Standard Higgs mechanism

csilla
Télécharger la présentation

Spectrum and couplings of SO(5) x U(1) gauge-Higgs unification model in warped spacetime

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

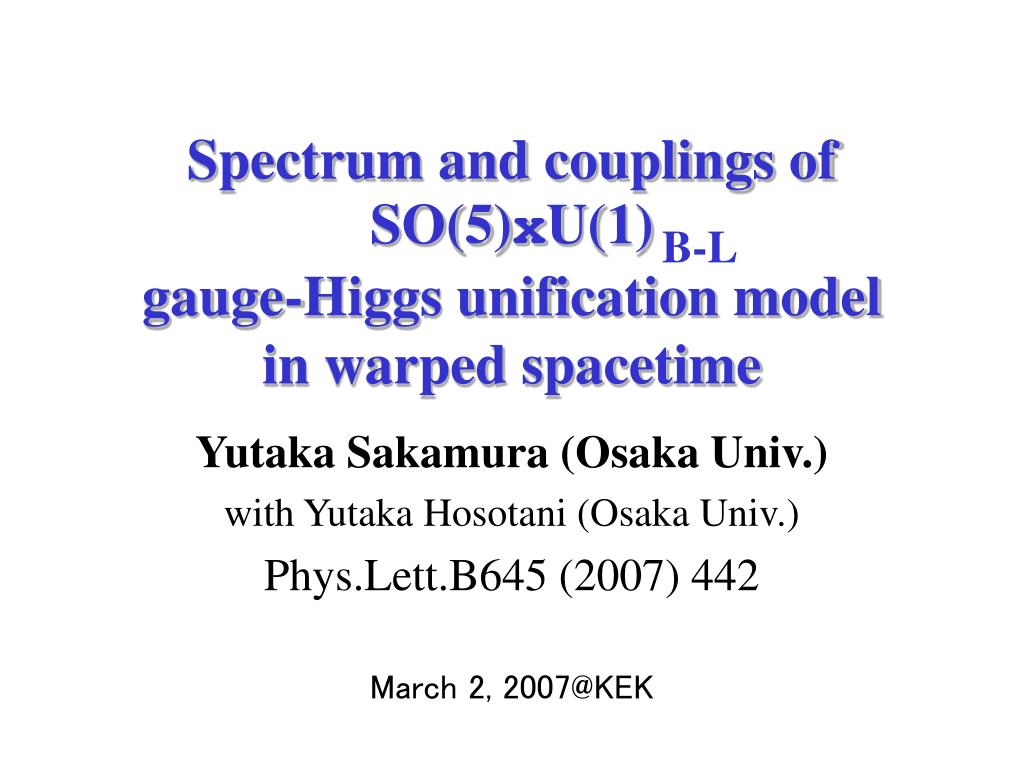

  1. Spectrum and couplings of SO(5)xU(1) gauge-Higgs unification model in warped spacetime B-L Yutaka Sakamura (Osaka Univ.) with Yutaka Hosotani (Osaka Univ.) Phys.Lett.B645 (2007) 442 March 2, 2007@KEK

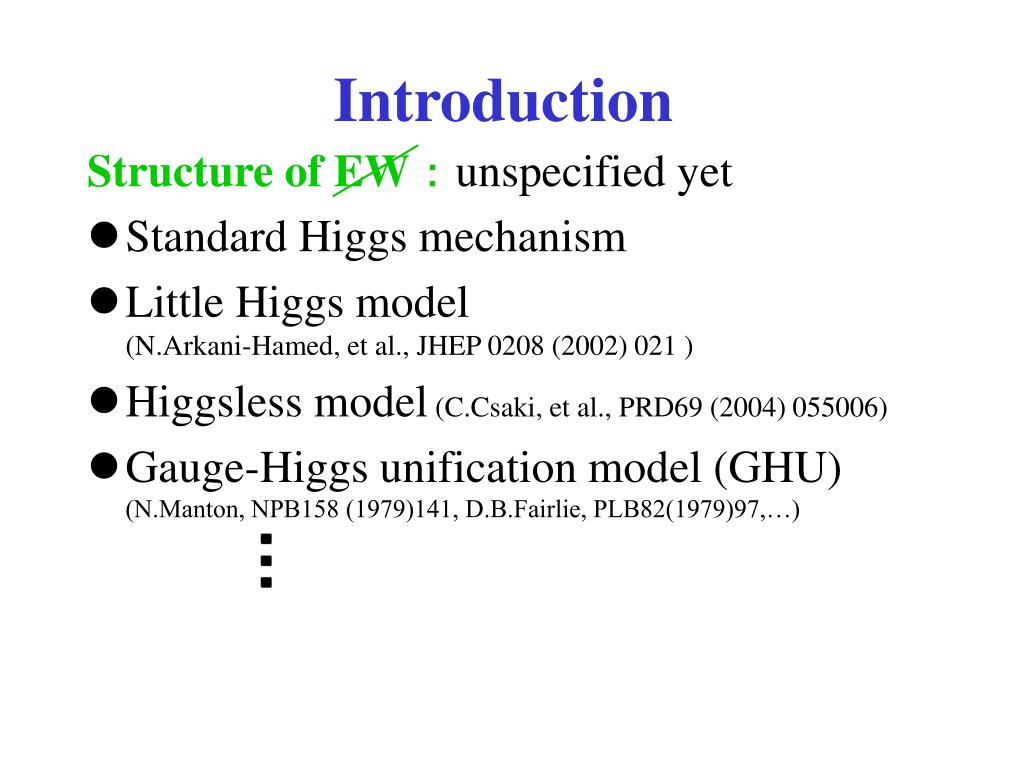

  2. Introduction Structure of EW：unspecified yet • Standard Higgs mechanism • Little Higgs model (N.Arkani-Hamed, et al., JHEP 0208 (2002) 021 ) • Higgsless model (C.Csaki, et al., PRD69 (2004) 055006) • Gauge-Higgs unification model (GHU)(N.Manton, NPB158 (1979)141, D.B.Fairlie, PLB82(1979)97,…)

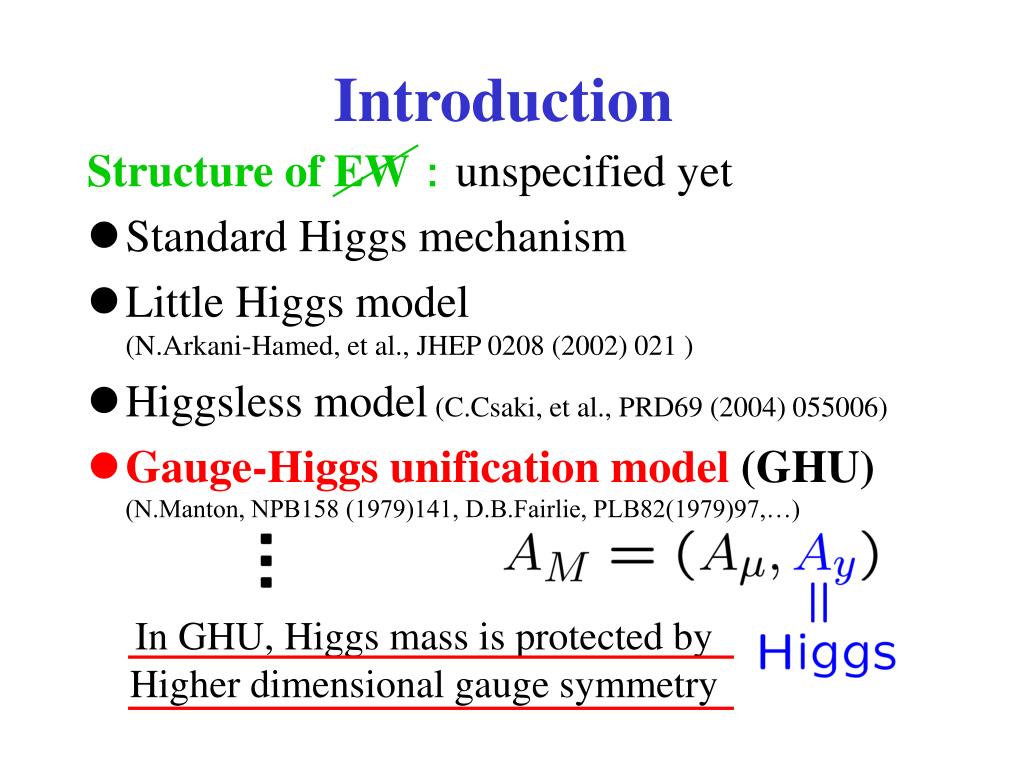

  3. Introduction Structure of EW：unspecified yet • Standard Higgs mechanism • Little Higgs model (N.Arkani-Hamed, et al., JHEP 0208 (2002) 021 ) • Higgsless model (C.Csaki, et al., PRD69 (2004) 055006) • Gauge-Higgs unification model (GHU)(N.Manton, NPB158 (1979)141, D.B.Fairlie, PLB82(1979)97,…) In GHU, Higgs mass is protected by Higher dimensional gauge symmetry

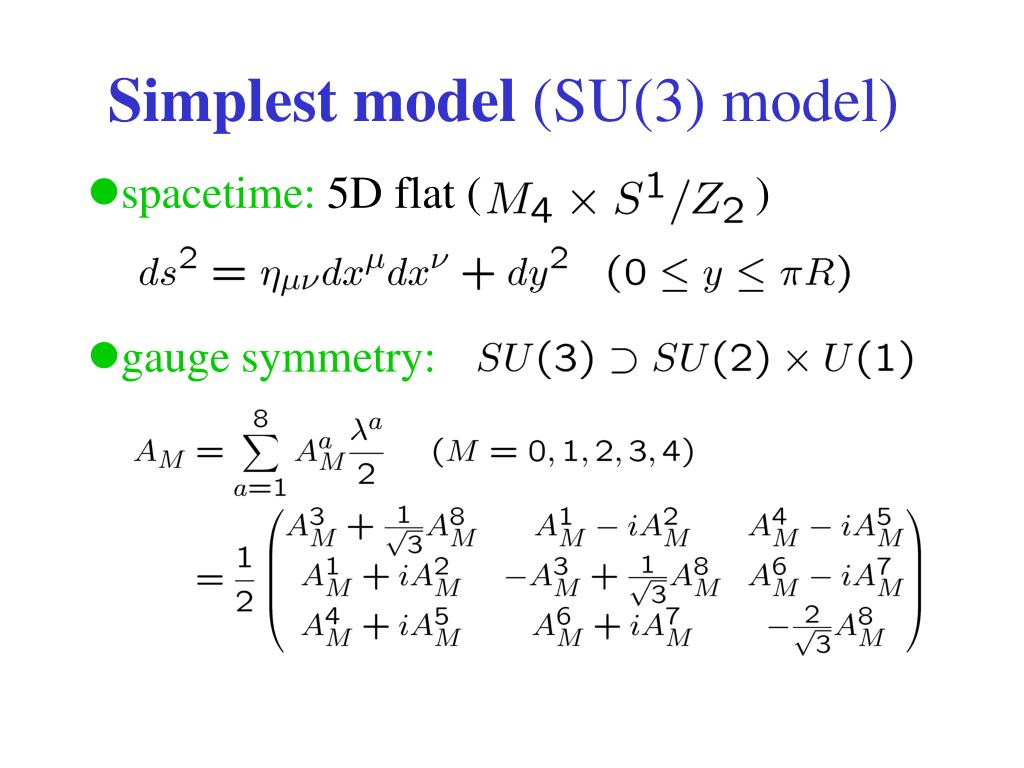

  4. Simplest model (SU(3) model) • spacetime: 5D flat ( ) • gauge symmetry:

  5. 2 Z -Orbifold Parity Orbifold conditions:

  6. Higgs doublet

  7. Higgs doublet

  8. Higgs doublet • (gauge-invariant) Wilson line phase determined by quantum effect

  9. Relations among mass scales

  10. Warped spacetime Randall, Sundrum, PRL83 (1999) 3370

  11. Relations among mass scales (warped case) (Hosotani, Mabe, PLB615 (2005) 257)

  12. Problem of SU(3) model • Wrong value of the Weinberg angle • Rho parameter deviates from one.

  13. Problem of SU(3) model • Wrong value of the Weinberg angle • Rho parameter deviates from one.

  14. Problem of SU(3) model • Wrong value of the Weinberg angle • Rho parameter deviates from one.

  15. SO(5)xU(1) model B-L Agashe,Contino,Pomarol, NPB719(2005)165 Gauge fields:

  16. 5D action

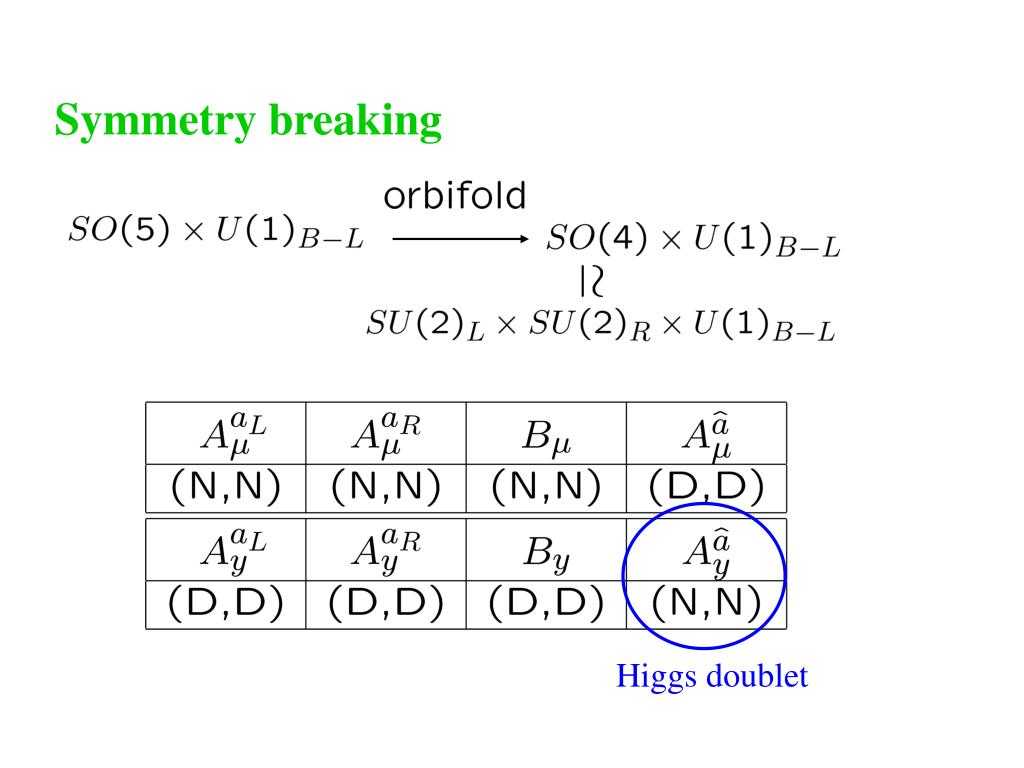

  17. Symmetry breaking

  18. Symmetry breaking Higgs doublet

  19. Symmetry breaking

  20. Higgs doublet: By using residual symemtry, Wilson line phase:

  21. Mass spectrum W boson: Z boson:

  22. Weak gauge boson masses

  23. Gauge couplings Weinberg angle Rho parameter

  24. WWZ Coupling SM value

  25. WWH, ZZH couplings

  26. Summary B-L SO(5)xU(1) model in warped spacetime

  27. Future work • Specify the fermionic sector. • Include the quantum effects. • Determine the value of dynamically.
