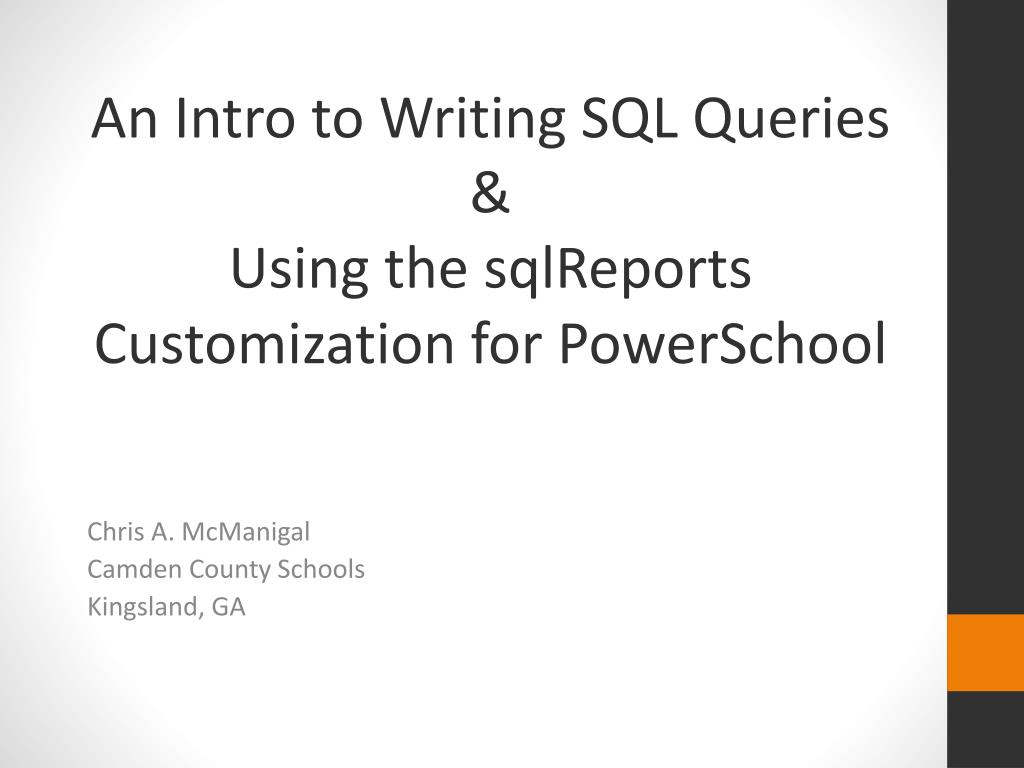

  1. An Intro to Writing SQL Queries & Using the sqlReports Customization for PowerSchool Chris A. McManigal Camden County Schools Kingsland, GA

  2. GaETC App

  3. Session Evaluation

  4. Vendors • Please make sure to visit the Vendors Room in Kenyan ½ • Vendors will be here all day Tuesday

  5. Overview • Basic database architecture • SQL Query Tools • SQL definitions and structure • SQL functions • What are sqlReports? • Downloading/Installing sqlReports • Creating an sqlReport • Importing/Exporting sqlReports • Q & A

  6. Database architecture

  7. Database table FIELDS (COLUMNS) RECORDS (ROWS)

  8. PowerSchool Tables/Guides • Data dictionary contains all tables and fields within each table (Data Dictionary Tables for PowerSchool 7.x) • Custom fields API guide provides functions to quickly access various tables’ custom fields (PS_CUSTOMFIELDS API Guide for PowerSchool 7.x)

  9. SQL Query Tools • Oracle comes with SQL *Plus • Command-line interface • Cannot edit and resubmit; must retype • Mainly used for scripted queries • Many GUI/IDE query tools • Show database layout (tables, views, columns, etc.) • Color coding of keywords and formatting for easier readability • Editing for trial-and-error querying • Display results on same page • Saving of SQL queries • Exporting of results in various formats (.xls, .txt, .xml, etc.) • Examples: Oracle SQL Developer, RazorSQL, Advanced Query Tool, Aqua Data Studio

  10. SQL Developer • Download from oracle.com • Must register • Must have Java Development Kit installed • SQL Developer comes with or without JDK • Database connection • Need DB server IP address • Need password for one of the PS users (ps, psnavigator, psdataminer) • No need to create separate ODBC connection

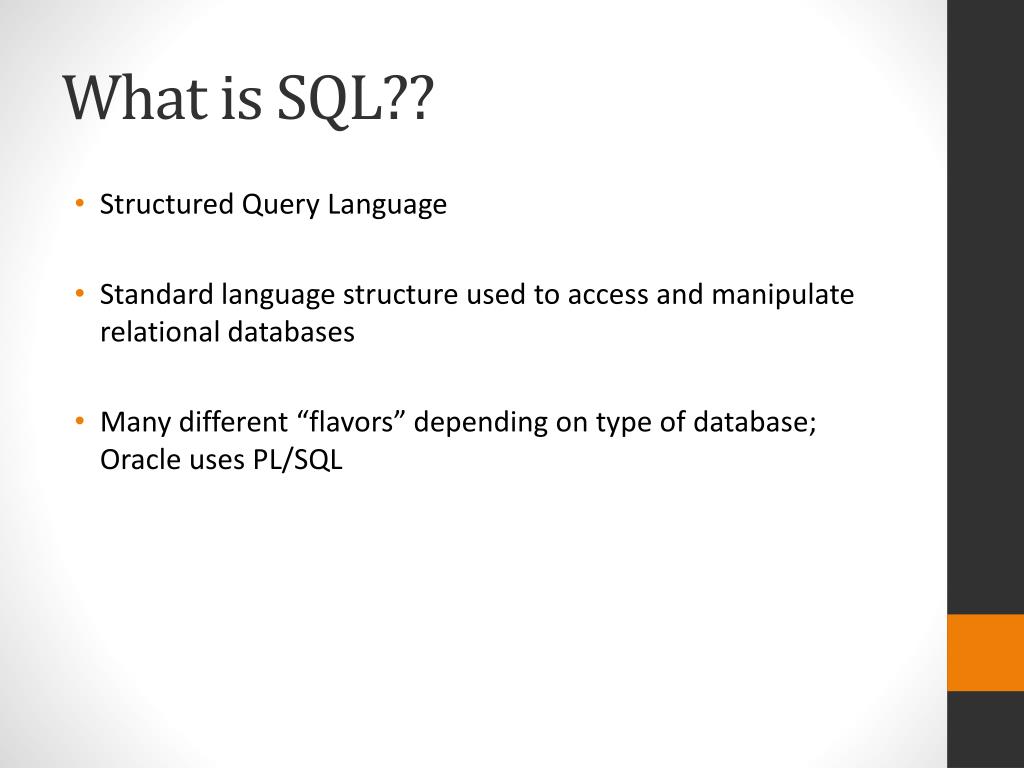

  11. What is SQL?? • Structured Query Language • Standard language structure used to access and manipulate relational databases • Many different “flavors” depending on type of database; Oracle uses PL/SQL

  12. Parts of the SQL query • SELECT statement • Declares the fields to be returned by the query • ‘*’ returns all fields • FROM clause • Defines the table being queried • Can contain JOIN clauses to query multiple tables • WHERE clause • Provides constraints on the records to be returned • GROUP BY clause • Eliminates duplication and provides for using aggregate functions • HAVING clause • Provides constraints on items in a GROUP BY clause, including aggregate functions • ORDER BY clause • Sorts the records that are returned

  13. Comparison Operators

  14. Logical Operators

  15. SELECT & FROM SELECT * FROM students SELECT schoolid, student_number, grade_level, gender, ethnicity FROM students SELECTcourse_number, section_number FROM cc

  16. DISTINCT • Selects distinct rows from a table SELECT DISTINCT last_name FROMstudents SELECT DISTINCT course_number, course_name FROMstoredgrades

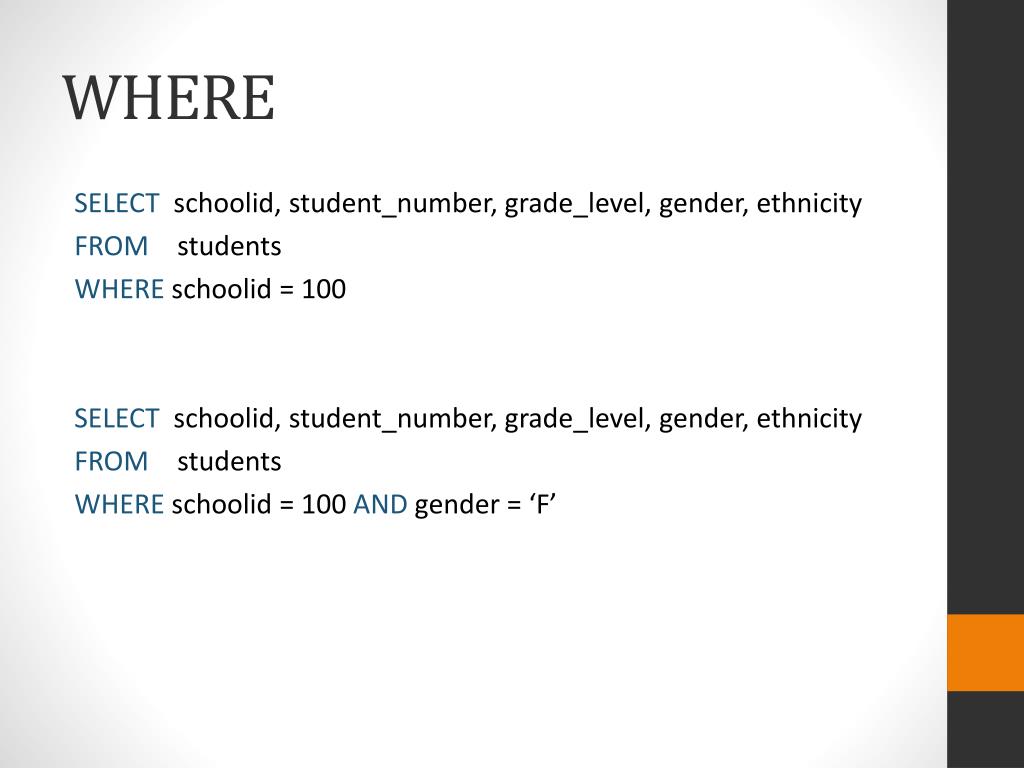

  17. WHERE SELECT schoolid, student_number, grade_level, gender, ethnicity FROM students WHEREschoolid = 100 SELECT schoolid, student_number, grade_level, gender, ethnicity FROM students WHERE schoolid= 100 AND gender = ‘F’

  18. WHERE (cont.) SELECT schoolid, student_number, grade_level, gender, ethnicity FROM students WHEREschoolid= 100 ANDgender = ‘F’ AND(grade_level = 3 OR grade_level= 4 ORgrade_level = 5) SELECT schoolid, student_number, grade_level, gender, ethnicity FROM students WHEREschoolid= 100 ANDgender = ‘F’ ANDgrade_levelIN(3,4,5) SELECT schoolid, student_number, grade_level, gender, ethnicity FROM students WHERE schoolid= 100 ANDgender = ‘F’ ANDgrade_level >= 3 SELECT schoolid, student_number, grade_level, gender, ethnicity FROM students WHERE schoolid= 100 ANDgender = ‘F’ ANDgrade_levelBETWEEN 3 AND 5

  19. ORDER BY SELECT schoolid, student_number, grade_level, gender, ethnicity FROM students WHERE schoolid= 100 ANDgender = ‘F’ ANDgrade_levelIN (3,4,5) ORDER BYgrade_level SELECT schoolid, student_number, grade_level, gender, ethnicity FROM students WHERE schoolid= 100 ANDgender = ‘F’ ANDgrade_levelIN(3,4,5) ORDER BY grade_level,student_number

  20. LIKE & Wildcards • Wildcards • ‘%’ (percent) • substitute for one or more characters • ‘_’ (underscore) • Substitute for exactly one character SELECTcourse_number, course_name FROM courses WHEREcourse_numberLIKE‘00%’ SELECT course_number, course_name FROM courses WHEREcourse_numberLIKE ’_ _1%’ (note: underscores separated by space for clarity only; do NOT separate with space in query)

  21. SQL Aliases • Used for • Specifying the output column names • Abbreviating table names SELECTs.lastfirst “Student”, s.home_room “Teacher” FROM students s

  22. JOIN • Used to link multiple tables based on the relationship between certain columns (called “keys”) • JOIN notation • Explicit • Uses SQL keywords JOIN and ON SELECTs.lastfirst,sg.course_name, sg.grade FROM students s JOINstoredgradessgONsg.studentid = s.id • Implicit • Lists the tables separated by commas and the WHERE clause provides additional constraints SELECT s.lastfirst, sg.course_name, sg.grade FROM students s, storedgradessg WHERE s.id = sg.studentid

  23. JOIN Types • Types • INNER JOIN • Returns records when there is at least one match between tables • LEFT JOIN • Returns records from the left table regardless of matches in other table • RIGHT JOIN • Returns records from the right table regardless of matches in other table • FULL JOIN • Combines LEFT and RIGHT JOINs • Returns records for both tables regardless of matches in other table • Self-Join • Joins a table to itself

  24. INNER JOIN SELECThr.levelvalue, s.lastfirst, s.grade_level FROM honorrollhr JOIN students s ON s.id = hr.studentid WHEREhr.yearid = 20 ANDhr.storecode = ‘Q1’ ORDER BY hr.levelvalue, s.lastfirst SELECTs.schoolid, t.lastfirst, s.lastfirst FROM students s JOIN cc ONcc.studentid = s.id ANDcc.termid = 2000 AND cc.course_numberLIKE ‘00%’ ANDcc.expressionLIKE ‘1(%’ JOIN teachers t ONcc.teacherid = t.id WHEREs.enroll_status = 0 ORDER BY s.schoolid, t.lastfirst, s.lastfirst

  25. LEFT JOIN SELECTs.grade_level, s.lastfirst, hr.levelvalue FROM students s LEFT JOINhonorrollhrONs.id = hr.studentidAND hr.yearid= 20 ANDhr.storecode = ‘Q1’ ORDER BY s.grade_level, s.lastfirst SELECTs.grade_level, s.lastfirst, sg.percent FROM students s LEFT JOIN storedgradessgONsg.studentid = s.id AND sg.percent < 70 ANDsg.storecode = ‘Q1’ AND sg.termid = 2000 ANDsg.course_numberLIKE ‘271%’ WHEREs.enroll_status = 0 ANDs.schoolid = 100 ORDER BY s.grade_level, s.lastfirst

  26. SQL Built-in Functions • Allow manipulation of returned fields • Examples • To_char() • To_char(entrydate,’YYYYMMDD’) • Upper()/Lower() • Upper(last_name) • Decode() • Decode(grade_level,-1,PK,0,K,grade_level) • Many more • Oracle/PLSQL: Built-in Functions

  27. What are sqlReports? • Free customization for PowerSchool created by Dean Dahlvang (PS user in Minnesota) • Creates a new tab on the Reports page • Harnesses SQL to search multiple tables and create user-runnable reports • Allows importing and exporting for sharing among systems

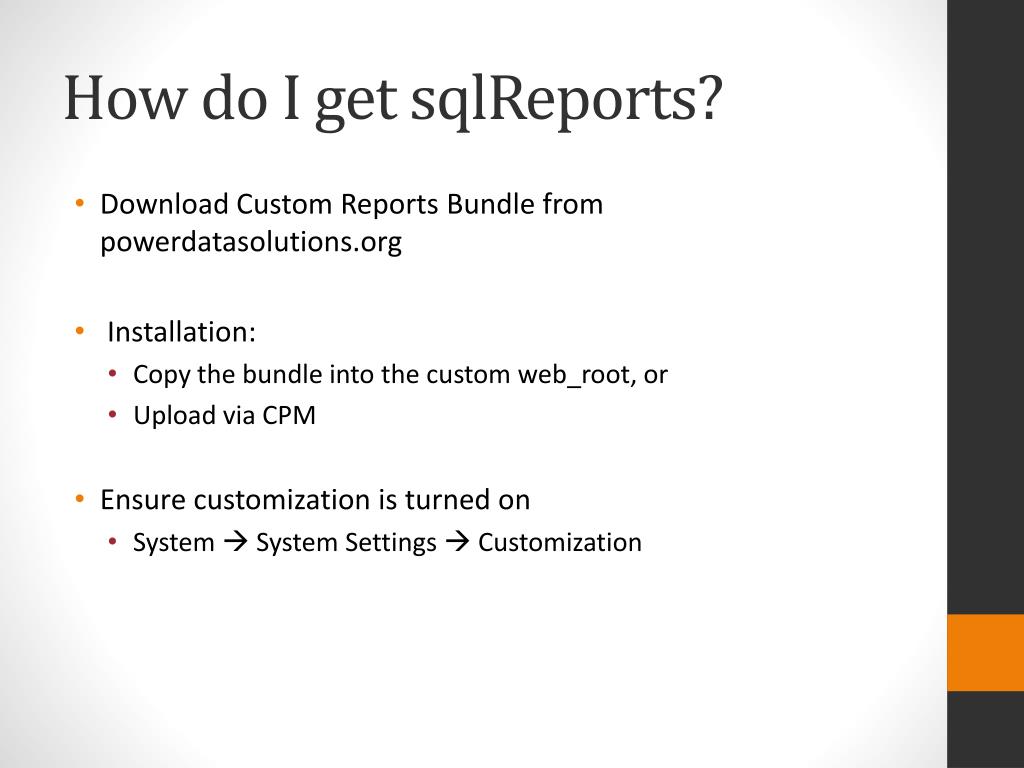

  28. How do I get sqlReports? • Download Custom Reports Bundle from powerdatasolutions.org • Installation: • Copy the bundle into the custom web_root, or • Upload via CPM • Ensure customization is turned on • System  System Settings  Customization

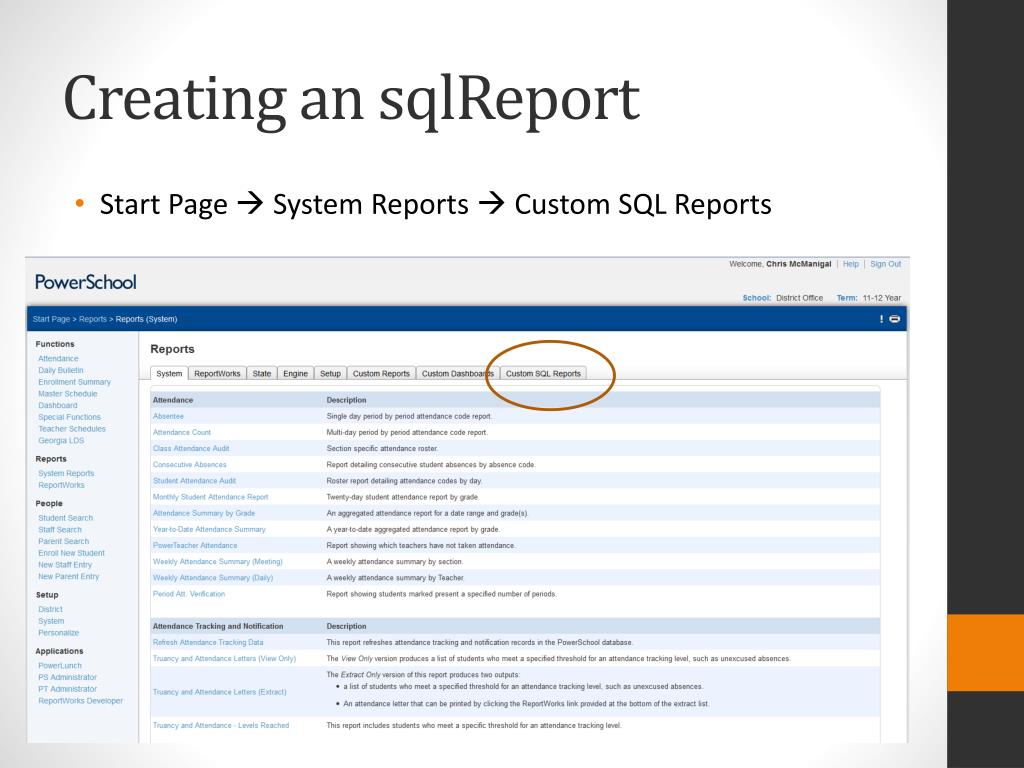

  29. Creating an sqlReport • Start Page  System Reports  Custom SQL Reports

  30. Creating an sqlReport (cont.) • Click the “Create a new sqlReport” link

  31. Report Information

  32. Report Information (cont.)

  33. Query Section

  34. SQL Query select s.lastfirst, decode(s.schoolid,100,'MLGES',105,'SMMS',110,'SMES', 182,'CMS',187,'CRES',189,'MHES',192,'WES',193,'KES', 195,'DLRES',197,'SES',295,'CCHS',495,'MLCES'), decode(s.enroll_status,-1,'Pre-Registered', 0,'Active',2,'Transferred Out',3,'Graduated', 4,'Imported as Historical') from students s where s.last_namelike 'Smith%'

  35. Query Section (cont.) • Paste SQL query and click Build Header • Replace “Column X” with header names

  36. Student Selection

  37. Student Selection (cont.) • Check box and click Build Query • Insert DCID alias (if necessary) and remove Order By clause

  38. Parameters

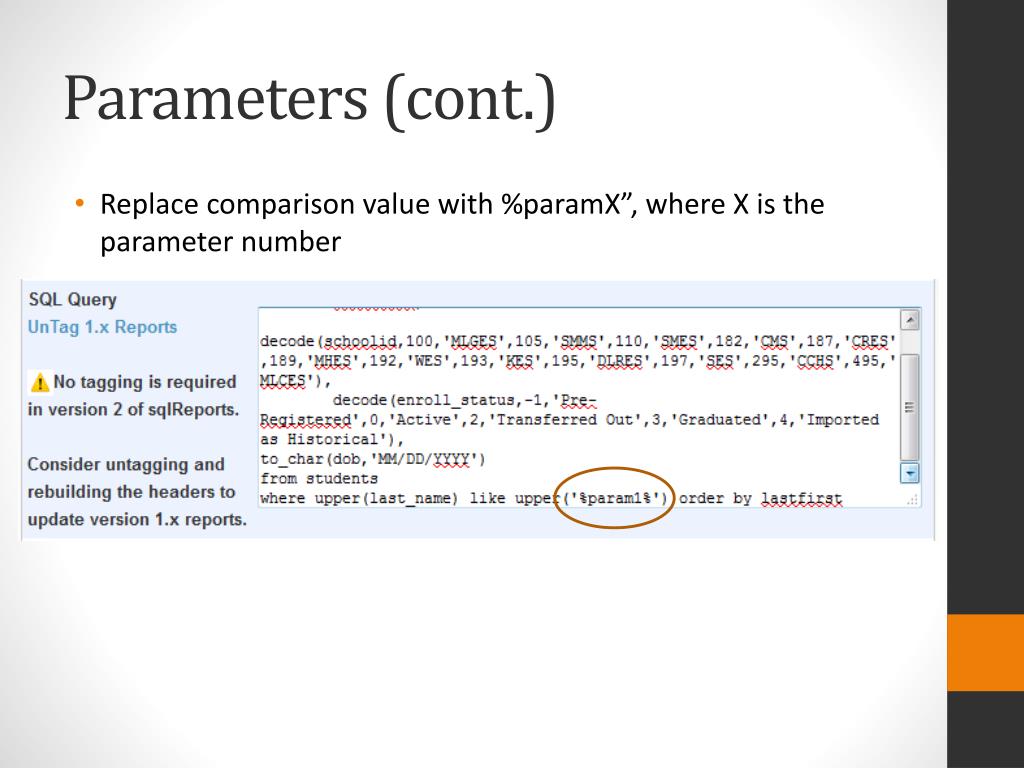

  39. Parameters (cont.) • Replace comparison value with %paramX”, where X is the parameter number

  40. Parameters (cont.) • Enter display name and default value

  41. Examples

  42. Export a template • Right click export link to save report template as a text file

  43. Template Contents

  44. Import Template

  45. Import Template (cont.)

  46. Template Contents • Remove &nbsp;

  47. Examples

  48. Q & A
