  1. Capitalizing on New Standards for ATM to MPLS Convergence John Sax, CTO, Data Networking Group, Lucent Technologies Dr. Kireeti Kompella, Distinguished Engineer, Juniper Networks Mark Bieberich, Program Manager, The Yankee Group

  2. Market Drivers for ATM to MPLS Interworking Standards • CAPEX and OPEX constraints necessitate phased migration to a converged IP/MPLS network. • Wholesale replacement of Layer 2 Edge is not economically feasible. • Carriers must sustain profitable FR/ATM service revenue during the IP/MPLS core consolidation process. • Today’s FR/ATM service customers require QoS and SLAs to remain intact as traffic migrates to IP/MPLS core. • Carriers must achieve operational parity between ATM and MPLS network domains. • Layer 2 service provisioning and management processes must be preserved in an IP/MPLS network environment. • Inherent reliability characteristics of ATM must remain intact as traffic migrates to the IP/MPLS core. • ATM signaling and protection mechanisms remain essential to service and network reliability.

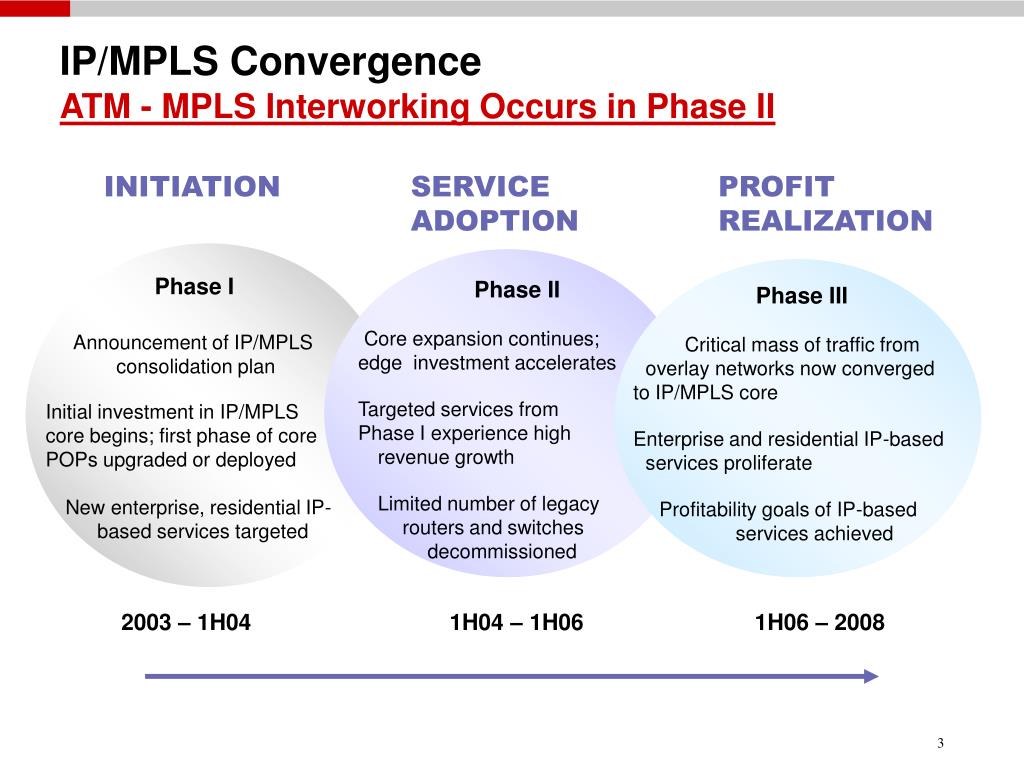

  3. IP/MPLS Convergence ATM - MPLS Interworking Occurs in Phase II INITIATION SERVICE PROFIT ADOPTION REALIZATION Phase I Announcement of IP/MPLS consolidation plan Initial investment in IP/MPLS core begins; first phase of core POPs upgraded or deployed New enterprise, residential IP- based services targeted Phase II Core expansion continues; edge investment accelerates Targeted services from Phase I experience high revenue growth Limited number of legacy routersand switches decommissioned Phase III Critical mass of traffic from overlay networks now converged to IP/MPLS core Enterprise and residential IP-based services proliferate Profitability goals of IP-based services achieved 2003 – 1H04 1H04 – 1H06 1H06 – 2008

  4. Layer 2 Traffic Migration to IP/MPLS CoreAccelerating the Need for ATM to MPLS Interworking • Recent Yankee Group Research: • Aggressive service providers plan to migrate up to 50 percent of their FR/ATM service traffic to the IP/MPLS Core in the next 3 years. Rate of Traffic Migration From ATM to MPLS Core* 30 27% 25 20 14% 15 10 4% 5 *taken from an ’04 Yankee Group survey of 15 top service providers worldwide 0 2004 2005 2006

  5. 14,000 12,000 10,000 8,000 ATM Service Revenue Revenue in millions of $US 6,000 FR Service Revenue 4,000 2,000 0 2004 2005 2006 2007 2008 ATM to MPLS Interworking Standards Requirement for Protecting Profitable Services • Plans for IP/MPLS network consolidation must embrace standards that protect growing, profitable revenue streams. North America FR/ATM Service Revenue ForecastSource: the Yankee Group, 2004

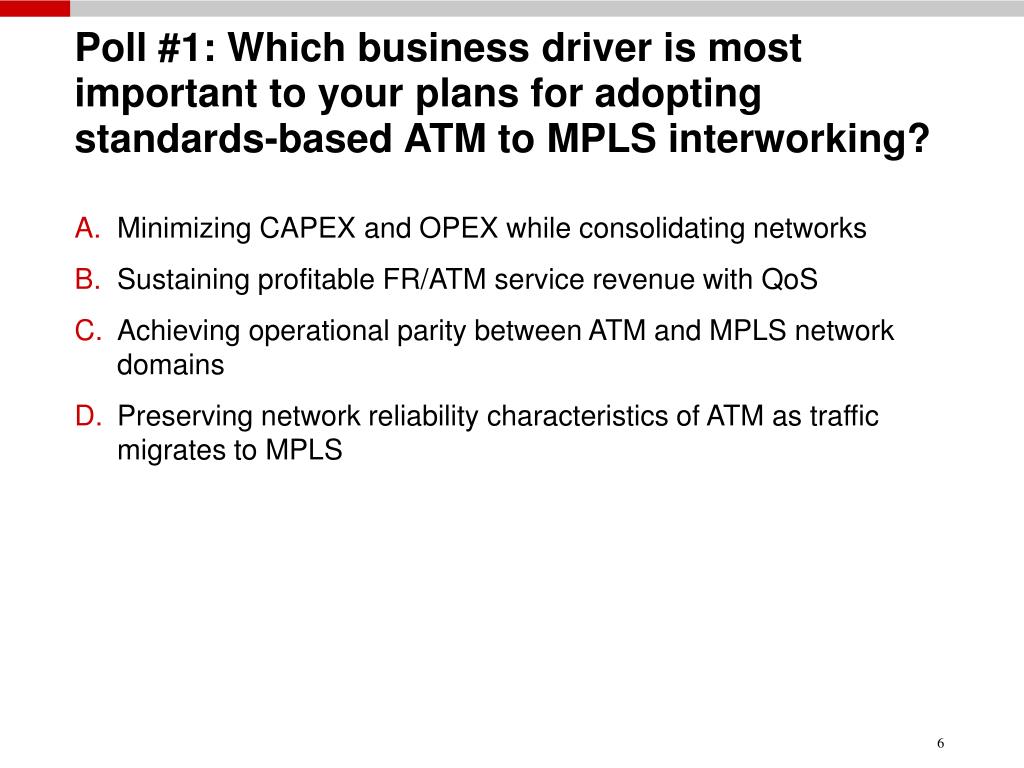

  6. Poll #1: Which business driver is most important to your plans for adopting standards-based ATM to MPLS interworking? • Minimizing CAPEX and OPEX while consolidating networks • Sustaining profitable FR/ATM service revenue with QoS • Achieving operational parity between ATM and MPLS network domains • Preserving network reliability characteristics of ATM as traffic migrates to MPLS

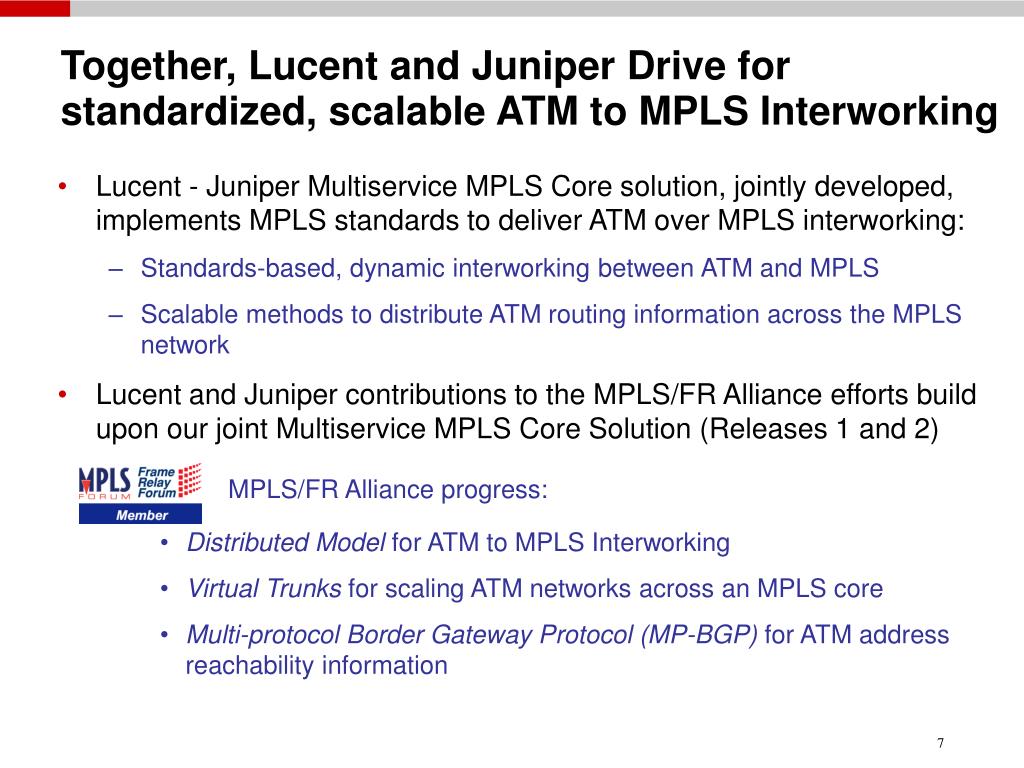

  7. Together, Lucent and Juniper Drive for standardized, scalable ATM to MPLS Interworking • Lucent - Juniper Multiservice MPLS Core solution, jointly developed, implements MPLS standards to deliver ATM over MPLS interworking: • Standards-based, dynamic interworking between ATM and MPLS • Scalable methods to distribute ATM routing information across the MPLS network • Lucent and Juniper contributions to the MPLS/FR Alliance efforts build upon our joint Multiservice MPLS Core Solution (Releases 1 and 2) MPLS/FR Alliance progress: • Distributed Model for ATM to MPLS Interworking • Virtual Trunks for scaling ATM networks across an MPLS core • Multi-protocol Border Gateway Protocol (MP-BGP) for ATM address reachability information

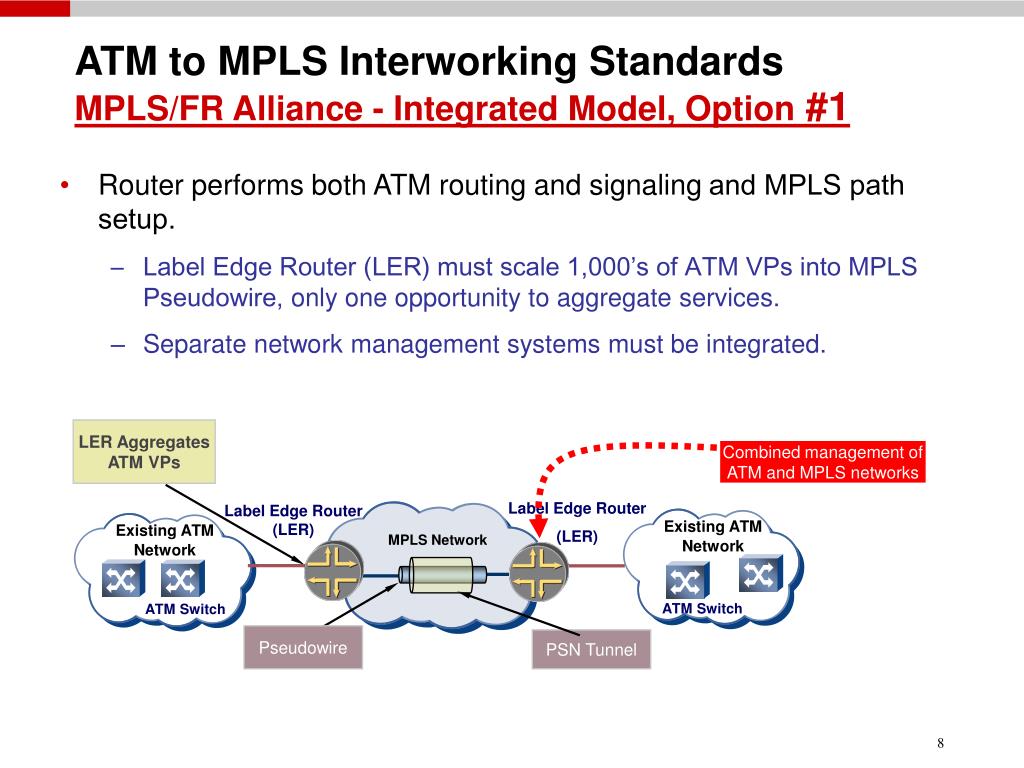

  8. LER Aggregates ATM VPs Label Edge Router (LER) Label Edge Router (LER) Existing ATM Network Existing ATM Network MPLS Network ATM Switch ATM Switch Pseudowire PSN Tunnel ATM to MPLS Interworking StandardsMPLS/FR Alliance - Integrated Model, Option #1 • Router performs both ATM routing and signaling and MPLS path setup. • Label Edge Router (LER) must scale 1,000’s of ATM VPs into MPLS Pseudowire, only one opportunity to aggregate services. • Separate network management systems must be integrated. Combined management of ATM and MPLS networks

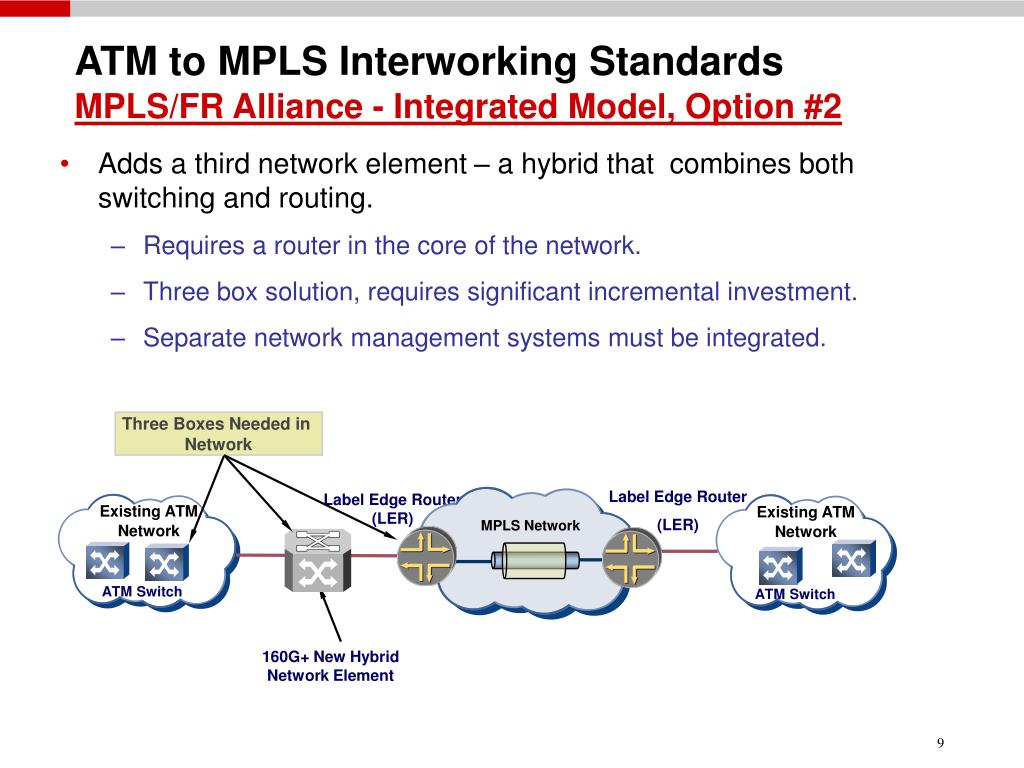

  9. Existing ATM Network ATM Switch ATM to MPLS Interworking StandardsMPLS/FR Alliance - Integrated Model, Option #2 • Adds a third network element – a hybrid that combines both switching and routing. • Requires a router in the core of the network. • Three box solution, requires significant incremental investment. • Separate network management systems must be integrated. Three Boxes Needed in Network Label Edge Router (LER) Label Edge Router (LER) Existing ATM Network MPLS Network ATM Switch 160G+ New Hybrid Network Element

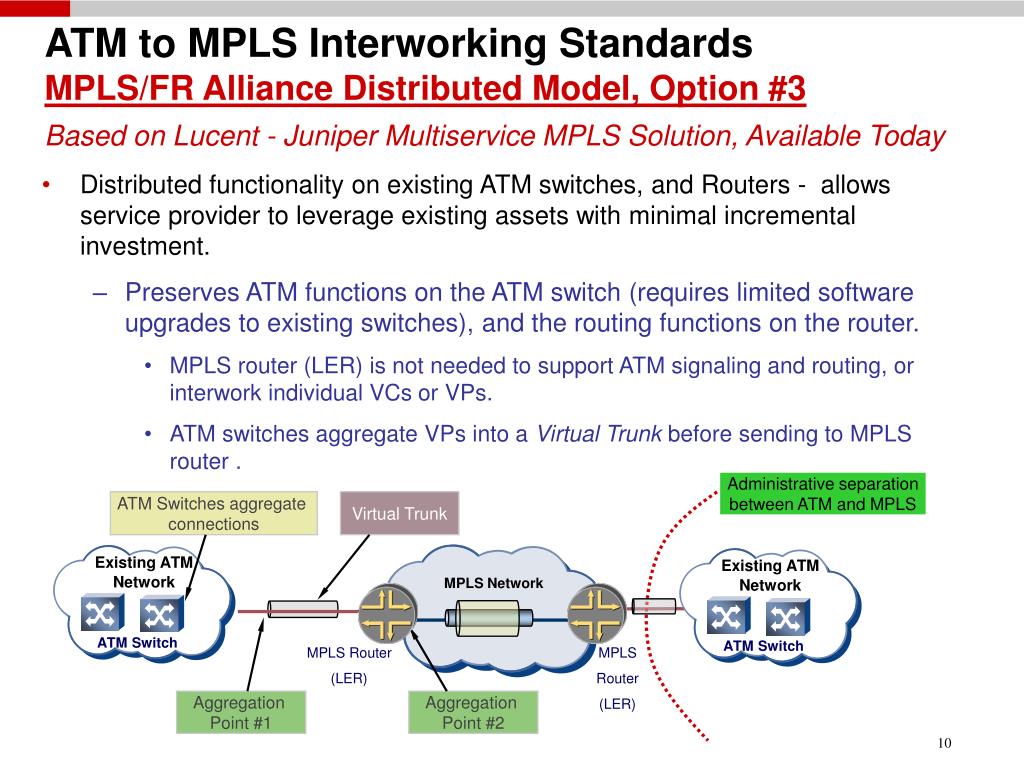

  10. Administrative separation between ATM and MPLS Existing ATM Network Existing ATM Network ATM Switches aggregate connections Virtual Trunk MPLS Network ATM Switch ATM Switch MPLS Router (LER) MPLS Router (LER) Aggregation Point #1 Aggregation Point #2 ATM to MPLS Interworking Standards MPLS/FR Alliance Distributed Model, Option #3Based on Lucent - Juniper Multiservice MPLS Solution, Available Today • Distributed functionality on existing ATM switches, and Routers - allows service provider to leverage existing assets with minimal incremental investment. • Preserves ATM functions on the ATM switch (requires limited software upgrades to existing switches), and the routing functions on the router. • MPLS router (LER) is not needed to support ATM signaling and routing, or interwork individual VCs or VPs. • ATM switches aggregate VPs into a Virtual Trunk before sending to MPLS router .

  11. ATM to MPLS Interworking Standards: Signaling and Data Plane Scaling IssuesExisting Networks • Issue:1:1 VC/VP to LSP Mapping • 1:1 VP to LSP association requires interworking each ATM VP with a single MPLS path. • Creates signaling and data plane scalability issues. Requires interworking each ATM VP with each MPLS path CBR VP 1 mbps VBR rt VP 5 mbps 10 mbps VBR nrt VP 30 mbps UBR VP LSP POS Interface on Router ATM Interface On Switch

  12. ATM to MPLS Interworking Standards: Solving Signaling ScalabilityNew Standards Progress with Virtual Trunks New Standards progress: Virtual Trunk Concept • Solution: • Perform VP bundling to aggregate ATM VPs into an ATM Virtual Trunk before sending to the LER. • Simplify scaling of ATM VPs across MPLS core. • Groom 1000’s of VCs into virtual trunks for transport across MPLS core. Aggregation of 1000’s VPs into Virtual trunks with automatic provisioning CBR VP 1 mbps VBR rt VP 5 mbps 10 mbps VBR nrt VP 30 mbps UBR VP Virtual Trunk LSP POS Interface on Router ATM Interface On Switch

  13. Lucent/Juniper Multiservice MPLS Core SolutionDelivering ATM QoS and SLAs • Bundles ATM QoS priorities into single Trunk VPN label/Pseudo Wire • QoS treatment of traffic Emulates ATM • Facilitates bandwidth sharing amongst service classes • Maintains cell loss priority QoS Flows Based on EXP Bits MPLS Label CBR 8 20 3 1 VBR rt LABEL Exp TTL S VBR nrt 32 bits = 4 bytes (octets) Trunk VPN Label (Pseudo Wire) ABR/UBR PE to PE E-LSPs (PSN Tunnel) Queues POS Interface (Router)

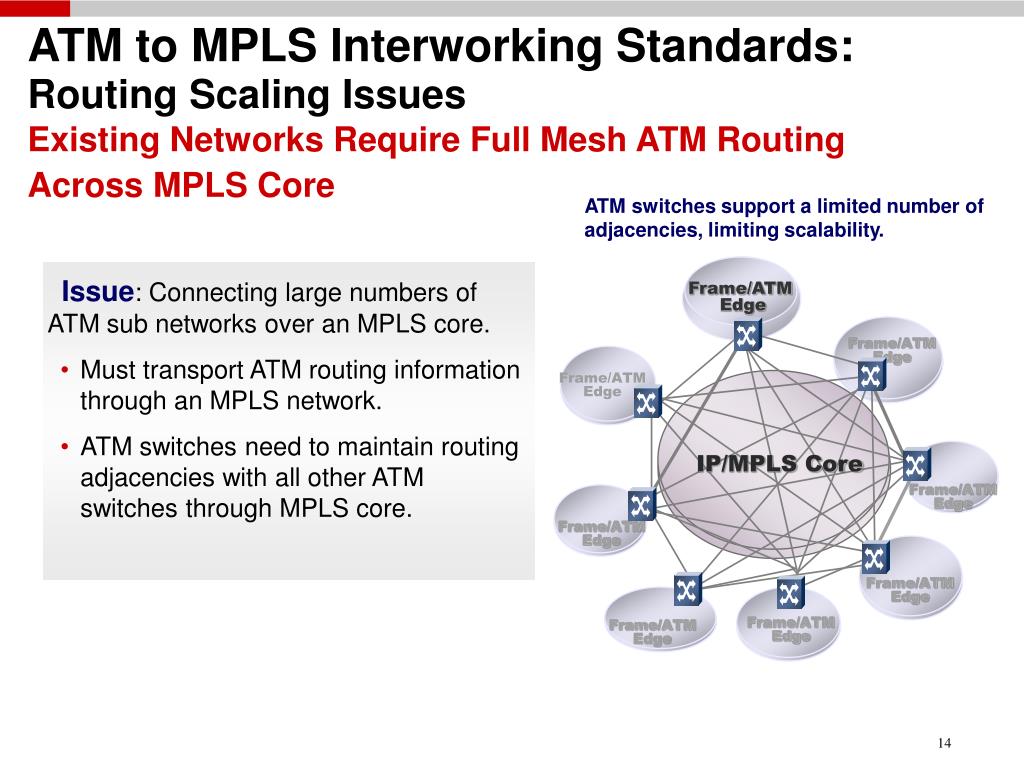

  14. Frame/ATM Edge Frame/ATM Edge Frame/ATM Edge IP/MPLS Core Frame/ATM Edge Frame/ATM Edge Frame/ATM Edge Frame/ATMEdge Frame/ATM Edge ATM to MPLS Interworking Standards: Routing Scaling IssuesExisting Networks Require Full Mesh ATM Routing Across MPLS Core ATM switches support a limited number of adjacencies, limiting scalability. • Issue: Connecting large numbers of ATM sub networks over an MPLS core. • Must transport ATM routing information through an MPLS network. • ATM switches need to maintain routing adjacencies with all other ATM switches through MPLS core.

  15. Frame/ATM Edge MP-BGP distributes ATM address Information Frame/ATM Edge Frame/ATM Edge IP/MPLS Core Frame/ATM Edge Frame/ATM Edge Frame/ATM Edge Frame/ATMEdge Frame/ATM Edge ATM to MPLS Interworking Standards:Solving Routing Scaling IssuesNew Standards Progress with MP-BGP • Solution: Use Multiprotocol-Border Gateway Protocol (MP-BGP) for ATM address reachability information • Enables ATM network to import and export ATM address information through the MPLS core by exchanging information with a single edge router • Increases scalability by reducing ATM adjacencies without sacrificing full connectivity • Utilizes MP-BGP’s proven scalability for IP VPNs and Internet routing • Simplifies administration by leveraging one protocol (BGP) for multiple services New Standards progress: MP-BGP to distribute ATM routing information

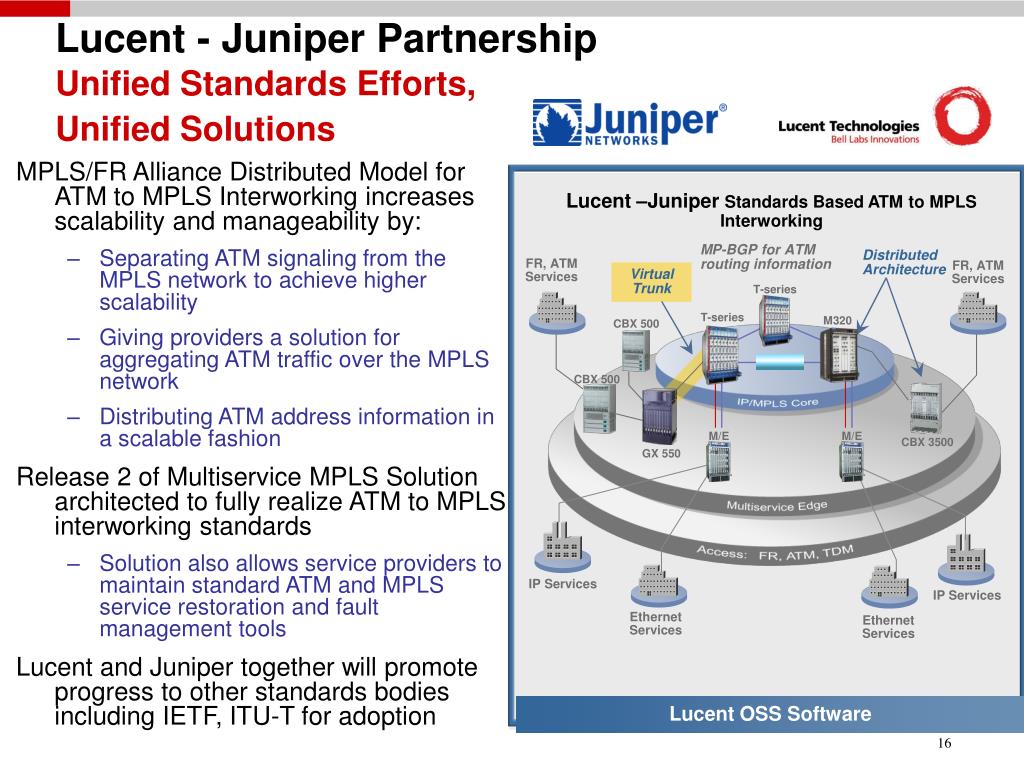

  16. Lucent - Juniper Partnership Unified Standards Efforts, Unified Solutions MPLS/FR Alliance Distributed Model for ATM to MPLS Interworking increases scalability and manageability by: • Separating ATM signaling from the MPLS network to achieve higher scalability • Giving providers a solution for aggregating ATM traffic over the MPLS network • Distributing ATM address information in a scalable fashion Release 2 of Multiservice MPLS Solution architected to fully realize ATM to MPLS interworking standards • Solution also allows service providers to maintain standard ATM and MPLS service restoration and fault management tools Lucent and Juniper together will promote progress to other standards bodies including IETF, ITU-T for adoption Lucent –Juniper Standards Based ATM to MPLS Interworking MP-BGP for ATM routing information Distributed Architecture FR, ATM Services FR, ATM Services Virtual Trunk T-series T-series M320 CBX 500 CBX 500 M/E M/E CBX 3500 GX 550 IP Services IP Services EthernetServices EthernetServices Lucent OSS Software

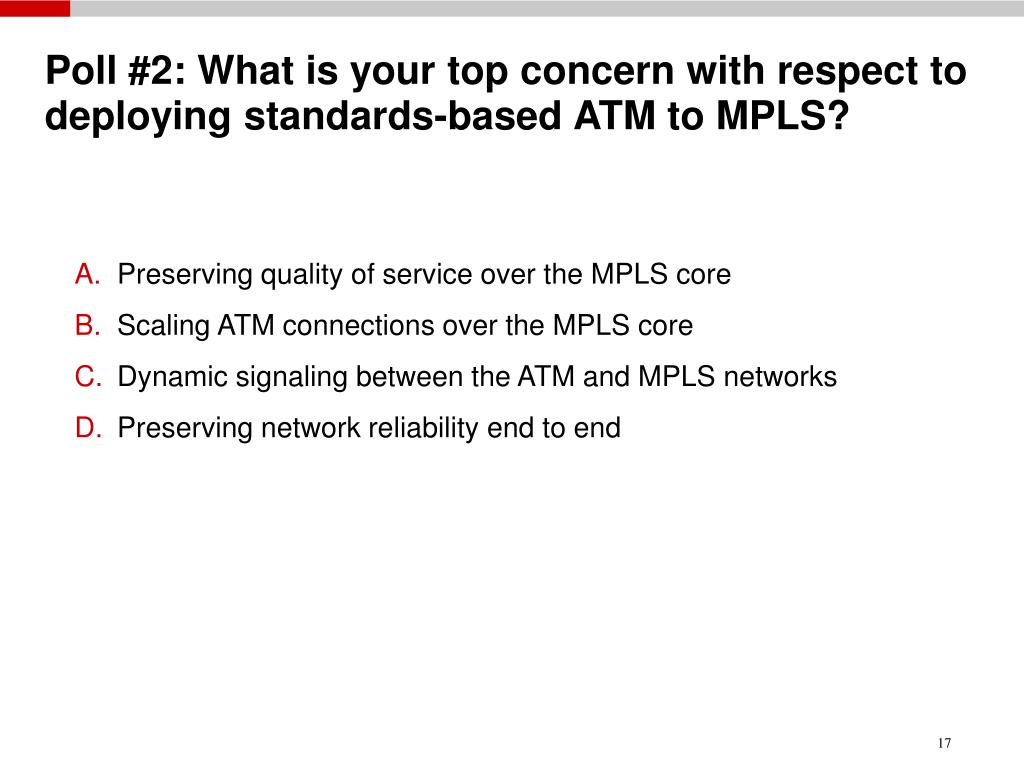

  17. Poll #2: What is your top concern with respect to deploying standards-based ATM to MPLS? • Preserving quality of service over the MPLS core • Scaling ATM connections over the MPLS core • Dynamic signaling between the ATM and MPLS networks • Preserving network reliability end to end

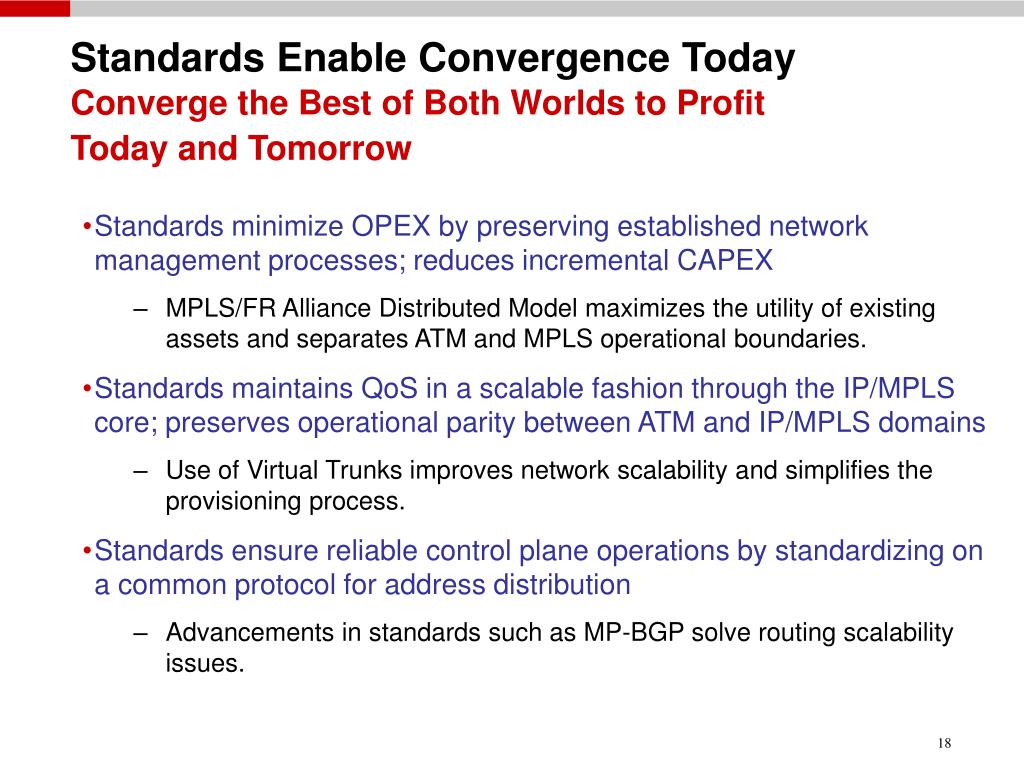

  18. Standards Enable Convergence Today Converge the Best of Both Worlds to ProfitToday and Tomorrow • Standards minimize OPEX by preserving established network management processes; reduces incremental CAPEX • MPLS/FR Alliance Distributed Model maximizes the utility of existing assets and separates ATM and MPLS operational boundaries. • Standards maintains QoS in a scalable fashion through the IP/MPLS core; preserves operational parity between ATM and IP/MPLS domains • Use of Virtual Trunks improves network scalability and simplifies the provisioning process. • Standards ensure reliable control plane operations by standardizing on a common protocol for address distribution • Advancements in standards such as MP-BGP solve routing scalability issues.

  19. Questions & Answers John Sax, CTO, Data Networking Group, Lucent TechnologiesDr. Kireeti Kompella, Distinguished Engineer, Juniper NetworksMark Bieberich, Program Manager, The Yankee Group
