  1. INTRODUCTION TO CIRCUITS LAB EE 2202 Prof. Dr. Ertuğrul Eriş 3 rd Update: March 2013 EE2202

  2. CONTENTS • SET • BREADBOARDS • MULTIMETER • CURRENT MEASUREMENT • VOLTAGE MEASUREMENT EE2202

  3. SETS • THERE ARE TWO DIFFERENT SETS • KL-31001 • WHITE COLOR, • DIGITAL LAB • ETS-5000 • RED COLOR, • PC LAB EE2202

  4. KL31001 (DIGITAL LAB ROOM) POWER SWITCH IS HERE, NOT VISIBLE EE2202

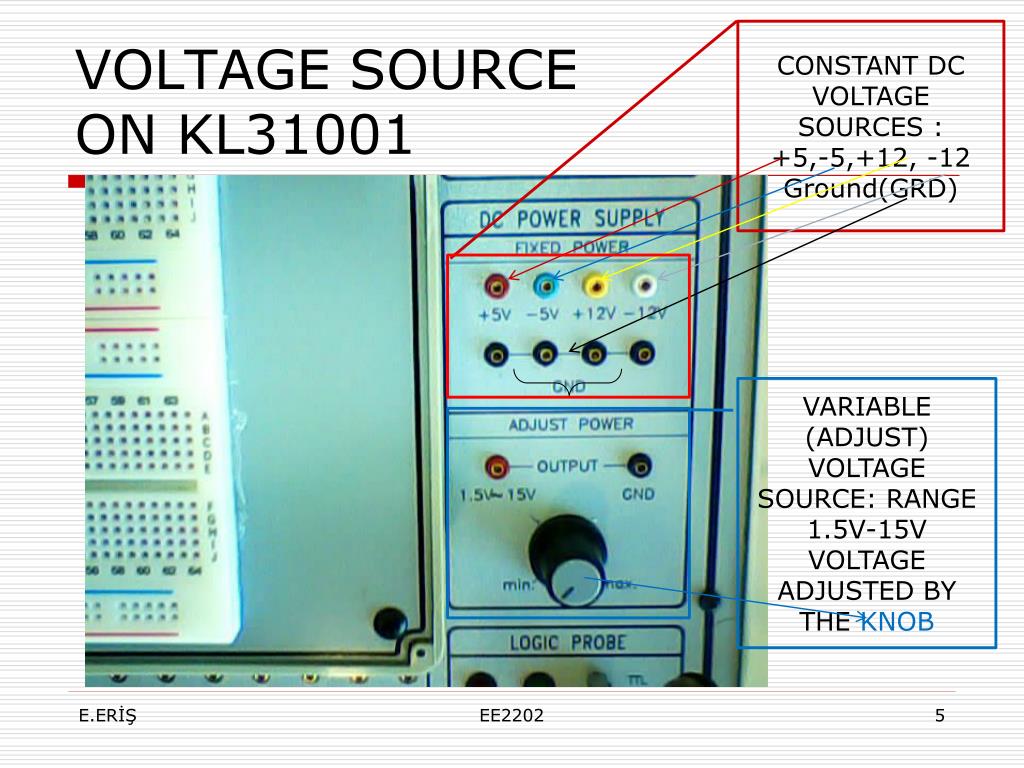

  5. CONSTANT DC VOLTAGE SOURCES : +5,-5,+12, -12 Ground(GRD) VOLTAGE SOURCE ON KL31001 VARIABLE (ADJUST) VOLTAGE SOURCE: RANGE 1.5V-15V VOLTAGE ADJUSTED BY THE KNOB EE2202

  6. ETS-5000 (PC-LAB ROOM)) EE2202

  7. ETS-5000 POWER SOURCE ON/OFF SWITCH EE2202

  8. VOLTAGE SOURCE ON ETS 5000 POWER SOURCE ON/OFF SWITCH CONSTANT DC VOLTAGE SOURCES : +5,-5, Ground(GRD) VARIABLE (ADJUST) DC VOLTAGE SOURCE: RANGE (3):15) ADJUST KNOB (-3) :(-15)V ADJUST KNOB COMMON GROUND EE2202

  9. KL31001 BREAD BOARD (EKMEK TAHTASI)-1 SAME NODE. ALL THESE 25 HOLES (AS A ROW) ARE SHORT CIRCUITED UNDERNEATH THE BOARD. THERE ARE 16 THIS TYPE CONNECTION GROUPS ON THE BOARD AYNI DÜĞÜM. BU SIRADAKİ 25 DELİK BOARD'UN ALTINDA KISA DEVRE EDİLMİŞTİR. BOARDUN ÜZERİNDE BU TİP 16 TANE BAĞLANI GRUBU VARDIR EE2202

  10. KL31001 BREAD BOARD (EKMEK TAHTASI)-2 THESE 5 HOLES (SAME NODE) AS A COLUMN ARE SHORT CIRCUITED UNDERNEATH THE BOARD. IN THE DARK GREEN MARKED LOCATION THERE ARE 64 OF THIS TYPE CONNECTION GROUPS. ON THE WHOLE BOARD THERE ARE 4x64.AT MOST 5 ELEMENTS COULD BE CONNECTED TO THIS NODE! BURADAKİ 5 DELİK (AYNI DÜĞÜM) BOARD UN ARKASINDAN KISA DEVRE EDİLMİŞTİR. KOYU YEŞİL İŞARETLİ BÖLGEDE BU TİP BAĞLANTILARDAN 64 TANE BÜTÜN BOARD A İSE 4x64 TANE VARDIR. BU DÜĞÜME EN FAZLA 5 ELEMAN BAĞLANABİLİR. EE2202

  11. ETS 5000 BREAD BOARD (EKMEK TAHTASI)-1 SAME NODE. ALL THESE 25 HOLES (AS A ROW) ARE SHORT CIRCUITED UNDERNEATH THE BOARD. THERE ARE 16 THIS TYPE CONNECTION GROUPS ON THE BOARD AYNI DÜĞÜM. BU SIRADAKİ 25 DELİK BOARD'UN ALTINDA KISA DEVRE EDİLMİŞTİR. BOARDUN ÜZERİNDE BU TİP 16 TANE BAĞLANI GRUBU VARDIR EE2202

  12. ETS 5000 BREAD BOARD-2 THESE 5 HOLES (SAME NODE) AS A COLUMN ARE SHORT CIRCUITED UNDERNEATH THE BOARD. IN THE DARK GREEN MARKED LOCATION THERE ARE 64 OF THIS TYPE CONNECTION GROUPS. ON THE WHOLE BOARD THERE ARE 4x64.AT MOST 5 ELEMENTS COULD BE CONNECTED TO THIS NODE! BURADAKİ 5 DELİK (AYNI DÜĞÜM) BOARD UN ARKASINDAN KISA DEVRE EDİLMİŞTİR. KOYU YEŞİL İŞARETLİ BÖLGEDE BU TİP BAĞLANTILARDAN 64 TANE BÜTÜN BOARD A İSE 4x64 TANE VARDIR. BU DÜĞÜME EN FAZLA 5 ELEMAN BAĞLANABİLİR. EE2202

  13. MULTIMETER (AVOMETER) EE2202

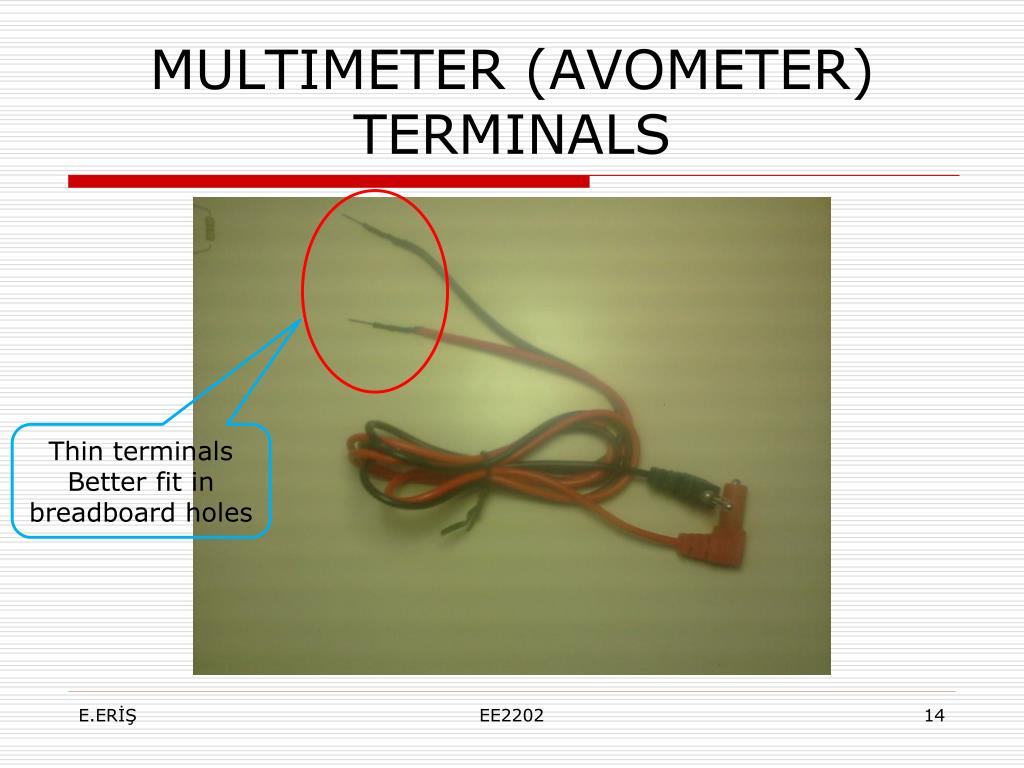

  14. MULTIMETER (AVOMETER) TERMINALS Thin terminals Better fit in breadboard holes EE2202

  15. Direct voltage (DC) measurement region: 6 ranges: 200mV, 2V, 20V (mostly used), 200v, 600V Doğru (DC) gerilim ölçümü yapılan bölge MULTIMETER(AVOMETRE) Direct current (DC) measurement region Four ranges: l2mA,20mA, 200mA(mostly used), 10A Doğru akım ölçümlerinin yapılacağı bölüm Resistance measurement region: 5 Ranges: 200Ω, 2KΩ, 20KΩ, 200KΩ, 2M Ω Direnç ölçümünün yapılacağı bölüm EE2202

  16. A CIRCUIT SET UP ON BREADBOARD +15V Toprak EE2202

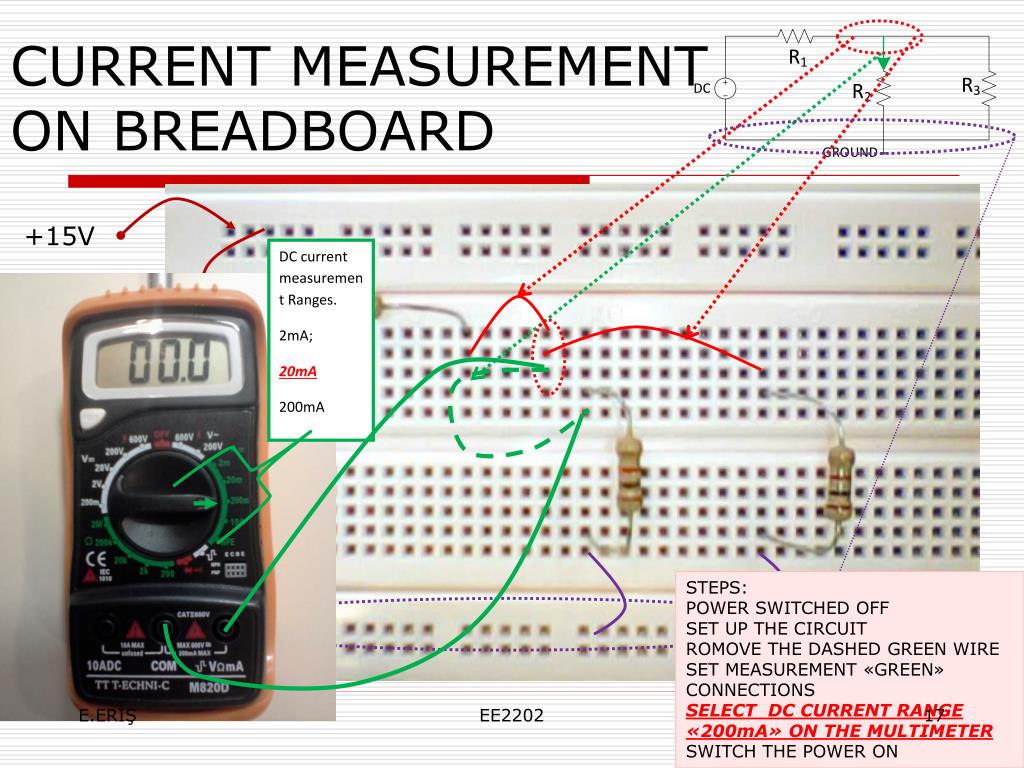

  17. CURRENT MEASUREMENT ON BREADBOARD +15V DC current measurement Ranges. 2mA; 20mA 200mA STEPS: POWER SWITCHED OFF SET UP THE CIRCUIT ROMOVE THE DASHED GREEN WIRE SET MEASUREMENT «GREEN» CONNECTIONS SELECT DC CURRENT RANGE «200mA» ON THE MULTIMETER SWITCH THE POWER ON Toprak EE2202

  18. ALTERNATE CIRCUIT SET UP ON BREADBOARD +15V No additional wires are bing used. Resistors ‘ own terminals are being used instead of additional wires Toprak EE2202

  19. CURRENT MEASUREMENT (SERIAL) ON ALTERNATE CIRCUIT SETUP DC current measurement Ranges. 2mA; 20mA 200mA +15V 1 2 Upper terminal of the R2resistor (shown by blue wire) has been removed from node (1) to a new node (2). Shown by blue wire Then Multimeter «VΩmA» and «common» terminals are contected to node (2) and (1) respectively. Toprak EE2202

  20. VOLTAGE MEASUREMENT ON BREADBOARD +15V DC voltagemeasurement Region. 2V; 20V 200V Toprak There is nothing to be removed from the circuit. EE2202

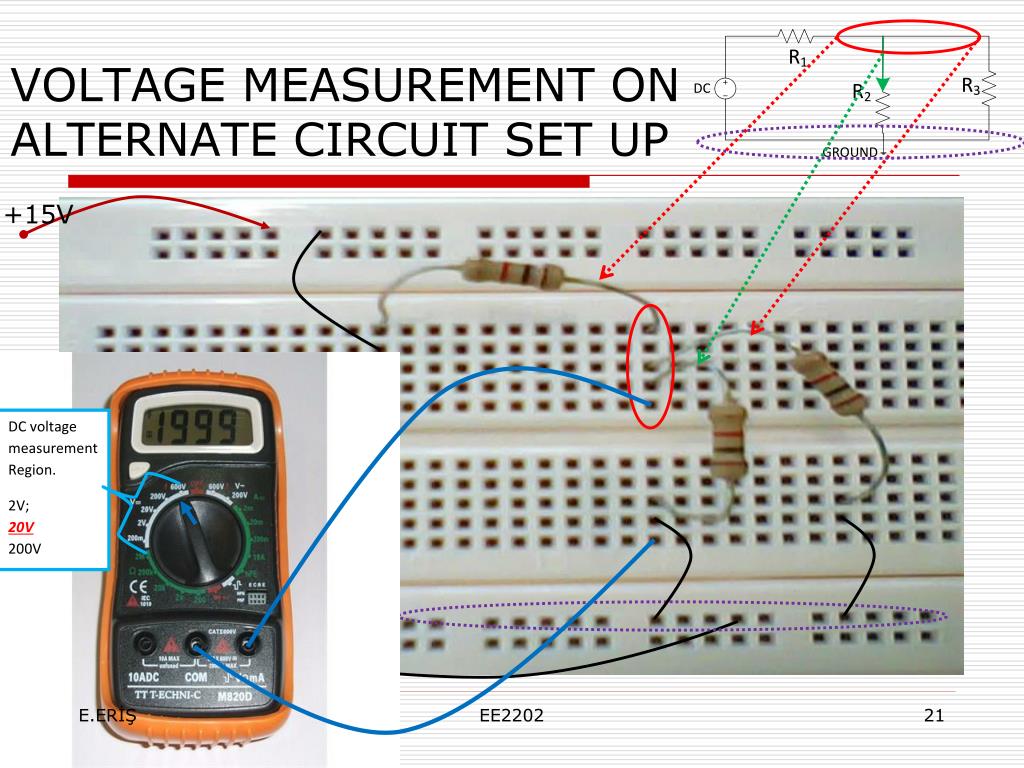

  21. VOLTAGE MEASUREMENT ON ALTERNATE CIRCUIT SET UP +15V DC voltagemeasurement Region. 2V; 20V 200V Toprak EE2202
