Chapter 5: Double and Triple Integrals I. Review Q1 & Q2 from preclass

Ch. 5- Double and Triple Integrals > Review. Chapter 5: Double and Triple Integrals I. Review Q1 & Q2 from preclass. II. Physics Applications A. Calculating volume ex: Under surface and over area bounded by y = x and y 2 + x = 2 *graphs*. A. Calculating Volume (continued)

dale
Télécharger la présentation

Chapter 5: Double and Triple Integrals I. Review Q1 & Q2 from preclass

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

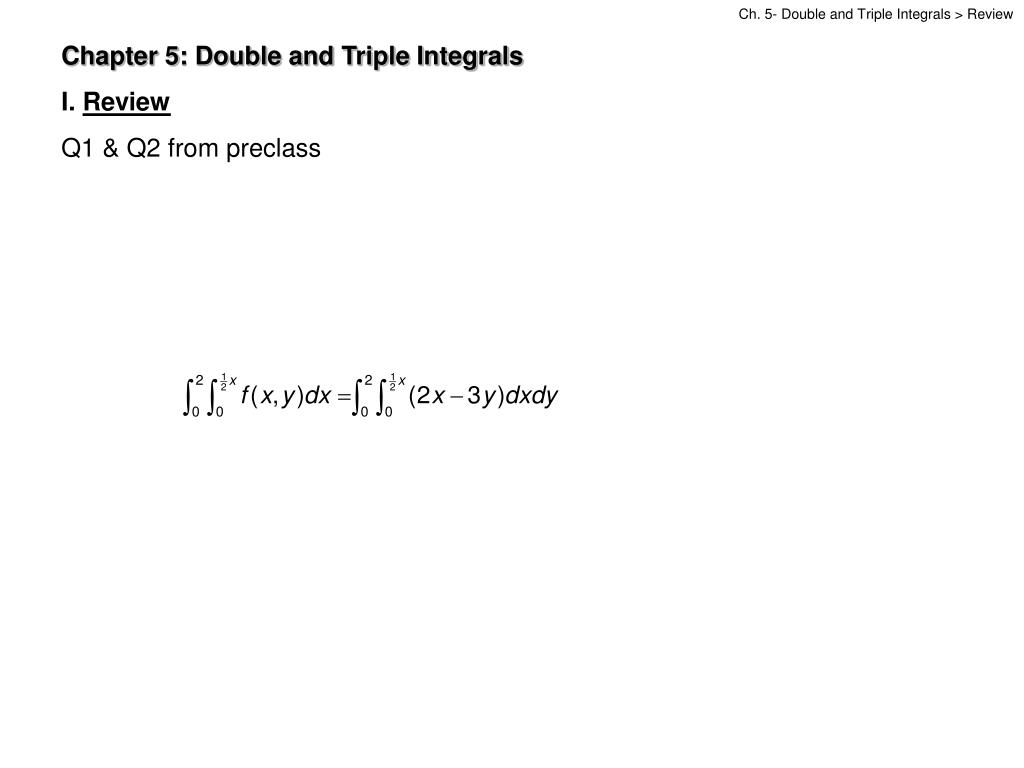

  1. Ch. 5- Double and Triple Integrals > Review Chapter 5: Double and Triple Integrals I. Review Q1 & Q2 from preclass

  2. II. Physics Applications A. Calculating volume ex: Under surface and over area bounded by y = x and y2 + x = 2 *graphs*

  3. A. Calculating Volume (continued) ex: same as before 1) Break problem up into little blocks: dx, dy, dz on a side 2) Write down dV for each block (dV=dxdydz) 3) Sum up the dVs over all the little blocks: Now our only problem is finding the limits in each direction z limits: 0 up to surface x limits: y to y limits: -2 to 1 So,

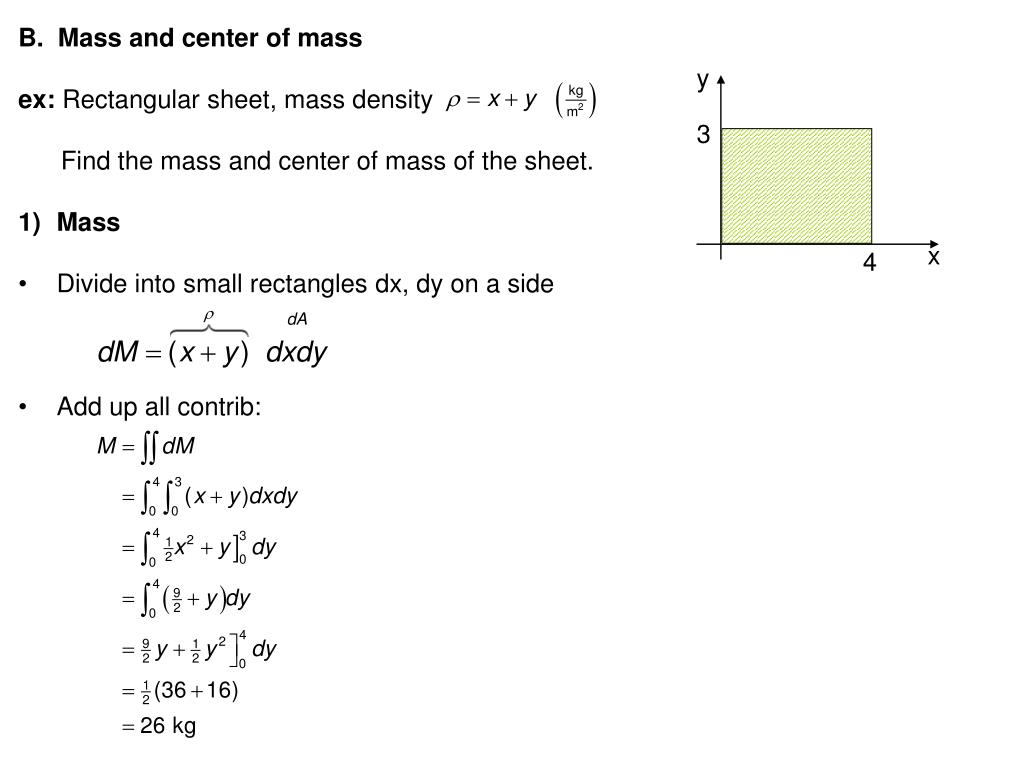

  4. B. Mass and center of mass • ex: Rectangular sheet, mass density • Find the mass and center of mass of the sheet. • Mass • Divide into small rectangles dx, dy on a side • Add up all contrib: y 3 x 4

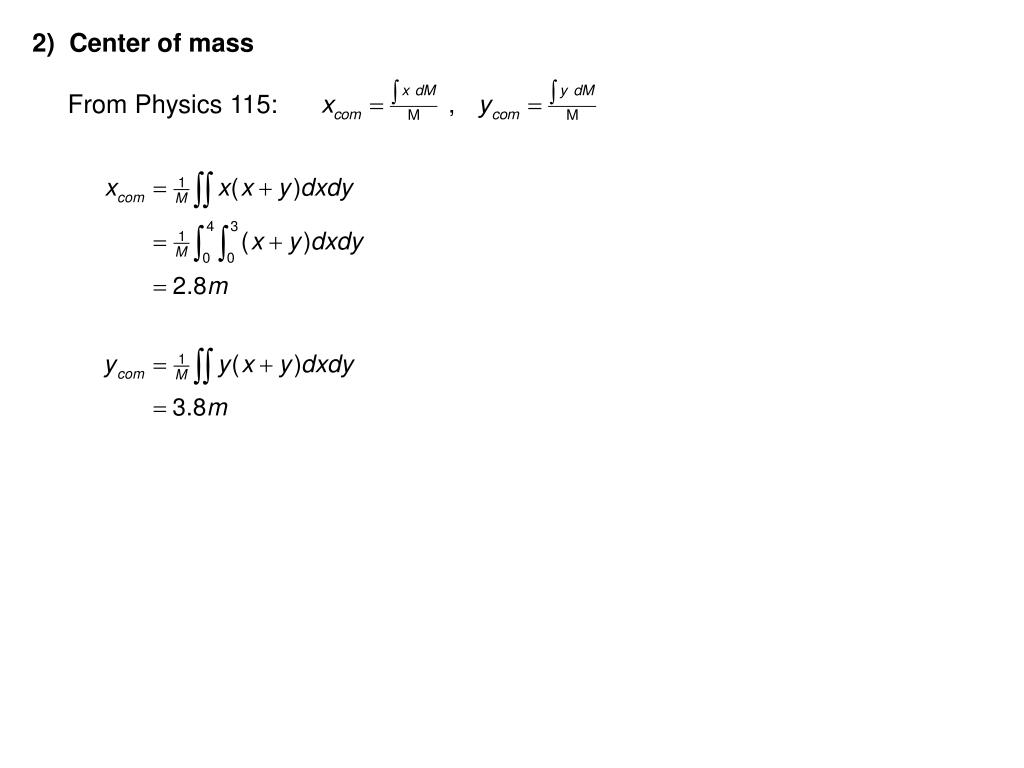

  5. 2) Center of mass From Physics 115:

  6. y R x L M C. Moment of Inertia ex: Solid cylinder where mass density ρ=3x Find I about the center axis. Moment of inertia of a point mass about an axis

  7. z y R So, break our cylinder into little pieces dx,dy,dz Then The total moment of inertia is just the sum of the pieces: Limits: x: 0 to L z: -R to R y: So,

  8. rdθ dx dy r θ x • III. Other coordinate systems • 2-D: Rectangular vs. polar y Rectangular Coords Divide into boxes of area dA=dxdy Polar Coords Divide into pieces of area dA=dr(rdθ)=rdrdθ

  9. ex: • Say we want to calculate the mass of a circular plate w/ mass density ρ. • Method 1: Rectangular coordinates • dM=ρdxdy • Slice horiz: • y: -3 to 3 • x: • So, the total mass is: • Method 2: Polar coordinates z 3 y 3
