  1. PART 4TRAINING DELAY Dosen : DwisnantoPutro, ST, M.Eng

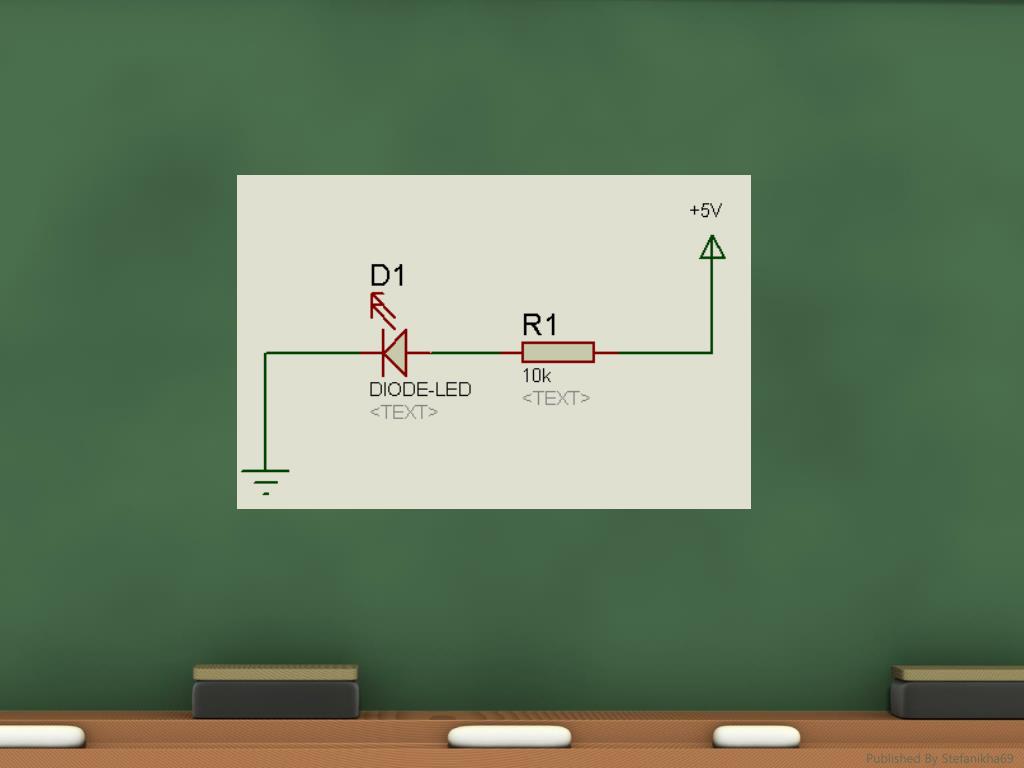

  2. LED (LIGHT EMITING DIODE) • Untuk LED ANODA : Logika0 = led menyala Logika1 = led mati • Untuk LED KATODA : Logika0 = led mati Logika1 = led menyala Published By Stefanikha69

  3. Published By Stefanikha69

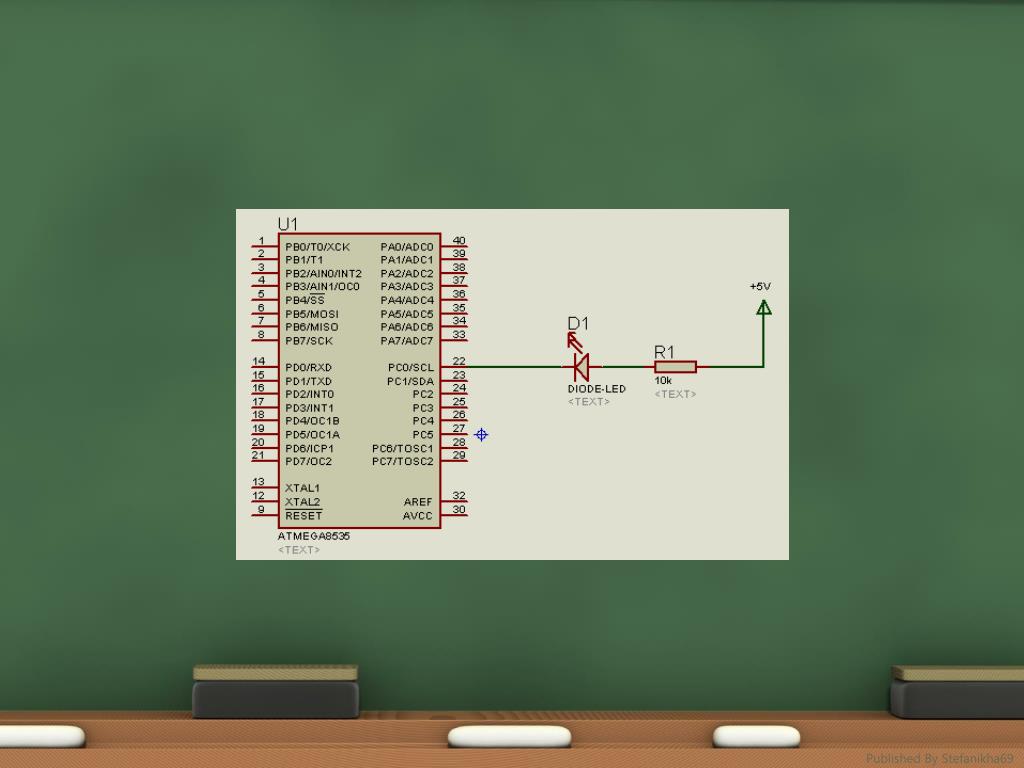

  4. Published By Stefanikha69

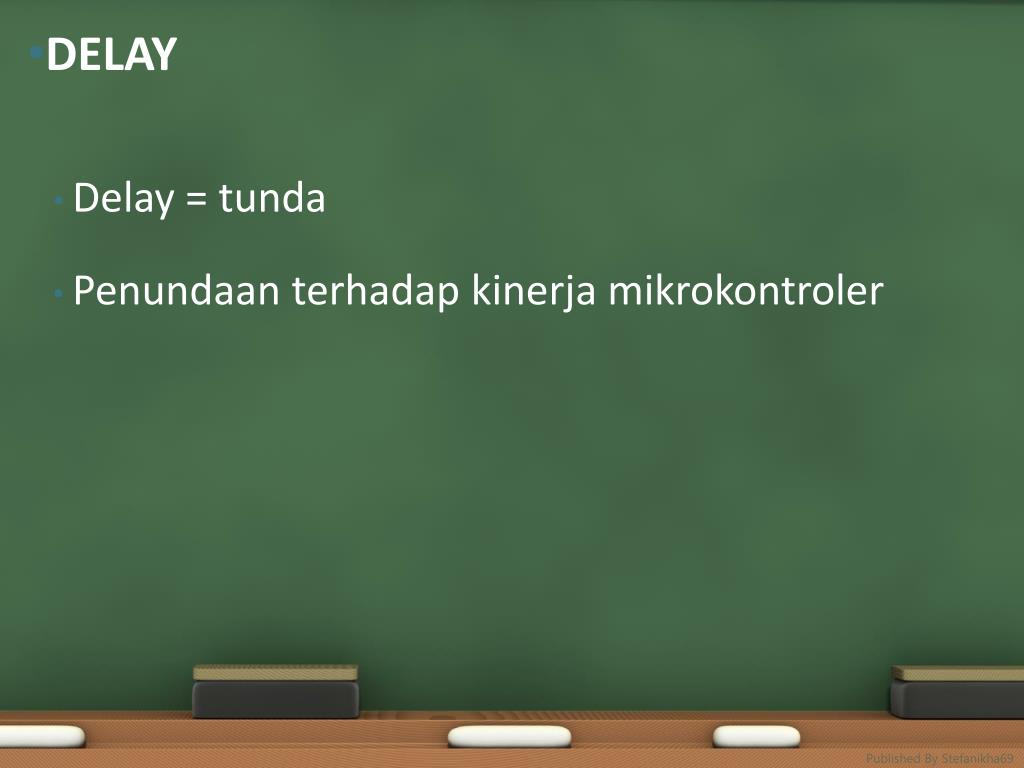

  5. DELAY • Delay = tunda • Penundaanterhadapkinerjamikrokontroler Published By Stefanikha69

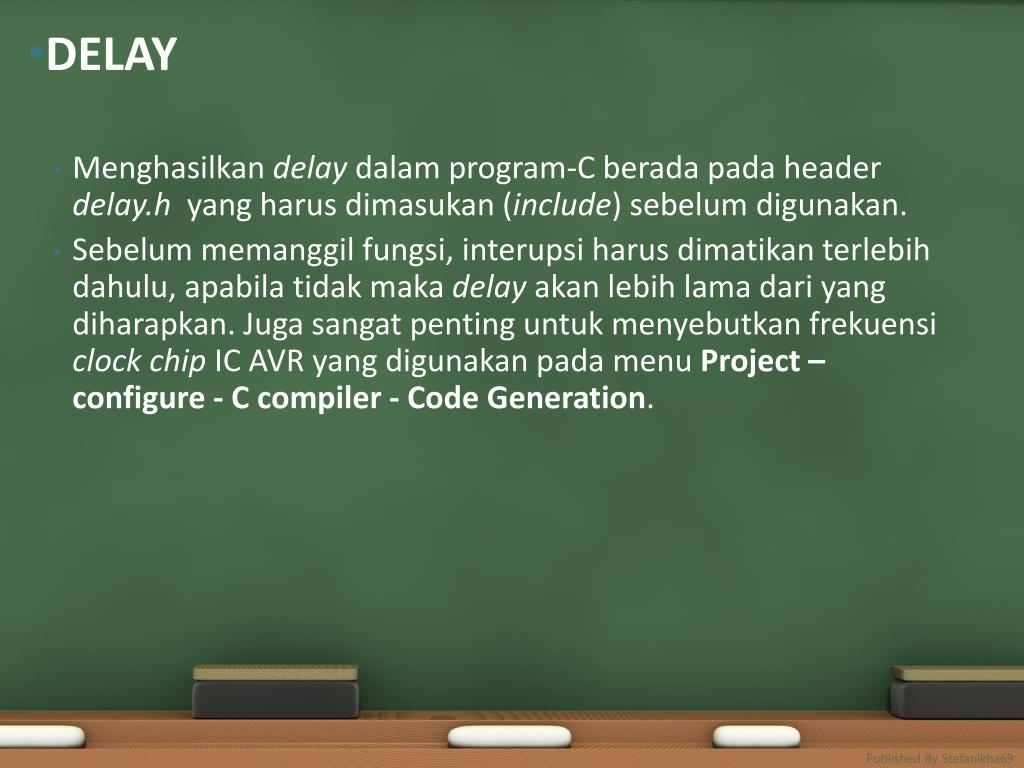

  6. DELAY • Menghasilkandelaydalam program-C beradapada header delay.h yang harusdimasukan (include) sebelumdigunakan. • Sebelummemanggilfungsi, interupsiharusdimatikanterlebihdahulu, apabilatidakmakadelay akanlebih lama dari yang diharapkan. Jugasangatpentinguntukmenyebutkanfrekuensiclockchip IC AVR yang digunakanpada menu Project – configure - C compiler - Code Generation. Published By Stefanikha69

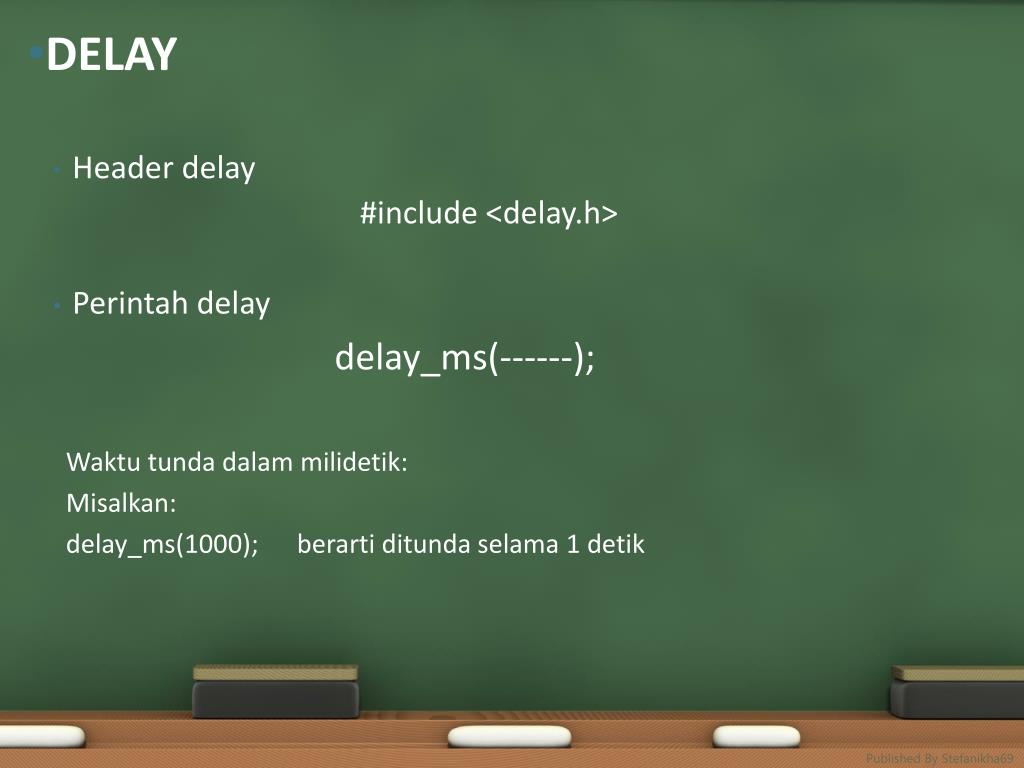

  7. DELAY • Header delay #include <delay.h> • Perintah delay delay_ms(------); Waktutundadalammilidetik: Misalkan: delay_ms(1000); berartiditundaselama 1 detik Published By Stefanikha69

  8. DELAY • Dengan system delay, menciptakan system sinyalpulsa Published By Stefanikha69

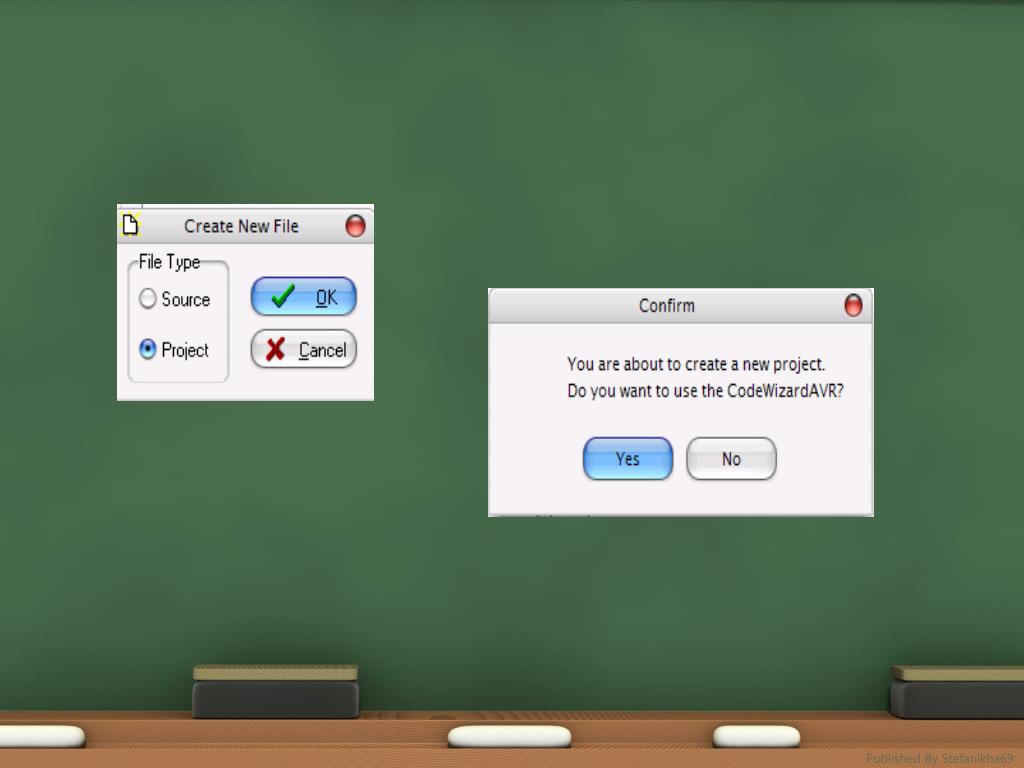

  9. New Project Run CodeVision Published By Stefanikha69

  10. Published By Stefanikha69

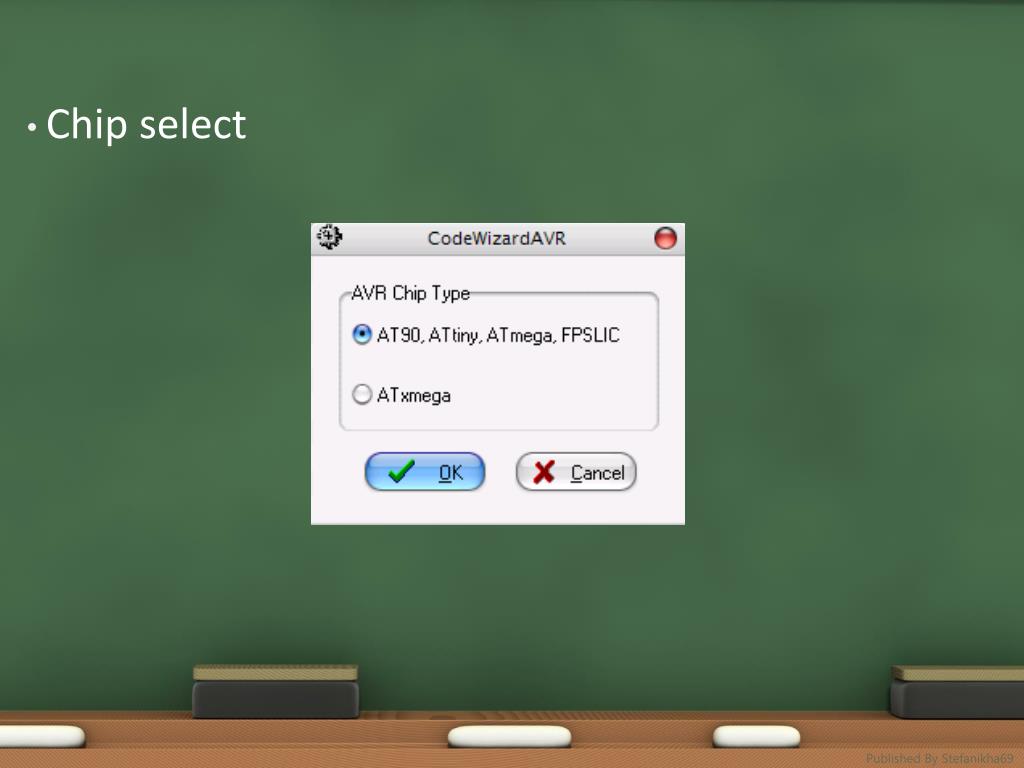

  11. Chip select Published By Stefanikha69

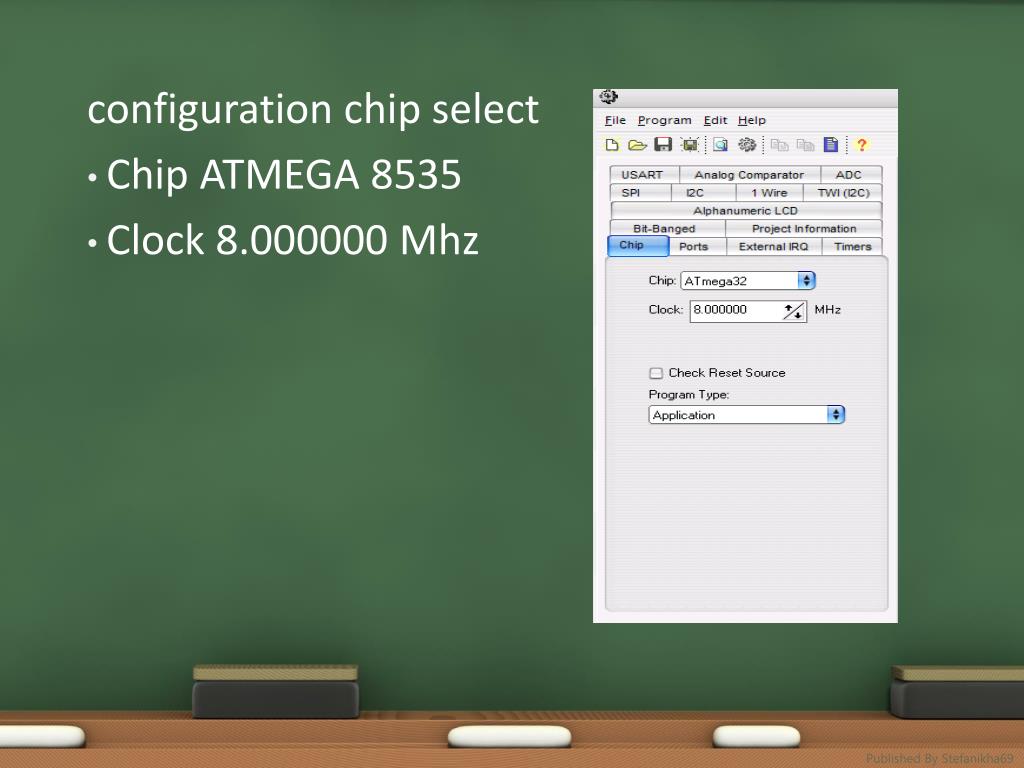

  12. configuration chip select • Chip ATMEGA 8535 • Clock 8.000000 Mhz Published By Stefanikha69

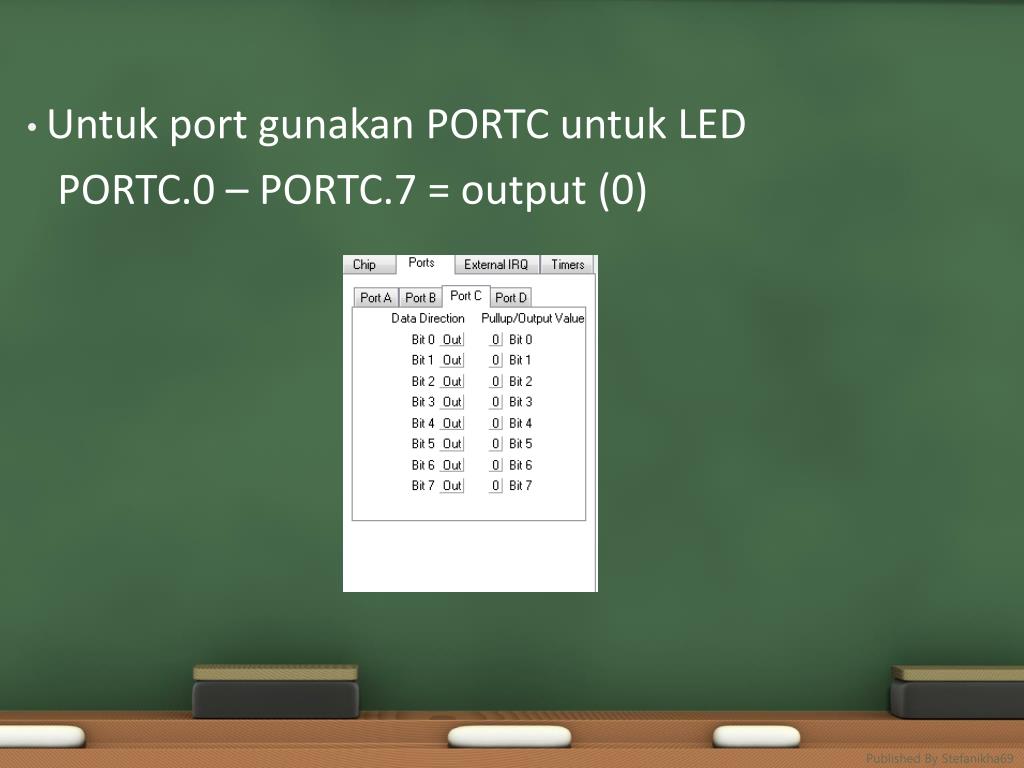

  13. Untuk port gunakan PORTC untuk LED PORTC.0 – PORTC.7 = output (0) Published By Stefanikha69

  14. Save and Generate Published By Stefanikha69

  15. Save File – make folder and files Published By Stefanikha69

  16. Display Published By Stefanikha69

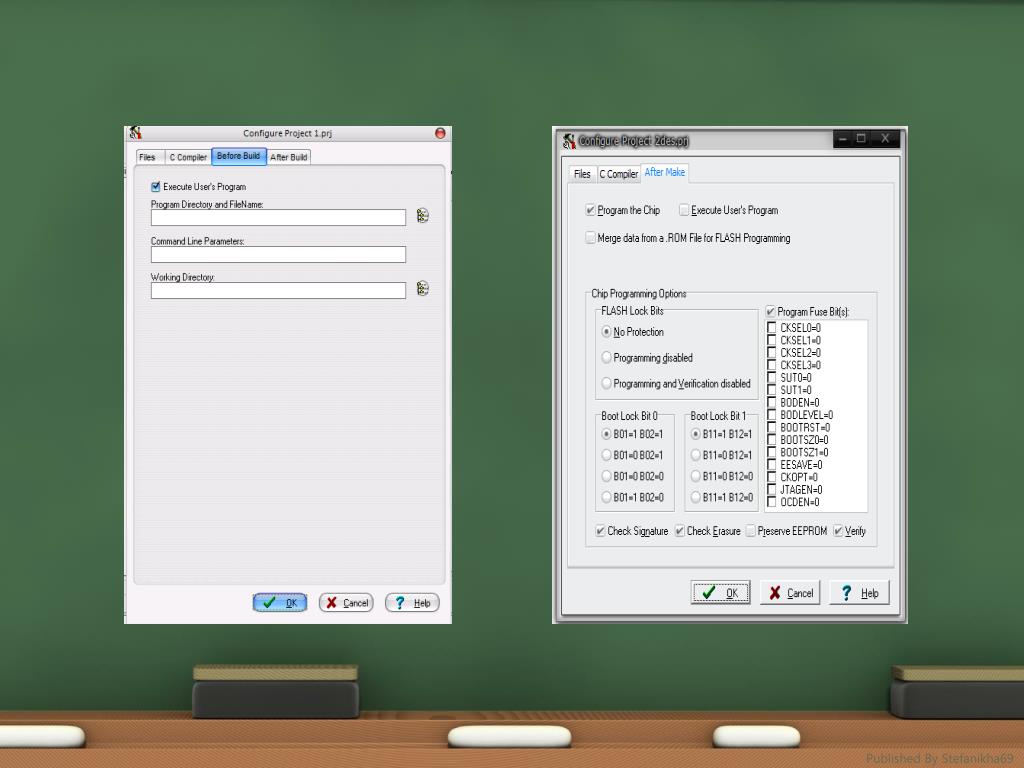

  17. Configuration ready compile Published By Stefanikha69

  18. Published By Stefanikha69

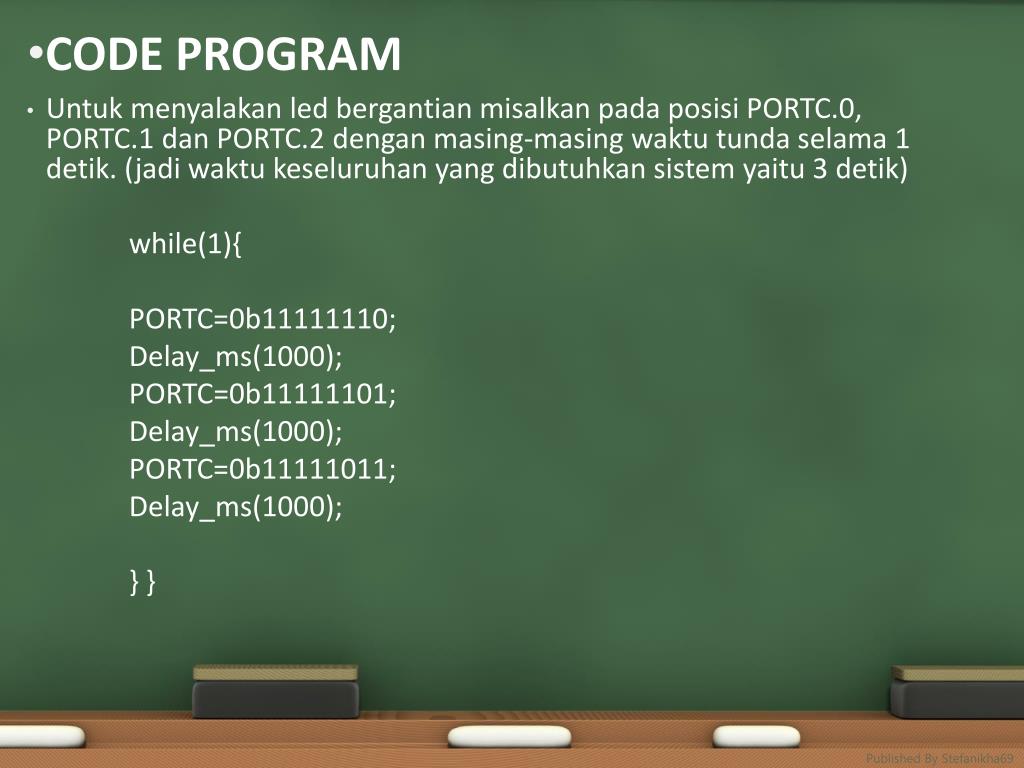

  19. CODE PROGRAM • Untukmenyalakanled bergantianmisalkanpadaposisiPORTC.0, PORTC.1 dan PORTC.2 denganmasing-masingwaktutundaselama 1 detik. (jadiwaktukeseluruhan yang dibutuhkansistemyaitu 3 detik) while(1){ PORTC=0b11111110; Delay_ms(1000); PORTC=0b11111101; Delay_ms(1000); PORTC=0b11111011; Delay_ms(1000); } } Published By Stefanikha69

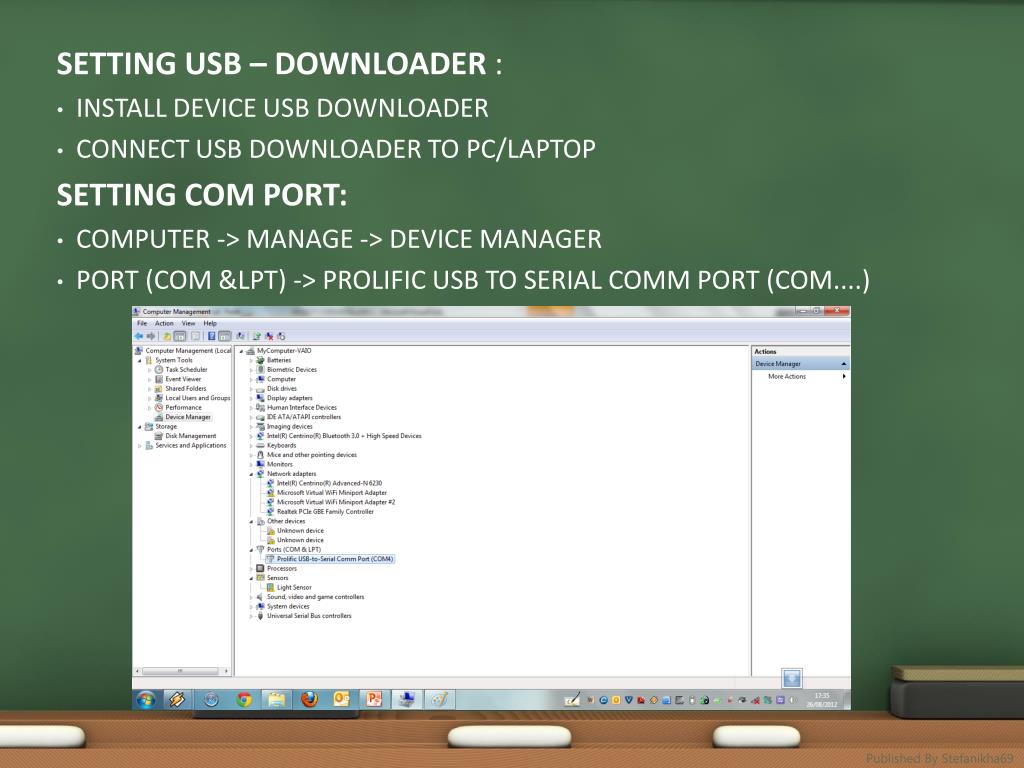

  20. SETTING USB – DOWNLOADER : • INSTALL DEVICE USB DOWNLOADER • CONNECT USB DOWNLOADER TO PC/LAPTOP SETTING COM PORT: • COMPUTER -> MANAGE -> DEVICE MANAGER • PORT (COM &LPT) -> PROLIFIC USB TO SERIAL COMM PORT (COM....) Published By Stefanikha69

  21. Configuration PORT Programmer Published By Stefanikha69

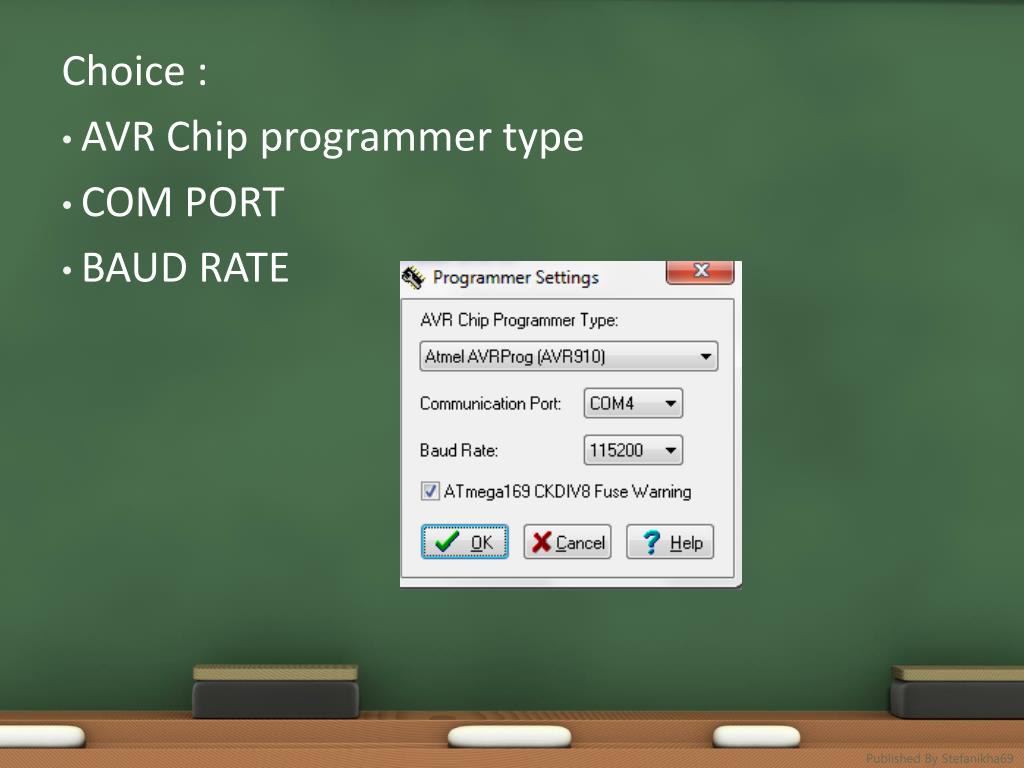

  22. Choice : • AVR Chip programmer type • COM PORT • BAUD RATE Published By Stefanikha69

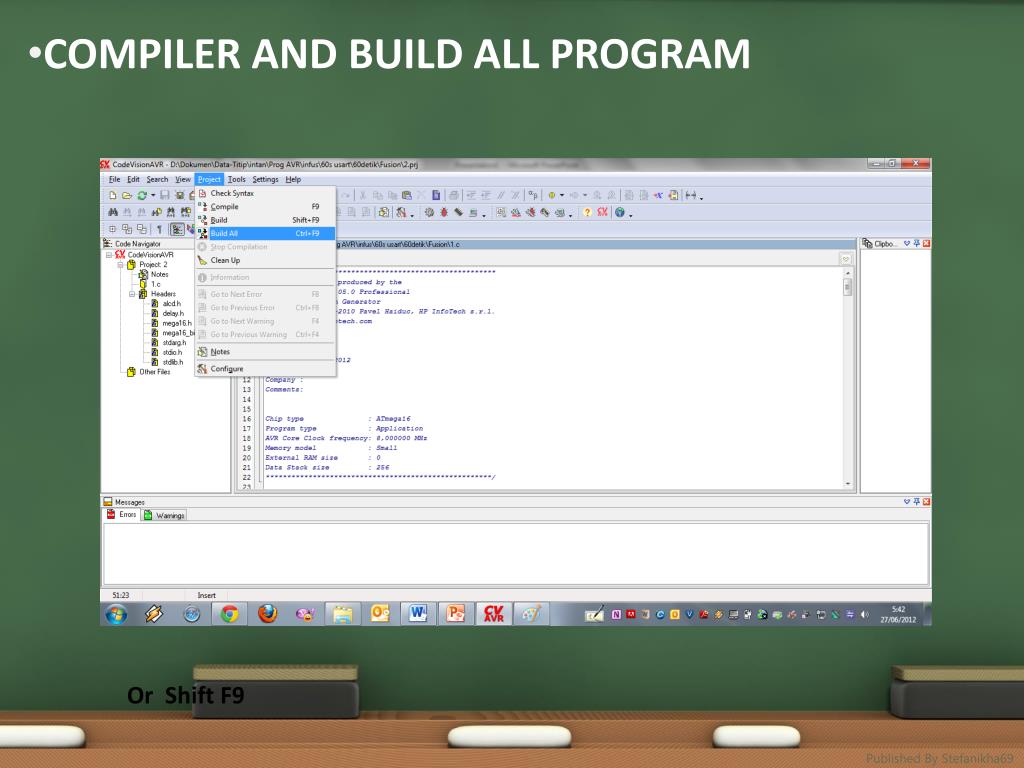

  23. COMPILER AND BUILD ALL PROGRAM Or Shift F9 Published By Stefanikha69

  24. Connecting USB Downloader - PC/Laptop - Microcontroller, And.... Published By Stefanikha69

  25. Process Downloading......... Published By Stefanikha69

  26. FINISH Published By Stefanikha69

  27. Solution : • Check COM PORT • Check Baud Rate • Check Connection Downloader • Check Prog/Serial TTL select Error DOWNLOADING Published By Stefanikha69

  28. CV AVR WITH PROTEUS OPEN PROGRAM ISIS PROTEUS PROFESSIONAL Published By Stefanikha69

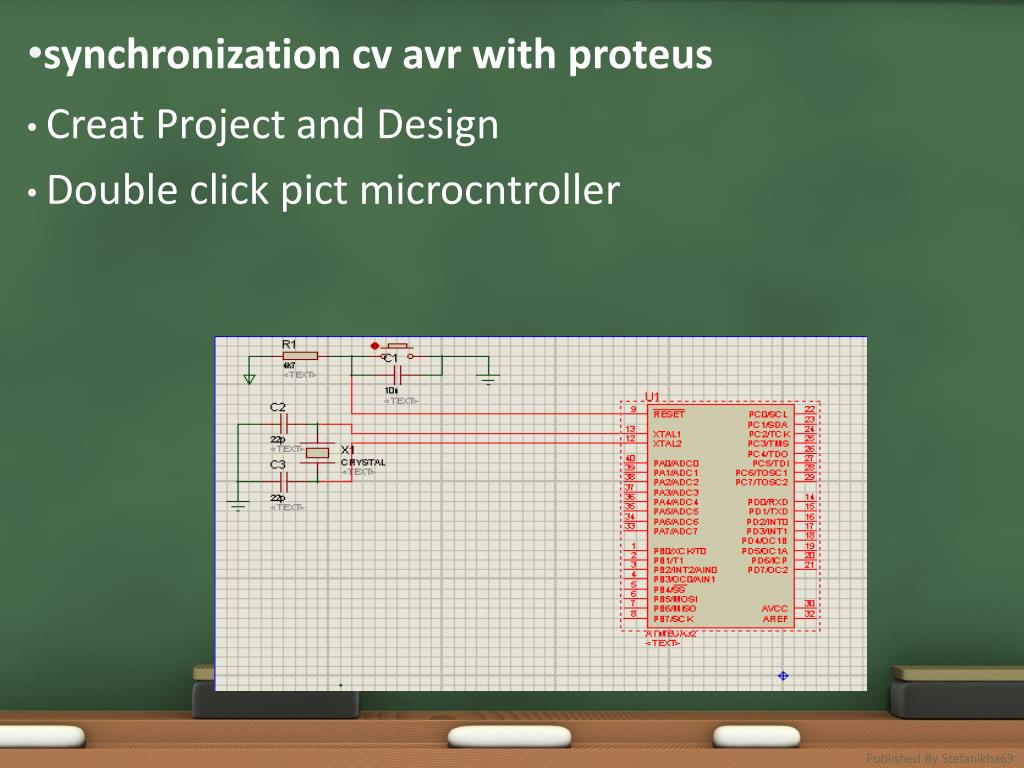

  29. synchronization cv avr with proteus • Creat Project and Design • Double click pict microcntroller Published By Stefanikha69

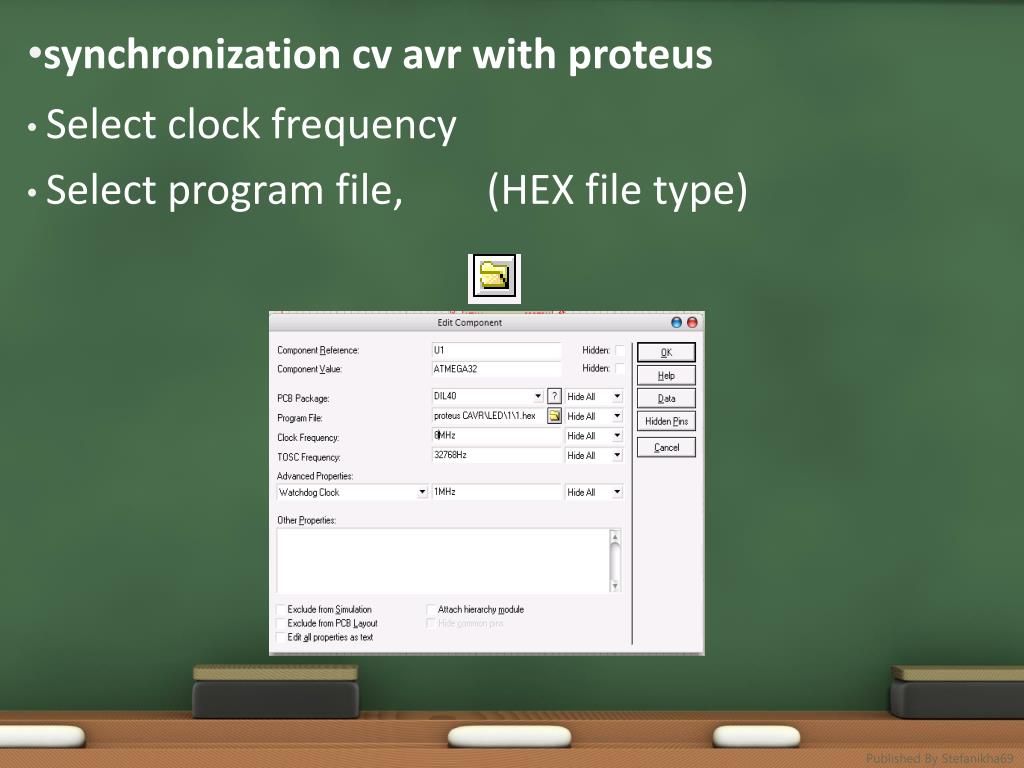

  30. synchronization cv avr with proteus Select clock frequency Select program file, (HEX file type) Published By Stefanikha69

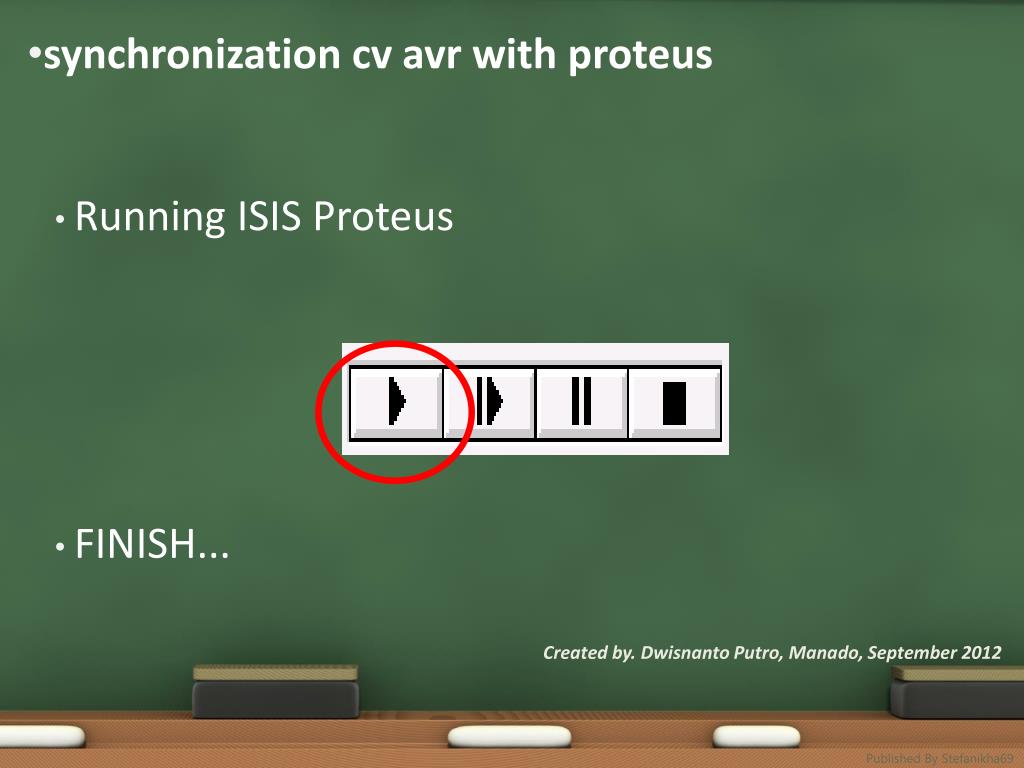

  31. synchronization cv avr with proteus • Running ISIS Proteus • FINISH... Created by. DwisnantoPutro, Manado, September 2012 Published By Stefanikha69

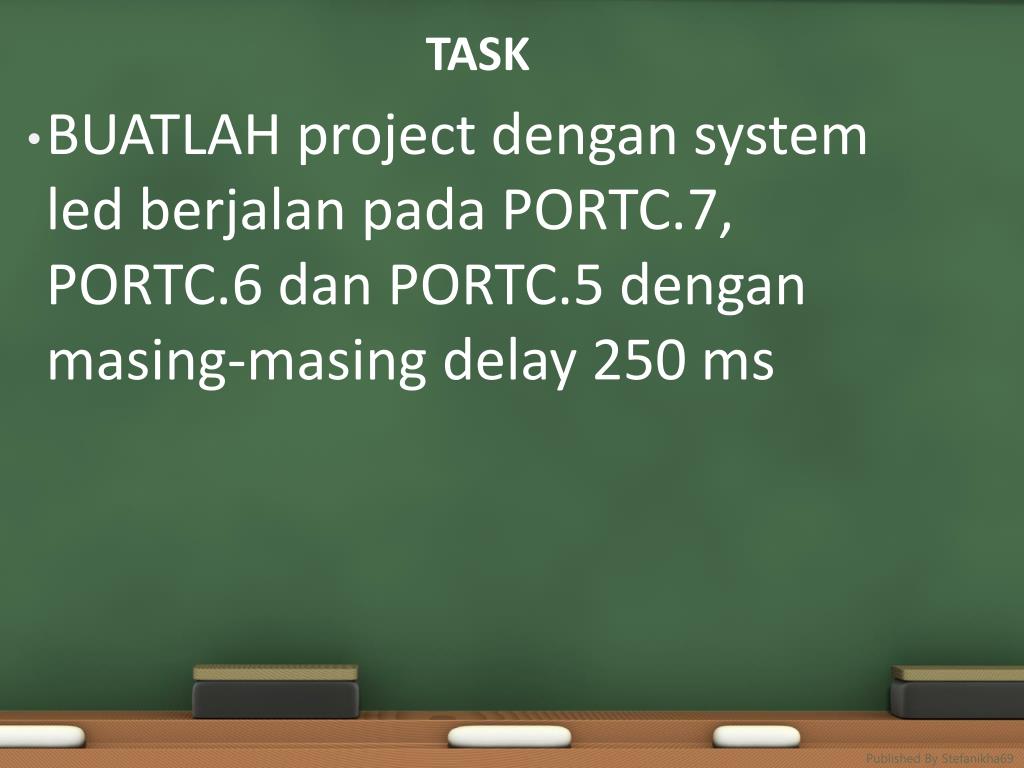

  32. TASK BUATLAH project dengan system led berjalan pada PORTC.7, PORTC.6 dan PORTC.5 dengan masing-masing delay 250 ms Published By Stefanikha69

  33. TASK BUATLAH project dengan system led berjalan pada PORTC.0, PORTC.2, PORTC.4 dan PORTC.6 dengan sistem led menyala secara berurutan bergantian. masing-masing delay 100 ms. Published By Stefanikha69

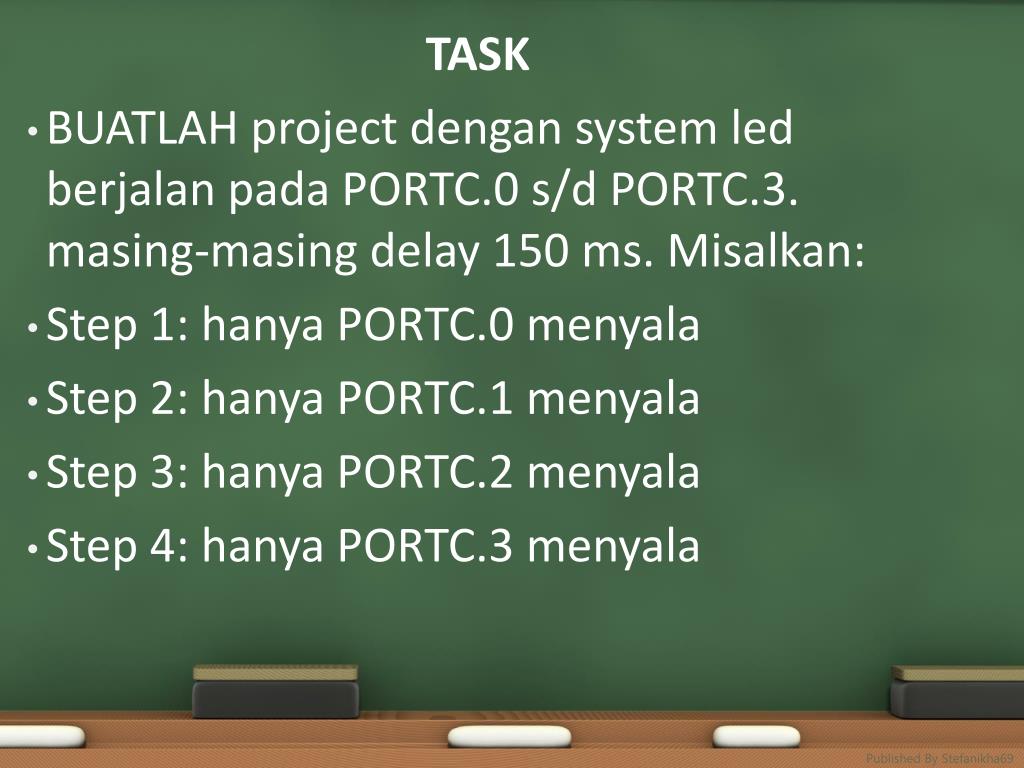

  34. TASK BUATLAH project dengan system led berjalan pada PORTC.0 s/d PORTC.3. masing-masing delay 150 ms. Misalkan: Step 1: hanya PORTC.0 menyala Step 2: hanya PORTC.1 menyala Step 3: hanya PORTC.2 menyala Step 4: hanya PORTC.3 menyala Published By Stefanikha69

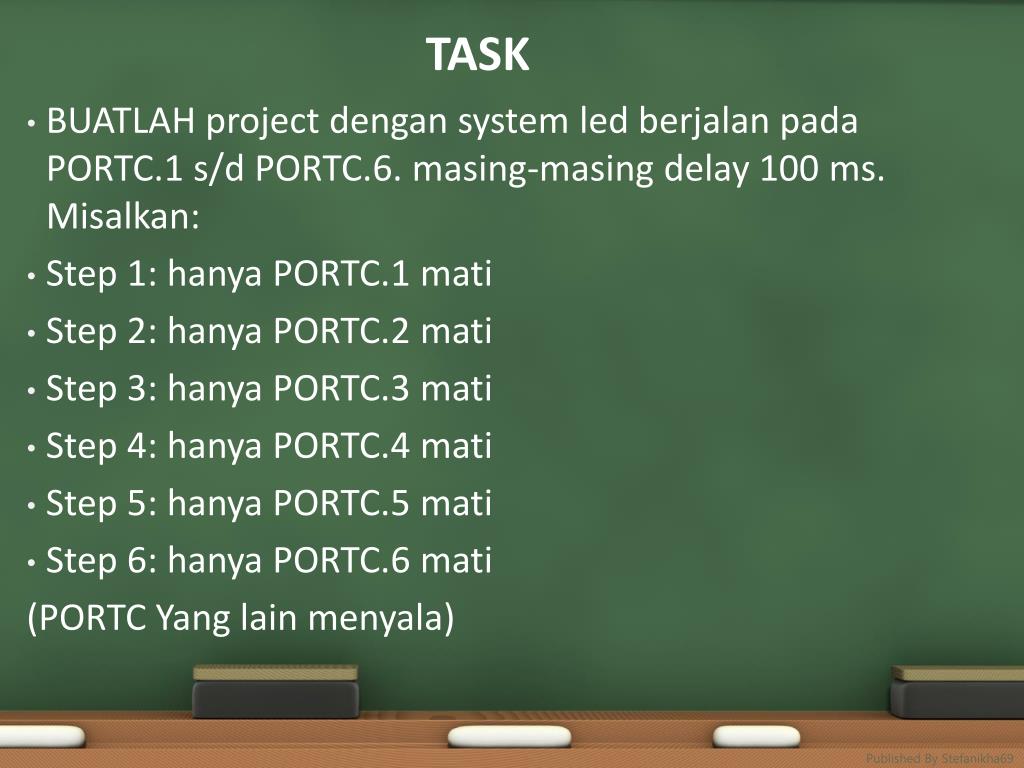

  35. TASK BUATLAH project dengan system led berjalan pada PORTC.1 s/d PORTC.6. masing-masing delay 100 ms. Misalkan: Step 1: hanya PORTC.1 mati Step 2: hanya PORTC.2 mati Step 3: hanya PORTC.3 mati Step 4: hanya PORTC.4 mati Step 5: hanya PORTC.5 mati Step 6: hanya PORTC.6 mati (PORTC Yang lain menyala) Published By Stefanikha69

  36. TASK BUATLAH project dengan system led berjalan pada PORTC.0 s/d PORTC.7. masing-masing delay 100 ms. (Secara berurutan menyala dari PORTC.0 s/d PORTC.7) Published By Stefanikha69

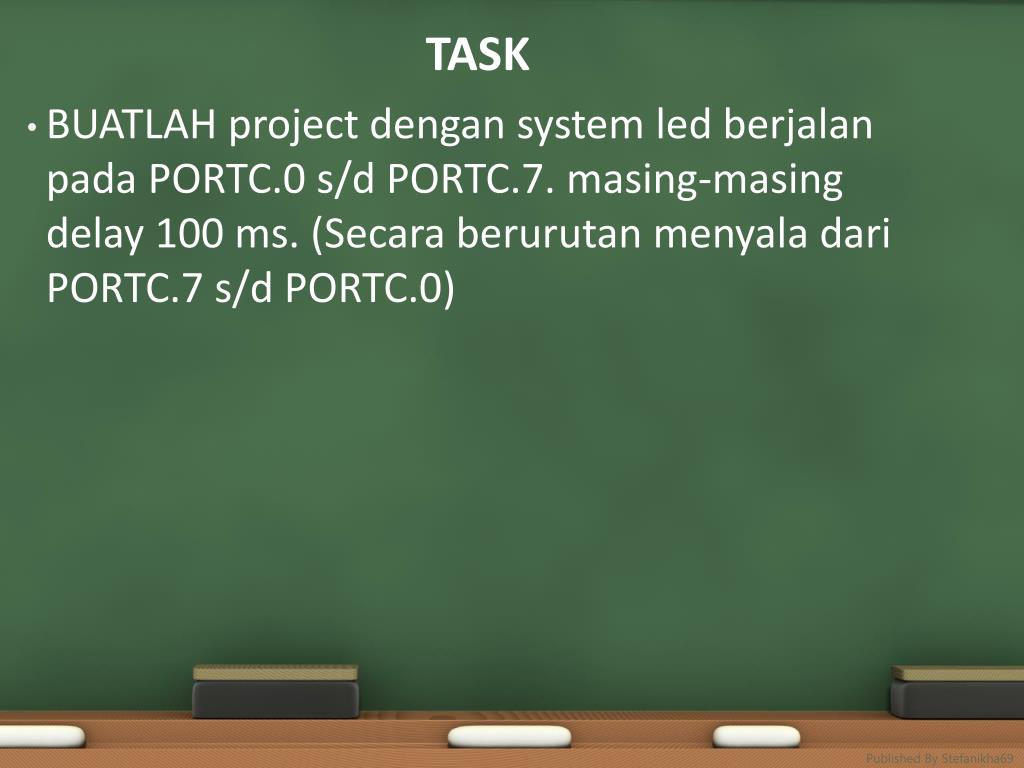

  37. TASK BUATLAH project dengan system led berjalan pada PORTC.0 s/d PORTC.7. masing-masing delay 100 ms. (Secara berurutan menyala dari PORTC.7 s/d PORTC.0) Published By Stefanikha69

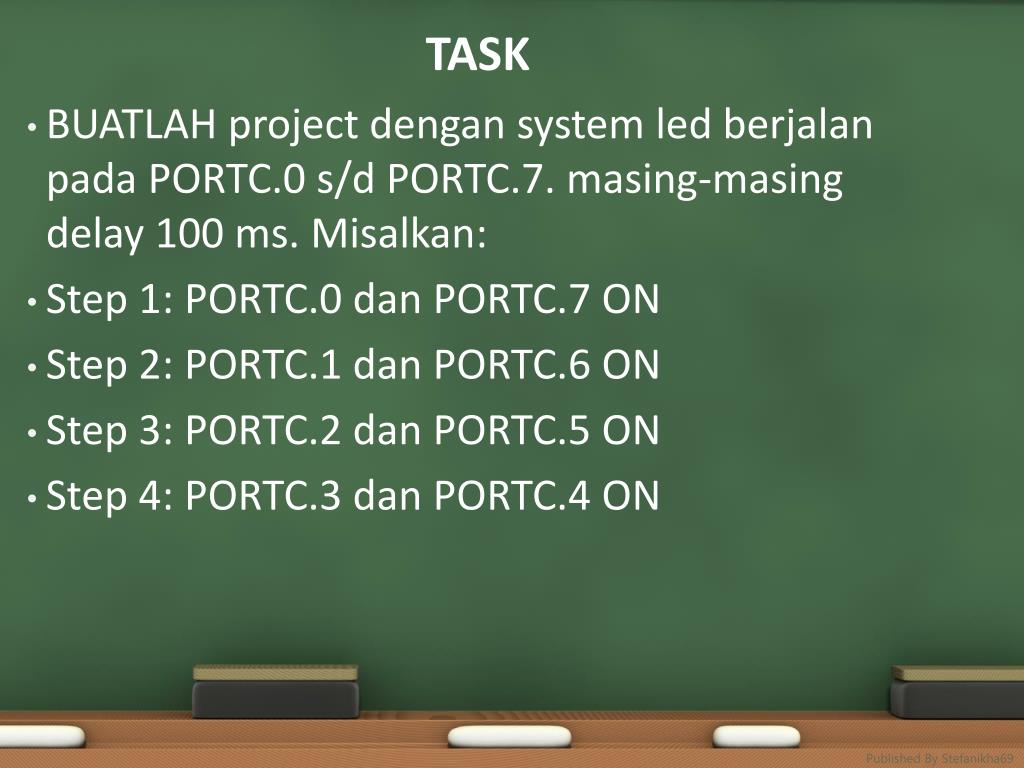

  38. TASK BUATLAH project dengan system led berjalan pada PORTC.0 s/d PORTC.7. masing-masing delay 100 ms. Misalkan: Step 1: PORTC.0 dan PORTC.7 ON Step 2: PORTC.1 dan PORTC.6 ON Step 3: PORTC.2 dan PORTC.5 ON Step 4: PORTC.3 dan PORTC.4 ON Published By Stefanikha69

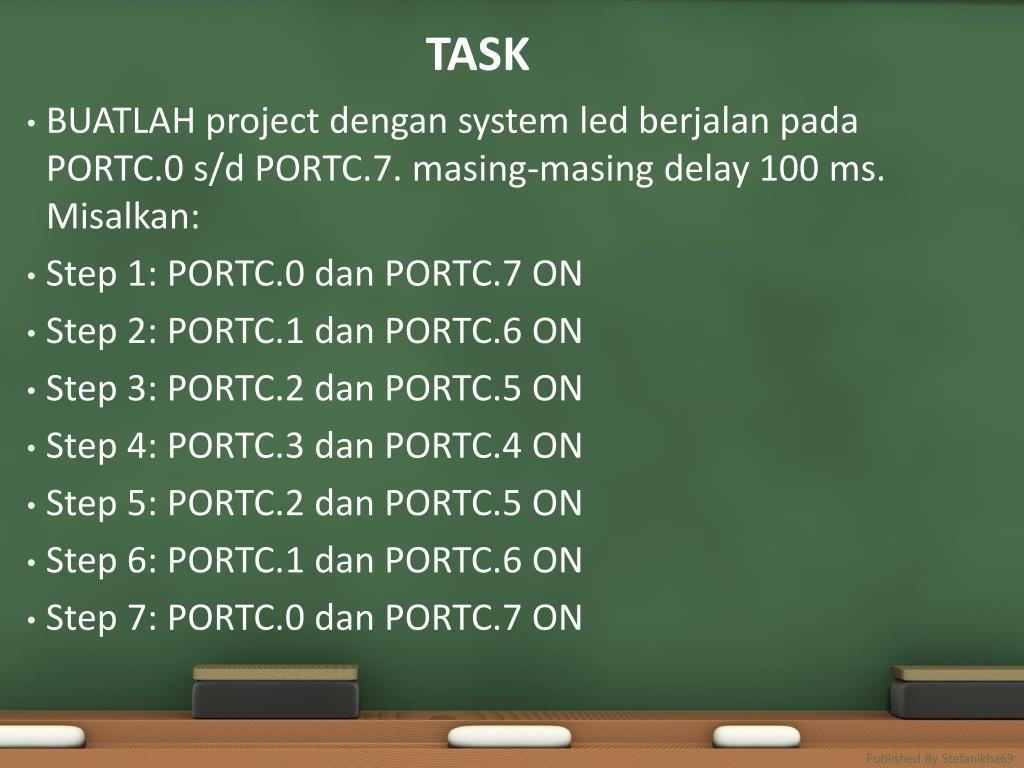

  39. TASK BUATLAH project dengan system led berjalan pada PORTC.0 s/d PORTC.7. masing-masing delay 100 ms. Misalkan: Step 1: PORTC.0 dan PORTC.7 ON Step 2: PORTC.1 dan PORTC.6 ON Step 3: PORTC.2 dan PORTC.5 ON Step 4: PORTC.3 dan PORTC.4 ON Step 5: PORTC.2 dan PORTC.5 ON Step 6: PORTC.1 dan PORTC.6 ON Step 7: PORTC.0 dan PORTC.7 ON Published By Stefanikha69
