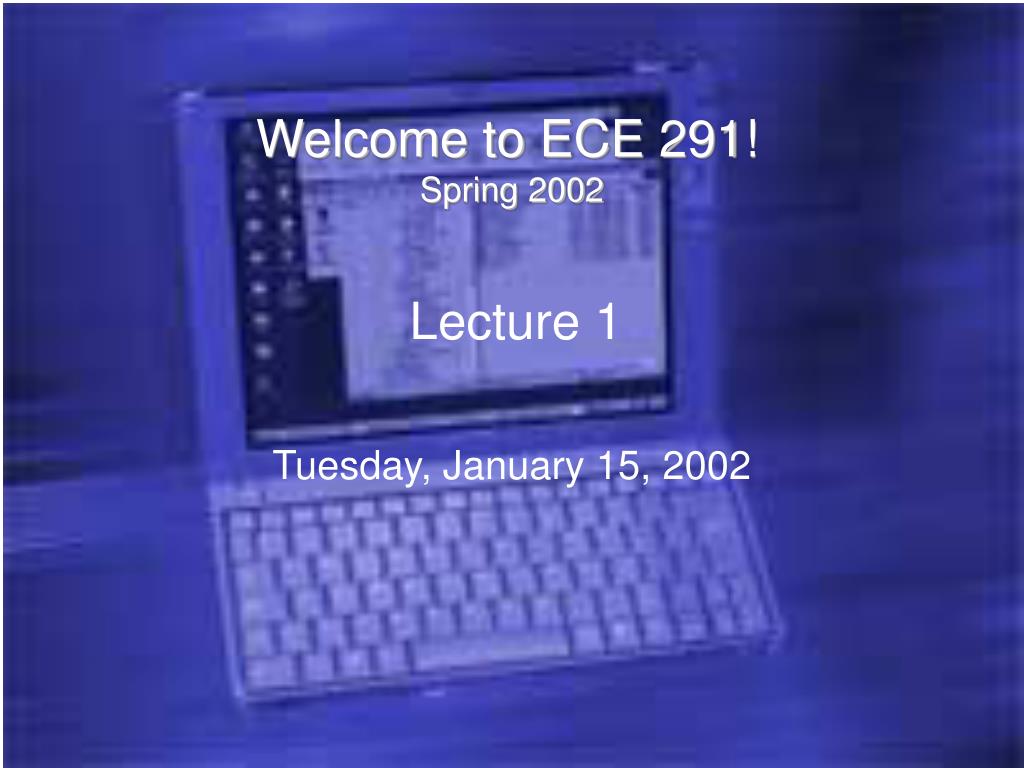

  1. Welcome to ECE 291! Spring 2002 Lecture 1 Tuesday, January 15, 2002

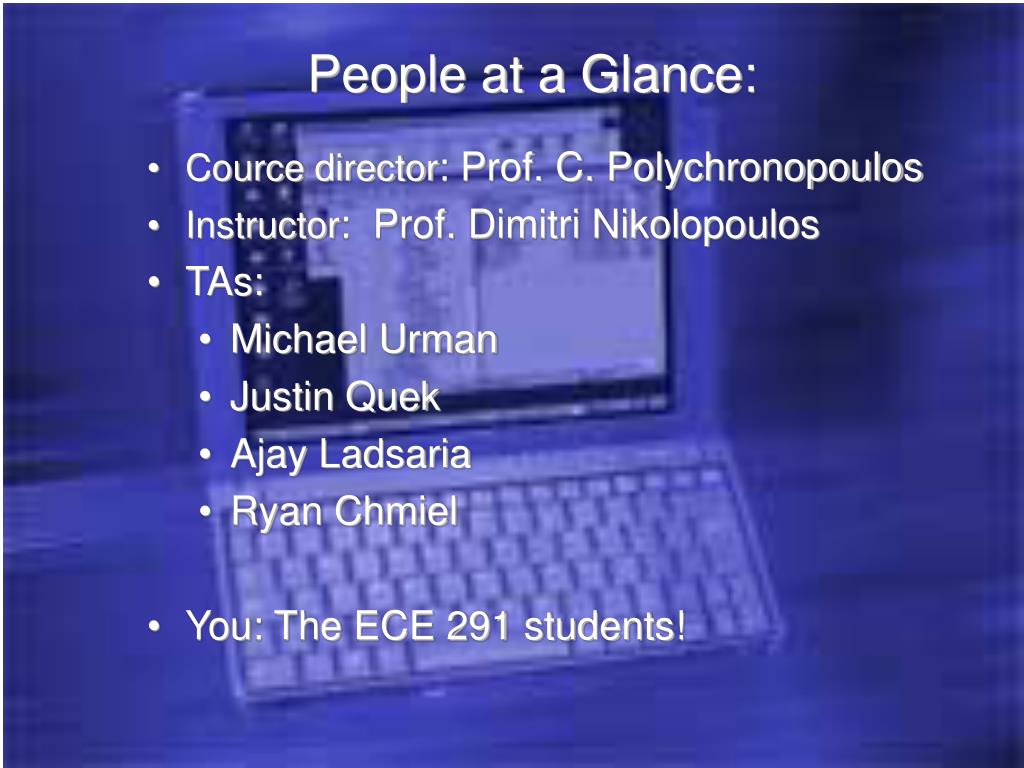

  2. People at a Glance: • Cource director: Prof. C. Polychronopoulos • Instructor: Prof. Dimitri Nikolopoulos • TAs: • Michael Urman • Justin Quek • Ajay Ladsaria • Ryan Chmiel • You: The ECE 291 students!

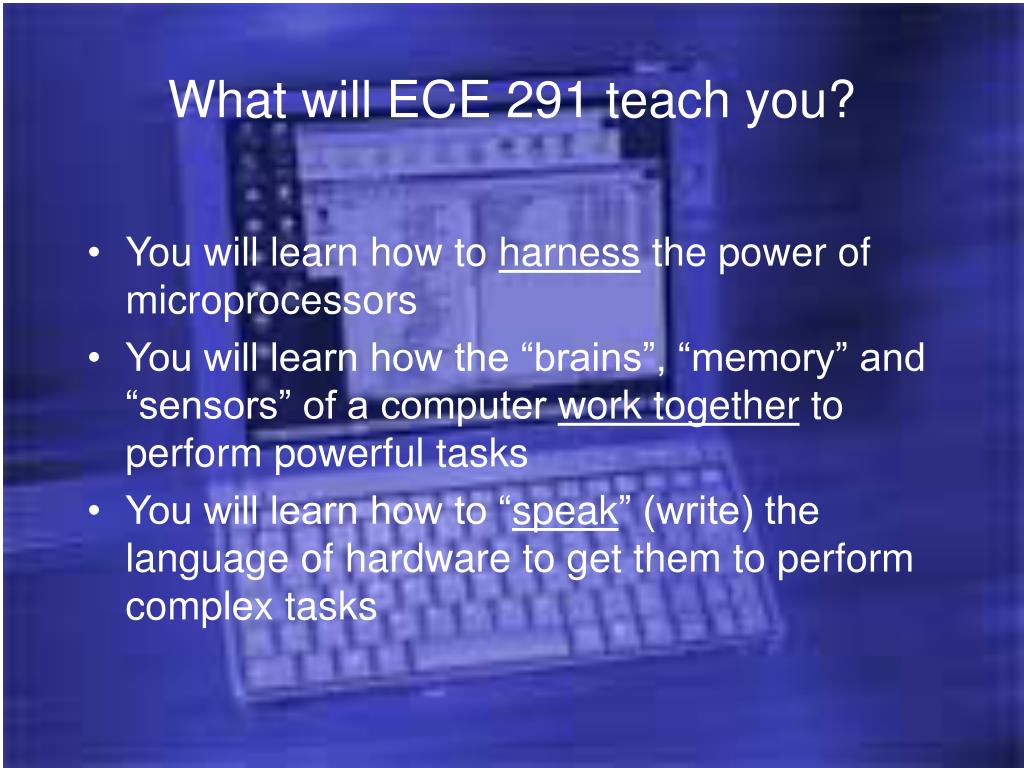

  3. What will ECE 291 teach you? • You will learn how to harness the power of microprocessors • You will learn how the “brains”, “memory” and “sensors” of a computer work together to perform powerful tasks • You will learn how to “speak” (write) the language of hardware to get them to perform complex tasks

  4. Lecture Outline • How to navigate for success in ECE 291! • Course Syllabus • Highlights in the history of computers • Number systems review • Hints for MP0

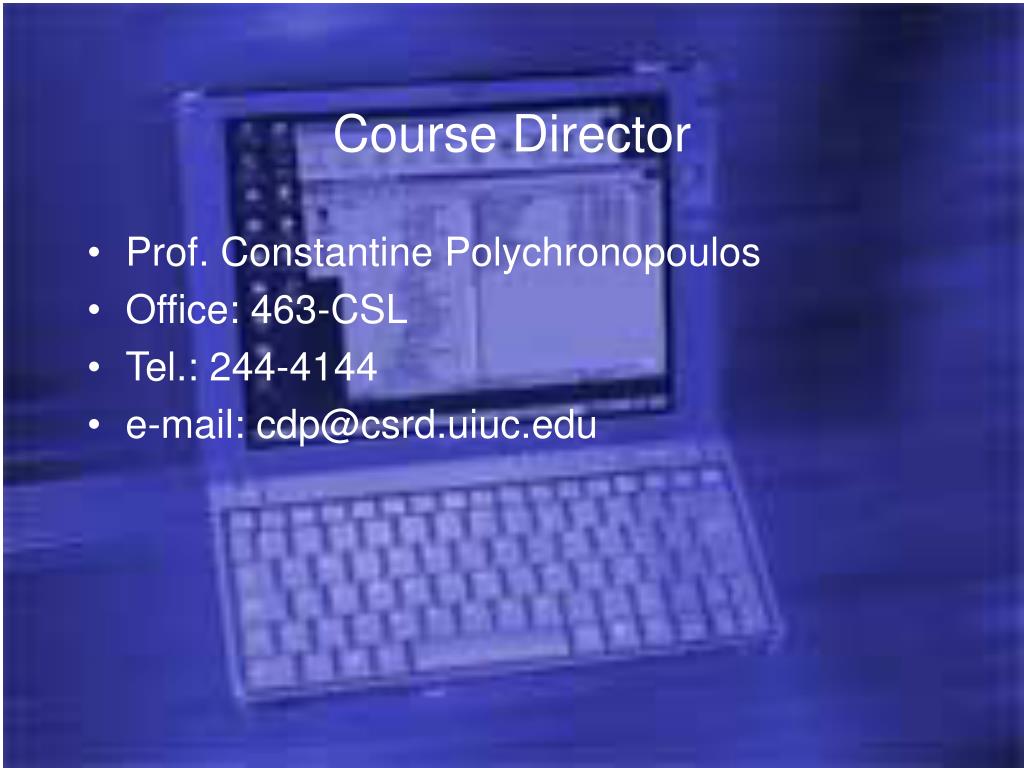

  5. Course Director • Prof. Constantine Polychronopoulos • Office: 463-CSL • Tel.: 244-4144 • e-mail: cdp@csrd.uiuc.edu

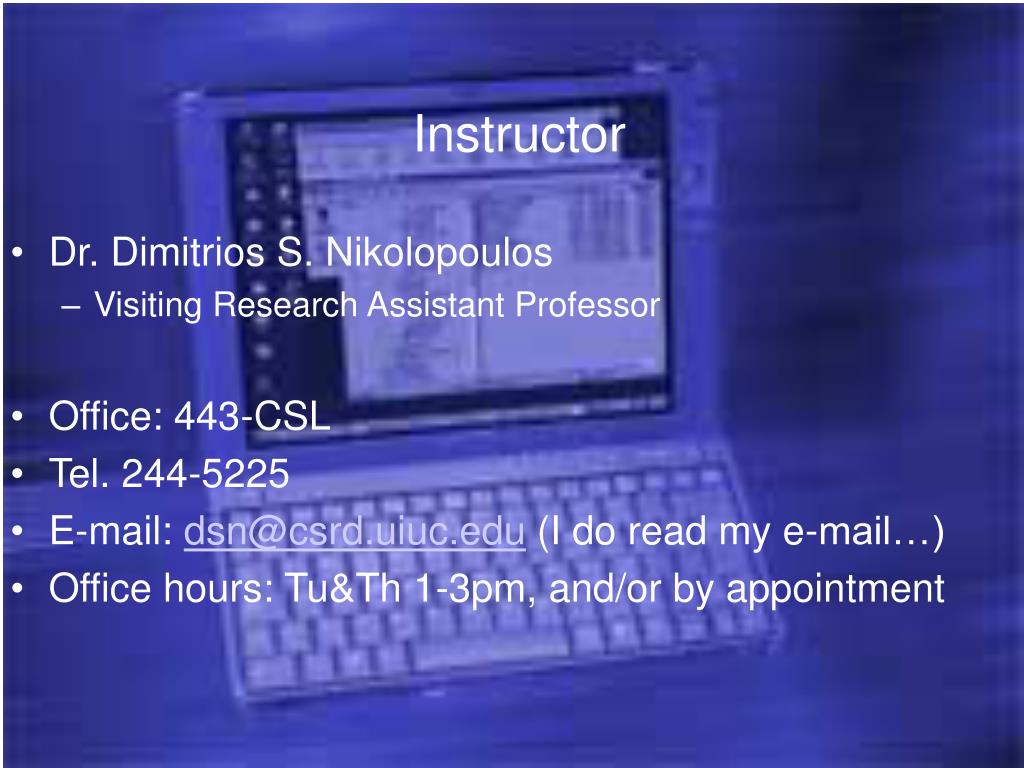

  6. Instructor • Dr. Dimitrios S. Nikolopoulos • Visiting Research Assistant Professor • Office: 443-CSL • Tel. 244-5225 • E-mail: dsn@csrd.uiuc.edu (I do read my e-mail…) • Office hours: Tu&Th 1-3pm, and/or by appointment

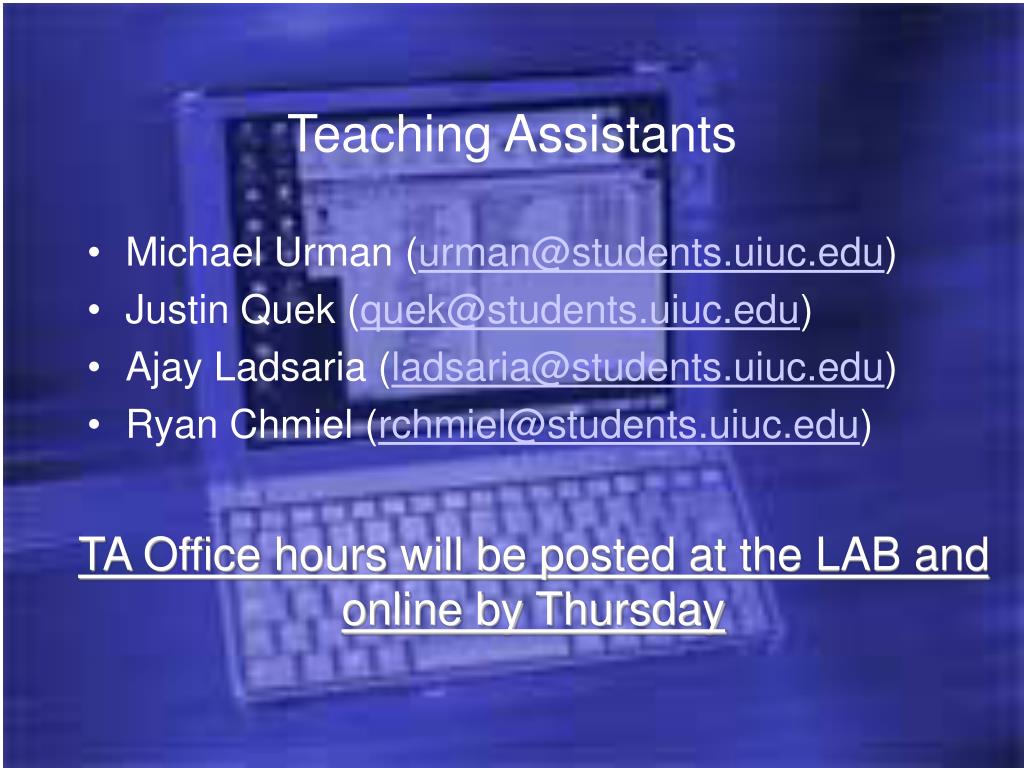

  7. Teaching Assistants • Michael Urman (urman@students.uiuc.edu) • Justin Quek (quek@students.uiuc.edu) • Ajay Ladsaria (ladsaria@students.uiuc.edu) • Ryan Chmiel (rchmiel@students.uiuc.edu) TA Office hours will be posted at the LAB and online by Thursday

  8. Lectures • Lectures: 151 Everitt Lab, Tuesday&Thursday 10.30 a.m. – 11.50 a.m. Notes will be made available online Notes are not a substitute for lecture attendance!

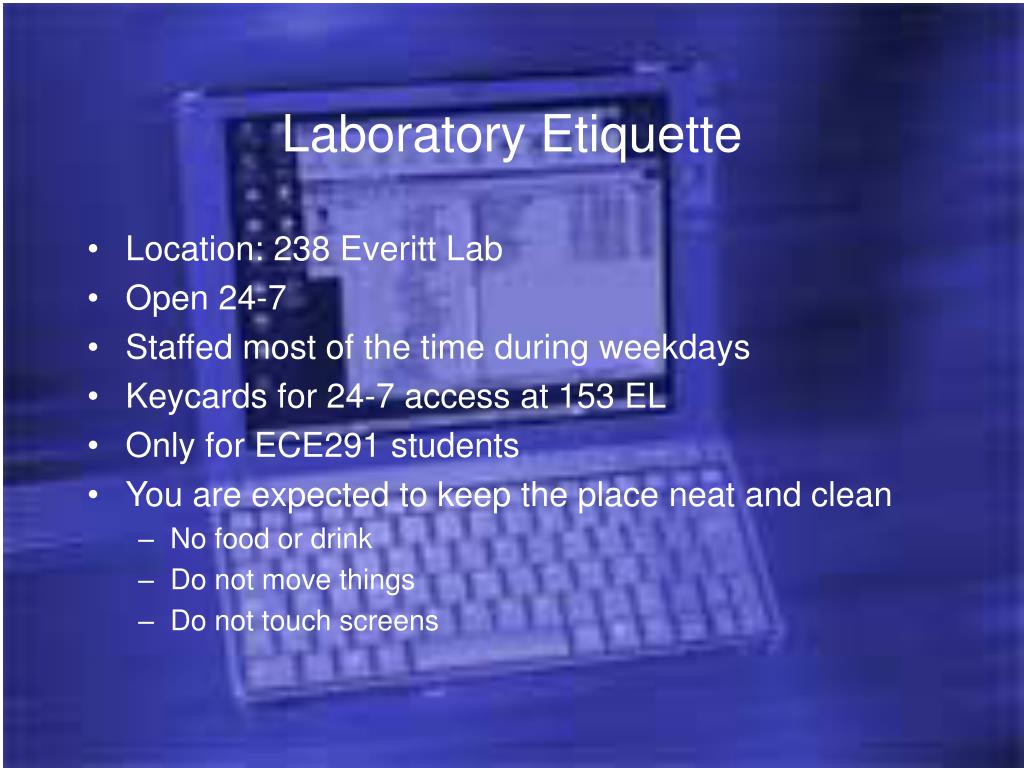

  9. Laboratory Etiquette • Location: 238 Everitt Lab • Open 24-7 • Staffed most of the time during weekdays • Keycards for 24-7 access at 153 EL • Only for ECE291 students • You are expected to keep the place neat and clean • No food or drink • Do not move things • Do not touch screens

  10. Laboratory Etiquette • Accounts • Reset your password at http://accounts.ad.uiuc.edu • Home directories are in W: drive • It is stored in a server and shared among computers, you will be able to access it from any computer in the lab • You can access your home directory via ftp • elalpha.ece.uiuc.edu • You can use the lab printers to print ECE291 material ONLY! • There is a100 pages/month quota, • Anything beyond that is 7¢ a page

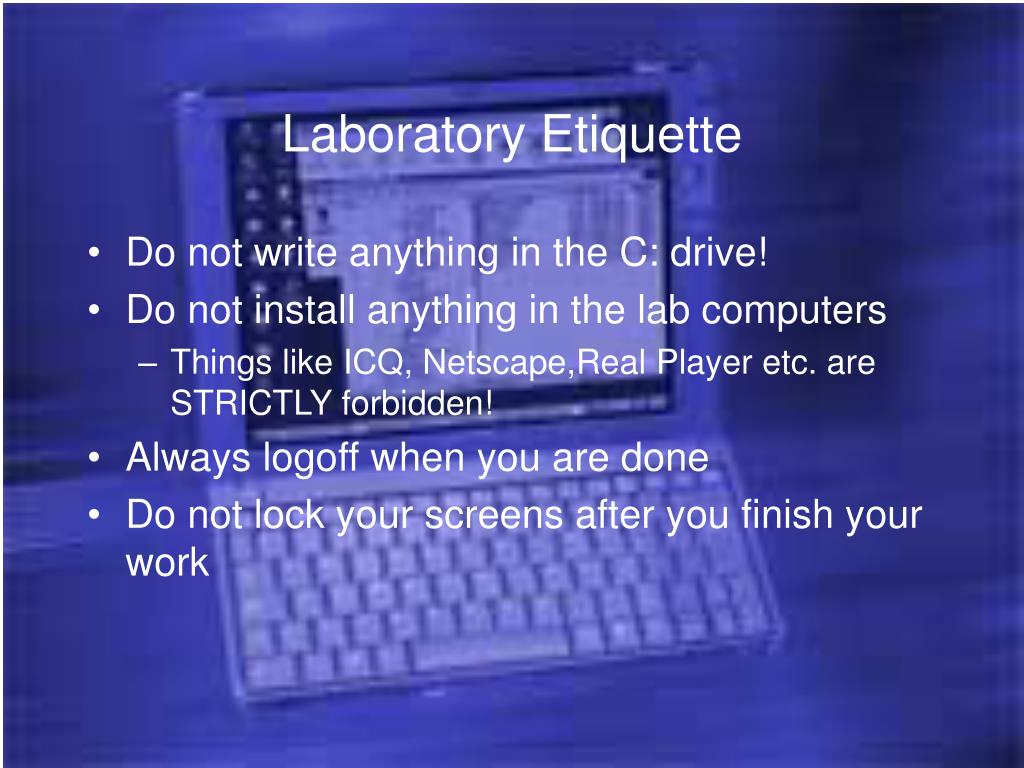

  11. Laboratory Etiquette • Do not write anything in the C: drive! • Do not install anything in the lab computers • Things like ICQ, Netscape,Real Player etc. are STRICTLY forbidden! • Always logoff when you are done • Do not lock your screens after you finish your work

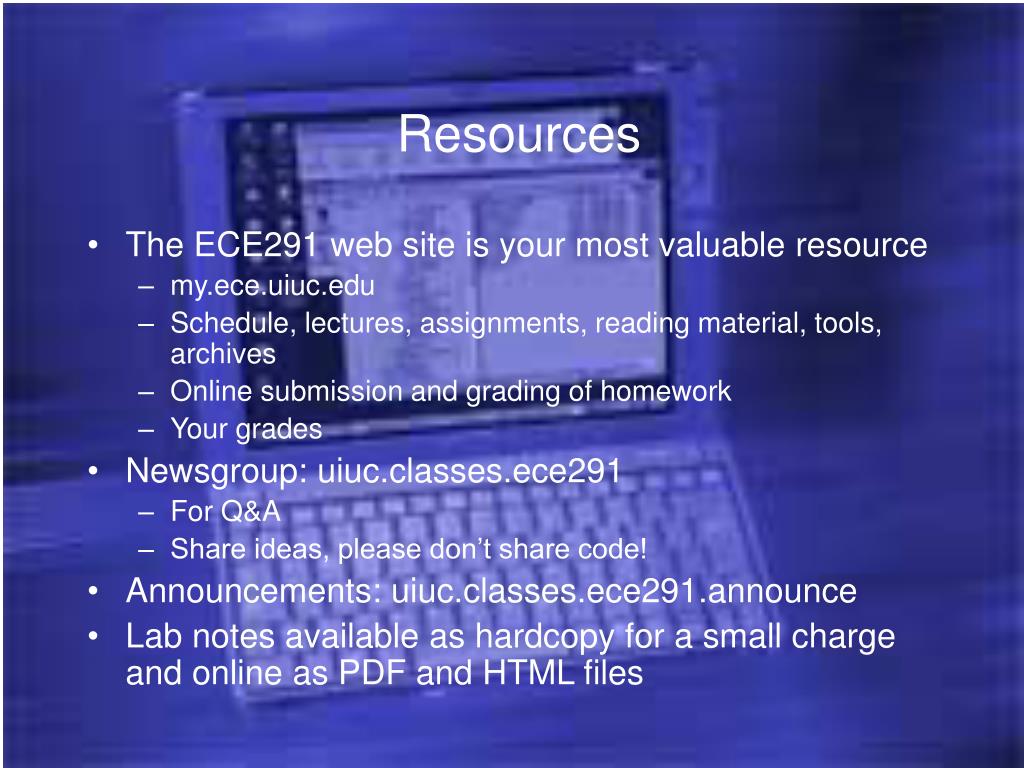

  12. Resources • The ECE291 web site is your most valuable resource • my.ece.uiuc.edu • Schedule, lectures, assignments, reading material, tools, archives • Online submission and grading of homework • Your grades • Newsgroup: uiuc.classes.ece291 • For Q&A • Share ideas, please don’t share code! • Announcements: uiuc.classes.ece291.announce • Lab notes available as hardcopy for a small charge and online as PDF and HTML files

  13. The course at a glance • Computer Engineering II • The bridge between your logic design classes and your high-level programming classes • Assembly language programming • Organization of a real microprocessor • Interface to external hardware devices • A lot of work • A lot of fun • One of the best classes in UIUC

  14. Objectives of ECE291 • To become the best assembly language programmers! • Learn and manage the resources of a microprocessor • Learn the principles of machine-level programming • Organize and write large programs • Program the devices connected to a computer • Develop your engineering skills • Design flows • Time management • Work as hard as required to make your deadlines • And…have fun!

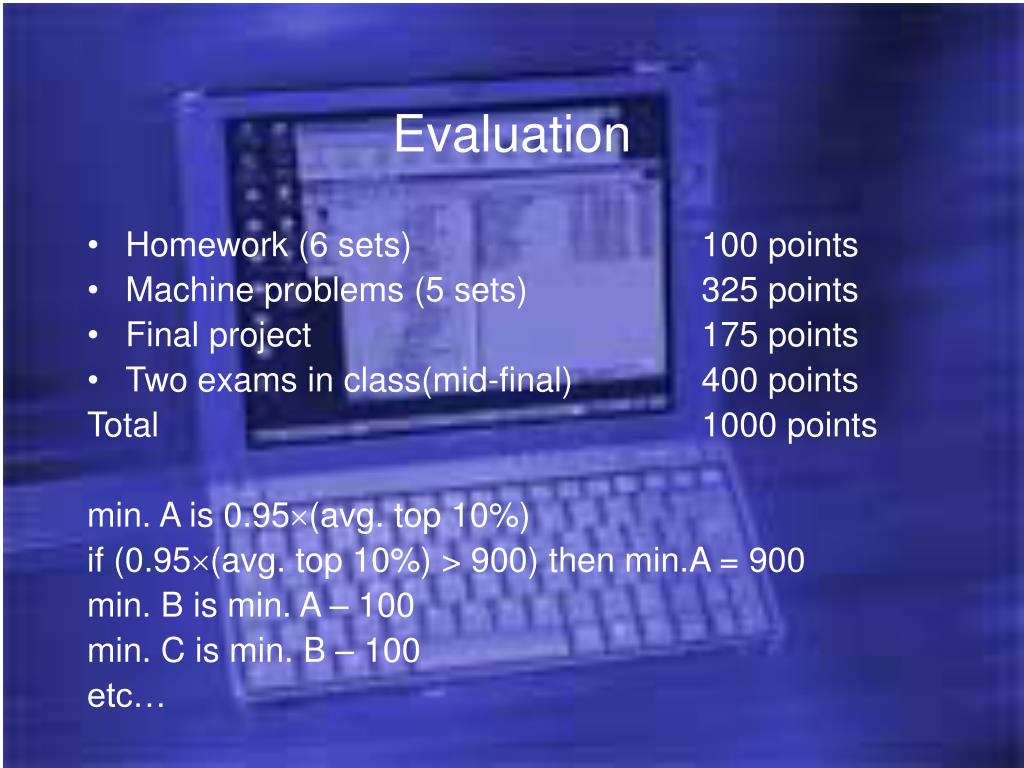

  15. Evaluation • Homework (6 sets) 100 points • Machine problems (5 sets) 325 points • Final project 175 points • Two exams in class(mid-final) 400 points Total 1000 points min. A is 0.95(avg. top 10%) if (0.95(avg. top 10%) > 900) then min.A = 900 min. B is min. A – 100 min. C is min. B – 100 etc…

  16. Evaluation • You can all get an A! • A+ rewarded to the top few of those with an A • +/- rewarded 10-20 points below the grade base • E.g. if A base is 875, 868 is A-, 859 is B+, 854 is B etc. • I hope you all get an A

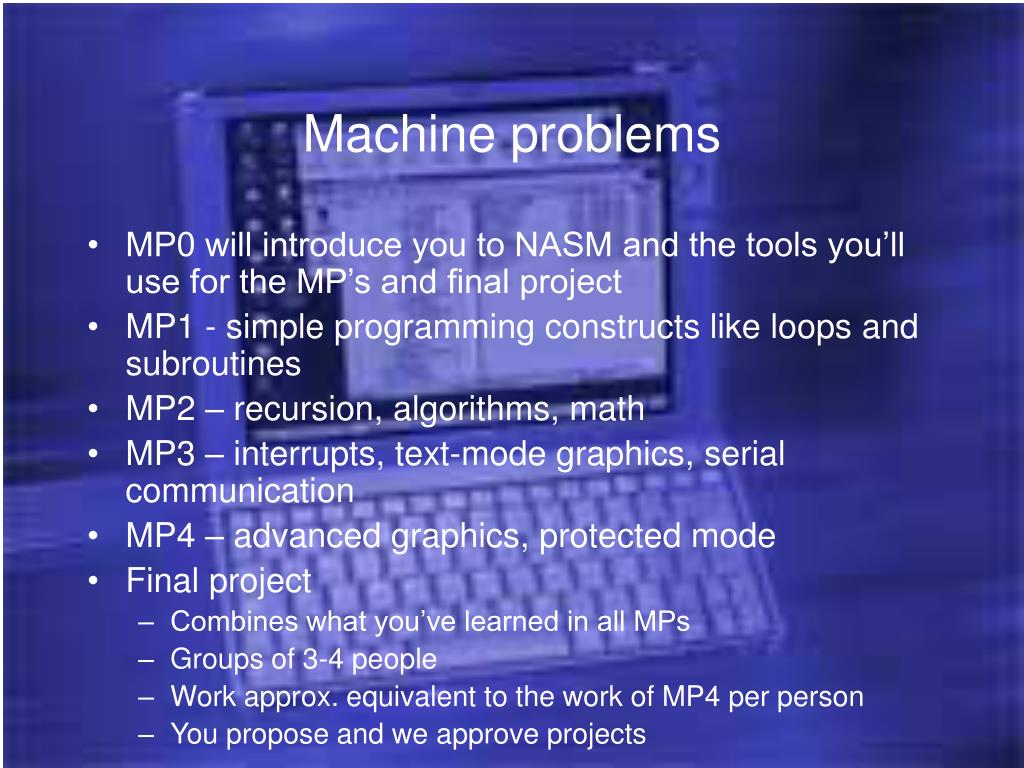

  17. Machine problems • MP0 will introduce you to NASM and the tools you’ll use for the MP’s and final project • MP1 - simple programming constructs like loops and subroutines • MP2 – recursion, algorithms, math • MP3 – interrupts, text-mode graphics, serial communication • MP4 – advanced graphics, protected mode • Final project • Combines what you’ve learned in all MPs • Groups of 3-4 people • Work approx. equivalent to the work of MP4 per person • You propose and we approve projects

  18. History of Computers • 1945 John Von Neumann proposes the stored program architecture • 1948 Bardeen, Brattain and Shockley invent the transistor • 1958 Jack Kilby (UI alumni) introduces the IC (integrated circuit) and opens the road for computing on chips • 1960 Computers start to use transistors • 1965 Gordon Moore claims that the capacity of chips doubles every 18 months with associated improvements in performance

  19. History of Computers • 1971 Intel introduces its first microprocessor, the 4004, which contained 2250 transistors Courtesy of Intel’s microprocessor hall of fame

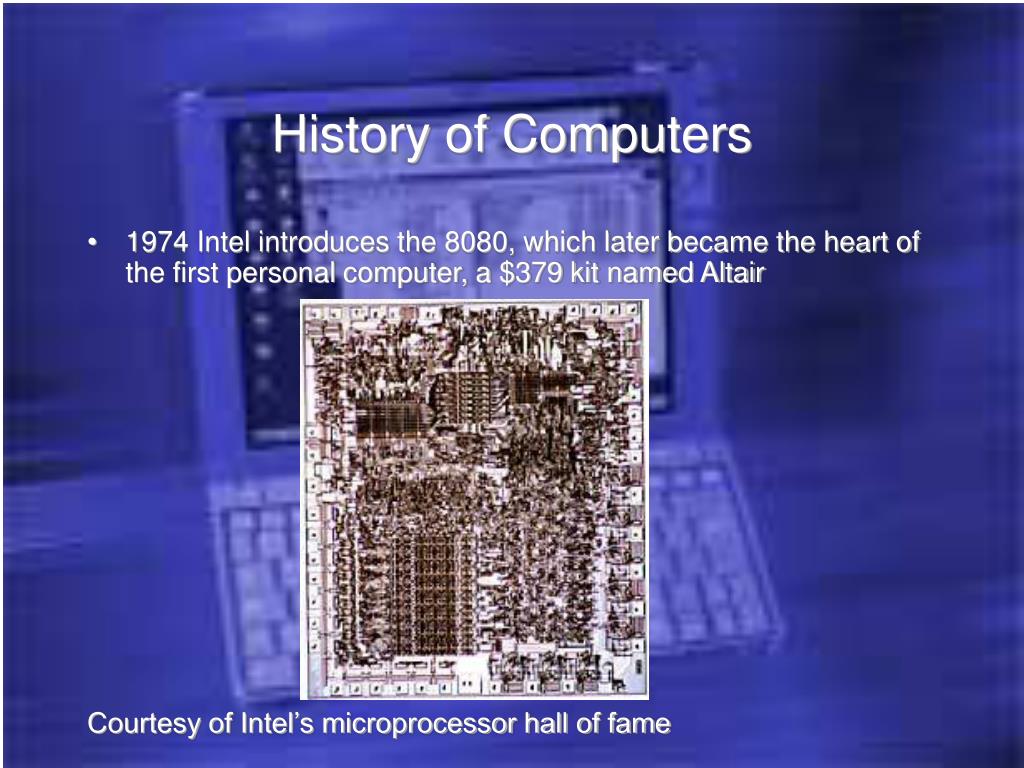

  20. History of Computers • 1974 Intel introduces the 8080, which later became the heart of the first personal computer, a $379 kit named Altair • Courtesy of Intel’s microprocessor hall of fame

  21. History of Computers • In 1965 Gordon Moore predicted that the number of transistors in a microprocessor will double every 18 months and this trend will hold till 1975…

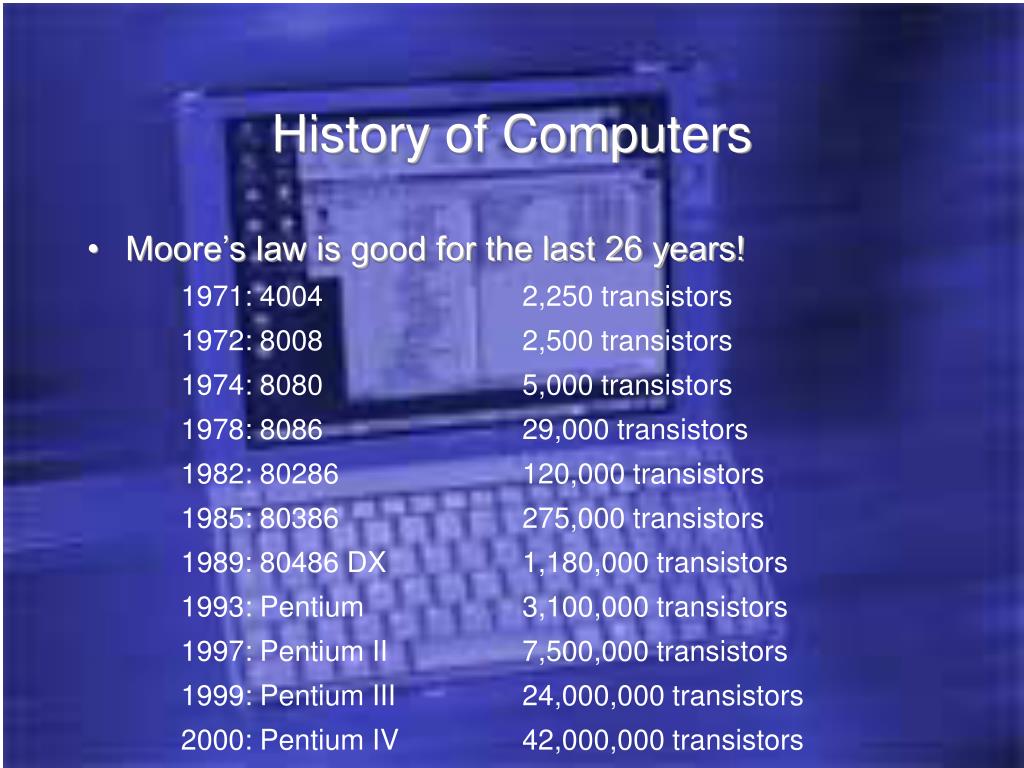

  22. History of Computers • Moore’s law is good for the last 26 years!

  23. History of Computers • 1974 William H. Gates and Paul Allen write a BASIC interpreter • 1981 IBM introduces the fist PC, with a 16-bit 8088 running at 4.77 MHz, using cassettes, optional floppy and a BAD operating system called DOS • 1983 First “affordable” PCs • 1984 Introduction of the Windows interface (work pioneered at Xerox labs) • 1985 First 32-bit microprocessor (80386)

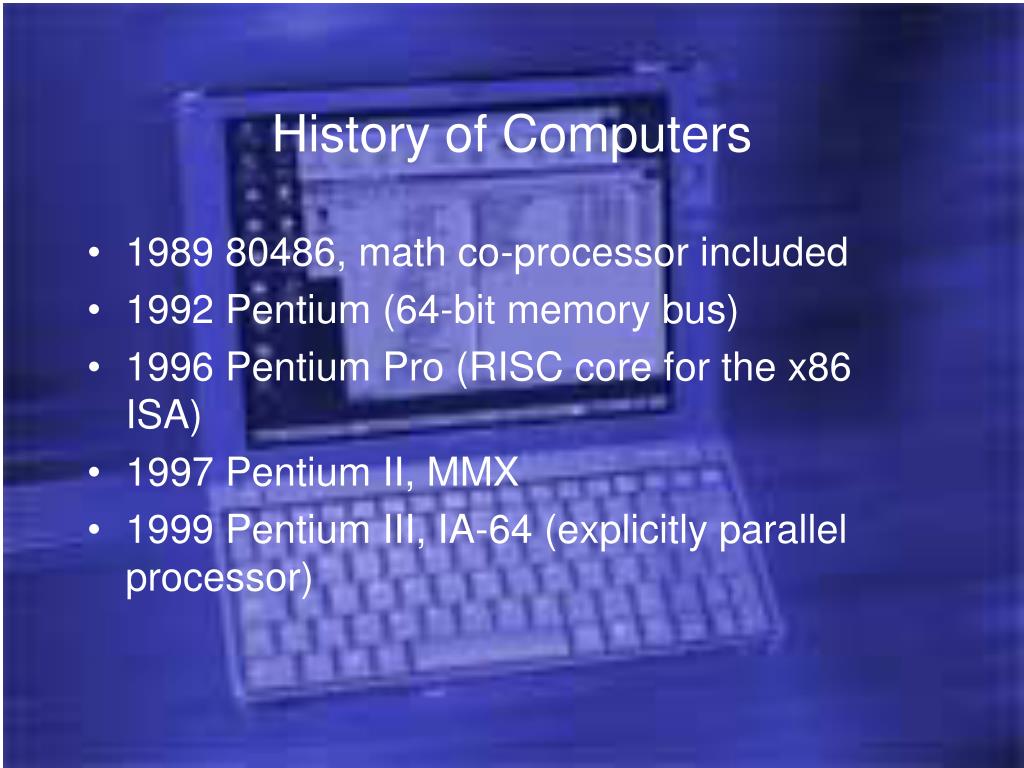

  24. History of Computers • 1989 80486, math co-processor included • 1992 Pentium (64-bit memory bus) • 1996 Pentium Pro (RISC core for the x86 ISA) • 1997 Pentium II, MMX • 1999 Pentium III, IA-64 (explicitly parallel processor)

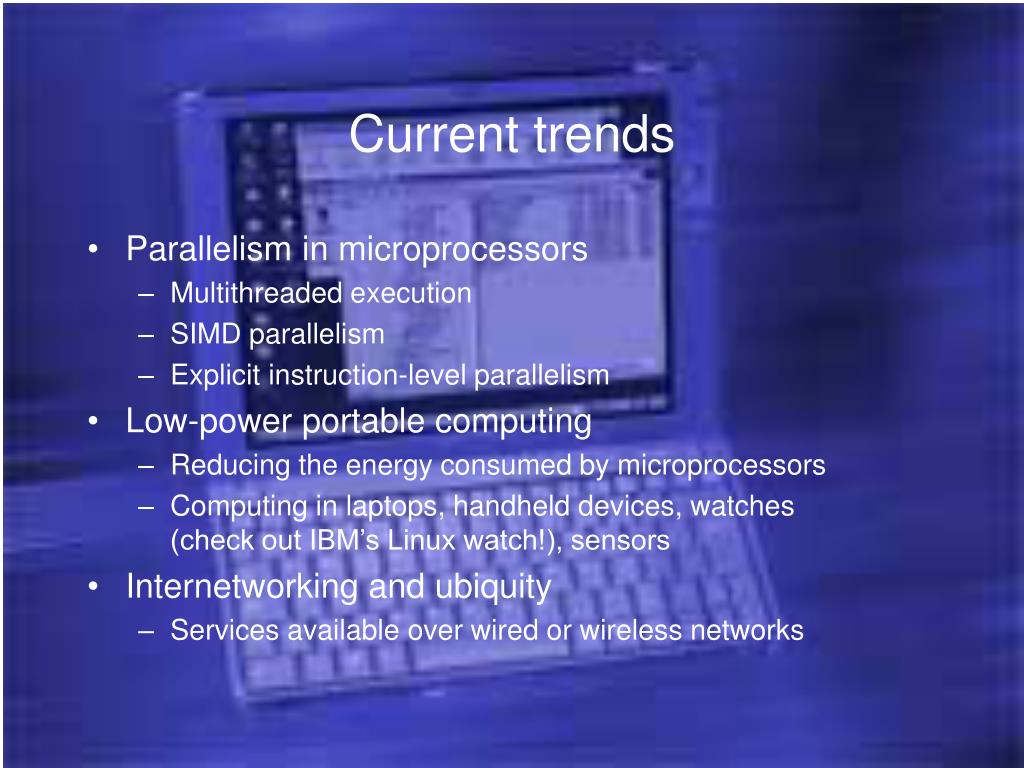

  25. Current trends • Parallelism in microprocessors • Multithreaded execution • SIMD parallelism • Explicit instruction-level parallelism • Low-power portable computing • Reducing the energy consumed by microprocessors • Computing in laptops, handheld devices, watches (check out IBM’s Linux watch!), sensors • Internetworking and ubiquity • Services available over wired or wireless networks

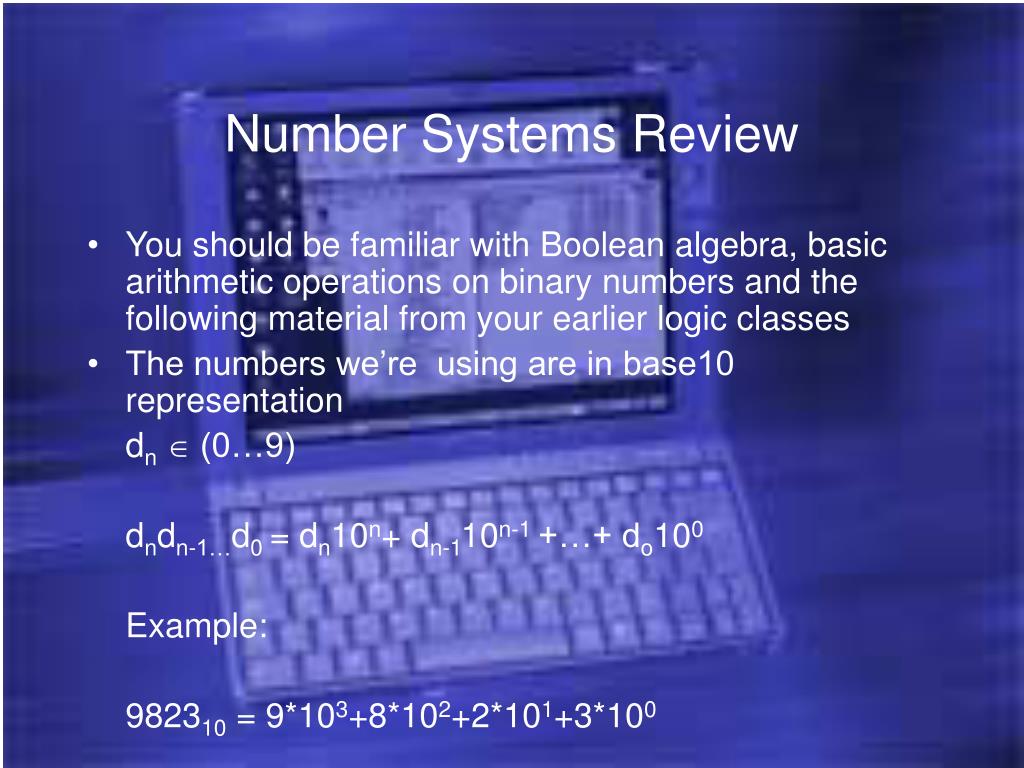

  26. Number Systems Review • You should be familiar with Boolean algebra, basic arithmetic operations on binary numbers and the following material from your earlier logic classes • The numbers we’re using are in base10 representation dn (0…9) dndn-1…d0 = dn10n+ dn-110n-1 +…+ do100 Example: 982310 = 9*103+8*102+2*101+3*100

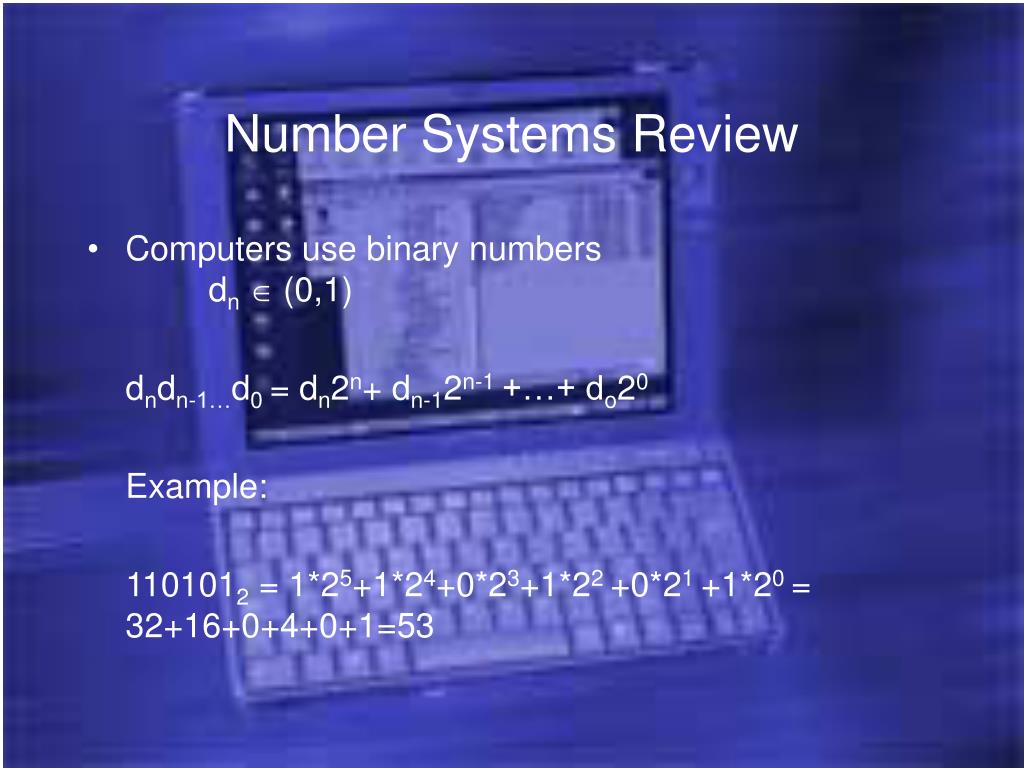

  27. Number Systems Review • Computers use binary numbers dn (0,1) dndn-1…d0 = dn2n+ dn-12n-1 +…+ do20 Example: 1101012 = 1*25+1*24+0*23+1*22 +0*21 +1*20 = 32+16+0+4+0+1=53

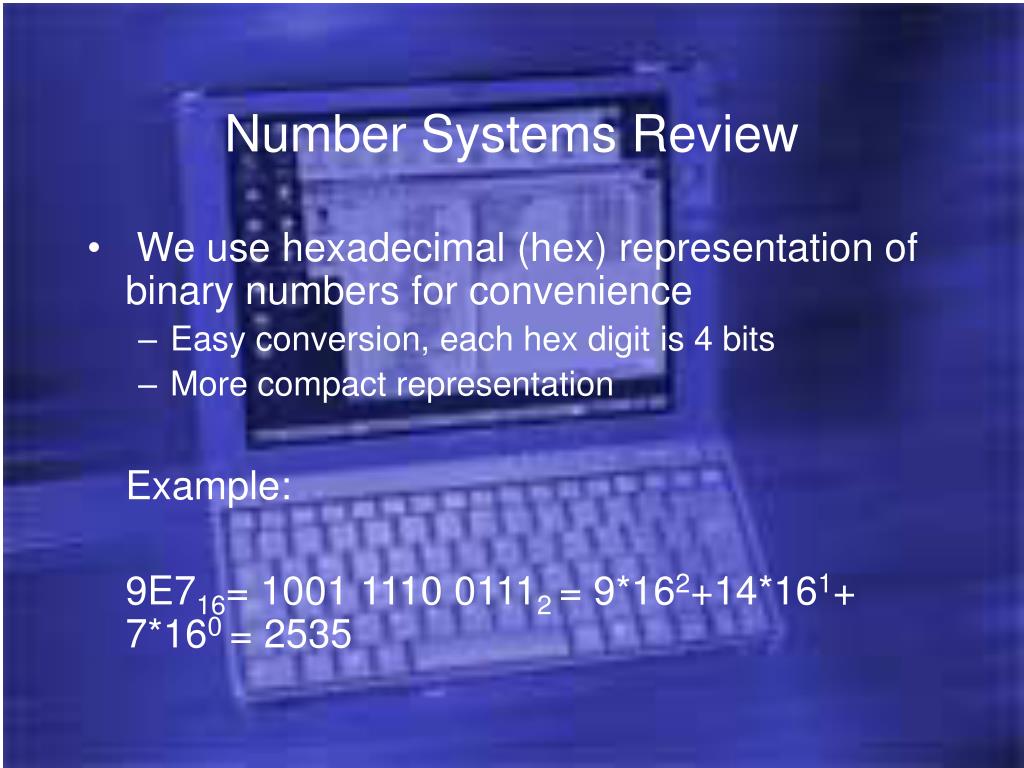

  28. Number Systems Review •  We use hexadecimal (hex) representation of binary numbers for convenience • Easy conversion, each hex digit is 4 bits • More compact representation Example: 9E716= 1001 1110 01112 = 9*162+14*161+ 7*160 = 2535

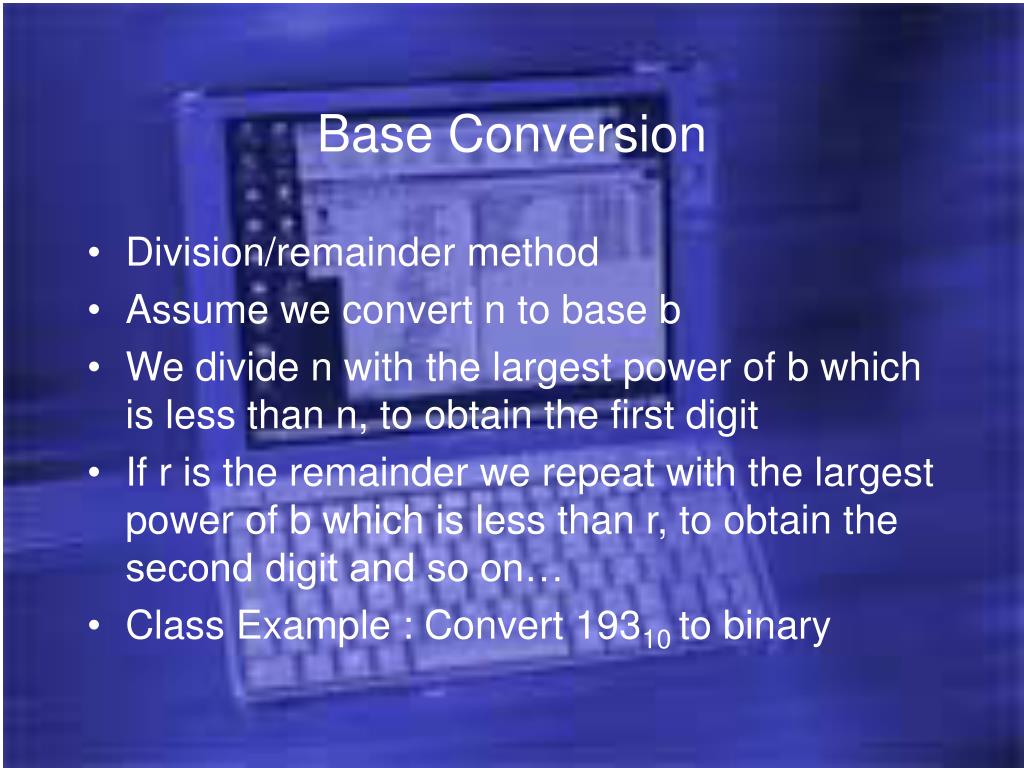

  29. Base Conversion • Division/remainder method • Assume we convert n to base b • We divide n with the largest power of b which is less than n, to obtain the first digit • If r is the remainder we repeat with the largest power of b which is less than r, to obtain the second digit and so on… • Class Example : Convert 19310 to binary

  30. Number Representation • The size of a number in digits defines the range of numbers we can represent • Popular sizes • Bits: a binary digit • Bytes: 8 binary digits • Words: 16 binary digits (for the purposes of this class) • Double words: 32 binary digits (for the purposes of this class)

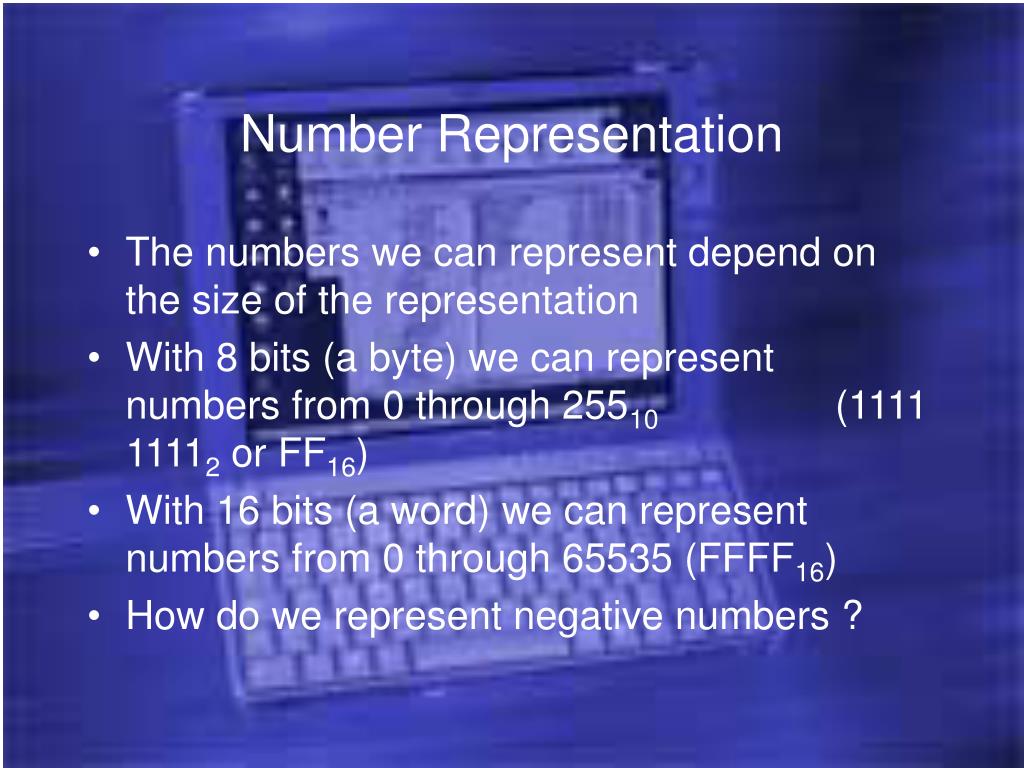

  31. Number Representation • The numbers we can represent depend on the size of the representation • With 8 bits (a byte) we can represent numbers from 0 through 25510 (1111 11112 or FF16) • With 16 bits (a word) we can represent numbers from 0 through 65535 (FFFF16) • How do we represent negative numbers ?

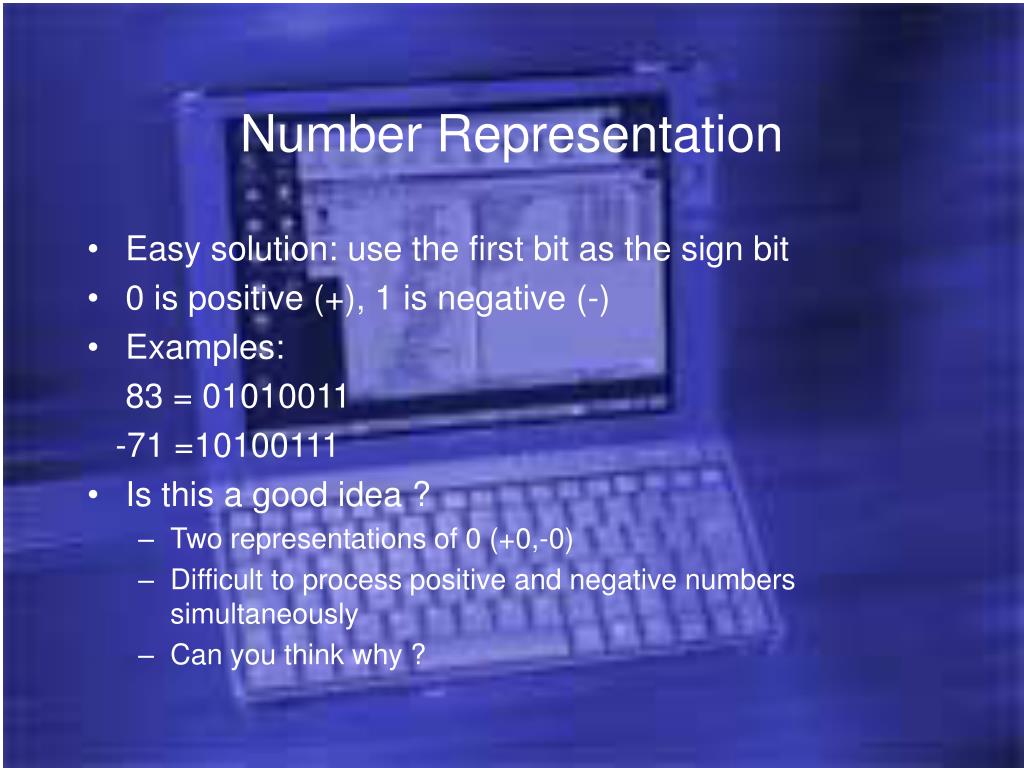

  32. Number Representation • Easy solution: use the first bit as the sign bit • 0 is positive (+), 1 is negative (-) • Examples: 83 = 01010011 -71 =10100111 • Is this a good idea ? • Two representations of 0 (+0,-0) • Difficult to process positive and negative numbers simultaneously • Can you think why ?

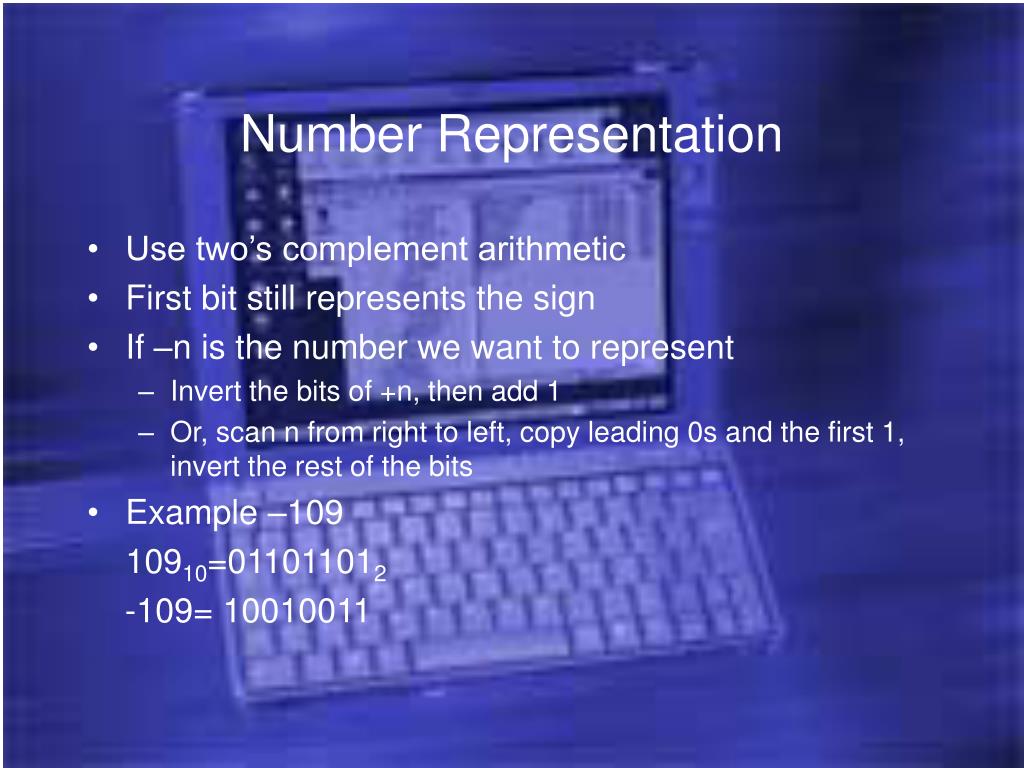

  33. Number Representation • Use two’s complement arithmetic • First bit still represents the sign • If –n is the number we want to represent • Invert the bits of +n, then add 1 • Or, scan n from right to left, copy leading 0s and the first 1, invert the rest of the bits • Example –109 10910=011011012 -109= 10010011

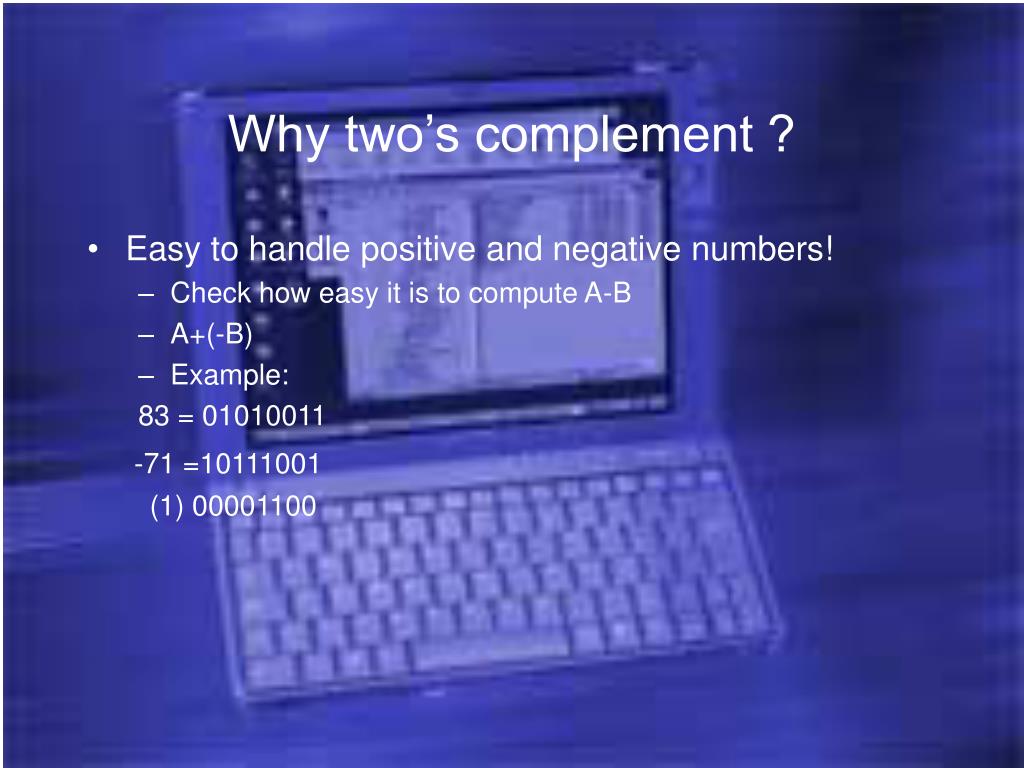

  34. Why two’s complement ? • Easy to handle positive and negative numbers! • Check how easy it is to compute A-B • A+(-B) • Example: 83 = 01010011 -71 =10111001 (1) 00001100

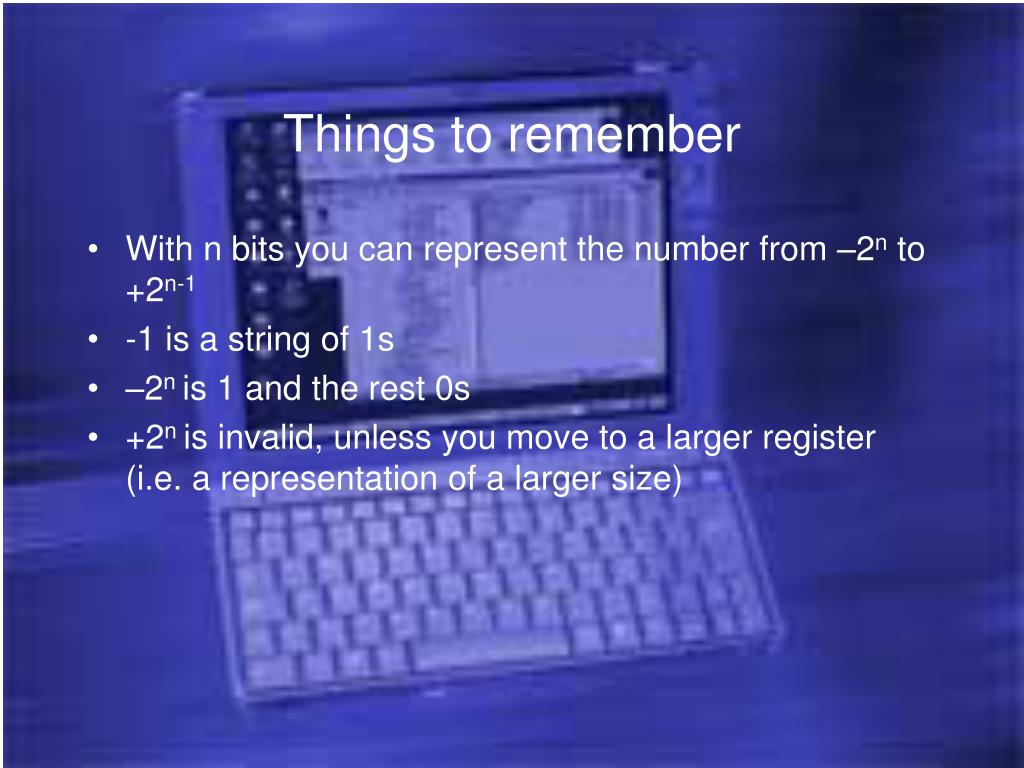

  35. Things to remember • With n bits you can represent the number from –2n to +2n-1 • -1 is a string of 1s • –2n is 1 and the rest 0s • +2n is invalid, unless you move to a larger register (i.e. a representation of a larger size)

  36. Sign extension and contraction • Whenever you move from a m-bit to a n-bit representation, n > m, just copy the sign bit to all the additional bits in the extended representation • Examples: • 7710 = 0100 11012 = 0000 0000 0100 1101 (16-bit) • -71 =1011 10012 = 1111 1111 1011 1001 (16-bit) • Contraction is the opposite to extension • You cannot sign contract a n-bit number to a m-bit number unless the high order (n-m) bits are all 0’s or 1’s

  37. Real numbers in binary • Integer conversion goes on for the fractional parts dndn-1…d0 d-1 d-2… = dn10n+ dn-110n-1 +…+ do100 + d-110-1+ d-210-2… • Example 40.63 = 4*102 + 0*101 + 0*100 + 6*10-1 +3*10-2 • Same thing for binary numbers • Example: Convert 10111.011 to decimal • 1*24 + 0*23 + 1*22 + 1*21 + 1*20 + 0*2-1 + 1*2-2 + 1*2-3 = 23.375 • For signed unsigned you just add the sign bit in the front of the number

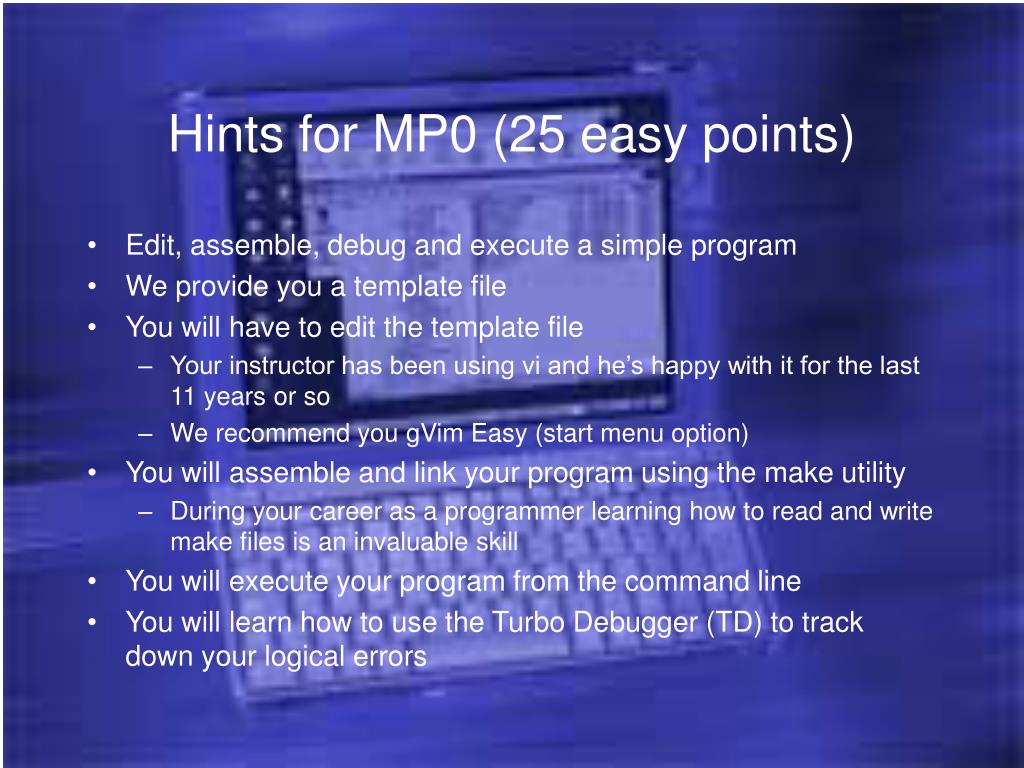

  38. Hints for MP0 (25 easy points) • Edit, assemble, debug and execute a simple program • We provide you a template file • You will have to edit the template file • Your instructor has been using vi and he’s happy with it for the last 11 years or so • We recommend you gVim Easy (start menu option) • You will assemble and link your program using the make utility • During your career as a programmer learning how to read and write make files is an invaluable skill • You will execute your program from the command line • You will learn how to use the Turbo Debugger (TD) to track down your logical errors

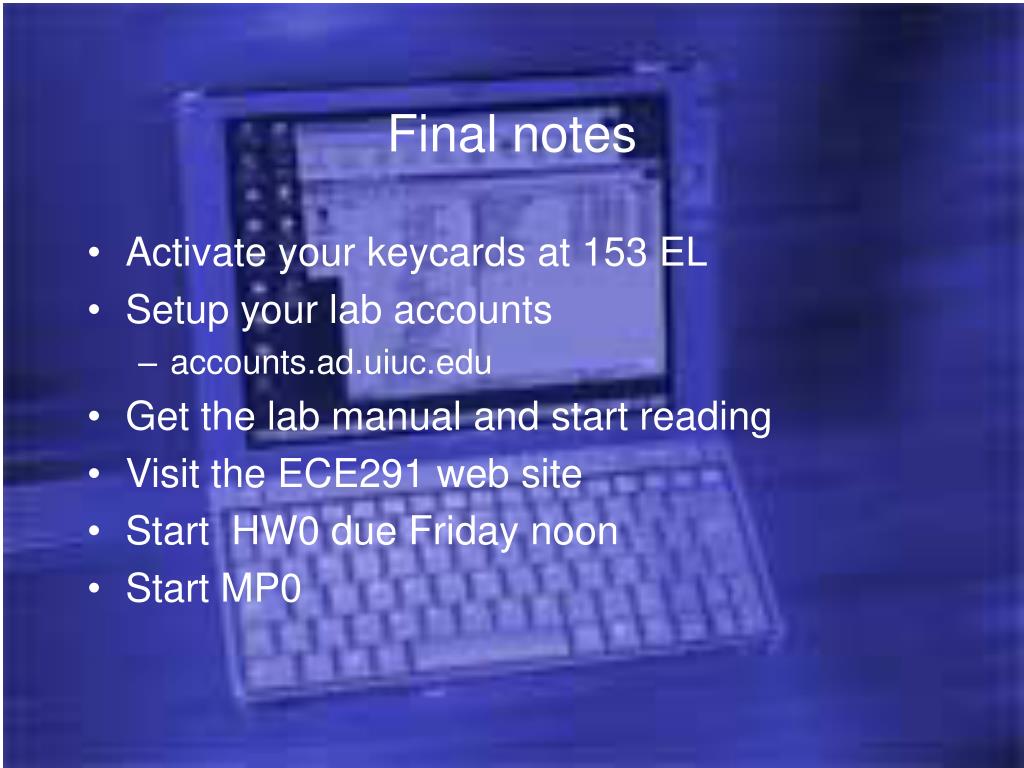

  39. Final notes • Activate your keycards at 153 EL • Setup your lab accounts • accounts.ad.uiuc.edu • Get the lab manual and start reading • Visit the ECE291 web site • Start HW0 due Friday noon • Start MP0
