Example 1 (a) Estimate by the Midpoint, Trapezoid and Simpson's

Example 1 (a) Estimate by the Midpoint, Trapezoid and Simpson's Rules using the regular partition P of the interval [ 0,2 ] into 6 subintervals. (b) Find bounds on the errors of those approximations.

damien
Télécharger la présentation

Example 1 (a) Estimate by the Midpoint, Trapezoid and Simpson's

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

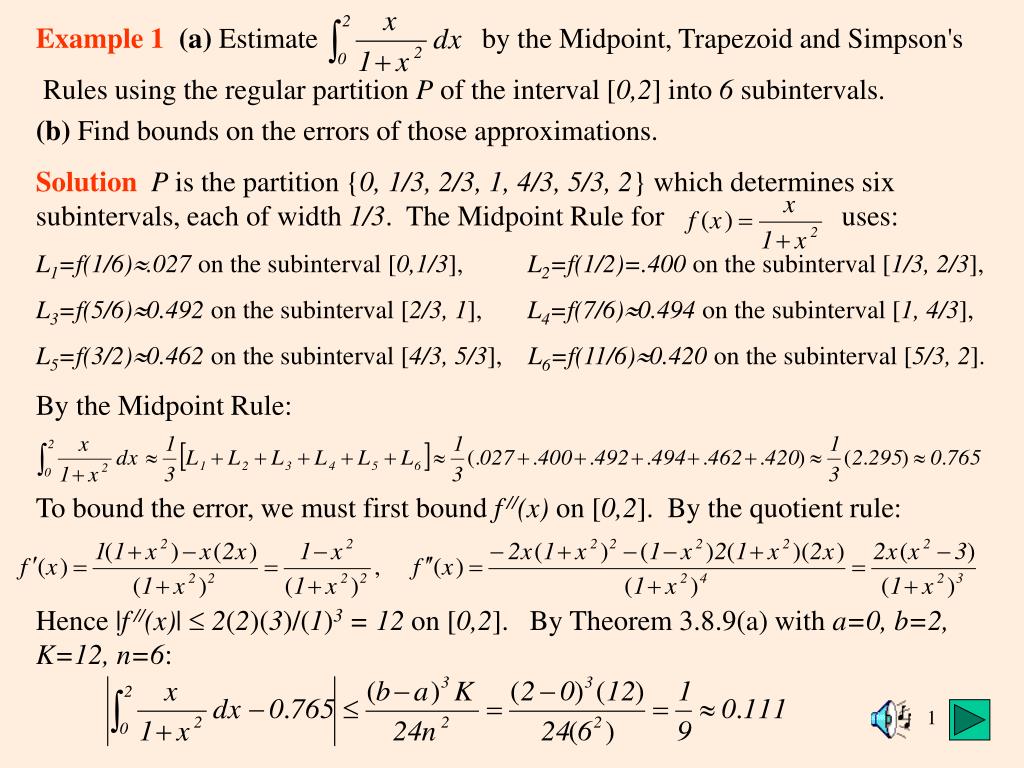

  1. Example 1 (a)Estimate by the Midpoint, Trapezoid and Simpson's Rules using the regular partition P of the interval [0,2] into 6 subintervals. (b) Find bounds on the errors of those approximations. Solution P is the partition {0, 1/3, 2/3, 1, 4/3, 5/3, 2} which determines six subintervals, each of width 1/3. The Midpoint Rule for uses: L1=f(1/6).027 on the subinterval [0,1/3], L2=f(1/2)=.400 on the subinterval [1/3, 2/3], L3=f(5/6)0.492 on the subinterval [2/3, 1], L4=f(7/6)0.494 on the subinterval [1, 4/3], L5=f(3/2)0.462 on the subinterval [4/3, 5/3], L6=f(11/6)0.420 on the subinterval [5/3, 2]. By the Midpoint Rule: To bound the error, we must first bound f //(x) on [0,2]. By the quotient rule: Hence |f //(x)|  2(2)(3)/(1)3 = 12on [0,2]. By Theorem 3.8.9(a) with a=0, b=2, K=12, n=6:

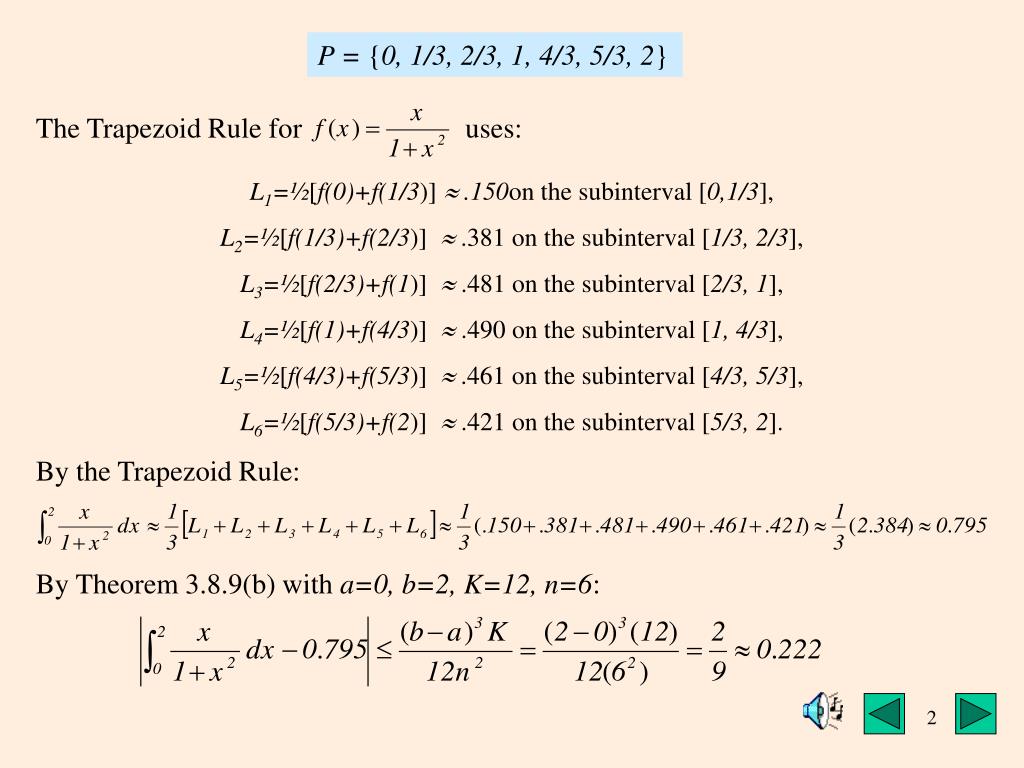

  2. P = {0, 1/3, 2/3, 1, 4/3, 5/3, 2} The Trapezoid Rule for uses: L1=½[f(0)+f(1/3)]  .150on the subinterval [0,1/3], L2=½[f(1/3)+f(2/3)]  .381on the subinterval [1/3, 2/3], L3=½[f(2/3)+f(1)]  .481 on the subinterval [2/3, 1], L4=½[f(1)+f(4/3)]  .490 on the subinterval [1, 4/3], L5=½[f(4/3)+f(5/3)]  .461 on the subinterval [4/3, 5/3], L6=½[f(5/3)+f(2)]  .421 on the subinterval [5/3, 2]. By the Trapezoid Rule: By Theorem 3.8.9(b) with a=0, b=2, K=12, n=6:

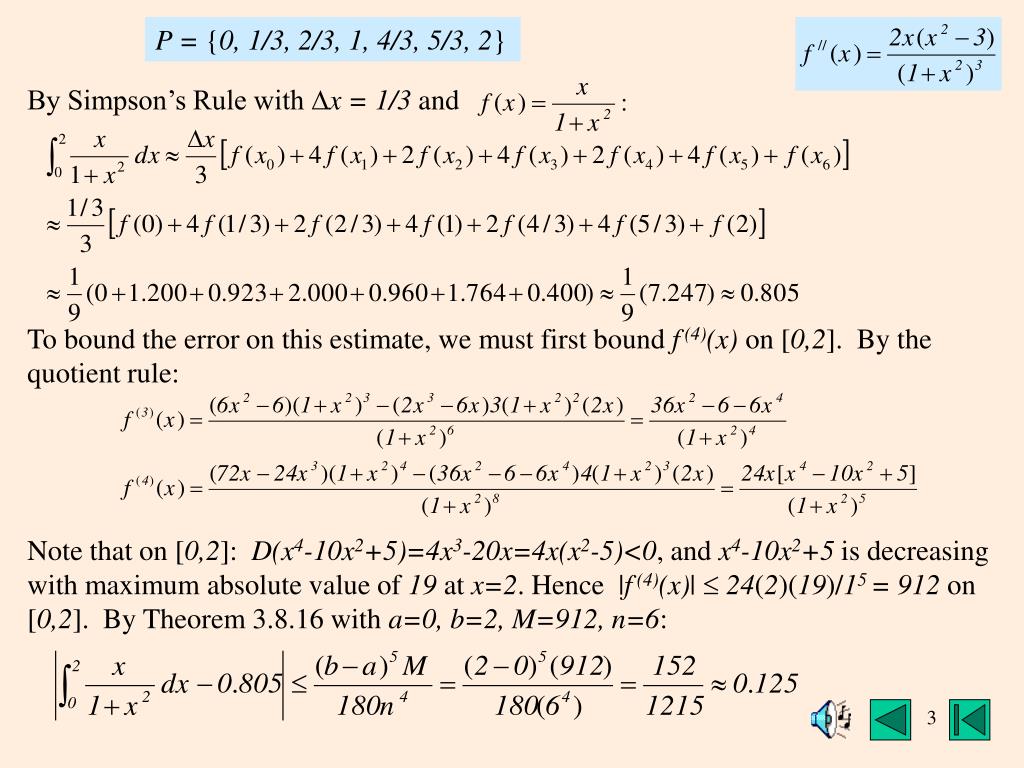

  3. P = {0, 1/3, 2/3, 1, 4/3, 5/3, 2} By Simpson’s Rule with x = 1/3 and To bound the error on this estimate, we must first bound f (4)(x) on [0,2]. By the quotient rule: Note that on [0,2]: D(x4-10x2+5)=4x3-20x=4x(x2-5)<0, and x4-10x2+5 is decreasing with maximum absolute value of 19 at x=2. Hence |f (4)(x)|  24(2)(19)/15 = 912 on [0,2]. By Theorem 3.8.16 with a=0, b=2, M=912, n=6:
