1. An SMT Based Method for Optimizing Arithmetic Computations in Embedded Software Code Presented by: Kuldeep S. Meel Adapted from slides by Hassan Eldib and Chao Wang (Virginia Tech)

2. A Robotic Dream • Having a tool that automatically synthesizes the optimum version of a software program.

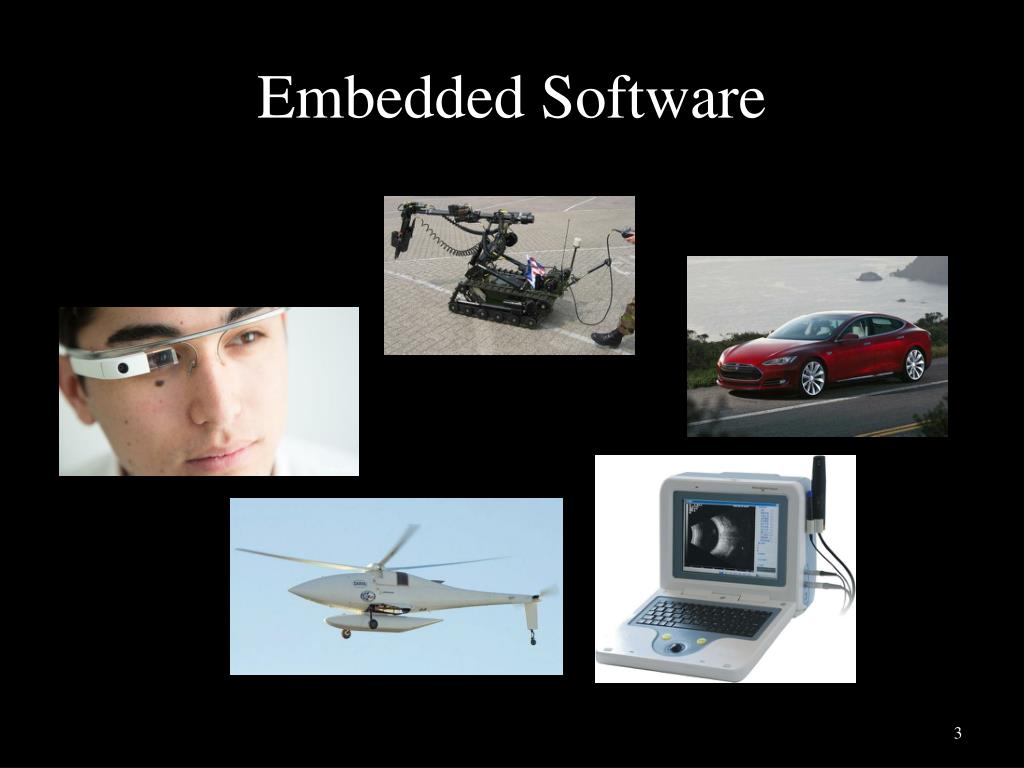

3. Embedded Software

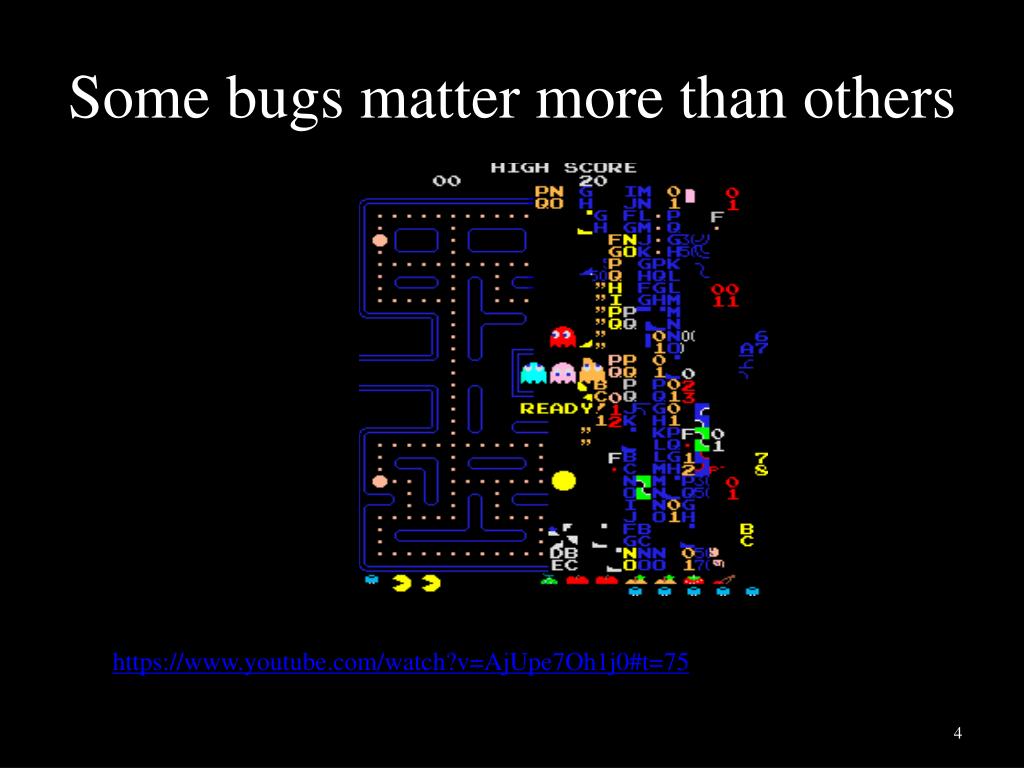

4. Some bugs matter more than others https://www.youtube.com/watch?v=AjUpe7Oh1j0#t=75

5. Some even more …… Cost: US $350 million

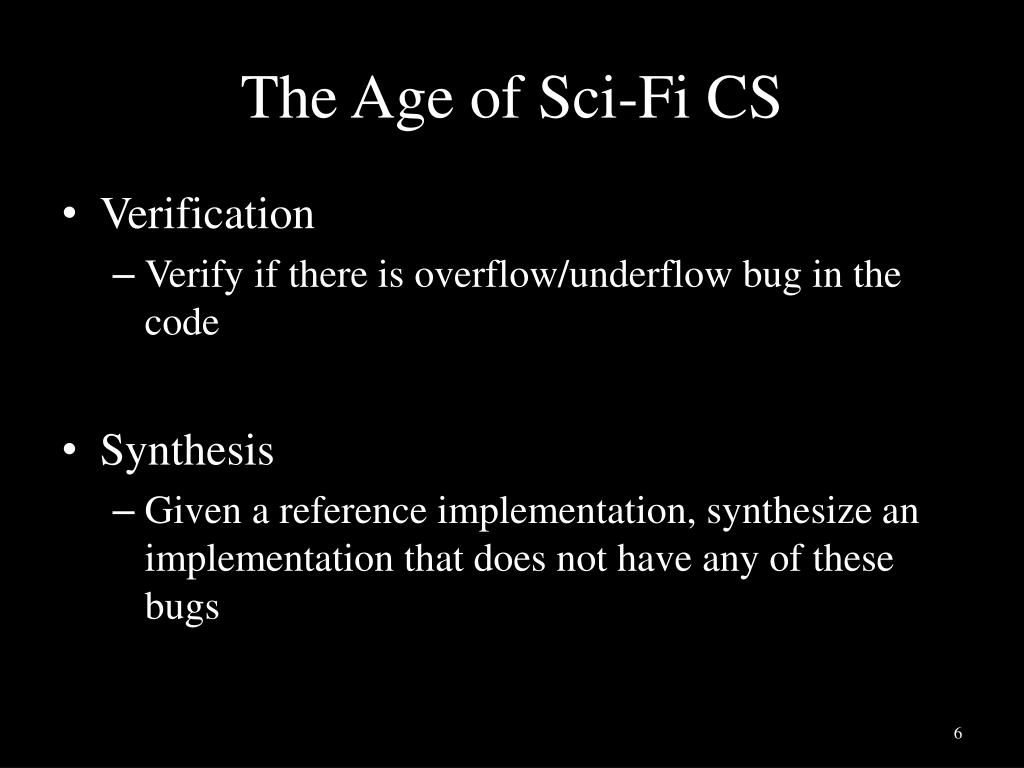

6. The Age of Sci-Fi CS • Verification • Verify if there is overflow/underflow bug in the code • Synthesis • Given a reference implementation, synthesize an implementation that does not have any of these bugs

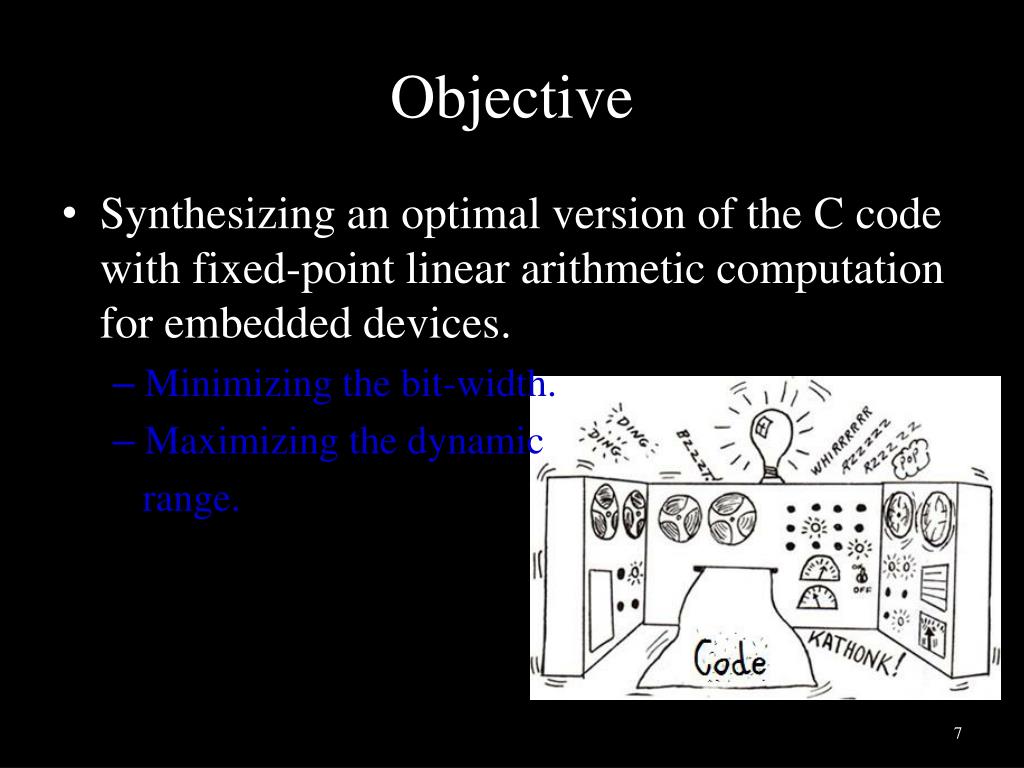

7. Objective • Synthesizing an optimal version of the C code with fixed-point linear arithmetic computation for embedded devices. • Minimizing the bit-width. • Maximizing the dynamic range.

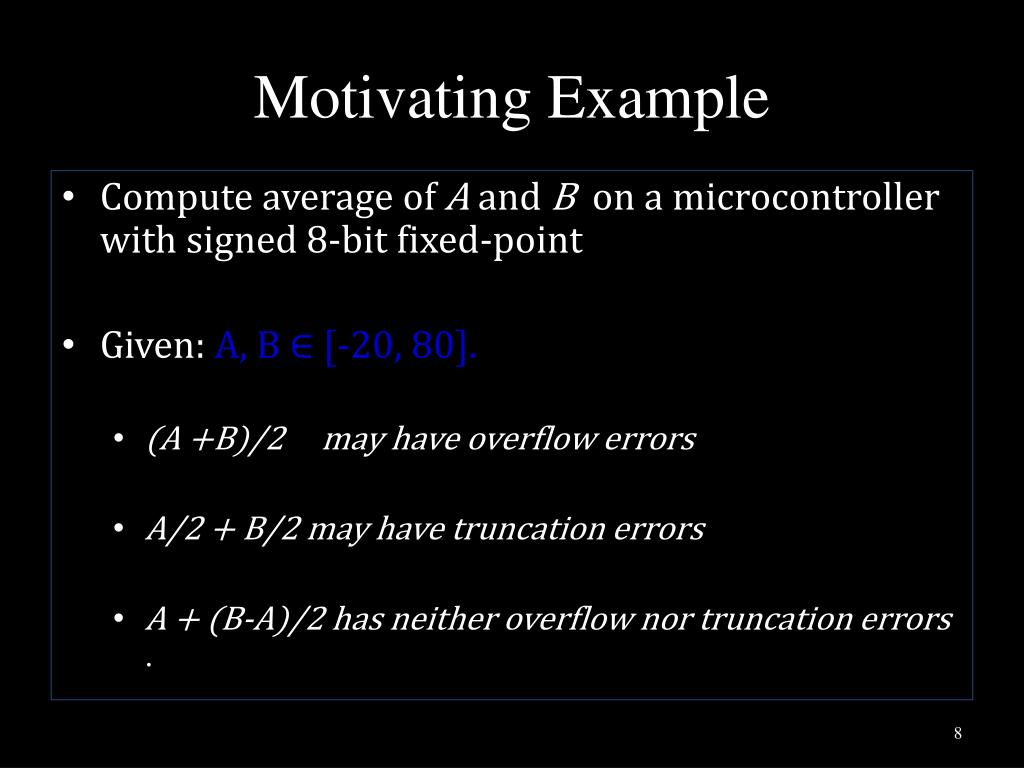

8. Motivating Example • Compute average of Aand B on a microcontroller with signed 8-bit fixed-point • Given: A, B ∈ [-20, 80]. • (A +B)/2 may have overflow errors • A/2 + B/2 may have truncation errors • A + (B-A)/2 has neither overflow nor truncation errors .

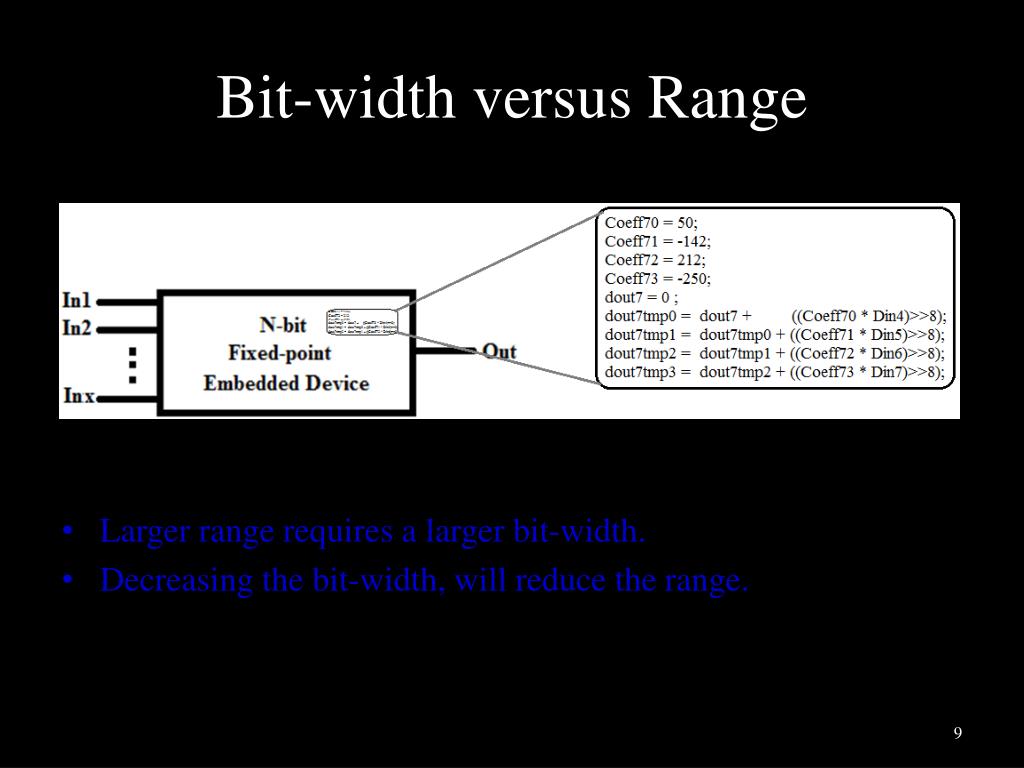

9. Bit-width versus Range • Larger range requires a larger bit-width. • Decreasing the bit-width, will reduce the range.

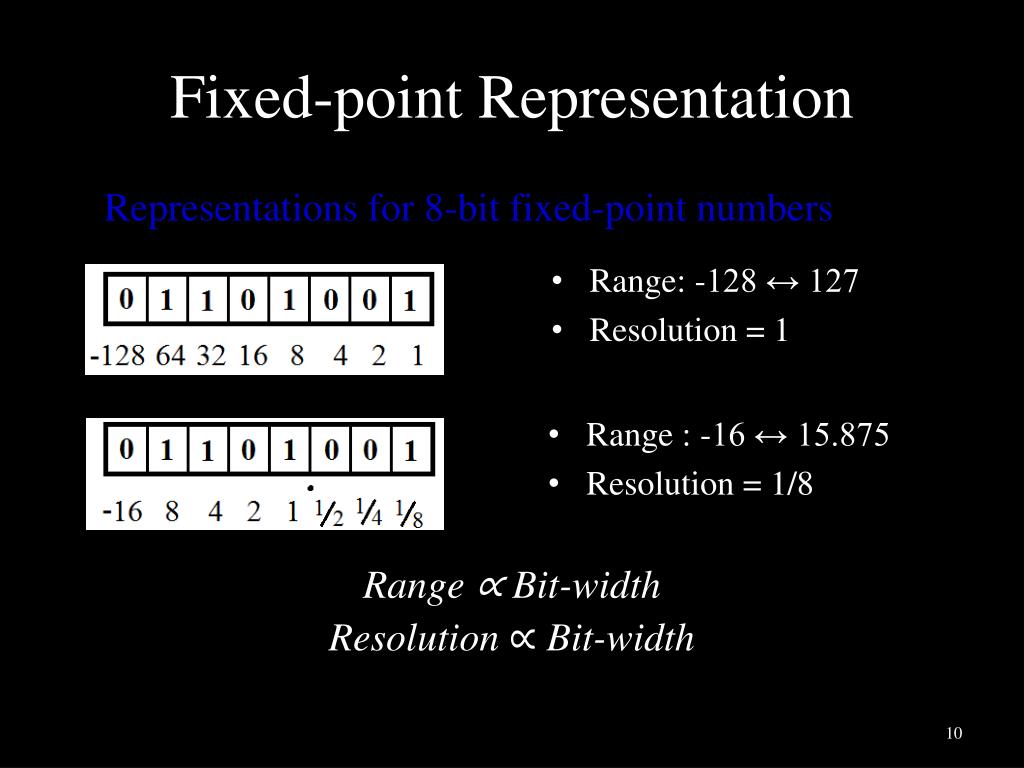

10. Fixed-point Representation Representations for 8-bit fixed-point numbers Range ∝ Bit-width Resolution ∝ Bit-width • Range: -128 ↔ 127 • Resolution = 1 • Range : -16 ↔ 15.875 • Resolution = 1/8

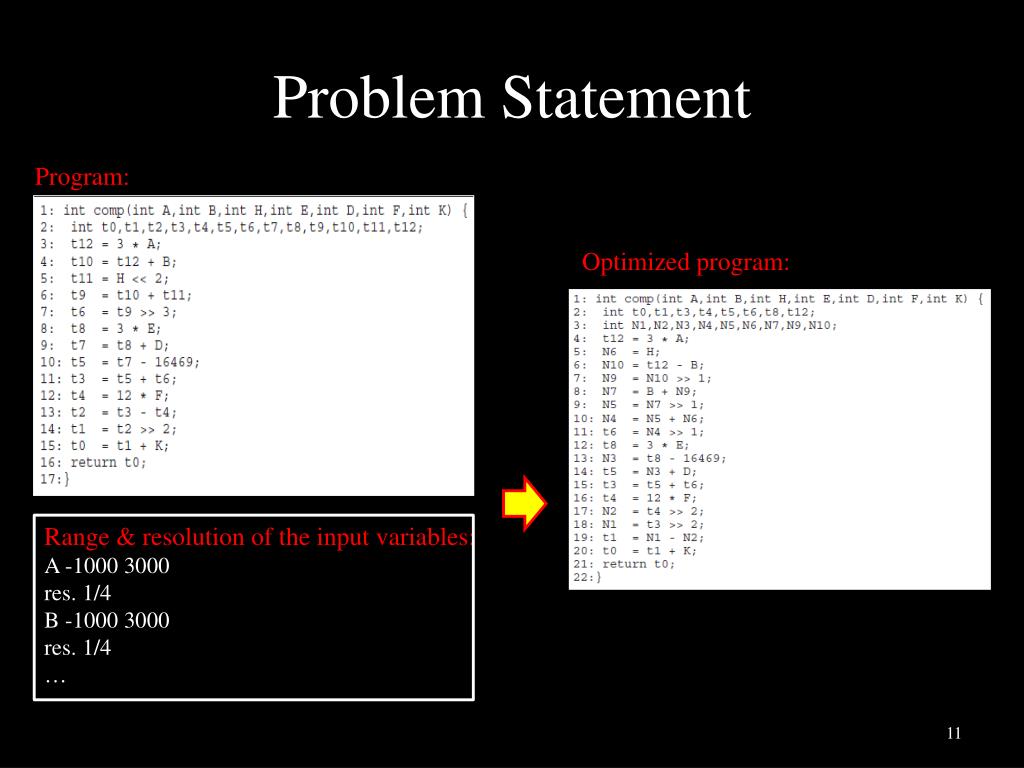

11. Problem Statement Program: Optimized program: Range & resolution of the input variables: A -1000 3000 res. 1/4 B -1000 3000 res. 1/4 …

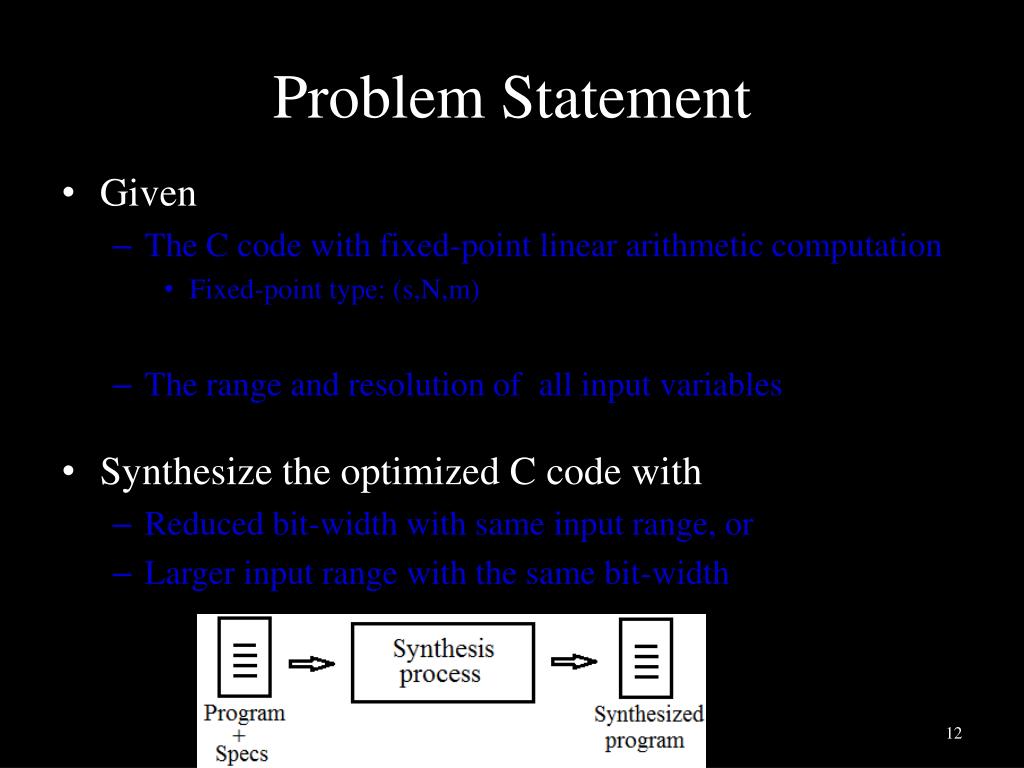

12. Problem Statement • Given • The C code with fixed-point linear arithmetic computation • Fixed-point type: (s,N,m) • The range and resolution of all input variables • Synthesize the optimized C code with • Reduced bit-width with same input range, or • Larger input range with the same bit-width

13. Restrictions • Bounded loops (via unrolling) • Same bit-width for all the variables and constants • Can have different bit representations

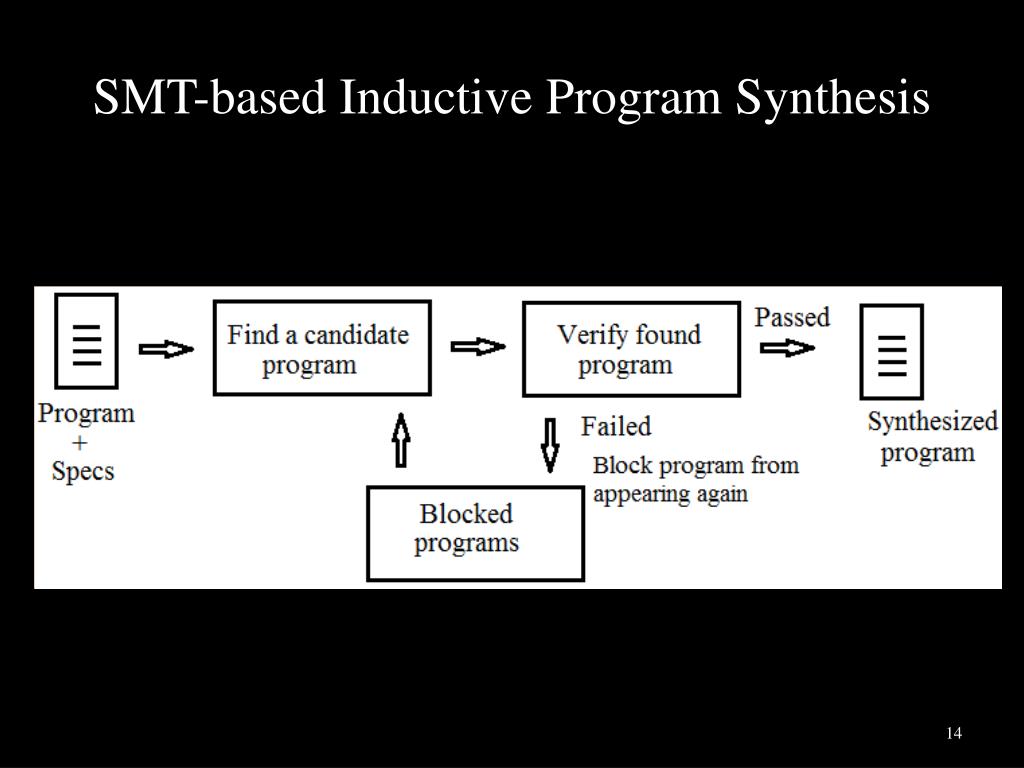

14. SMT-based Inductive Program Synthesis

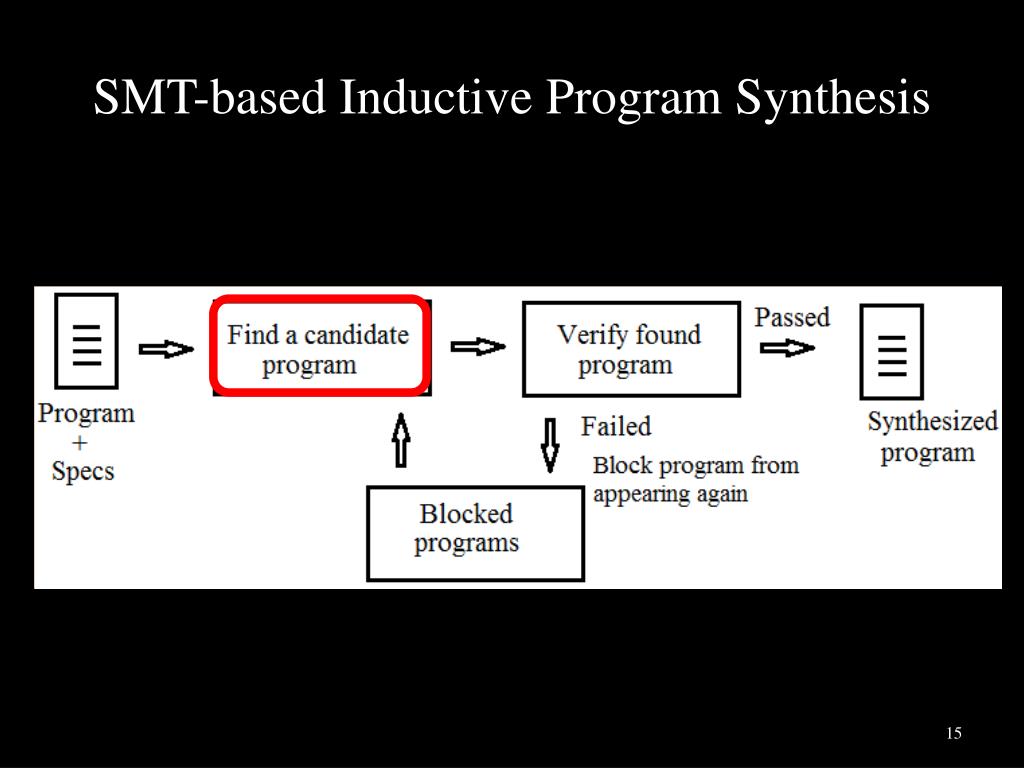

15. SMT-based Inductive Program Synthesis

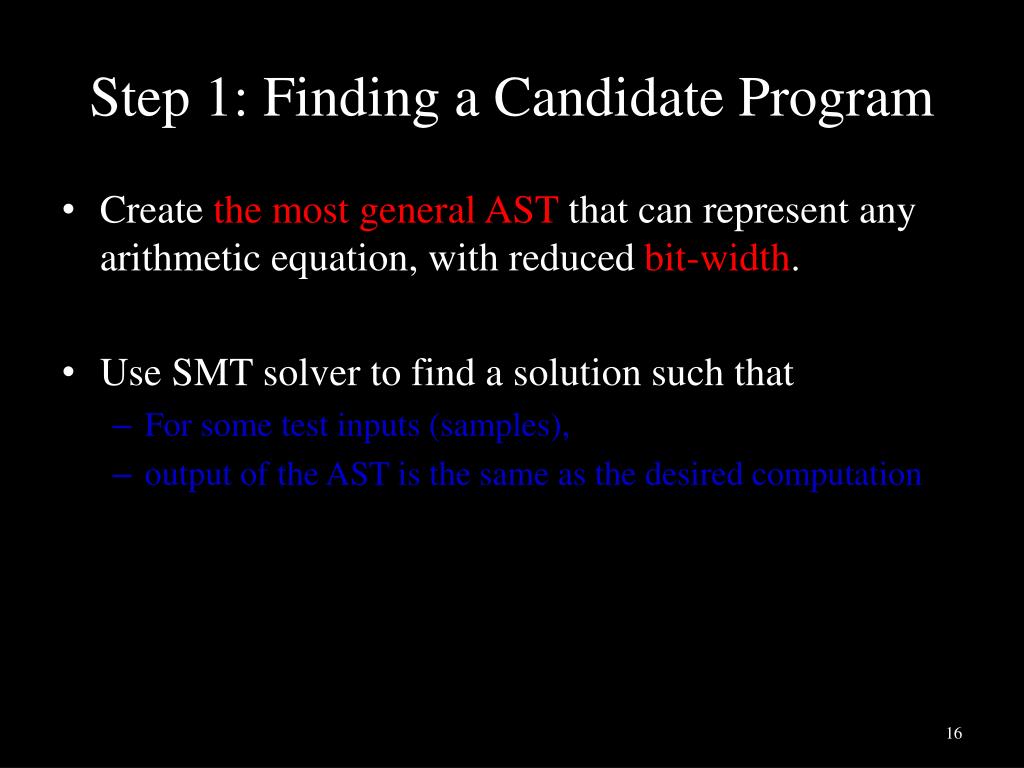

16. Step 1: Finding a Candidate Program • Create the most general ASTthat can represent any arithmetic equation, with reduced bit-width. • Use SMT solver to find a solution such that • For some test inputs (samples), • output of the AST is the same as the desired computation

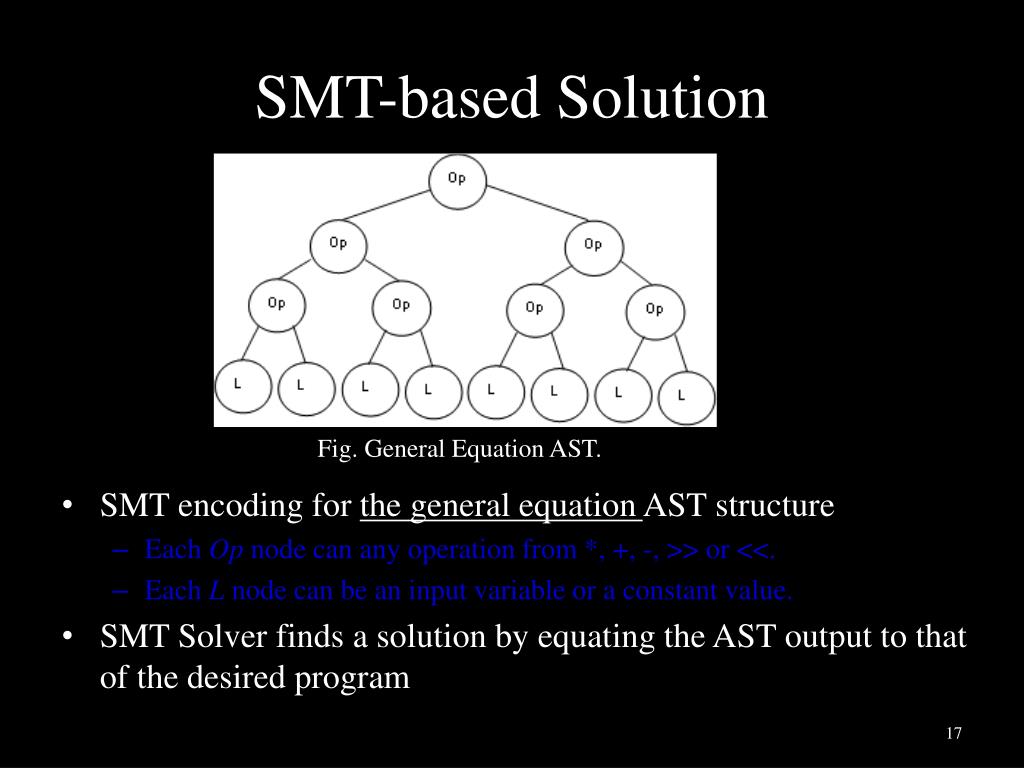

17. SMT-based Solution • SMT encoding for the general equation AST structure • Each Op node can any operation from *, +, -, >> or <<. • Each L node can be an input variable or a constant value. • SMT Solver finds a solution by equating the AST output to that of the desired program Fig. General Equation AST.

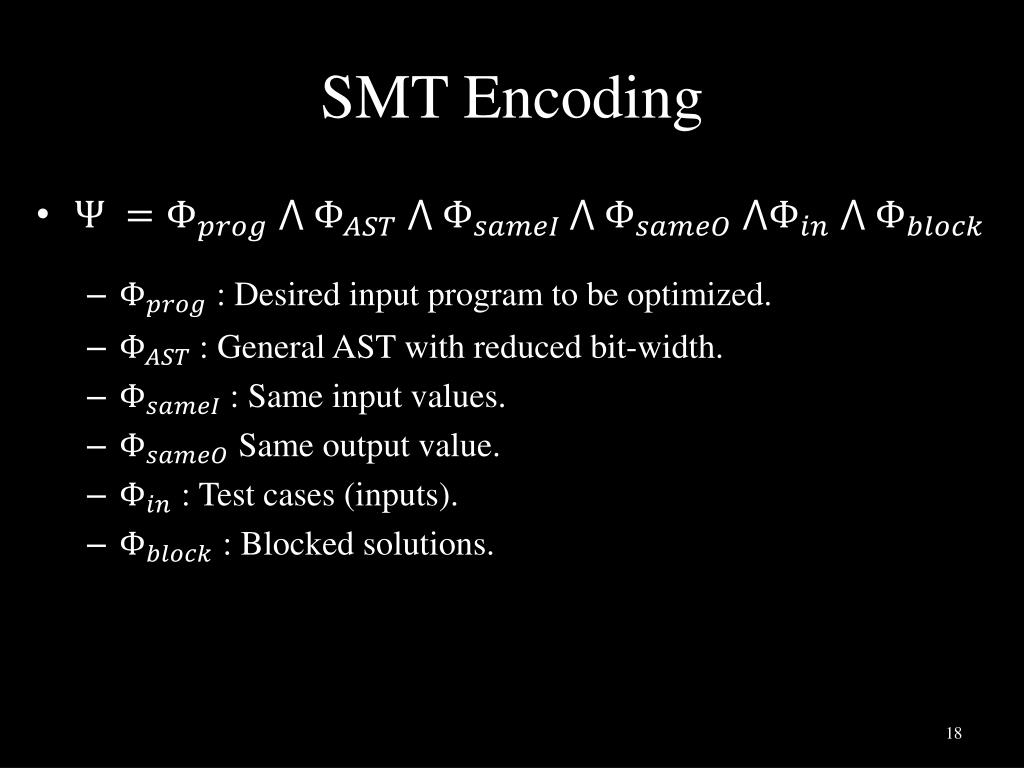

18. SMT Encoding • : Desired input program to be optimized. • : General AST with reduced bit-width. • : Same input values. • Same output value. • : Test cases (inputs). • : Blocked solutions.

19. SMT-based Solution (an example) ≡

20. SMT-based Inductive Program Synthesis

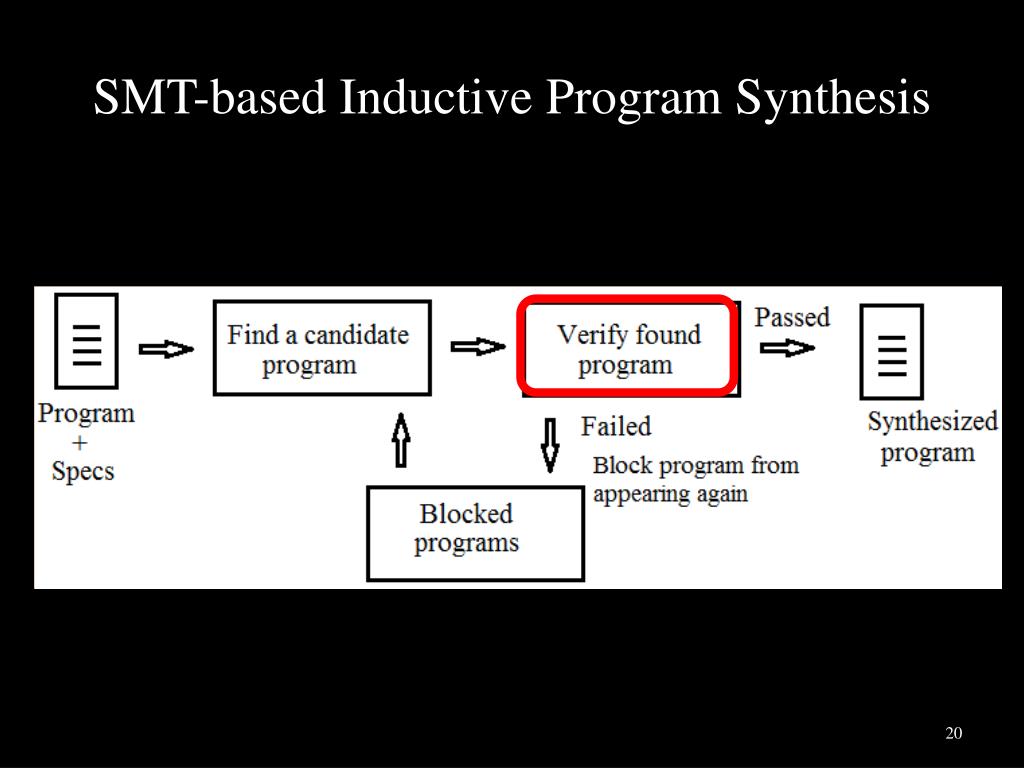

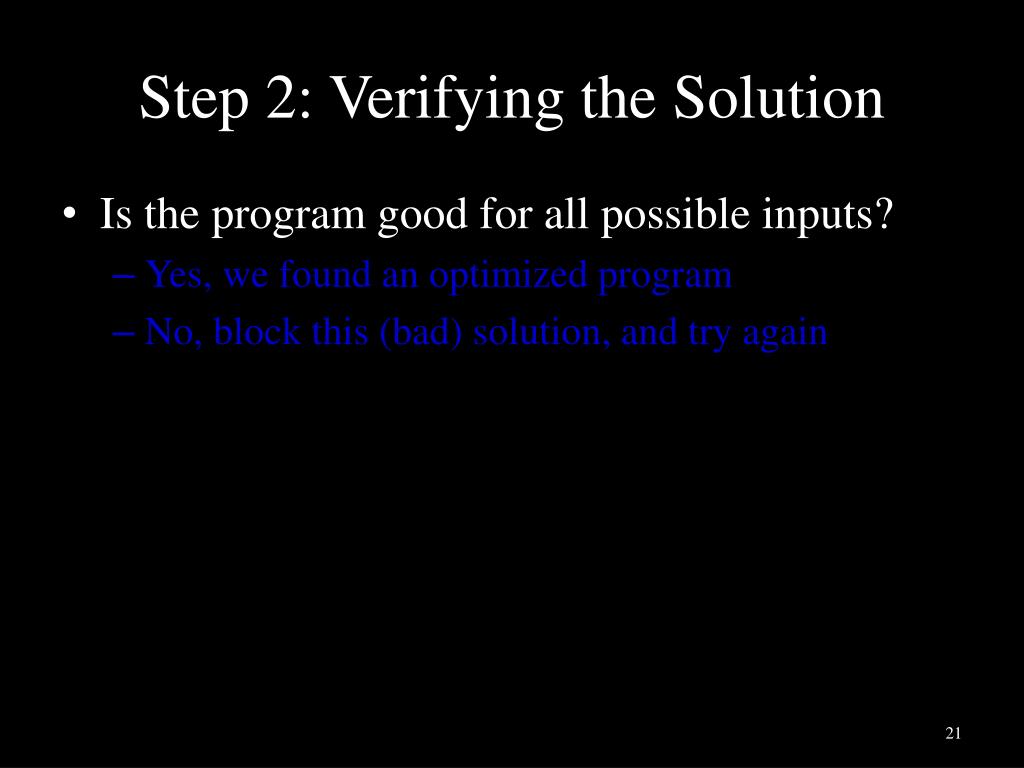

21. Step 2: Verifying the Solution • Is the program good for all possible inputs? • Yes, we found an optimized program • No, block this (bad) solution, and try again

22. SMT Encoding • : Desired input program to be optimized. • : Found candidate solution. • : Same input values. • : Different output value. • : Ranges of the input variables. • : Resolution of the input variables.

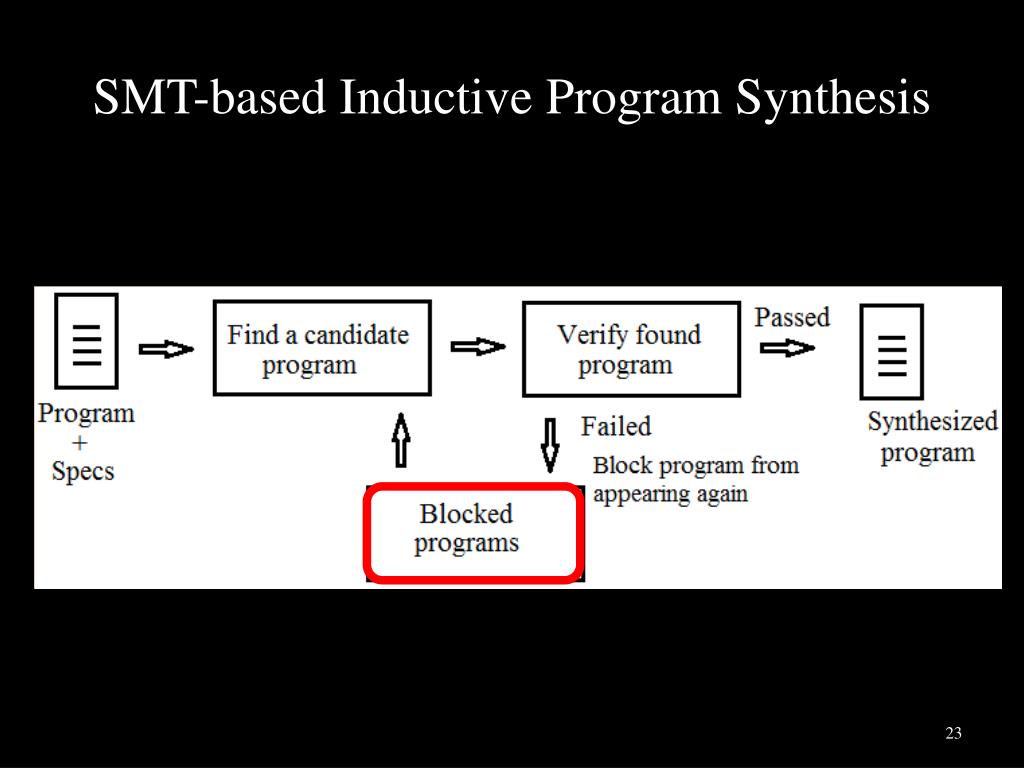

23. SMT-based Inductive Program Synthesis

24. The Next Solution B + ≡

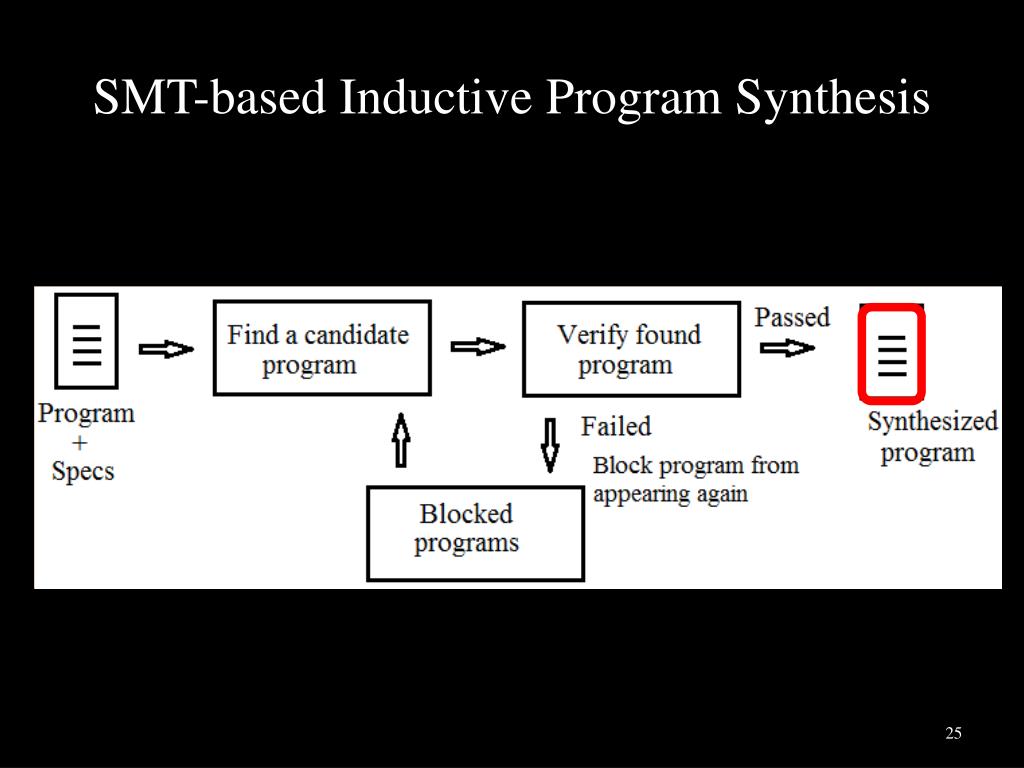

25. SMT-based Inductive Program Synthesis

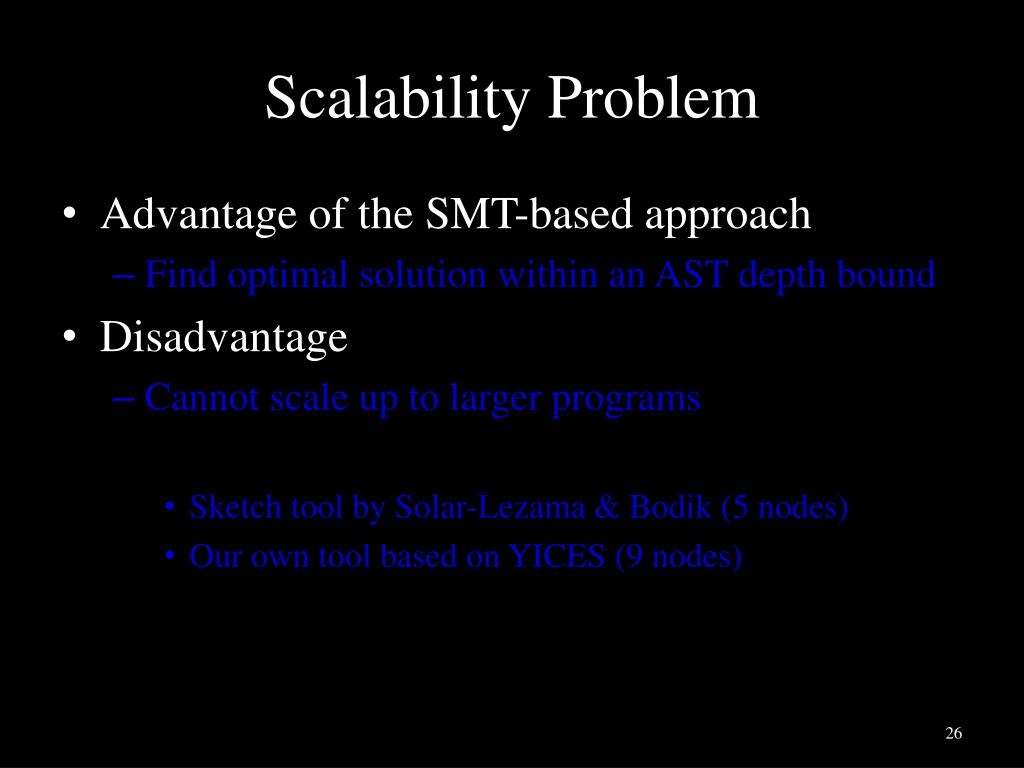

26. Scalability Problem • Advantage of the SMT-based approach • Find optimal solution within an AST depth bound • Disadvantage • Cannot scale up to larger programs • Sketch tool by Solar-Lezama& Bodik (5 nodes) • Our own tool based on YICES (9 nodes)

27. Our Incremental Approach

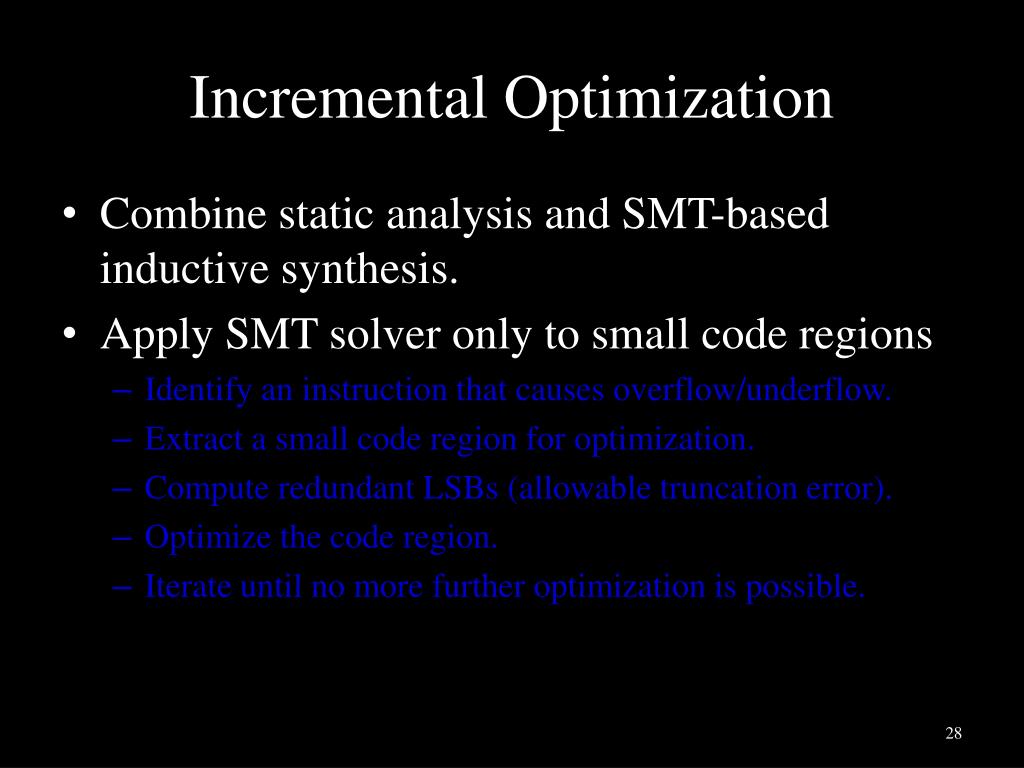

28. Incremental Optimization • Combine static analysis and SMT-based inductive synthesis. • Apply SMT solver only to small code regions • Identify an instruction that causes overflow/underflow. • Extract a small code region for optimization. • Compute redundant LSBs (allowable truncation error). • Optimize the code region. • Iterate until no more further optimization is possible.

29. Region for Optimization • BFS order (Tree has return as root) • Parent node doesn’t have overflow or underflow • Parent node restores the value created in the overflowing node back to the normal range in orig. • Larger extracted region allows for more opportunities • AST with at most 5 levels, 63 AST nodes

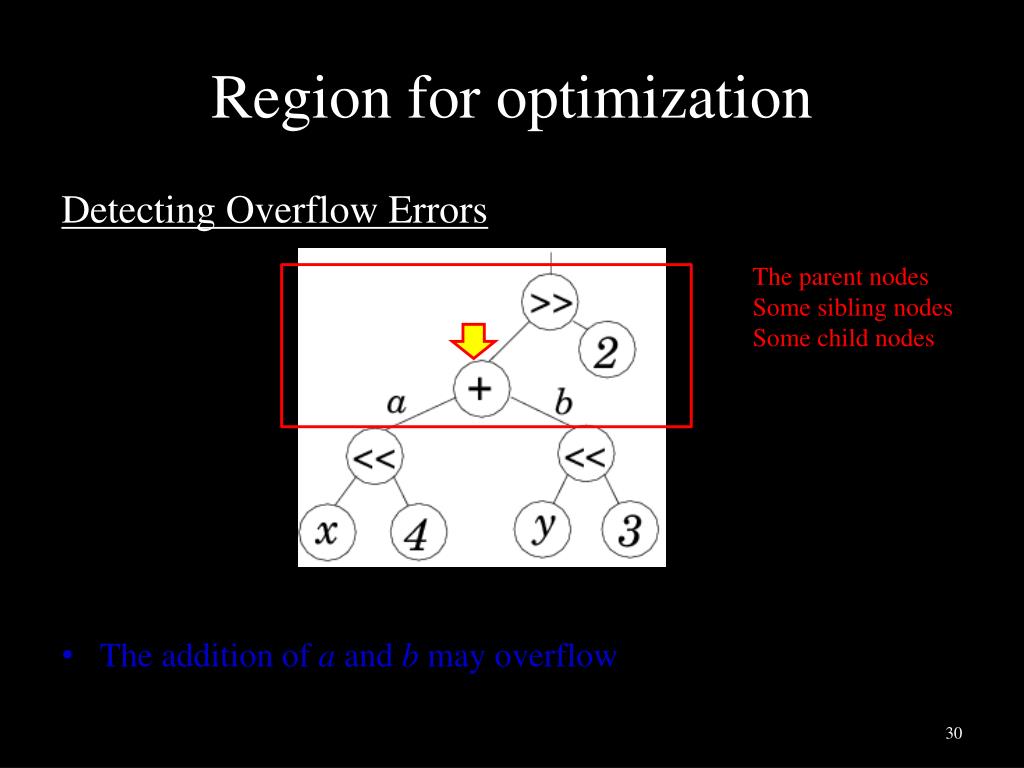

30. Region for optimization Detecting Overflow Errors • The addition of a and b may overflow The parent nodes Some sibling nodes Some child nodes

31. Truncation Error margins Computing Redundant LSBs • The redundant LSBs of a are computed as 4 bits • The redundant LSBs of b are computed as 3 bits.

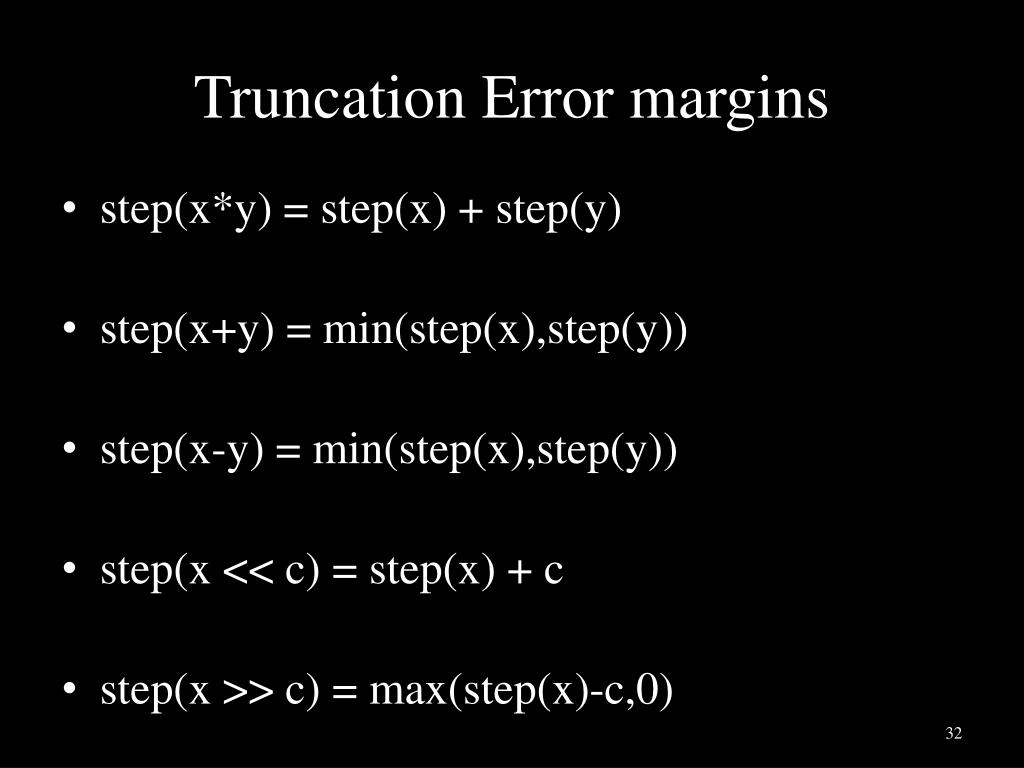

32. Truncation Error margins • step(x*y) = step(x) + step(y) • step(x+y) = min(step(x),step(y)) • step(x-y) = min(step(x),step(y)) • step(x << c) = step(x) + c • step(x >> c) = max(step(x)-c,0)

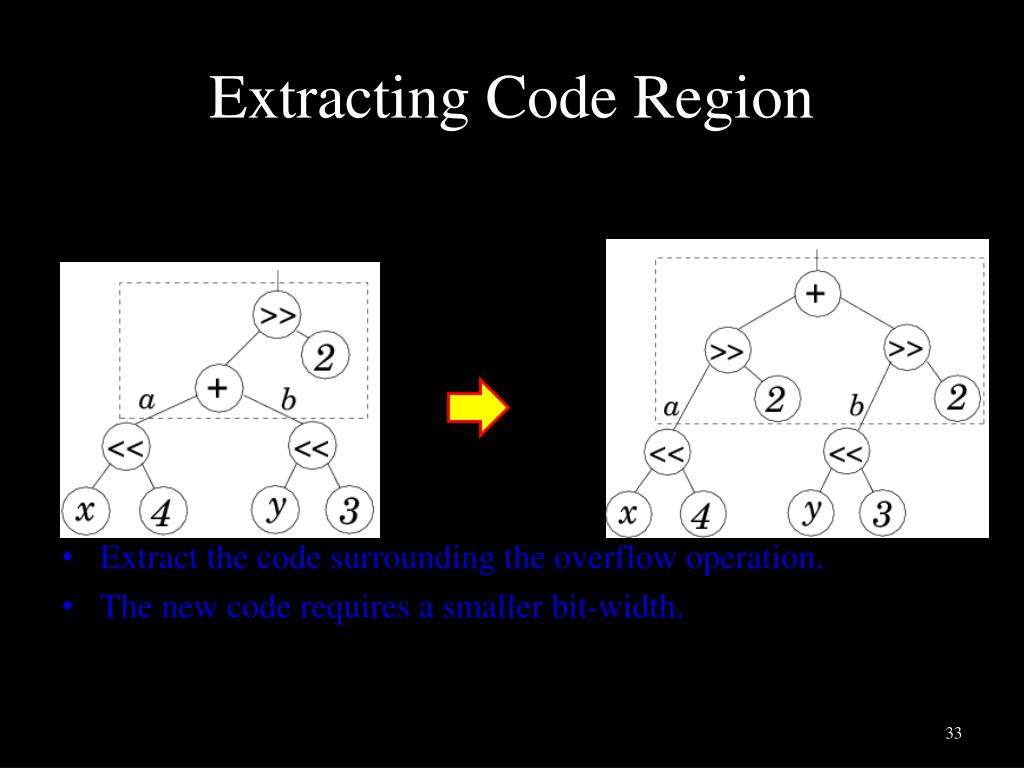

33. Extracting Code Region • Extract the code surrounding the overflow operation. • The new code requires a smaller bit-width.

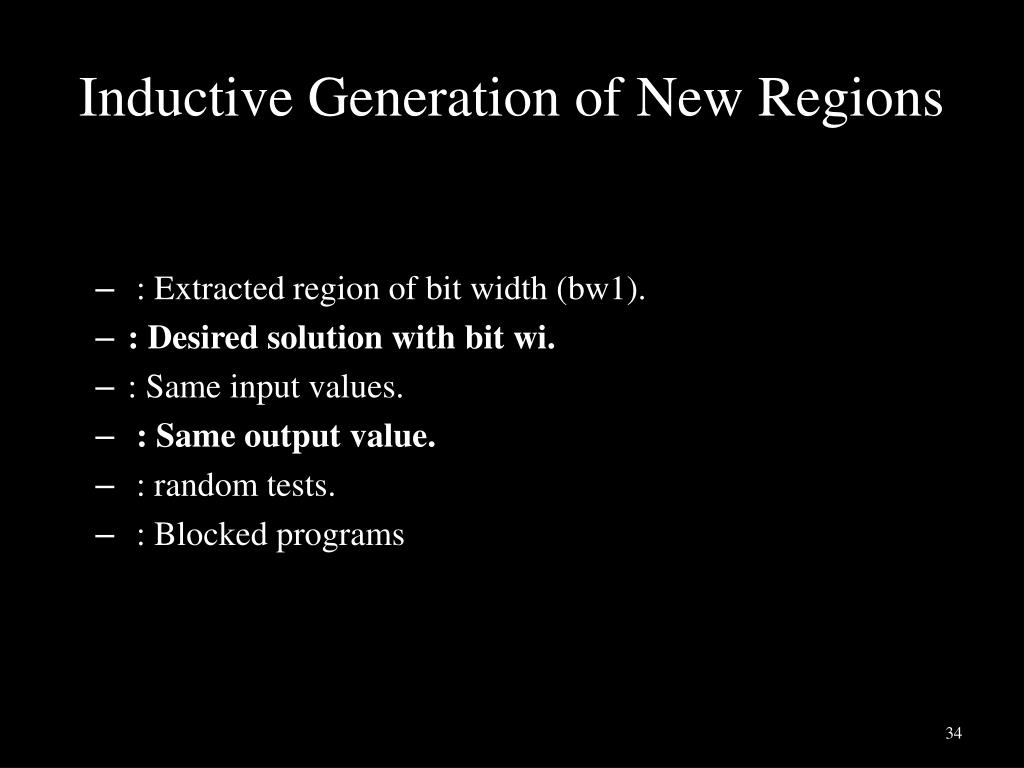

34. Inductive Generation of New Regions • : Extracted region of bit width (bw1). • : Desired solution with bit wi. • : Same input values. • : Same output value. • : random tests. • : Blocked programs

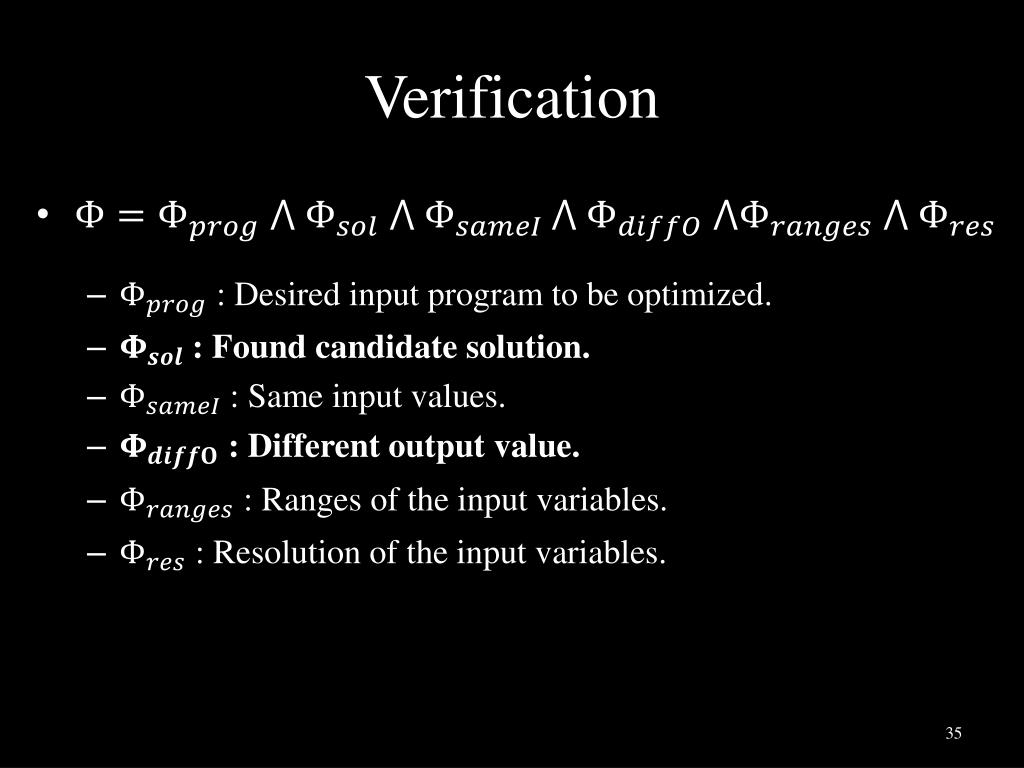

35. Verification • : Desired input program to be optimized. • : Found candidate solution. • : Same input values. • : Different output value. • : Ranges of the input variables. • : Resolution of the input variables.

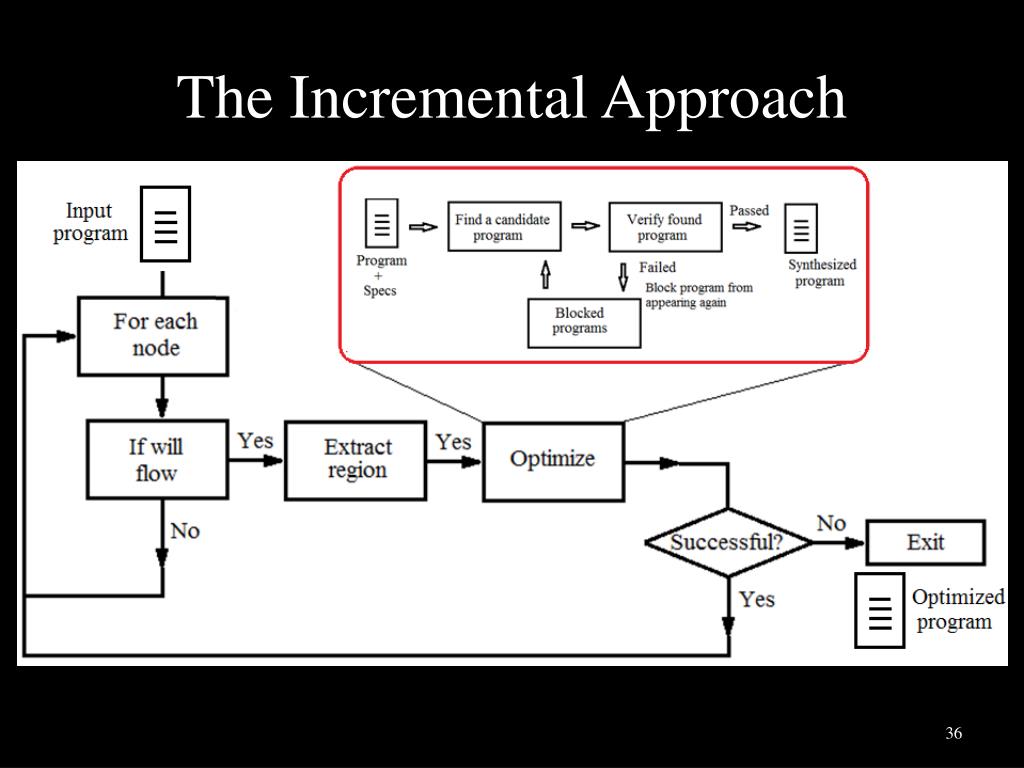

36. The Incremental Approach

37. Implementation • Clang/LLVM + Yices SMT solver • Bit-vector arithmetic theory • Evaluated on a set of public benchmarks for embedded control and DSP applications

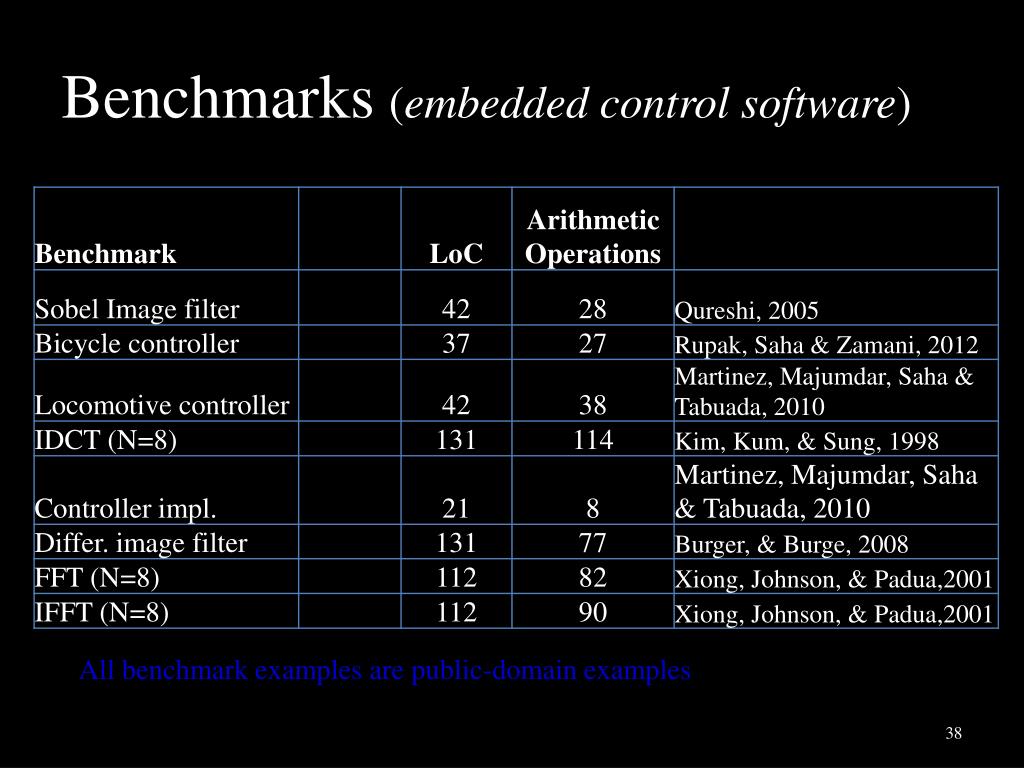

38. Benchmarks(embedded control software) All benchmark examples are public-domain examples

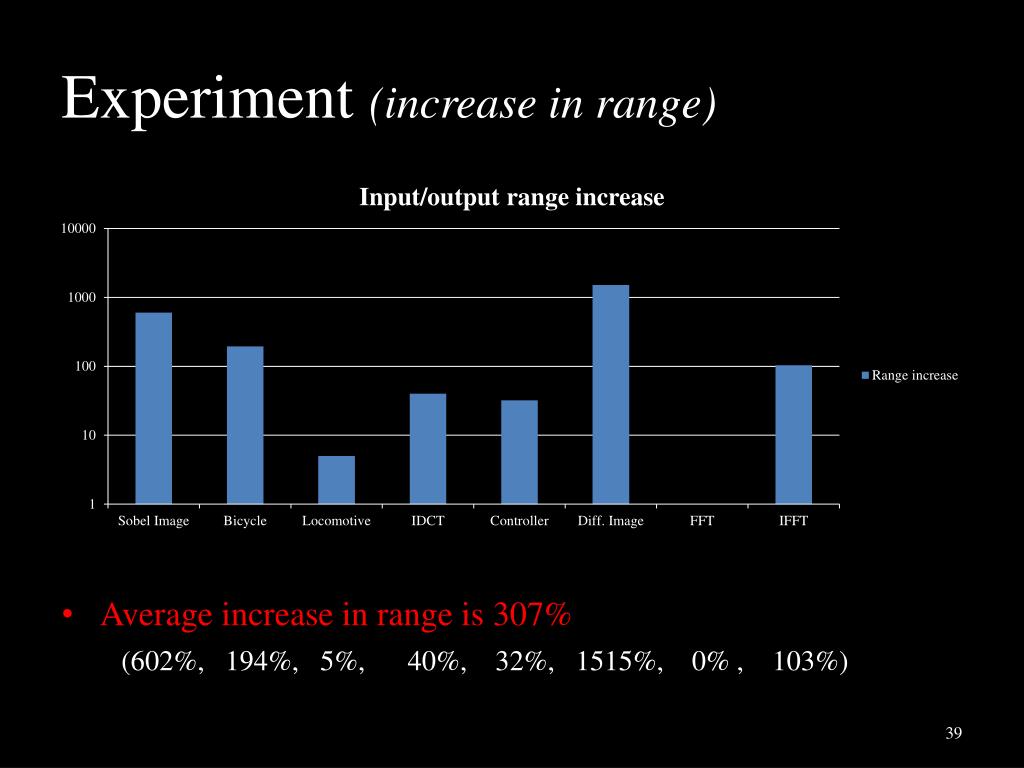

39. Experiment (increase in range) • Average increase in range is 307% (602%, 194%, 5%, 40%, 32%, 1515%, 0% , 103%)

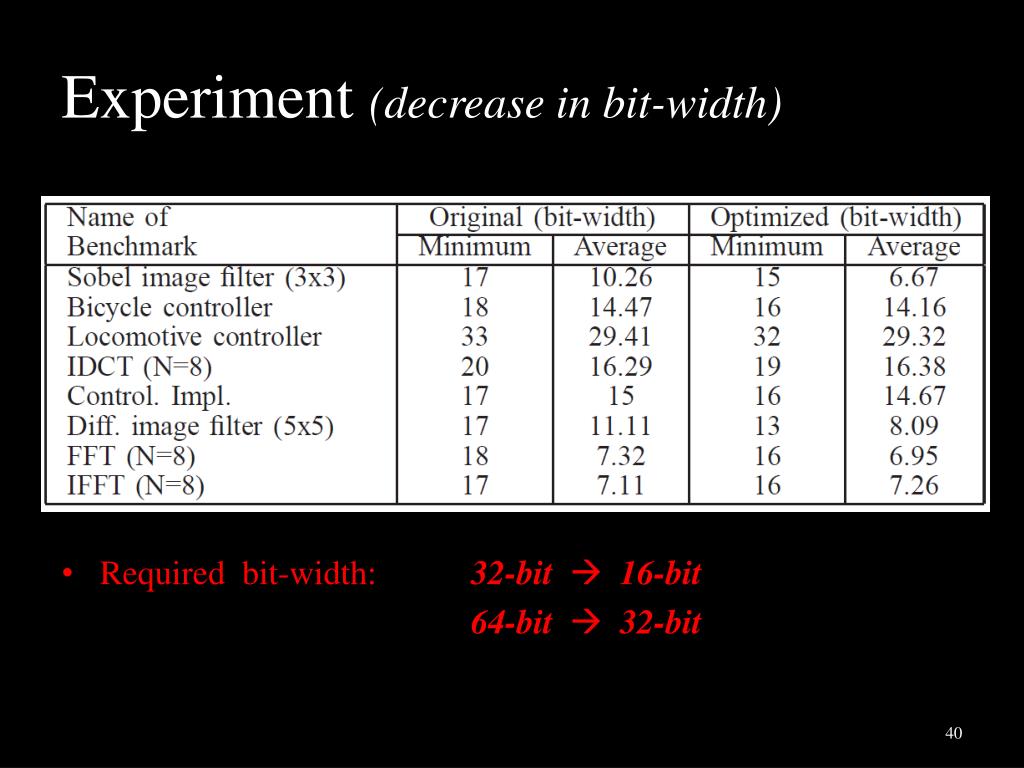

40. Experiment (decrease in bit-width) • Required bit-width: 32-bit 16-bit 64-bit 32-bit

41. Experiment (scaling error) Original program New program If we reduce microcontroller’s bit-width, how much error will be introduced?

42. Experiment (runtime statistics) 64 bit

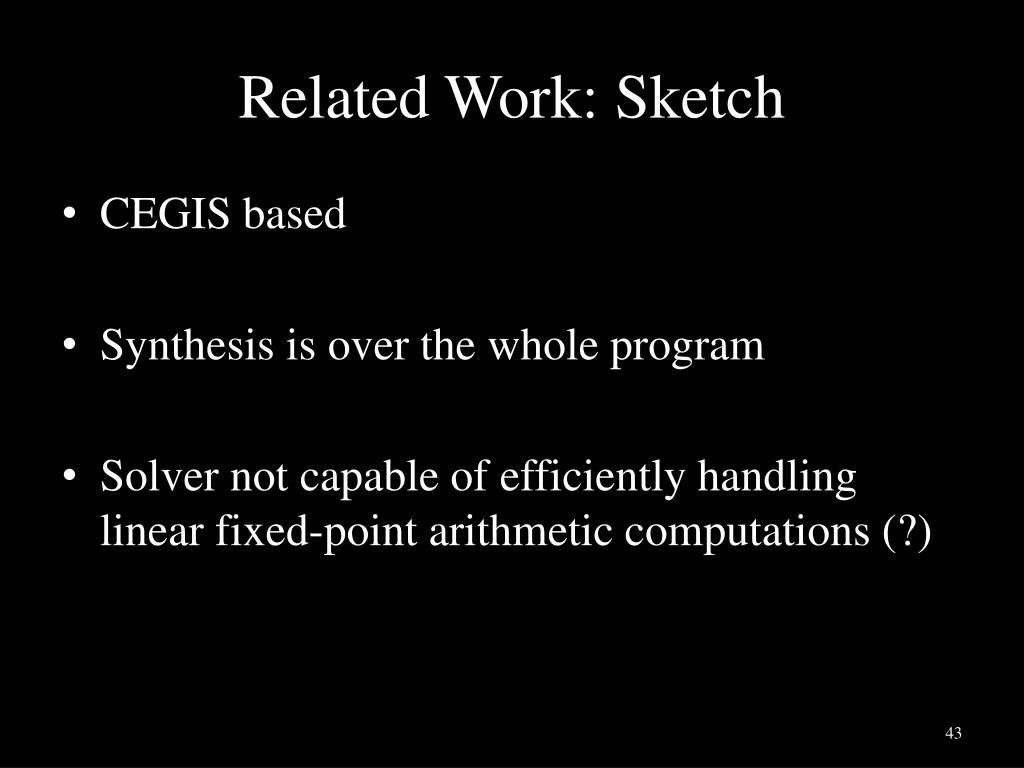

43. Related Work: Sketch • CEGIS based • Synthesis is over the whole program • Solver not capable of efficiently handling linear fixed-point arithmetic computations (?)

44. Related Work: Gulwani et al. (PLDI 2011) • User specified logical specification (e.g., unoptimized program) • Uses CEGIS to find optimized version • Slow (This technique performs worse than enumeration/stochastic techniques)

45. Related Work: Rupak et al. (ICES 12) • Optimization of bit-vector representations • Does not change structure of the program • Uses Mixed Integer Linear Programming (MILP) Solver

46. Conclusions • We presented a new SMT-based method for optimizing fixed-point linear arithmetic computations in embedded software code • Effective in reducing the required bit-width • Scalable for practice use • Future work • Other aspects of the performance optimization, such as execution time, power consumption, etc.

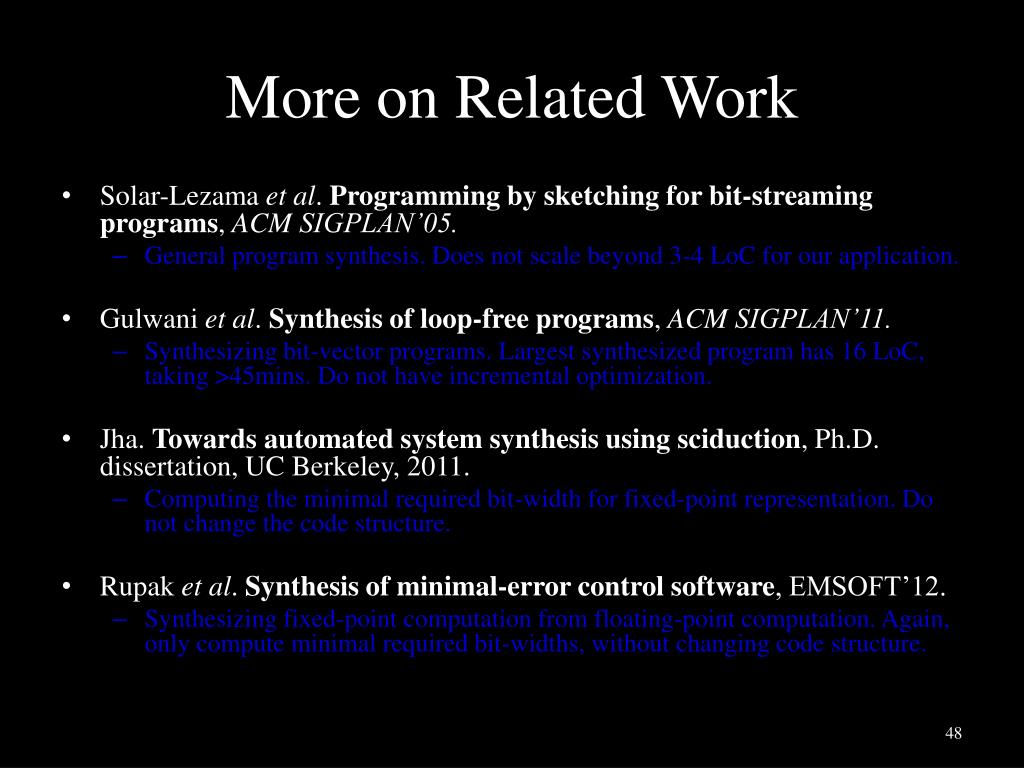

48. More on Related Work • Solar-Lezamaet al. Programming by sketching for bit-streaming programs, ACM SIGPLAN’05. • General program synthesis. Does not scale beyond 3-4 LoC for our application. • Gulwaniet al. Synthesis of loop-free programs, ACM SIGPLAN’11. • Synthesizing bit-vector programs. Largest synthesized program has 16 LoC, taking >45mins. Do not have incremental optimization. • Jha. Towards automated system synthesis using sciduction, Ph.D. dissertation, UC Berkeley, 2011. • Computing the minimal required bit-width for fixed-point representation. Do not change the code structure. • Rupaket al. Synthesis of minimal-error control software, EMSOFT’12. • Synthesizing fixed-point computation from floating-point computation. Again, only compute minimal required bit-widths, without changing code structure.
