  1. Panasonic Advanced Ventilation Fans

  2. Panasonic Advanced Ventilation Fans 40/20 CFM Spot Energy Recovery Ventilator • Dual speed settings for 40/20 or 20/10 CFM- 0.8 Sone at 40 CFM / <0.3 Sone at 20 CFM FV-04VE1

  3. Panasonic Advanced Ventilation Fans Operation 2-speed settings

  4. Panasonic Advanced Ventilation Fans Features: Balanced VentilationExhaust & Supply Air Exchange Core Temper Air

  5. Panasonic Advanced Ventilation Fans 58℉ 46℉ 32℉ 72℉

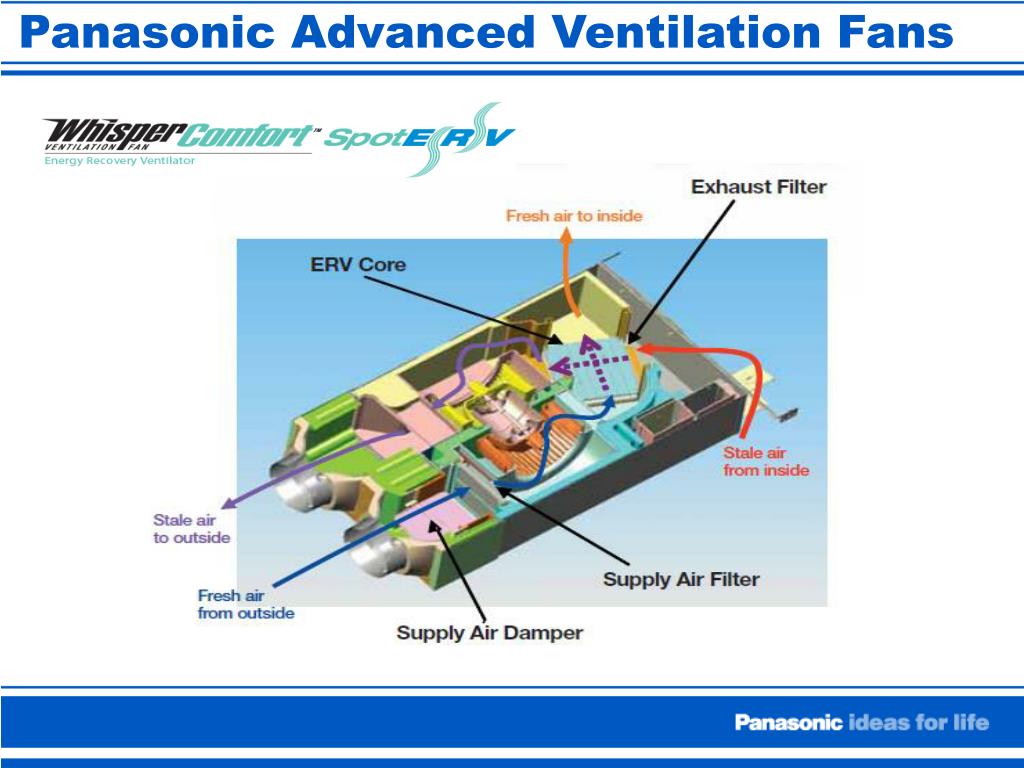

  6. Panasonic Advanced Ventilation Fans

  7. Panasonic Advanced Ventilation Fans Features: Spot ERV – Home Office / Game Room / Family Rooms / Bedrooms Whole-House ERV – Housing Authority Properties / Hotels / Studio Apts.

  8. Panasonic Advanced Ventilation Fans Features: Motor Technology – totally enclosed AC condenser motor, one motor operates two fan wheels Filters – for supply and exhaust side to keep exchange core clean Grille – contemporary design No drain necessary!

  9. Panasonic Advanced Ventilation Fans Operation Switches On = Hi or Lo speed Off = shutdown On Off 40/20 CFM (factory preset) 20/10 CFM Hi Lo Switch not supplied Switch labels are provided for optional use

  10. White A.C. 120V Black Ground Orange Yellow On/Off Blue Hi/Low

  11. Panasonic Advanced Ventilation Fans Operation Frost Prevention Mode Above 32 degree F Both exhaust and supply fully function From 32 – 20 degree F Supply closes 30 minutes then opens 1 hour Below 20 degree F Supply closes 1 hour then opens 10 minutes

  12. Panasonic Advanced Ventilation Fans 37°F （3 ℃） 32°F （0 ℃） temperature 19°F （-7 ℃） Exhaust only -13°F （-25 ℃） 30m 10m 10m 30m 1h 1h 1h 1h 1h Damper Open Damper Close 40 cfm 20 cfm Defrost Operation (40 CFM)

  13. Panasonic Advanced Ventilation Fans

  14. Panasonic Advanced Ventilation Fans Installation Mounting – Unit 14 inches wide. Fits between 16” on center joist Wiring – 120/60 V/Hz 2 switches for on/off and high/low Duct – 4” insulated duct (recommended) for exhaust and supply. Terminations (exterior hoods) – separate by 3 feet or point 45 degrees opposite directions

  15. Panasonic Advanced Ventilation Fans Installation 3 ft min.

  16. Panasonic Advanced Ventilation Fans Maintenance: Grille – light dish soap Filters – vacuum with soft brush attachment Exchange Core - vacuum with soft brush attachment

  17. Panasonic Advanced Ventilation Fans Example 1: Two bedrooms 1600 square feet Master bedroom (7.5 CFM x 2) = 15 CFM Second bedroom = 7.5 CFM 1600 sq ft x .01 = 16 CFM Total 38.5 CFM Use WhisperComfort set at 40 CFM Sizing – Based on ASHRAE 62.2 Example 2: Four bedrooms 2200 square feet Master bedroom (7.5 CFM x 2) = 15 CFM Other 3 bedrooms 7.5 each = 22.5 CFM 2200 sq ft x .01 = 22 CFM Total 59.5 CFM Use 2 WhisperComfort Or 1 WhisperComfort and 1 WhisperGreen

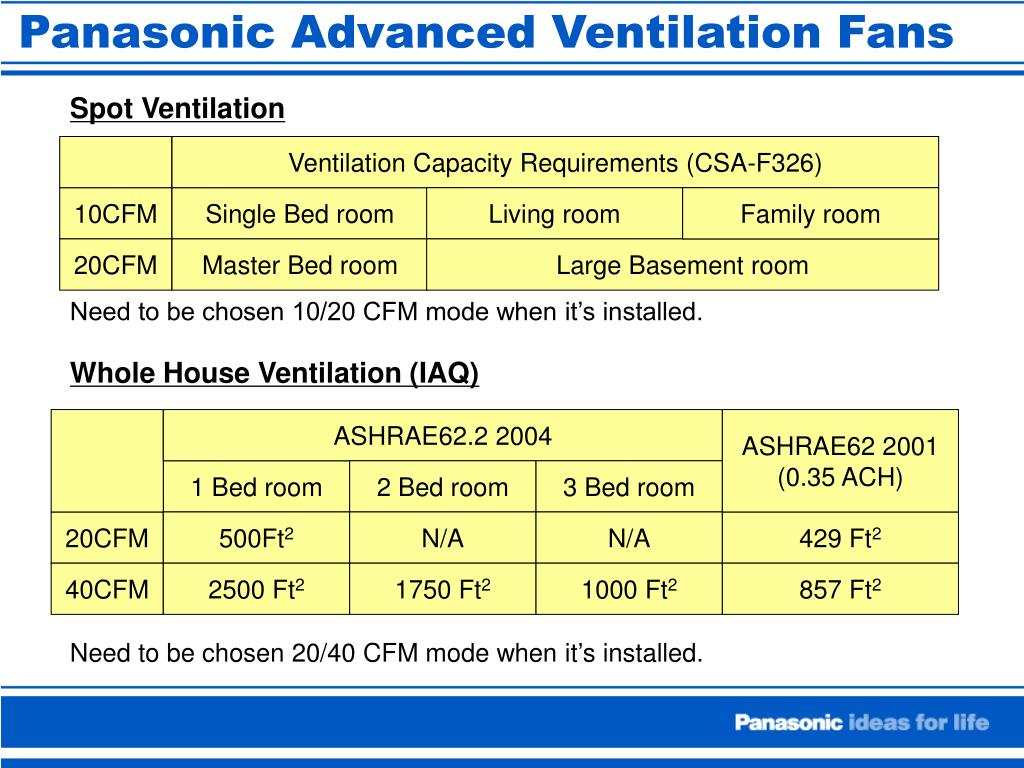

  18. Panasonic Advanced Ventilation Fans Ventilation Capacity Requirements (CSA-F326) 10CFM Single Bed room Living room Family room 20CFM Master Bed room Large Basement room ASHRAE62.2 2004 ASHRAE62 2001 (0.35 ACH) 1 Bed room 2 Bed room 3 Bed room 20CFM 500Ft2 N/A N/A 429 Ft2 40CFM 2500 Ft2 1750 Ft2 1000 Ft2 857 Ft2 Spot Ventilation Need to be chosen 10/20 CFM mode when it’s installed. Whole House Ventilation (IAQ) Need to be chosen 20/40 CFM mode when it’s installed.

  19. THANK YOU
