  1. FY11 Infrastructure Roadmap Update Enterprise Services (Supporting Activities) NetCentric Demos/Prototypes TIM Mike Hritz 3 November 2010

  2. NAS Services Functionality Description – SV-4b

  3. Enterprise Services Roadmap (1 of 7) CY 2009 2010 2011 2012 2013 2014 2015 2016 2017 2018 2019 2020 2021 2022 2023 2024 2025 SWIM Segmt. 3 SWIM Segmt.1 SWIM Segmt. 2 Enterprise Governance SWIM Segment 1 Design-Time Registry SWIM Segment 2 Enterprise Metadata Repository COI/Governance Processes/Procedures Identity & Key Management (IK&M) SWIM Segment 3 Enterprise Governance Internal Policy Enforcement (IPE) 588 293 IID 297 Administrative Services Intrusion Detection & Response (ID&R) NEISS SWIM Segment 3 Administrative Services FID 295 Certified Software Management (CSM) for COTS Software WIKI-based Information Access Capability E02 E01 COI/Governance Processes/Procedures Interaction Services TBFM/IES FID57 SWIM Segment 3 Interaction Services En Route Automation NextGen Mid-Term WP En Route Automation NextGen Far-Term WP TFDM 2 FID346 IID356 IARD355 CATMT WP4

  4. Enterprise Services Roadmap (2 of 7) CY 2009 2010 2011 2012 2013 2014 2015 2016 2017 2018 2019 2020 2021 2022 2023 2024 2025 SWIM Segmt. 3 SWIM Segmt.1 SWIM Segmt. 2 Support Services NextGen Reduced Weather Impact -- NNEW IID 451 IARD 450 IARD 79 IID 86 FID 89 NNEW WP1 NNEW WP2 FID 635 TR NextGen 4-D Weather SAS X AIMModernizationSegment 2 AIM ModernizationSegment 1 FID121 FID2 FID122 417 AIMModernization Segment 3 IARD405 SIM FID102 IID406 SOA Core Services FID128 FID277 FIDES5 130 Enterprise Enhanced Wide Area Network Services SWIM SERVICE CONTAINER Enterprise Surveillance Broadcast Services SWIM Segment 2 Enterprise Messaging Bus Collaboration Tools Service Management Tools Design-Time Registry Metadata Repository SWIM Segment 3 Enterprise SOA IID 297 585 Intrusion Detection & Response (ID&R) NEISS FID 295 IARD 294 588 293 Internal Policy Enforcement (IPE)– NEISS 522 Identity & Key Management (IK&M)

  5. Enterprise Services Roadmap (3 of 7) CY 2009 2010 2011 2012 2013 2014 2015 2016 2017 2018 2019 2020 2021 2022 2023 2024 2025 CRDR217 CRDRES1 IARD496 IARDES2 IIDES3 IID497 FIDES4 FID498 SWIM Segmt. 3 SWIM Segmt.1 SWIM Segmt. 2 Technical Infrastructure Services 345 Enterprise Level Time & Frequency Solution 38 Enterprise Wide Area Network Services Enterprise Enhanced Wide Area Network Services FID74 NADIN MSN FTI-2 NEXCOM Segments 1 and 2 FID350 FID499 FID353 FID158 FID304 DATACOMM Segments 1, 2,3 AeroMACS Note: Fixed User Ground Communications as a component of a Mobile User Communications Network IARD405 IID 77 FID 104 IID406 FID102 IARD 407 NextGen Surveillance and Weather Radar Capability SIM IID78 FID105 NextGen backup Surveillance Capability SBAS (WAAS) L5 Internal Policy Enforcement (IPE) 588 IID 297 585 Intrusion Detection & Response (IDR) FID 295 External Boundary Protection (EBP) 589 Identity & Key Management (IKM) 522 Certified Software Management (CSM) -for COTS Software 586

  6. Enterprise Services Roadmap (4 of 7) CY 2009 2010 2011 2012 2013 2014 2015 2016 2017 2018 2019 2020 2021 2022 2023 2024 2025 SWIM Segmt. 3 SWIM Segmt.1 SWIM Segmt. 2 Enterprise Mission Services FID31 Post ERAM R3 Work Package ERAM Program Baseline En Route Automation NextGen Mid-Term WP En Route Automation NextGen Far-Term WP FID102 FID440 IID45 FID107 FID102 TAMR Phase 3 FID46 TFDM 2 TFDM 1 FID195 FID57 TBFM TBFM/IES CATMT WP1 FID346 IID356 CRD354 IARD355 CATMT WP4 CATMTWP3 FID125 AFSM Meteorological and Aeronautical Planning System (MAPS) FID208 IID368 IARD 79 IID 86 FID 89 NextGen WxProcessor (WP1) NextGen Wx Processor (WP2) NextGen Wx Processor (WP3) ISD 454 FID 143 IARD 452 IID 453 NextGen Reduced Weather Impact (RWI) Solution Set ASIAS Phase 1 ASIAS Phase 2 FID206 IID177 IARD33 Security Integrated Tool Set – Work Package RMLS/SWIM Interface RMLS NextGen Mid-Term Work Package 373 376 RMLS NextGen Far-Term Work Package

  7. ‘10 Roadmap Activities / Focus Areas • Improve Integration and Alignment of Supporting Activities • ATD&P resources will assist you • Try to make sure each activity has a DP at the end of it in the green area • RSA Framework • AMS Milestones • Make sure all AMS milestones are captured on the roadmaps • Some cases milestones are missing • If tailored out, or projected to be tailored out, that is OK • Refine Sub-Capabilities Roadmaps • Assists requirements definition POCs with their work • Bridges gap between OIs and investments • Helps other activities (i.e., FIA work, convergence task, etc.) • Will be merged with the enablers in the NAS EA portal (OIs, SubCapabilities, Projects) • Solicit feedback from the Sol Set Mgrs – i.e., identify conflicts with the NSIP, misalignment with the Mar ‘10 NGIP, etc. • As you update your roadmaps, look to the sol set mgrs for alignment with their plans

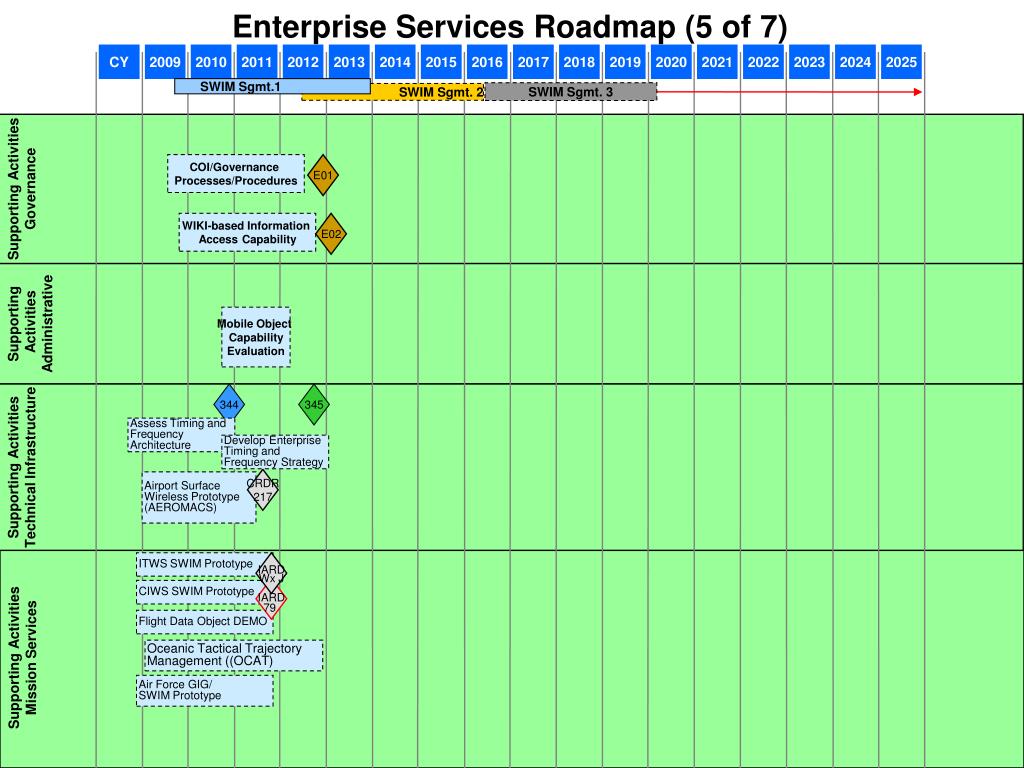

  8. CY 2009 2010 2011 2012 2013 2014 2015 2016 2017 2018 2019 2020 2021 2022 2023 2024 2025 Enterprise Services Roadmap (5 of 7) SWIM Sgmt.1 SWIM Sgmt. 3 SWIM Sgmt. 2 Supporting Activities Governance COI/Governance Processes/Procedures E01 WIKI-based Information Access Capability E02 Supporting Activities Administrative Mobile Object Capability Evaluation Supporting Activities Technical Infrastructure 344 345 Assess Timing and Frequency Architecture Develop Enterprise Timing and Frequency Strategy CRDR217 Airport Surface Wireless Prototype (AEROMACS) Supporting Activities Mission Services ITWS SWIM Prototype IARD Wx J IARD 79 CIWS SWIM Prototype Flight Data Object DEMO Oceanic Tactical Trajectory Management ((OCAT) Air Force GIG/ SWIM Prototype

  9. CY 2009 2010 2011 2012 2013 2014 2015 2016 2017 2018 2019 2020 2021 2022 2023 2024 2025 Enterprise Services Roadmap (6 of 7) SWIM Sgmt.1 SWIM Sgmt. 3 SWIM Sgmt. 2 Supporting Activities Support Services IARD 438 IID439 FID440 FDIM (Flight Object/SOA) IARD 144 Wx in Cockpit Interoperability of Wx data exchange using pub/ sub/ metadata 4D Wx Cube data exchange w/NNEW enabled systems 209 4-D Wx Cube Demo/Prototype 4-D Wx SAS Algorithms Supporting Activities Net-Centric/SOA Concepts Network Enabled Operations (Spiral 1) Network Enabled Operations (Spiral 2) Aircraft Access to SWIM FAA Eurocontrol AP4 FAA SJU SWIM Harmonization FAA/Europe SWIM Connection Air Force GIG/SWIM Prototype International Air Traffic Interoperability (IATI)

  10. CY 2009 2010 2011 2012 2013 2014 2015 2016 2017 2018 2019 2020 2021 2022 2023 2024 2025 Enterprise Services Roadmap (7 of 7) SWIM Sgmt.1 SWIM Sgmt. 3 SWIM Sgmt. 2 Supporting Activities Interaction Services Decision for common Terminal and En Route R-side display (e.g., hardware and software) Decision for common display (e.g., H/W and S/W platforms) of electronic flight data for En Route and Terminal automation Supporting Activities SOA Core Services FIDES5 ED-X Enhanced Data Services (SWIM) FIDES5 SWIM Enterprise Service Bus Prototype

  11. Questions? • https://nasea.faa.gov/ • mike.hritz@faa.gov • 202.385.7198
