Description of a Multi-Stage Procedure to Solve the Heterogeneous Vehicle Routing Problem

2012 IN3-HAROSA Workshop Barcelona, June 13-15, 2012. Description of a Multi-Stage Procedure to Solve the Heterogeneous Vehicle Routing Problem. Javier Faulin Alba Agustín javier.faulin@unavarra.es Department of Statistics and Operations Research

daphne
Télécharger la présentation

Description of a Multi-Stage Procedure to Solve the Heterogeneous Vehicle Routing Problem

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. 2012 IN3-HAROSA Workshop Barcelona, June 13-15, 2012 Description of a Multi-Stage Procedure to Solve the Heterogeneous Vehicle Routing Problem Javier Faulin Alba Agustín javier.faulin@unavarra.es Department of Statistics and Operations Research Public University of Navarre, Pamplona, SPAIN Angel Juan http://ajuanp.wordpress.com Department of Computer Science Open University of Catalonia, Barcelona, SPAIN

  2. 0. Contents Introduction Description of the Heterogeneous VRP Main References Solving the HVRP: the SAM method SAM: Our approach for solving the HVRP Solving CVRP: SR-GCWS Designing the instances for SAM Computational results Sensitivity analysis Conclusions & Future Work

  3. 1. Introduction • The VRP models needs new paradigms and assumptions to fit their structures to the changing road transportation. • Some of the aforementioned new assumptions are based on new costs based on congestion, environmental impact or security-related and safety-related costs. • Nevertheless, others are connected to new hypothesis in the VRP model like the consideration of heterogeneous fleets, which is a much more realistic assumption. • The HeterogeneousVehicle Routing Problem (HVRP) is a VRP with different capacities in their vehicles, usually due to the diversity of delivery needs in the companies. • We are not going to consider here the Fleet Dimensioning and Composition problem in its general formulation, but a routing analysis considering the option of using vehicles of different capacities.

  4. 2.a Description of the HVRP • The HeterogeneousVehicle Routing Problem (HVRP) is a well-known NP-hard problem: • A set of customers’ demands must be supplied by a fleet of vehicles. • Resources are available from a depot. • Moving a vehicle from one node i to another j has associated costscij. • Several constraints related to limited capacity in each vehicle must be considered: there are vkvehicles of capacity Qk (k types of vehicles) • Goal: Minimization of the total distance-cost servicing all the customers • The HeterogeneousVehicle Routing Problem with Stochastic Demands (HVRP) is a VRP which involves many real-life applications (Golden at al., 2002): urban waste collection, residential pickups and delivery of beverages, food and newspapers.

  5. 2.b Description of the HVRP • Consider a complete and undirected graph G = (N, E), where: • N ={0, 1, . . . , n} is a set of given nodes representing the central depot (node 0) and the n customers to be supplied (nodes 1 to n). • E = {(i, j) | i, j in N with i ≠ j} are the edges or roads connecting each pair of nodes. • Moreover, consider also the following inputs: • The natural number m of different types of vehicles (m ≥ 2). • Vk= {1, 2, …, vk} is the set of vkvehicles of type k (1 ≤ k ≤ m), each of them having a loading capacity Qk > 0. • For all i in N, di ≥ 0 is the demand associated with node i. It is assumed that the depot has no demand, i.e. d0 = 0. • For all i, j in N with i ≠ j, and for all k (1 ≤ k ≤ m), cijk = cjik = cij ≥ 0 are the traveling costs associated with moving any vehicle from node i to node j(symmetric costs and no dependence of type of vehicle). A-n80-k10 BKS homogeneous 100 (above, 10 routes) vs. heterogeneous 150-125 OBS (below, 9 routes)

  6. 2.c Description of the HVRP • The HVRP problem can be modeled using mathematical programming notation as follows, where: (a) xijkis a binary variable which takes the value 1 if a vehicle of type k is used to cover the road from i to j, while it takes the value 0 otherwise; and (b) yijrepresents the load in the truck arriving at customer j after visiting customer i in terms of the units of commodity C0. That is to say:

  7. 2.d Description of the HVRP • Some important comments about the fleet composition: • We know beforehand the maximum number vk of each type k of vehicles we have, i.e. we have a limit number in the use of every type of vehicle. • We want obtain solutions minimizing distance-cost in the way is shown in the associated charts: Original problem and typical solution having heterogeneous fleet

  8. 3.a Main References • First references: • Gheysens F G, Golden B L and Assad A A (1984). A comparison of techniques for solving the fleet size and mix vehicle routing problem. OR Spectrum 6(4): 207-216. • Golden B, Assad A A, Levy L and Gheysens F G (1984). The fleet size and mix vehicle routing problem. Computers & Operations Research 11(1): 49-66. Saksena J P and Ramachandran A (1986). An optimal fleet utilisation problem. European Journal of Operational Research 25: 406-20. Salhi S and Rand G K (1993). Incorporating vehicle routing into the vehicle fleet composition problem. European Journal of Operational Research 66(3): 313-330. • Couillard J (1993). A decision support system for vehicle fleet planning. Decision Support Systems 9:149-159. • Second group of references: • Taillard E D (1999). A heuristic column generation method for the heterogeneous fleet VRP. RAIRO 33:1-14. • Ochi L S, Vianna D S, Drummond M A and Victor A O (1998a). An evolutionary hybrid metaheuristic for solving the vehicle routing problem with heterogeneous fleet. Lecture Notes in Computer Science 1391: 187-95.

  9. 3.b Main References • Second group of references: • Ochi L S, Vianna D S, Drummond M A and Victor A O (1998b). A parallel evolutionary algorithm for the vehicle routing problem with heterogeneous fleet. Future Generation Computer Systems 14: 285-92. • Tarantilis C D, Kiranoudis C T and Vassiliadis V S (2004). A threshold accepting metaheuristic for the heterogenous fixed fleet vehicle routing problem. European Journal of Operational Research 152: 148-58. • Tarantilis C D and Kiranoudis C T (2007). A flexible adaptive memory-based algorithm for real-life transportation operations: two case studies from dairy and construction sector. European Journal of Operational Research 179: 806-22. • Yaman H (2006). Formulations and valid inequalities for the heterogeneous vehicle routing problem. Mathematical Programming 106: 365-90. • Yepes V and Medina J (2006). Economic heuristic optimization for heterogeneous fleet VRPHESTW. Journal of Transportation Engineering 132: 303-11. • Subramanian, A., VazPenna, P.H., Uchoa, E. and Ochi, L.S. (2012). A hybrid algorithm for the Heterogeneous Fleet Vehicle Routing Problem. European Journal of Operations Research 221: 285-295. • Third group of references:

  10. 4.a Solving the HVRP: the SAM method • Considering the original problem with the fleet (100,50,50): • We obtain three different solutions considering the homogeneous CVRP with vehicles of capacity 100 generated by the an efficient algorithm, such as the SR-GCWS (Juan et al., 2009). • It is clear than Solution 3 overcomes Solutions 1 and 2. • We save Solution 3 as a partial solution.

  11. 4.b Solving the HVRP: the SAM method • We keep the previously saved solution and use the vehicle of the next type in capacity: • We keep the route with a capacity of 100, • We use the vehicles of capacity 50 to re-schedule the route of capacity 95, using again the SR-GCWS algorithm (Juan et al. 2009). • We generated always more than one potential solution.

  12. 4.c Solving the HVRP: the SAM method • Finally, we add the partial solutions obtained with the vehicle of capacity 50 to the partial solution saved with vehicles of capacity 100 and we have a potential heuristic solution for the HVRP. • Knowing that that solution has been built by a multi-stage procedure, we have called it: Successive Approximation Method- SAM.

  13. 5.a SAM: Our approach for solving the HVRP Selection of a new type of vehicle (greater available capacity) while there are non-served customers procedure SAM (nodes, vehicles) // Perform a multi-round solvingprocessuntilallcustomers are served 01 whilelist of non-servedcustomersisnotempty do // Select a new type of vehiclean define a new homogeneous CVRP 02 newVehType <- selectNextType(vehicles) // thelargestoneavailable 03 vehCap <- getCapacity(newVehType) 04 newCVRP <- defineCVRP(nodes, vehCap) // Solvethe new CVRP usinganyefficientalgorithm (e.g. SR-GCWS) 05 sol <- solveHomogeneousCVRP(newCVRP) // Sortroutesby total demandrequired and vehiclesbycapacity 06 routes <- sortRoutes(sol) 07 vehicles <- sortVehicles(sol) Solve the homogeneous problem associated to that type of vehicle using any efficient algorithm, such as SR-GCWS, for instance

  14. 5.b SAM: Our approach for solving the HVRP procedure SAM (nodes, vehicles) (cont.) // While feasible assign most demanding routes to largest vehicles 08 i <- 0 09 while i < size(routes) and demand(routes[i]) <= getCapacity(vehicles[i]) do 10 newRoute <- assignVehicleToRoute(routes[i], vehicles[i]) 11 routes[i] <- markAsUsed(routes[i]) 12 vehicles[i] <- markAsUsed(vehicles[i]) 13 globalSol <- addRouteToSol(newRoute, globalSol) 14 i = i + 1 15 endwhile // Disolve (reset) theunusedroutes and vehicles 16 vehicles <- deleteUsedVehicles(vehicles) 17 routes <- deleteUsedRoutes(routes) 18 nodes <- extractNodes(routes) 19 endwhile // Returnthe global solution 20returnglobalSol endprocedure Assign most demanding routes to largest vehicles when feasible until finishing all the vehicles of one specific type Repeat the process until all nodes have been assigned to any route having vehicles of the corresponding type

  15. 6.a Solving CVRP: SR-GCWS Start • Our approach will be based on the Clarke and Wright’s savings (CWS) algorithm (Clarke & Wright 1964). • This parallel version of the CWS heuristic usually provides ‘acceptable solutions’ (average gap between 5% and 10%), especially for small and medium-size problems. • Reference: Juan, A., Faulin, J., Ruiz, R., Barrios, B., Caballe, S., 2009. The SR-GCWS hybrid algorithm for solving the capacitated vehicle routing problem. Applied Soft Computing, 10, 215-224. savings(i, j) Savings list Initial solution Select first edge & Merge List empty? End

  16. 6.b Solving CVRP: SR-GCWS • CWS the first edge (the one with the most savings) is the one selected. • SR-GCWS introduces randomness in this process by using a quasi-geometric statistical distribution  edges with more savings will be more likely to be selected at each step, but all edges in the list are potentially eligible. • Notice: Each time SR-GCWS is run, a random feasible solution is obtained. By construction, chances are that this solution outperforms the CWS one  hundreds of ‘good’ solutions can be obtained after some seconds/minutes. Good results with 0.10 < α < 0.20

  17. 6.c Solving CVRP: SR-GCWS Improvement #1: Hash Table • Adding ‘memory’ to our algorithm with a hash table: • A hash table is used to save, for each generated route, the best-known sequence of nodes (this will be used to improve new solutions) • ‘Fast’ method that provides small improvements on the average 2. Splitting (divide-and-conquer)method: • Given a global solution, the instance is sub-divided in smaller instances and then the algorithm is applied on each of these smaller instances • ‘Slow’ method that can provide significant improvements Improvement #2: Splitting

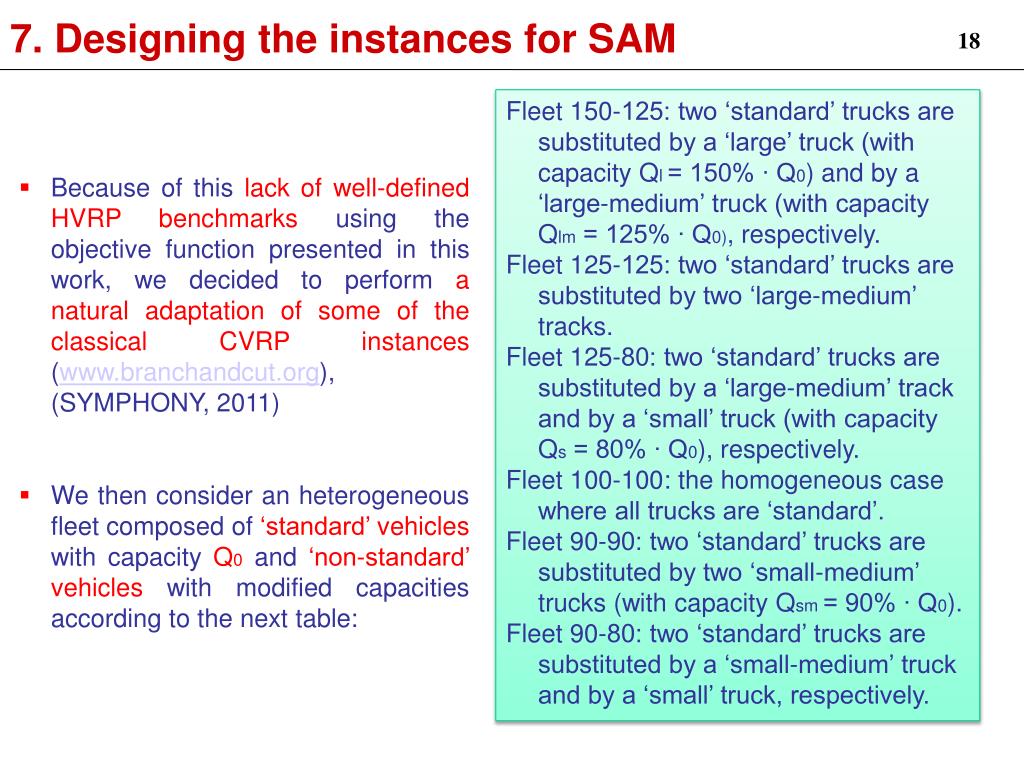

  18. 7. Designing the instances for SAM Fleet 150-125: two ‘standard’ trucks are substituted by a ‘large’ truck (with capacity Ql= 150% ∙ Q0) and by a ‘large-medium’ truck (with capacity Qlm = 125% ∙ Q0), respectively. Fleet 125-125: two ‘standard’ trucks are substituted by two ‘large-medium’ tracks. Fleet 125-80: two ‘standard’ trucks are substituted by a ‘large-medium’ track and by a ‘small’ truck (with capacity Qs = 80% ∙ Q0), respectively. Fleet 100-100: the homogeneous case where all trucks are ‘standard’. Fleet 90-90: two ‘standard’ trucks are substituted by two ‘small-medium’ trucks (with capacity Qsm= 90% ∙ Q0). Fleet 90-80: two ‘standard’ trucks are substituted by a ‘small-medium’ truck and by a ‘small’ truck, respectively. • Because of this lack of well-defined HVRP benchmarks using the objective function presented in this work, we decided to perform a natural adaptation of some of the classical CVRP instances (www.branchandcut.org), (SYMPHONY, 2011) • We then consider an heterogeneous fleet composed of ‘standard’ vehicles with capacity Q0and ‘non-standard’ vehicles with modified capacities according to the next table:

  19. 8.a Computational results • The next table show the computational results for small-size instances with different fleet configurations.

  20. 8.b Computational results • The next table show the computational results for medium-size instances with different fleet configurations.

  21. 8.c Computational results • The next table show the computational results for large-size instances with different fleet configurations.

  22. 9. Sensitivity analysis • As it can be derived from the figure on the left, average gaps associated with fleet rules 90-90 and 90-80 are positive but quite moderated, i.e. changing two ‘standard’ vehicles by two other vehicles with a somewhat smaller capacity does not seem to affect the expected routing costs in a noticeable way. • Similarly, the figure on the right shows a multiple boxplot of gaps. Notice also how the variability in the gaps is much higher for the 150-125 and 125-125 fleet configurations, i.e. increasing the capacity of two vehicles in the homogeneous fleet will induce negative gaps, but the size of these gaps can vary in a sensible manner depending upon the specific instance being considered.al

  23. 10. Conclusions & future work • We have presented the Successive Approximations Method (SAM) for solving the HVRP by decomposing it into a series of ‘nested’ (smaller and disjoint) homogeneous VRPs. • One of the main advantages of this approach is that it benefits from extremely efficient algorithms already developed for solving the homogeneous VRP. • The computational results show how it is possible to obtain pronounced differences in average and individual routing costs by varying the loading capacity of just two vehicles in an initially homogeneous fleet. • According to the experiments developed so far, the SAM strategies seem to provide better solutions than selecting the smallest available vehicle at each new round or assigning the smallest-capacity vehicles to the less demanding routes. • We consider, however, that more complex strategies –like introducing some biased randomization strategy or parallel optimization– should be explored in the future, since they could contribute to improve the algorithm performance.

  24. 2012 IN3-HAROSA Workshop Barcelona, June 13-15, 2012 Description of a Multi-Stage Procedure to Solve the Heterogeneous Vehicle Routing Problem Thank you for your attention! Javier Faulin Alba Agustín javier.faulin@unavarra.es Department of Statistics and Operations Research Public University of Navarre, Pamplona, SPAIN Angel Juan http://ajuanp.wordpress.com Department of Computer Science Open University of Catalonia, Barcelona, SPAIN
