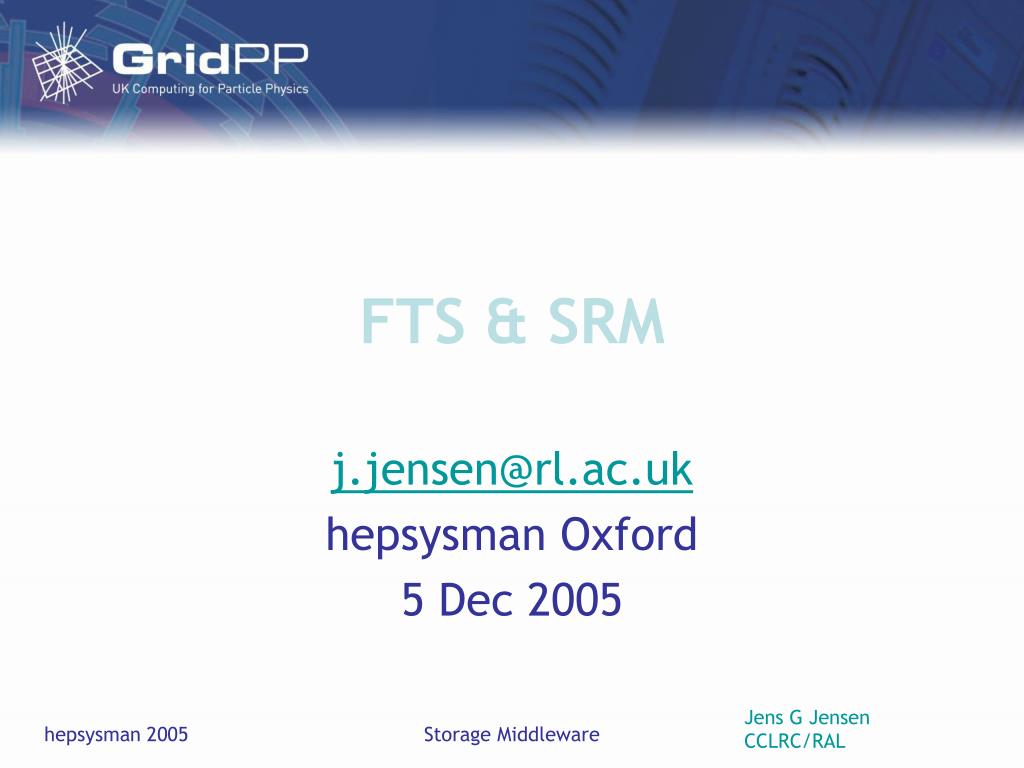

  1. FTS & SRM j.jensen@rl.ac.uk hepsysman Oxford 5 Dec 2005 Storage Middleware

  2. What is FTS • EGEE JRA1 File Transfer Service • Reliable file transfer • Manages talking to Storage Elements (via SRM interface) • Manages GridFTP (third party) data transfers between SEs • Restarts in case of failure Storage Middleware

  3. Confusingly(?) many names for files: LFN: Logical File Name GUID: used by RM SFN: Site filename née PFN – “physical” SURL: SFN as URL StFN: Storage file name TURL: Transfer URL Catalogues and Names and Stuff User LFN Replica catalogue Replica manager SURL GUID SFN SE disk cache Storage Element Mass Storage TURL StFN Storage Middleware

  4. Why FTS • Many SRM 2.1 implementations are new • Interoperability problems expected • Not all sites will upgrade from 1.1 at same time • In the interim phase, FTS can speak to all flavours of SRM • Until all SRMs have 2.1 interface and can interoperate • Uses put/get between SRMs Storage Middleware

  5. Plans for FTS • Support for SRM 2.1 “by end of 2005” • According to Peter Kunszt • However, plan says not till version 1.6? • Will speak to all SRMs • Am I speaking to 1.1 or 2.1.1-something? • Use service discovery • Try – and be resilient to failure • Fetch SRM metadata Storage Middleware

  6. Plans for FTS • FTS will not use advanced features • At least in near future (<= EGEE_1) • Pinning, space reservation Storage Middleware

  7. Goals for FTS • See later talk for SC4 goals • Read about Chris’ experiences: http://wiki.gridpp.ac.uk/wiki/RALPP_Local_SC4_Preparations • And the FTS pages in the Wiki • http://wiki.gridpp.ac.uk/wiki/FTS • phedex will (can?) move files via FTS Storage Middleware

  8. Issues • Abysmal performance FTSing files out of dCache  • OK with DPM  • Investigations ongoing… • Doesn’t look like an FTS problem • Will FTS meet the deadline for 2.1 support? • Important (critical?) dependency for our goals Storage Middleware
