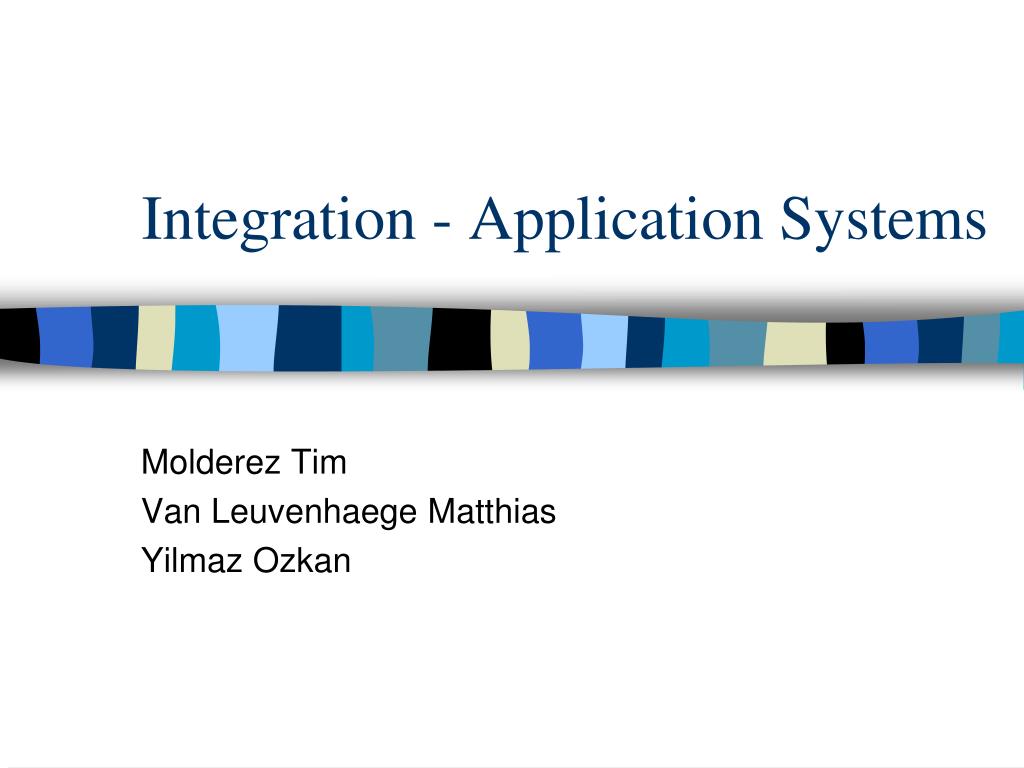

Integration - Application Systems. Molderez Tim Van Leuvenhaege Matthias Yilmaz Ozkan. Chapter 13. Integration. Contents - Integration. Definitions Why integration testing? Aspects of integration testing Dependency Analysis Integration Faults Integration Patterns. Definitions.

daria
Télécharger la présentation

Integration - Application Systems

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Integration - Application Systems Molderez Tim Van Leuvenhaege Matthias Yilmaz Ozkan

  2. Chapter 13 Integration

  3. Contents - Integration Definitions Why integration testing? Aspects of integration testing Dependency Analysis Integration Faults Integration Patterns

  4. Definitions • System : set of components • Component : can consist of other components • Increment : set of components that correspond with subset of requirements • Stub : partial implementation of a component • Driver : system that applies test cases

  5. Why integration testing? • Antidecomposition axiom :System scope test does not cover everything → Insufficient to test as a whole; also test components and the interaction in between. • Components work together→ Show that components are minimally interoperable.

  6. Aspects of integration testing • Integration testing : Search for component faults that cause intercomponent failures. • How? • Which components? • In what sequence? • Which test design technique?

  7. Aspects - scopes

  8. Aspects - flexibility • Flexibility is important: • Not all components are available • Components change

  9. Dependency Analysis • Composition and aggregation • Inheritance • Global variables • Calls to an API • Server objects • ...

  10. Dependency Analysis

  11. Dependency Analysis

  12. Integration Faults • Example: 2/3 of the faults in a large C system were interface-related • Typical interface bugs: • Wrong parameters • Missing, overlapping or conflicting functions • Client violates server’s preconditions • Thread X will crash when process Y is running • …

  13. Integration Patterns • Big Bang • Bottom-up • Top-down • Collaboration • Backbone • Layer • Client/Server • Distributed Services • High-frequency

  14. Big Bang

  15. Big Bang - (Dis)Advantages • Requires little effort • Few clues about fault locations • No distinction between critical and peripheral components • Interface faults can be hidden

  16. Bottom-up

  17. Bottom-up

  18. Bottom-up

  19. Bottom-up

  20. Bottom-up

  21. Bottom-up - (Dis)Advantages • Early testing • May proceed in parallel • Well suited to responsibility-based design • Driver development is most significant cost • Error-prone • Highest level of control and component interoperability tested at the end

  22. Top-Down

  23. Top-Down

  24. Top-Down

  25. Top-Down

  26. Top-Down

  27. Top-Down - (Dis)Advantages • Early testing • Reduced driver development (just 1 driver) • Stubs easier to code than drivers • Components may be developed in parallel • Large number of stubs • Complex test cases can require recoding of stubs • Fragile → Last minute changes • Late interoperability testing of all components

  28. Collaboration

  29. Collaboration

  30. Collaboration

  31. Collaboration - Advantages • Interface coverage with few test runs • Useful for system scope testing • Minimally coupled components of collaboration • End-to-end coverage sooner than bottom-up • Minimizes driver development costs

  32. Collaboration - Disadvantages • Intercollaboration dependencies may be subtle • Not all collaborations may be covered • Scenario-based big bang • May require many stubs • Exercising lower-level components may be difficult • Specified collaborations may be incomplete

  33. Backbone Backbone: infrastructure of a system Applications depend on backbone Combines top-down, bottom-up and big bang Known use: Windows NT

  34. Backbone – Test backbone components

  35. Backbone – Top-down control components

  36. Backbone – Big bang the backbone

  37. Backbone – Big bang & top-down

  38. Backbone – Top-down the leaves

  39. Backbone - (Dis)Advantages • Combines advantages of top-down and bottom-up • Begins on early side of the midpoint in development • Development and testing may proceed in parallel • Careful analysis of system structure anddependencies is necessary • Requires both drivers and stubs • Each backbone component must be adequately tested

  40. Layer

  41. Layer

  42. Layer - (Dis)Advantages • Same as bottom-up or top-down Integration • If stack of layers needed as subsystem → Available at the earliest possible date, when using top-down variant • Viability of the stack untested until lowest layer is integrated • Mostly used in time-critical applications → Performance of the stack only tested at the end

  43. Client/Server

  44. Client/Server

  45. Client/Server

  46. Client/Server - (Dis)Advantages • Avoids the problems of big bang • Can be sequenced according to priority of risk • Drivers & test cases suitable for reuse • Controllable, repeatable testing • Cost of driver and stub development • Midway or late exercise of end-to-end use cases

  47. Distributed Services

  48. Distributed Services

  49. Distributed Services

  50. Distributed Services
