Quantitative Methods Partly based on materials by Sherry O’Sullivan

1. Quantitative MethodsPartly based on materials by Sherry O’Sullivan Part 3 Chi - Squared Statistic

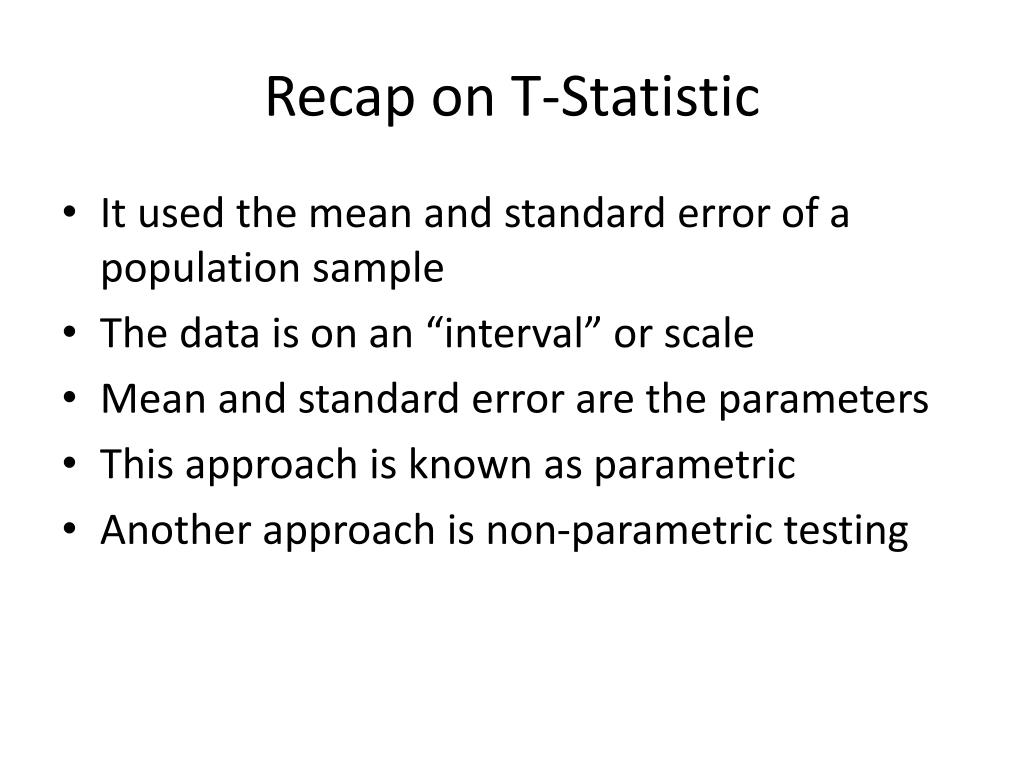

2. Recap on T-Statistic • It used the mean and standard error of a population sample • The data is on an “interval” or scale • Mean and standard error are the parameters • This approach is known as parametric • Another approach is non-parametric testing

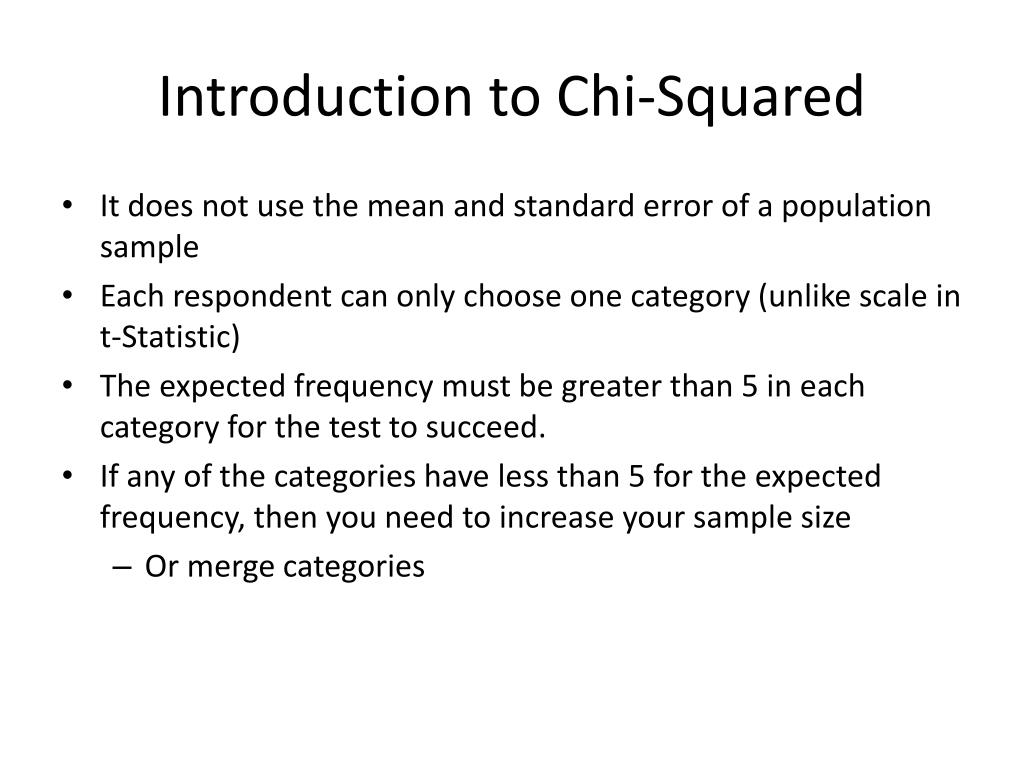

3. Introduction to Chi-Squared • It does not use the mean and standard error of a population sample • Each respondent can only choose one category (unlike scale in t-Statistic) • The expected frequency must be greater than 5 in each category for the test to succeed. • If any of the categories have less than 5 for the expected frequency, then you need to increase your sample size • Or merge categories

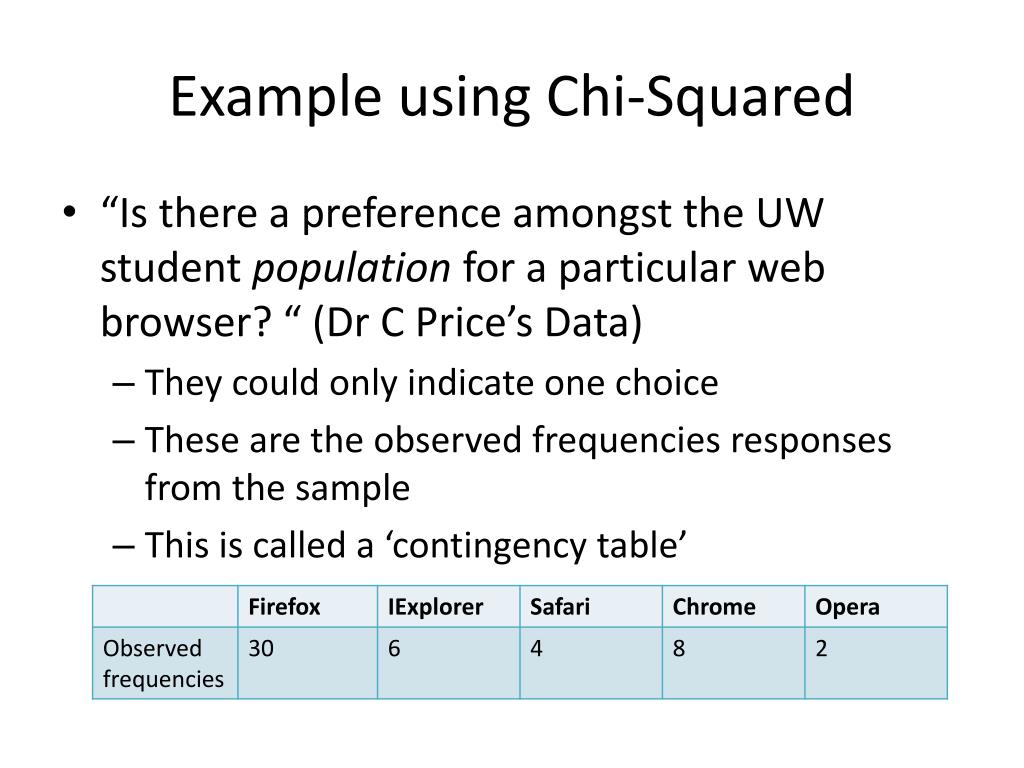

4. Example using Chi-Squared • “Is there a preference amongst the UW student population for a particular web browser? “ (Dr C Price’s Data) • They could only indicate one choice • These are the observed frequencies responses from the sample • This is called a ‘contingency table’

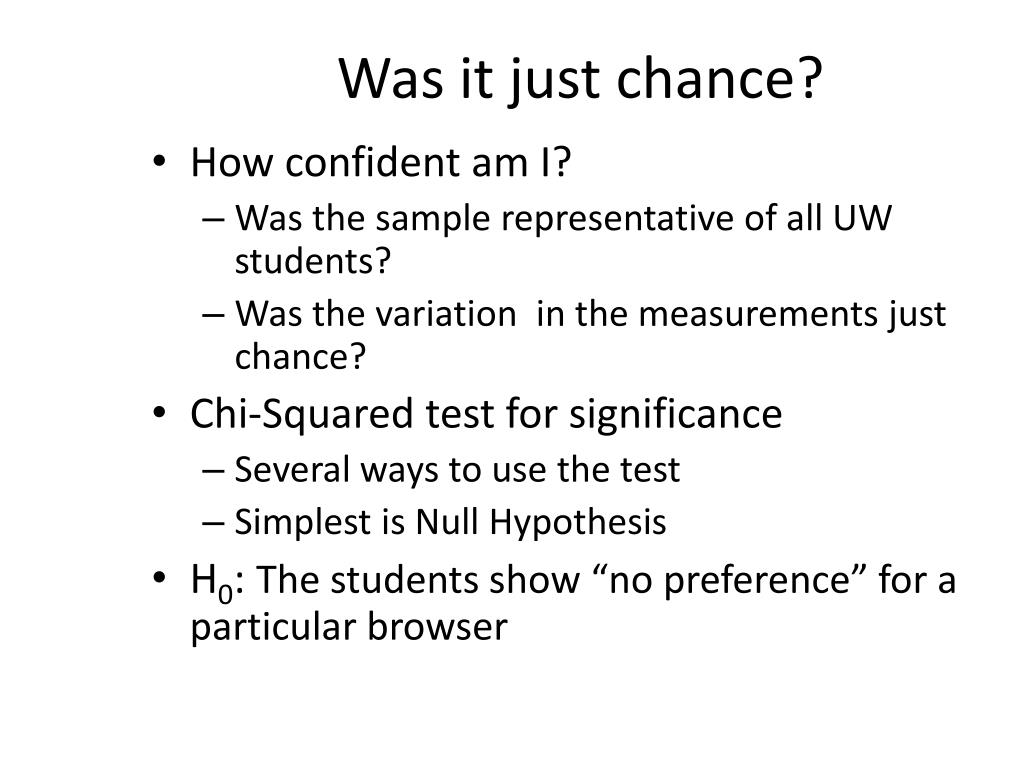

5. Was it just chance? • How confident am I? • Was the sample representative of all UW students? • Was the variation in the measurements just chance? • Chi-Squared test for significance • Several ways to use the test • Simplest is Null Hypothesis • H0: The students show “no preference” for a particular browser

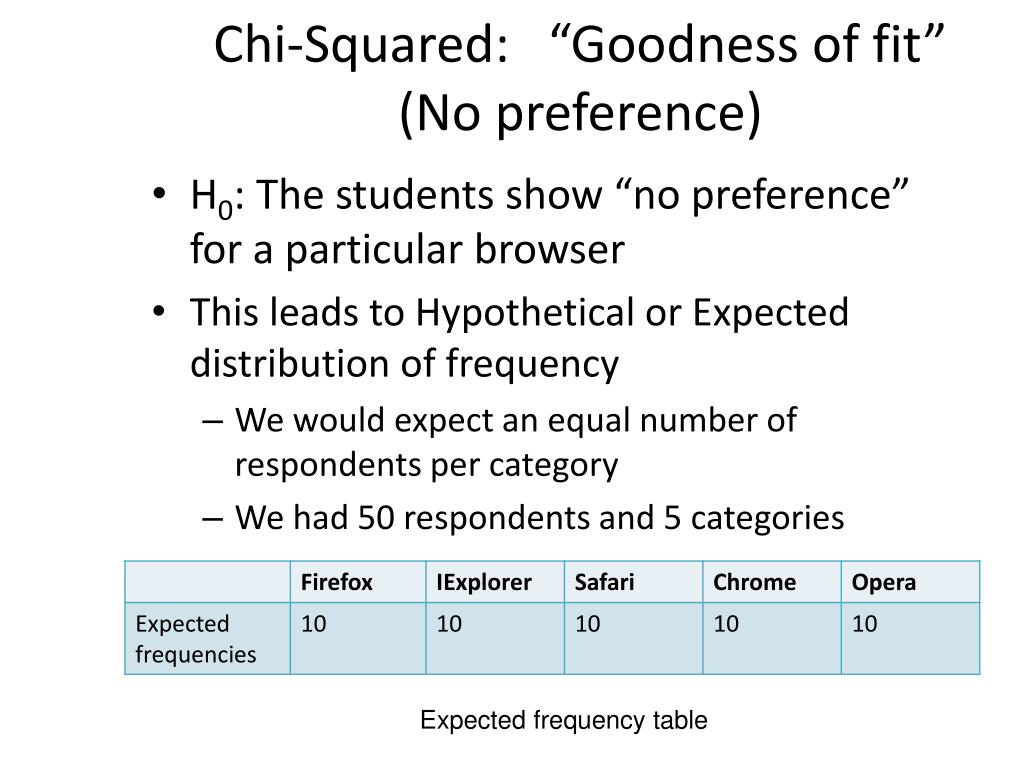

6. Chi-Squared: “Goodness of fit” (No preference) • H0: The students show “no preference” for a particular browser • This leads to Hypothetical or Expected distribution of frequency • We would expect an equal number of respondents per category • We had 50 respondents and 5 categories Expected frequency table

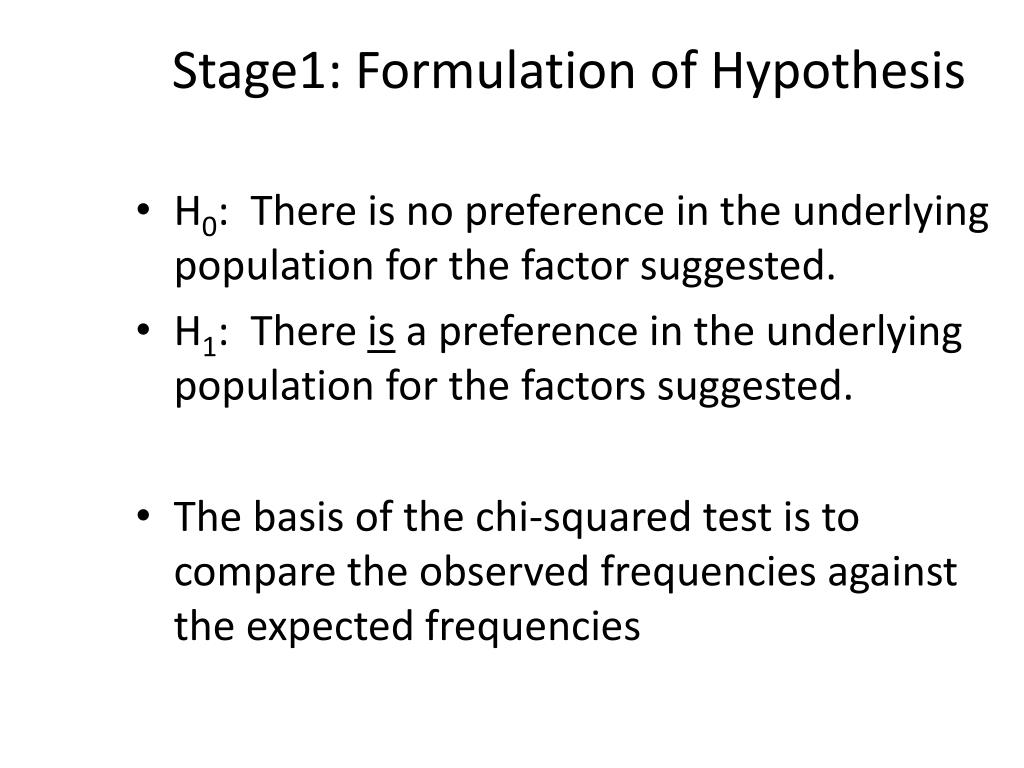

7. Stage1: Formulation of Hypothesis • H0: There is no preference in the underlying population for the factor suggested. • H1: There is a preference in the underlying population for the factors suggested. • The basis of the chi-squared test is to compare the observed frequencies against the expected frequencies

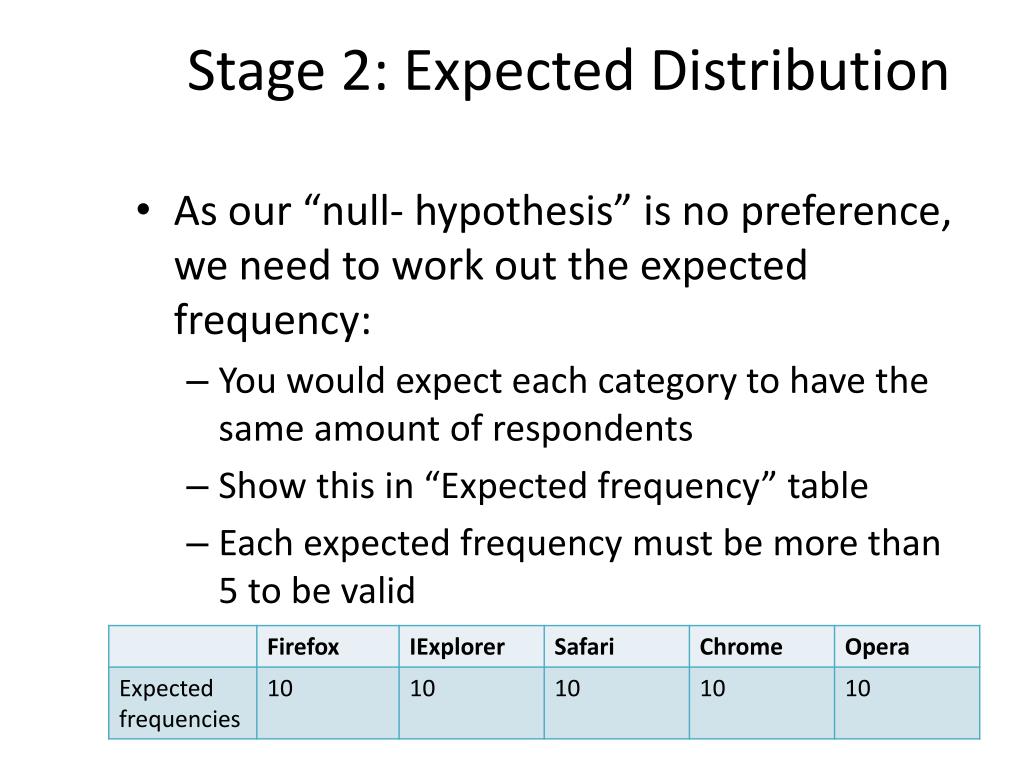

8. Stage 2: Expected Distribution • As our “null- hypothesis” is no preference, we need to work out the expected frequency: • You would expect each category to have the same amount of respondents • Show this in “Expected frequency” table • Each expected frequency must be more than 5 to be valid

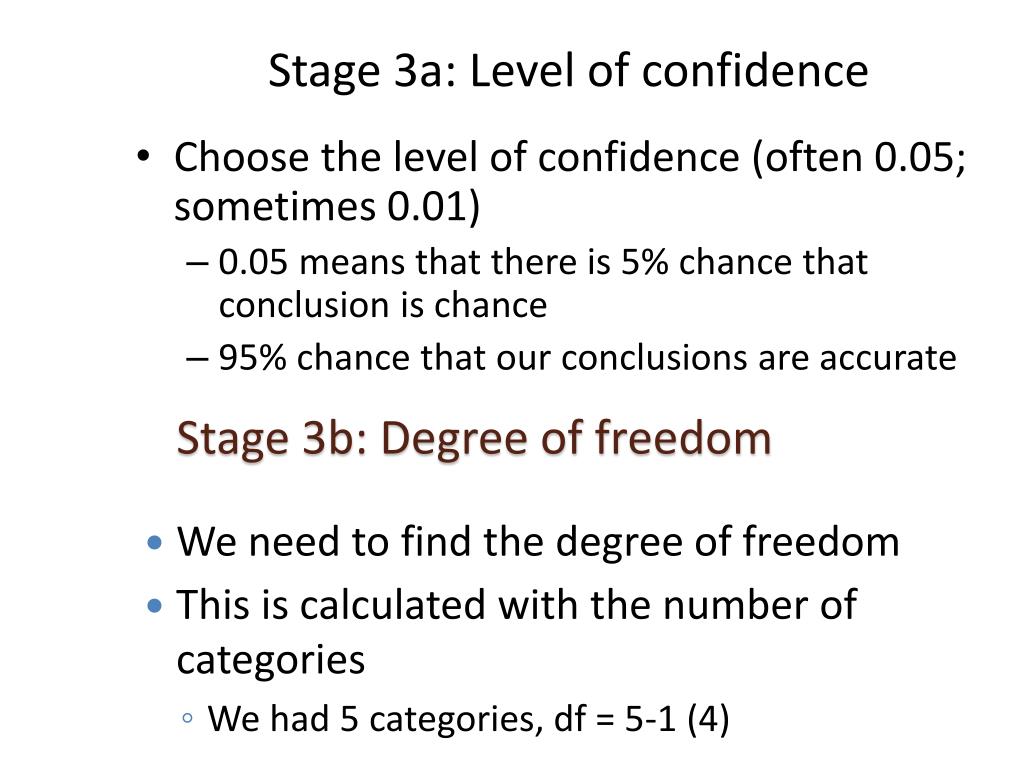

9. Stage 3a: Level of confidence • Choose the level of confidence (often 0.05; sometimes 0.01) • 0.05 means that there is 5% chance that conclusion is chance • 95% chance that our conclusions are accurate Stage 3b: Degree of freedom • We need to find the degree of freedom • This is calculated with the number of categories • We had 5 categories, df = 5-1 (4)

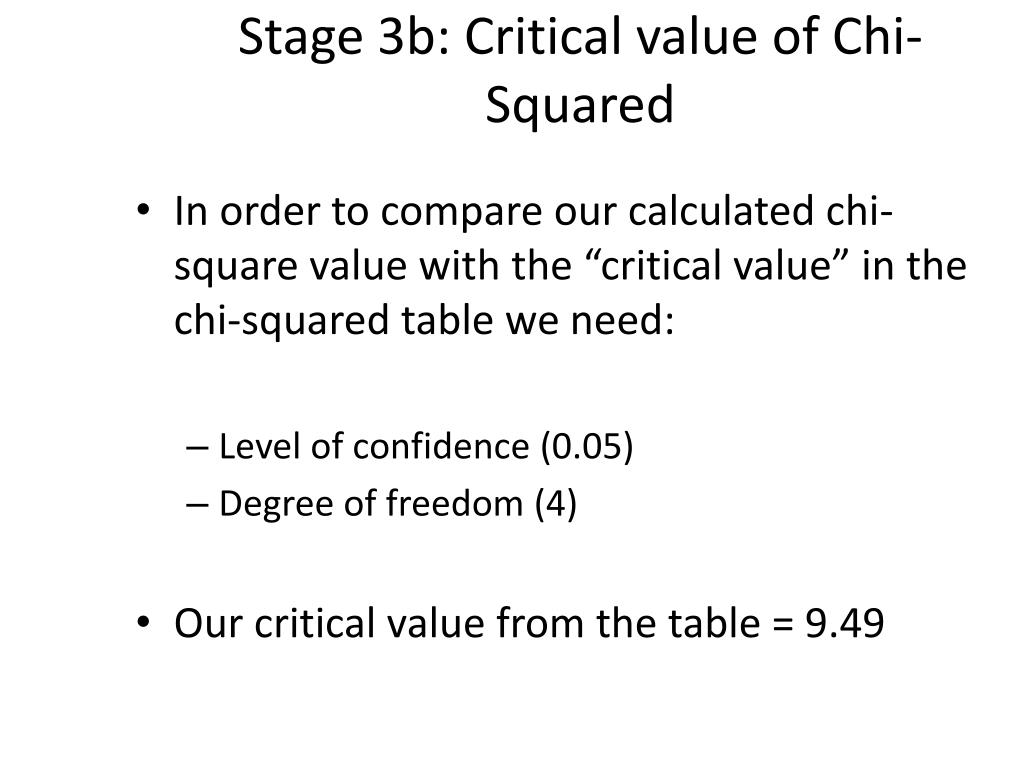

10. Stage 3b: Critical value of Chi-Squared • In order to compare our calculated chi-square value with the “critical value” in the chi-squared table we need: • Level of confidence (0.05) • Degree of freedom (4) • Our critical value from the table = 9.49

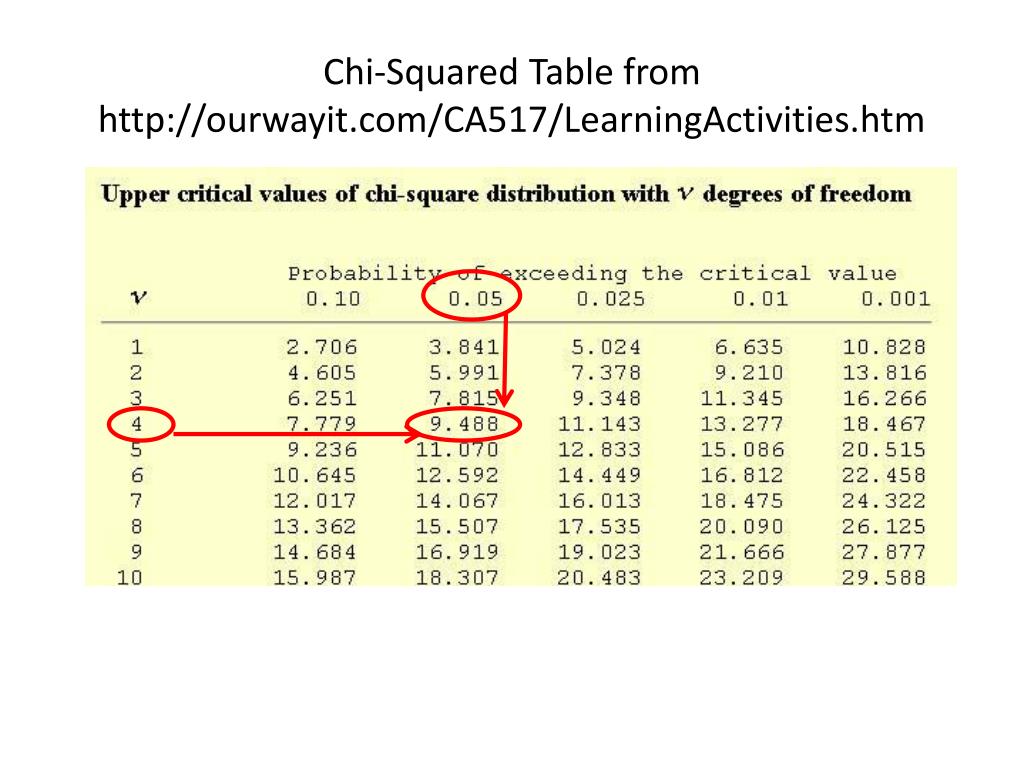

11. Chi-Squared Table from http://ourwayit.com/CA517/LearningActivities.htm

12. Stage 4: Calculate statistics • We find the differences between the observed and the expected values for each category • We square each difference, and divide the answer by its expected frequency • We add all of them up = 52

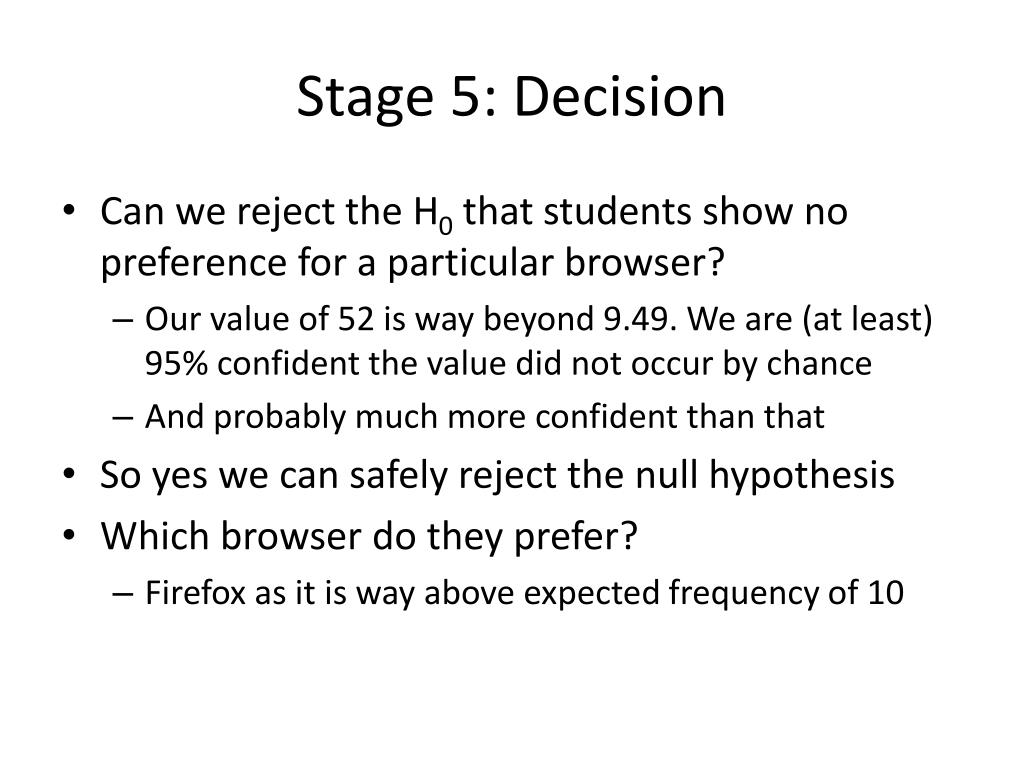

13. Stage 5: Decision • Can we reject the H0 that students show no preference for a particular browser? • Our value of 52 is way beyond 9.49. We are (at least) 95% confident the value did not occur by chance • And probably much more confident than that • So yes we can safely reject the null hypothesis • Which browser do they prefer? • Firefox as it is way above expected frequency of 10

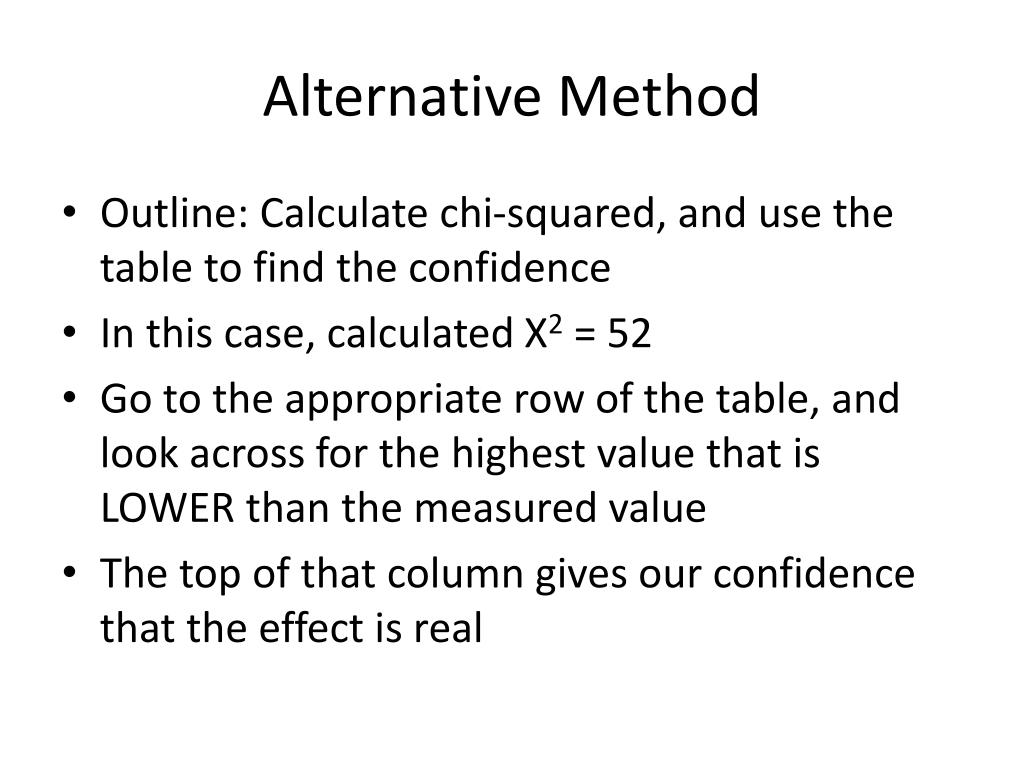

14. Alternative Method • Outline: Calculate chi-squared, and use the table to find the confidence • In this case, calculated Χ2 = 52 • Go to the appropriate row of the table, and look across for the highest value that is LOWER than the measured value • The top of that column gives our confidence that the effect is real

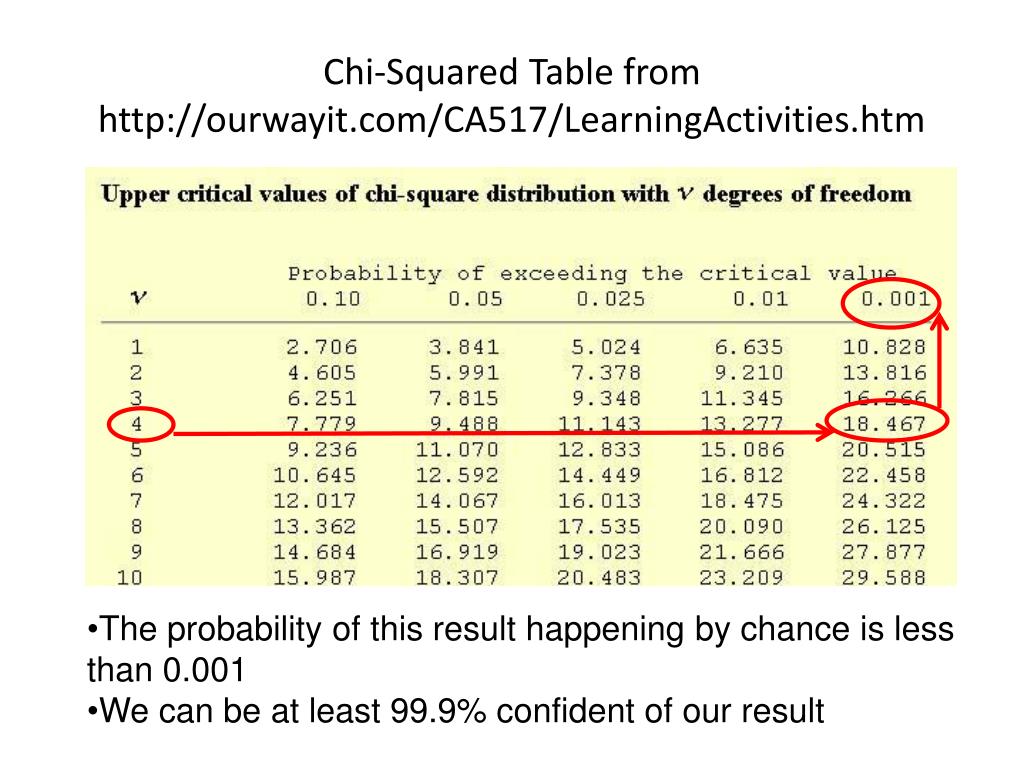

15. Chi-Squared Table from http://ourwayit.com/CA517/LearningActivities.htm • The probability of this result happening by chance is less than 0.001 • We can be at least 99.9% confident of our result

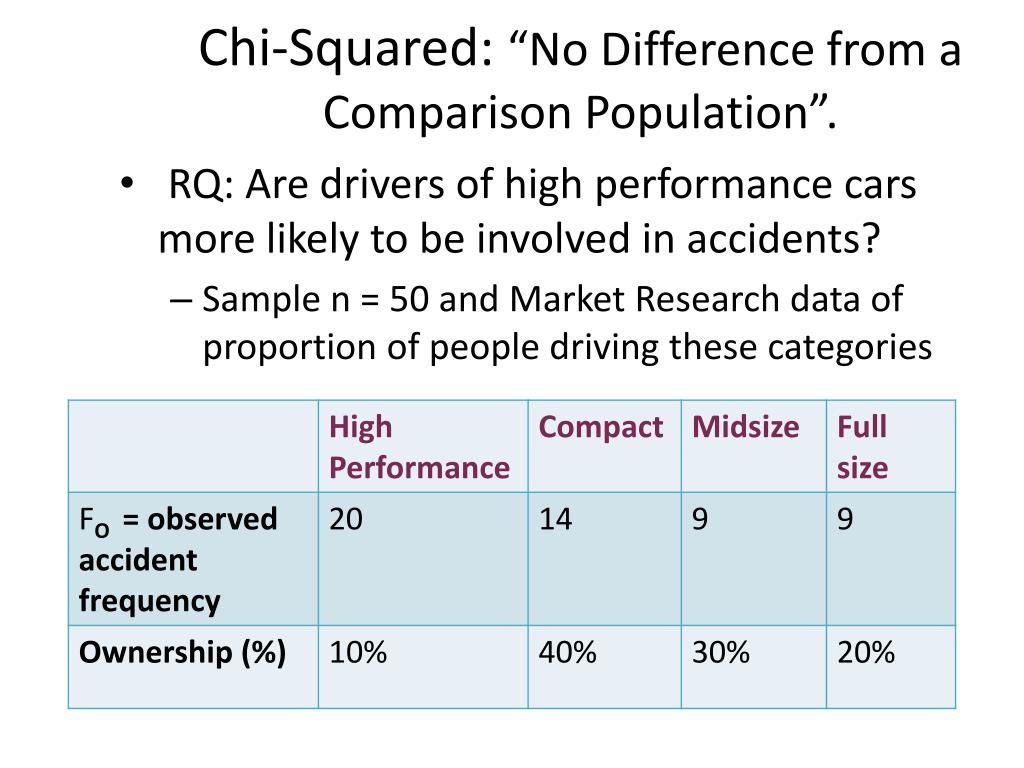

16. Chi-Squared: “No Difference from a Comparison Population”. • RQ: Are drivers of high performance cars more likely to be involved in accidents? • Sample n = 50 and Market Research data of proportion of people driving these categories

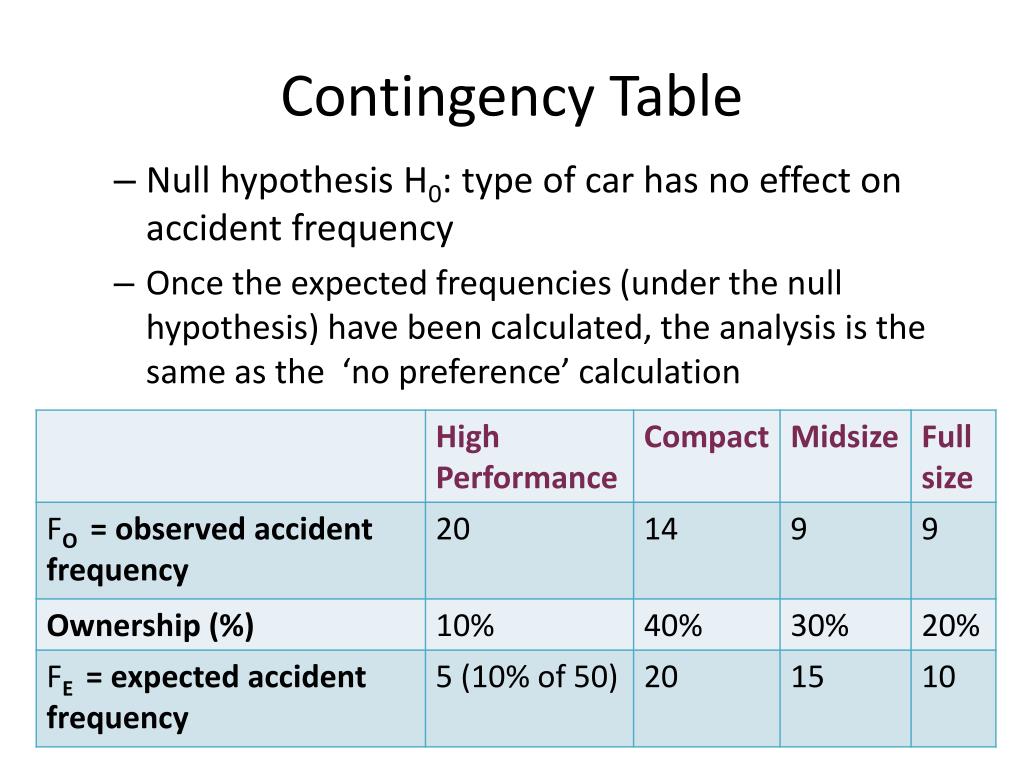

17. Contingency Table • Null hypothesis H0: type of car has no effect on accident frequency • Once the expected frequencies (under the null hypothesis) have been calculated, the analysis is the same as the ‘no preference’ calculation

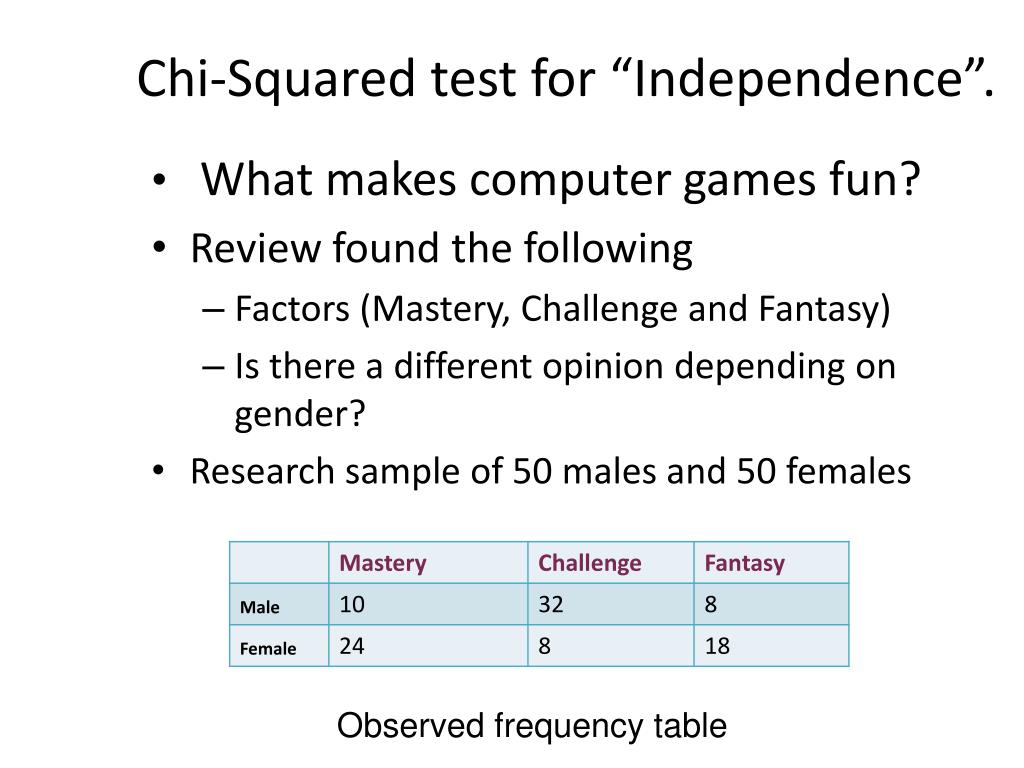

18. Chi-Squared test for “Independence”. • What makes computer games fun? • Review found the following • Factors (Mastery, Challenge and Fantasy) • Is there a different opinion depending on gender? • Research sample of 50 males and 50 females Observed frequency table

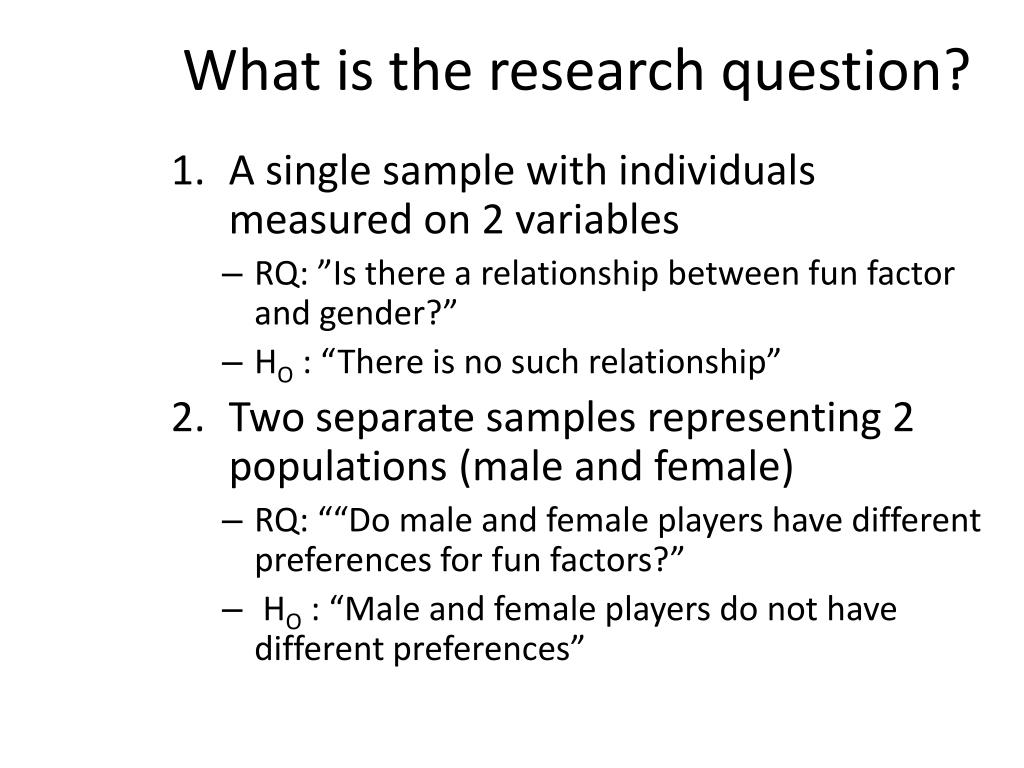

19. What is the research question? • A single sample with individuals measured on 2 variables • RQ: ”Is there a relationship between fun factor and gender?” • HO : “There is no such relationship” • Two separate samples representing 2 populations (male and female) • RQ: ““Do male and female players have different preferences for fun factors?” • HO : “Male and female players do not have different preferences”

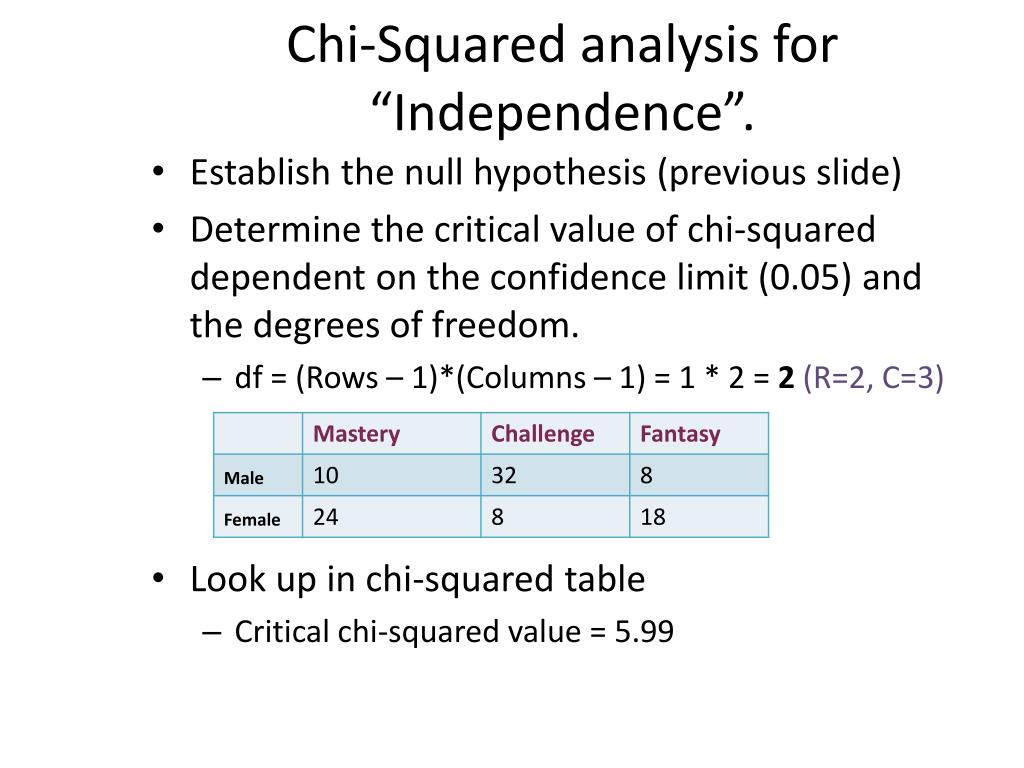

20. Chi-Squared analysis for “Independence”. • Establish the null hypothesis (previous slide) • Determine the critical value of chi-squared dependent on the confidence limit (0.05) and the degrees of freedom. • df = (Rows – 1)*(Columns – 1) = 1 * 2 = 2(R=2, C=3) • Look up in chi-squared table • Critical chi-squared value = 5.99

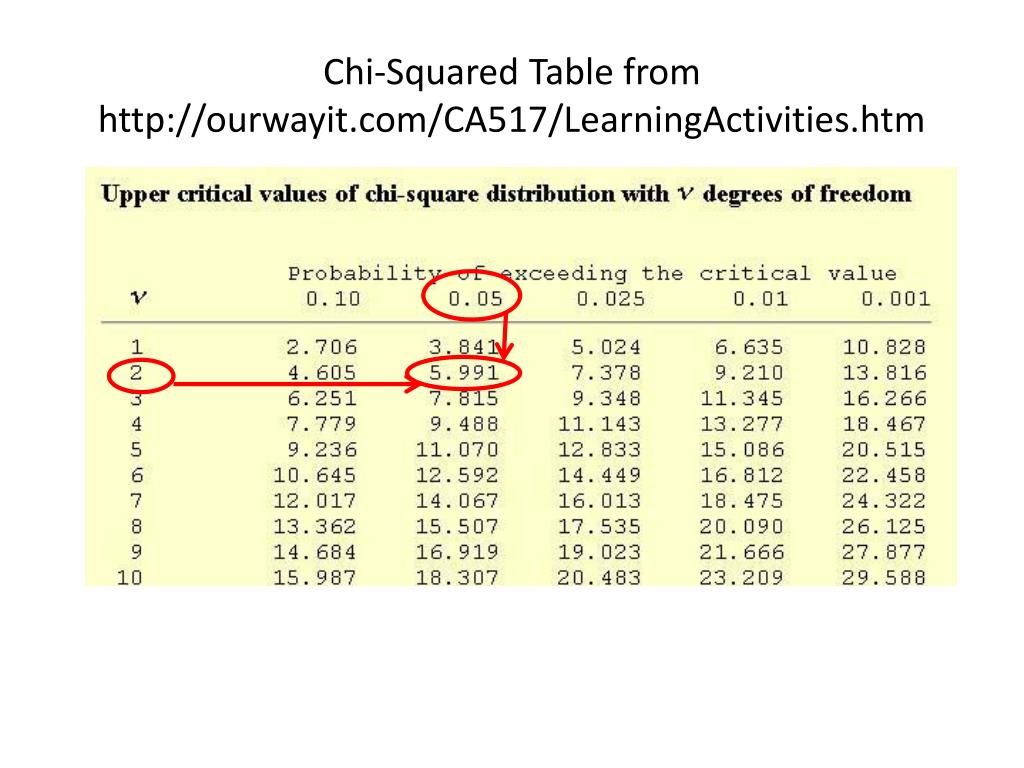

21. Chi-Squared Table from http://ourwayit.com/CA517/LearningActivities.htm

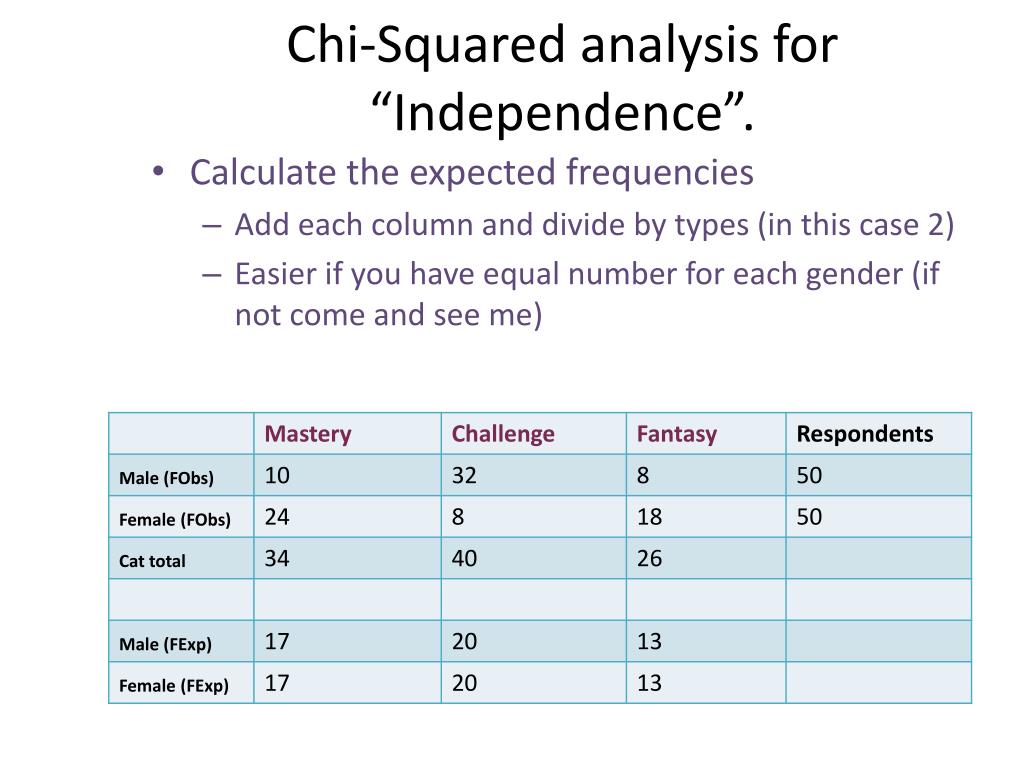

22. Chi-Squared analysis for “Independence”. • Calculate the expected frequencies • Add each column and divide by types (in this case 2) • Easier if you have equal number for each gender (if not come and see me)

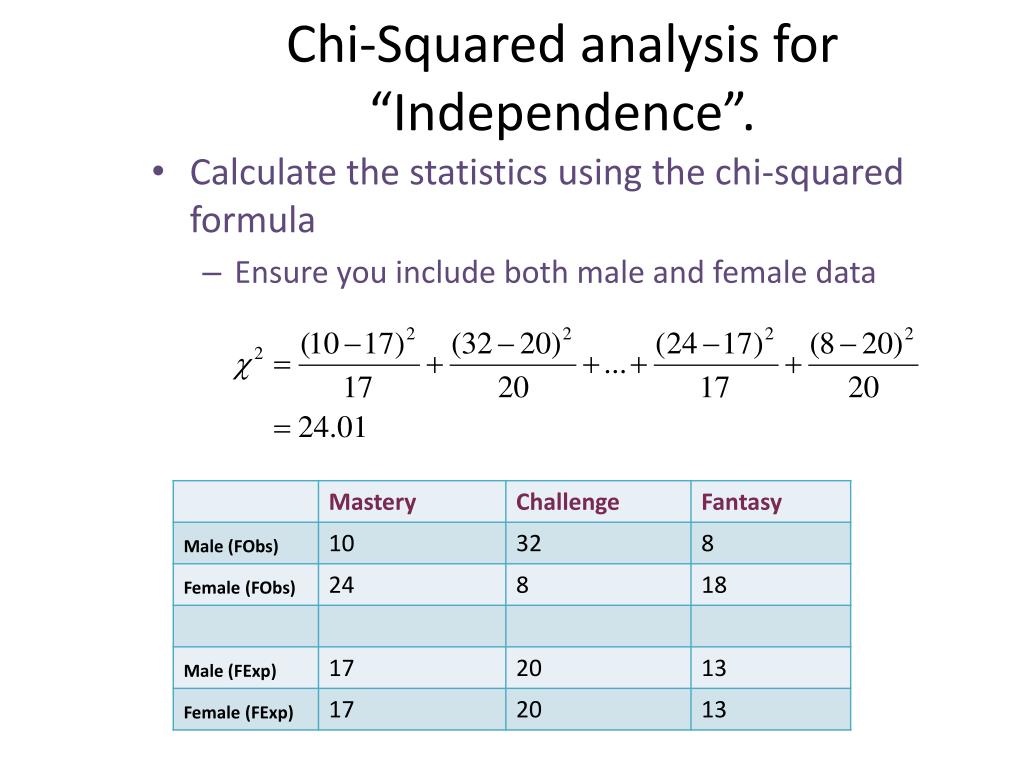

23. Chi-Squared analysis for “Independence”. • Calculate the statistics using the chi-squared formula • Ensure you include both male and female data

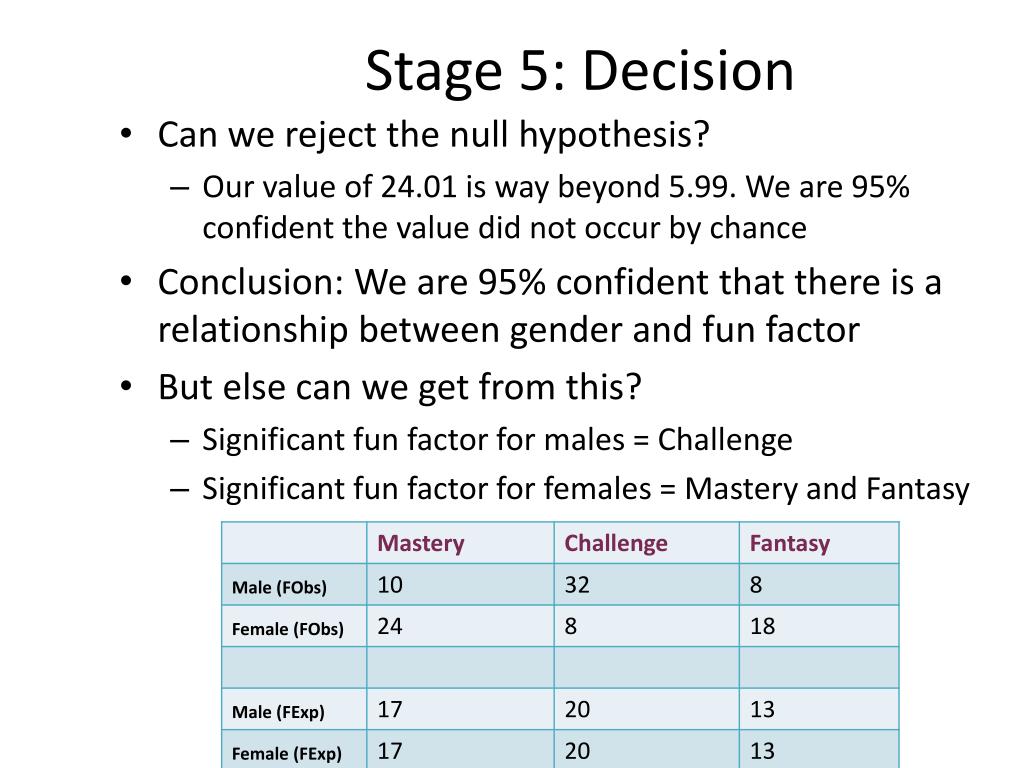

24. Stage 5: Decision • Can we reject the null hypothesis? • Our value of 24.01 is way beyond 5.99. We are 95% confident the value did not occur by chance • Conclusion: We are 95% confident that there is a relationship between gender and fun factor • But else can we get from this? • Significant fun factor for males = Challenge • Significant fun factor for females = Mastery and Fantasy

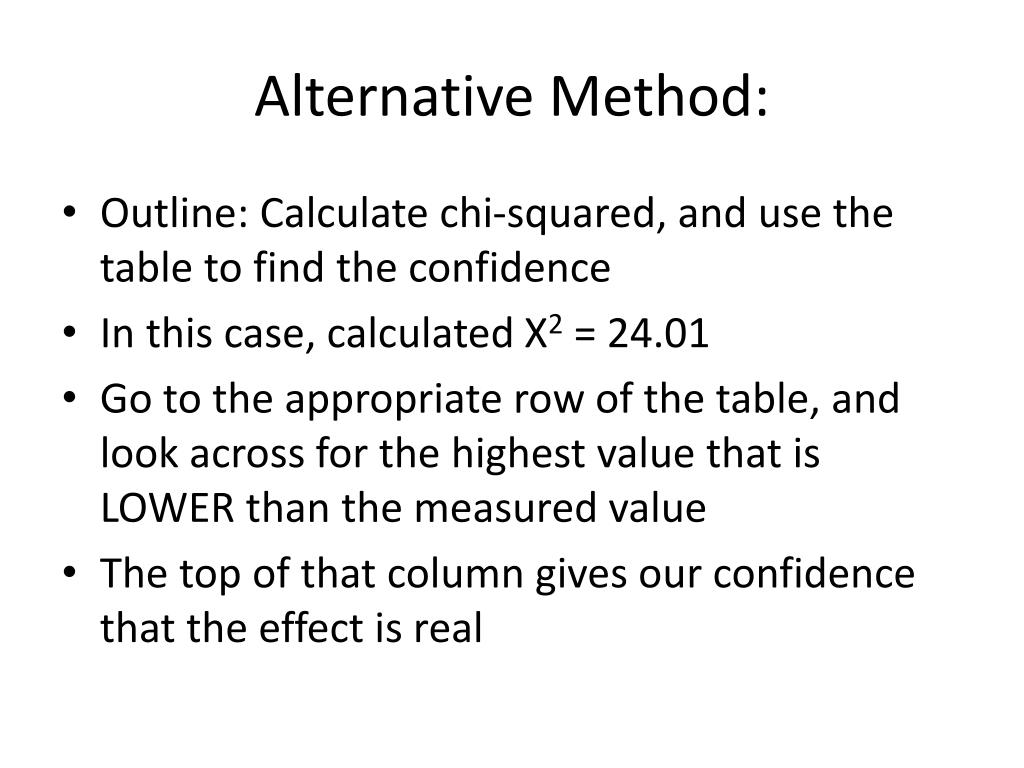

25. Alternative Method: • Outline: Calculate chi-squared, and use the table to find the confidence • In this case, calculated Χ2 = 24.01 • Go to the appropriate row of the table, and look across for the highest value that is LOWER than the measured value • The top of that column gives our confidence that the effect is real

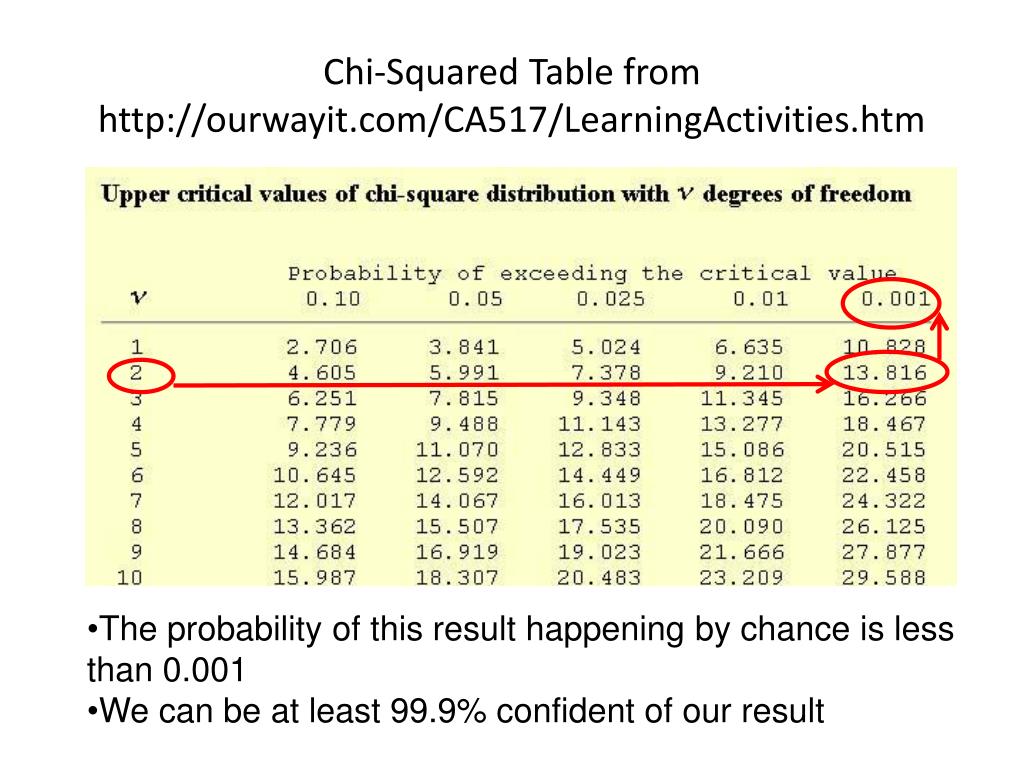

26. Chi-Squared Table from http://ourwayit.com/CA517/LearningActivities.htm • The probability of this result happening by chance is less than 0.001 • We can be at least 99.9% confident of our result

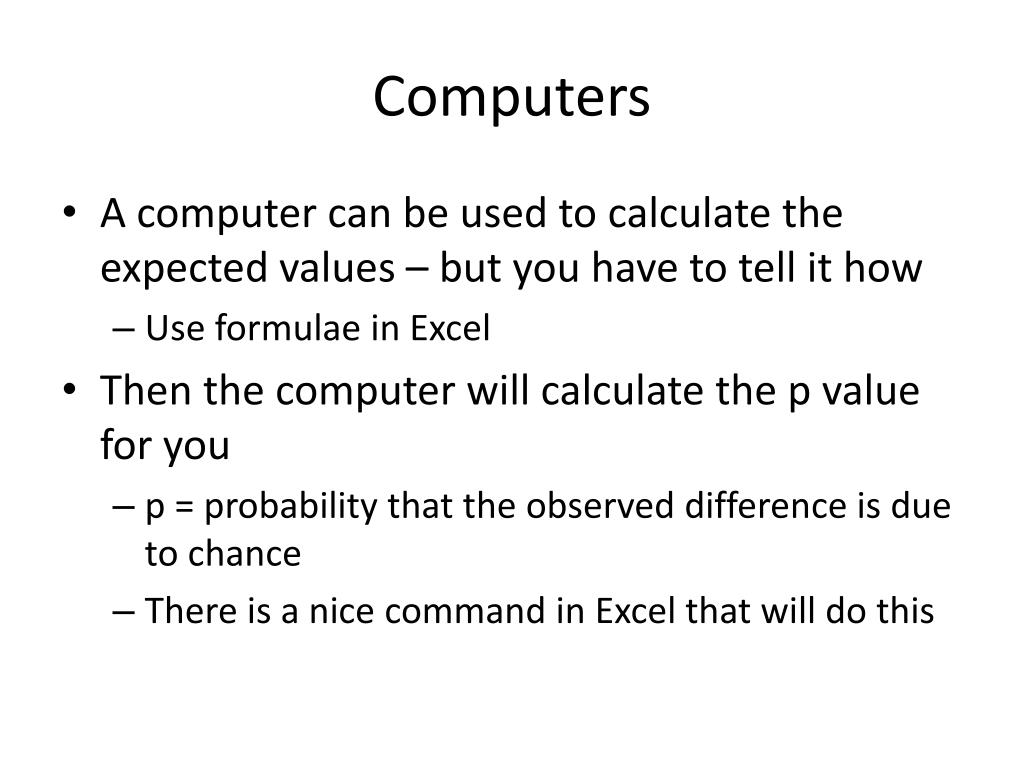

27. Computers • A computer can be used to calculate the expected values – but you have to tell it how • Use formulae in Excel • Then the computer will calculate the p value for you • p = probability that the observed difference is due to chance • There is a nice command in Excel that will do this

28. End
