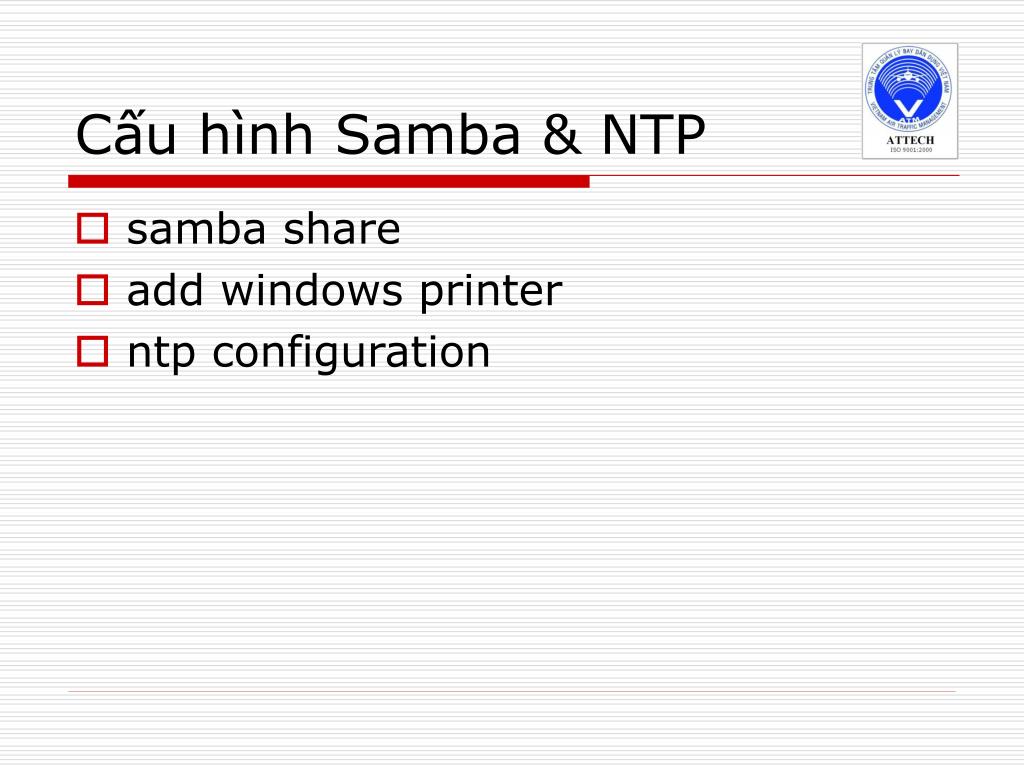

  1. Cấu hình Samba & NTP • samba share • add windows printer • ntp configuration

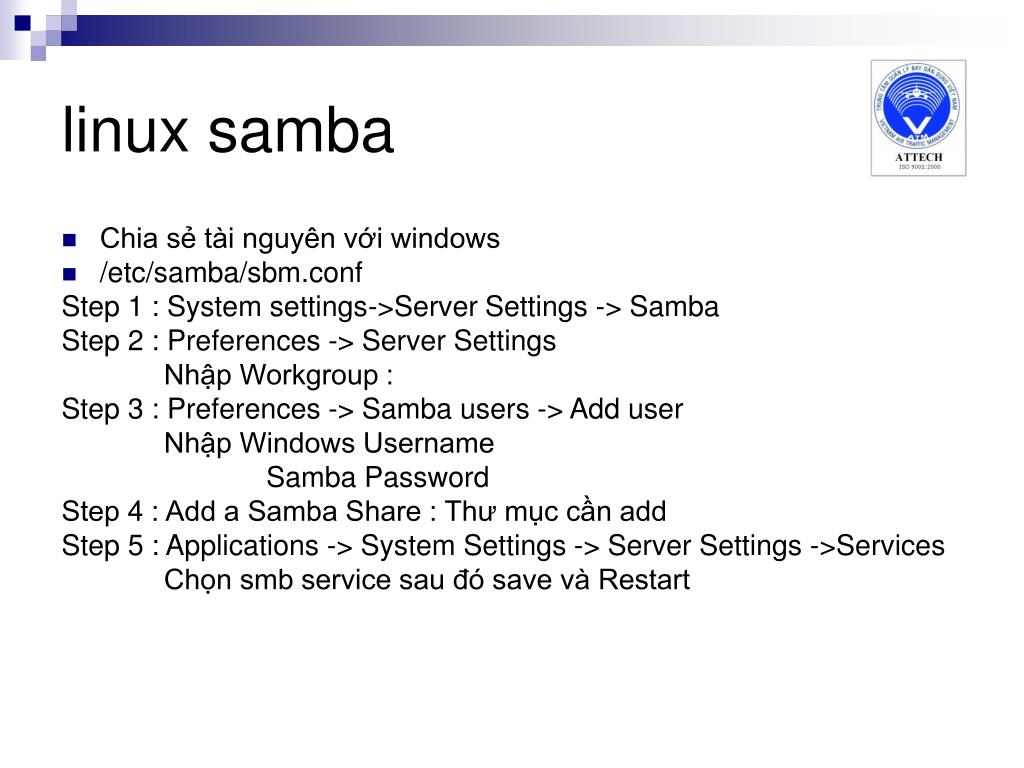

  2. linux samba • Chia sẻ tài nguyên với windows • /etc/samba/sbm.conf Step 1 : System settings->Server Settings -> Samba Step 2 : Preferences -> Server Settings Nhập Workgroup : Step 3 : Preferences -> Samba users -> Add user Nhập Windows Username Samba Password Step 4 : Add a Samba Share : Thư mục cần add Step 5 : Applications -> System Settings -> Server Settings ->Services Chọn smb service sau đó save và Restart

  3. Linux 2 Windows printer • System Settings -> Printing, chonj New • Add a new print queue , chọn Forward • Queue name , chọn printer ( default ) • Select a queue type , chọn Networked Windows (SMB) • Bấm Specify... • Workgroup : Khai báo Workgroup (AMSC) • Server : điạ chỉ máy in mạng • Share : Tên máy in được share trên máy Win • Username/Password : Trên máy win • Printer Model : chọn Raw Print Queue

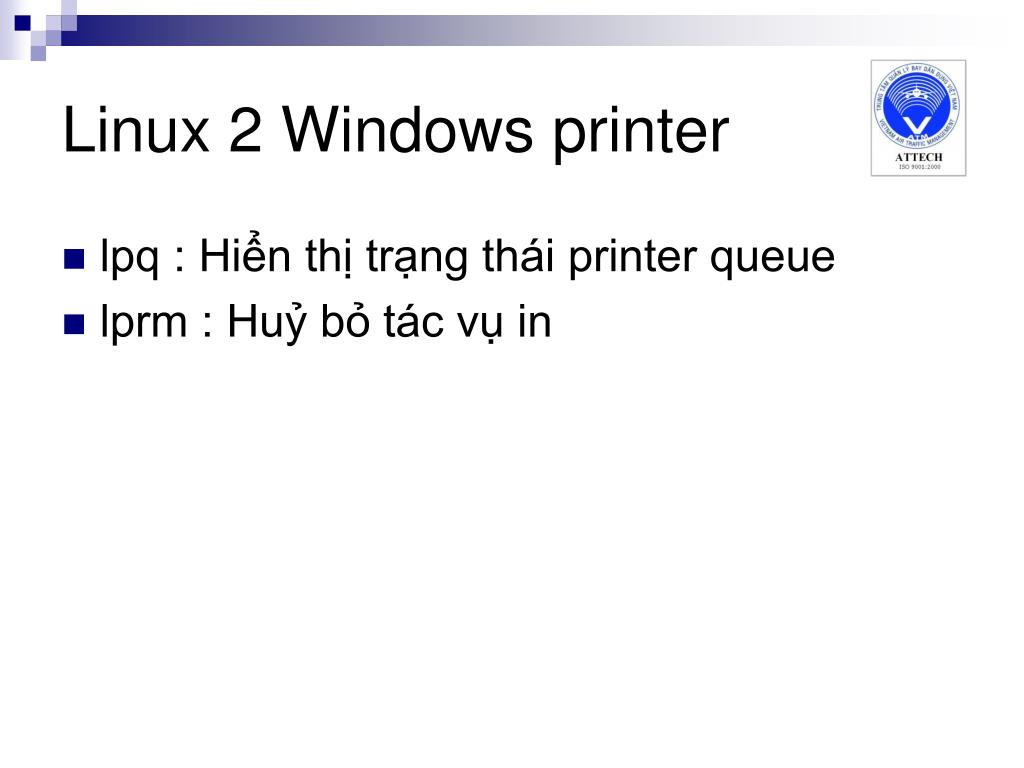

  4. Linux 2 Windows printer • lpq : Hiển thị trạng thái printer queue • lprm : Huỷ bỏ tác vụ in

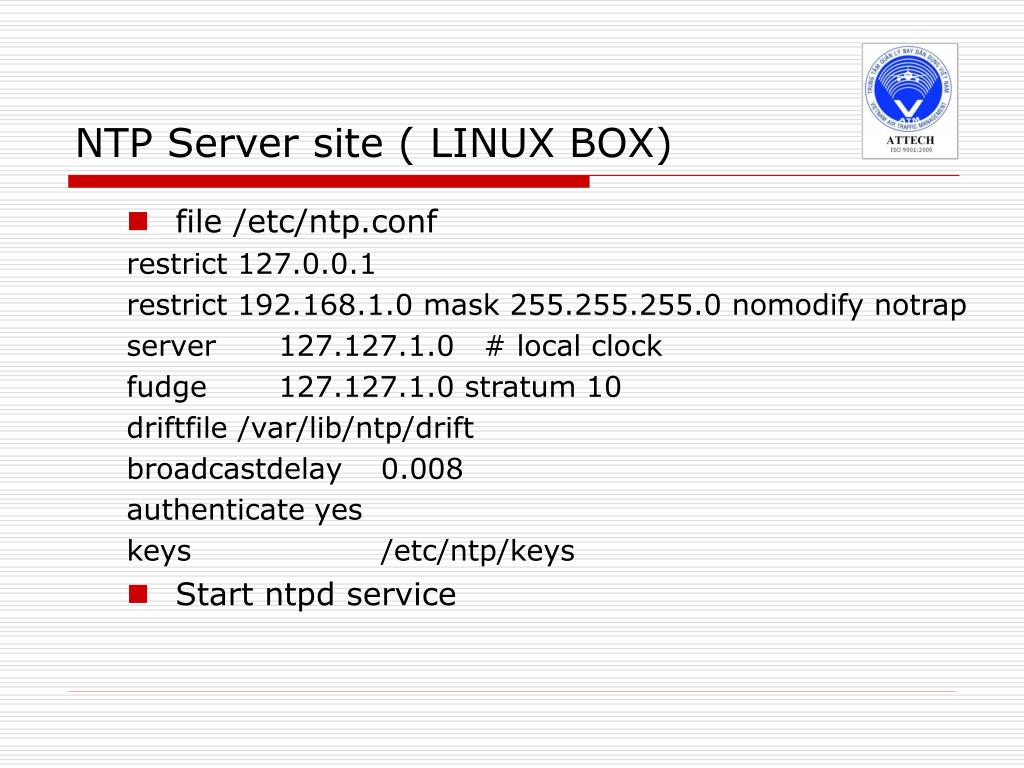

  5. NTP Server site ( LINUX BOX) • file /etc/ntp.conf restrict 127.0.0.1 restrict 192.168.1.0 mask 255.255.255.0 nomodify notrap server 127.127.1.0 # local clock fudge 127.127.1.0 stratum 10 driftfile /var/lib/ntp/drift broadcastdelay 0.008 authenticate yes keys /etc/ntp/keys • Start ntpd service

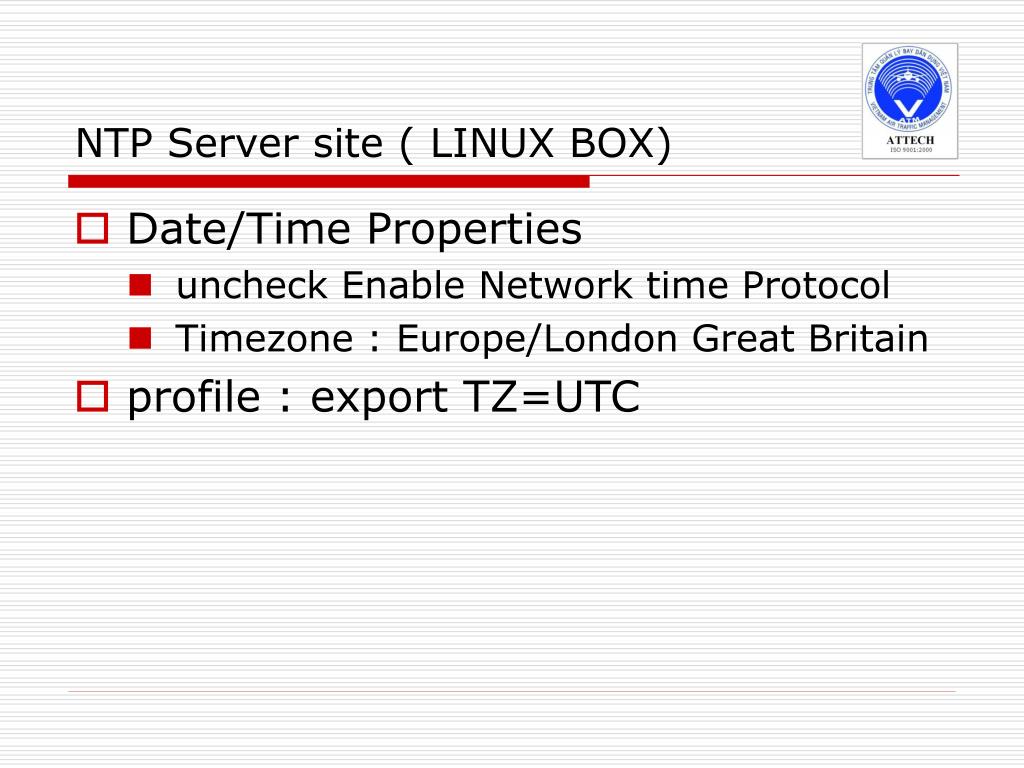

  6. NTP Server site ( LINUX BOX) • Date/Time Properties • uncheck Enable Network time Protocol • Timezone : Europe/London Great Britain • profile : export TZ=UTC

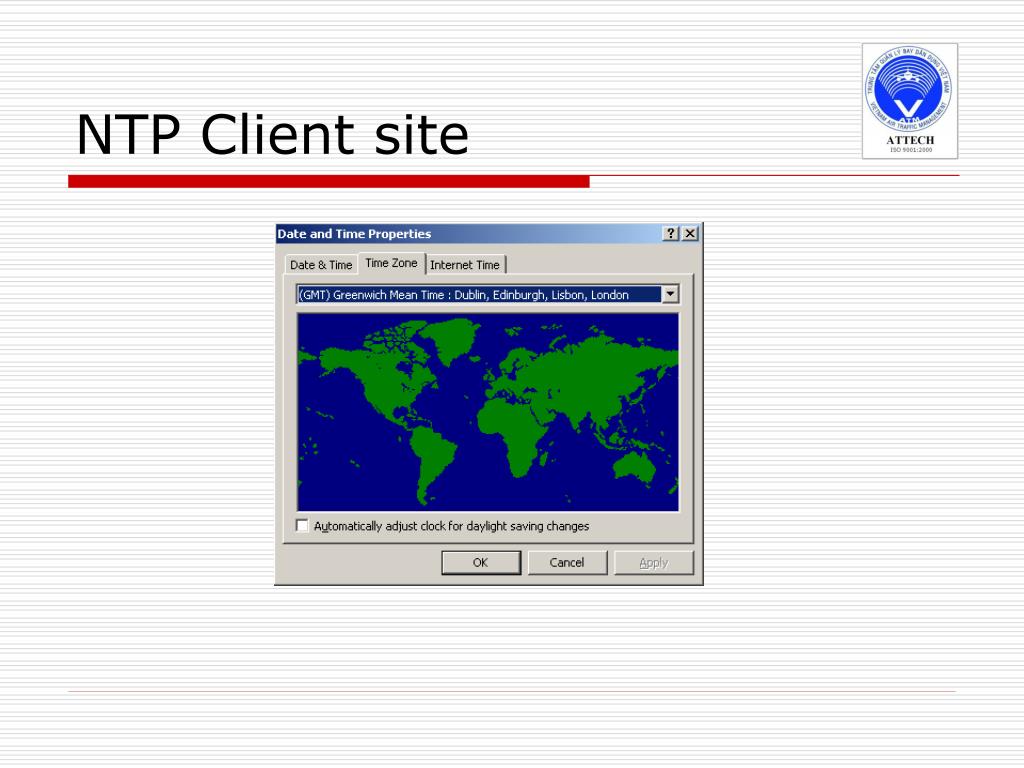

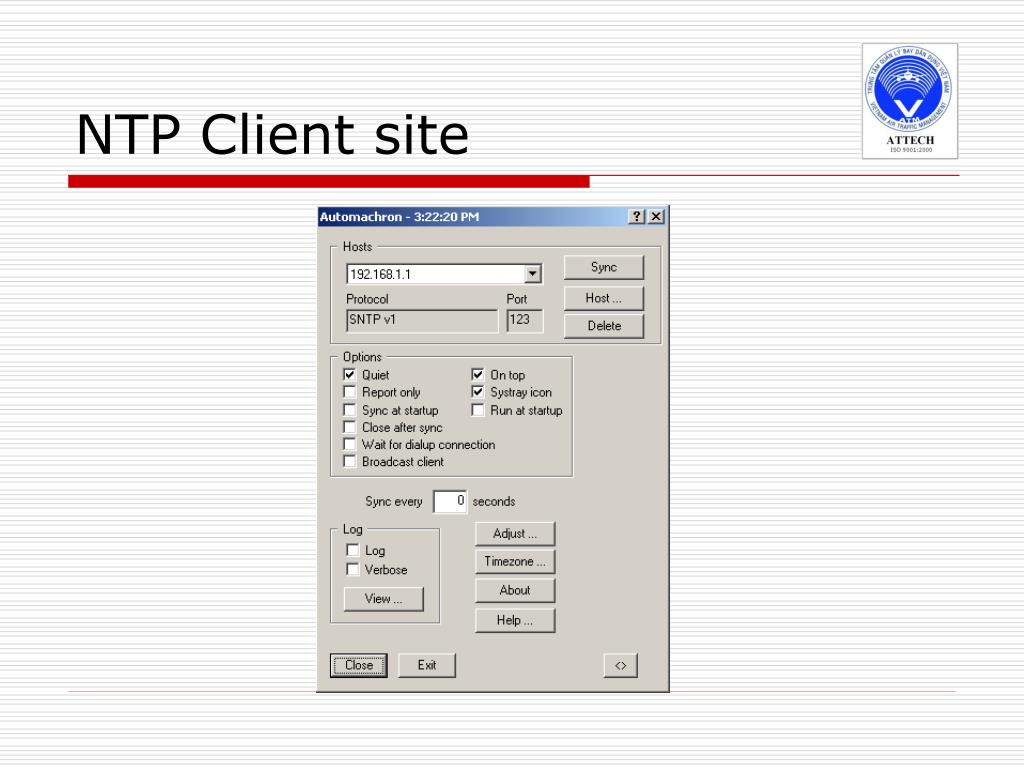

  7. NTP Client site • setup achron5.exe • hosts : server ip address • protocol : SNTP v1 • Date/Time properties • timezone = (GMT)

  8. NTP Client site

  9. NTP Client site

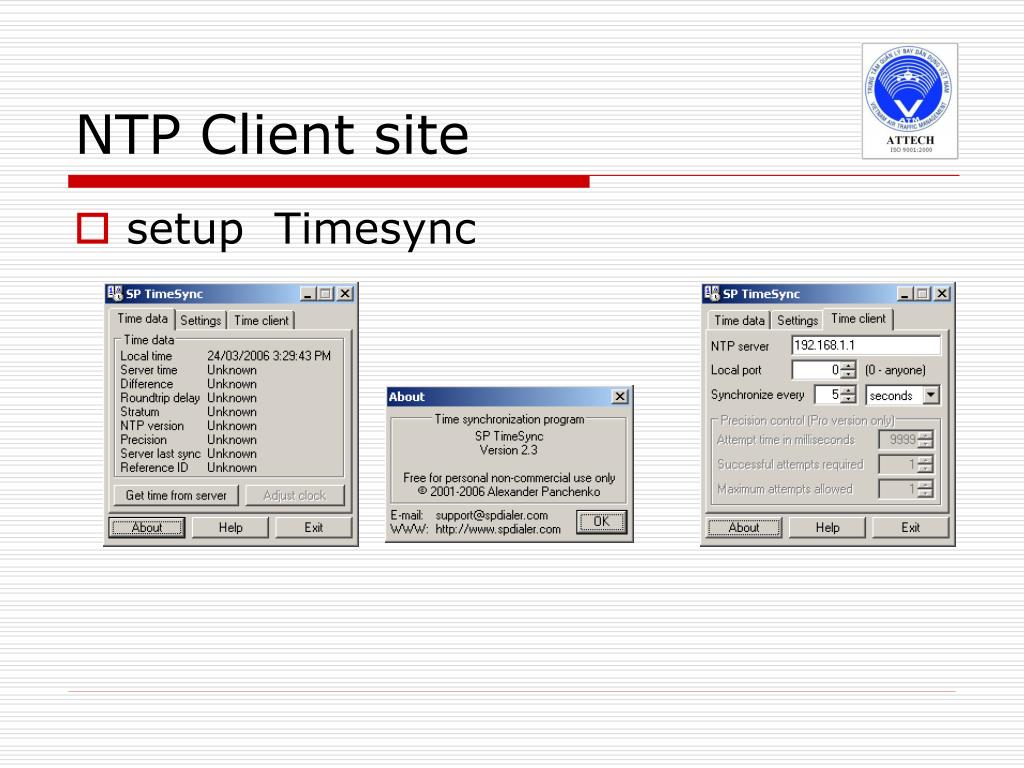

  10. NTP Client site • setup Timesync
