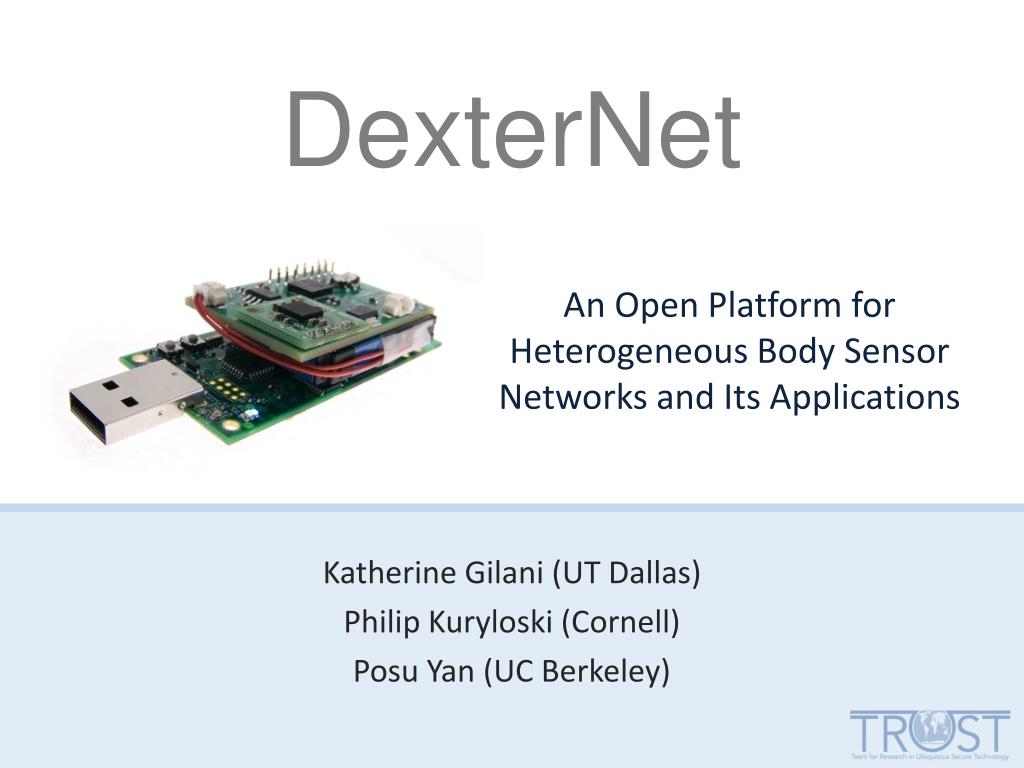

  1. DexterNet An Open Platform for Heterogeneous Body Sensor Networks and Its Applications Katherine Gilani (UT Dallas) Philip Kuryloski (Cornell) Posu Yan (UC Berkeley)

  2. What Is DexterNet? • Wireless body sensor network system • Heterogeneous sensor integration • Mobile monitoring through wearable body sensors and environmental sensors • Real-time data storage and analysis Introduction System SPINE Applications Future Work

  3. Design Principles • Open Source • SPINE • Real-time, dynamically configurable • Flexible 3-layer architecture • Body Sensor Layer (BSL) • Personal Network Layer (PNL) • Global Network Layer (GNL) Introduction System SPINE Applications Future Work

  4. Platform Comparison Introduction System SPINE Applications Future Work

  5. 3-Layer Architecture Introduction System SPINE Applications Future Work

  6. Introduction System SPINE Applications Future Work

  7. Body Sensor Layer (BSL) • Motion sensor • 3 axis accelerometer • 2 axis gyroscope (rotation) • Biosensor • electrocardiogram (ECG) • electrical impedance pneumography (EIP) • More motes supported via SPINE Introduction System SPINE Applications Future Work

  8. Personal Network Layer (PNL) • Nokia N-series Internet Tablet • Linux • C, Java • Telosb mote • 802.15.4 radio • TinyOS • GPS Introduction System SPINE Applications Future Work

  9. BSL + PNL Introduction System SPINE Applications Future Work

  10. Global Network Layer (GNL) • Applications • Avatar • Action Recognition • Database connectivity • Medical records • Events or raw/compressed data Introduction System SPINE Applications Future Work

  11. What Is SPINE? • Open source software framework • Mote and basestation software • Wireless discovery and configuration • On-node signal processing • Provides BSL+PNL software for DexterNet Introduction System SPINE Applications Future Work

  12. Design of SPINE • 3 main components • Sensing, processing, communication • Modular • New sensors can be rapidly integrated • New processing supports all available sensors • Communication is abstracted for components • Base station enhancements Introduction System SPINE Applications Future Work

  13. Avatar • Visualize motion in somewhat organic way • Improved visual quality over first generation system Introduction System SPINE Applications Future Work

  14. Implementation • jMonkeyEngine for rendering and physics • Jointed body model • Physics damps and constrains data • Animate a model using skeleton Introduction System SPINE Applications Future Work

  15. Action Recognition • Wearable Action Recognition Database (WARD) • 20 subjects • 13 continuous actions • Activity monitoring Introduction System SPINE Applications Future Work

  16. Public Health • People and environment monitoring • GPS, motion, bio, air particles • Applications • Obesity studies • Asthma studies Introduction System SPINE Applications Future Work

  17. Introduction System SPINE Applications Future Work

  18. Future Work • Security • Cross-layer • Privacy of data • More wearable hardware • Continuation of public health experiments Introduction System SPINE Applications Future Work

  19. DexterNet • Katherine Gilani • kt.g@student.utdallas.edu • Philip Kuryloski • pjk25@cornell.edu • Posu Yan • pyan@eecs.berkeley.edu
