Hadoop Overview

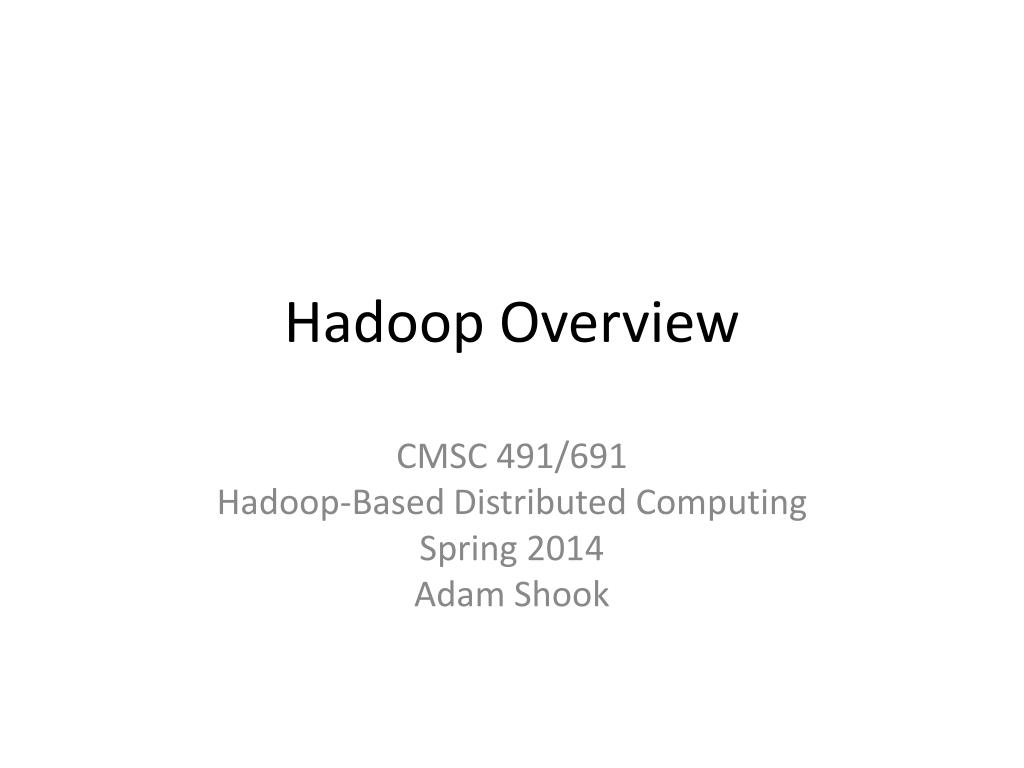

1. Hadoop Overview CMSC 491/691 Hadoop-Based Distributed Computing Spring 2014 Adam Shook

2. Agenda • Why Hadoop? • HDFS • MapReduce

3. Why Hadoop?

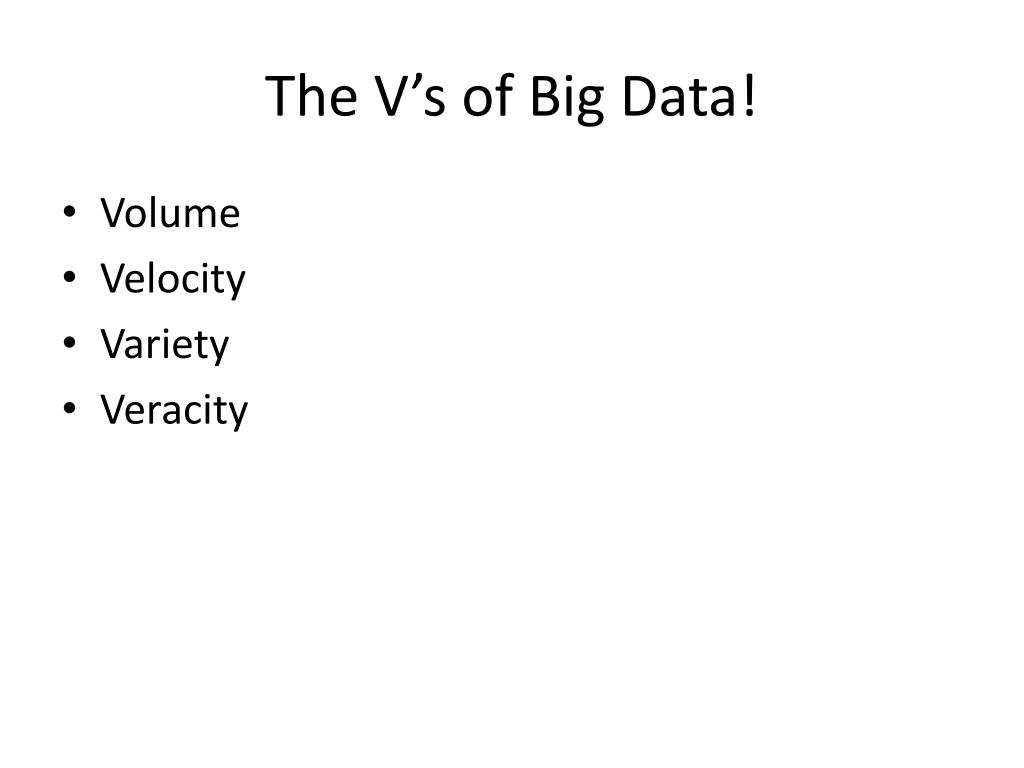

4. The V’s of Big Data! • Volume • Velocity • Variety • Veracity

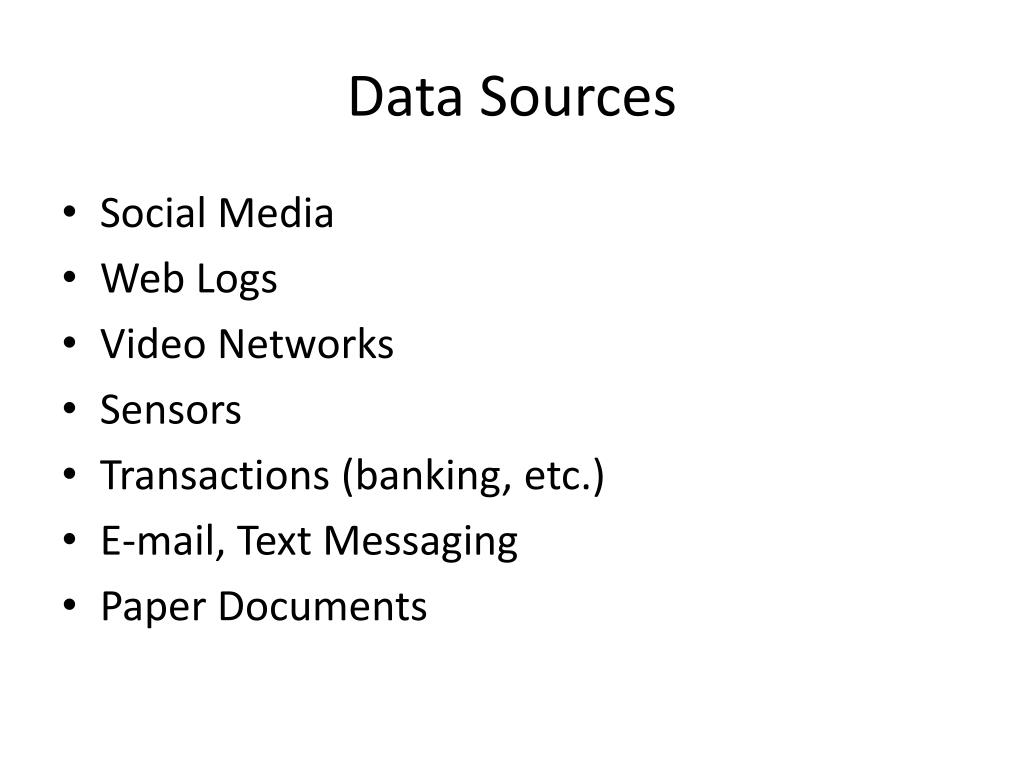

5. Data Sources • Social Media • Web Logs • Video Networks • Sensors • Transactions (banking, etc.) • E-mail, Text Messaging • Paper Documents

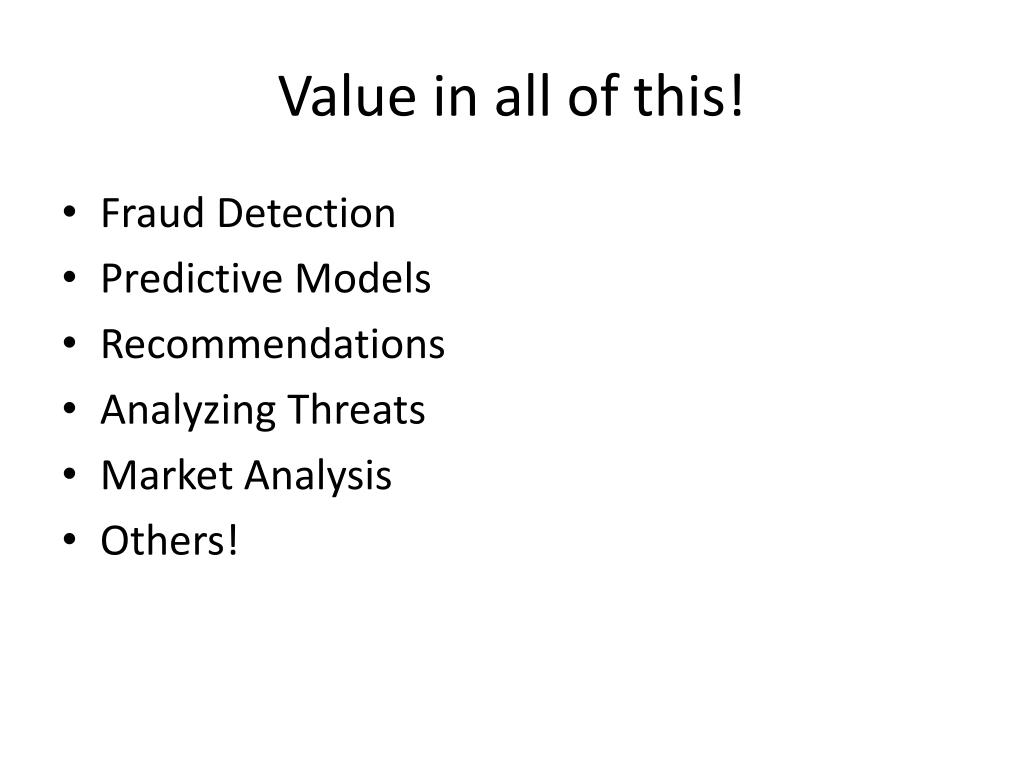

6. Value in all of this! • Fraud Detection • Predictive Models • Recommendations • Analyzing Threats • Market Analysis • Others!

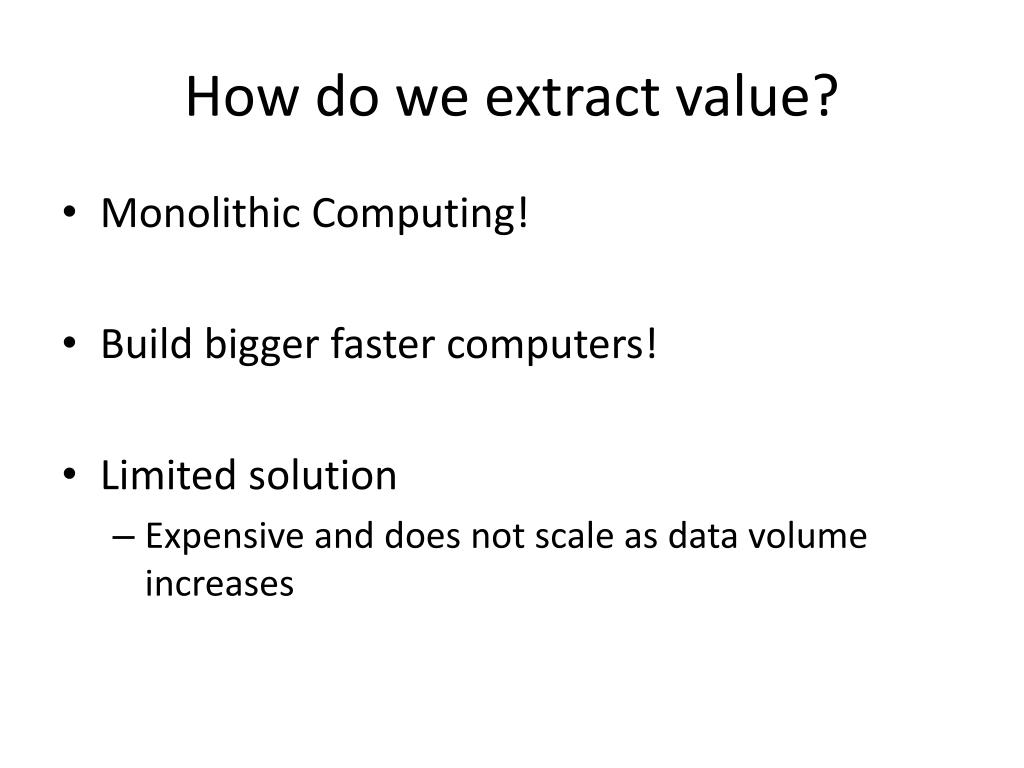

7. How do we extract value? • Monolithic Computing! • Build bigger faster computers! • Limited solution • Expensive and does not scale as data volume increases

8. Enter Distributed Computing • Processing is distributed across many computers • Distribute the workload to powerful compute nodes with some separate storage

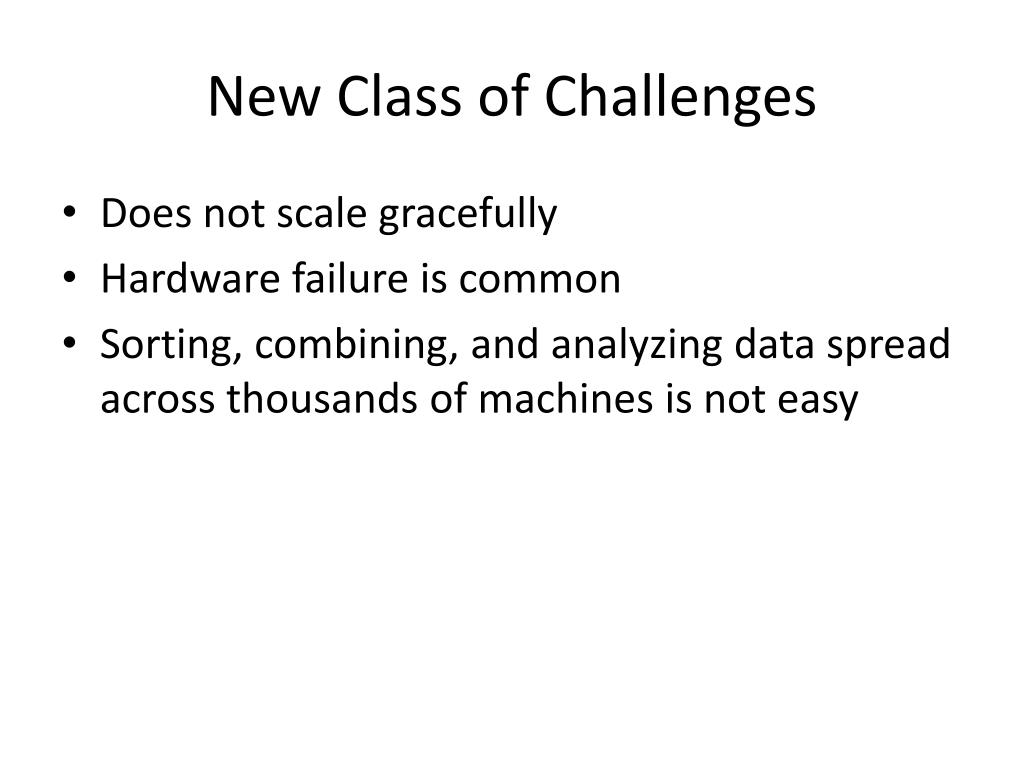

9. New Class of Challenges • Does not scale gracefully • Hardware failure is common • Sorting, combining, and analyzing data spread across thousands of machines is not easy

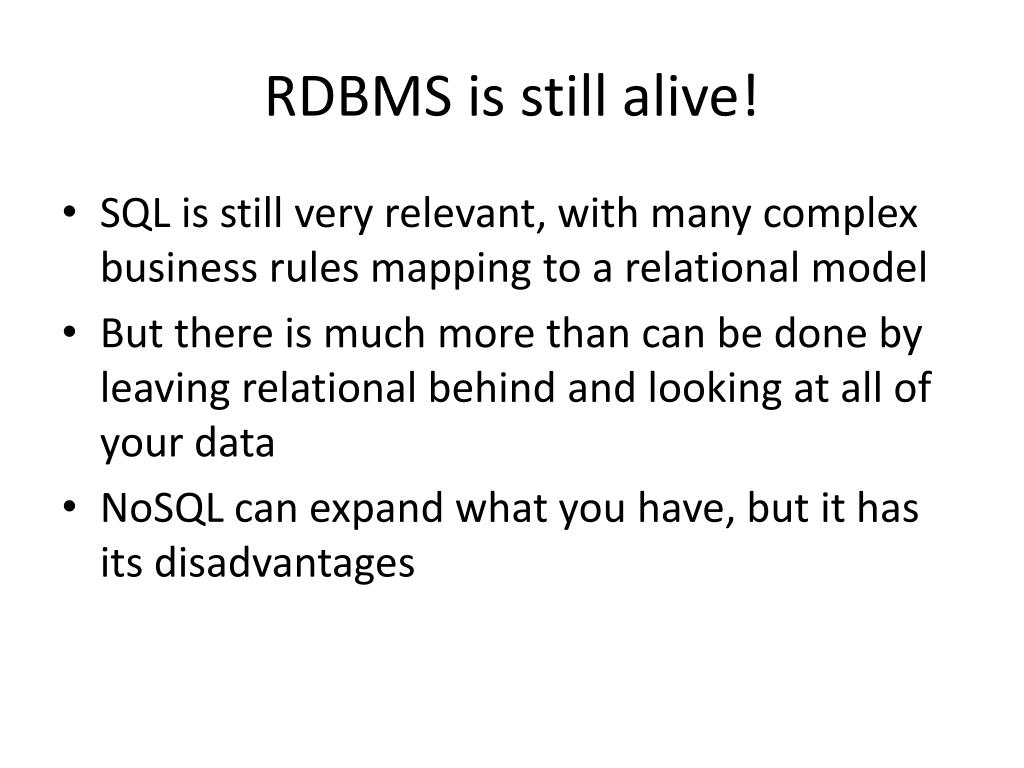

10. RDBMS is still alive! • SQL is still very relevant, with many complex business rules mapping to a relational model • But there is much more than can be done by leaving relational behind and looking at all of your data • NoSQL can expand what you have, but it has its disadvantages

11. NoSQL Downsides • Increased middle-tier complexity • Constraints on query capability • No standard semantics for query • Complex to setup and maintain

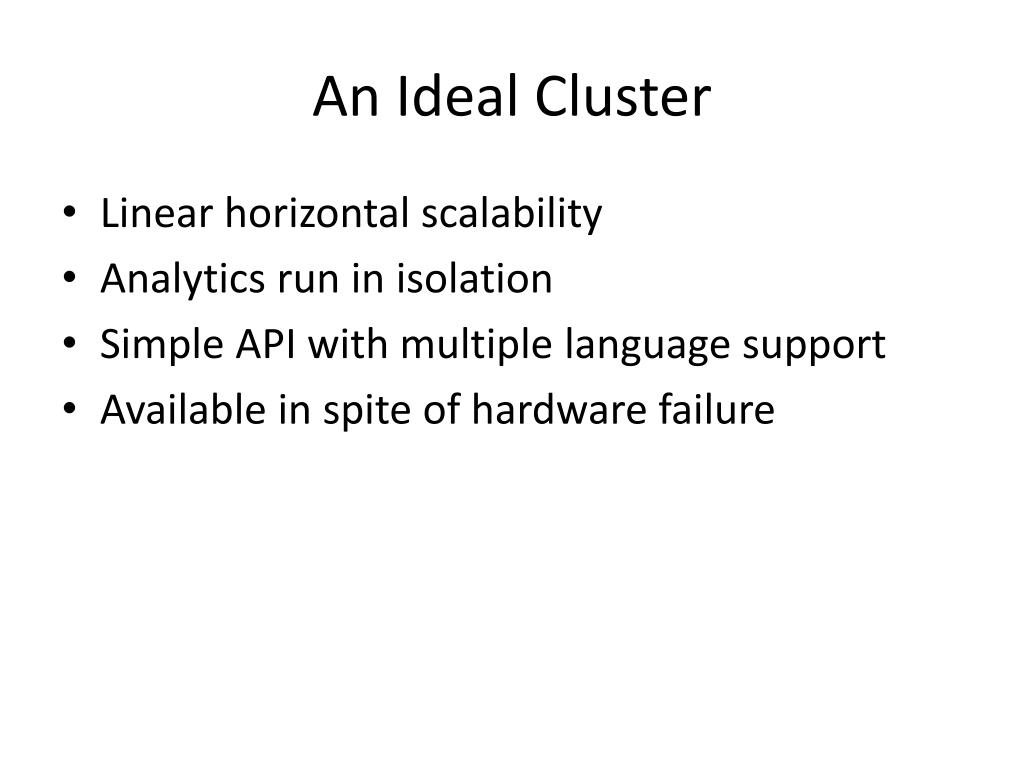

12. An Ideal Cluster • Linear horizontal scalability • Analytics run in isolation • Simple API with multiple language support • Available in spite of hardware failure

13. Enter Hadoop • Hits these major requirements • Two core pieces • Distributed File System (HDFS) • Flexible analytic framework (MapReduce) • Many ecosystem components to expand on what core Hadoop offers

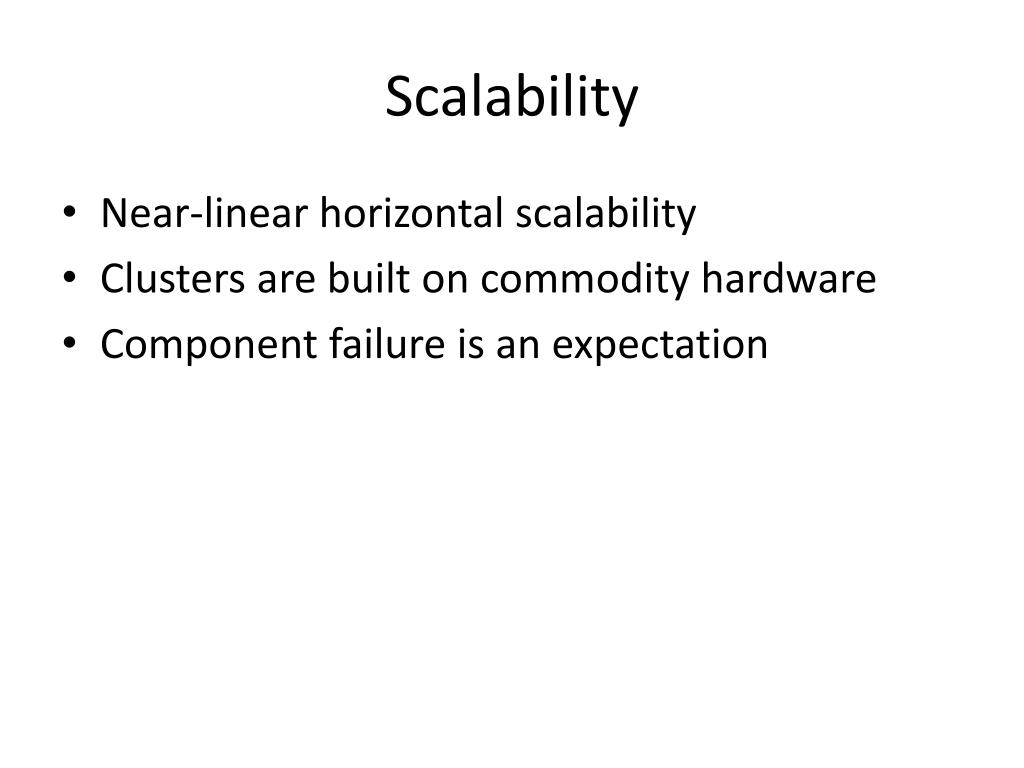

14. Scalability • Near-linear horizontal scalability • Clusters are built on commodity hardware • Component failure is an expectation

15. Data Access • Moving data from storage to a processor is expensive • Store data and process the data on the same machines • Process data intelligently by being local

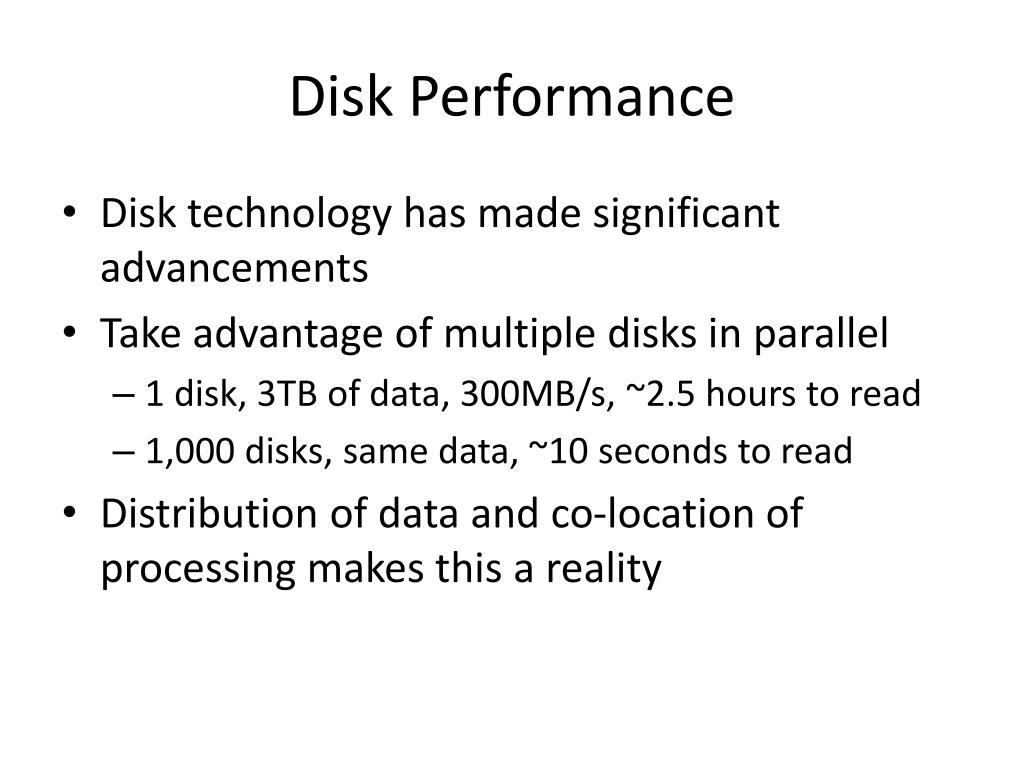

16. Disk Performance • Disk technology has made significant advancements • Take advantage of multiple disks in parallel • 1 disk, 3TB of data, 300MB/s, ~2.5 hours to read • 1,000 disks, same data, ~10 seconds to read • Distribution of data and co-location of processing makes this a reality

17. Complex Processing Code • Hadoopframework abstracts complex distributed computing environment • No synchronization code • No networking code • No I/O code • MapReduce developer focuses on the analysis • Job runs the same on one node or 4,000 nodes!

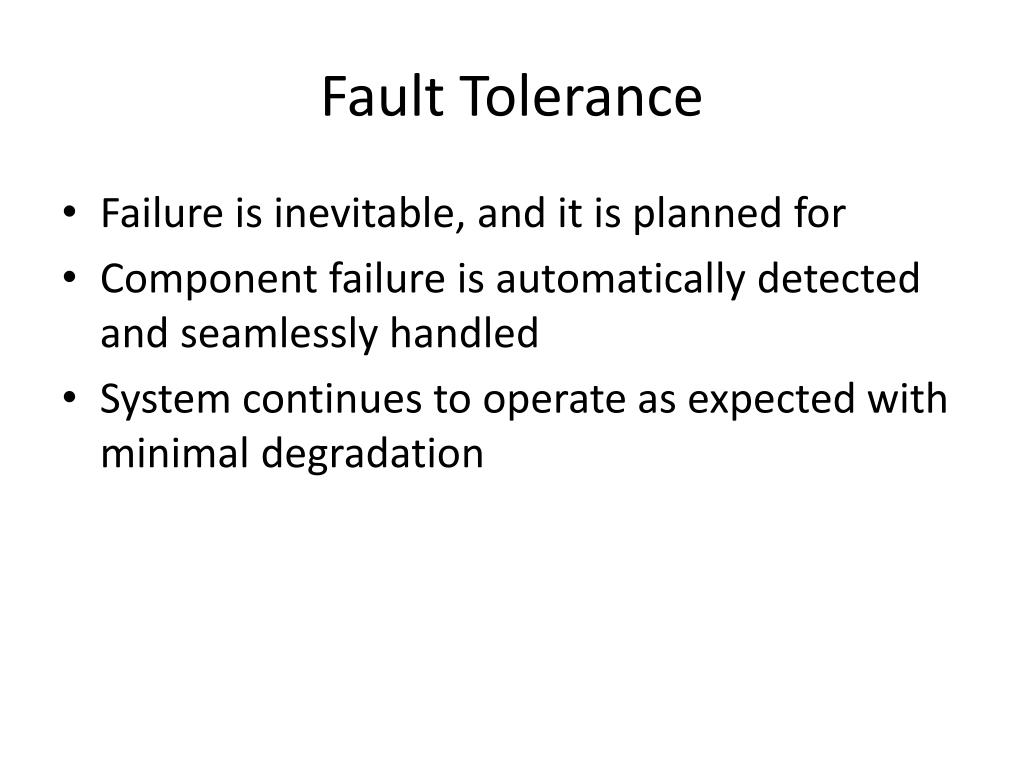

18. Fault Tolerance • Failure is inevitable, and it is planned for • Component failure is automatically detected and seamlessly handled • System continues to operate as expected with minimal degradation

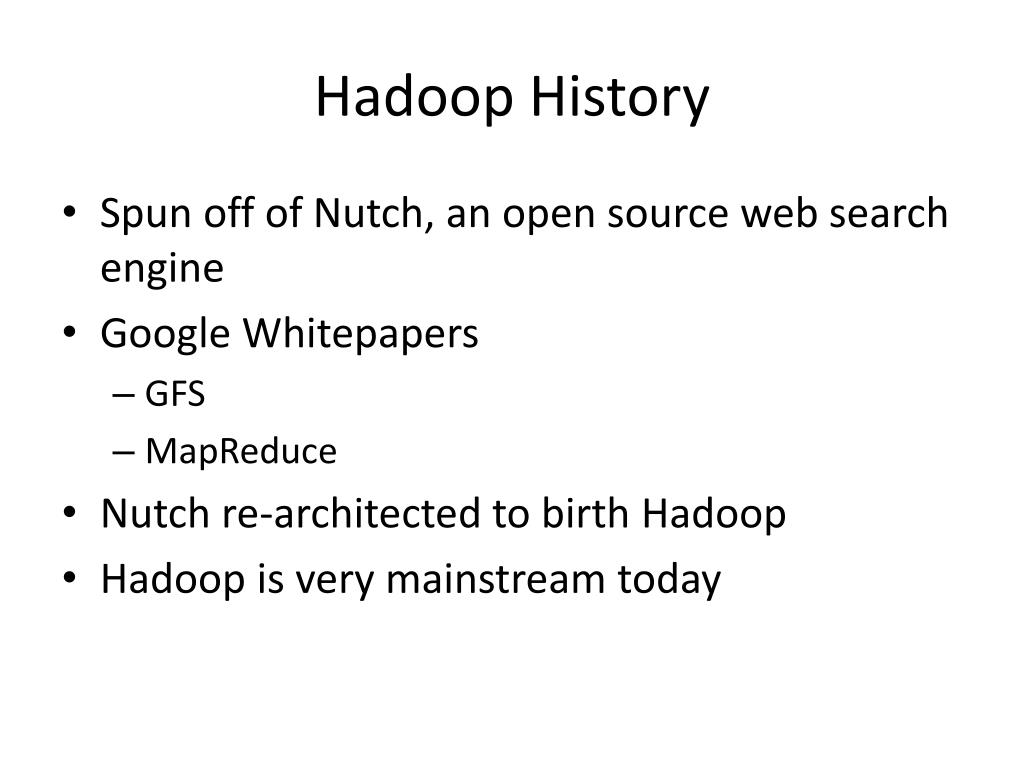

19. Hadoop History • Spun off of Nutch, an open source web search engine • Google Whitepapers • GFS • MapReduce • Nutch re-architected to birth Hadoop • Hadoop is very mainstream today

20. Hadoop Versions • Hadoop 2.x recently became stable • Two Java APIs, referred to as the old and new APIs • Two task management systems • MapReduce v1 • JobTracker, TaskTracker • MapReduce v2 – A YARN application • MR runs in containers in the YARN framework

21. Hdfs

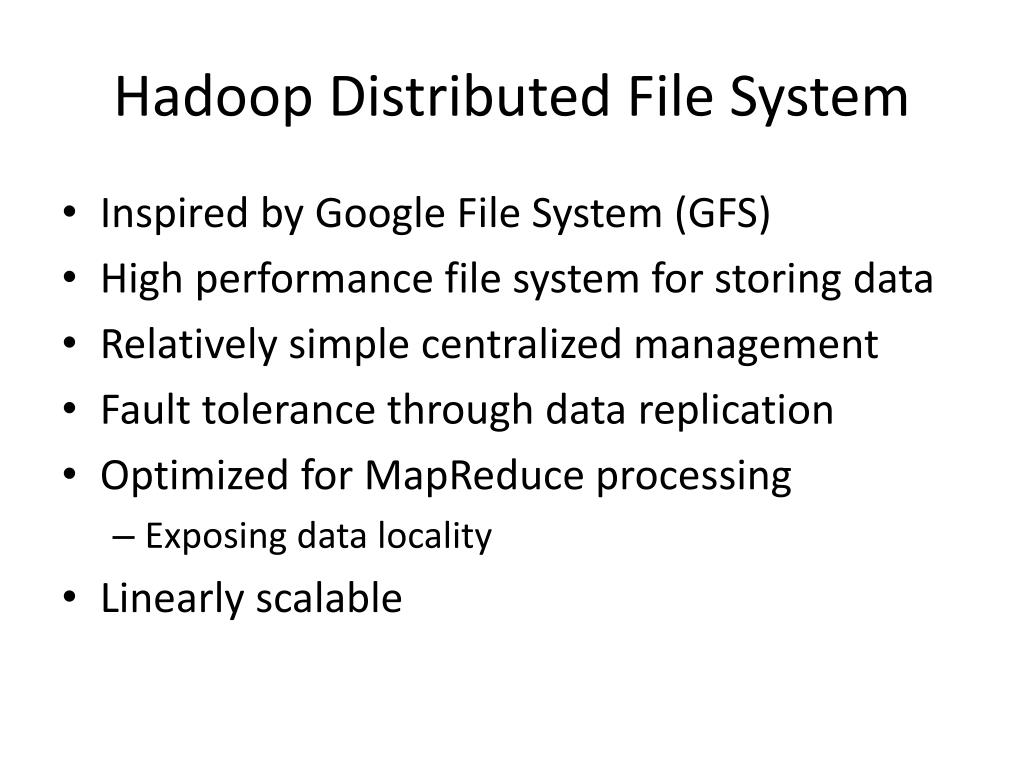

22. Hadoop Distributed File System • Inspired by Google File System (GFS) • High performance file system for storing data • Relatively simple centralized management • Fault tolerance through data replication • Optimized for MapReduce processing • Exposing data locality • Linearly scalable

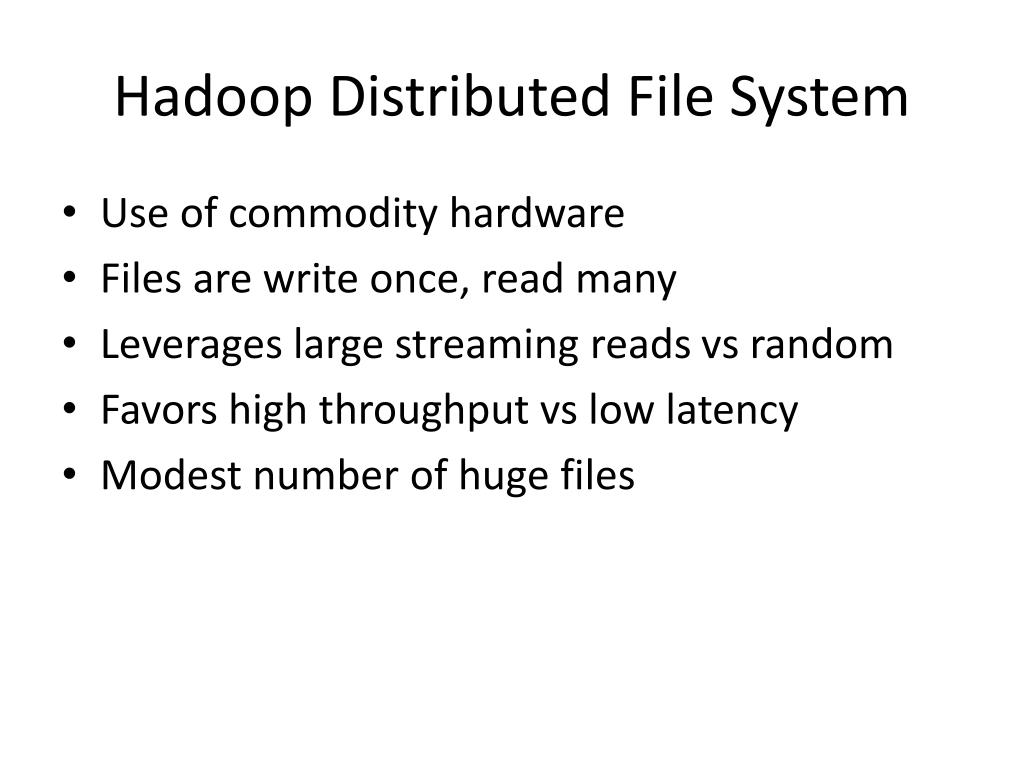

23. Hadoop Distributed File System • Use of commodity hardware • Files are write once, read many • Leverages large streaming reads vs random • Favors high throughput vs low latency • Modest number of huge files

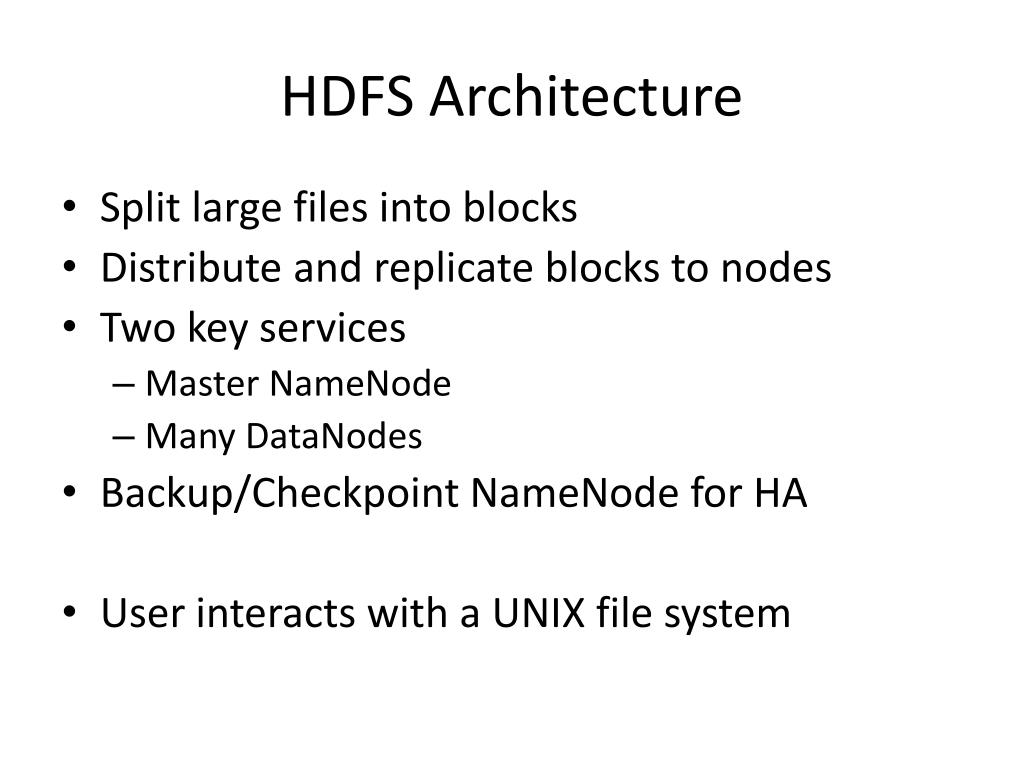

24. HDFS Architecture • Split large files into blocks • Distribute and replicate blocks to nodes • Two key services • Master NameNode • Many DataNodes • Backup/Checkpoint NameNode for HA • User interacts with a UNIX file system

25. NameNode • Single master service for HDFS • Was a single point of failure • Stores file to block to location mappings in a namespace • All transactions are logged to disk • Can recover based on checkpoints of the namespace and transaction logs

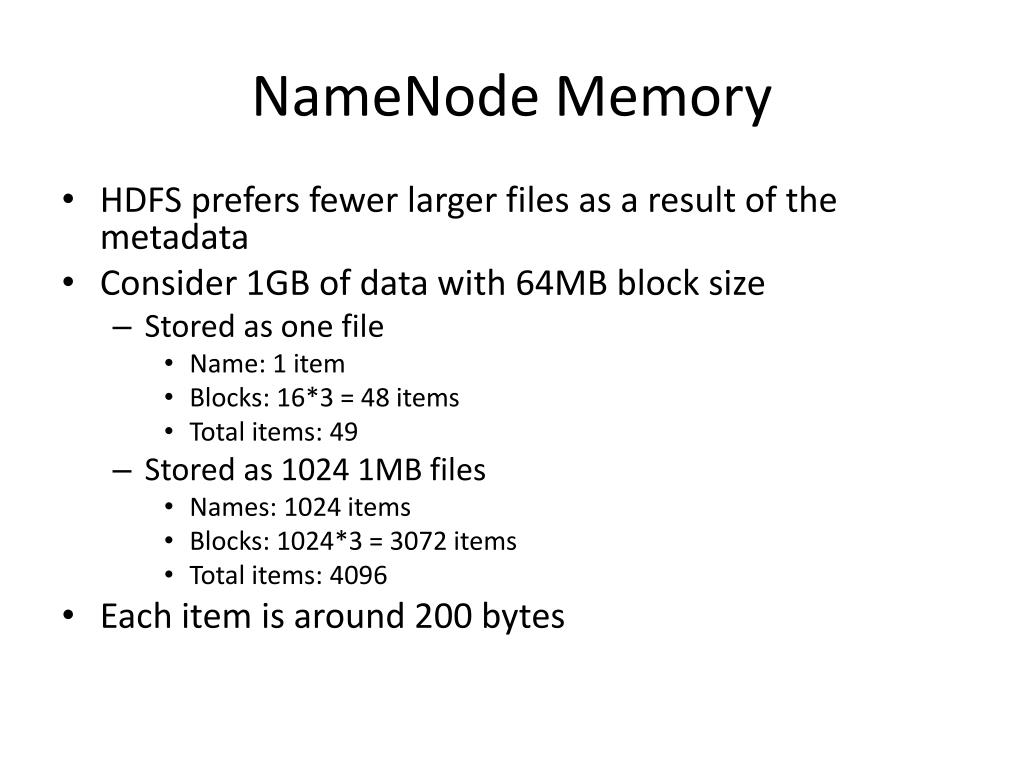

26. NameNode Memory • HDFS prefers fewer larger files as a result of the metadata • Consider 1GB of data with 64MB block size • Stored as one file • Name: 1 item • Blocks: 16*3 = 48 items • Total items: 49 • Stored as 1024 1MB files • Names: 1024 items • Blocks: 1024*3 = 3072 items • Total items: 4096 • Each item is around 200 bytes

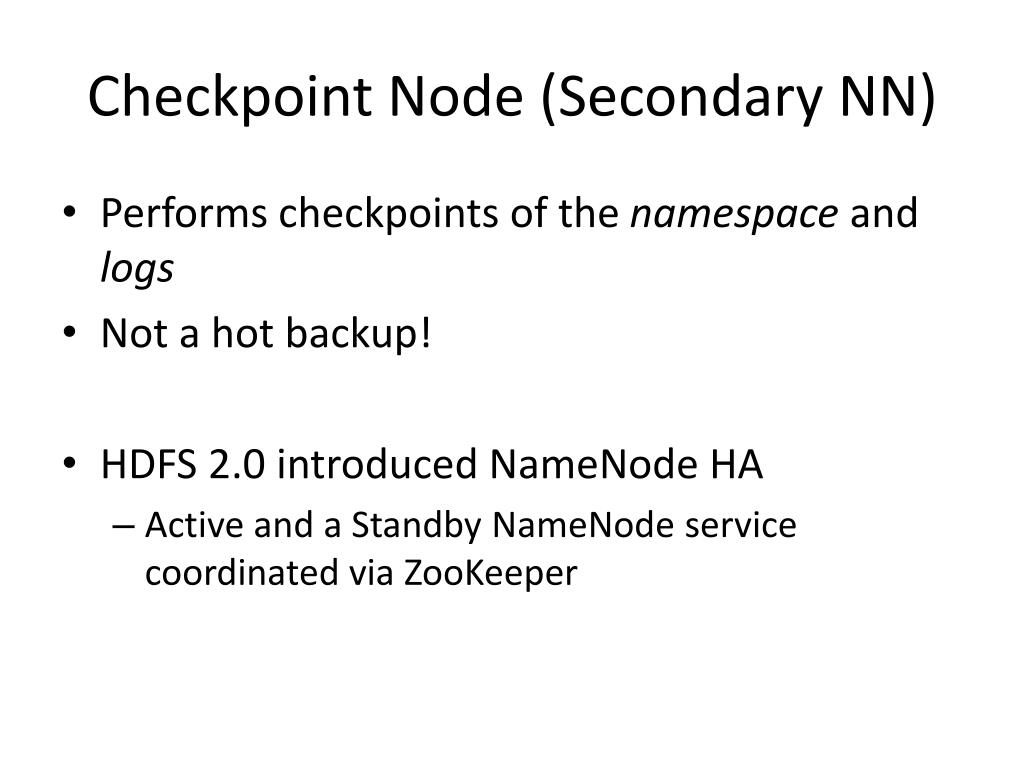

27. Checkpoint Node (Secondary NN) • Performs checkpoints of the namespace and logs • Not a hot backup! • HDFS 2.0 introduced NameNode HA • Active and a Standby NameNode service coordinated via ZooKeeper

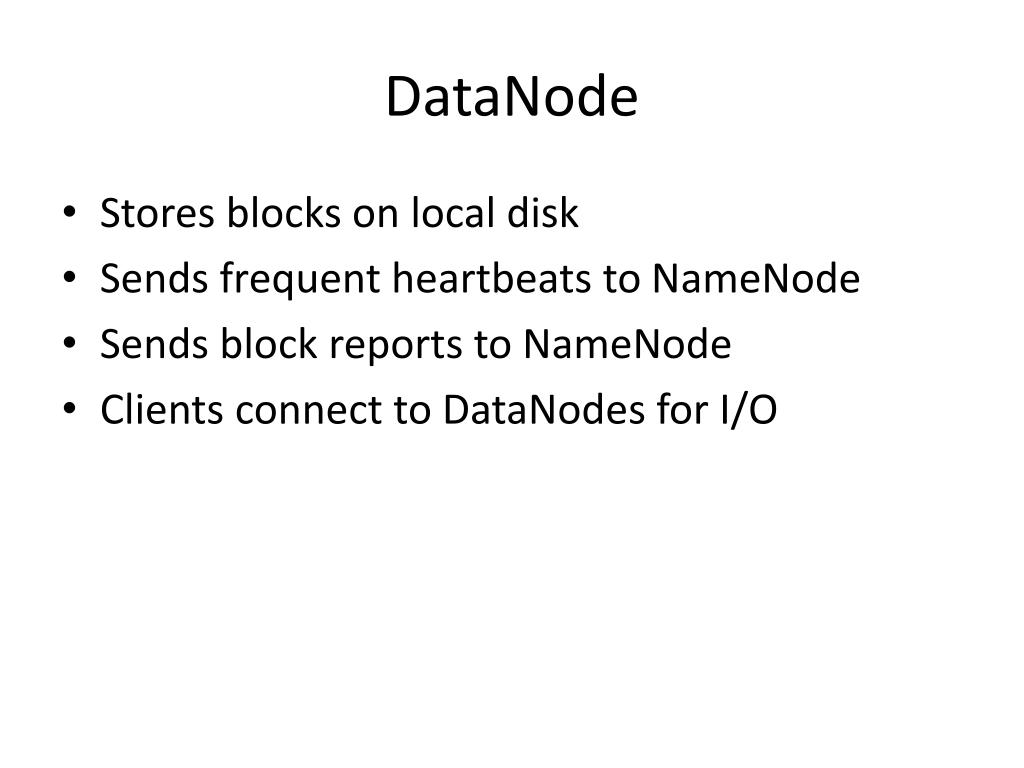

28. DataNode • Stores blocks on local disk • Sends frequent heartbeats to NameNode • Sends block reports to NameNode • Clients connect to DataNodes for I/O

29. How HDFS Works - Writes Client contacts NameNode to write data NameNode says write it to these nodes Client sequentially writes blocks to DataNode

30. How HDFS Works - Writes DataNodes replicate data blocks, orchestrated by the NameNode

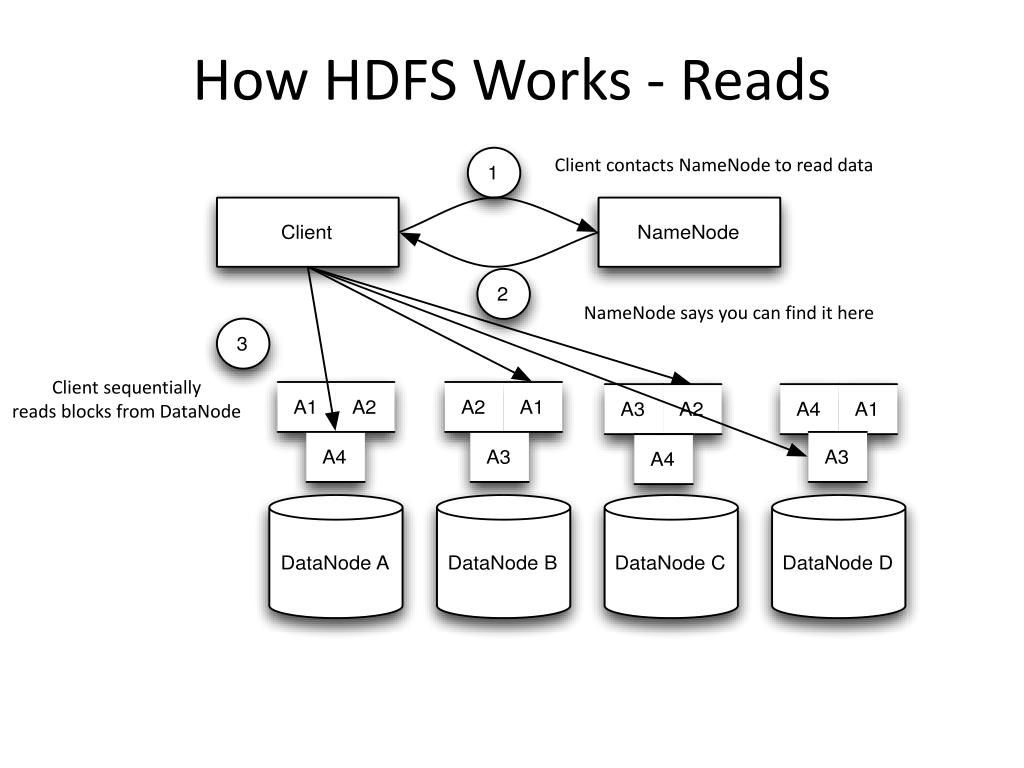

31. How HDFS Works - Reads Client contacts NameNode to read data NameNode says you can find it here Client sequentially reads blocks from DataNode

32. How HDFS Works - Failure Client connects to another node serving that block

33. HDFS Blocks • Default block size is 64MB • Configurable • Common sizes are 128 MB and 256 MB • Default replication is three • Also configurable, not rarely changed • Stored as files on the DataNode’s local fs • Cannot associate any block with its true file

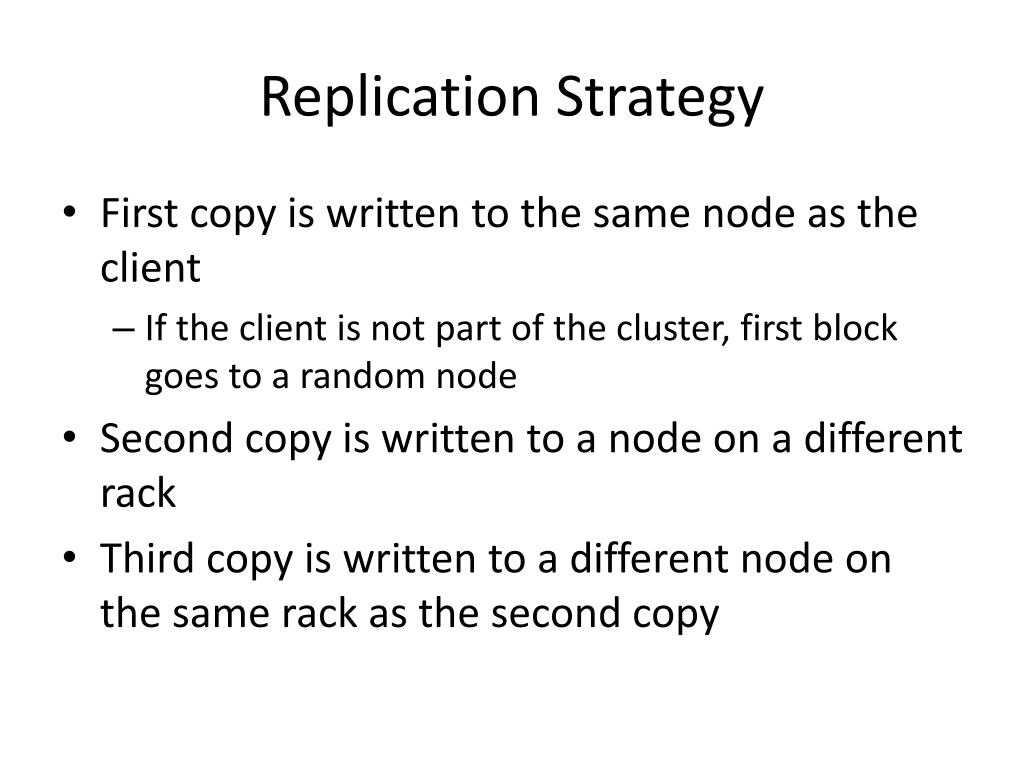

34. Replication Strategy • First copy is written to the same node as the client • If the client is not part of the cluster, first block goes to a random node • Second copy is written to a node on a different rack • Third copy is written to a different node on the same rack as the second copy

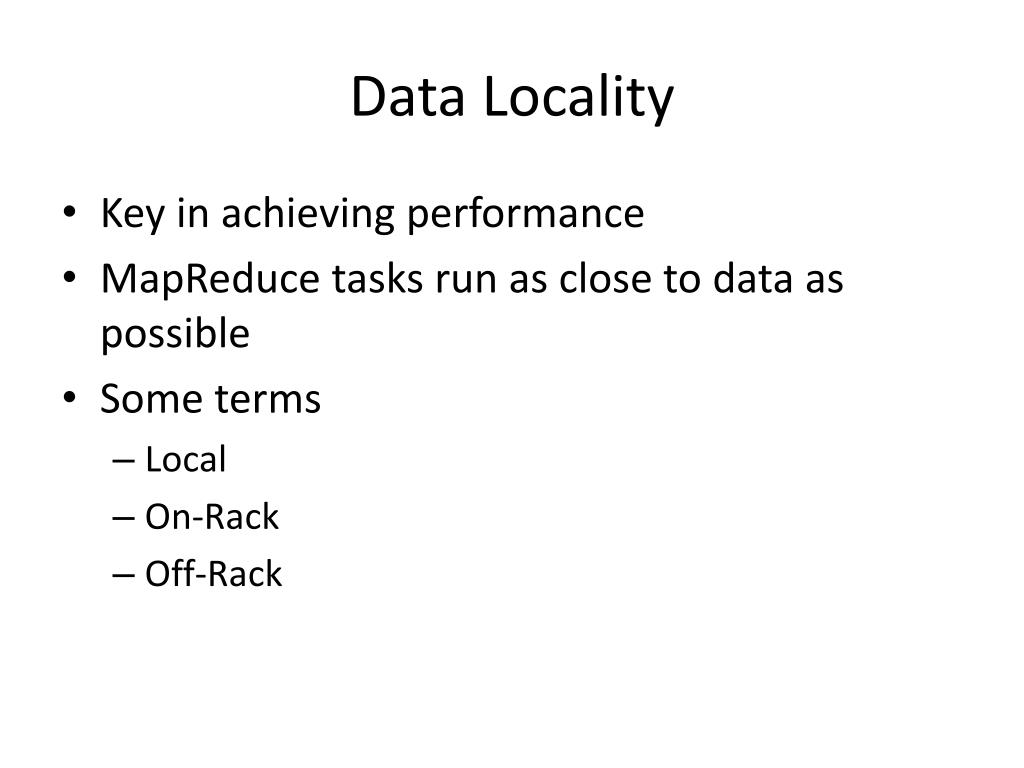

35. Data Locality • Key in achieving performance • MapReduce tasks run as close to data as possible • Some terms • Local • On-Rack • Off-Rack

36. Data Corruption • Use of checksums to to ensure block integrity • Checksum is calculatd on read and compared against that when it was written • Fast to calculate and space-efficient • If the checksums differ, client reads the block from another DataNode • Corrupted block will be deleted and replicated by a non-corrupt block • DataNode periodically runs a background thread to do this checksum process • For those files that aren’t read very often

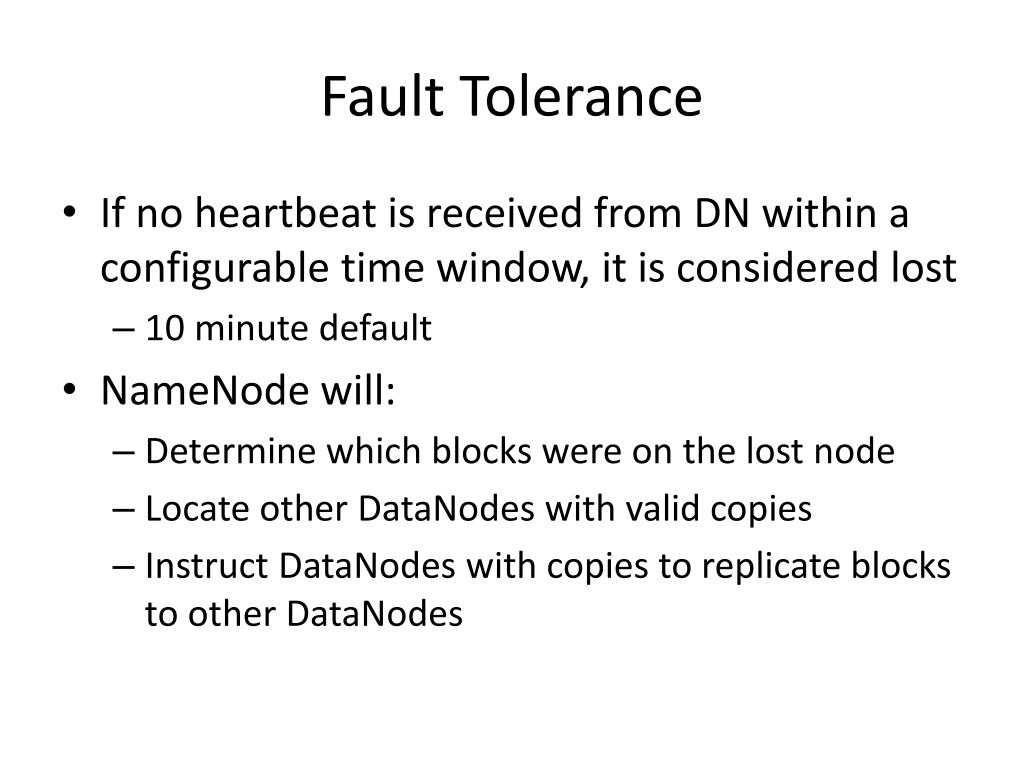

37. Fault Tolerance • If no heartbeat is received from DN within a configurable time window, it is considered lost • 10 minute default • NameNode will: • Determine which blocks were on the lost node • Locate other DataNodes with valid copies • Instruct DataNodes with copies to replicate blocks to other DataNodes

38. Interacting with HDFS • Primary interfaces are Java CI and API • Web UI for read-only access • HFTP provides HTTP/S read-only • WebHDFS provides RESTful read/write • FUSE, allows HDFS to be mounted on standard file system • Typically used so legacy apps can use HDFS data • ‘hdfsdfs -help’ will show CLI usage

39. Hadoop MapReduce

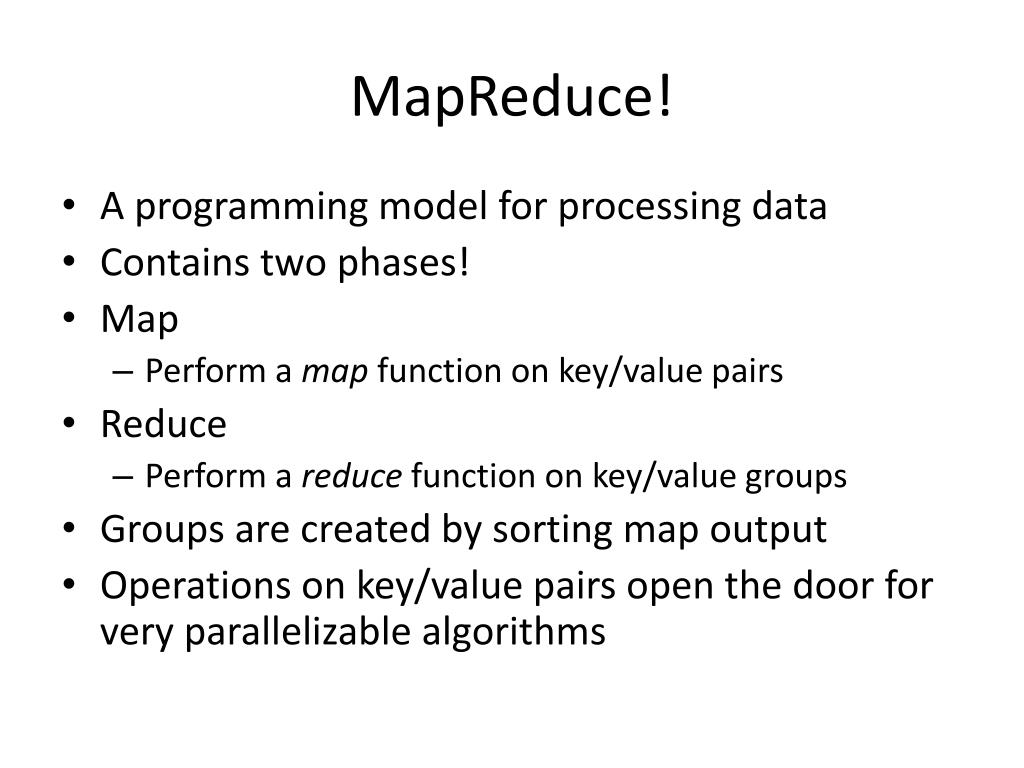

40. MapReduce! • A programming model for processing data • Contains two phases! • Map • Perform a map function on key/value pairs • Reduce • Perform a reduce function on key/value groups • Groups are created by sorting map output • Operations on key/value pairs open the door for very parallelizable algorithms

41. Hadoop MapReduce • Automatic parallelization and distribution of tasks • Framework handles scheduling task and repeating failed tasks • Developer can code many pieces of the puzzle • Framework handles a Shuffle and Sort phase between map and reduce tasks. • Developer need only focus on the task at hand, rather than how to manage where data comes from and where it goes

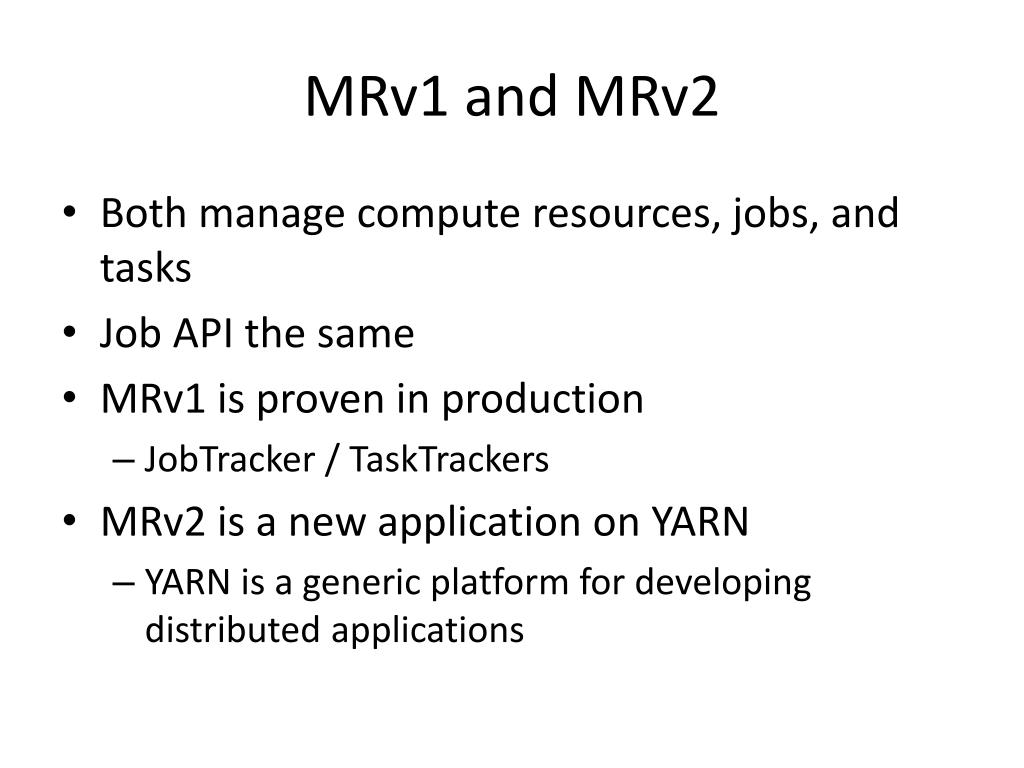

42. MRv1 and MRv2 • Both manage compute resources, jobs, and tasks • Job API the same • MRv1 is proven in production • JobTracker / TaskTrackers • MRv2 is a new application on YARN • YARN is a generic platform for developing distributed applications

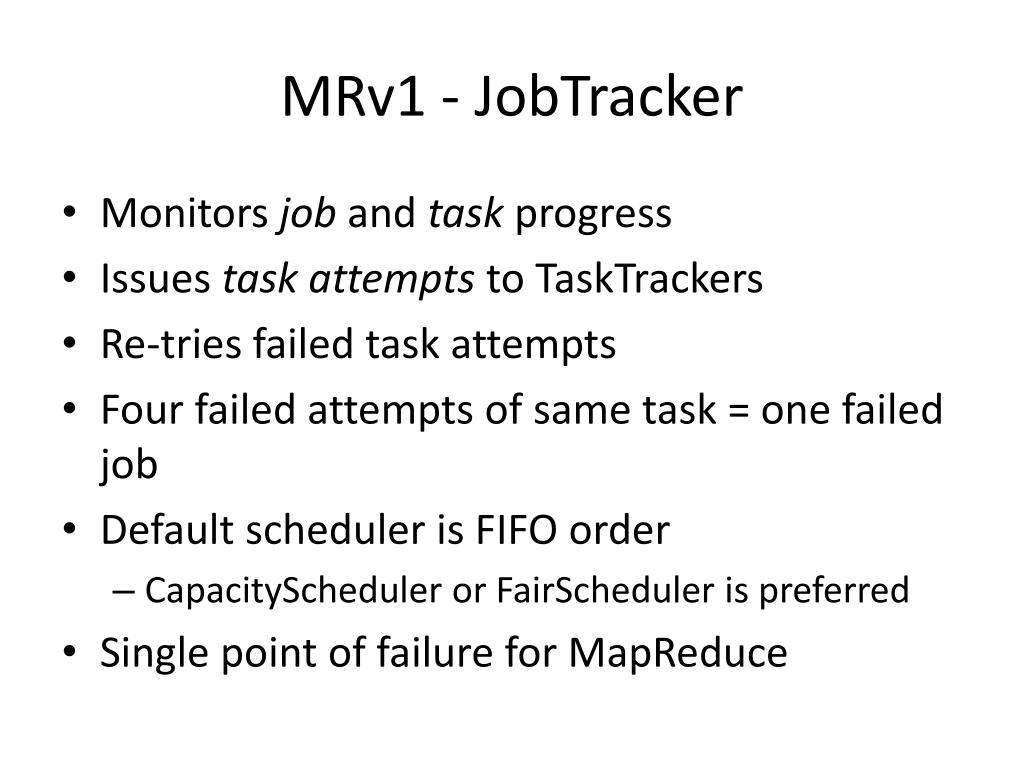

43. MRv1 - JobTracker • Monitors job and task progress • Issues task attempts to TaskTrackers • Re-tries failed task attempts • Four failed attempts of same task = one failed job • Default scheduler is FIFO order • CapacityScheduler or FairScheduler is preferred • Single point of failure for MapReduce

44. MRv1 – TaskTrackers • Runs on same node as DataNodes • Sends heartbeats and task reports to JT • Configurable number of map and reduce slots • Runs map and reduce task attempts in a separate JVM

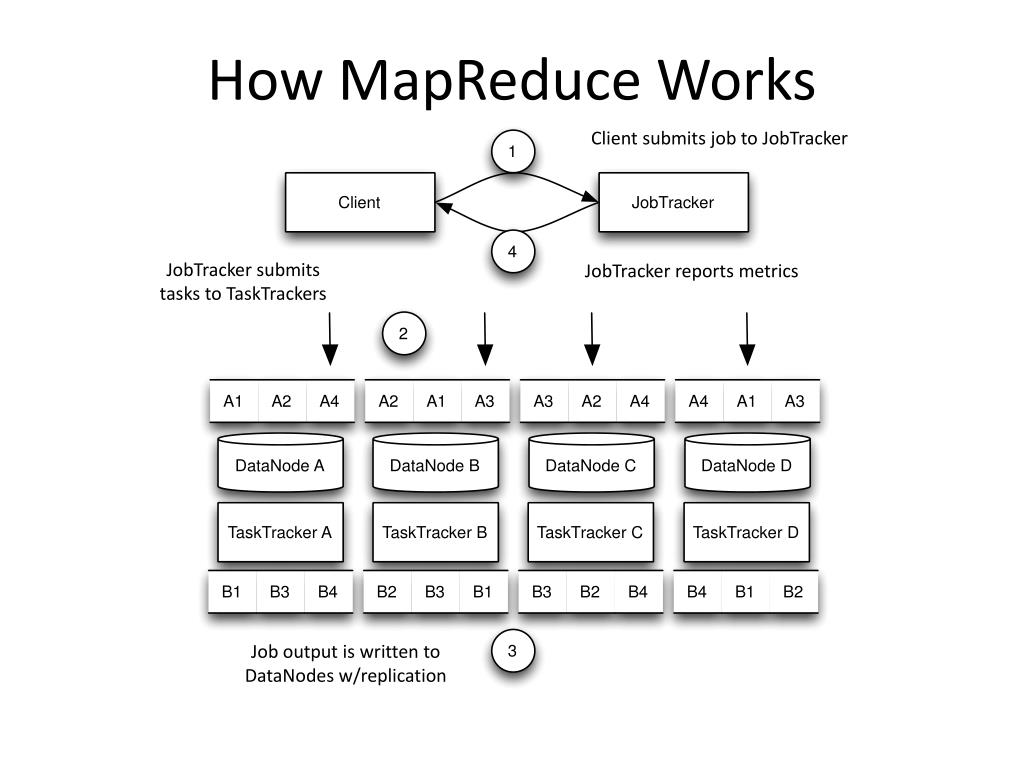

45. How MapReduce Works Client submits job to JobTracker JobTracker submits tasks to TaskTrackers JobTracker reports metrics Job output is written to DataNodes w/replication

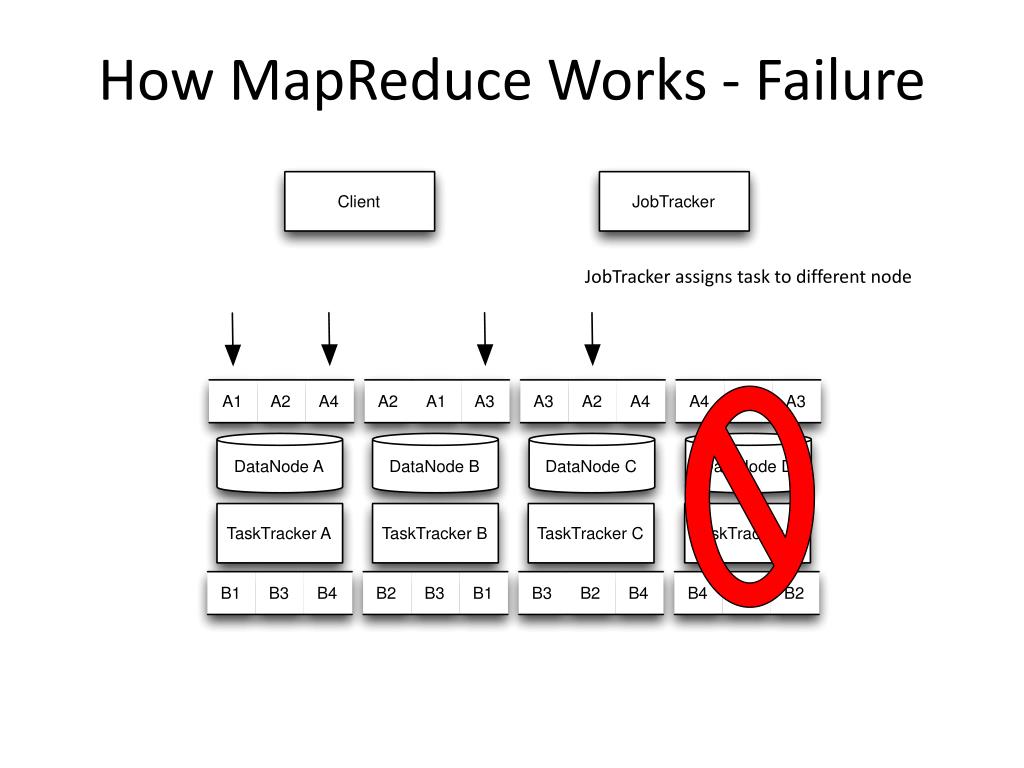

46. How MapReduce Works - Failure JobTracker assigns task to different node

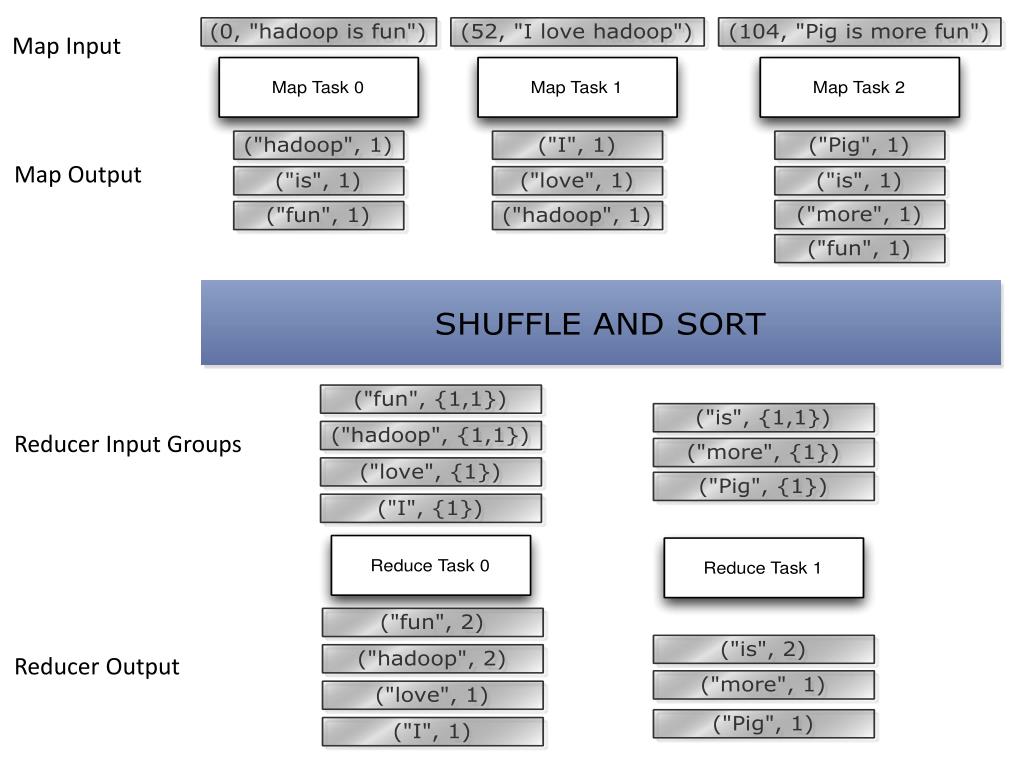

47. Map Input Map Output Reducer Input Groups Reducer Output

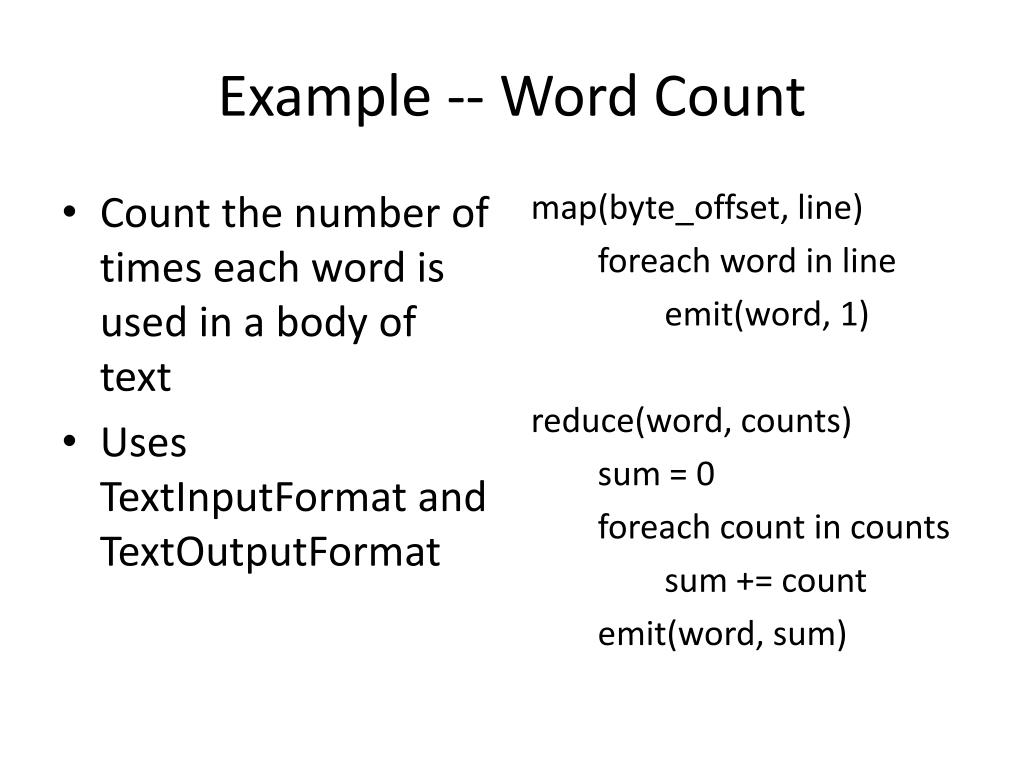

48. Example -- Word Count • Count the number of times each word is used in a body of text • Uses TextInputFormat and TextOutputFormat map(byte_offset, line) foreach word in line emit(word, 1) reduce(word, counts) sum = 0 foreach count in counts sum += count emit(word, sum)

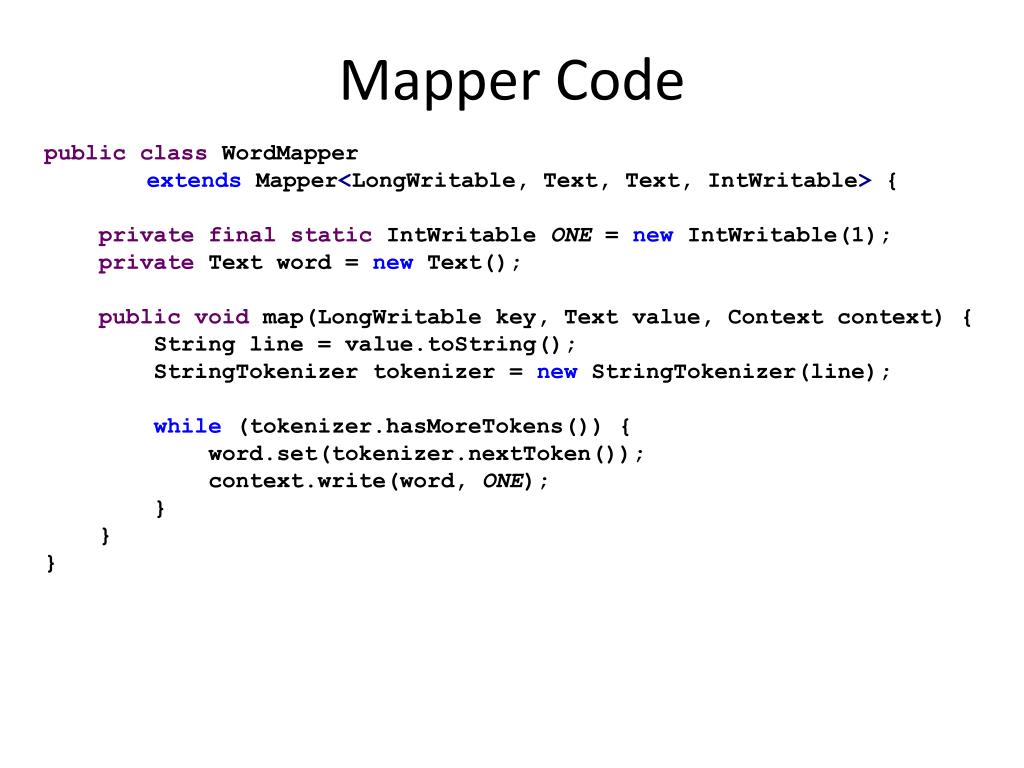

49. Mapper Code public class WordMapper extendsMapper<LongWritable, Text, Text, IntWritable> { private final static IntWritableONE = newIntWritable(1); private Text word = new Text(); public void map(LongWritable key, Text value, Context context) { String line = value.toString(); StringTokenizertokenizer = newStringTokenizer(line); while (tokenizer.hasMoreTokens()) { word.set(tokenizer.nextToken()); context.write(word, ONE); } } }

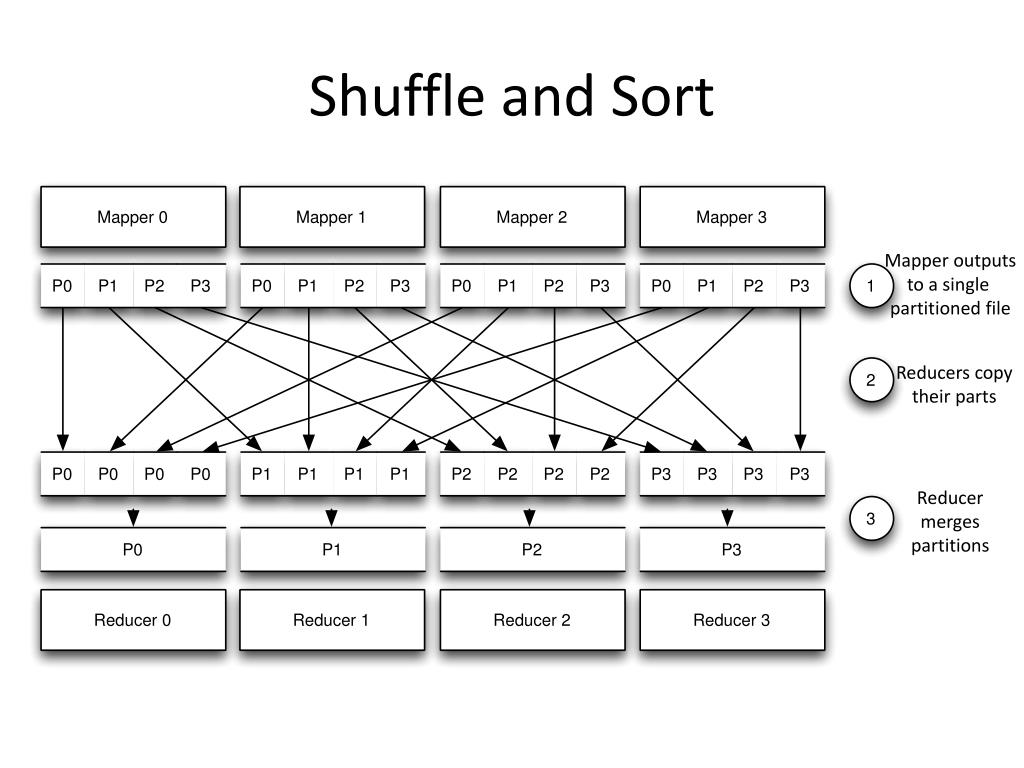

50. Shuffle and Sort Mapper outputs to a single partitioned file Reducers copy their parts Reducer merges partitions
