  1. Lecture 5 Presented By Dr. ShazzadHosain Asst. Prof. EECS, NSU

  2. Agenda • Logic Instructions • AND, OR, XOR and NOT • TEST Instruction • Shift and Rotate Instructions • Stack Operations • Introduction to Procedures

  3. AND, OR and XOR Instructions AND destination, source OR destination, source XOR destination, source • Memory-to-memory operations are not allowed • Effect on flags • SF, ZF, PF reflect the result • AF is undefined • CF, OF = 0

  4. Use of Logic Instructions • Selectively modify the bits of destination • b AND 1 = b (b represents a bit, 0/1) • b AND 0 = 0 • b OR 0 = b • b OR 1 = 1 • b XOR 0 = b • b XOR 1 = ~b (complement of b) • So, AND cab be used to clear specific destination bit • OR can be used to set specific destination bit • XOR can be used to complement specific destination bit

  5. Examples Example 7.2: Clear the sign bit of AL while leaving the other bits unchanged. AND AL, 7Fh Example 7.3: Set the msb and lsb of AL while preserving the other bits. OR AL, 81h Example 7.4: Change the sign bit of DX XOR DX, 8000h 0111 1111 = 7Fh 1000 0001 = 81h

  6. NOT Instruction Complement operation NOT destination Example 7.5: Complement the bits in AX NOT AX

  7. Agenda • Logic Instructions • AND, OR, XOR and NOT • TEST Instruction • Shift and Rotate Instructions • Stack Operations • Introduction to Procedures

  8. TEST Instruction • TEST performs AND on the destination • TEST destination, source • Effects on flags • SF, ZF, PF reflect the result • AF is undefined • CF, OF = 0 • TEST vs. CMP • CMP is subtraction operation

  9. TEST Example • Jump to label BELOW if AL contains an even number TESET AL, 1 ; is AL even? JZ BELOW ; yes, go to BELOW

  10. Agenda • Logic Instructions • AND, OR, XOR and NOT • TEST Instruction • Shift and Rotate Instructions • Stack Operations • Introduction to Procedures

  11. Shift and Rotate Instructions • Two types of shift and rotate instructions • Logical Shift / Rotate • Arithmetic Shift/Rotate • Both logical and arithmetic left shift are identical • But right shifts are different

  12. Shift and Rotate Instructions SHL DH, 3 ; DH = 1110 1111 SHR DH, 3 ; DH = 1110 1111 DH = 0111 1000 DH = 1011 1100 DH = 0001 1101 DH = 1111 1011 C = 1 C = 1 C = 1 C = 1 SAL DH, 2 ; DH = 1110 1111 SAR DH, 2 ; DH = 1110 1111

  13. Rotate Instructions Let DH = 8Ah = 1000 1010 CF = 1 After first RCR DH = 1100 0101 CF = 0 After second RCR DH = 0110 0010 CF = 1

  14. Agenda • Logic Instructions • AND, OR, XOR and NOT • TEST Instruction • Shift and Rotate Instructions • Stack Operations • Introduction to Procedures

  15. Stack vs. Queue • Stack • LIFO : Last In First Out • Queue • FIFO : First In First Out Queue Stack

  16. PUSH vs. POP in Stack

  17. Stack Operations

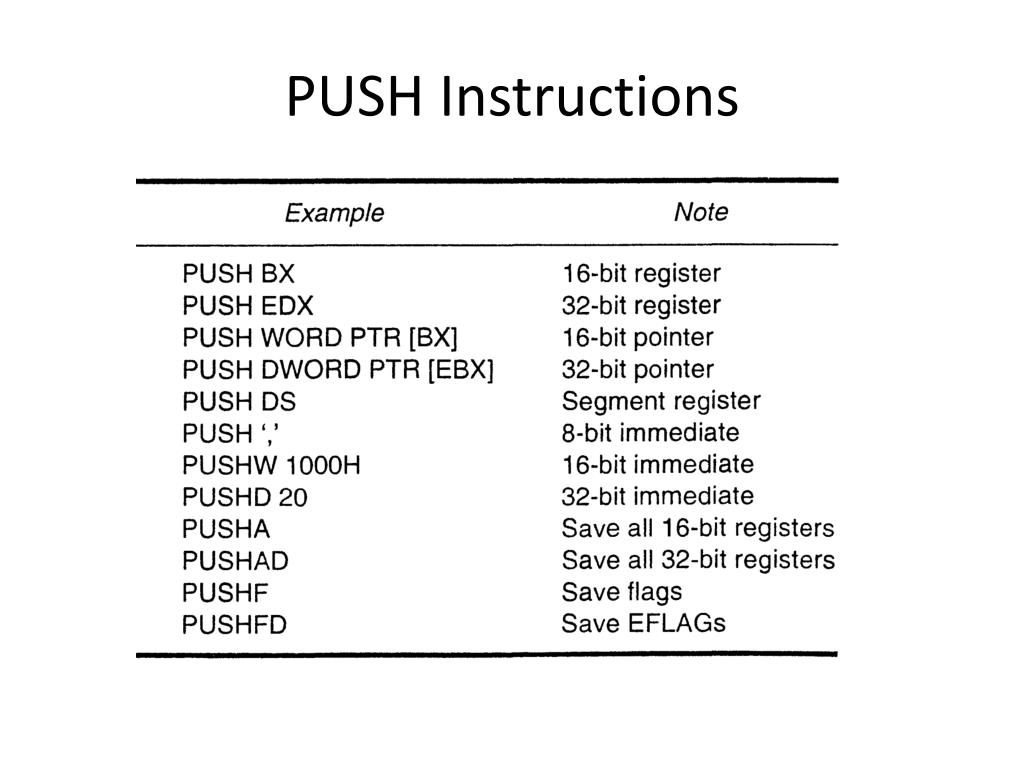

  18. PUSH Instructions

  19. POP Instructions

  20. Stack example

  21. Agenda • Logic Instructions • AND, OR, XOR and NOT • TEST Instruction • Shift and Rotate Instructions • Stack Operations • Introduction to Procedures

  22. Procedure Example Product = 0 REPEAT IF lsb of B is 1 THEN product = product + A END_IF Shift left A Shift right B UNTIL B = 0

  23. References • Ch 7, Assembly Language Programming – by CharlsMarut • Ch 4, Intel Microprocessors – by Brey
