  1. FlexNet • What is it ? • It’s a newer and better protocol, used extensively throughout Europe • Faster • Smarter

  2. FlexNet • Some commands have changed • a NODE is now called a DIGI • <N>odes are now <D>estinations • <R>outes are now <L>inks • <B>ye is now <Q>uit

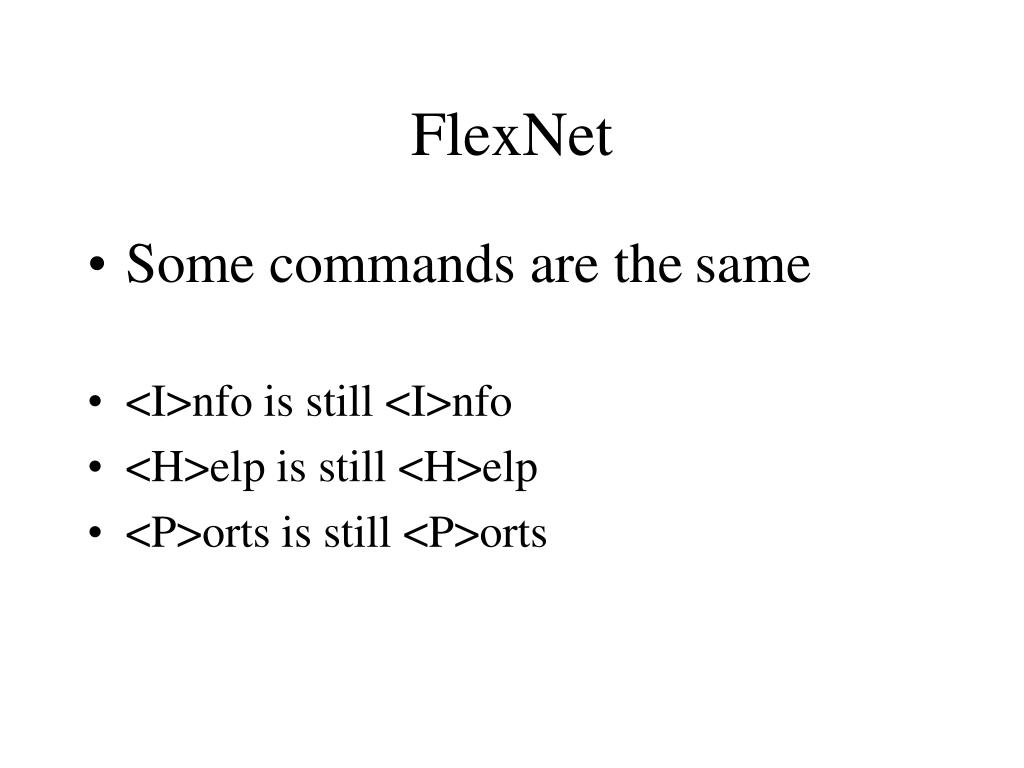

  3. FlexNet • Some commands are thesame • <I>nfo is still <I>nfo • <H>elp is still <H>elp • <P>orts is still <P>orts

  4. FlexNet • Some new command exist • <F>ind • <A>kteull • <C>onference • <T>alk

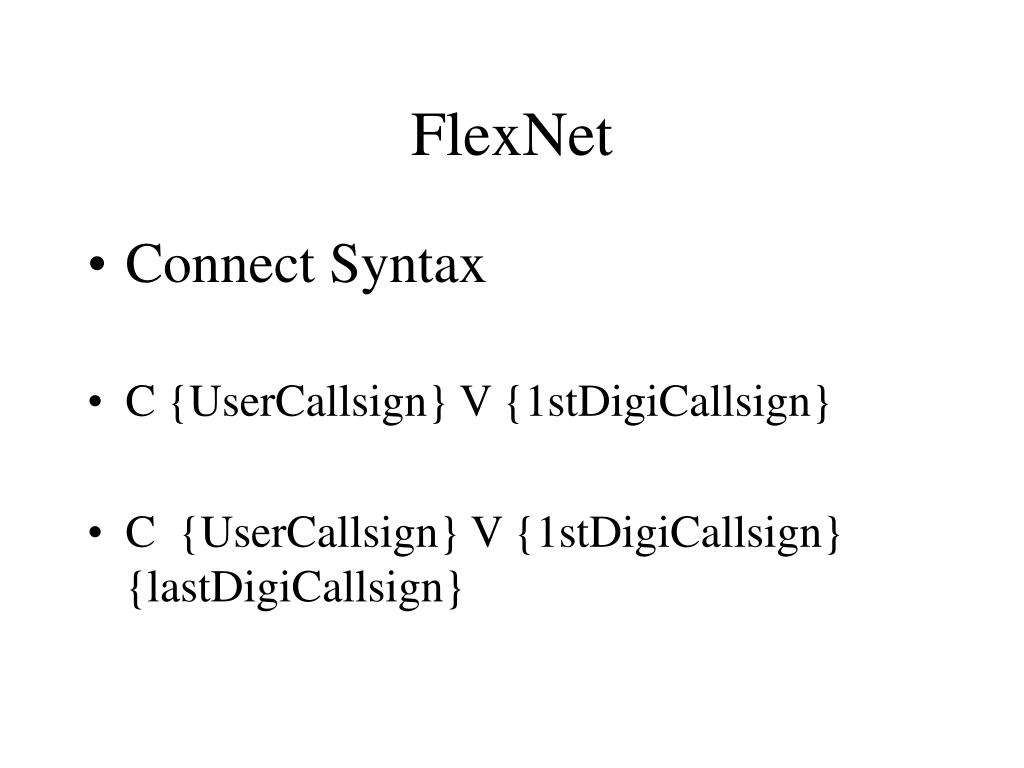

  5. FlexNet • Connect Syntax • C {UserCallsign} V {1stDigiCallsign} • C {UserCallsign} V {1stDigiCallsign} {lastDigiCallsign}

  6. FlexNet • FlexNet automatically tests each link every 4 minutes. • All node parameters are adjusted based solely upon these measurements • Parameters automatically adjust for traffic load and propagation conditions.

  7. FlexNet • Routing is fully automatic • No SysOp intervention is needed or allowed • FlexNet will continuously select fastest path • FlexNet will automatically route around a intermittent , one way or failed links

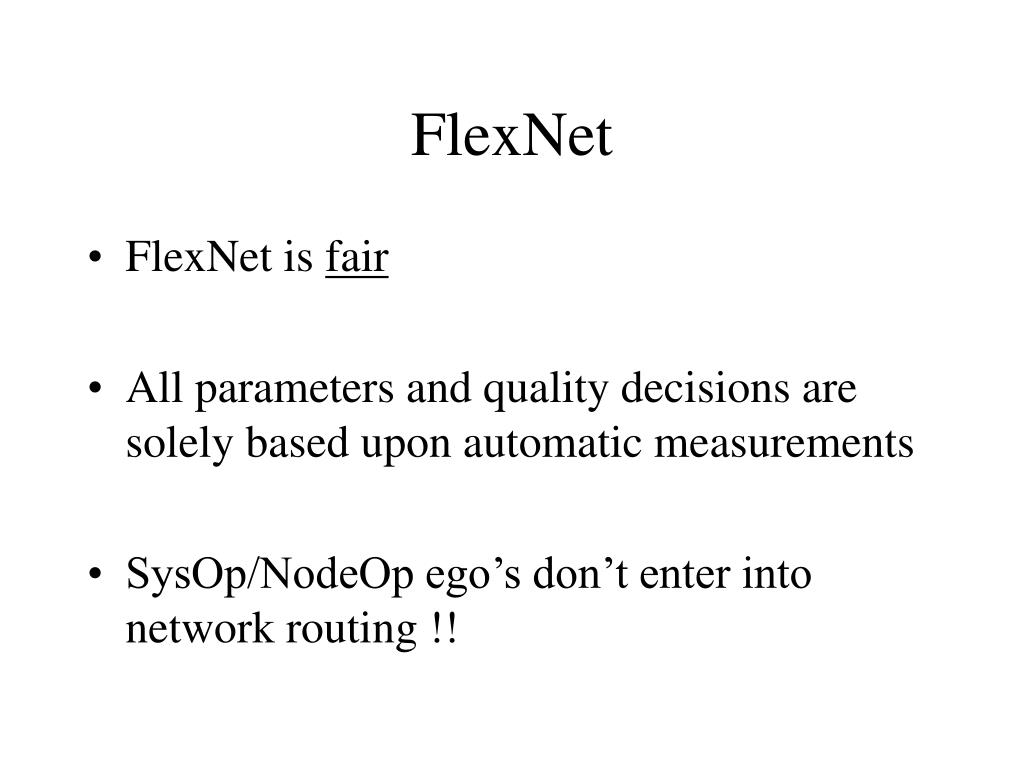

  8. FlexNet • FlexNet is fair • All parameters and quality decisions are solely based upon automatic measurements • SysOp/NodeOp ego’s don’t enter into network routing !!

  9. FlexNet • FlexNet is not limited to 3 radio hops, as we were under the NEDA standard • In Europe, over 600 sites appear on the local D tables !

  10. FlexNet • Every link is tested • If a <D>estination shows in the D table, you can reach it • No more one way links, phantom nodes

  11. FlexNet cmd:c wb2cik-2 *** CONNECTED to WB2CIK-2 PC/FlexNet V3.3g West Hills, LI, NY, USA 1200 baud 145.07 9600 baud 145.59 SysOp John C Papson WB2CIK @ WA2PNU <C>onn <D>estinations <I>nfo <H>elp <MH>eard <P>orts <U>sers <A> for Callsign vs Location Table <M>ail connects to nearest BBS <Q> to QUIT !! =>

  12. FlexNet =>i This 9 Port FlexNet 3.3e Digi is located in West Hills, LI, NY, USA The FlexNet runs on a 33 MHz 386DX with 9 RS-232 Ports. Each port in turn interfaces with a TNC running 6PACK firmware, thus off-loading some of the AX-25 protocol burden from the main computer. The following Servers are immediately available: Bulletin Boards: N2BQF-4 WA2PNU-4 TCP/IP Router: WB2CIK-1 SysOp is John C Papson, WB2CIK @ N2BQF.#NLI.NY.USA.NA Port Baud Frequency Function 0 1200 145.07 User 1 9600 145.59 User 2 19200 434.95 Link to Valhalla NY & Alpine NJ 3 9600 430.xx Link to Far Rockaway NY 4 9600 428.875 Link to Putnam NY 5 9600 421.95 Link to Orange CT 7 1200 50.73 Link to Jamesport NY & Yaphank NY 8 1200 223.54 Link to Huntington NY & Coram NY 9 1200 441.075 Link to Copiague NY 10 19200 wire Link to MFNOS TCP/IP computer

  13. FlexNet D => K1DO 3-3 115 K1DO 12-12 110 K1EIC 2-2 42 K1EIC 12-12 43 K1IMD 2-7 105 K1UOL 2-9 21 K2ADJ 1-1 2398 K2APL 12-12 102 K2KJC 2-2 91 K2LSX 14-14 29 K2PUT 0-15 12 K2UL 0-15 2041 K3LPP 15-15 122 K3YTL 0-15 105 KA1YIQ 0-14 187 KA2JWJ 13-13 308 KA2MSL 0-0 166 KA2MSL 2-7 151 KA2MSL 8-14 92 KA2UGQ 3-3 174 KB2VLX 0-15 40 KC2COJ 0-15 18 N2BIM 0-0 159 N2BIM 2-6 168 N2BIM 10-10 202 N2BIM 12-14 129 N2BQF 0-14 25 N2IZL 11-11 94 N2IZL 12-12 97 N2MFS 0-15 289 N2NOV 2-2 205 N2NSA 9-15 826 N2QAE 0-9 1141 N3BUB 0-0 1408 N3DAP 5-5 113 N3ED 0-0 272 N4GAA 14-14 25 NR3U 7-7 156 NY2LI 0-7 46 NY2S 0-10 320 NY2S 12-12 137 W1EDH 10-10 261 W1GB 0-15 169 W1HAD 0-15 107 W2CRA 5-5 1409 W2CXN 0-15 211 W2EMU 5-5 1731 W2HOB 3-3 2160 W2JT 0-15 119 W2LI 2-2 149 W2LV 0-14 65 W2XX 0-15 48 W3AVK 6-6 167 W3BI 0-15 838 WA2FNQ 0-15 22 WA2NDV 2-2 456 WA2PNU 0-15 35 WA2SNA 0-14 50 WA2TOW 2-2 112 WA2YSM 4-4 163 WA2YSM 7-7 861 WA2ZWP 0-15 304 WA3LWR 0-15 86 WB1CQO 0-6 19 WB1CQO 4-4 232 WB1CQO 7-7 66 WB2COP 2-2 84 WB2FTX 3-3 133 WB2QJA 0-8 110 WB2VPY 14-14 115 WB2ZII 1-1 23 WB2ZII 2-6 87 WB2ZII 7-15 17 WK1M 10-10 39 WT3V 6-6 77

  14. FlexNet Network Destinations in the USA North Eastern States area. Rev. 10/17/99 Flexnodes: call ssid user notes area location # K1IMD 2-7 144.91 LI Jamesport, Suffolk Cty, NY K1UOL 2-15 145.03 -4=BBS -0=WL WCT Bethel, Fairfield County, CT K2BJG 2-7 ------ sna-4=BBS -8=NOS NEJ Oakland, Bergen County, NJ K2PUT 0-15 145.61 -4=BBS SENY Mt Ninham, Carmel, Putnam Cty, NY KA1YIQ 0-15 441.05 cqo-4=BBS SCT Norwalk, Fairfield County, CT K2UL 0-15 145.07 -4=BBS SNJ Hamilton Square, Mercer Cty, NJ KA2MSL 2-7 145.07 -0=BBS SENY Newburgh, Orange County, NY KA2MSL 8-15 ------ -0=BBS SENY New Winsor, Orange County, NY KB2VLX 0-15 145.51 -4=BBS -1=NOS NYC East Bronx County, NY KC2COJ 0-15 145.05 -4=BBS -1=NOS NYC Far Rockaway, Queens County, NY K3YTL 0-15 145.05 lwr-4=BBS NEPA Wilkes-Barre, Luzerne Cty, PA N2BIM 2-6 145.73 -0 DXC NWJ Fredon, Sussex County, NJ N2BIM 12-14 144.91 -0 DXC NWJ Branchville, Sussex County, NJ N2BQF 0-14 145.07 -4=BBS LI Copiague, Suffolk Cty, NY N2IRZ 0-7 145.01 NEJ River Vale, Bergen Cty, NJ N2IZL 0-15 145.05 -4=BBS NYC Jamaica, Queens Cty, NY N2MFS 0-15 145.01 -4=BBS NYC Brooklyn, Kings Cty, NY N2NEI 0-12 145.07 -4=BBS LI E Hampton, Suffolk Cty, NY N2NSA 9-15 ------ -4=BBS NYC Manhattan, New York Cty, NY N2QAE 0-6 145.51 -4=BBS -1=NOS WCNJ Schooleys Mtn, Morris County, NJ FlexNet

  15. FlexNet N2QAE 5-5 to 0-6 -4=BBS -1=NOS WCNJ Long Valley, Morris County, NJ NY2LI 0-7 145.05 LI Yaphank, Suffolk Cty, NY NY2S 0-10 145.09 -4=BBS LI Lynbrook, Nassau County, NY W1GB 0-15 145.09 SCT Hamden New Haven Cty, CT W1HAD 0-15 441.05 SCT Shelton, Fairfield County, CT W2CXN 0-15 145.03 -4=BBS NYC Brooklyn, Kings County, NY W2LV 0-14 144.99 -4=BBS -1=NOS NWJ Branchville, Sussex County, NJ W2LV 5-5 to 0-14 -4=BBS -1=NOS NWJ Culvers Lake, Sussex County, NJ W3BI 0-15 144.97 -4-BBS EPA Nazareth, Northhampton Cty, PA WA2FNQ 0-15 145.05 -4=BBS CLI Northport, Suffolk, Cty, NY WA2PNU 0-13 145.99 -4=BBS CLI Huntington, Suffolk, Cty, NY WA2SNA 0-14 145.01 -4=BBS -1=NOS NEJ Ramapo Mtn, Oakland, Bergen Cty, NJ WA2ZWP 0-15 145.65 -4=BBS -1=NOS NYC Staten Island Richmond Cty, NY WA3LWR 0-15 145.01 -4=BBS NEPA Scranton, Lackawanna, Cty, PA WA3LWR 1-1 to 0-15 -4=BBS n3ed=DXC NEPA Clarks Summit Lackawanna, Cty, PA WB1CQO 0-6 145.09 -4=BBS SCT Bridgeport, Fairfield, Cty, CT WB2CIK 0-14 145.07 -1 NOS LI West Hills, Suffolk, Cty, NY WB2CIK 0-14 145.59 9k6 WB2QJA 0-8 145.05 -4=BBS SENY White Plains, Westchester Cty, NY WB2SNN 0-9 145.51 -4=BBS CNJ Sayreville, Middlesex Cty, NJ WB2ZII 2-6 145.05 qja-4=BBS SENY N Valhalla, Westchester, NY WB2ZII 7-15 145.09 -1=NOS SENY S Valhalla, Westchester, NY

  16. Flexnode neighbors: call ssid user notes area location # K1DO 3-3 144.91 to wb2snn CNJ Warren, Somerset Cty, NJ K1DO 12-12 144.91 to nsa,sna,snn CNJ Warren, Somerset Cty, NJ K1EIC 12-12 223.46 to w1gb SCT Orange, New Haven Cty, CT K2ADJ 1-1 144.99 to k2ul SNJ Edgewater Pk, Burlingtonm Cty, NJ K2APL 12-12 ? to kb2vlx NYC Briarwood, Queens Cty, NY K2KJC 2-2 145.01 to kb2vlx NYC Manhattan, New York Cty, NY K2LSX 14-14 145.03 to zii & cik NEJ Alpine, Bergen Cty, NJ KA2JWJ 13-13 144.99 to ka2msl SENY Chatham, Columbia County, NY KA2UGQ 3-3 145.01 to wa2sna CNJ Berkeley Hts. Union County, NJ K3LPP 15-15 144.95 to k3ytl/wa3lwr NEPA Tunkhannock, Wyoming Cty, PA N2CJ 3-2 ? to ka2msl SENY Clove Mtn, Dutchess County, NY N2NOV 2-2 145.77 to n2nsa-9 NYC Staten Island, Richmond, Cty, NY N2QAE 11-11 144.97 to n2qae WCNJ Montanna Mtn, Warren County. NJ N2SMV 12-12 145.54 to wb2snn CNJ Manalapan, Monmouth Cty, NJ N3BUB 0-0 to w3bi EPA Kresgeville, Monroe Cty, PA N3DAP 5-5 145.07 to k3ytl EPA Palmerton, Carbon Cty, PA N3ED 0-0 ------ to wa3lwr-1 NEPA FRC DXC Clarks Summit, PA N3JNZ 1-1 144.97 to w2lv EPA E Stroudsburgh, Monroe Cty,, PA N4GAA 14-14 145.05 to wb2cik SCT Orange, New Haven Cty, CT NR3U 7-7 ------ to k3ytl CPA Selingsgrove, Synder Cty, PA NY2S 12-12 145.63 to kc2coj NYC Rock Ctr, Manhattan NYC, NY W1QI 0-0 145.07 to k1uol SCT Newtown, Fairfield County, CT W1TOM 13-13 144.99 to k2put WMA Chester, Hampshire County, MA W2CRA 5-5 145.51 to n2qae WCNJ Cherryville, Hunterdon Cty. NJ W2DMC 2-2 ? to wb2zii SENY Ponoma, Rockland Cty. NY W2HOB 3-3 ------ to k2ul SNJ Waterford Works, Camden Cty, NJ W2EMU 5-5 145.05 to wb2snn CNJ Bridgewater, Somerset Cty, NJ W2JT 0-15 144.93 DXC to wa2sna NEJ West Caldwell, Essex Cty, MJ FlexNet

  17. W2LI 2-2 145.01 to wa2sna NEJ Murray Hill, Union Cty, NJ W2MW 3-3 145.51 to wa2sna NEJ Oak Ridge, Morris Cty, NJ W2XX 0-15 ------ to wb2zii-7 SENY YCCC DXC Cortland Manor, NY W3AVK 6-6 144.93 to k3ytl NCPA Williamsport, Lycoming Cty, PA WA2TOW 2-2 145.09 to wb2zii SENY York Town, Westchester Cty, MY WA2YSM 4-4 145.01 to ka2msl SENY Poughkeepsie, Dutchess Cty, NY WB1CQO 7-7 441.05 to wb1cqo SCT Fairfield, Fairfield, Cty, CT WB2COP 2-2 multi to wb2snn JS Middletown, Monmouth Cty, NJ WB2FTX 3-3 145.01 to wa2sna NEJ Butler, Morris Cty, NJ WB2VPY 14-14 145.07 to wa3lwr SCNY Elmira, Chemung County, NY WB3DTG 0-0 to w3bi EPA Nazareth, Northampton Cty, PA WT3V 6-6 145.03 to kc2coj JS Lakehurst, Ocean Cty, NJ WT3V 7-7 145.03 to wb2snn JS Lakehurst, Ocean Cty, NJ Scheduled Flexnet Conversions: call ssid user notes area location K1MEA 0-15 144.99/145.05 -4=BBS WMA Easthampton, Hampshire Cty, MA K1TR 0-15 145.07/441.025 SNH Windham, Rockingham, NH KA2JWJ 0-15 144.99 ECNY Chatham, Columbia County, NY N2MEG 0-15 144.97 -4=BBS+NYCGW NYC Van Ness Section, Bronx, NY N2QAE 10-15 144.97 -4=BBS WCNJ Montanna Mtn, Warren County. NJ N2SMV 0-15 145.54 -4=BBS CNJ Manalapan, Monmouth Cty, NJ W1TOM 0-9 144.99 BBS=K1MEA-4 WMA Holyoke, Hampshire County, MA W1TOM 10-15 144.99 BBS=K1MEA-4 WMA Chester, Hampshire County, MA WB1CQO 7-7 441.05 -4=BBS SCT Fairfield, Fairfield County, CT WB1DSW 0-15 145.05 -2=BBS-4=NOS SNH Kingston, Rockingham, NH W2CRA 0-15 145.51 -4=BBS WCNJ Cherryville, Hunterdon Cty. NJ WT3V 0-15 145.03 -4=BBS JS Lakehurst, Ocean Cty, NJ

  18. FlexNet =>u * 992: S5 F15 M5 P5 : WB2CIK-6>WB1CQO-11 991: S5 F34 M7 P0 : WB2CIK-2>WB2CIK-15 11: S5 ! F15 M6 P2 : WA2PNU-4>W2NRE-9 v WB2CIK-12* WB2ZII-7 1: S5 U1 ! F62 M3 P7 : W2NRE-9>WA2PNU-4 v WB2CIK* 20: S5 ! F40 M2 P8 : WA2PNU-4>N2BQF-4 v WB2CIK-12* 12: S5 ! F40 M2 P7 : N2BQF-4>WA2PNU-4 v WB2CIK* 22: S5 F12 M6 P4 : WA2PNU-4>K2PUT-10 v WB2CIK-12* 21: S5 ! F69 M4 P7 : K2PUT-10>WA2PNU-4 v WB2CIK* 24: S5 F24 M3 P4 : KB2NEX-4>K2PUT-10 v WB2CIK-12* 23: S5 ! F40 M2 P7 : K2PUT-10>KB2NEX-4 v WB2CIK* WA2PNU 26: S5 F51 M2 P7 : KB2NEX-4>KC2FD-3 v WB2CIK-14* 25: S5 ! F40 M2 P2 : KC2FD-3>KB2NEX-4 v WB2CIK* WB2ZII-7

  19. FlexNet =>d kb2vlx *** KB2VLX (0-15) T=17 *** route: WB2CIK KB2VLX =>d wa2sna *** WA2SNA (0-14) T=40 *** route: WB2CIK k2put-10 k2put-14 WA2SNA =>d wb2cop-2 *** WB2COP-2 (2-2) T=714 => *** route: WB2CIK k2put-10 k2put-14 WA2SNA n2nsa-12 n2nsa-9 WB2SNN WB2COP-2

  20. FlexNet You wanted to exit, so you send a “B” for “BYE” =>b # 10 0 FlxNet : West Hills, LI, NY # 30 0 FlxNet : "C WB2CIK-1" for TCP/IP; "C WB2CIK-2" for FlexNet Digi. # What you got was the “BEACON” text file “Q” to quit !

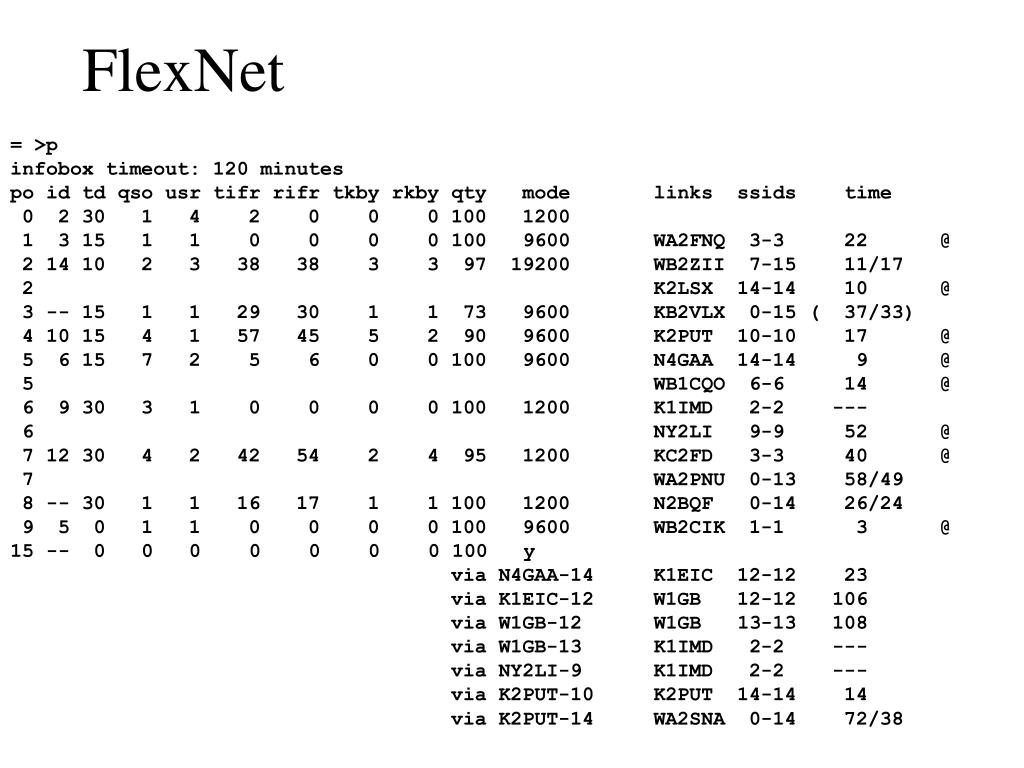

  21. FlexNet = >p infobox timeout: 120 minutes po id td qso usr tifr rifr tkby rkby qty mode links ssids time 0 2 30 1 4 2 0 0 0 100 1200 1 3 15 1 1 0 0 0 0 100 9600 WA2FNQ 3-3 22 @ 2 14 10 2 3 38 38 3 3 97 19200 WB2ZII 7-15 11/17 2 K2LSX 14-14 10 @ 3 -- 15 1 1 29 30 1 1 73 9600 KB2VLX 0-15 ( 37/33) 4 10 15 4 1 57 45 5 2 90 9600 K2PUT 10-10 17 @ 5 6 15 7 2 5 6 0 0 100 9600 N4GAA 14-14 9 @ 5 WB1CQO 6-6 14 @ 6 9 30 3 1 0 0 0 0 100 1200 K1IMD 2-2 --- 6 NY2LI 9-9 52 @ 7 12 30 4 2 42 54 2 4 95 1200 KC2FD 3-3 40 @ 7 WA2PNU 0-13 58/49 8 -- 30 1 1 16 17 1 1 100 1200 N2BQF 0-14 26/24 9 5 0 1 1 0 0 0 0 100 9600 WB2CIK 1-1 3 @ 15 -- 0 0 0 0 0 0 0 100 y via N4GAA-14 K1EIC 12-12 23 via K1EIC-12 W1GB 12-12 106 via W1GB-12 W1GB 13-13 108 via W1GB-13 K1IMD 2-2 --- via NY2LI-9 K1IMD 2-2 --- via K2PUT-10 K2PUT 14-14 14 via K2PUT-14 WA2SNA 0-14 72/38

  22. =>l WB2ZII 7-15 11/19 P 2 KB2VLX 0-15 ( 37/33) P 3 K2LSX 14-14 10 P 2 @ K2PUT 10-10 17 P 4 @ N4GAA 14-14 9 P 5 @ WB1CQO 6-6 14 P 5 @ K1IMD 2-2 --- P 6 NY2LI 9-9 52 P 6 @ KC2FD 3-3 40 P 7 @ WA2PNU 0-13 58/49 P 7 N2BQF 0-14 26/24 P 8 WB2CIK 1-1 3 P 9 @ WA2FNQ 3-3 16 P 1 @ K1EIC 12-12 23 via N4GAA-14 W1GB 12-12 106 via K1EIC-12 W1GB 13-13 108 via W1GB-12 K1IMD 2-2 --- via W1GB-13 K1IMD 2-2 --- via NY2LI-9 K2PUT 14-14 14 via K2PUT-10 WA2SNA 0-14 72/38 via K2PUT-14 FlexNet

  23. =>l * (d:52 v:0 t:4d, 2h) WB2ZII 7-15 11/19 2d, 7h P 2 16 10 7 59 6 5 4 6 5 5 4 7 5 5 27 5 KB2VLX 0-15 ( 37/33) 4d, 2h P 3 8 8 8 7 7 8 95 11 13 19 17 13 206 160 7 8 K2LSX 14-14 10 1d, 8h P 2 @ 12 6 6 8 6 6 6 30 6 6 6 8 14 24 8 6 K2PUT 10-10 17 4d, 2h P 4 @ 10 8 42 12 10 8 10 8 24 8 50 8 8 38 18 8 N4GAA 14-14 9 17m,14s P 5 @ 8 8 10 8 8 10 WB1CQO 6-6 14 1d, 8h P 5 @ 10 8 12 10 8 12 42 8 10 20 26 12 14 8 8 12 K1IMD 2-2 --- 4d, 2h P 6 NY2LI 9-9 52 2h,16m P 6 @ 20 150 20 18 20 110 212 20 20 18 20 20 116 20 20 20 KC2FD 3-3 40 11h,36m P 7 @ 52 28 56 30 28 26 40 26 24 30 32 80 26 58 70 32 WA2PNU 0-13 59/50 4d, 2h P 7 148 25 27 28 29 27 27 25 25 29 28 28 272 156 26 42 N2BQF 0-14 26/24 1d, 3h P 8 25 26 25 27 26 25 25 25 25 27 27 25 26 26 26 2 WB2CIK 1-1 3 2d,12h P 9 @ 2 4 2 2 2 2 2 4 4 2 2 2 2 2 4 2 WA2FNQ 3-3 16 3m,16s P 1 @ 22 10 K1EIC 12-12 23 1d, 2h via N4GAA-14 12 12 10 10 16 14 10 12 12 12 10 98 12 12 FlexNet

  24. FlexNet =>st uptime: 4d, 2h; total 200k, max 133k, used 8k po device version txframes rxframes terr rerr rberr ioerr 0 6PACK 0.9d 13645 29518 0 0 0 1 1 6PACK 0.9d 17828 12011 0 0 0 0 2 6PACK 0.9d 64914 134023 0 0 0 4 3 6PACK 0.9d 31572 27249 0 0 0 0 4 6PACK 0.9d 64445 59517 0 0 0 0 5 6PACK 0.9d 49538 32152 0 0 0 3 6 6PACK 0.9d 41015 16480 0 0 0 0 7 6PACK 0.9d 47114 52935 0 0 0 1 8 19902 18114 0 0 0 0 9 KISS 1.3a 8168 9564 0 0 0 0 15 SHELL 3.3g:1 219 219 0 0 0 0

  25. FlexNet =>h Help File: Version #7, 10 October 1998 !!!! Commands: <A>kteull: It's a German expression for "Latest News". <B>eacon: Sysop only command, to upload beacon text. <C>onnect: Usage: "C UserCallSign V Digi" if user is a frequent user of the FlexNet Network or another Digi. ie: C K2HTX V WB2CIK-2 C KC2FD-4 V WB2CIK-2 FlexNet will remember the way back to the last 200 user stations that have passed thru this Digi. FlexNet knows the way to all Digi's in the <D *> table, regardless how many radio hop's away. Otherwise: "C UserCallSign V 1stDigi LastDigi" using the 1st Digi call where the user is know to be listening. ie: C K2HTX V WB2CIK-2 WA2PNU-2 Additional Info: See <F>ind command.

  26. <F>ind: Attempts to connect to a user by means of a broadcast to all user ports on the network. Usage "F UserCallSign", ie: "F K2HTX" Try it several times, as works on a single ping to user... The first ping may be missed ! <H>elp: Displays this file. [Please print for future reference] <I>nfo: Displays information file about this node. <L>inks: Displays link table. As a SysOp, command to configure a link. "L *" displays each link with "RoundTripTime" history. <LO>cal: Additional connect text file, displayed only to local users, ie, those not coming in via the network. <M>ail: Connects user to nearest BBS (mailbox). As SysOp, stes same. <MH>eard: Displays last 30 direct heard callsigns with timestamp. Optionally, a port number (0..15), a callsign (with or without SSID) or a number (16...200) of entries to be listed may be given. <MO>de: SysOp only command, to configure a port. <MY>call: Gives the callsign and SSID range of the node. As SysOp, sets same. <P>arameters: Puts out a list of the current parameters and some of the channel statistics. FlexNet

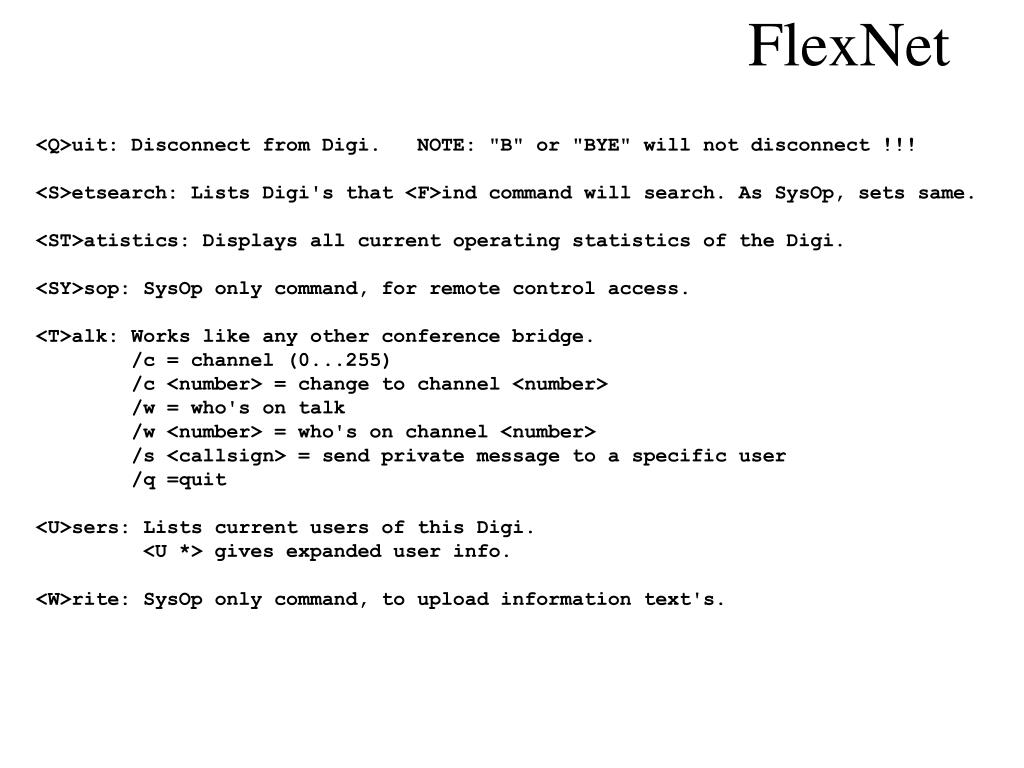

  27. FlexNet <Q>uit: Disconnect from Digi. NOTE: "B" or "BYE" will not disconnect !!! <S>etsearch: Lists Digi's that <F>ind command will search. As SysOp, sets same. <ST>atistics: Displays all current operating statistics of the Digi. <SY>sop: SysOp only command, for remote control access. <T>alk: Works like any other conference bridge. /c = channel (0...255) /c <number> = change to channel <number> /w = who's on talk /w <number> = who's on channel <number> /s <callsign> = send private message to a specific user /q =quit <U>sers: Lists current users of this Digi. <U *> gives expanded user info. <W>rite: SysOp only command, to upload information text's.
