  1. 17.2 Curved Mirrors Waseem A. Alhausani M.Sc. ATHS – RAK 8/2/2012

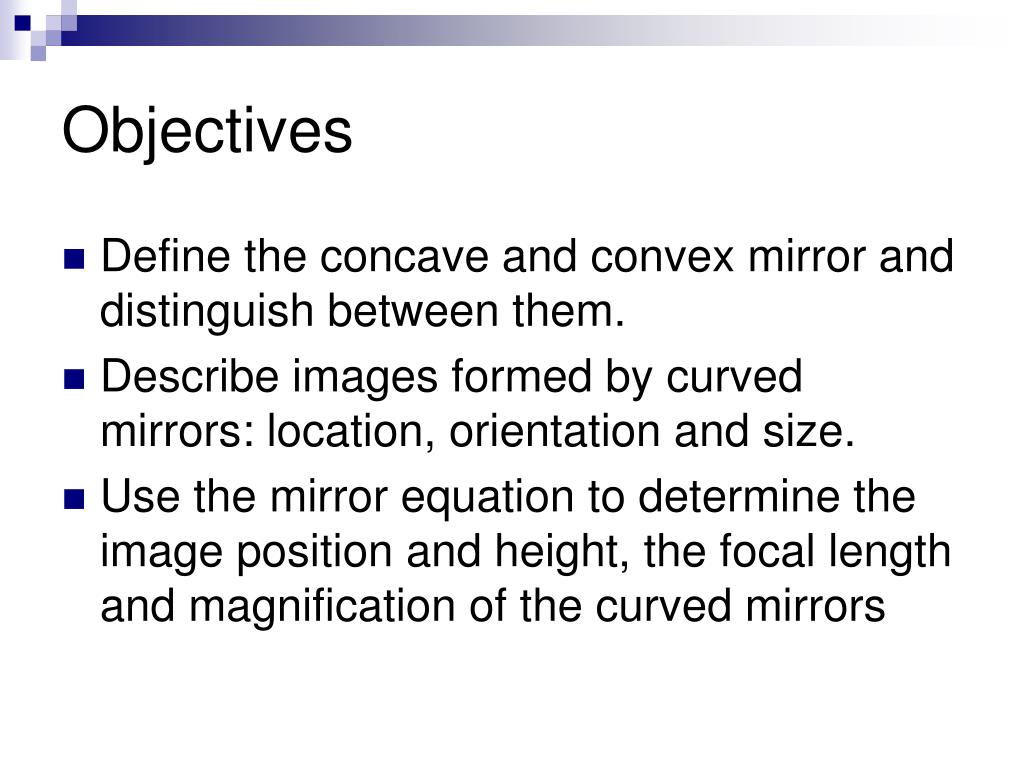

  2. Objectives Define the concave and convex mirror and distinguish between them. Describe images formed by curved mirrors: location, orientation and size. Use the mirror equation to determine the image position and height, the focal length and magnification of the curved mirrors

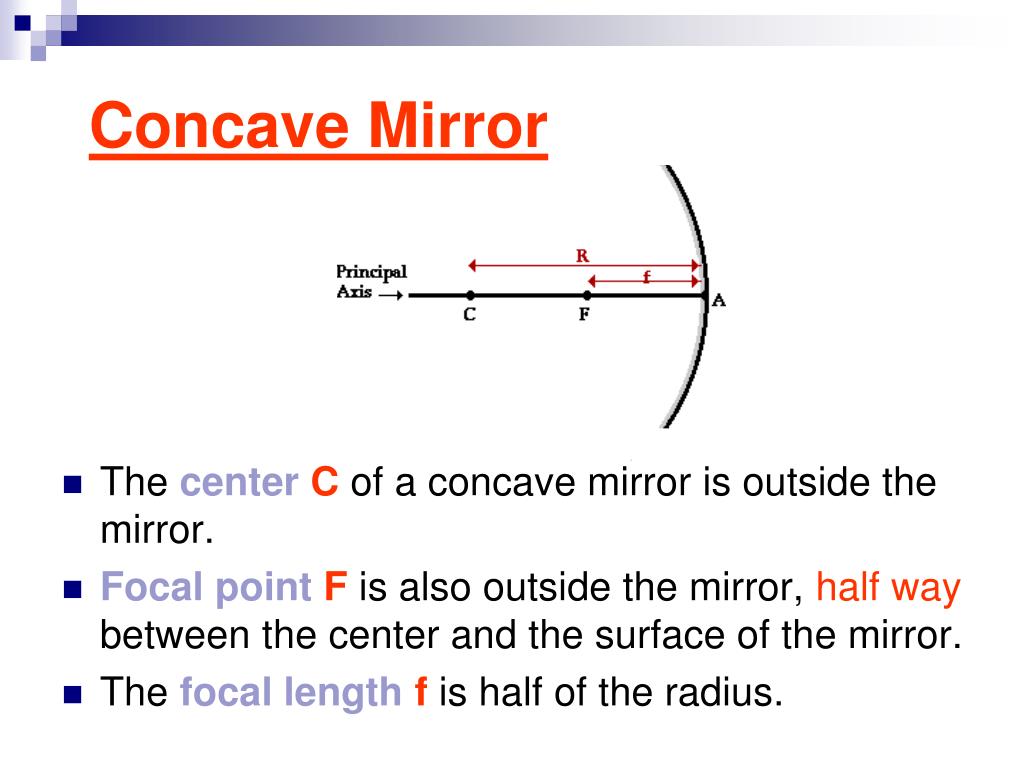

  3. Concave Mirror The centerC of a concave mirror is outside the mirror. Focal pointF is also outside the mirror, half way between the center and the surface of the mirror. The focal lengthfis half of the radius.

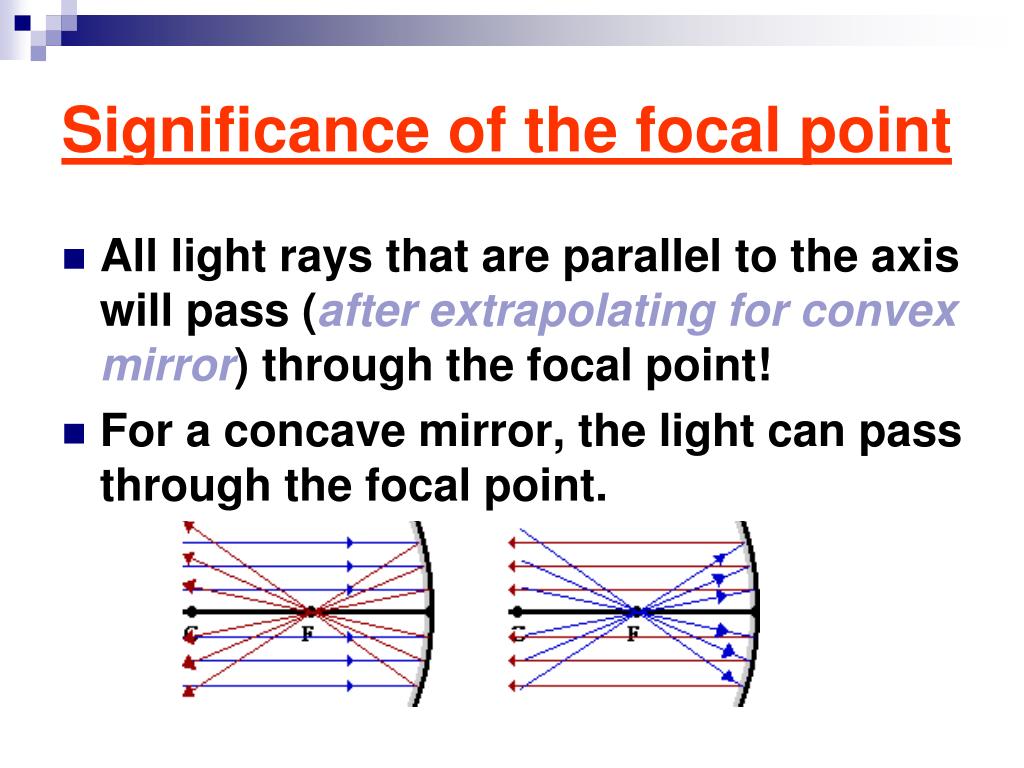

  4. Significance of the focal point • All light rays that are parallel to the axis will pass (after extrapolating for convex mirror) through the focal point! • For a concave mirror, the light can pass through the focal point.

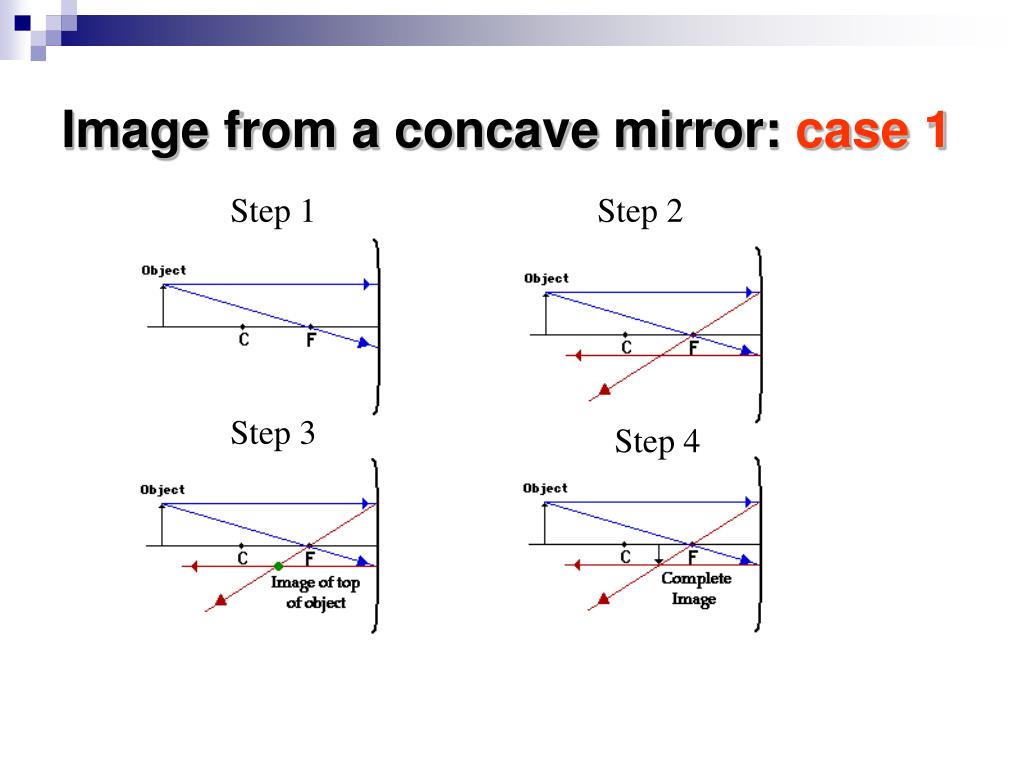

  5. Image from a concave mirror: case 1 Step 1 Step 2 Step 3 Step 4

  6. Image from a concave mirror:case 1

  7. Properties of the Image • If we put an object outside of the center of a concave mirror, we find the image is • Real, in the sense that all light rays pass through the image. • Inverted, in the sense that the direction of the arrow has been changed. • The image is smaller!

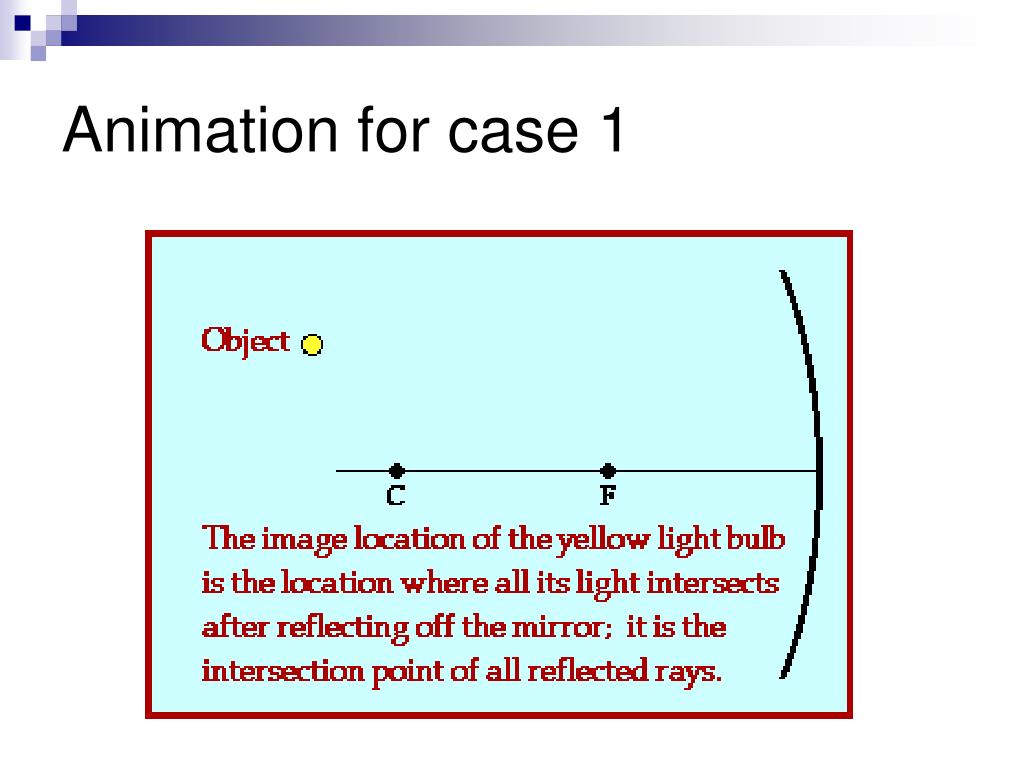

  8. Animation for case 1

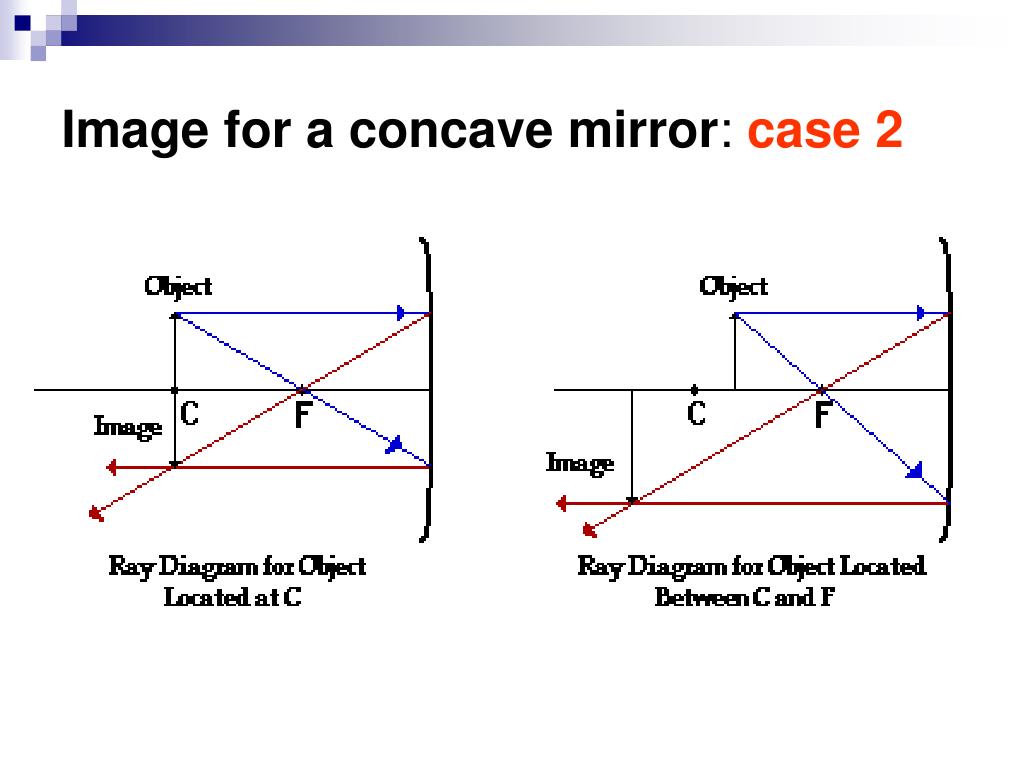

  9. Image for a concave mirror: case 2

  10. If the object is in between the center and the focal point, the image is • Real • Inverted • Magnified in the sense that the image is bigger than the real object. • The direction of the light rays can be reversed and the result is still physically possible! (or the image and object interchanged)

  11. Animation for case 2

  12. Image from a concave mirror: case 3

  13. Image from a concave mirror: case 3

  14. Animation for case 3

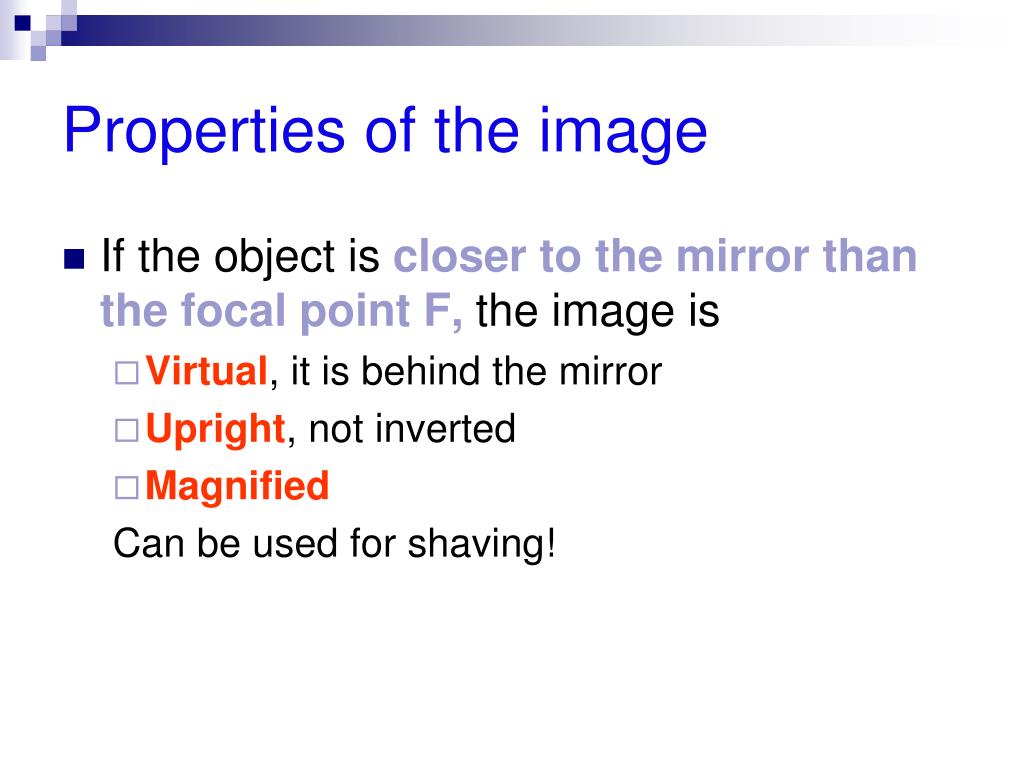

  15. Properties of the image • If the object is closer to the mirror than the focal point F, the image is • Virtual, it is behind the mirror • Upright, not inverted • Magnified Can be used for shaving!

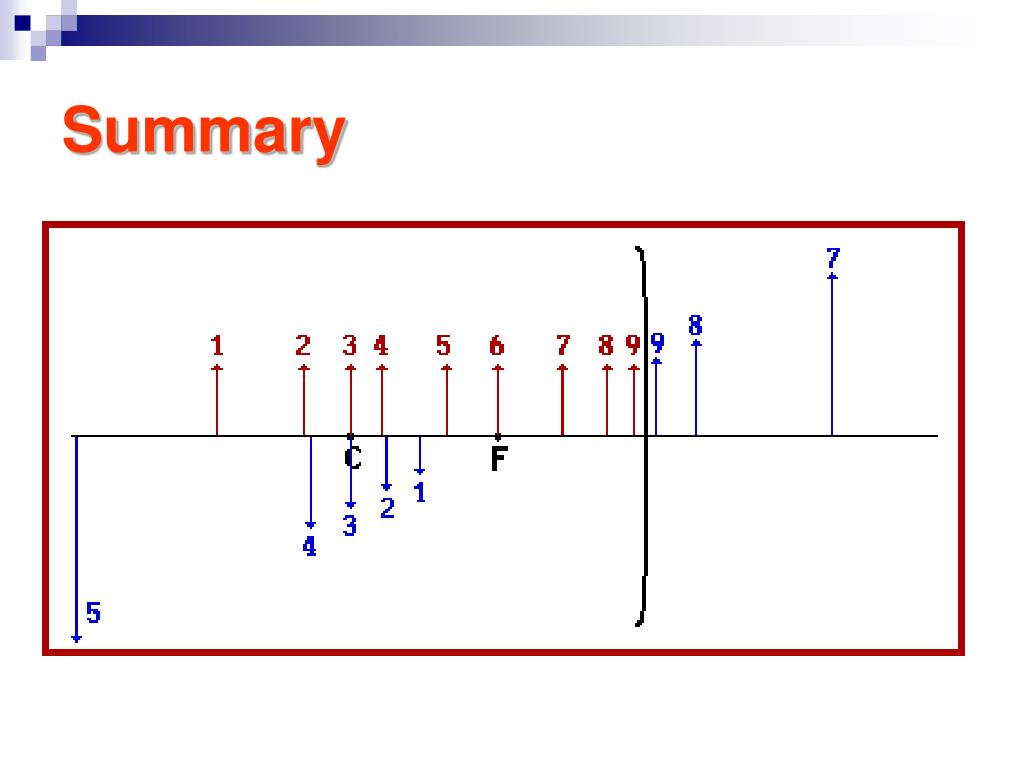

  16. Summary

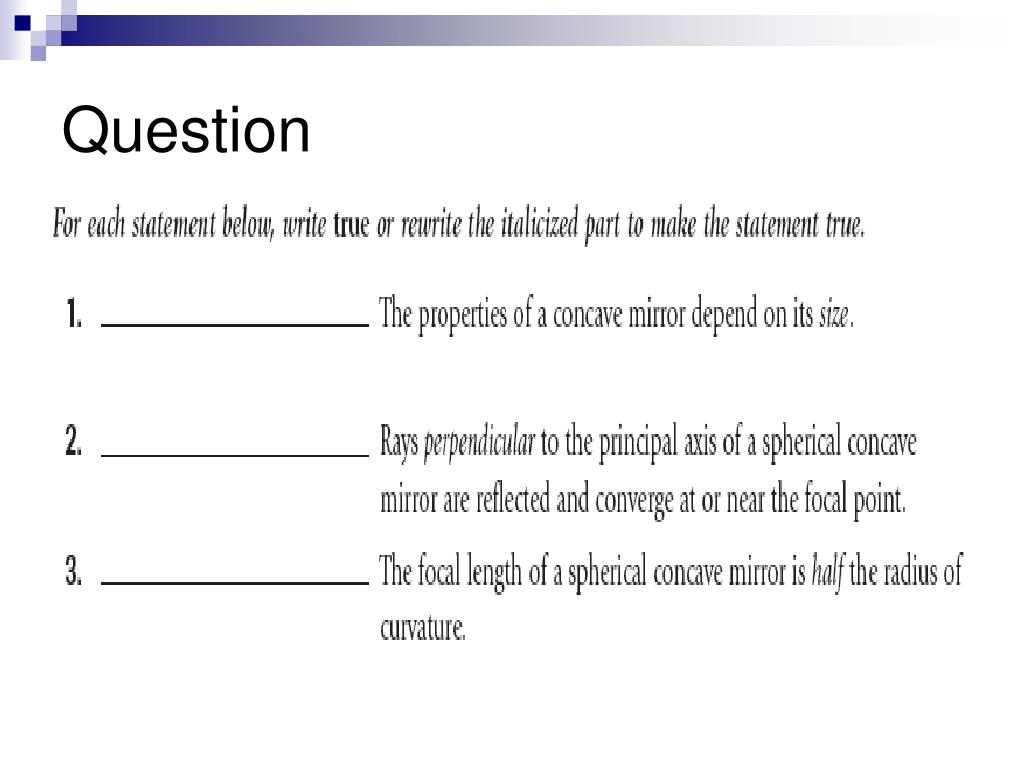

  17. Question

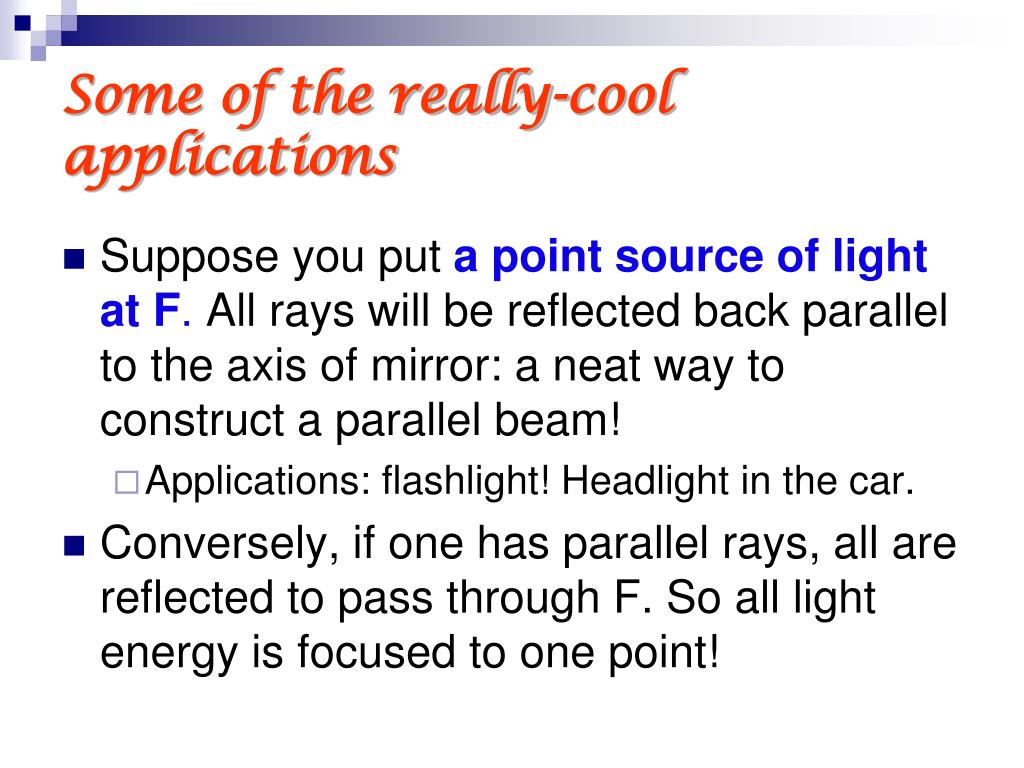

  18. Some of the really-cool applications • Suppose you put a point source of light at F. All rays will be reflected back parallel to the axis of mirror: a neat way to construct a parallel beam! • Applications: flashlight! Headlight in the car. • Conversely, if one has parallel rays, all are reflected to pass through F. So all light energy is focused to one point!

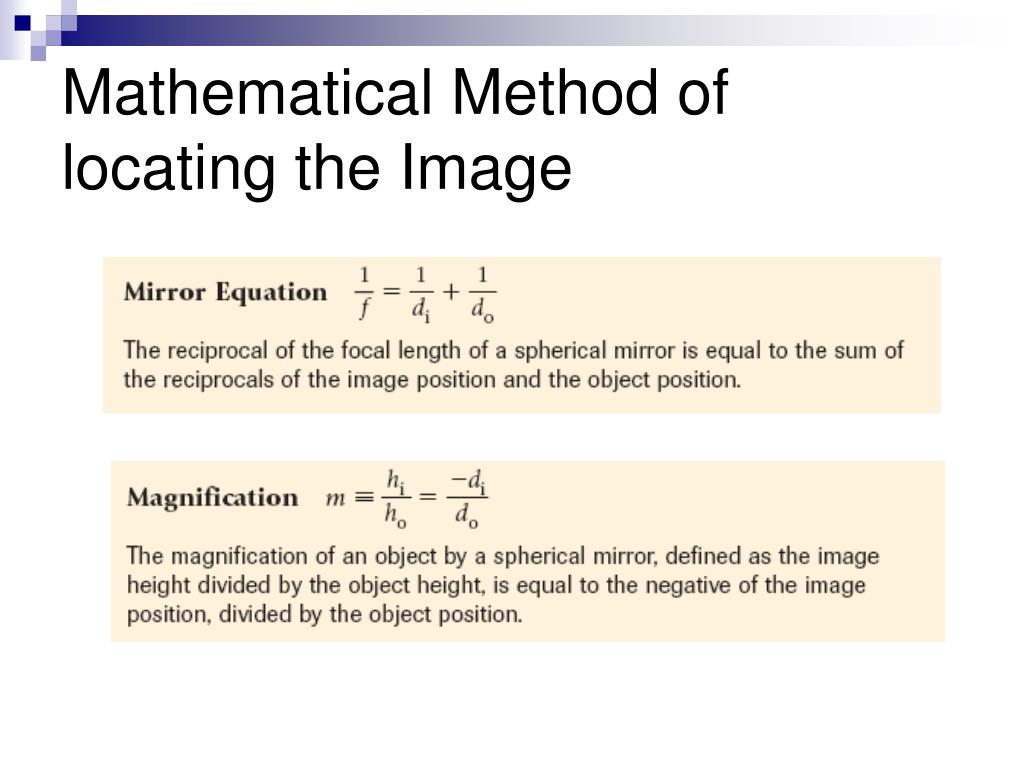

  19. Mathematical Method of locating the Image

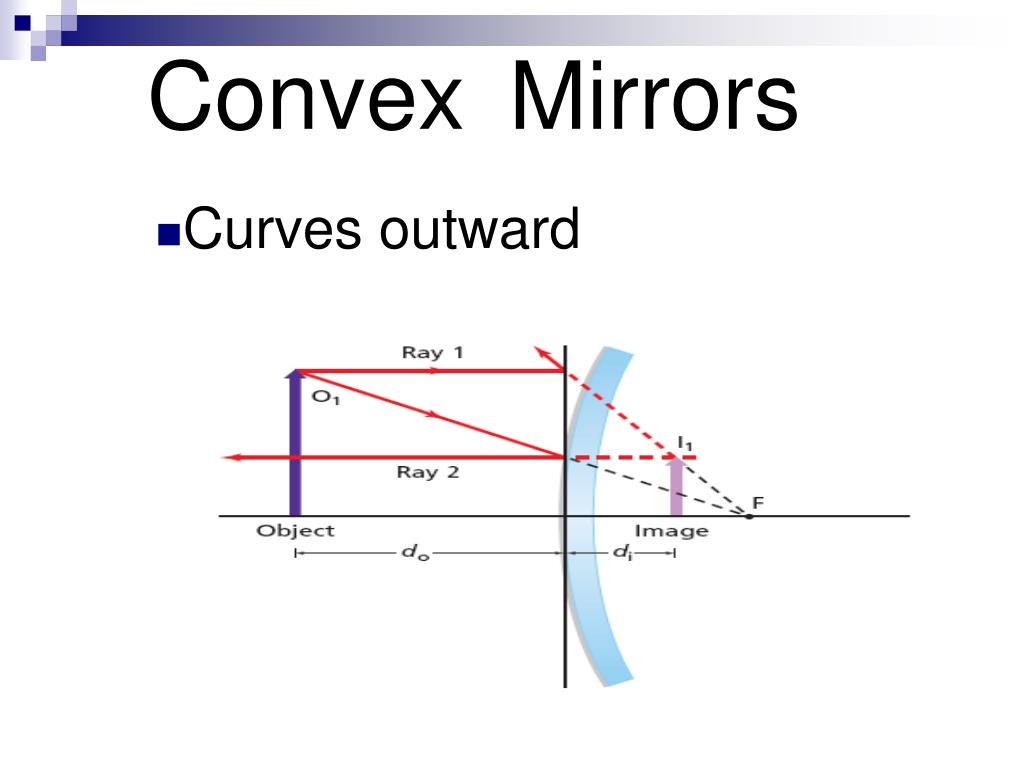

  20. Convex Mirrors • Curves outward

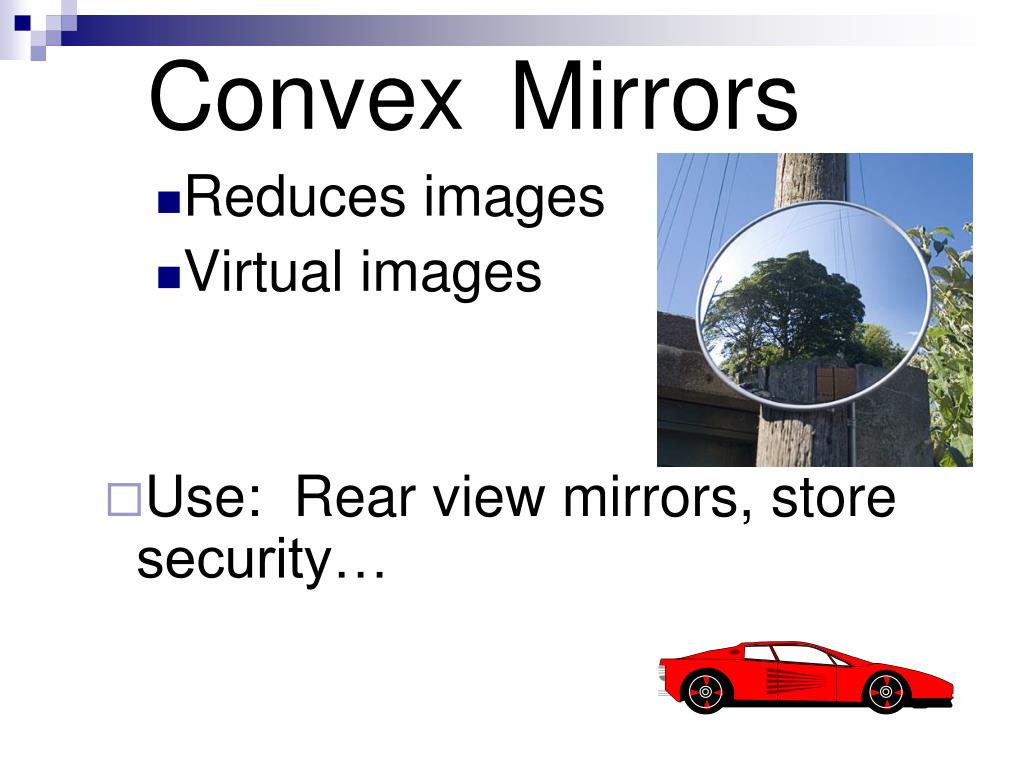

  21. Convex Mirrors • Reduces images • Virtual images • Use: Rear view mirrors, store security…

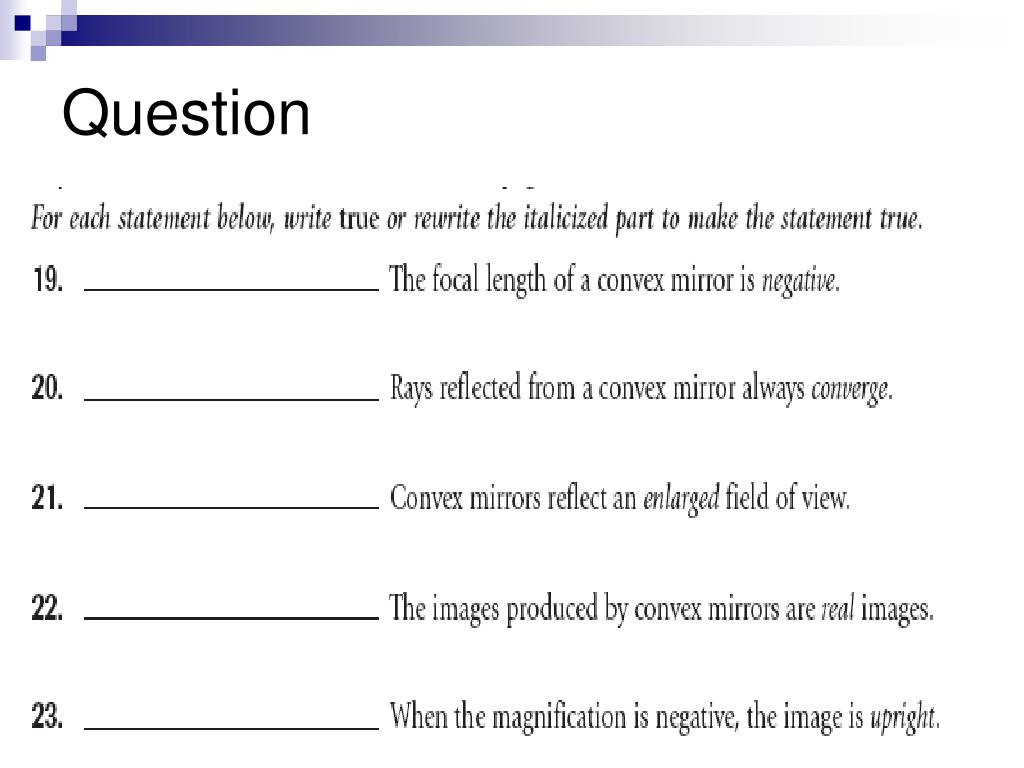

  22. Question

  23. Assessment http://www.glencoe.com/qe/scienceOLC.php?qi=7921 H.W: Problems 22-26 / page: 473. Quiz (Next week / to be appointed… )
