  1. Lab Guide

  2. Visual Objective 1-1: Cisco Remote Lab Connection

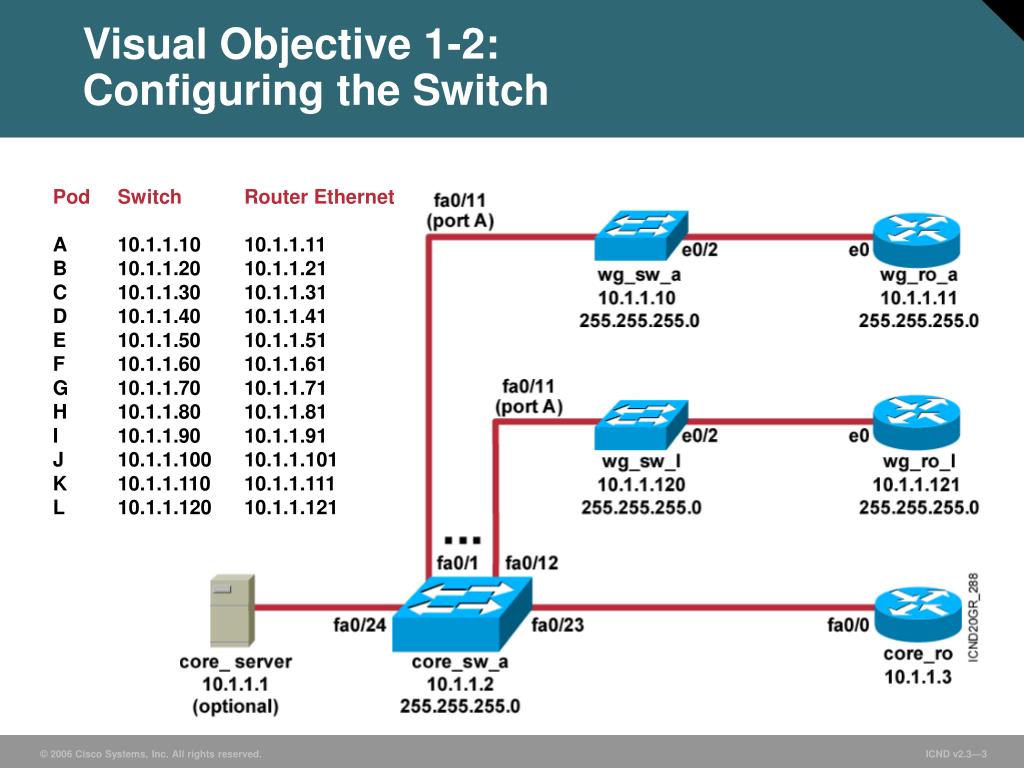

  3. Visual Objective 1-2: Configuring the Switch Pod Switch Router Ethernet A 10.1.1.10 10.1.1.11 B 10.1.1.20 10.1.1.21 C 10.1.1.30 10.1.1.31 D 10.1.1.40 10.1.1.41 E 10.1.1.50 10.1.1.51 F 10.1.1.60 10.1.1.61 G 10.1.1.70 10.1.1.71 H 10.1.1.80 10.1.1.81 I 10.1.1.90 10.1.1.91 J 10.1.1.100 10.1.1.101 K 10.1.1.110 10.1.1.111 L 10.1.1.120 10.1.1.121

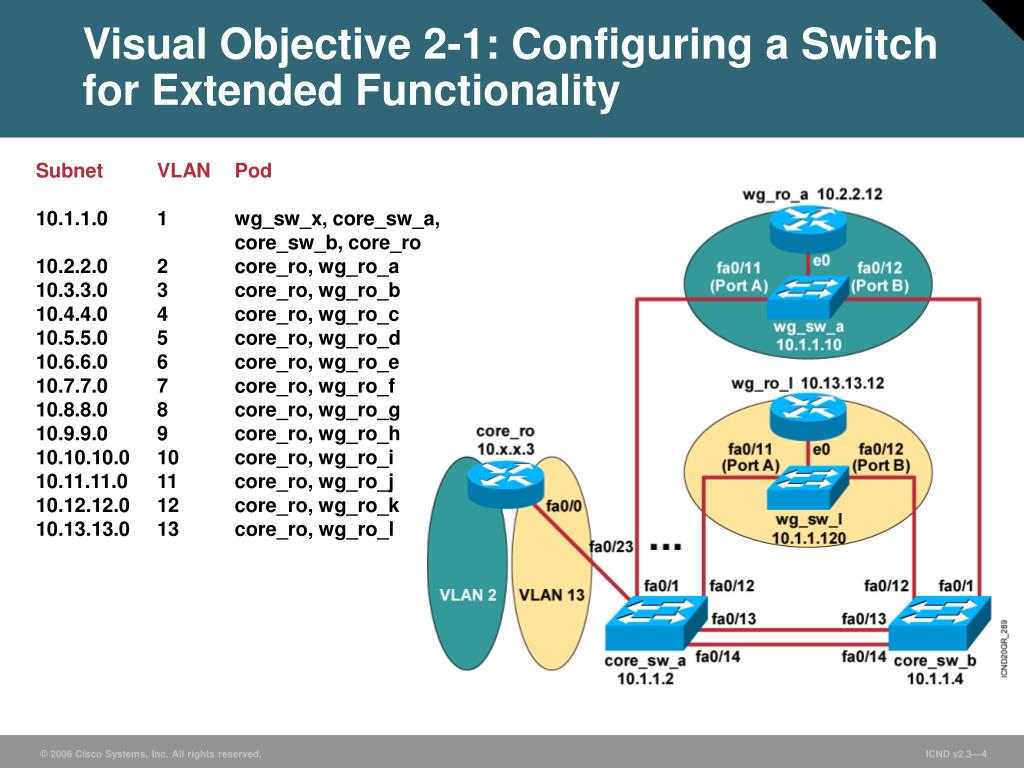

  4. Visual Objective 2-1: Configuring a Switch for Extended Functionality Subnet VLAN Pod 10.1.1.0 1 wg_sw_x, core_sw_a, core_sw_b, core_ro 10.2.2.0 2 core_ro, wg_ro_a 10.3.3.0 3 core_ro, wg_ro_b 10.4.4.0 4 core_ro, wg_ro_c 10.5.5.0 5 core_ro, wg_ro_d 10.6.6.0 6 core_ro, wg_ro_e 10.7.7.0 7 core_ro, wg_ro_f 10.8.8.0 8 core_ro, wg_ro_g 10.9.9.0 9 core_ro, wg_ro_h 10.10.10.0 10 core_ro, wg_ro_i 10.11.11.0 11 core_ro, wg_ro_j 10.12.12.0 12 core_ro, wg_ro_k 10.13.13.0 13 core_ro, wg_ro_l

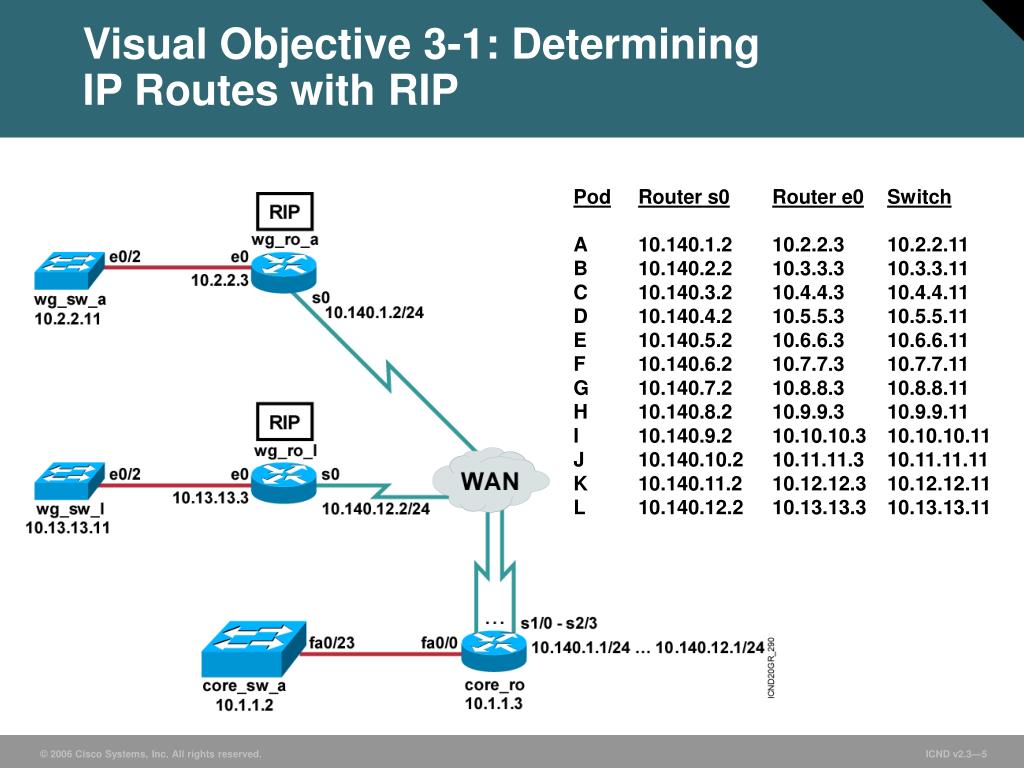

  5. Visual Objective 3-1: Determining IP Routes with RIP PodRouter s0Router e0Switch A 10.140.1.2 10.2.2.3 10.2.2.11 B 10.140.2.2 10.3.3.3 10.3.3.11 C 10.140.3.2 10.4.4.3 10.4.4.11 D 10.140.4.2 10.5.5.3 10.5.5.11 E 10.140.5.2 10.6.6.3 10.6.6.11 F 10.140.6.2 10.7.7.3 10.7.7.11 G 10.140.7.2 10.8.8.3 10.8.8.11 H 10.140.8.2 10.9.9.3 10.9.9.11 I 10.140.9.2 10.10.10.3 10.10.10.11 J 10.140.10.2 10.11.11.3 10.11.11.11 K 10.140.11.2 10.12.12.3 10.12.12.11 L 10.140.12.2 10.13.13.3 10.13.13.11

  6. Visual Objective 3-2: Determining IP Routes with EIGRP

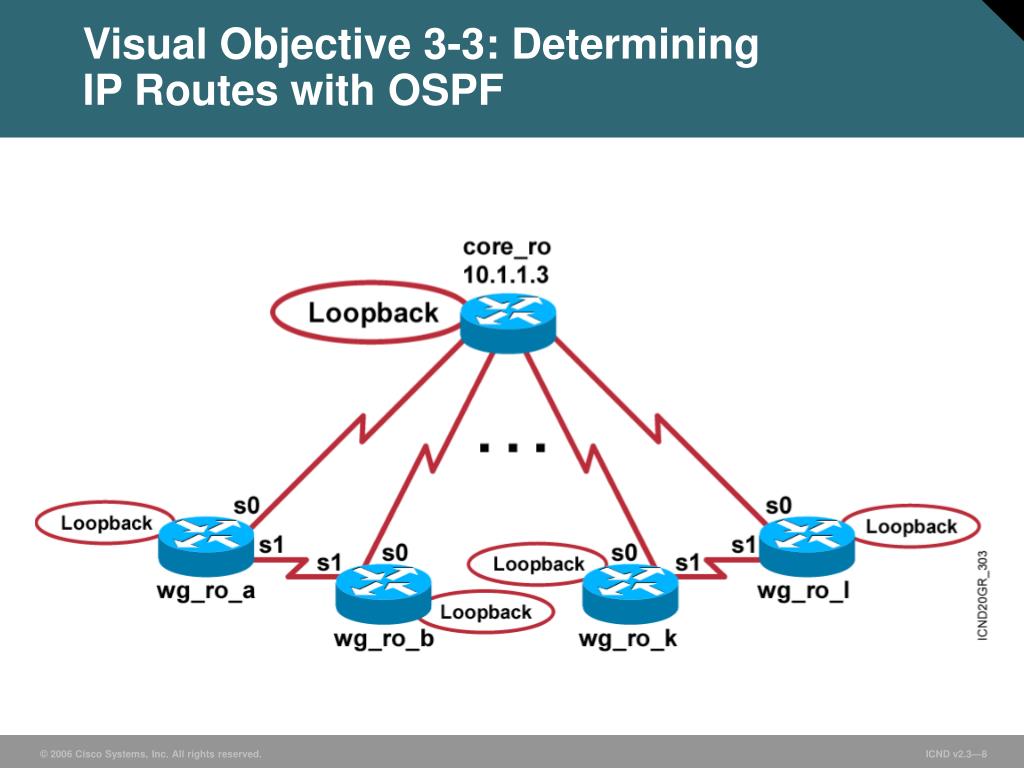

  7. Visual Objective 3-3: Determining IP Routes with OSPF

  8. Visual Objective 4-1: Configuring IP ACLs Workgroup Workgroup Workgroup PodRouter s0Router e0Switch A 10.140.1.2 10.2.2.3 10.2.2.11 B 10.140.2.2 10.3.3.3 10.3.3.11 C 10.140.3.2 10.4.4.3 10.4.4.11 D 10.140.4.2 10.5.5.3 10.5.5.11 E 10.140.5.2 10.6.6.3 10.6.6.11 F 10.140.6.2 10.7.7.3 10.7.7.11 G 10.140.7.2 10.8.8.3 10.8.8.11 H 10.140.8.2 10.9.9.3 10.9.9.11 I 10.140.9.2 10.10.10.3 10.10.10.11 J 10.140.10.2 10.11.11.3 10.11.11.11 K 10.140.11.2 10.12.12.3 10.12.12.11 L 10.140.12.2 10.13.13.3 10.13.13.11

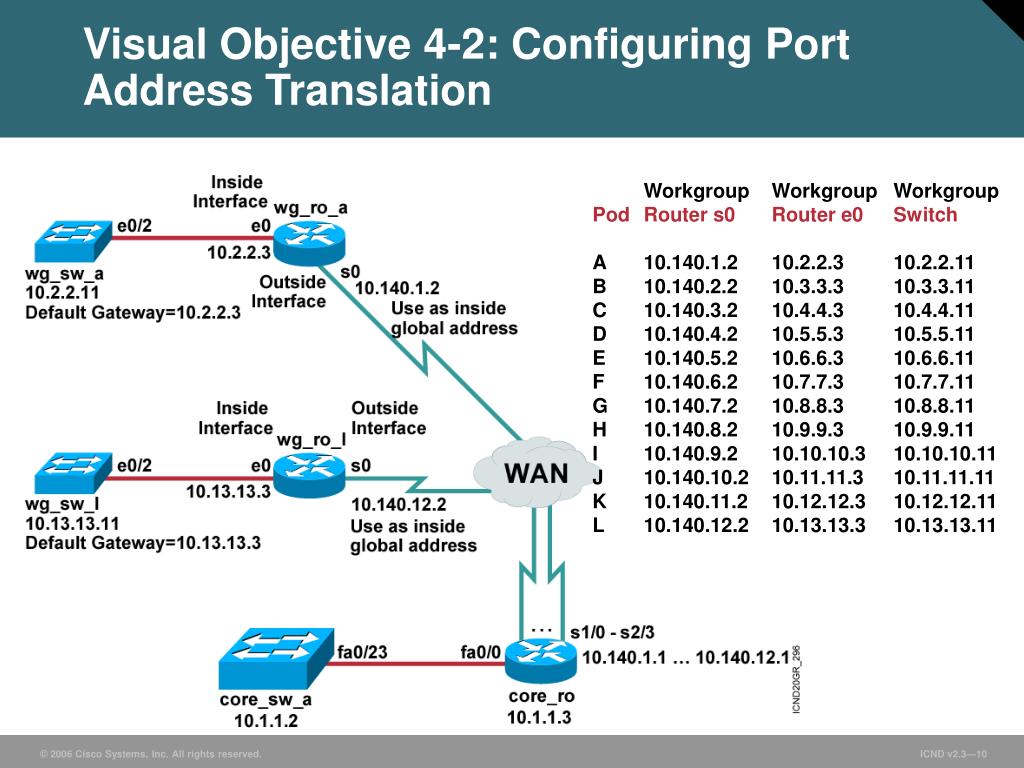

  9. Visual Objective 4-2: Configuring Port Address Translation Workgroup Workgroup Workgroup Pod Router s0 Router e0 Switch A 10.140.1.2 10.2.2.3 10.2.2.11 B 10.140.2.2 10.3.3.3 10.3.3.11 C 10.140.3.2 10.4.4.3 10.4.4.11 D 10.140.4.2 10.5.5.3 10.5.5.11 E 10.140.5.2 10.6.6.3 10.6.6.11 F 10.140.6.2 10.7.7.3 10.7.7.11 G 10.140.7.2 10.8.8.3 10.8.8.11 H 10.140.8.2 10.9.9.3 10.9.9.11 I 10.140.9.2 10.10.10.3 10.10.10.11 J 10.140.10.2 10.11.11.3 10.11.11.11 K 10.140.11.2 10.12.12.3 10.12.12.11 L 10.140.12.2 10.13.13.3 10.13.13.11

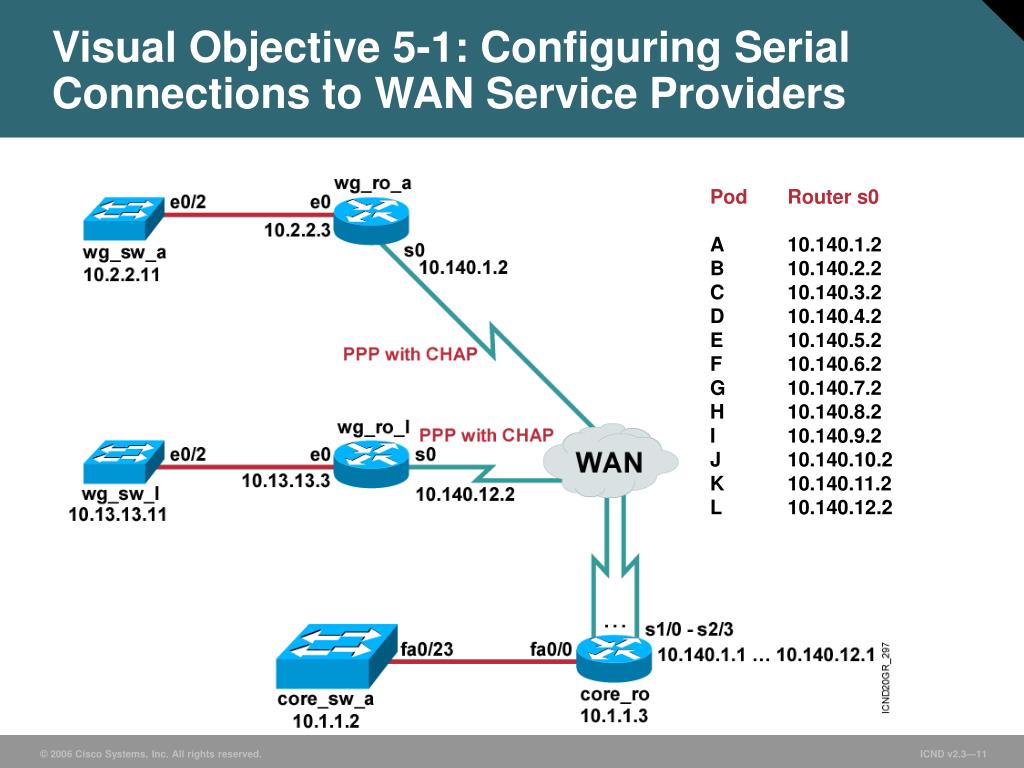

  10. Visual Objective 5-1: Configuring Serial Connections to WAN Service Providers Pod Router s0 A 10.140.1.2 B 10.140.2.2 C 10.140.3.2 D 10.140.4.2 E 10.140.5.2 F 10.140.6.2 G 10.140.7.2 H 10.140.8.2 I 10.140.9.2 J 10.140.10.2 K 10.140.11.2 L 10.140.12.2

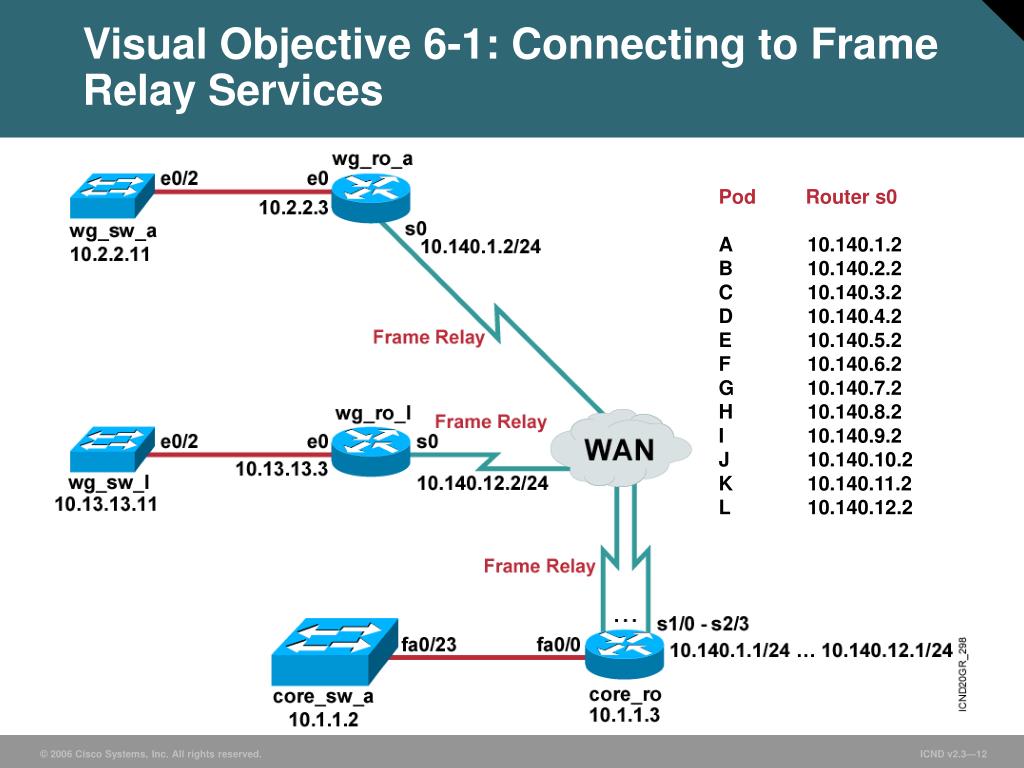

  11. Visual Objective 6-1: Connecting to Frame Relay Services Pod Router s0 A 10.140.1.2 B 10.140.2.2 C 10.140.3.2 D 10.140.4.2 E 10.140.5.2 F 10.140.6.2 G 10.140.7.2 H 10.140.8.2 I 10.140.9.2 J 10.140.10.2 K 10.140.11.2 L 10.140.12.2

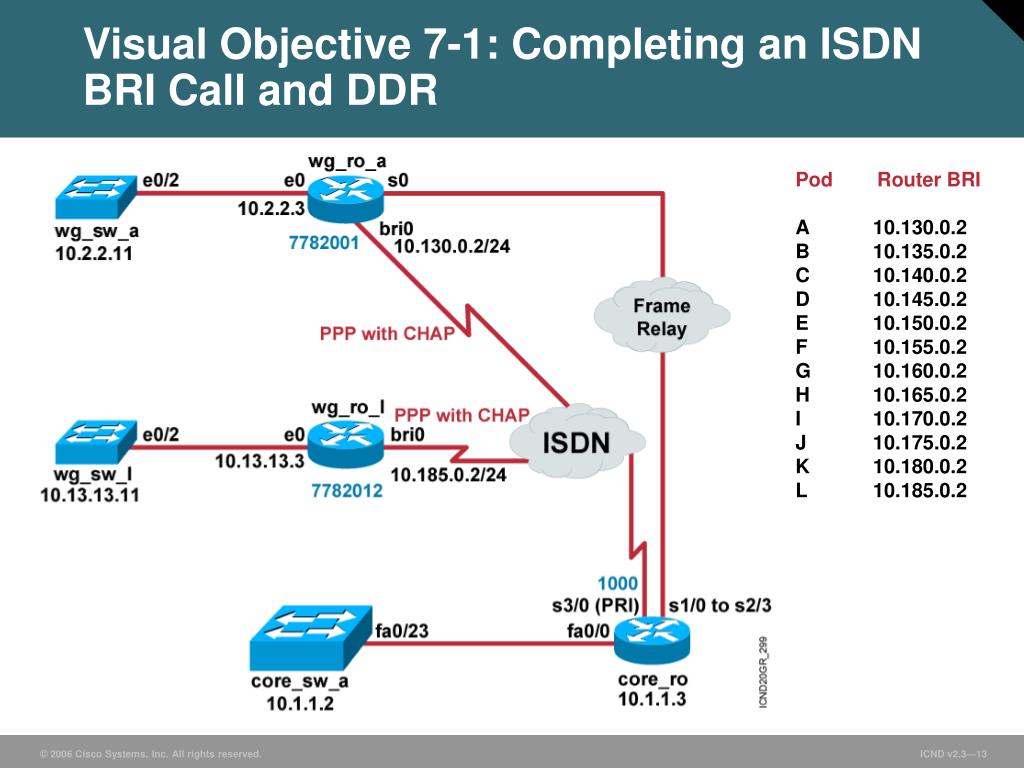

  12. Visual Objective 7-1: Completing an ISDN BRI Call and DDR Pod Router BRI A 10.130.0.2 B 10.135.0.2 C 10.140.0.2 D 10.145.0.2 E 10.150.0.2 F 10.155.0.2 G 10.160.0.2 H 10.165.0.2 I 10.170.0.2 J 10.175.0.2 K 10.180.0.2 L 10.185.0.2
