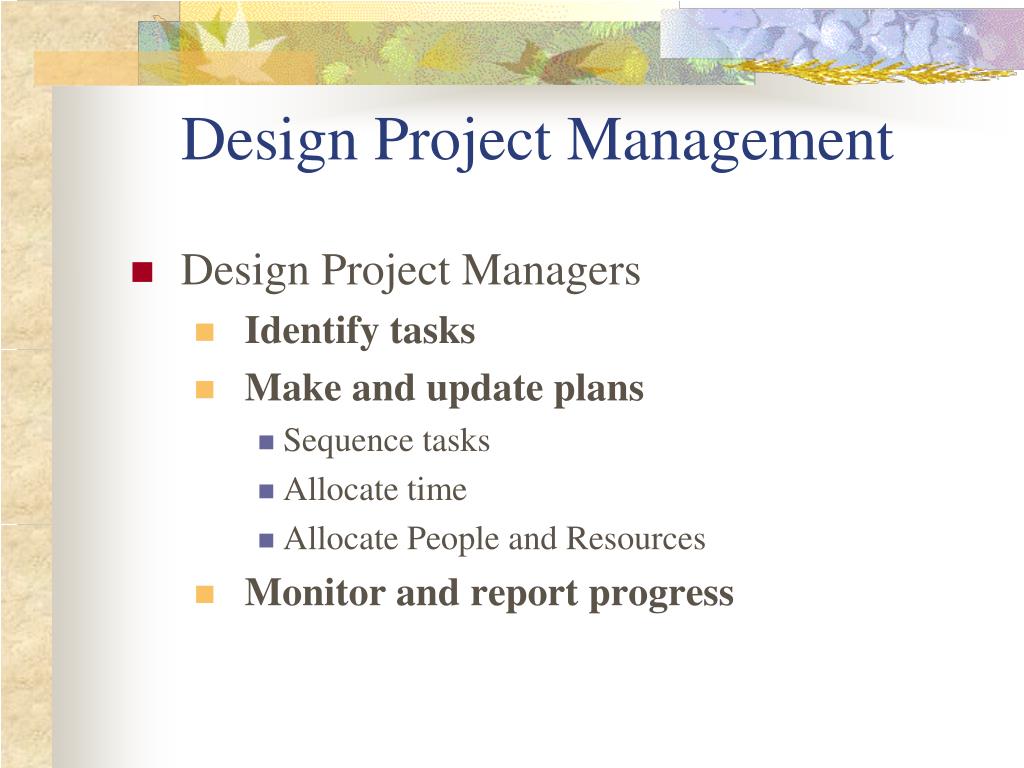

  1. Design Project Management • Design Project Managers • Identify tasks • Make and update plans • Sequence tasks • Allocate time • Allocate People and Resources • Monitor and report progress

  2. Six Steps in Project Planning • Step-I: Identify tasks • Step-II: State task objectives and outcomes • Step-III: Estimate time and personnel • Hofstadter’s law: “It always takes longer than you expect even if you take Hofstadter’s law into account”. • Who is involved, and how long it takes

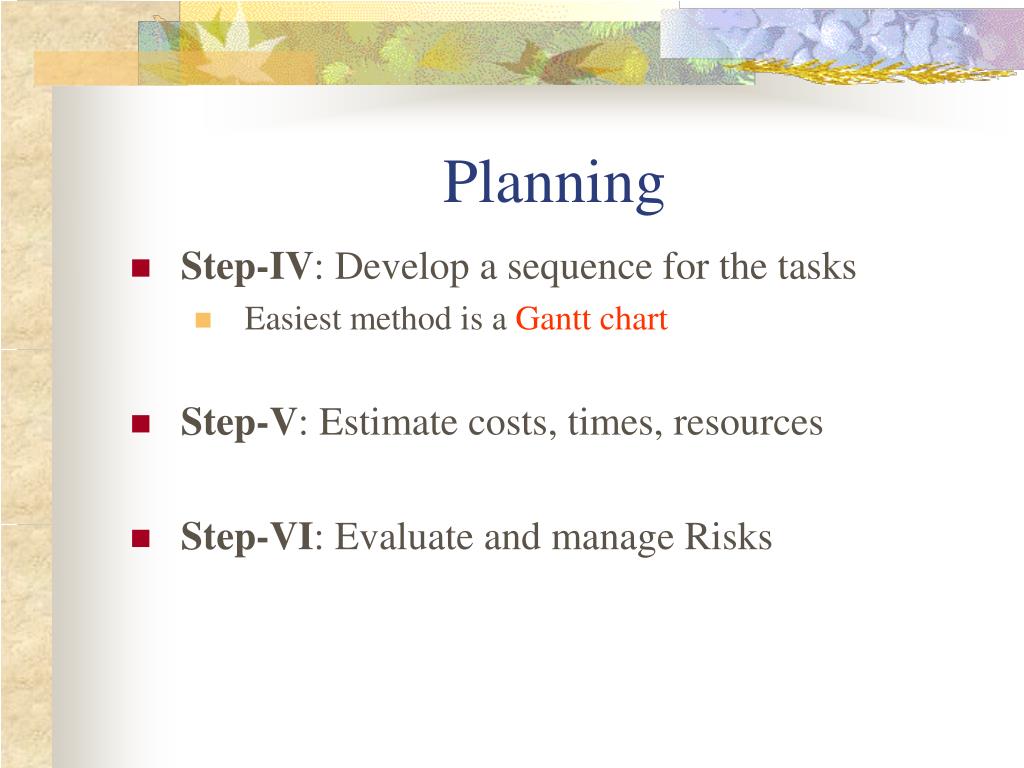

  3. Planning • Step-IV: Develop a sequence for the tasks • Easiest method is a Gantt chart • Step-V: Estimate costs, times, resources • Step-VI: Evaluate and manage Risks

  4. Tasks • What is a Task? (in the context of design project) • An activity that produces a specific result useful to project progress. Do not include • The means of accomplishing tasks. • Tasks unrelated to the project. • Tasks with no specific outcomes or deadlines • Anything that is not clearly defined

  5. Tasks • Not tasks • Arranging a meeting (means) • Having a meeting to discuss concepts (means) • Picking up pizza for the meeting (unrelated to project) • Research shock absorbers (Vague - no specific outcome) • Tasks • Developing pros and cons for 3 concepts • Evaluating and selecting the best concept • Picking up shock absorbers from shop • Creating a list of 3 shock absorber technologies

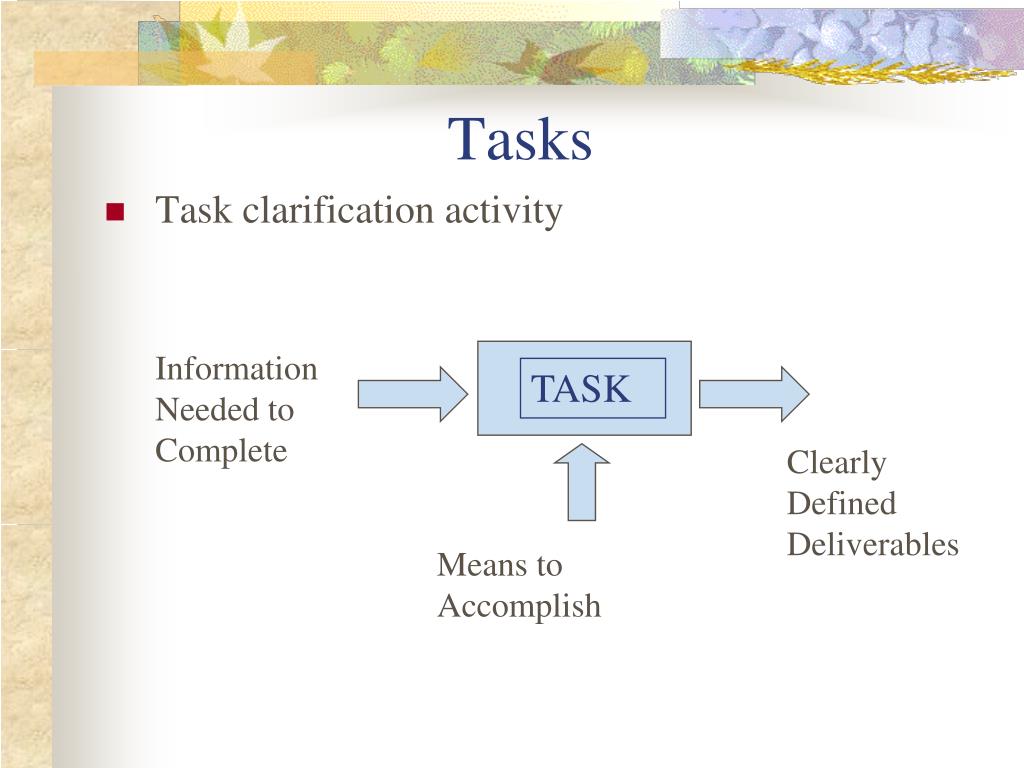

  6. Tasks • Task clarification activity Information Needed to Complete TASK Clearly Defined Deliverables Means to Accomplish

  7. Project Planning Chart

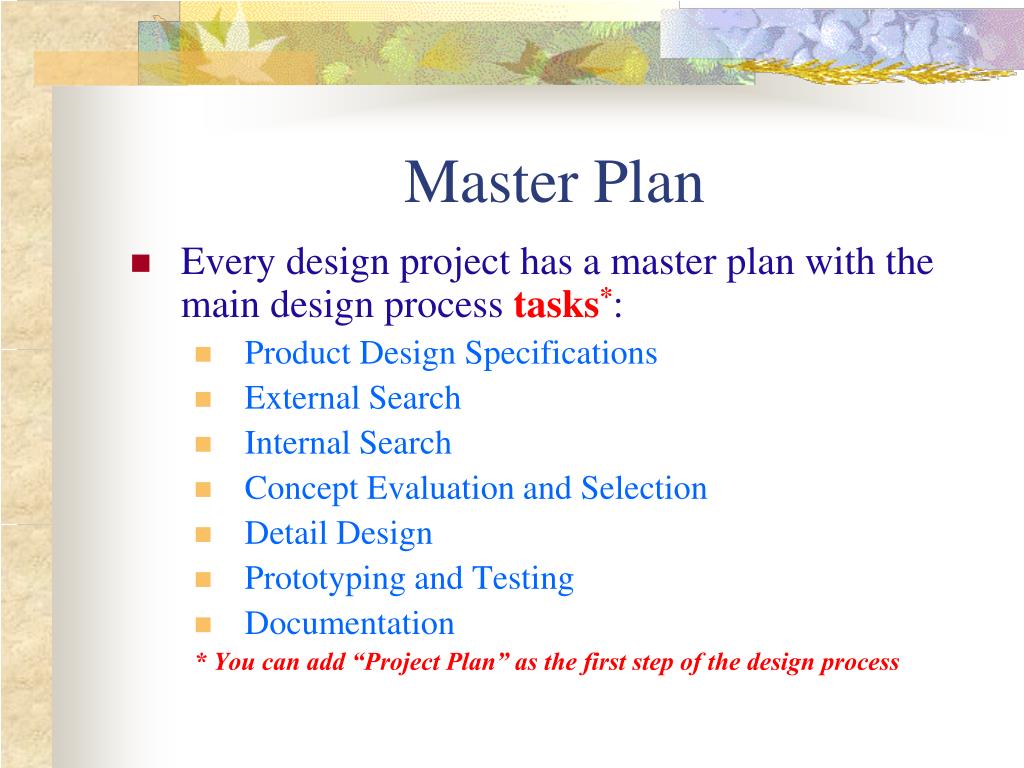

  8. Master Plan • Every design project has a master plan with the main design process tasks*: • Product Design Specifications • External Search • Internal Search • Concept Evaluation and Selection • Detail Design • Prototyping and Testing • Documentation * You can add “Project Plan” as the first step of the design process

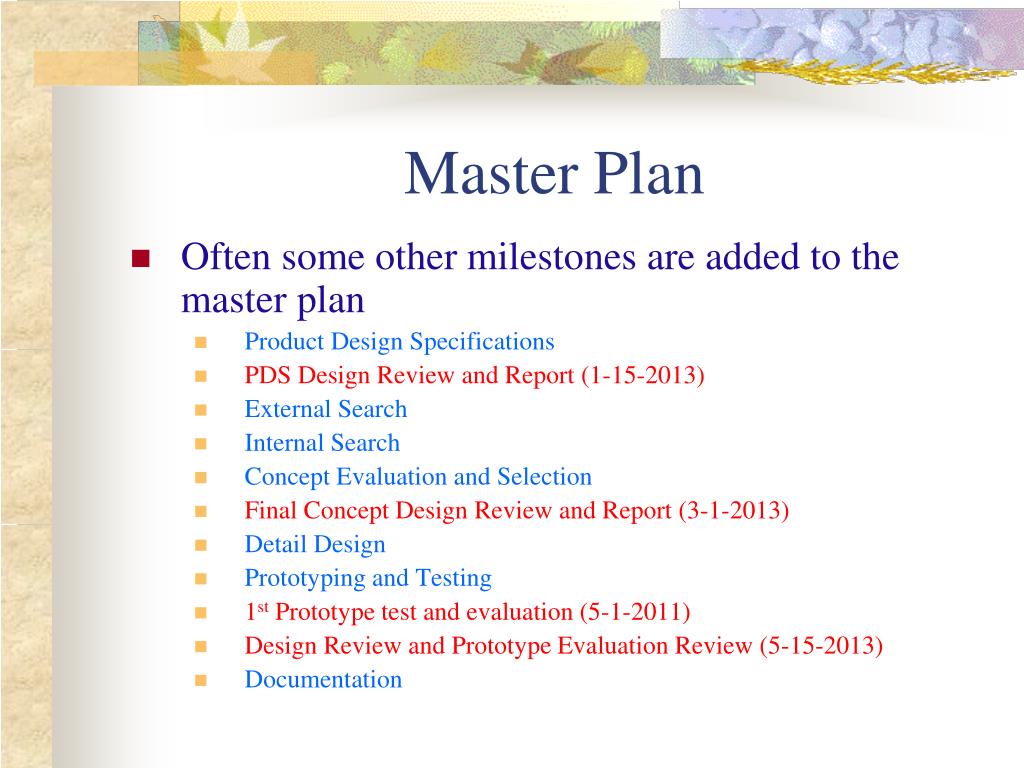

  9. Master Plan • Often some other milestones are added to the master plan • Product Design Specifications • PDS Design Review and Report (1-15-2013) • External Search • Internal Search • Concept Evaluation and Selection • Final Concept Design Review and Report (3-1-2013) • Detail Design • Prototyping and Testing • 1st Prototype test and evaluation (5-1-2011) • Design Review and Prototype Evaluation Review (5-15-2013) • Documentation

  10. Master Plan Gantt Chart

  11. Lower-Level Plans • PDS-related Tasks • Customer identification • Customer interviews • Development of PDS criteria and priorities • Defining engineering specifications (metrics) • Benchmarking and target selection • Developing HoQ • Writing the PDS Report • Reviewing the PDS Report • Modifying PDS Report based on sponsor feedback

  12. PDS Gantt Chart

  13. TASK Lists • Tasks are defined by the team and usually include at least the following 5Ws: • What is the task • Who is going to do it • By When • In What format the results are to be reported • Why

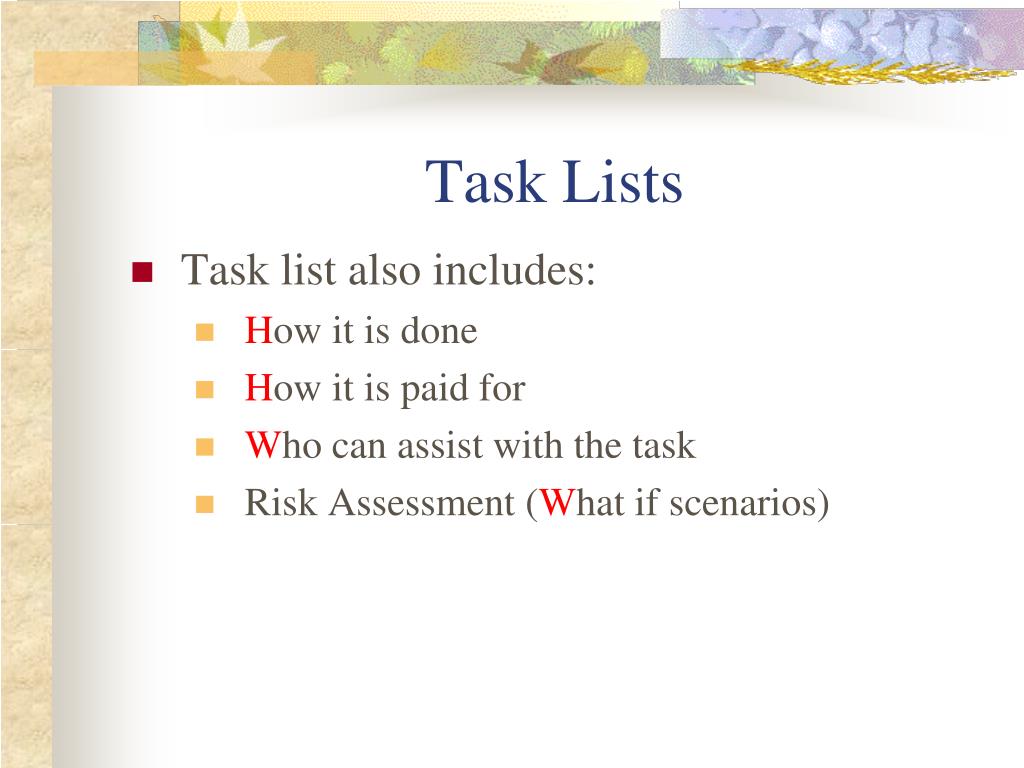

  14. Task Lists • Task list also includes: • How it is done • How it is paid for • Who can assist with the task • Risk Assessment (What if scenarios)
