  1. Dijkstra’s Shortest Path Algorithm Neil Tang03/25/2008 CS223 Advanced Data Structures and Algorithms

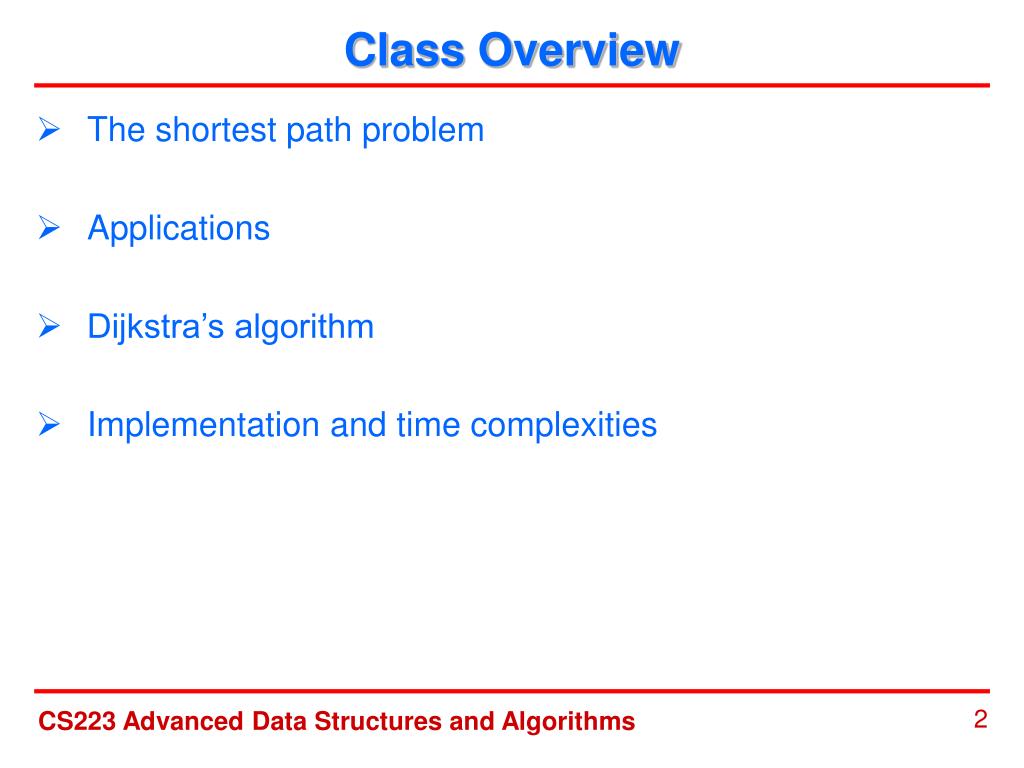

  2. Class Overview • The shortest path problem • Applications • Dijkstra’s algorithm • Implementation and time complexities CS223 Advanced Data Structures and Algorithms

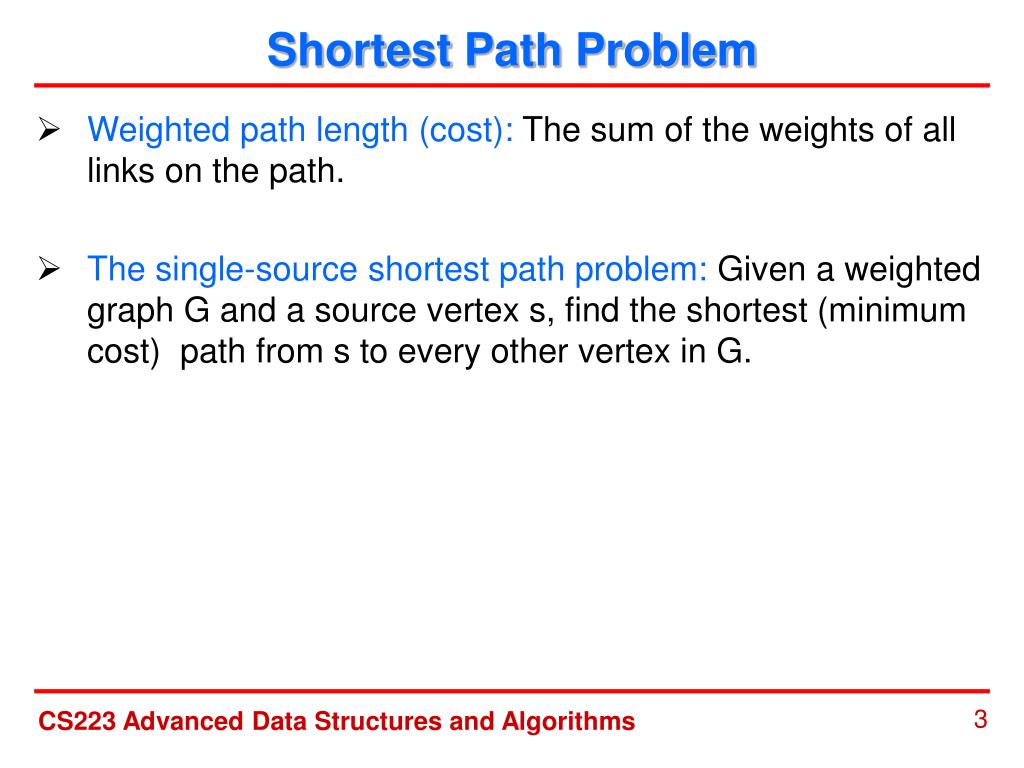

  3. Shortest Path Problem • Weighted path length (cost): The sum of the weights of all links on the path. • The single-source shortest path problem: Given a weighted graph G and a source vertex s, find the shortest (minimum cost) path from s to every other vertex in G. CS223 Advanced Data Structures and Algorithms

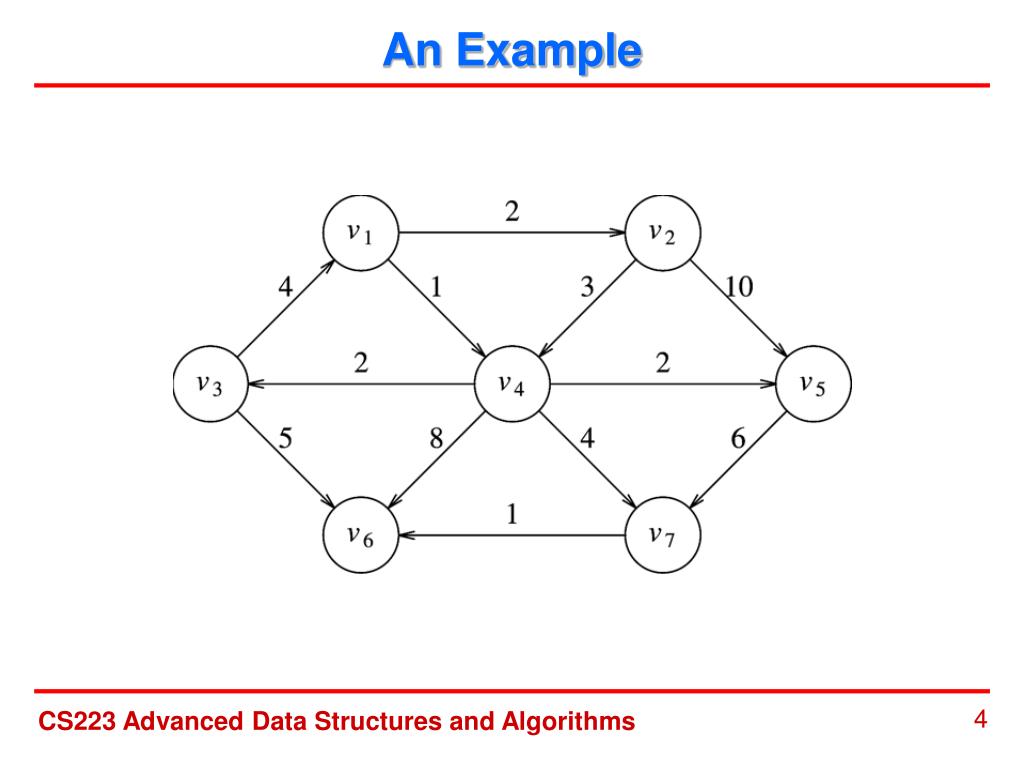

  4. An Example CS223 Advanced Data Structures and Algorithms

  5. Another Example CS223 Advanced Data Structures and Algorithms

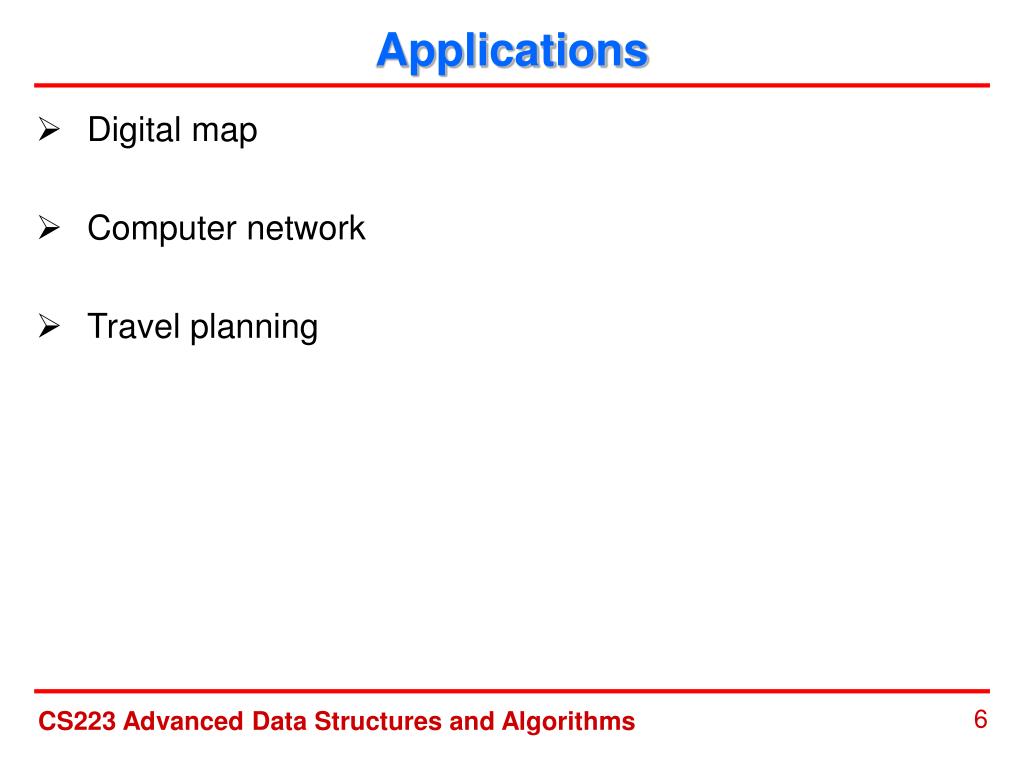

  6. Applications • Digital map • Computer network • Travel planning CS223 Advanced Data Structures and Algorithms

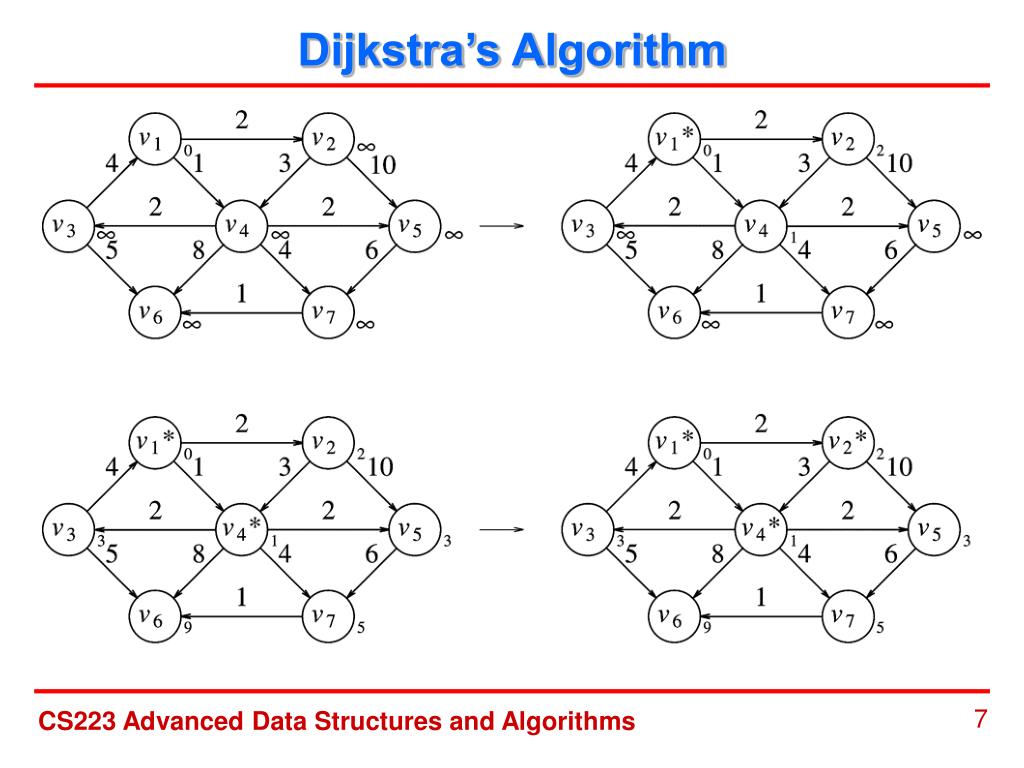

  7. Dijkstra’s Algorithm CS223 Advanced Data Structures and Algorithms

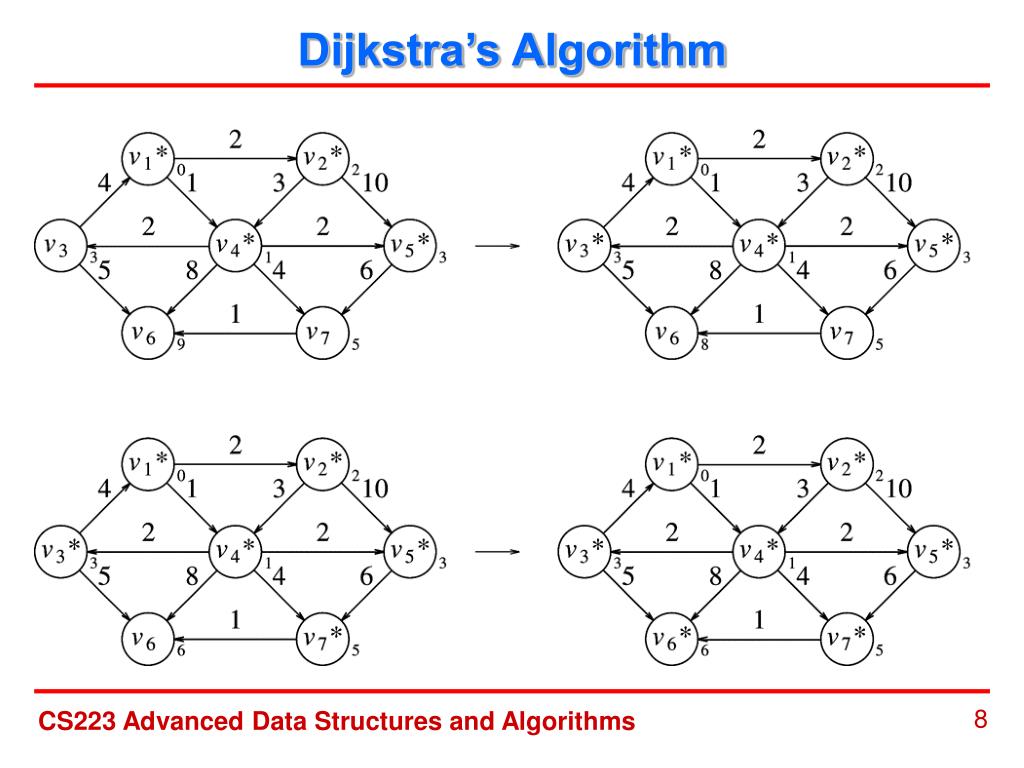

  8. Dijkstra’s Algorithm CS223 Advanced Data Structures and Algorithms

  9. Dijkstra’s Algorithm CS223 Advanced Data Structures and Algorithms

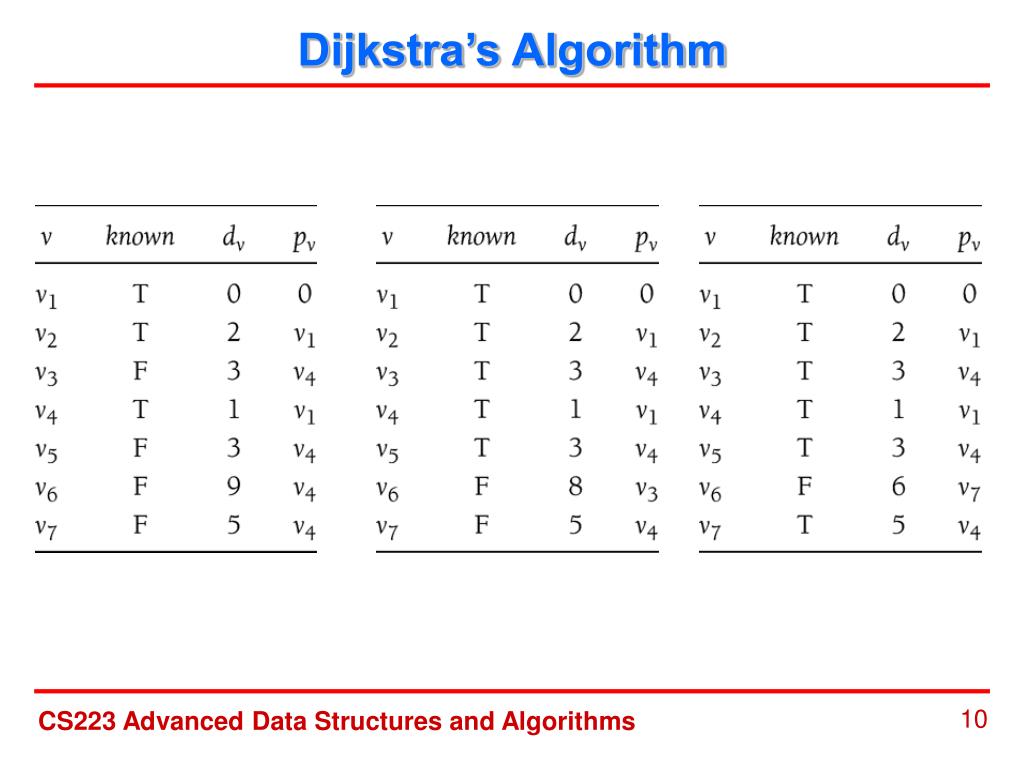

  10. Dijkstra’s Algorithm CS223 Advanced Data Structures and Algorithms

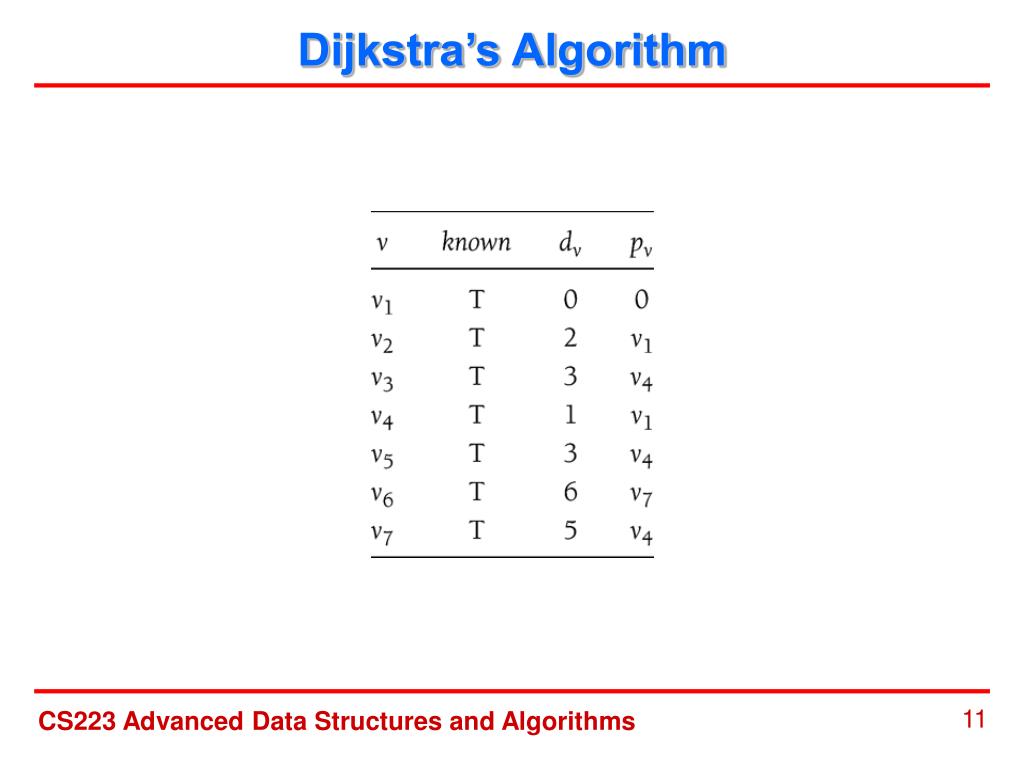

  11. Dijkstra’s Algorithm CS223 Advanced Data Structures and Algorithms

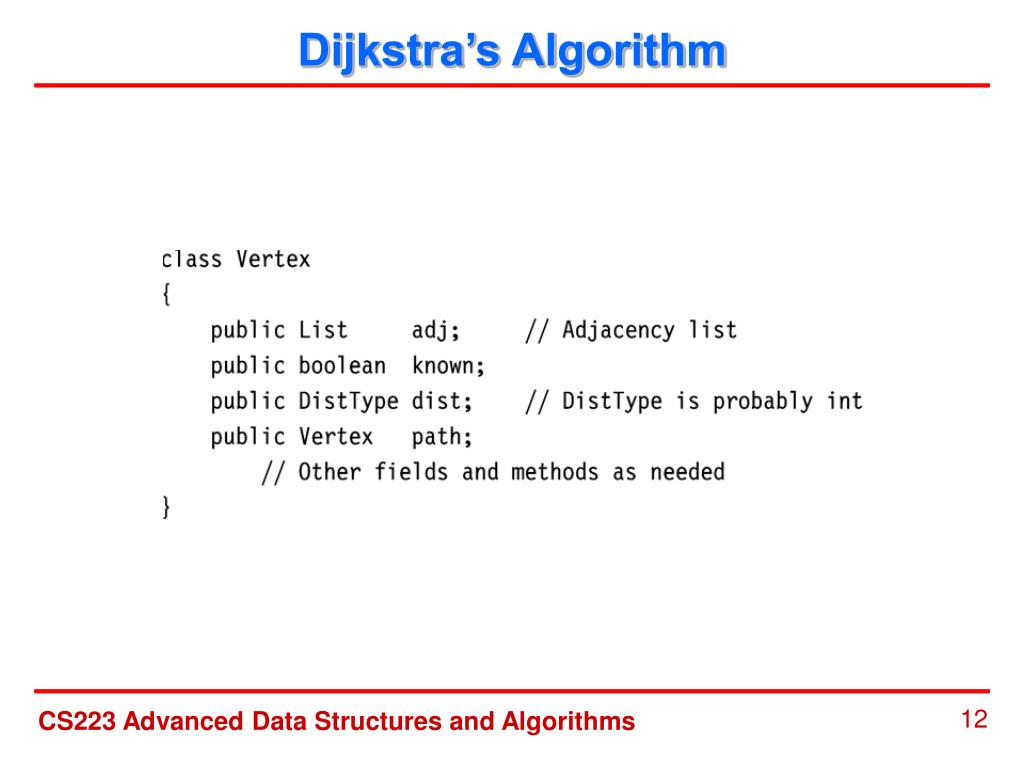

  12. Dijkstra’s Algorithm CS223 Advanced Data Structures and Algorithms

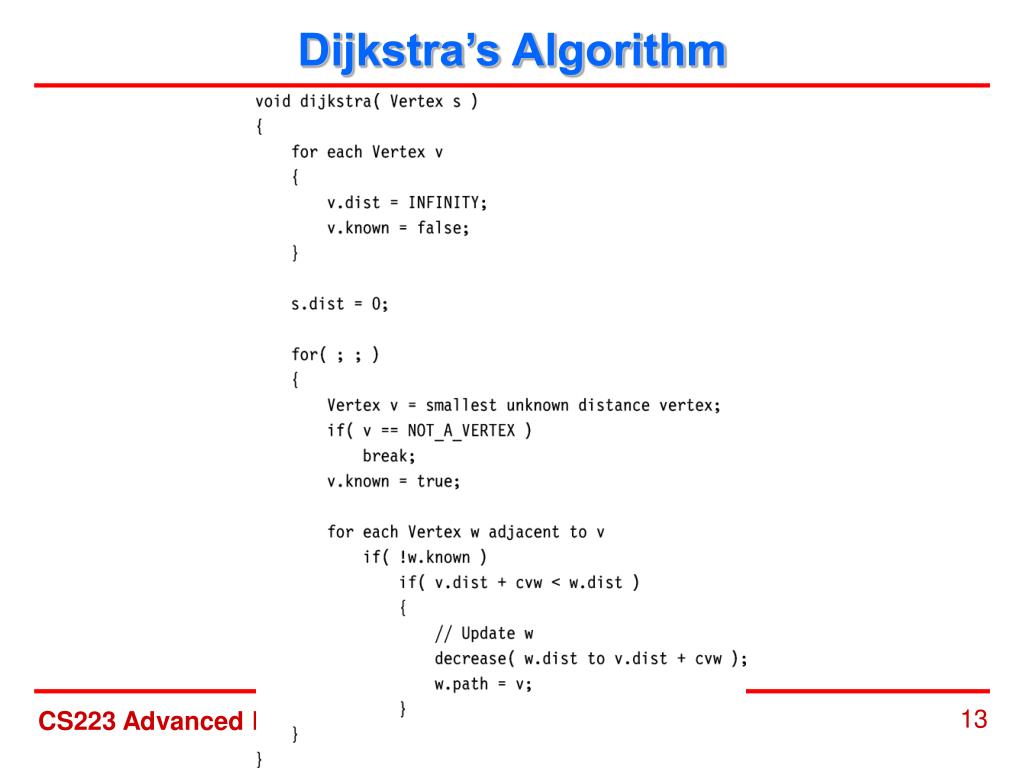

  13. Dijkstra’s Algorithm CS223 Advanced Data Structures and Algorithms

  14. Implementation and Time Complexities • Trivial: O(|V|2 + |E|) = O(|V|2) • Heap: deleteMin |V| times + decreaseKey |E| times O(|V|log|V| + |E|log|V|) = O (|E|log|V|) • Fibonacci heap: O(|E| + |V|log|V|) CS223 Advanced Data Structures and Algorithms
