  1. Session 113Integrating Tablets Joe Burke CTO – Chetco Digital Instruments October 2, 2012

  2. Today’sOverview

  3. Getting Data to your Tablet

  4. Getting Data to your Tablet

  5. Getting Data to your Tablet

  6. Getting Data to your Tablet

  7. Getting Data to your Tablet

  8. Getting Data to your Tablet

  9. Getting Data to your Tablet NMEA – Ethernet – WiFi – USB - Serial

  10. Getting Data to your Tablet NMEA 2000 NMEA 0183 Tablet WiFi Gateway SmartPhone

  11. Getting Data to your Tablet

  12. Getting Data to your Tablet

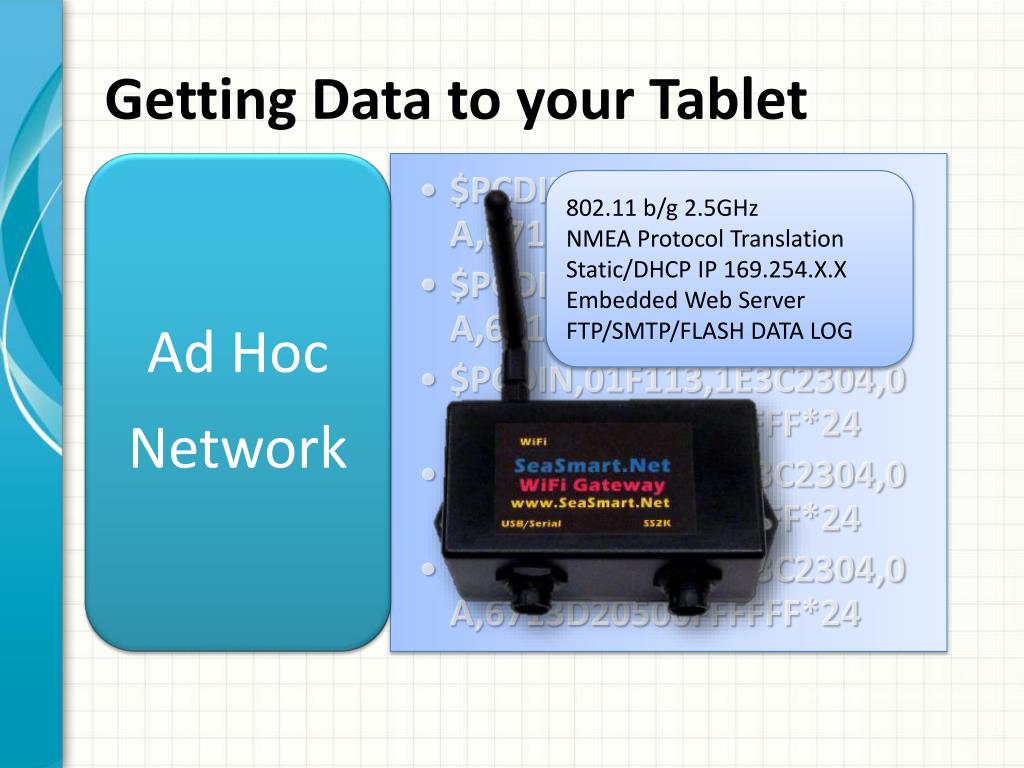

  13. Getting Data to your Tablet 802.11 b/g 2.5GHz NMEA Protocol Translation Static/DHCP IP 169.254.X.X Embedded Web Server FTP/SMTP/FLASH DATA LOG

  14. Getting Data to your Tablet NMEA 2000 Interface Separate NMEA 0182 port Combines to Single TCP port USB Interface to PC/Laptop NMEA 2000/USB Bus Powered

  15. Getting Data to your Tablet Temp Sensor Fuel Sensor Tablet Analog Gateway + WiFi Smart Phone Oil Sensor Tach Sensor

  16. Getting Data to your Tablet 8 channel analog Interface 802.11 b/g WiFi Embedded Web Server USB Interface to PC/Laptop 12VDC/USB Bus Powered

  17. Getting Data to your Tablet

  18. Getting Data to your Tablet Tablets Smart Phones NMEA 2000 NEMA 0183 Router + WiFi AP Internet Ethernet Gateway

  19. Getting Data to your Tablet

  20. Getting Data to your Tablet

  21. Getting Data to your Tablet * 10/100 MB Wired Ethernet 300 ft * NMEA Protocol Translation * Static/DHCP IP with Gateway IP * Embedded Web Server * FTP/SMTP/FLASH DATA LOG

  22. Getting Data to your Tablet * NMEA 2000 and 0183 Interface * Combines inputs to single TCP port * USB Interface to PC/Laptop * NMEA 2000/USB Bus Powered

  23. Getting Data to your Tablet Tablets Smart Phones Fuel Sensor Temp Sensor Router + WiFi AP Analog Gateway + Ethernet Internet Tach Sensor Oil Sensor

  24. Getting Data to your Tablet

  25. Pulling Vessel Data

  26. Pulling Vessel Data

  27. Pulling Vessel Data Client App 192.168.0.10 TCP 10001 Vessel Data Server 192.168.0.1 TCP 10001 Client App 192.168.0.11

  28. Pulling Vessel Data

  29. Pulling Vessel Data

  30. Pulling Vessel Data iNavX: http://www.inavx.com/

  31. Pulling Vessel Data NMEAremote: http://www.zapfware.de/en/

  32. Pulling Vessel Data nGauge: http://www.millportmedia.com

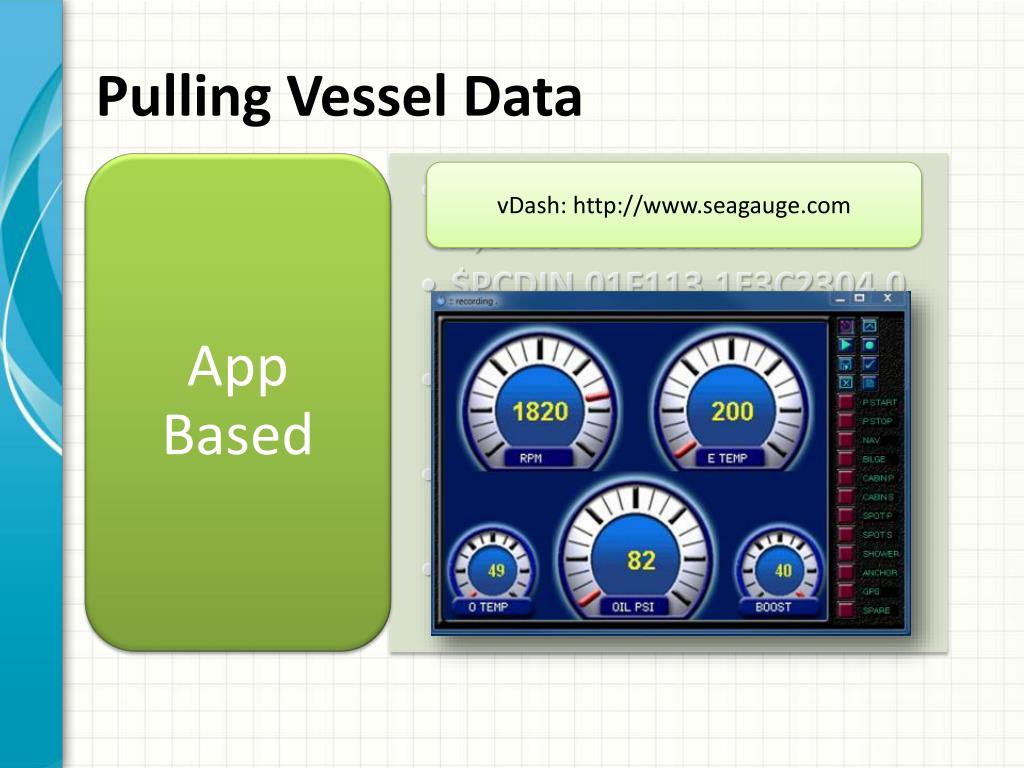

  33. Pulling Vessel Data vDash: http://www.seagauge.com

  34. Pulling Vessel Data

  35. Pulling Vessel Data Client Browser 192.168.0.10 TCP 80 Vessel Web Server 192.168.0.1 TCP 80 Client Browser 192.168.0.11

  36. Pulling Vessel Data

  37. Pulling Vessel Data iPad Safari

  38. Pulling Vessel Data Explorer

  39. Pulling Vessel Data FireFox

  40. Pulling Vessel Data iPhone Safari

  41. Pushing Vessel Data

  42. Pushing Vessel Data Client Tablet Fuel AGW Local Vessel Server with IIS Engine AGW Nav AGW Client Tablet

  43. Pushing Vessel Data

  44. Pushing Vessel Data

  45. Pushing Vessel Data

  46. Pushing Vessel Data www.seasmart.net/web/IBEX2012Live.htm

  47. Pushing Vessel Data Fuel AGW Client Tablet Local Gateway Internet Server Engine AGW ISP Nav AGW Client Tablet

  48. Pushing Vessel Data

  49. Pushing Vessel Data

  50. Pushing Vessel Data
