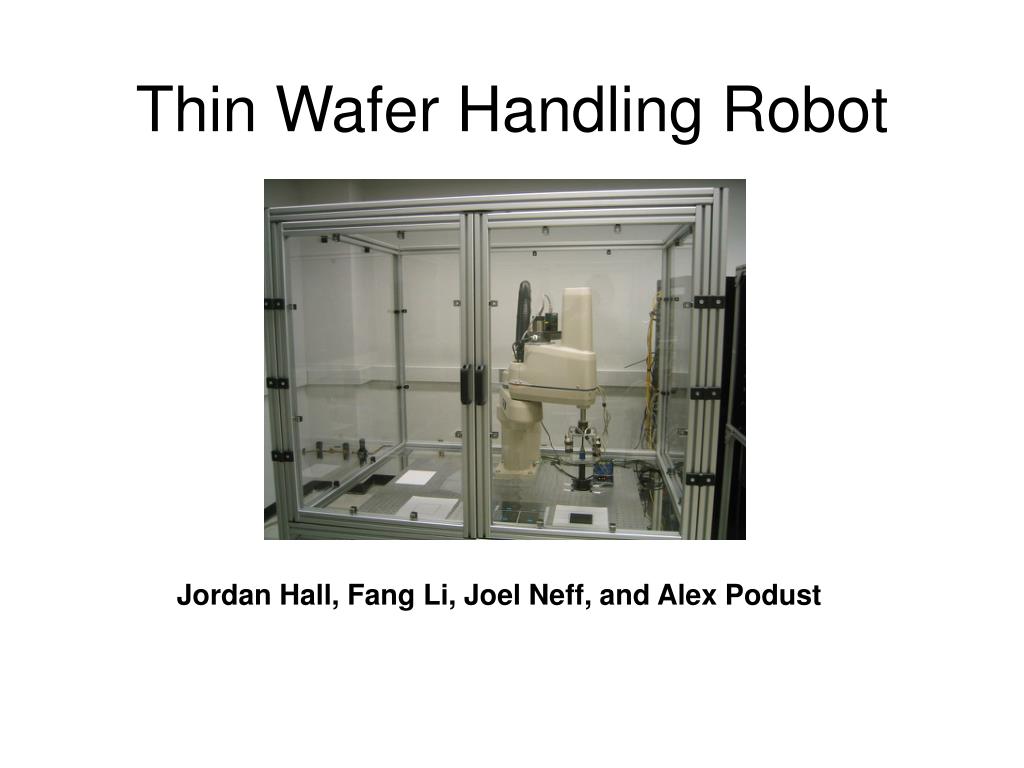

  1. Thin Wafer Handling Robot Jordan Hall, Fang Li, Joel Neff, and Alex Podust

  2. Background • Handling of thin silicon wafers for solar cells • Reducing handling stress and characterizing residual stresses are part of manufacturing research • Objective • Design a robot to move wafers between conveyor and inspection station without dropping or imposing large gripping forces • Minimize energy consumption and handling time

  3. Overall System

  4. Bernoulli Gripper

  5. Bernoulli Gripper Model • Used an mass flow input to create a vertical “lift” force • Gripper force depends on distance to wafer • Rubber pads keep wafer from impacting gripper frame • The friction of the pads keeps wafer “stuck” to the gripper as the robot accelerates

  6. Gripper – Modelica Code Gripper Force Balance Friction force is only active when the wafer is contacting the posts

  7. Gripper - Verification Wafer separates Wafer Pick-up

  8. Gripper Model Challenges Fgripper Ffriction • Required text-based Modelica modeling • No MultiBody sliding friction model • Required pneumatic->mechanical energy conversion • Force balance and direction vectors defined “from scratch.” • Interaction between gripper and wafer was highly coupled; required in-depth Dymola experience

  9. DC MOTOR Torque EMF V Electric Mechanical AXIS CONTROLLER Controller (PID) Motor Output Command + - Actuator

  10. Gripper position Axis 5 θ Rotating Joint Axis 4 θ Rotating Joint Arm 3 Axis 3 mm Lin. joint Arm 2 Axis 2 θ Rotating Joint Arm 1 Axis 1 θ Rotating Joint Base ROBOT ARM Chassis

  11. Model Limitations • Inflexibility - Path hard coded as joint angle start and end values. • Multiple simplifying assumptions s.a. • Motor • Gripper • Chassis • Cost of robot components not considered. • Hard to determine safety factor for wafer flying off gripper.

  12. Results Energy usage (J) vs time (s) Gripper friction and lateral force (N) vs time (s)

  13. Lessons learned • Value of using simulation software to solve engineering design problems • Gained appreciation for information economics • Do not underestimate complexity of modeling details of a system • How to make good decisions under uncertainty
