  1. Crate Mould Solution

  2. Introduction • SINO MOULD is the leading crate mould manufacturer in the world, we has developed more than 2000 sets various crate moulds such like, bottle crate mould, fish crate mould, fruit crate mould, bread crate mould...... • Especially we have done the 2 and 4 cavities crate mould and 4 cavities stacking mould. It is the first set of 4 cavities crate stacking mould in China. It is suitable for high speed injection, and the speed can approach 42s. We can say, we are the top crate mould manufacturer in the world.

  3. Crate Moulds Types • Bottle Crate Mould • Industrial Crate Mould • Vegetable Crate Mould • Fruit Crate Mould • Fish Crate Mould • Bread Crate Mould • Milk Crate Mould

  4. Crate MouldsTechnical points • How to make a crate mould with long mould service life? • How to make a crate mould with high speed performance? • Crate mould handle area venting solution

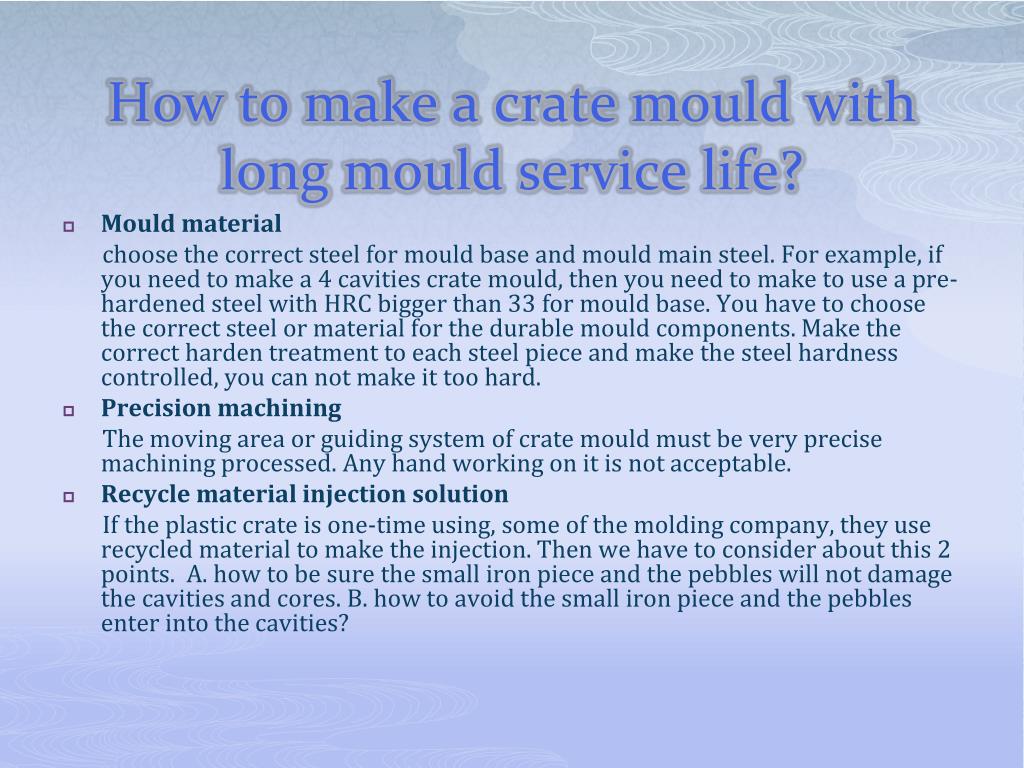

  5. How to make a crate mould with long mould service life? • Mould material choose the correct steel for mould base and mould main steel. For example, if you need to make a 4 cavities crate mould, then you need to make to use a pre-hardened steel with HRC bigger than 33 for mould base. You have to choose the correct steel or material for the durable mould components. Make the correct harden treatment to each steel piece and make the steel hardness controlled, you can not make it too hard. • Precision machining The moving area or guiding system of crate mould must be very precise machining processed. Any hand working on it is not acceptable. • Recycle material injection solution If the plastic crate is one-time using, some of the molding company, they use recycled material to make the injection. Then we have to consider about this 2 points.  A. how to be sure the small iron piece and the pebbles will not damage the cavities and cores. B. how to avoid the small iron piece and the pebbles enter into the cavities?

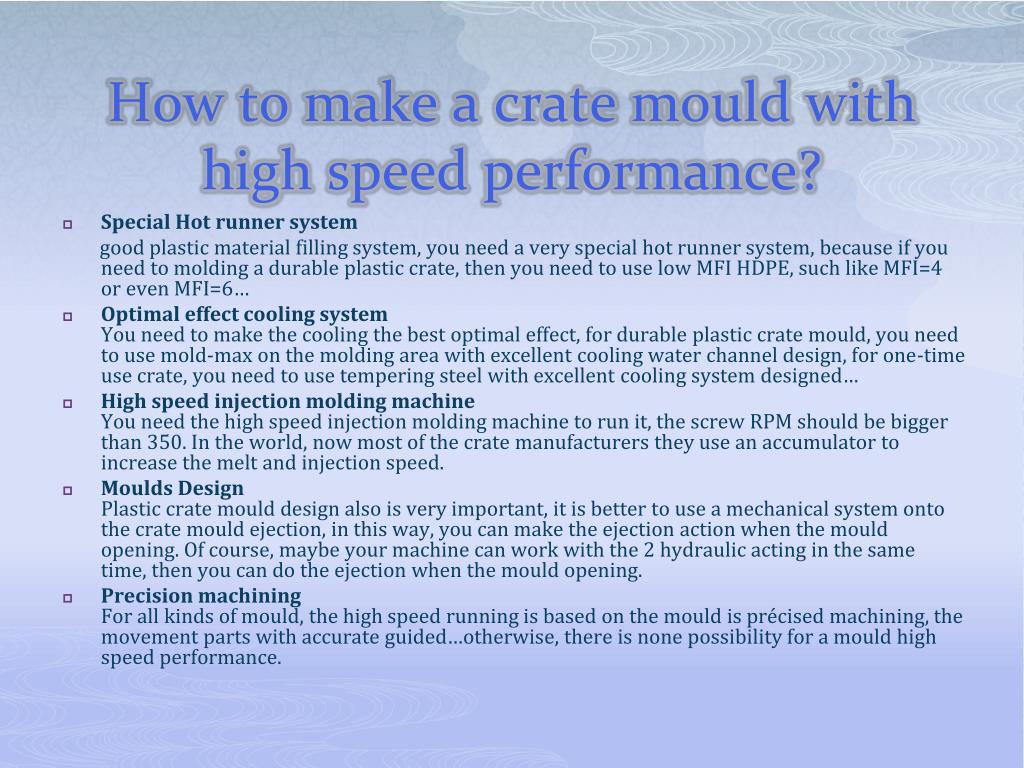

  6. How to make a crate mould with high speed performance? • Special Hot runner system good plastic material filling system, you need a very special hot runner system, because if you need to molding a durable plastic crate, then you need to use low MFI HDPE, such like MFI=4 or even MFI=6… • Optimal effect cooling systemYou need to make the cooling the best optimal effect, for durable plastic crate mould, you need to use mold-max on the molding area with excellent cooling water channel design, for one-time use crate, you need to use tempering steel with excellent cooling system designed… • High speed injection molding machineYou need the high speed injection molding machine to run it, the screw RPM should be bigger than 350. In the world, now most of the crate manufacturers they use an accumulator to increase the melt and injection speed. • Moulds DesignPlastic crate mould design also is very important, it is better to use a mechanical system onto the crate mould ejection, in this way, you can make the ejection action when the mould opening. Of course, maybe your machine can work with the 2 hydraulic acting in the same time, then you can do the ejection when the mould opening. • Precision machiningFor all kinds of mould, the high speed running is based on the mould is précised machining, the movement parts with accurate guided…otherwise, there is none possibility for a mould high speed performance.

  7. Crate Mould handle area venting solution • This is an important issue, as because when the crate was loaded and the people carry the crate, the 2 handle area will be the biggest force focused. If on the mould, this area’s air venting is not perfect, there will be a very obviously jointing line. The damage are always come from this line.

  8. Custom Bottle Crate Moulds &Samples pictures

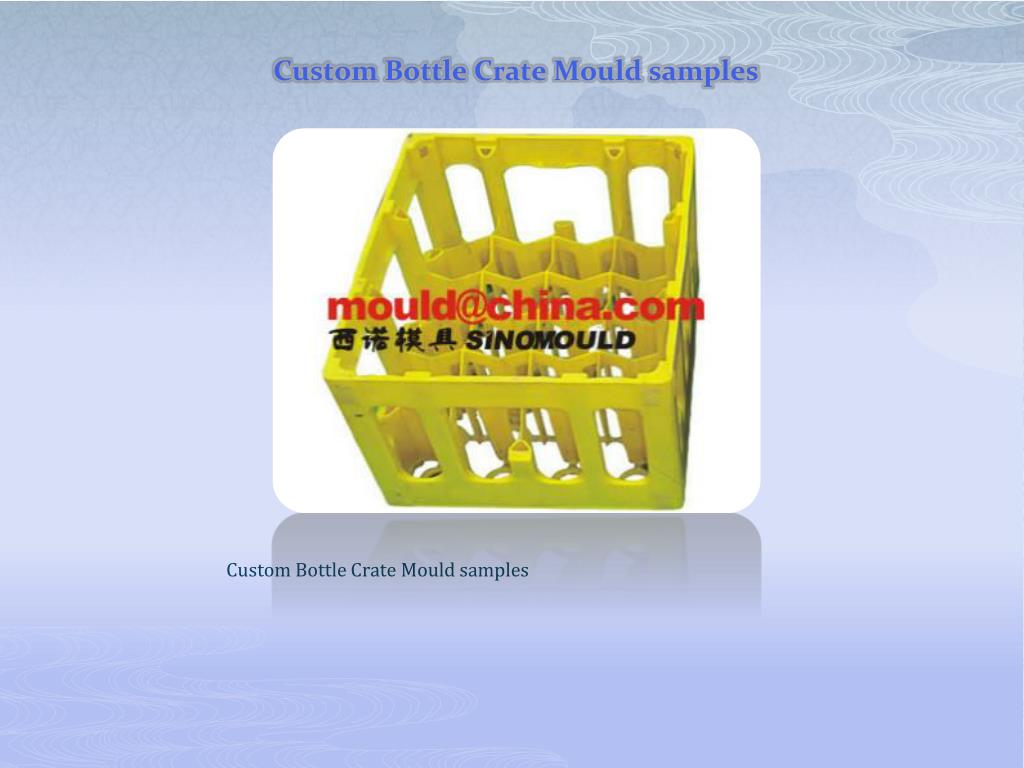

  9. Custom Bottle Crate Mould samples Custom Bottle Crate Mould samples

  10. Custom Bottle Crate Mould samples Custom Bottle Crate Mould samples

  11. Custom Bottle Crate Mould samples Custom Bottle Crate Mould samples

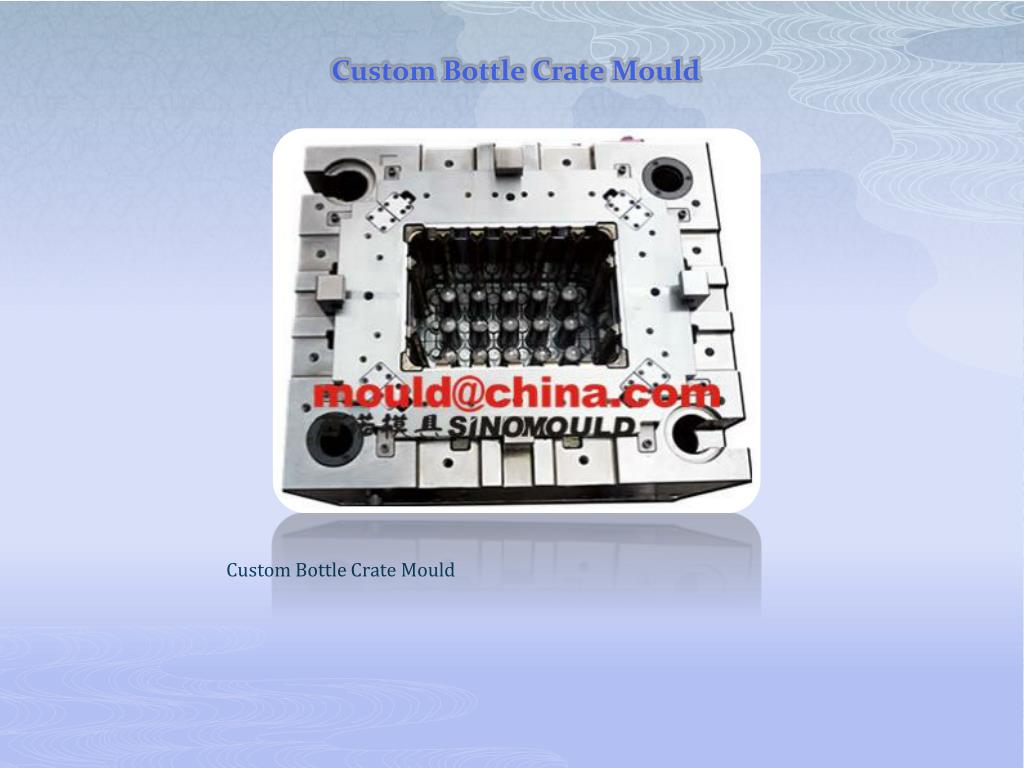

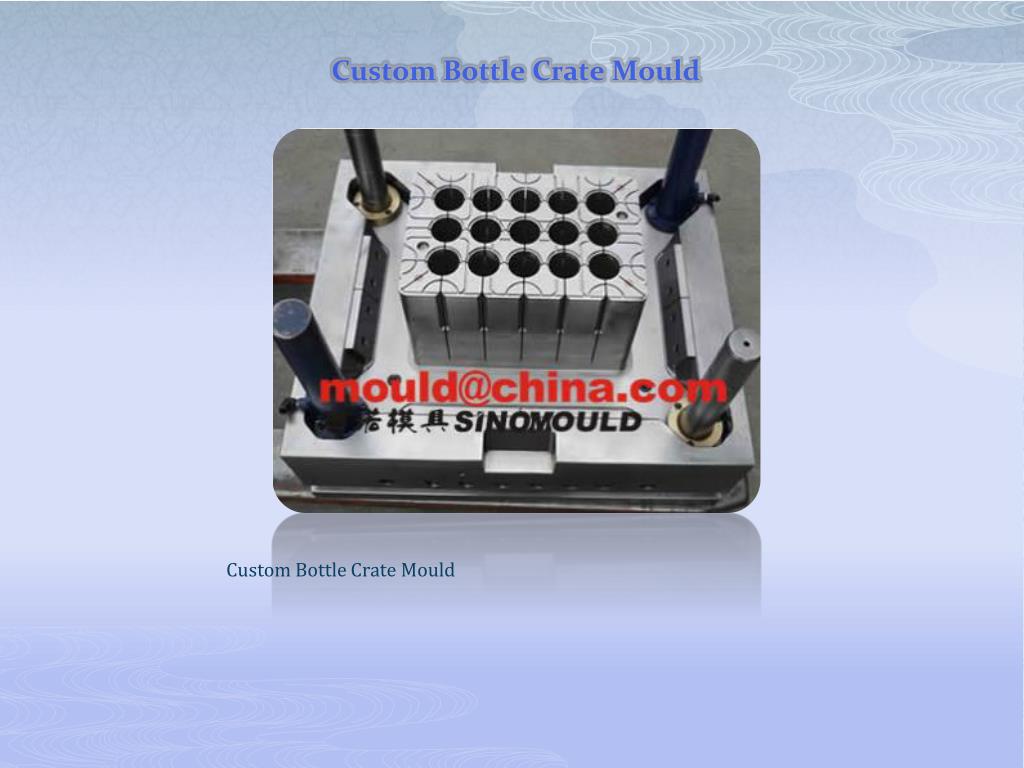

  12. Custom Bottle Crate Mould Custom Bottle Crate Mould

  13. Custom Bottle Crate Mould Custom Bottle Crate Mould

  14. Custom Bottle Crate Mould Custom Bottle Crate Mould

  15. Custom Industrial Crate Mould & Samples pictures

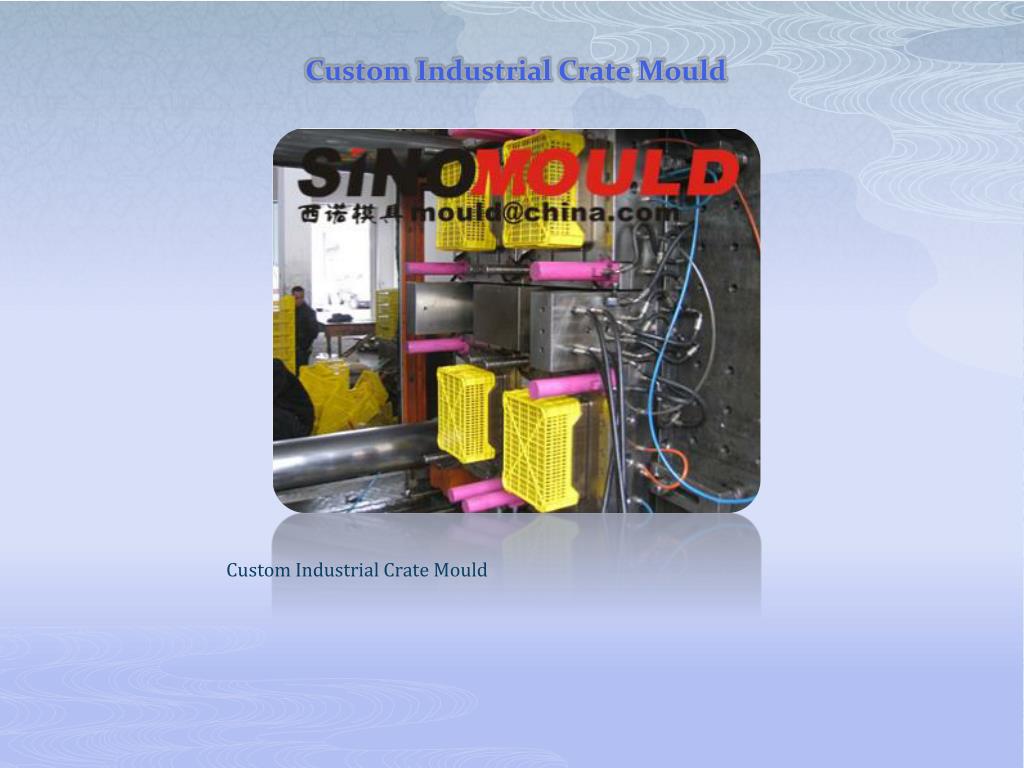

  16. Custom Industrial Crate Mould Custom Industrial Crate Mould

  17. Custom Industrial Crate Mould Custom Industrial Crate Mould

  18. Custom Industrial Crate Mould Custom Industrial Crate Mould

  19. Custom Industrial Crate Mould Custom Industrial Crate Mould

  20. Custom Vegetable Crate Mould & Samples pictures

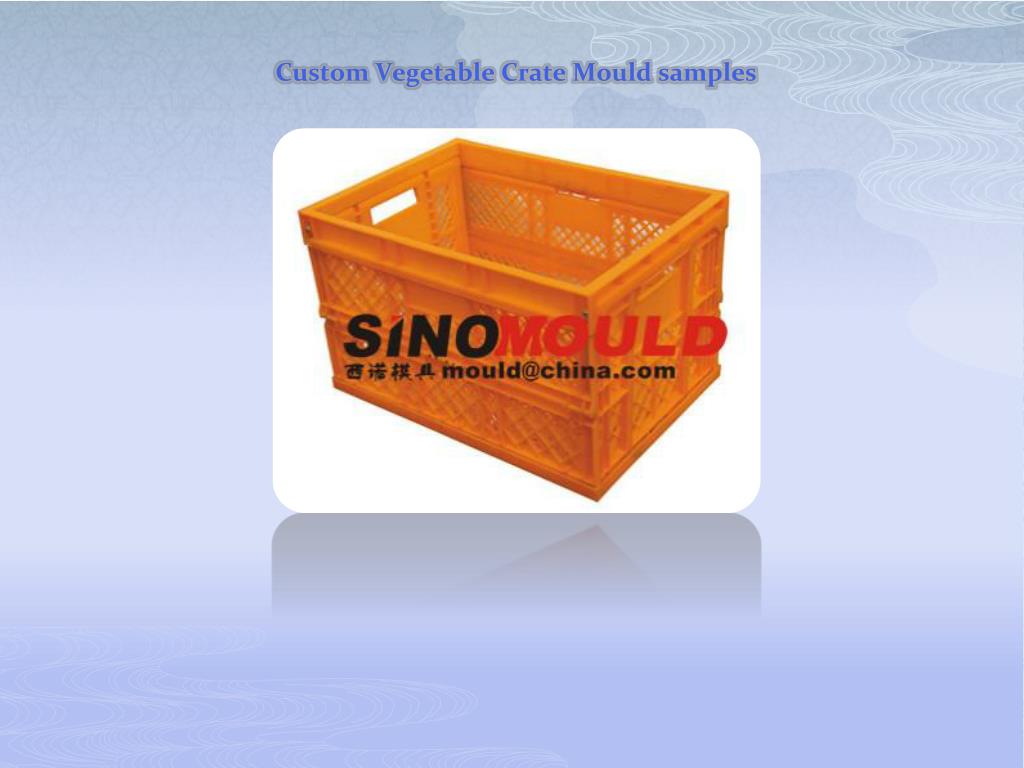

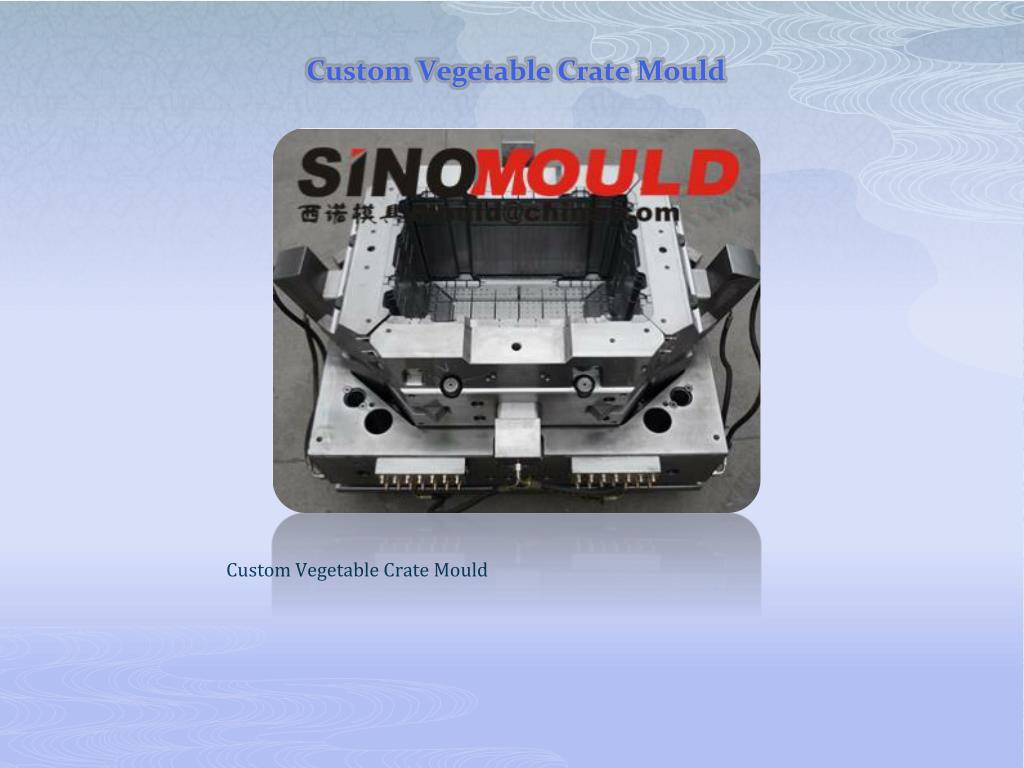

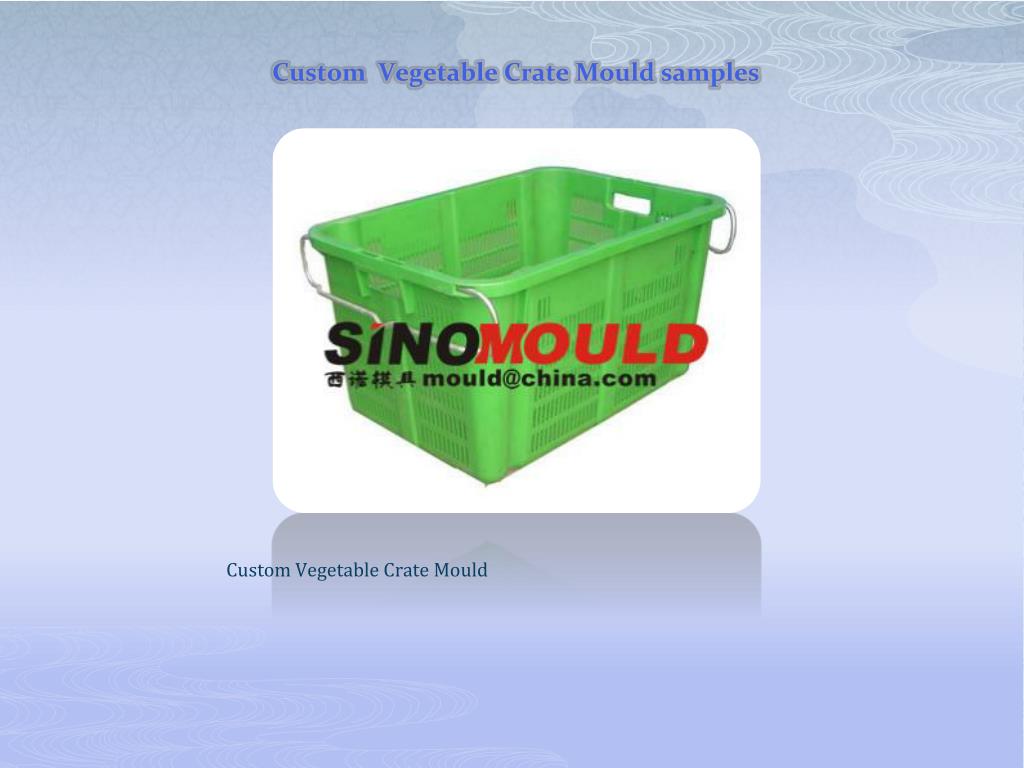

  21. Custom Vegetable Crate Mould samples Custom Vegetable Crate Mould samples

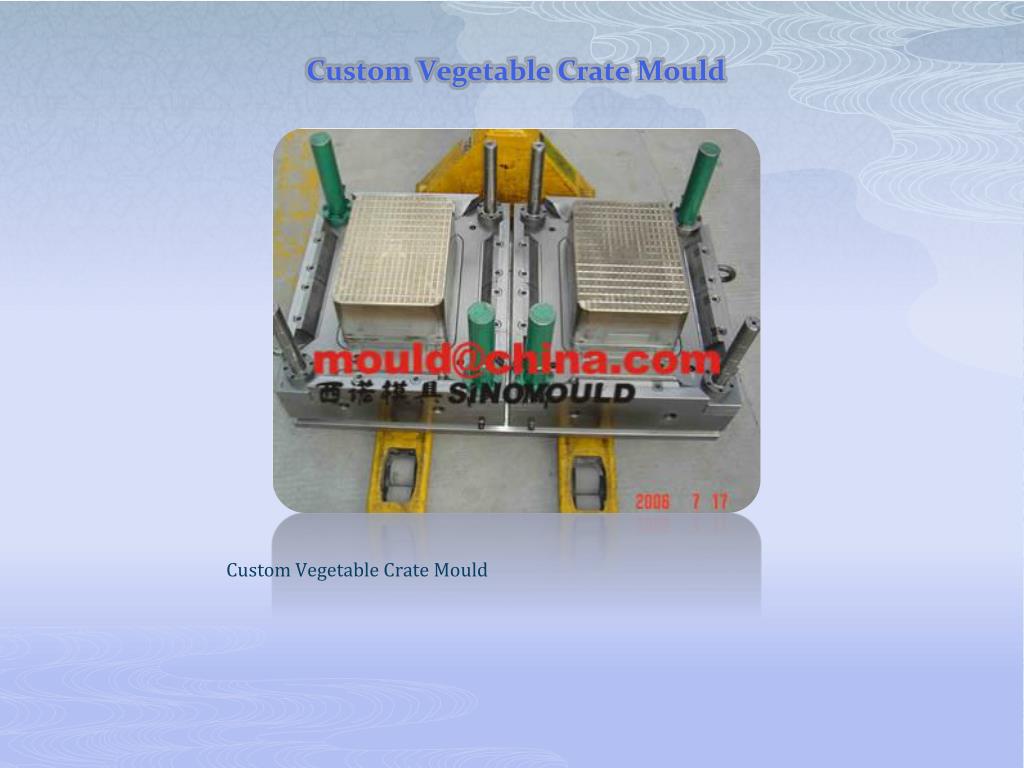

  22. Custom Vegetable Crate Mould samples Custom Vegetable Crate Mould

  23. Custom Vegetable Crate Mould samples

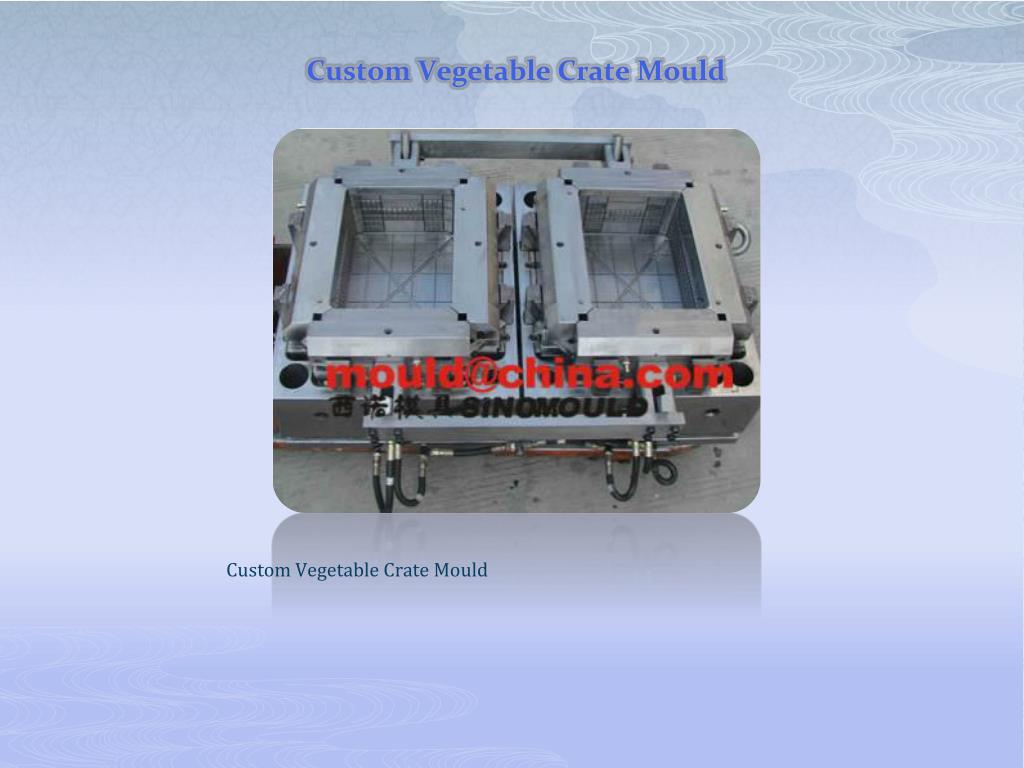

  24. Custom Vegetable Crate Mould Custom Vegetable Crate Mould

  25. Custom Vegetable Crate Mould Custom Vegetable Crate Mould

  26. Custom Vegetable Crate Mould Custom Vegetable Crate Mould

  27. Custom Fruit Crate Moulds &Samples pictures

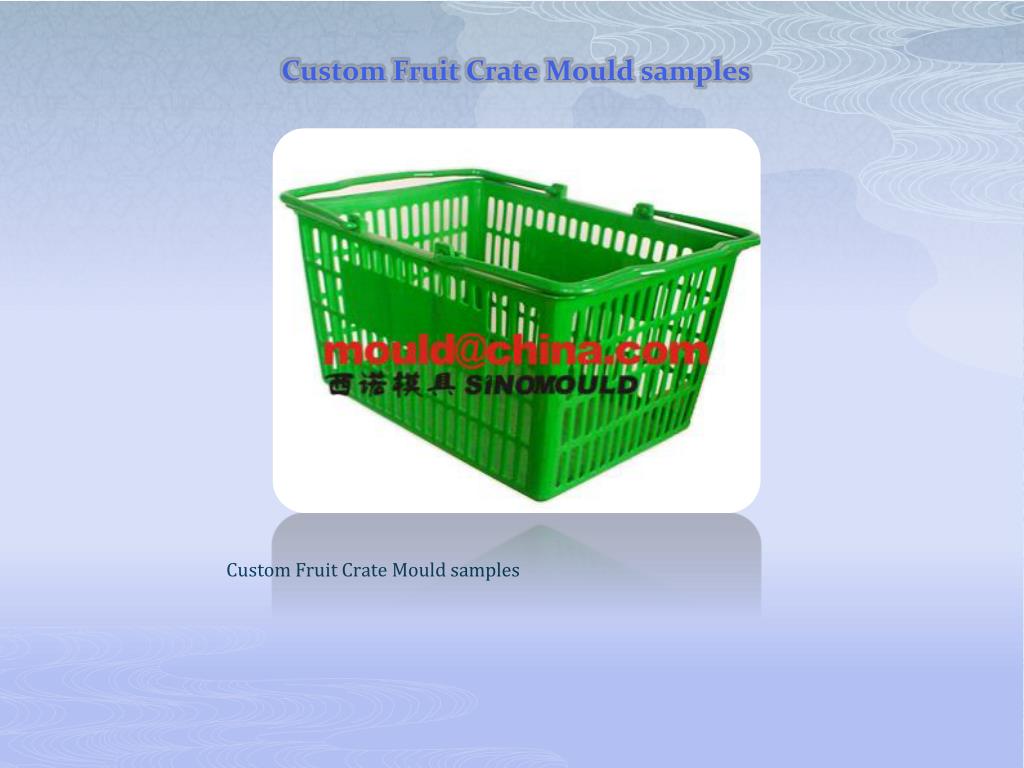

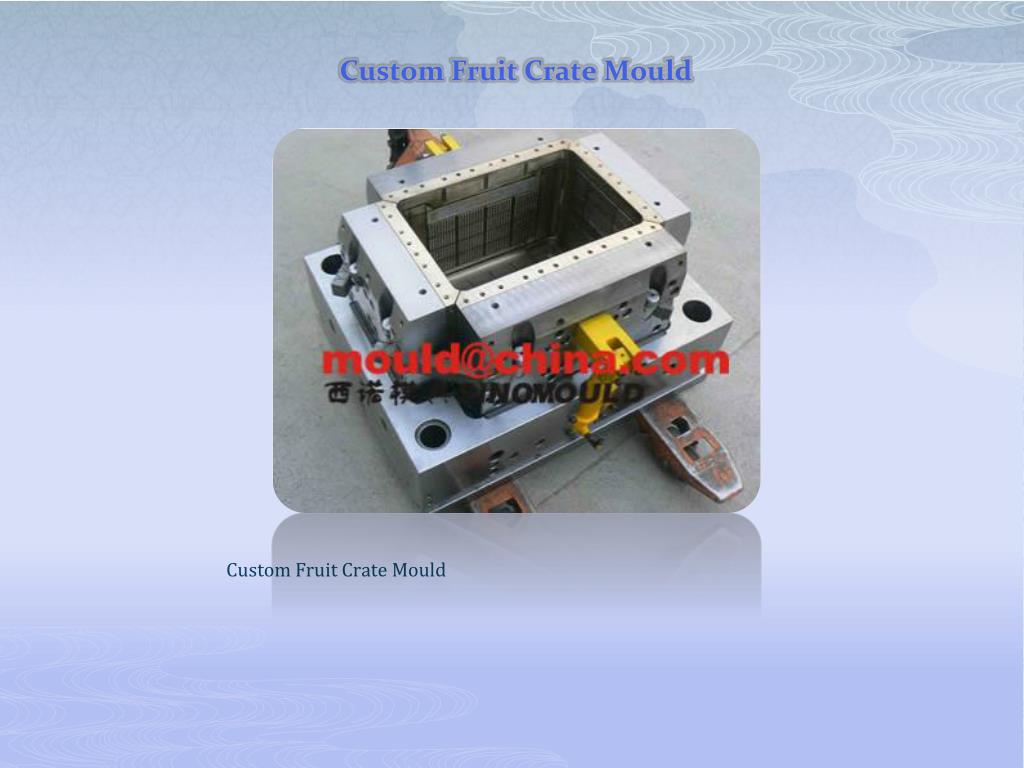

  28. Custom Fruit Crate Mould samples Custom Fruit Crate Mould samples

  29. Custom Fruit Crate Mould samples Custom Fruit Crate Mould samples

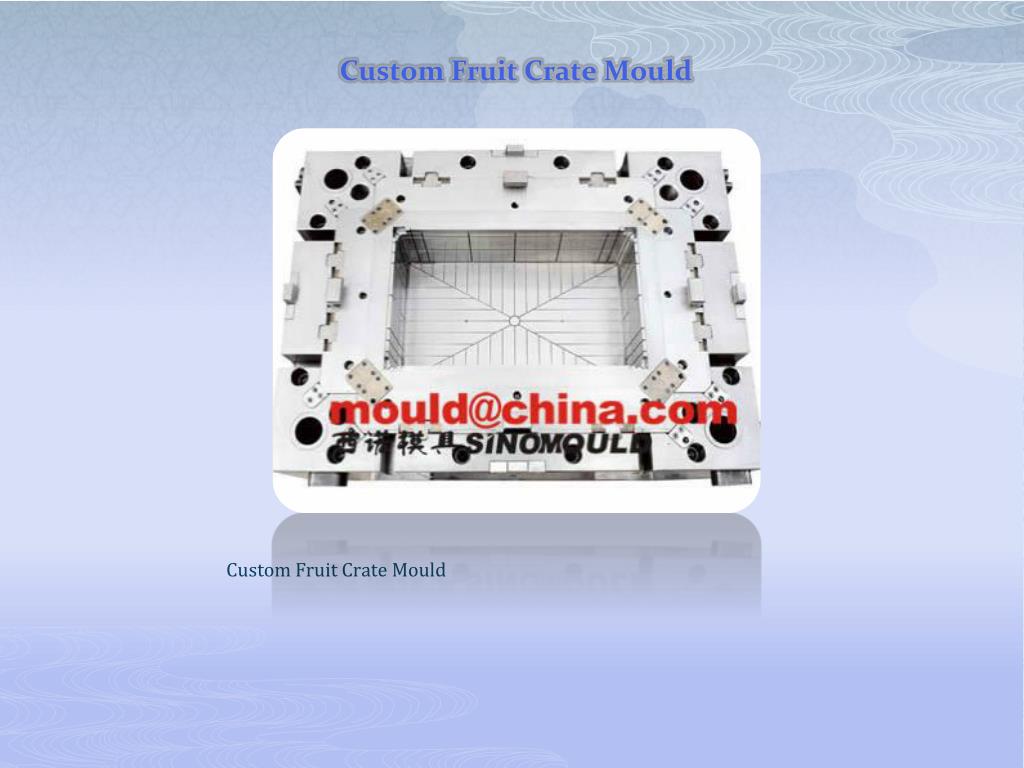

  30. Custom Fruit Crate Mould Custom Fruit Crate Mould

  31. Custom Fruit Crate Mould Custom Fruit Crate Mould

  32. Custom Fruit Crate Mould Custom Fruit Crate Mould

  33. Custom Milk Crate Mould& Samples Pictures

  34. Custom Milk Crate Mould samples Custom Milk Crate Mould samples

  35. Custom Milk Crate Mould samples Custom Milk Crate Mould samples

  36. Custom Milk Crate Mould samples Custom Milk Crate Mould samples

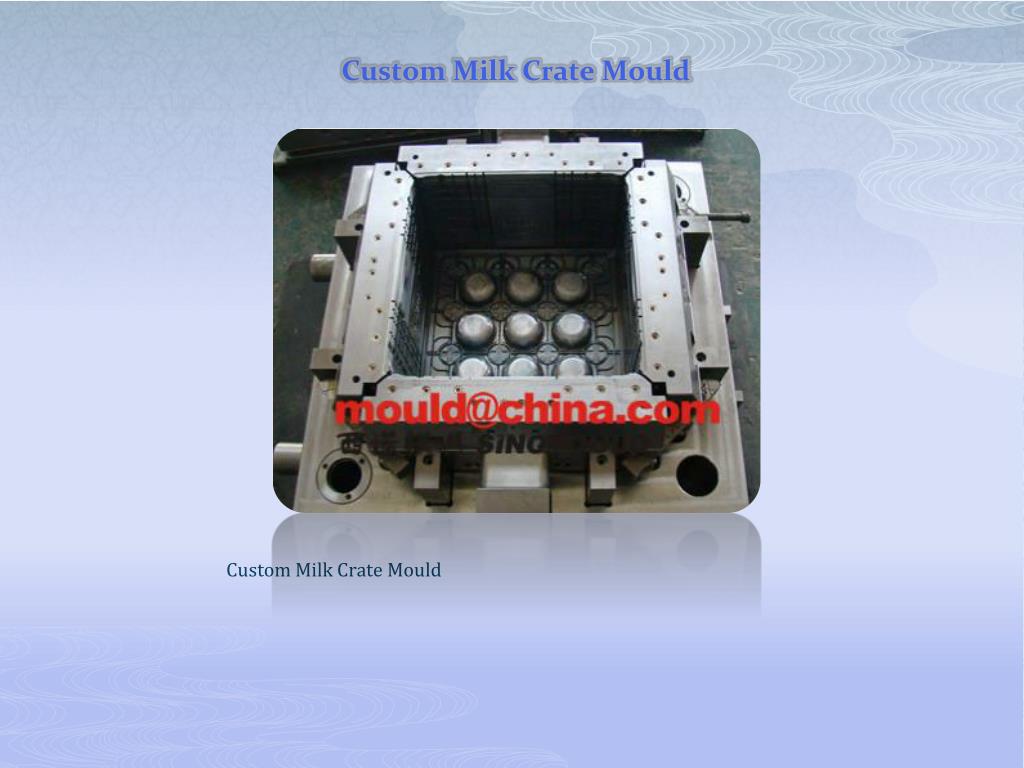

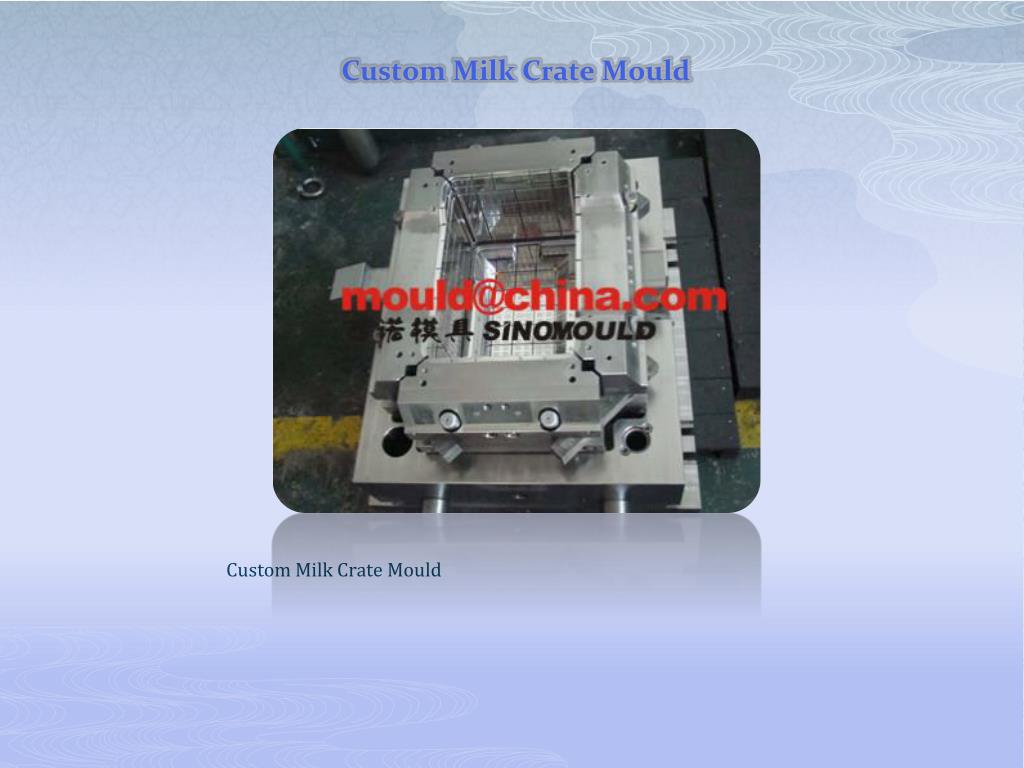

  37. Custom Milk Crate Mould Custom Milk Crate Mould

  38. Custom Milk Crate Mould Custom Milk Crate Mould

  39. Custom Milk Crate Mould Custom Milk Crate Mould

  40. Custom Milk Crate Mould Custom Milk Crate Mould

  41. Thank You!!!!! Sino Mould Co. , Ltd Wendy Lu: Sales Engineer E-Mail: export2@sinomould.net market2@dakumar.com sinomould88@gmail.com Skype: sino.holdings.group-007 MSN:dakumar88@hotmail.com Tel :+8615068622586 For more information, please kindly refer to our website: www.cnmould.com And Sino People always warmly welcome your visit to review our factory. Looking forward to start our long term business cooperation now!!

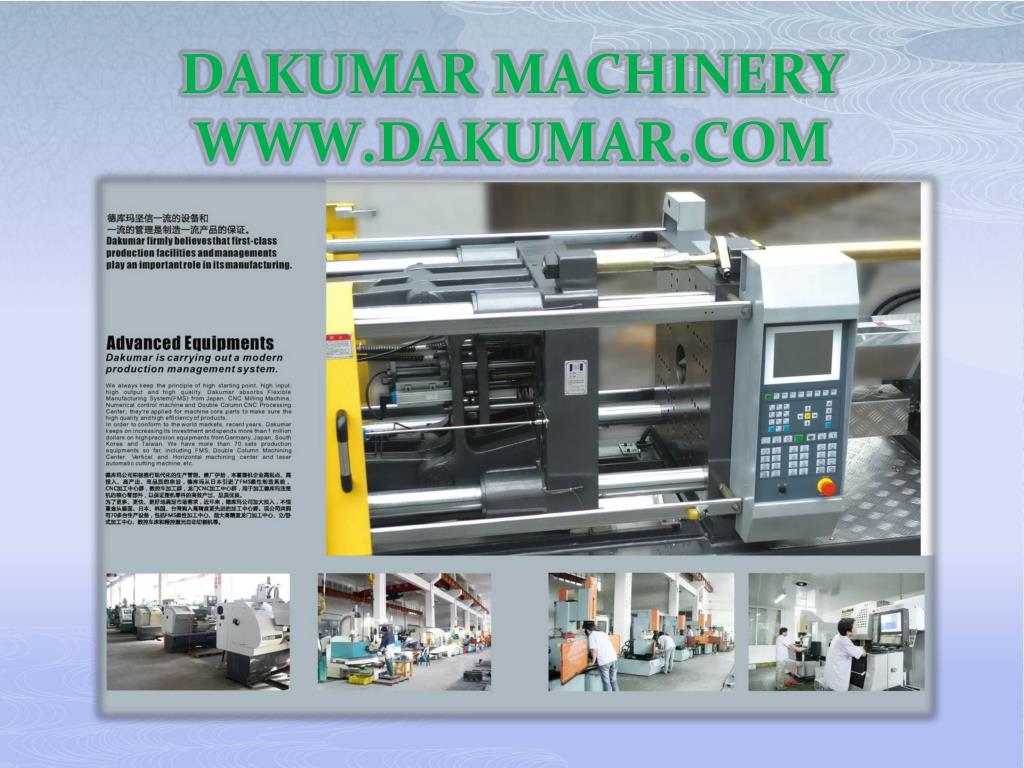

  42. DAKUMAR MACHINERYWWW.DAKUMAR.COM

  43. DAKUMAR MACHINERYWWW.DAKUMAR.COM

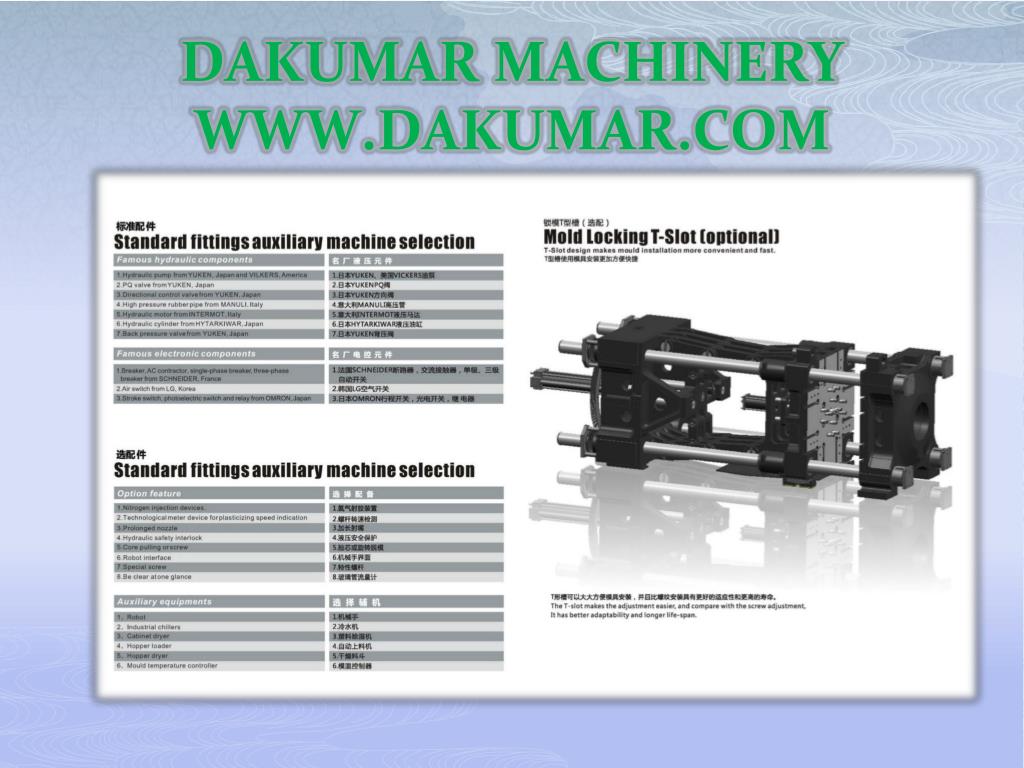

  44. DAKUMAR MACHINERYWWW.DAKUMAR.COM

  45. DAKUMAR MACHINERYWWW.DAKUMAR.COM

  46. DAKUMAR MACHINERYWWW.DAKUMAR.COM

  47. DAKUMAR MACHINERYWWW.DAKUMAR.COM

  48. DAKUMAR MACHINERY WWW.DAKUMAR.COM • DAKUMAR Machinery is one of our Sino Holdings Group branch company, which is one of the Chinese leading innovator for plastic injection molding machine researching and developing. • DAKUMAR has established service center in Brazil, Mexico, South Africa, Turkey, Israel, Russia...in order to make better service, we are negotiating with many oversea professional team to establish more and more service centers and partnership in different countries • For more information, please kindly visit our website or contact with me. Welcome your down visiting !!!!!!!!!!
