  1. Simple Machines

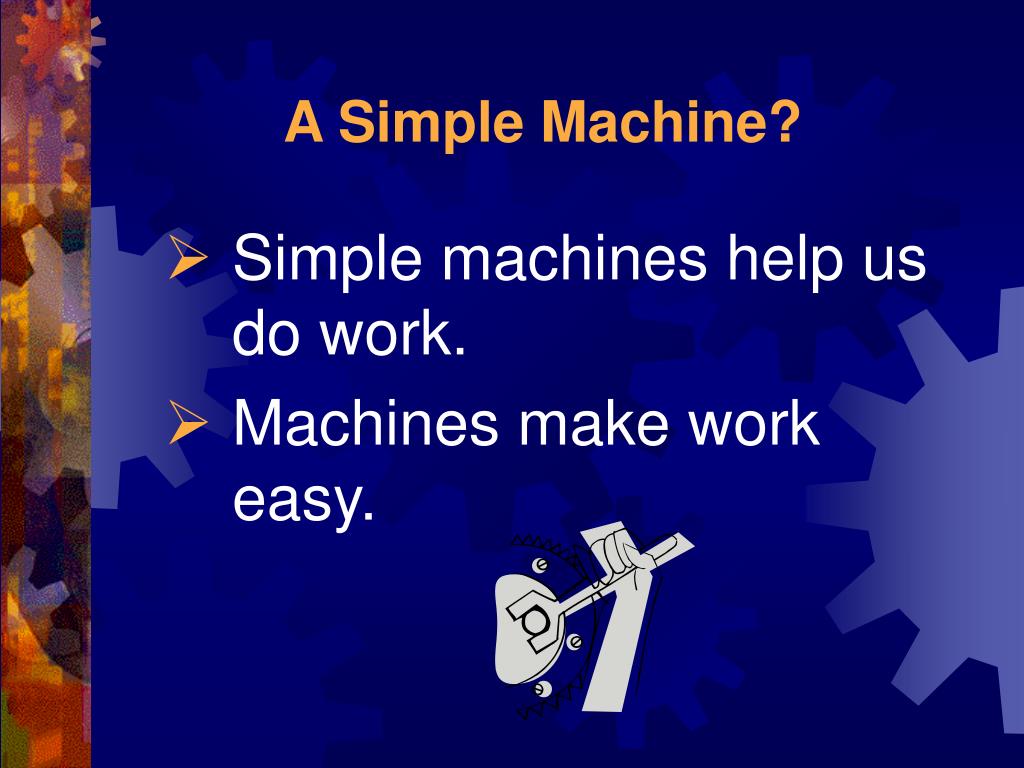

  2. A Simple Machine? • Simple machines help us do work. • Machines make work easy.

  3. So What? • Simple machines make work easier • Simple machines either change the amount of force on an object or change the direction of the force • Machines DON’T diminish the amount of work we do—they just make it easier! • Two or more SIMPLE machines make a COMPLEX machine!

  4. What is a Simple Machine? • Simple machines have few or no moving parts. • There are 6 kinds of simple machines.

  5. What are the 6 kinds of simple machines?

  6. An Inclined Plane?

  7. Actually, an Inclined Plane… • …inclined plane is like a flat board that is higher on one end. • …inclined plane makes work easier.

  8. Can you think of some other inclined planes?

  9. A Wedge?

  10. Actually, a wedge… • … is two inclined planes pushed together like a V. • …pushes things away from each other. • …split things.

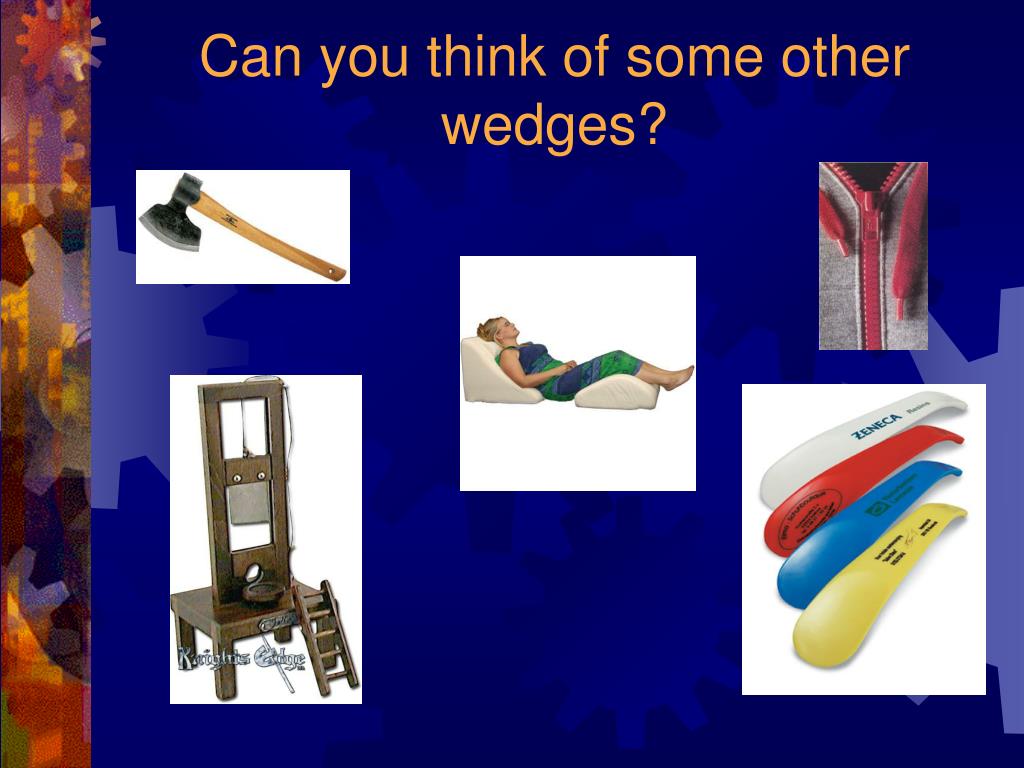

  11. Can you think of some other wedges?

  12. A Screw(ge)?

  13. Actually, a screw… • …is an inclined plane wrapped around a shaft or cylinder (the inclined plane allows the screw to move itself when rotated). • …holds things together and can make them go up and down.

  14. Can you think of some other screws?

  15. Wheels and axles?

  16. Actually, a wheel and axle… • …is a pole that goes through the wheel which allows the wheel to turn

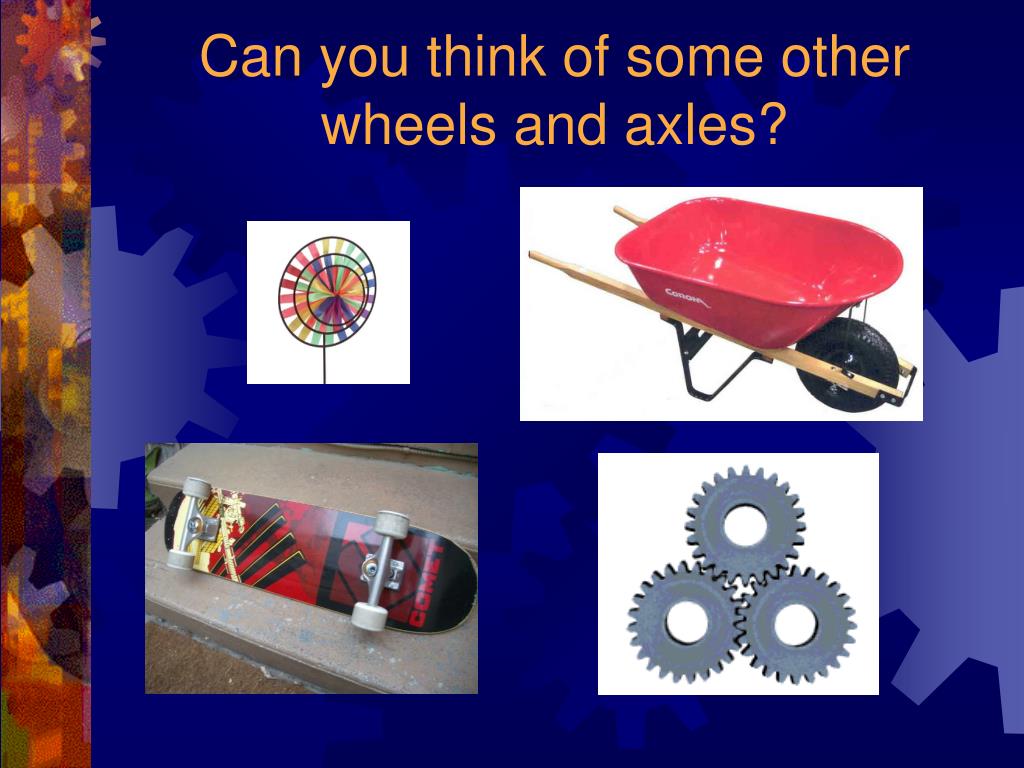

  17. Can you think of some other wheels and axles?

  18. Pulleys?

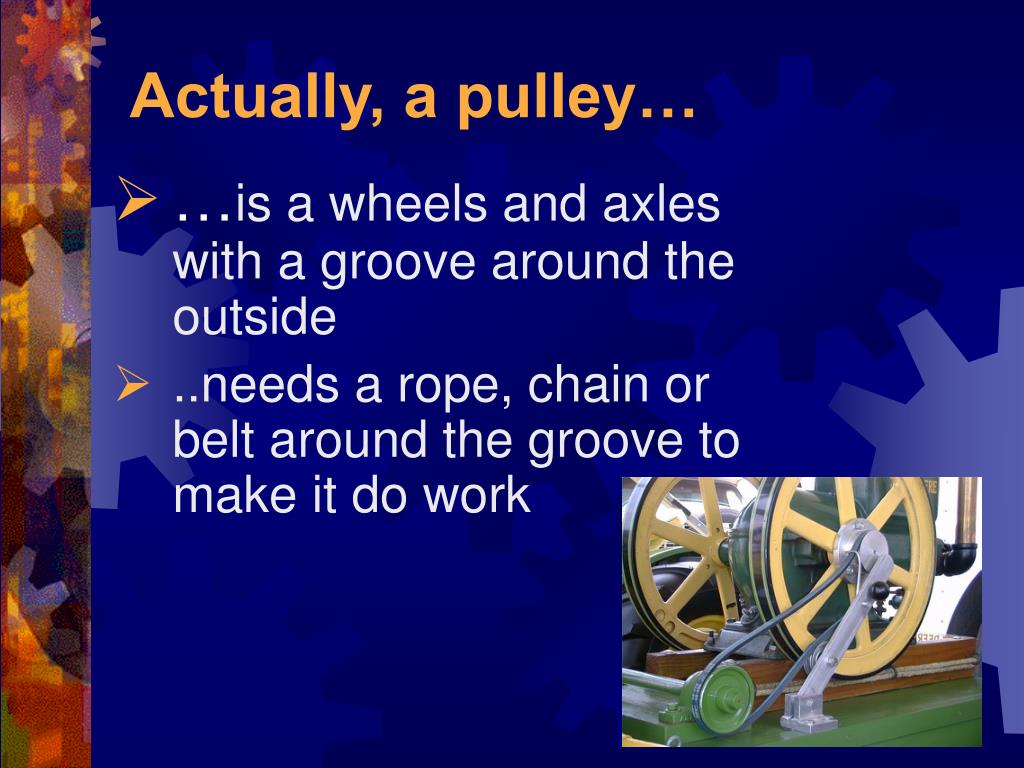

  19. Actually, a pulley… • …is a wheels and axles with a groove around the outside • ..needs a rope, chain or belt around the groove to make it do work

  20. Can you think of some other pulleys?

  21. Lever?

  22. Actually, a lever… • … is a board on top of something else. • …can balance things or move them

  23. Can you think of some other levers?

  24. Simple Machines • Simple machines can be put together in different ways to make complex machinery
