  1. CS162Operating Systems andSystems ProgrammingLecture 12Flow Control, DNS October 10, 2011 Anthony D. Joseph and Ion Stoica http://inst.eecs.berkeley.edu/~cs162

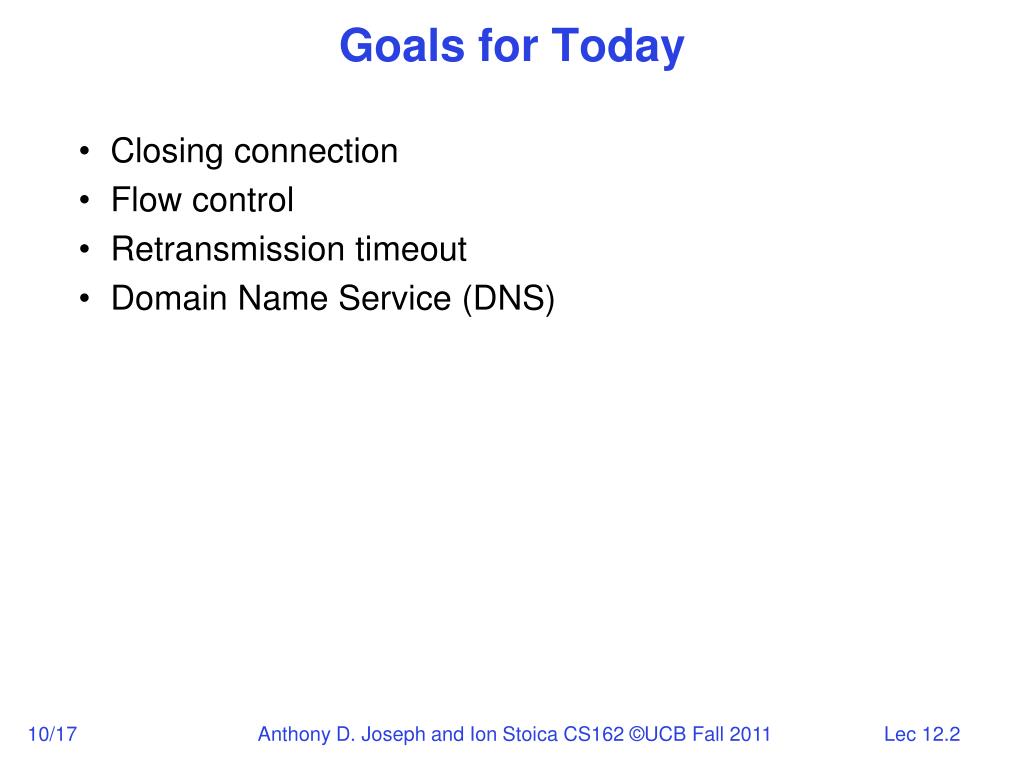

  2. Goals for Today • Closing connection • Flow control • Retransmission timeout • Domain Name Service (DNS)

  3. TCP Service • Open connection: 3-way handshaking • Reliable byte stream transfer from (IPa, TCP_Port1) to (IPb, TCP_Port2) • Close (tear-down) connection

  4. Close Connection (Two Generals Problem) • Goal: both sides agree to close the connection • Two-army problem: • “Two blue armies need to simultaneously attack the white army to win; otherwise they will be defeated. The blue army can communicate only across the area controlled by the white army which can intercept the messengers.” • What is the solution?

  5. Close Connection • 4-ways tear down connection Host 1 Host 2 FIN close FIN ACK data • Avoid reincarnation • Can retransmit FIN ACK if it is lost close FIN FIN ACK closed timeout closed

  6. TCP Flow Control • TCP: stream oriented protocol • Sender sends a stream of bytes, not packets (e.g., no need to tell TCP how much you send) • Receiver reads a stream of bytes • TCP flow control: • Sliding window protocol at byte (not packet) level • Go-back-N: TCP Tahoe, Reno, New Reno • Selective acknowledgement (SR): TCP Sack • Receiver tells sender how many more bytes it can receive without overflowing its buffer (i.e., AdvertisedWindow) • The ack(nowledgement) contains sequence number N of next byte the receiver expects, i.e., receiver has received all bytes in sequence up to and including N-1

  7. TCP Flow Control • TCP/IP implemented by OS (Kernel) • TCP and application run in different processes • Cannot do context switching on sending/receiving every packet • At 1Gbps, it takes 12 usec to send an 1500 bytes, and 0.8usec to send an 100 byte packet • Need buffers to match … • sending app with sending TCP • receiving TCP with receiving app Receiving Application Sending Application TCP layer TCP layer OS IP layer IP layer

  8. TCP Flow Control • Three pairs of producer-consumer’s • sending app  sending TCP • sending TCP  receiving TCP • receiving TCP  receiving app • How is mutual exclusion implemented? Receiving Application Sending Application TCP layer TCP layer OS IP layer IP layer

  9. TCP Flow Control • Example assumptions: • Maximum IP packet size = 100 bytes • Size of the receiving buffer (MaxRcvBuf) = 300bytes • Use circular buffers, i.e., N’s byte is stored at (N mod MaxRcvBuf) in the buffer • Recall, ack indicates the next expected byte in-sequence, not the last received byte Receiving Application Sending Application TCP layer TCP layer 300 bytes OS IP layer IP layer

  10. TCP Flow Control • LastByteWritten: last byte written by the sending app • LastByteSent: last byte sent by the sender • LastByteAcked: last byte acked at the sender • LastByteRcvd: last byte received at receiver • NextByteExpected: last in-sequence byte expected by receiver • LastByteRead: last byte read by the receiving app Receiving Application Sending Application LastByteWritten(0) LastByteRead(0) LastByteAcked(0) LastByteSent(0) LastByteRcvd(0) NextByteExpected(1)

  11. TCP Flow Control • AdvertisedWindow: number of bytes the receiver can receive • Sender window: number of bytes the sender can send Receiving Application Sending Application LastByteWritten LastByteRead MaxRcvBuffer LastByteAcked LastByteSent NextByteExpected LastByteRcvd AdvertisedWindow = MaxRcvBuffer – (LastByteRcvd – LastByteRead) Sender window = AdvertisedWindow – (LastByteSent – LastByteAcked) MaxSendBuffer >= LastByteWritten - LastByteAcked

  12. TCP Flow Control • Still true if receiver missed data…. • Sender window: number of bytes the sender can send Receiving Application Sending Application LastByteWritten LastByteRead MaxRcvBuffer LastByteAcked LastByteSent NextByteExpected LastByteRcvd AdvertisedWindow = MaxRcvBuffer – (LastByteRcvd – LastByteRead) Sender window = AdvertisedWindow – (LastByteSent – LastByteAcked) MaxSendBuffer >= LastByteWritten - LastByteAcked

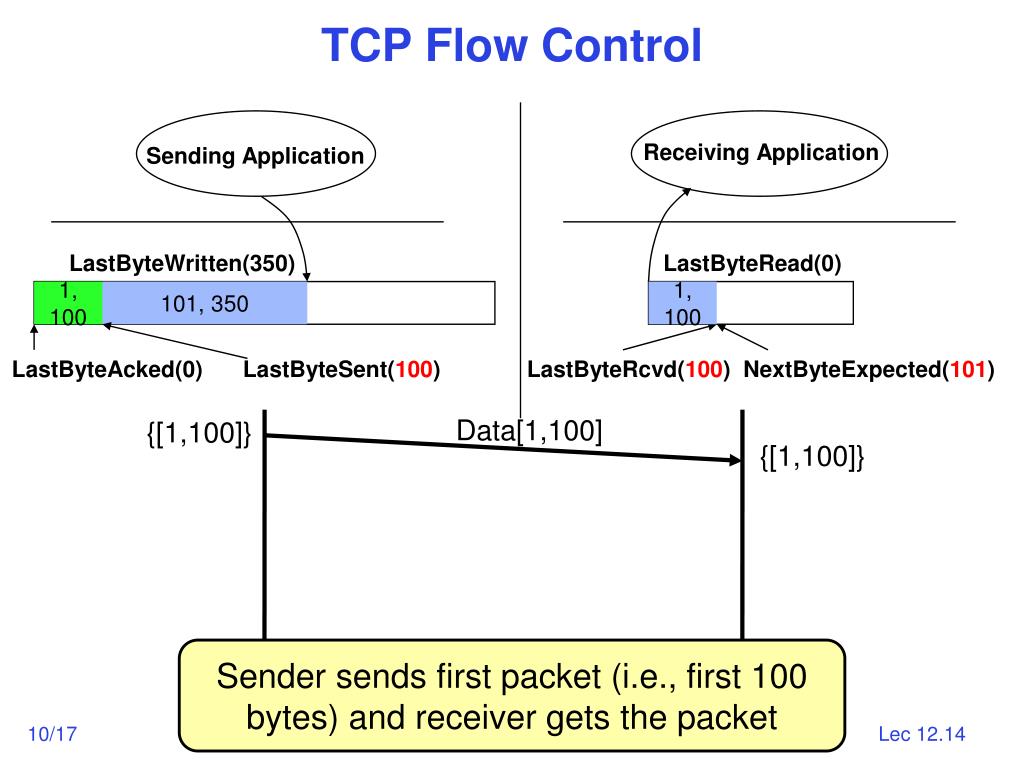

  13. TCP Flow Control • Sending app sends 350 bytes • Recall: we assume IP only accepts packets no larger than 100 bytes Receiving Application Sending Application LastByteWritten(350) LastByteRead(0) 1, 350 LastByteAcked(0) LastByteSent(0) LastByteRcvd(0) NextByteExpected(1)

  14. TCP Flow Control Receiving Application Sending Application LastByteWritten(350) LastByteRead(0) 1, 350 1, 100 101, 350 1, 100 LastByteAcked(0) LastByteSent(100) LastByteRcvd(100) NextByteExpected(101) Data[1,100] {[1,100]} {[1,100]} Sender sends first packet (i.e., first 100 bytes) and receiver gets the packet

  15. TCP Flow Control Receiving Application Sending Application LastByteWritten(350) LastByteRead(0) 1, 100 101, 200 101, 350 201, 350 1, 100 101, 200 LastByteAcked(0) LastByteSent(200) LastByteRcvd(200) NextByteExpected(201) Data[101,200] Data[1,100] {[1,200]} {[1,100]} {[1,100]} {[1,200]} Sender sends 2nd packet (i.e., next 100 bytes) and receiver gets the packet

  16. TCP Flow Control Receiving Application Sending Application LastByteWritten(350) LastByteRead(0) 1, 200 101, 350 201, 350 1, 200 LastByteAcked(0) LastByteSent(200) LastByteRcvd(200) NextByteExpected(201) Data[101,200] Data[1,100] {[1,200]} {[1,100]} {[1,100]} {[1,200]} Sender sends 2nd packet (i.e., next 100 bytes) and receiver gets the packet

  17. TCP Flow Control Receiving Application Sending Application LastByteWritten(350) LastByteRead(0) 1, 200 101, 350 201, 300 201, 350 301, 350 1, 200 LastByteAcked(0) LastByteSent(300) LastByteRcvd(200) NextByteExpected(201) Data[101,200] Data[1,100] {[1,200]} {[1,100]} {[1,200]} {[1,100]} Data[201,300] {[1,300]} Sender sends 3rd packet (i.e., next 100 bytes) and the packet is lost

  18. TCP Flow Control Receiving Application Sending Application LastByteWritten(350) LastByteRead(0) 1,300 101, 350 201, 350 301, 350 1, 200 LastByteAcked(0) LastByteSent(300) LastByteRcvd(200) NextByteExpected(201) Data[101,200] Data[1,100] {[1,200]} {[1,100]} {[1,200]} {[1,100]} Data[201,300] {[1,300]} Sender stops sending as window full SndWin = AdvWin – (LastByteSent – LastByteAcked) = 0

  19. TCP Flow Control Receiving Application Sending Application LastByteWritten(350) LastByteRead(0) 1,300 101, 350 201, 350 301, 350 1, 200 LastByteAcked(0) LastByteSent(300) LastByteRcvd(200) NextByteExpected(201) Data[1,100] Data[101,200] {[1,200]} {[1,100]} {[1,100]} {[1,200]} Data[201,300] {[1,300]} Ack=101, AdvWin = 200 • Receiver sends ack for 1st packet (ack indicates next byte expected by receiver) • AdvWin (Advertised Window) = 200

  20. TCP Flow Control Receiving Application Sending Application LastByteWritten(350) LastByteRead(0) 101, 350 101,300 201, 350 301, 350 1, 200 LastByteAcked(100) LastByteSent(300) LastByteRcvd(200) NextByteExpected(201) Data[101,200] Data[1,100] {[1,200]} {[1,100]} {[1,200]} {[1,100]} Data[201,300] {[1,300]} {101, 300} Ack=101, AdvWin = 200 • Sender receives ack for 1st packet (ack indicates next byte expected by receiver) • Receiver no longer needs first 100 bytes

  21. TCP Flow Control Receiving Application Sending Application LastByteWritten(350) LastByteRead(0) 101, 350 101,300 201, 350 301, 350 1, 200 LastByteAcked(100) LastByteSent(300) LastByteRcvd(200) NextByteExpected(201) Data[101,200] Data[1,100] {[1,200]} {[1,100]} {[1,200]} {[1,100]} Data[201,300] {[1,300]} {101, 300} Ack=101, AdvWin = 200 Sender still cannot send as window full SndWin = AdvWin – (LastByteSent – LastByteAcked) = 0

  22. TCP Flow Control Receiving Application Sending Application 1, 100 LastByteWritten(350) LastByteRead(100) 101, 350 101,300 201, 350 301, 350 101, 200 LastByteAcked(100) LastByteSent(300) LastByteRcvd(200) NextByteExpected(201) Data[101,200] Data[1,100] {[1,200]} {[1,100]} {[1,200]} {[1,100]} Data[201,300] {[1,300]} {101, 300} Ack=101, AdvWin = 200 Sender app reads 100 bytes

  23. TCP Flow Control Receiving Application Sending Application LastByteWritten(350) LastByteRead(100) 101, 350 101,300 201, 350 301, 350 101, 200 LastByteAcked(100) LastByteSent(300) LastByteRcvd(200) NextByteExpected(201) Data[101,200] Data[1,100] {[1,200]} {[1,100]} {[1,100]} {[101,200]} Data[201,300] {[1,300]} {101, 300} {201, 300} Ack=201, AdvWin = 200 • Receiver sends ack for 2nd packet • AdvWin (AdvertisedWindow) = 200 bytes

  24. TCP Flow Control Receiving Application Sending Application LastByteWritten(350) LastByteRead(100) 201,300 101, 350 201, 350 301, 350 101, 200 LastByteAcked(200) LastByteSent(300) LastByteRcvd(200) NextByteExpected(201) Data[1,100] Data[101,200] {[1,200]} {[1,100]} {[101,200]} {[1,100]} Data[201,300] {[1,300]} {101, 300} {201, 300} Ack=201, AdvWin = 200 Sender can now send new data! SndWin = AdvWin – (LasByteSent – LastByteAcked) = 100

  25. TCP Flow Control Receiving Application Sending Application LastByteWritten(350) LastByteRead(100) 101, 350 201,300 201, 350 301,350 301, 350 101, 200 301, 350 LastByteAcked(200) LastByteSent(300) LastByteRcvd(350) NextByteExpected(201) Data[101,200] Data[301,350] Data[1,100] {[201,350]} {[1,200]} {[1,100]} {[1,100]} {[101,200]} {[101,200],[301,350]} Data[201,300] {[1,300]} {101, 300}

  26. TCP Flow Control Receiving Application Sending Application LastByteWritten(350) LastByteRead(100) 201,300 101, 350 201, 350 301,350 301, 350 101, 200 301, 350 LastByteAcked(200) LastByteSent(300) LastByteRcvd(350) NextByteExpected(201) Data[101,200] Data[1,100] Data[301,350] {[201,350]} {[1,200]} {[1,100]} {[101,200],[301,350]} {[101,200]} {[1,100]} Ack=201, AdvWin = 50 {201, 350} Data[201,300] {[1,300]} {101, 300}

  27. TCP Flow Control Receiving Application Sending Application LastByteWritten(350) LastByteRead(100) 101, 350 201,300 201, 350 301,350 301, 350 101, 200 301, 350 LastByteAcked(200) LastByteSent(300) LastByteRcvd(350) NextByteExpected(201) Data[301,350] {[201,350]} {[101,200],[301,350]} Ack=201, AdvWin = 50 {201, 350} • Ack still specifies 201 (first byte out of sequence) • AdvWin = 50, so can sender re-send 2nd packet?

  28. TCP Flow Control Receiving Application Sending Application LastByteWritten(350) LastByteRead(100) 101, 350 201,300 201, 350 301,350 301, 350 101, 200 301, 350 LastByteAcked(200) LastByteSent(300) LastByteRcvd(350) NextByteExpected(201) Data[301,350] {[201,350]} {[101,200],[301,350]} Ack=201, AdvWin = 50 {201, 350} • Ack still specifies 201 (first byte out of sequence) • AdvWin = 50, so can sender re-send 2nd packet?

  29. TCP Flow Control Receiving Application Sending Application LastByteWritten(350) LastByteRead(100) 201,300 101, 350 201, 350 301,350 301, 350 101, 200 201, 300 301, 350 LastByteAcked(200) LastByteSent(300) LastByteRcvd(350) NextByteExpected(351) Data[301,350] Data[201,300] {[201,350]} {[201,350]} {[101,350]} {[101,200],[301,350]} Ack=201, AdvWin = 50 {201, 350} Yes! Sender can re-send 2nd packet since it’s in existing window – won’t cause receiver window to grow

  30. TCP Flow Control Receiving Application Sending Application LastByteWritten(350) LastByteRead(100) 201,300 101, 350 201, 350 301,350 301, 350 101, 350 LastByteAcked(200) LastByteSent(300) LastByteRcvd(350) NextByteExpected(351) Data[301,350] Data[201,300] {[201,350]} {[201,350]} {[101,200],[301,350]} {[101,350]} Ack=201, AdvWin = 50 {201, 350} Yes! Sender can re-send 2nd packet since it’s in existing window – won’t cause receiver window to grow

  31. Recap: Packet-level Flow Control • Implement flow control at packet level (see last lecture) • Advertised window is 3 packets • Ack packet specifies the seq. number of last packet received in sequence Pkt 1 delivered to app 3 2 1 4 {1,2} {1} {3,4} {2,3,4} {1,2}  {2} {1} {2,4} ack=1, AdWin =2 ack=2, AdWin = 2 ack=2, AdWin = 0 {1,2,3} 3 {2, 3} {3,4} {3}

  32. Retransmission Timeout • If haven’t received ack by timeout, retransmit packet after last acked packet • How to set timeout?

  33. Timing Illustration 1 1 Timeout RTT RTT 1 Timeout 1 Timeout too long  inefficiency Timeout too short  duplicate packets

  34. Retransmission Timeout (cont’d) • If haven’t received ack by timeout, retransmit packet after last acked packet • How to set timeout? • Too long: connection has low throughput • Too short: retransmit packet that was just delayed • Packet was probably delayed because of congestion • Sending another packet too soon just makes congestion worse • Solution: make timeout proportional to RTT • Use exponential averaging to estimate RTT

  35. What did We Learn so Far? • Packet switching (vs. circuit switching) • Store & forwarding: a packet is stored before being forwarded • Each packet is independently forwarded • Statistical multiplexing: • Un-correlated bursty traffic  aggregate average is close to the peak aggregate bandwidth • Layering: network organization • E2E argument: think twice before adding functionality at a lower layer, do it if and only if • Improves dramatically the performance of apps that need it • Doesn’t hurt performance of apps that don’t need it

  36. What did We Learn so Far? (cont’d) • Opening & closing a connection • Flow control • Reliability • Stop & wait • Sliding window (Go-back-n, selective repeat) • Retransmission timeout

  37. Midterm • Midterm: Thursday, October 13, 5-6:30pm in 155 Dwinelle • Up to and including lecture 11 • Closed book, 1 cheat sheet (two sides) • Materials: everything up to laste lecture, i.e., Lecture 11 (Reliability, TCP Connection Setup) • Midterm review: Today, 7:30-9:30pm, 306 Soda Hall • Ion’s office hour change: • 11-12am  10-11am, Wednesday, October 12 • Additional office hour: 6:30-7:30pm, Wednesday, October 12

  38. 5min Break

  39. Domain Name System (DNS) • Concepts & principles underlying the Domain Name System (DNS) • Indirection: names in place of addresses • Hierarchy: in names, addresses, and servers • Caching: of mappings from names to/from addresses

  40. 00001100 00100010 10011110 00000101 IP Addresses (IPv4) • A unique 32-bit number • Identifies an interface (on a host, on a router, …) • Represented in dotted-quad notation. E.g, 12.34.158.5: 12 34 158 5

  41. Host Names vs. IP addresses • Host names • Mnemonic name appreciated by humans • Variable length, full alphabet of characters • Provide little (if any) information about location • Examples: www.cnn.com and bbc.co.uk • IP addresses • Numerical address appreciated by routers • Fixed length, binary number • Hierarchical, related to host location • Examples: 64.236.16.20 and 212.58.224.131

  42. Separating Naming and Addressing • Names are easier to remember • www.cnn.com vs. 64.236.16.20 • Addresses can change underneath • Move www.cnn.com to 64.125.91.21 • E.g., renumbering when changing providers • Name could map to multiple IP addresses • www.cnn.com to multiple (8) replicas of the Web site • Enables • Load-balancing • Reducing latency by picking nearby servers • Tailoring content based on requester’s location/identity • Multiple names for the same address • E.g., aliases like www.cnn.com and cnn.com

  43. Scalable (Name  Address) Mappings • Originally: per-host file • Flat namespace • /etc/hosts (what is this on your computer today?) • SRI (Menlo Park) kept master copy • Downloaded regularly • Single server doesn’t scale • Traffic implosion (lookups & updates) • Single point of failure • Amazing politics Need a distributed, hierarchical collection of servers

  44. Domain Name System (DNS) • Properties of DNS • Hierarchical name space divided into zones • Zones distributed over collection of DNS servers • Hierarchy of DNS servers • Root (hardwired into other servers) • Top-level domain (TLD) servers • Authoritative DNS servers • Performing the translations • Local DNS servers • Resolver software

  45. Distributed Hierarchical Database unnamed root zw arpa uk com edu org ac generic domains country domains in- addr bar ac Top-Level Domains (TLDs) west east cam foo my usr my.east.bar.edu usr.cam.ac.uk

  46. Located in Virginia, USA How do we make the root scale? DNS Root Verisign, Dulles, VA

  47. 13 root servers (see http://www.root-servers.org/) Labeled A through M Does this scale? DNS Root Servers A Verisign, Dulles, VA C Cogent, Herndon, VA D U Maryland College Park, MD G US DoD Vienna, VA H ARL Aberdeen, MD J Verisign K RIPE London I Autonomica, Stockholm E NASA Mt View, CA F Internet Software Consortium PaloAlto, CA M WIDE Tokyo B USC-ISI Marina del Rey, CA L ICANN Los Angeles, CA

  48. 13 root servers (see http://www.root-servers.org/) Labeled A through M Replication via any-casting (localized routing for addresses) DNS Root Servers A Verisign, Dulles, VA C Cogent, Herndon, VA (also Los Angeles, NY, Chicago) D U Maryland College Park, MD G US DoD Vienna, VA H ARL Aberdeen, MD J Verisign (21 locations) K RIPE London (plus 16 other locations) I Autonomica, Stockholm (plus 29 other locations) E NASA Mt View, CA F Internet Software Consortium, PaloAlto, CA (and 37 other locations) M WIDE Tokyo plus Seoul, Paris, San Francisco B USC-ISI Marina del Rey, CA L ICANN Los Angeles, CA

  49. TLD and Authoritative DNS Servers • Top-level domain (TLD) servers • Generic domains (e.g., com, org, edu) • Country domains (e.g., uk, fr, cn, jp) • Special domains (e.g., arpa) • Typically managed professionally • Network Solutions maintains servers for “com” • Educause maintains servers for “edu” • Authoritative DNS servers • Provide public records for hosts at an organization • Private records may differ, though not part of original design’s intent • For the organization’s servers (e.g., Web and mail) • Can be maintained locally or by a service provider

  50. Using DNS • Local DNS server (“default name server”) • Usually near the endhosts that use it • Local hosts configured with local server (e.g., /etc/resolv.conf) • Extract server name (e.g., from the URL) • Do gethostbyname() to trigger resolver code
