Euler construction

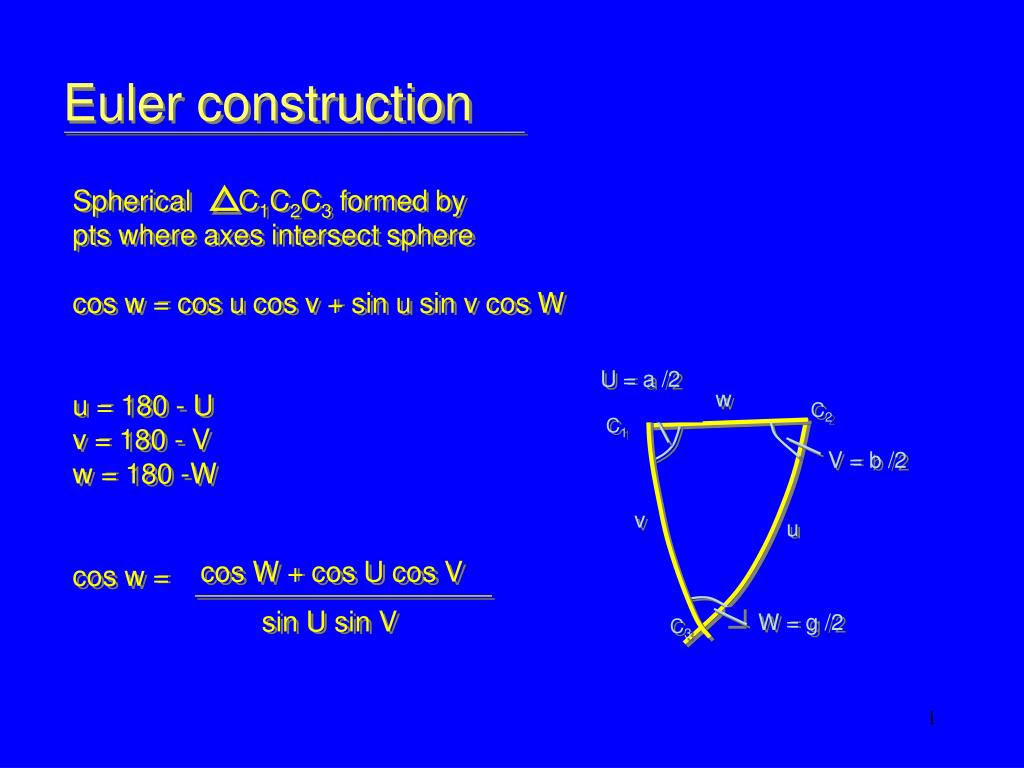

Euler construction. Spherical C 1 C 2 C 3 formed by pts where axes intersect sphere cos w = cos u cos v + sin u sin v cos W u = 180 - U v = 180 - V w = 180 -W cos w =. U = a /2. w. C 2. C 1. V = b /2. v. u. cos W + cos U cos V. sin U sin V. W = g /2. C 3.

delu
Télécharger la présentation

Euler construction

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Euler construction Spherical C1C2C3 formed by pts where axes intersect sphere cos w = cos u cos v + sin u sin v cos W u = 180 - U v = 180 - V w = 180 -W cos w = U = a /2 w C2 C1 V = b /2 v u cos W + cos U cos V sin U sin V W = g /2 C3

  2. Euler construction cos W + cos U cos V cos w = 1 2 3 4 6 sin U sin V , , or U, V, or W cos U, V, W sin U, V, W 360 180 -1 0 90 0 1 60 1/2 3/2 90 45 1/ 2 1/ 2 60 30 3/2 1/2

  3. Euler construction cos W + cos U cos V cos w = sin U sin V cos w w 222 0 90

  4. Euler construction cos W + cos U cos V cos w = sin U sin V cos w w 0 90 1/2 60

  5. Euler construction cos W + cos U cos V cos w = sin U sin V cos w w 0 90 1/2 60 1/ 2 45

  6. Euler construction cos W + cos U cos V cos w = sin U sin V cos w w 0 90 1/2 60 1/ 2 45 226 3/2 30

  7. Point groups so far Monoaxial groups - 1, 2, 3, 4, 6, i, m, 3, 4, 6

  8. Point groups so far Monoaxial groups - 1, 2, 3, 4, 6, i, m, 3, 4, 6 What about combining proper & improper along same axis? P I I

  9. Point groups so far Monoaxial groups - 1, 2, 3, 4, 6, i, m, 3, 4, 6 What about combining proper & improper along same axis? P I I 1/1 = 1 2/2 = 2/m 3/3 = 3 4/4 = 4/m 6/6 = 6/m

  10. Point groups so far Monoaxial groups - 1, 2, 3, 4, 6, i, m, 3, 4, 6 What about combining proper & improper along same axis? P I I 1/1 = 1 2/2 = 2/m 3/3 = 3 4/4 = 4/m 6/6 = 6/m

  11. Point groups so far Monoaxial groups - 1, 2, 3, 4, 6, i, m, 3, 4, 6 What about combining proper & improper along same axis? P I I 1/1 = 1 2/2 = 2/m 3/3 = 3 4/4 = 4/m 6/6 = 6/m

  12. Point groups so far Monoaxial groups - 1, 2, 3, 4, 6, i, m, 3, 4, 6 What about combining proper & improper along same axis? P I I 1/1 = 1 2/2 = 2/m 3/3 = 3 4/4 = 4/m 6/6 = 6/m

  13. Point groups so far Monoaxial groups - 1, 2, 3, 4, 6, i, m, 3, 4, 6 What about combining proper & improper along same axis? P I I 1/1 = 1 2/2 = 2/m 3/3 = 3 4/4 = 4/m 6/6 = 6/m 13 monaxial groups …….. 19 to go

  14. Point groups so far Polyaxial groups - 222, 223, 224, 226, 233, 234 …… 13 to go How? Combine P & I - remember P I I & I I P 222 = 2mm

  15. Point groups so far Polyaxial groups - 222, 223, 224, 226, 233, 234 …… 13 to go How? Combine P & I - remember P I I & I I P 222 = 2mm

  16. Point groups so far Polyaxial groups - 222, 223, 224, 226, 233, 234 …… 13 to go How? Combine P & I - remember P I I & I I P 222 = 2mm

  17. Point groups so far Polyaxial groups - 222, 223, 224, 226, 233, 234 …… 13 to go How? Combine P & I - remember P I I & I I P 223 = 3mm

  18. Point groups so far Polyaxial groups - 222, 223, 224, 226, 233, 234 …… 13 to go How? Combine P & I - remember P I I & I I P 223 = 3mm

  19. Point groups so far Polyaxial groups - 222, 223, 224, 226, 233, 234 …… 13 to go How? Combine P & I - remember P I I & I I P 223 = 3mm

  20. Point groups so far Polyaxial groups - 222, 223, 224, 226, 233, 234 …… 13 to go How? Combine P & I - remember P I I & I I P 224 = 4mm

  21. Point groups so far Polyaxial groups - 222, 223, 224, 226, 233, 234 …… 13 to go How? Combine P & I - remember P I I & I I P 224 = 42m

  22. Point groups so far Polyaxial groups - 222, 223, 224, 226, 233, 234 …… 13 to go How? Combine P & I - remember P I I & I I P 224 = 42m

  23. Point groups so far Polyaxial groups - 222, 223, 224, 226, 233, 234 …… 13 to go How? Combine P & I - remember P I I & I I P 226 = 6mm 226 = 62m 13 to go

  24. More point groups Polyaxial groups - 222, 223, 224, 226, 233, 234 …… 13 to go How? Combine P & I - remember P I I & I I P 226 = 6mm 226 = 62m 332 = 3 = 2/m 3 = 332 3 2 3 2

  25. More point groups Polyaxial groups - 222, 223, 224, 226, 233, 234 …… 13 to go How? Combine P & I - remember P I I & I I P 226 = 6mm 226 = 62m 332 = 3 = 2/m 3 = 332 432 = 43m 432 = 432 = 3 3 2 3 2 4 2 m m

  26. More point groups 2/2 = 2/m 3/3 = 3 4/4 = 4/m 6/6 = 6/m 2 2 2 2 2 2 3 2 2 3 2 2 2 4 2 2 4 2 2 6 2 2 6 2 2 = = 3 = mmm mmm m 2 2 2 2 2 2 = = mmm mmm 4 2 2 6 2 2

  27. Summary Triclinic 1 1 Monoclinic 2 m 2/m Orthorhmbic 222 2mm Tetragonal 4 4 4/m 422 4mm 42m Cubic 23 432 43m 3 Trigonal 3 3 32 3m 3 Hexagonal 6 6 6/m 622 6mm 62m 2 2 2 mmm 4 2 2 mmm 4 2 2 m m m 2 m 6 2 2 mmm 3
