2.7: Substitution and Transitive Property 2.8 Vertical Angles

I can apply the transitive properties of angles & segments . I can apply the substitution property. I can recognize vertical angles. 2.7: Substitution and Transitive Property 2.8 Vertical Angles. Day 1. Substitution. Equal quantities may replace each other. Substitute x = 14 into

denna
Télécharger la présentation

2.7: Substitution and Transitive Property 2.8 Vertical Angles

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

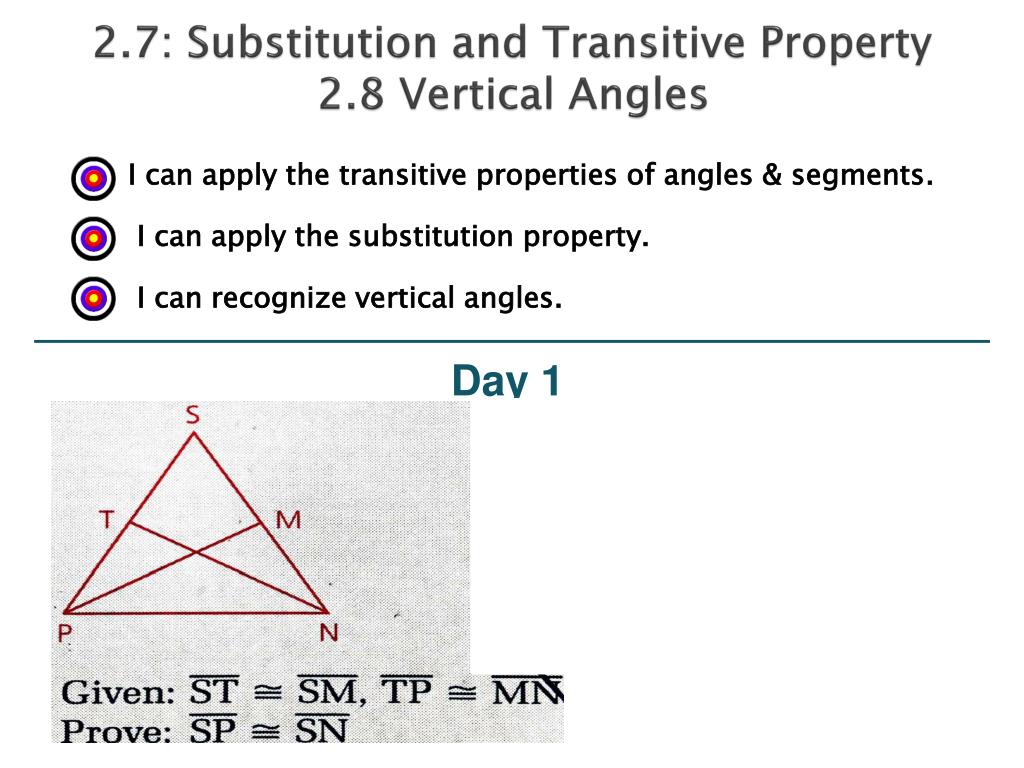

  1. I can apply the transitive properties of angles & segments. • I can apply the substitution property. • I can recognize vertical angles. 2.7: Substitution and Transitive Property2.8 Vertical Angles Day 1

  2. Substitution • Equal quantities may replace each other Substitute x = 14 into <A = 2x – 4 If <1 is comp. <2 <2 ≅ <3

  3. Transitive Property • If angles (segments) are congruent to the same angle (segment) or congruent angles (segments), then they are congruent. T O M D A N A C E If TO ≅ OM DA ≅ AN OM ≅AN then If <A ≅ <C <C ≅<E then • Special type of substitution

  4. Opposite Rays • Opposite rays- two collinear rays that have a common endpoint and extend in opposite directions C A A B B but not C

  5. Vertical Angles • Vertical Angles: A pair of non-adjacent angles formed by the intersection of two straight lines • Thm: Vertical angles are congruent ∠1 and ∠3 are vertical angles ∠2 and ∠4 are vertical angles 1 2 4 3

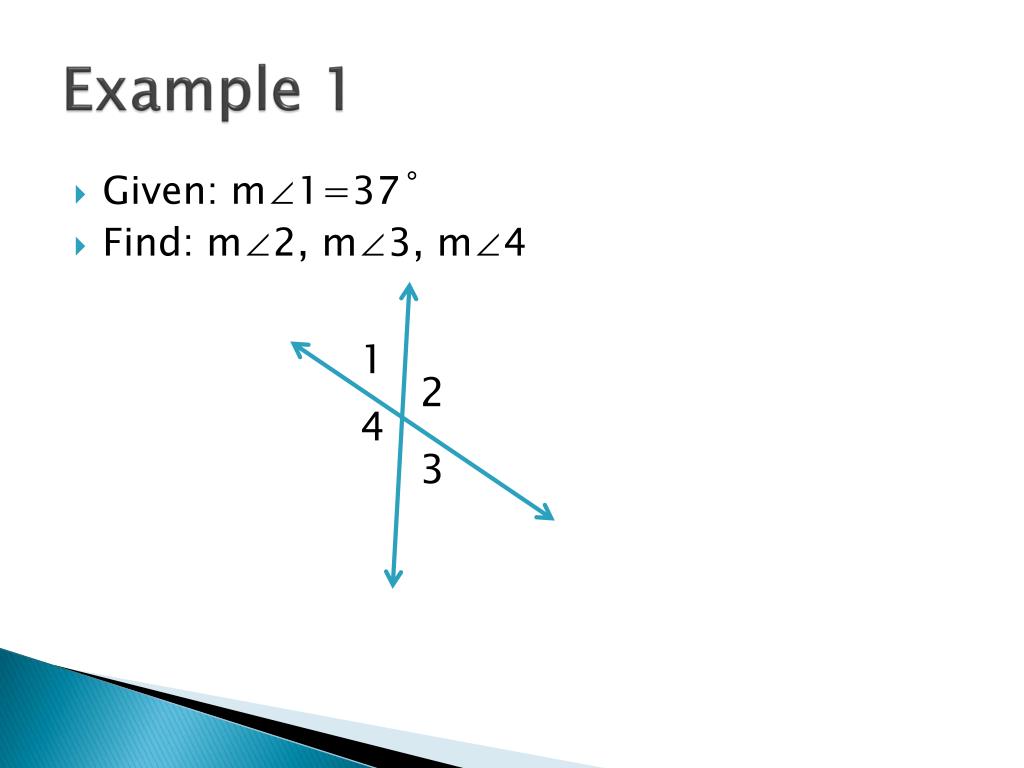

  6. Example 1 • Given: m∠1=37˚ • Find: m∠2, m∠3, m∠4 1 2 4 3

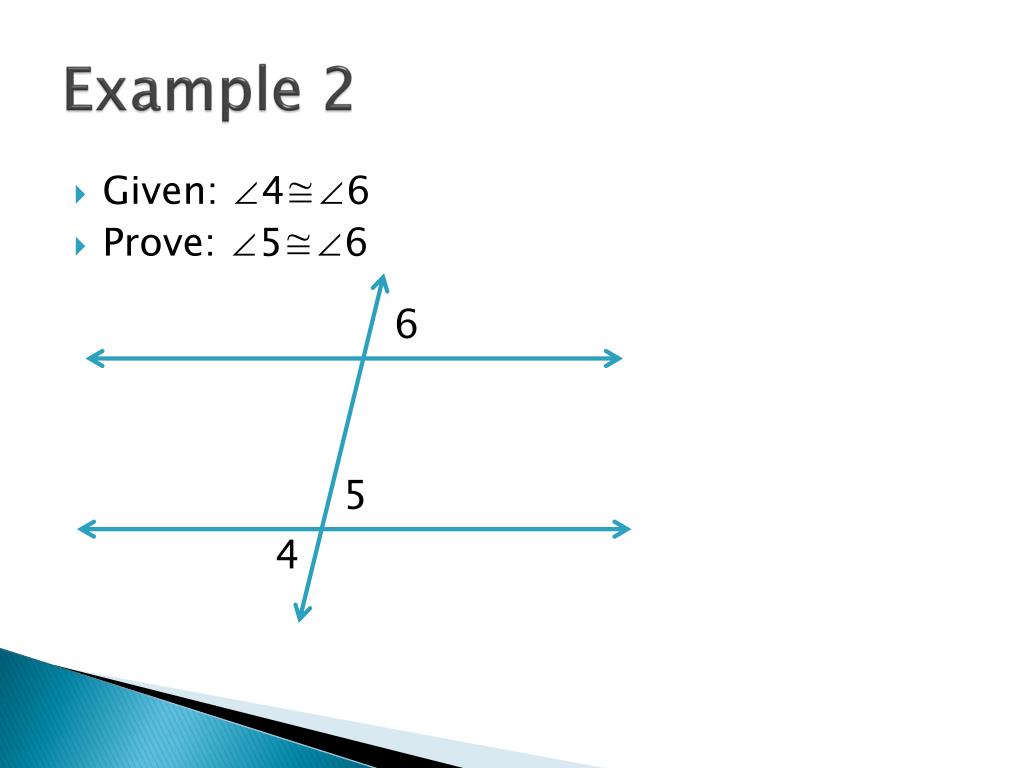

  7. Example 2 • Given: ∠4≅∠6 • Prove: ∠5≅∠6 6 5 4

  8. Example 3 • Given: ∠V≅∠YRX, ∠Y≅∠TRV • Prove: ∠V≅∠Y T V R Y X

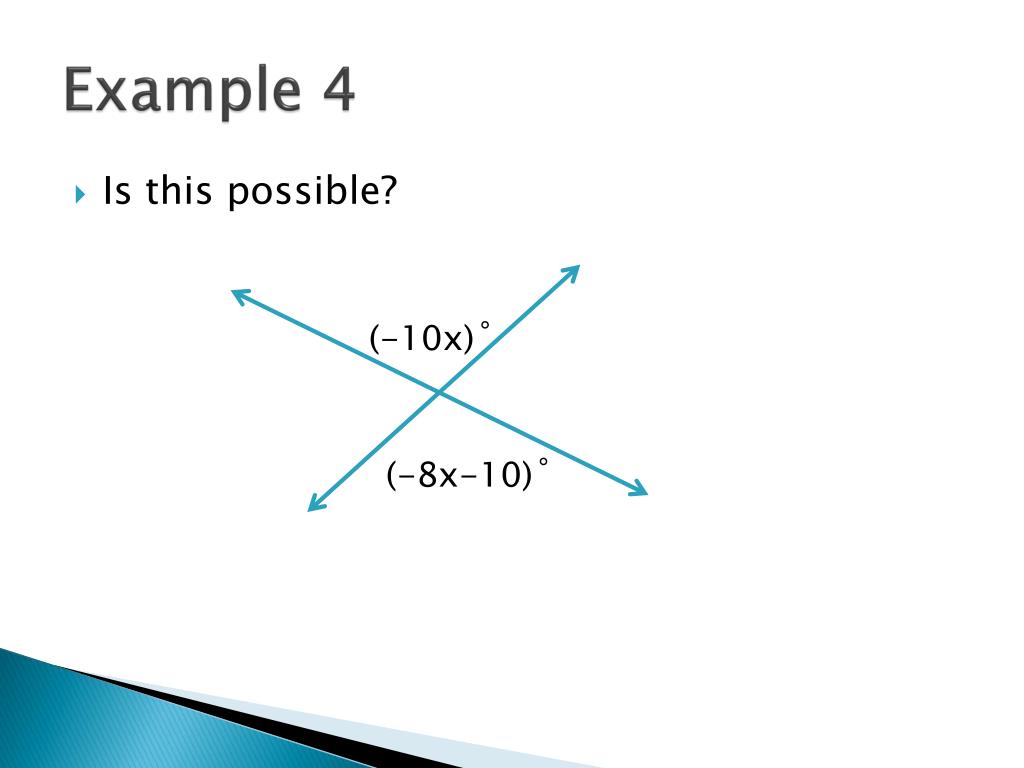

  9. Example 4 • Is this possible? (-10x)˚ (-8x-10)˚
