  1. Anesthesiology Neuromuscular MonitoringSystem ANTS #25

  2. Group Information Greg Angelotti (EE) Otto Cruz (CpE) Kristin “Zaza” Soriano (CpE/EE) Sponsor: Dr. Thomas Looke (Anesthesiologist/EE)

  3. Current Methodology • Administer Neuromuscular Blocking Agents (NMBA) • Blocks Acetylcholine (ACh) • Trivial neuromuscular stimulating • Subjective muscle response monitoring (if any at all) • Pen and paper record keeping

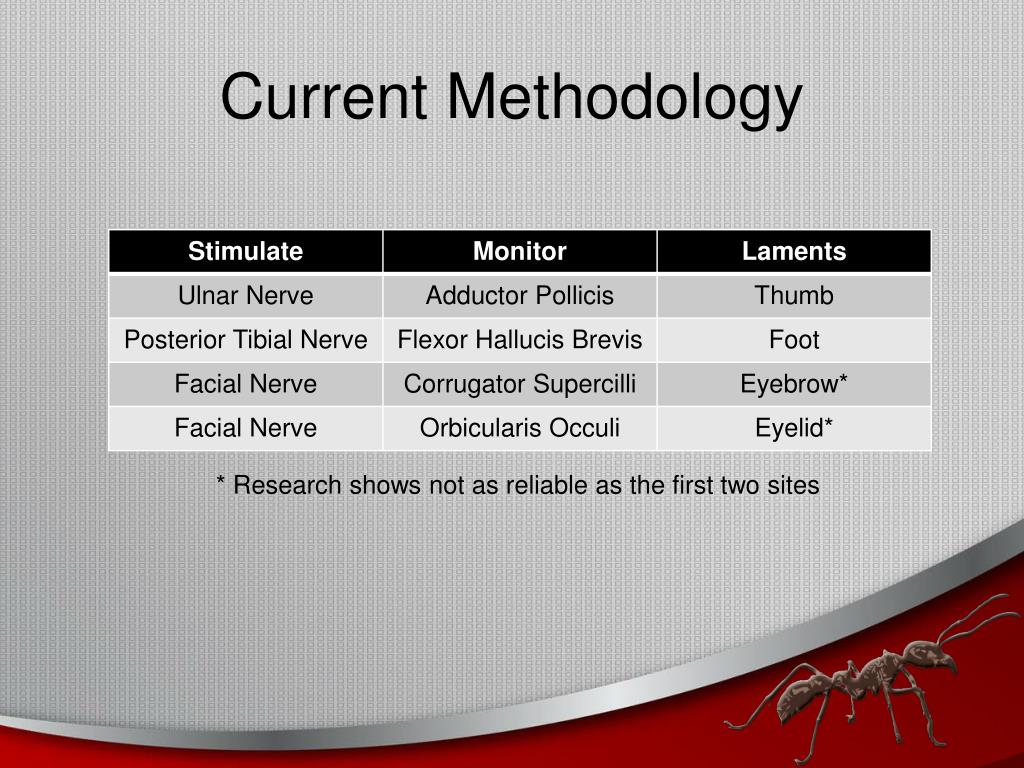

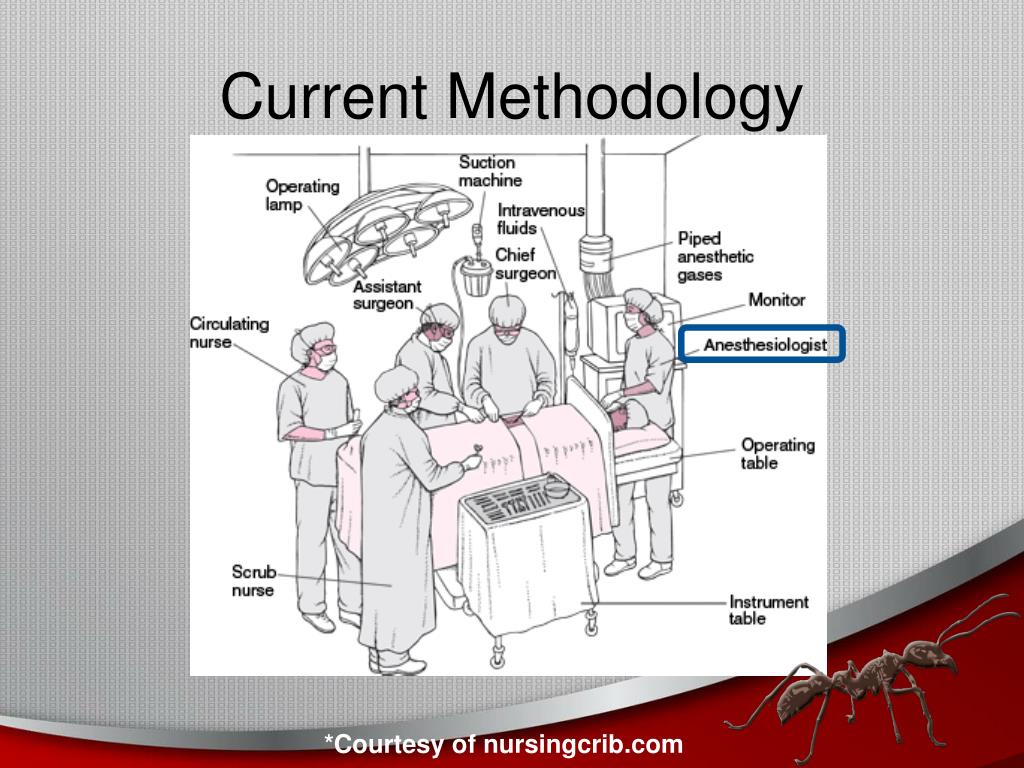

  4. Current Methodology *Courtesy of nursingcrib.com

  5. Current Methodology * Research shows not as reliable as the first two sites

  6. Objectives • To safely stimulate targeted sites • To effectively obtain patient signals • To accurately record patient feedback • To create a more organized environment

  7. Requirements • Must consist of safe modular subsystems • Must obtain objective quantitative muscular responses • Must produce individual patient feedback and logging • Must reduce operating room clutter

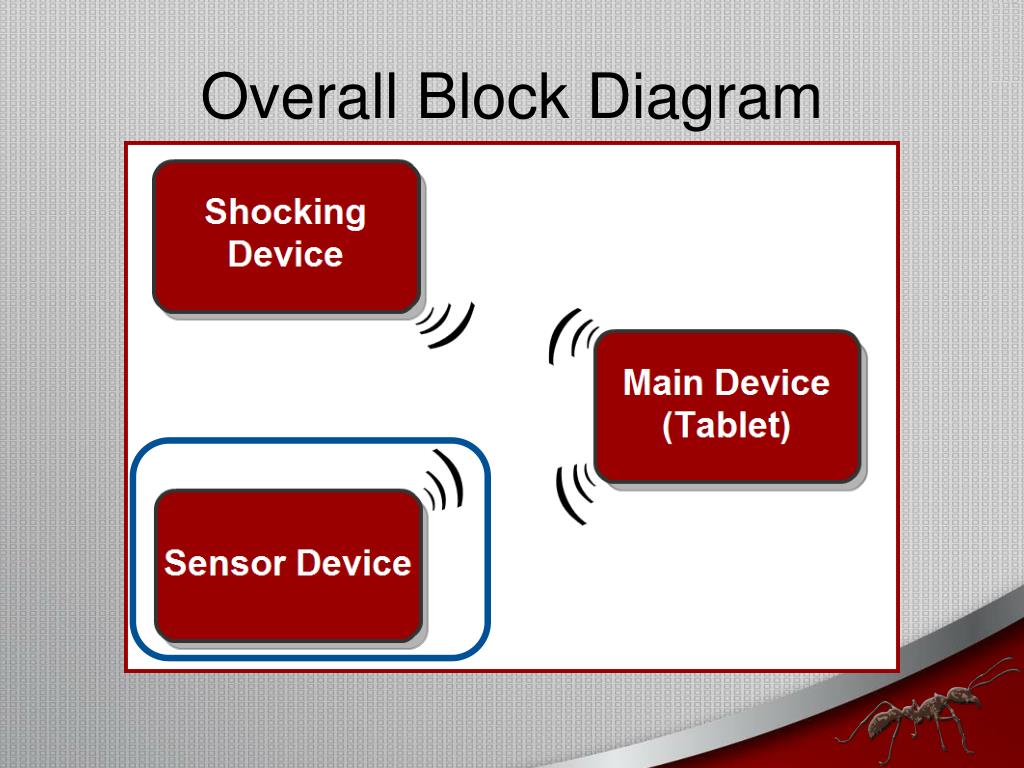

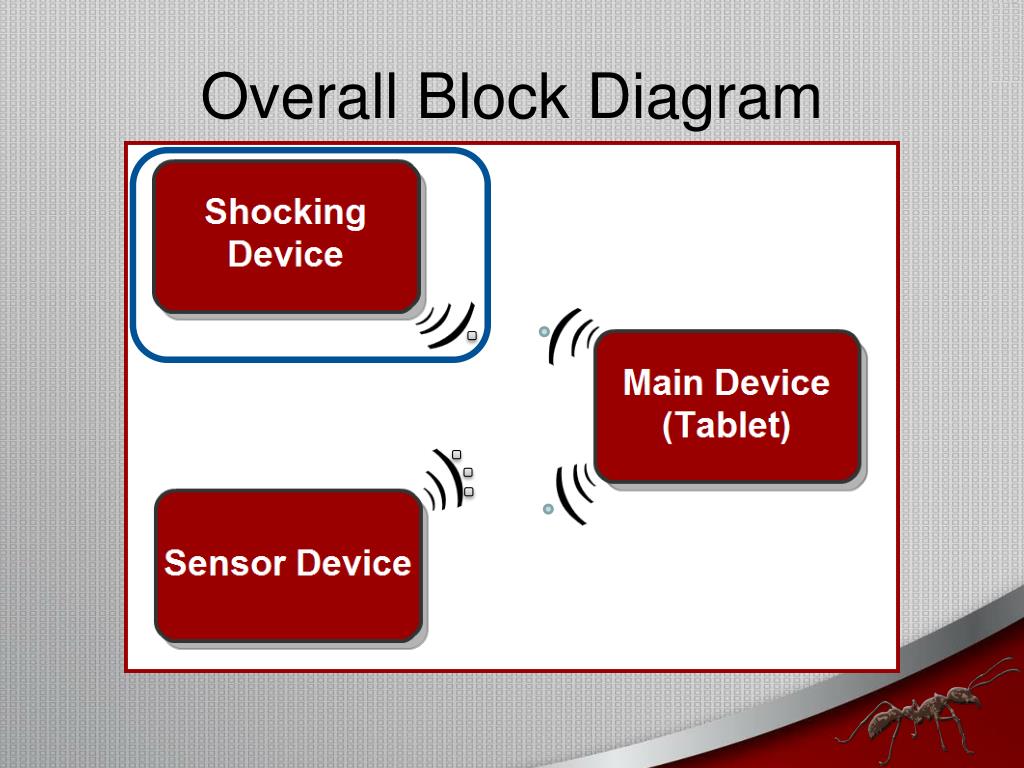

  8. Overall Block Diagram

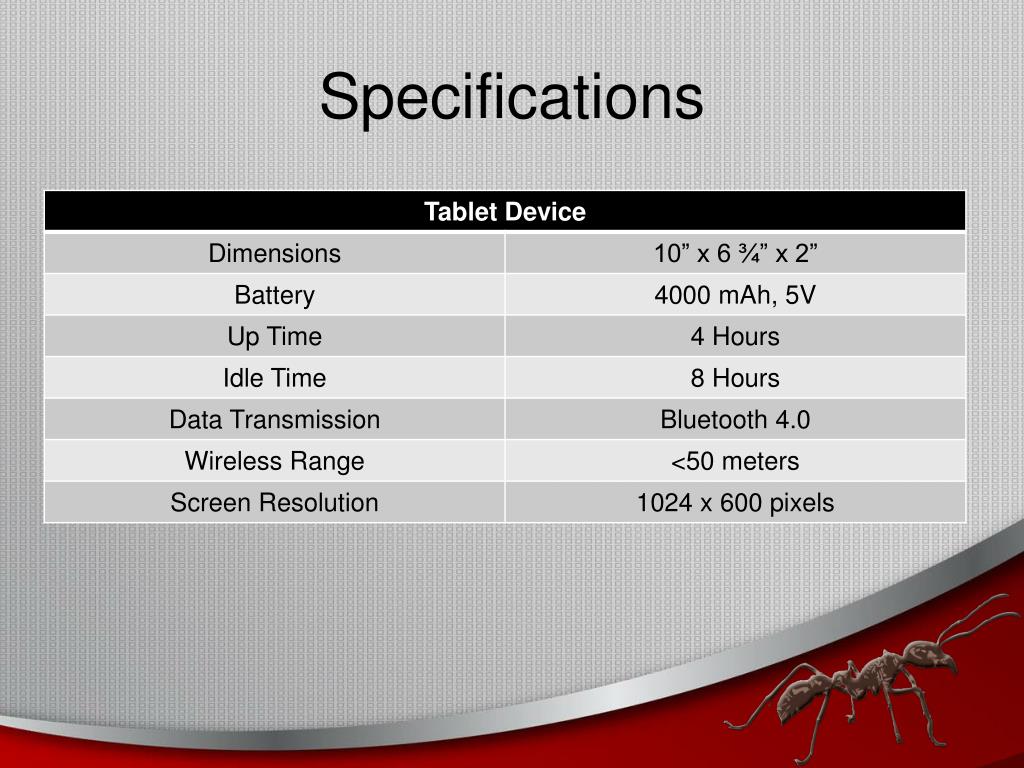

  9. Specifications

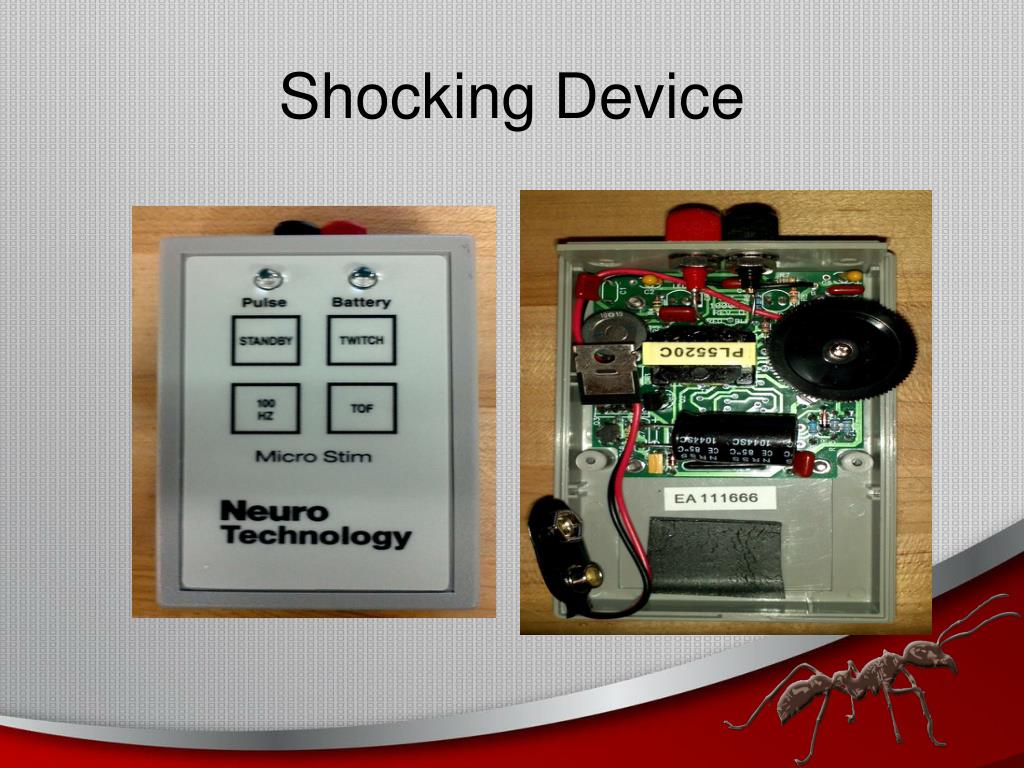

  10. Shocking Device

  11. MCU & Bluetooth

  12. Shocking Device

  13. Shocking Device

  14. Current Control • PWM to produce the 200us square wave form. • 10 Bit Serial SPI Dual Output DAC to control current output. • 2^10 taps (1024) with a 10 bit DAC • Issues deciding between Digital Potentiometer (voltage) and DAC (voltage & current).

  15. Current Op amp • Current input varies between 0 to 150 uA. • Current output 0 to 750 mA. • Availability and price is the reason for this part.

  16. DC to DC Converter • Optional part • Input 3.1 to 75 volts • Frequency Synchronization

  17. Shocking Device

  18. Negative Feedback • DC Converter to ADC port on MCU • Digital Integral controller to regulate the stimulation current. • Using the formula above will allow us to control the stimulators output.

  19. Shocking Device

  20. Power Supply • Voltage buck/boost regulator dual output 3.7 volts supplies processor & 5 volts supplies DAC • Boost Voltage regulator supplies op amp at 8 volts • The power supply is a 3.7 volt 2200 mAh lithium ion polymer.

  21. Overall Block Diagram

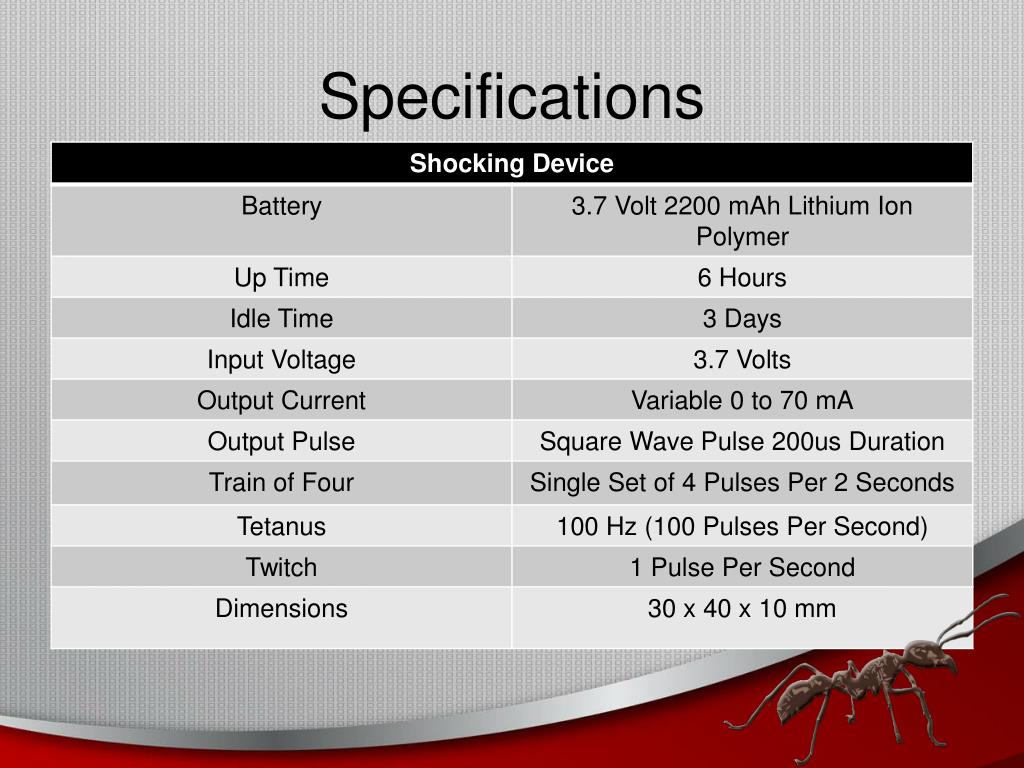

  22. Specifications

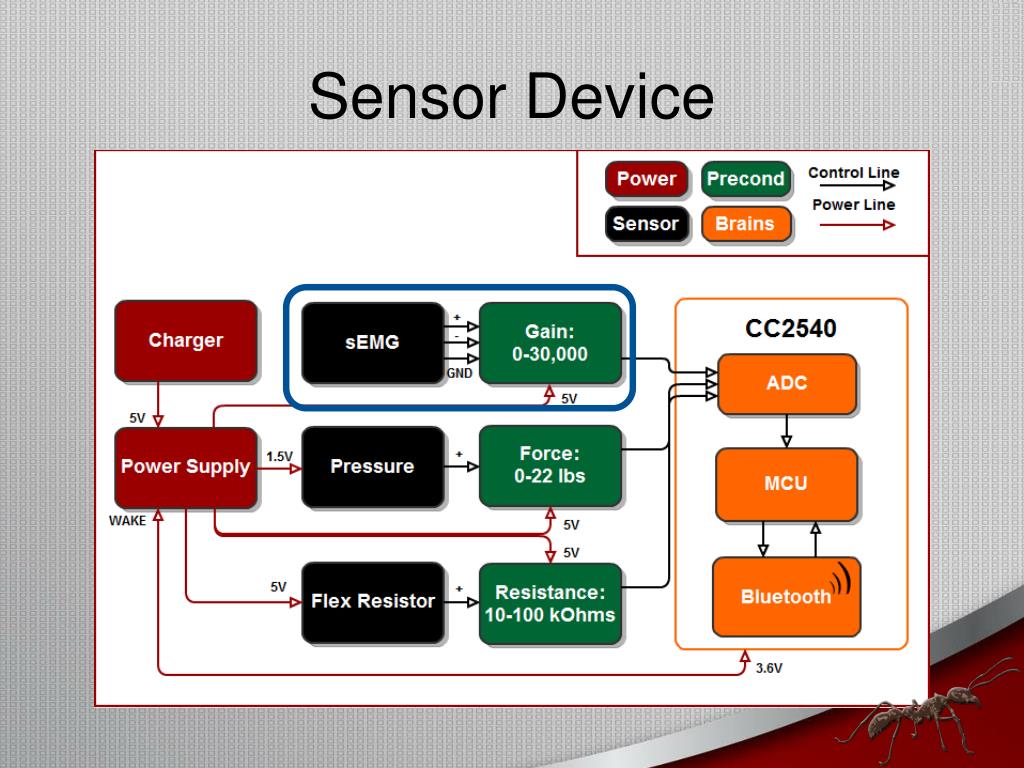

  23. Sensor Device

  24. Surface EMG • Pick targeted sites • Prepare the site • Place Ag/Cl reference electrodes • Ring Electrodes [preferred] • Disc Electrodes [<10 mm] • Ready to read patient action potentials • 0-6 mV [Typical]

  25. sEMG Preconditioning

  26. Sensor Device

  27. Tactile Pressure Sensor

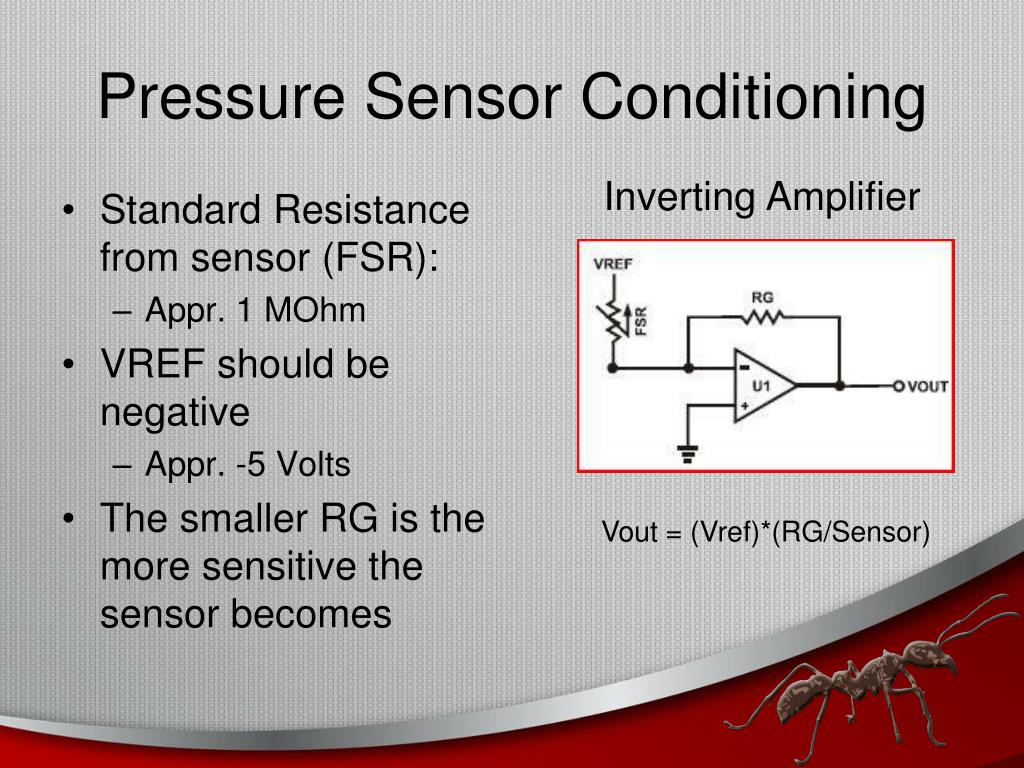

  28. Pressure Sensor Conditioning Inverting Amplifier • Standard Resistance from sensor (FSR): • Appr. 1 MOhm • VREF should be negative • Appr. -5 Volts • The smaller RG is the more sensitive the sensor becomes Vout = (Vref)*(RG/Sensor)

  29. Sensor Device

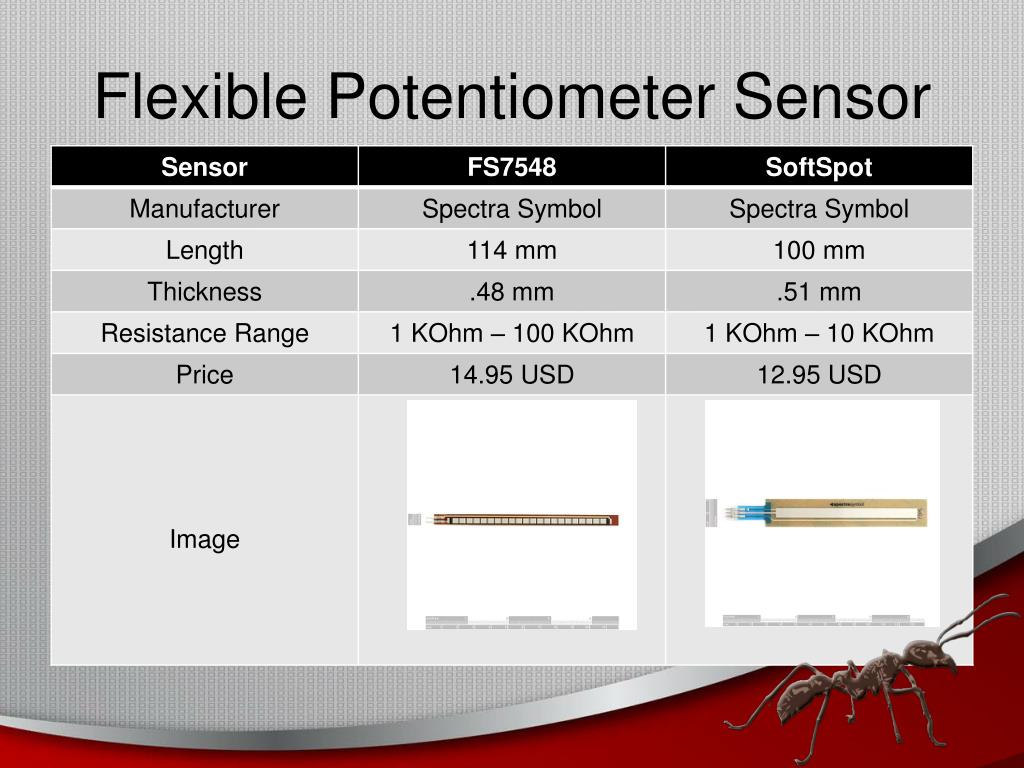

  30. Flexible Potentiometer Sensor

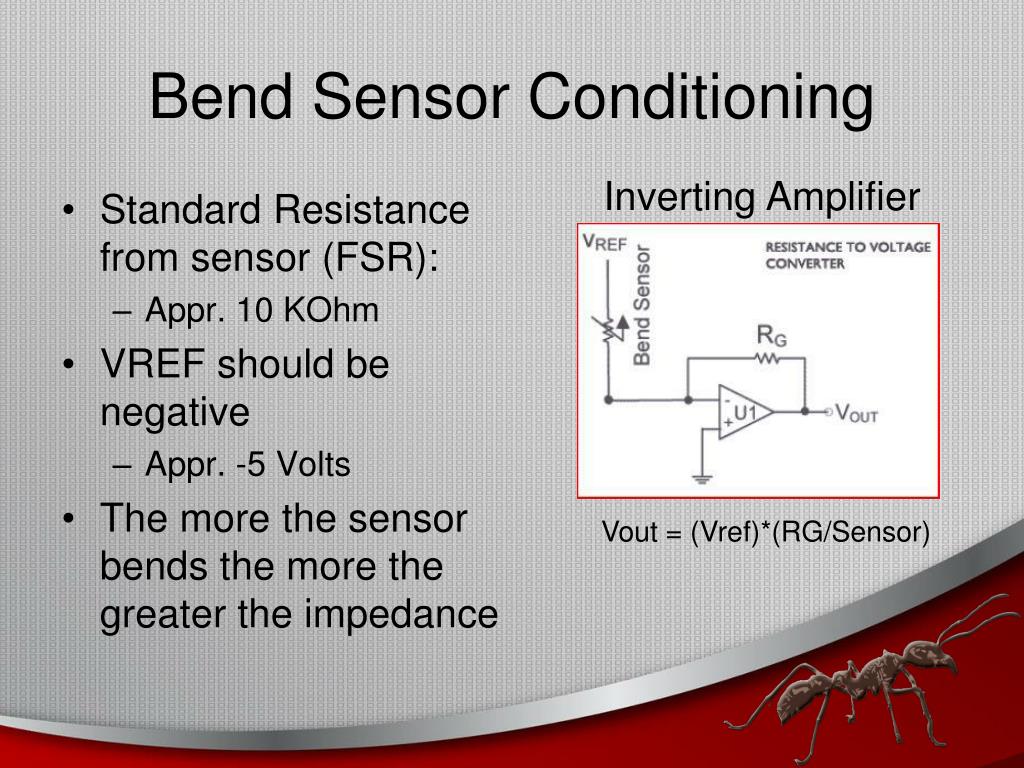

  31. Bend Sensor Conditioning Inverting Amplifier • Standard Resistance from sensor (FSR): • Appr. 10 KOhm • VREF should be negative • Appr. -5 Volts • The more the sensor bends the more the greater the impedance Vout = (Vref)*(RG/Sensor)

  32. Sensor Device

  33. Power Distribution

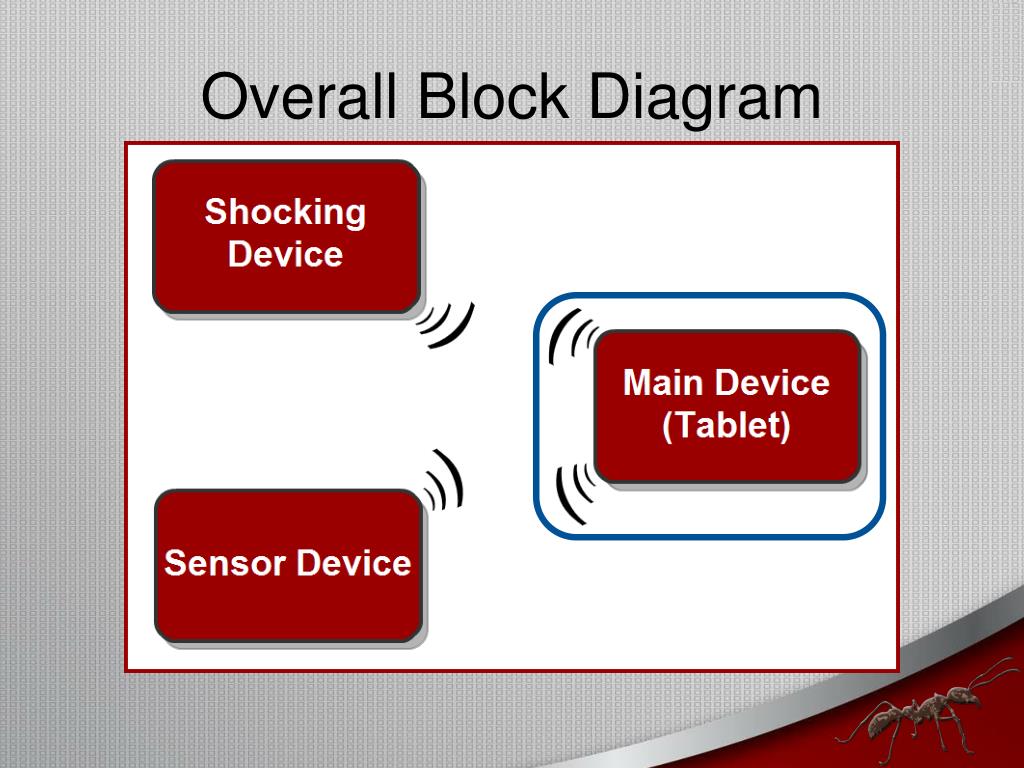

  34. Overall Block Diagram

  35. Specifications

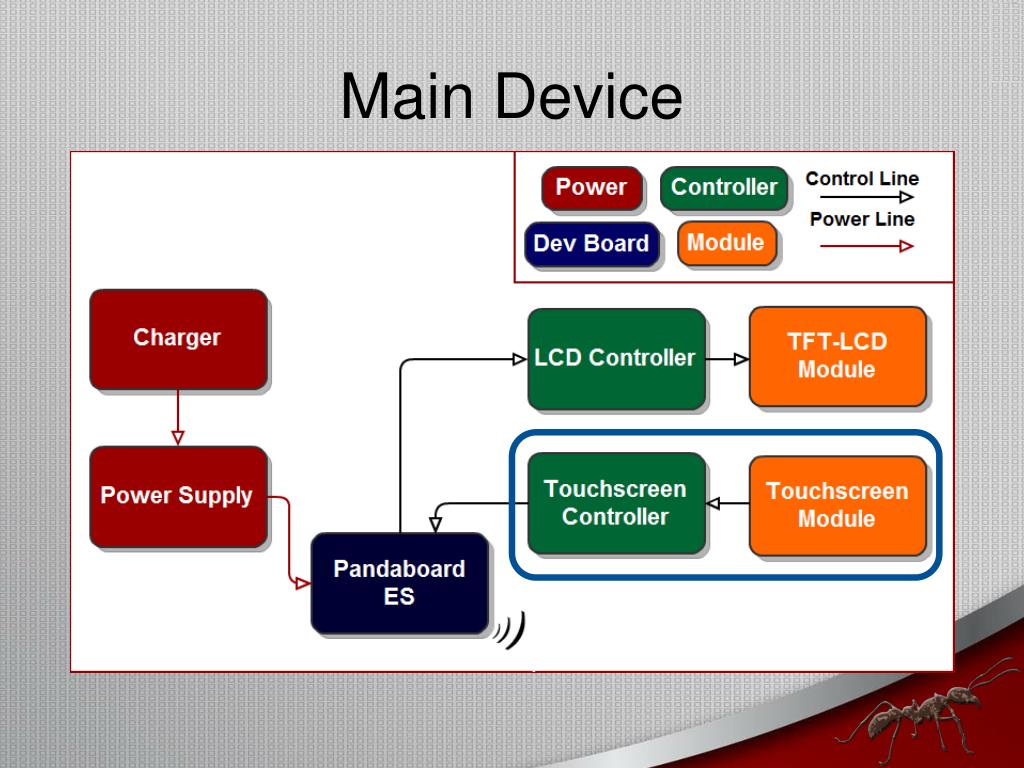

  36. Main Device

  37. Touchscreen

  38. Touchscreen Controller Custom I2C Voltage-level Shifter GND SCL SDA VIO Pandaboard ES J6 Expansion Header

  39. Main Device

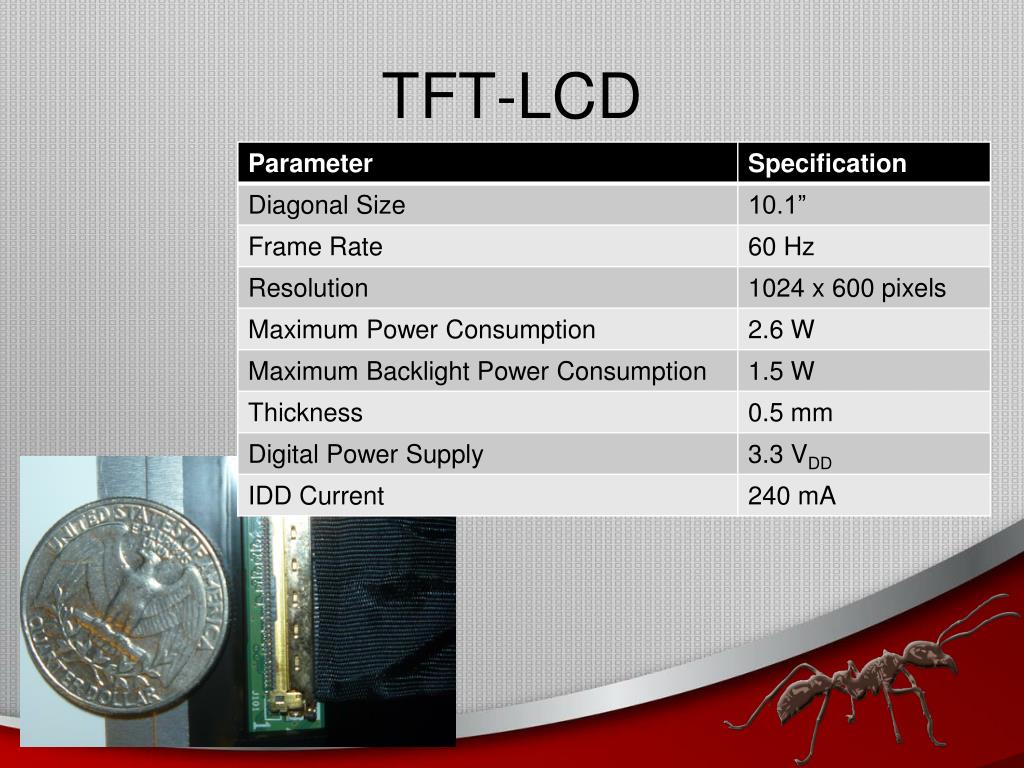

  40. TFT-LCD

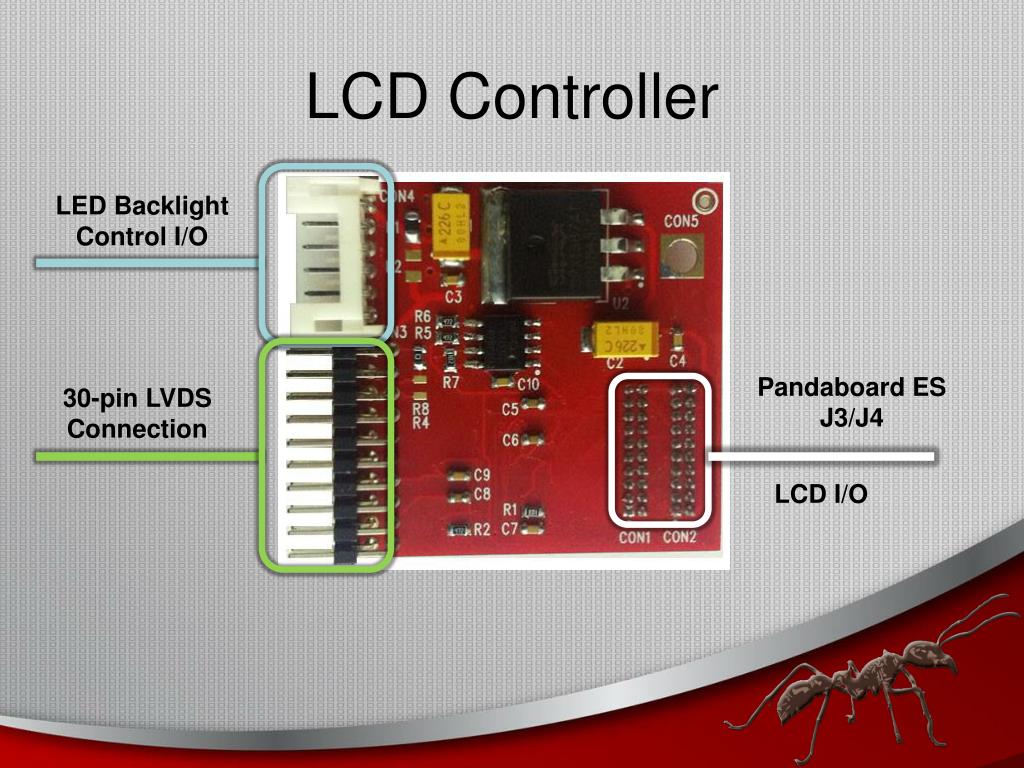

  41. LCD Controller LED Backlight Control I/O Pandaboard ES J3/J4 30-pin LVDS Connection LCD I/O

  42. Main Device

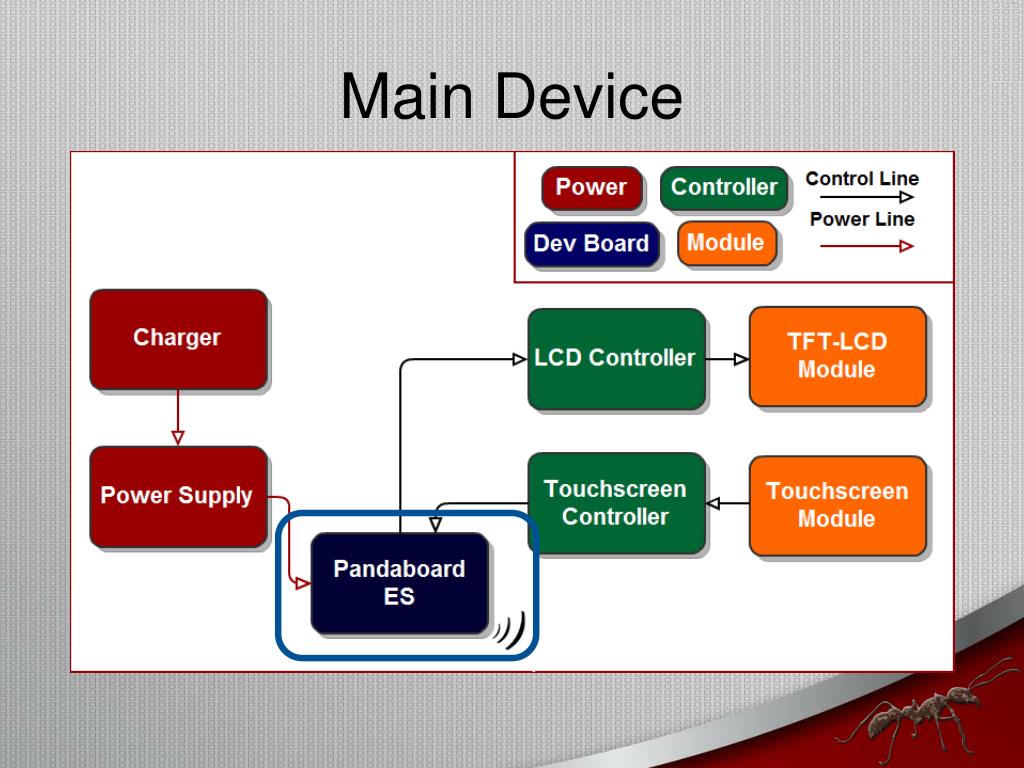

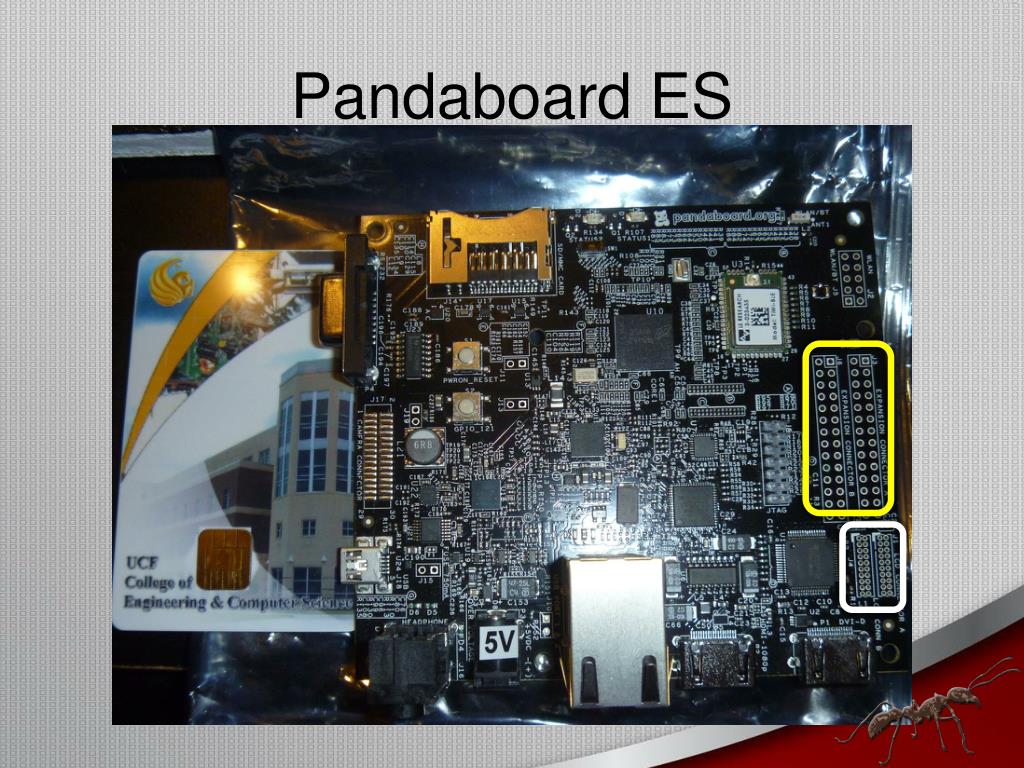

  43. Pandboard ES

  44. Pandaboard ES

  45. Main Device

  46. Tablet Power • 6 volts 10000 mAh • 23 x 99 x 71 mm • $15-17

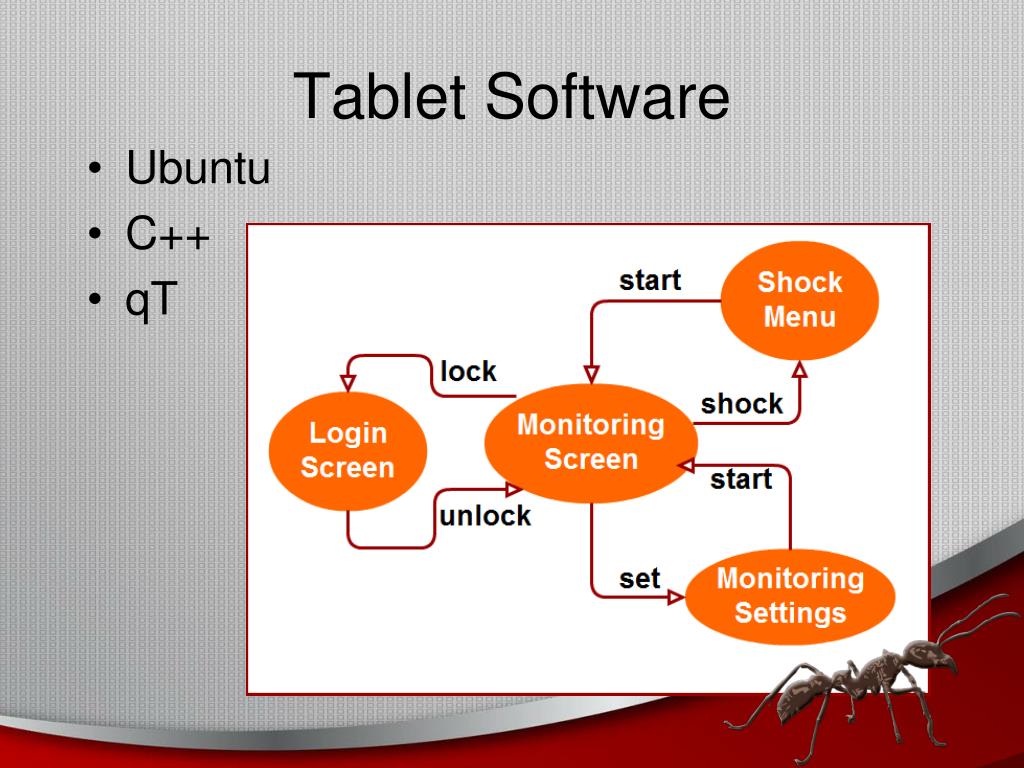

  47. Tablet Software • Ubuntu • C++ • qT

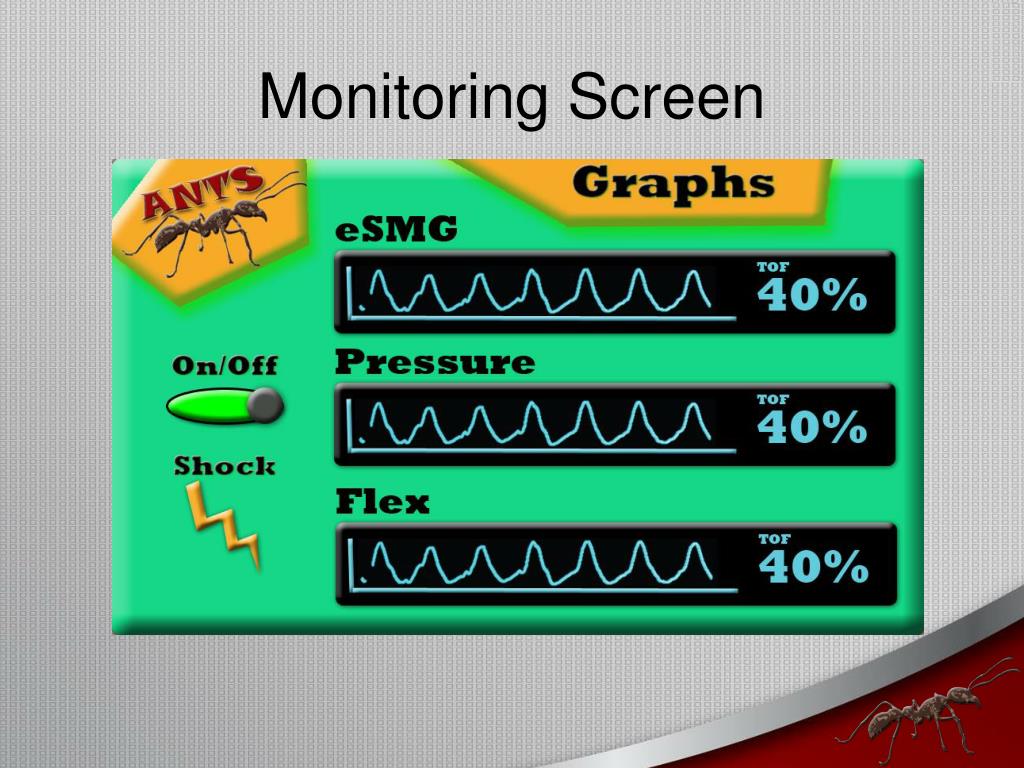

  48. Monitoring Screen

  49. Bill of Materials (Tablet)

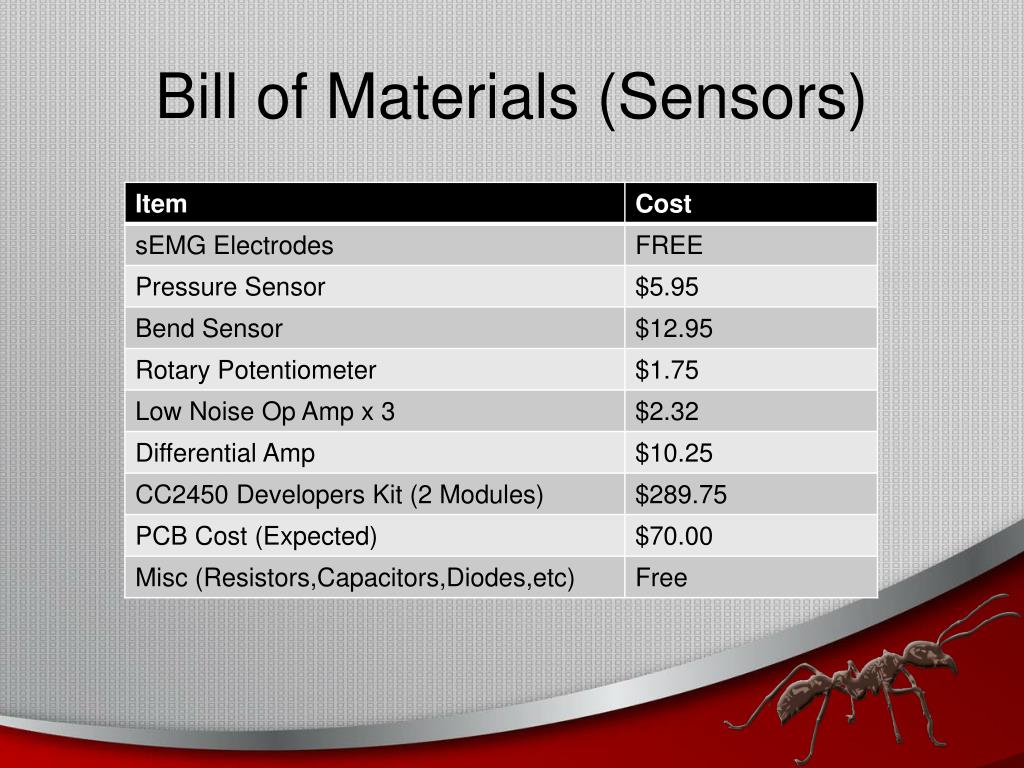

  50. Bill of Materials (Sensors)
