  1. 3G BTS Hardware Configuration

  2. Flexi RF &System Module

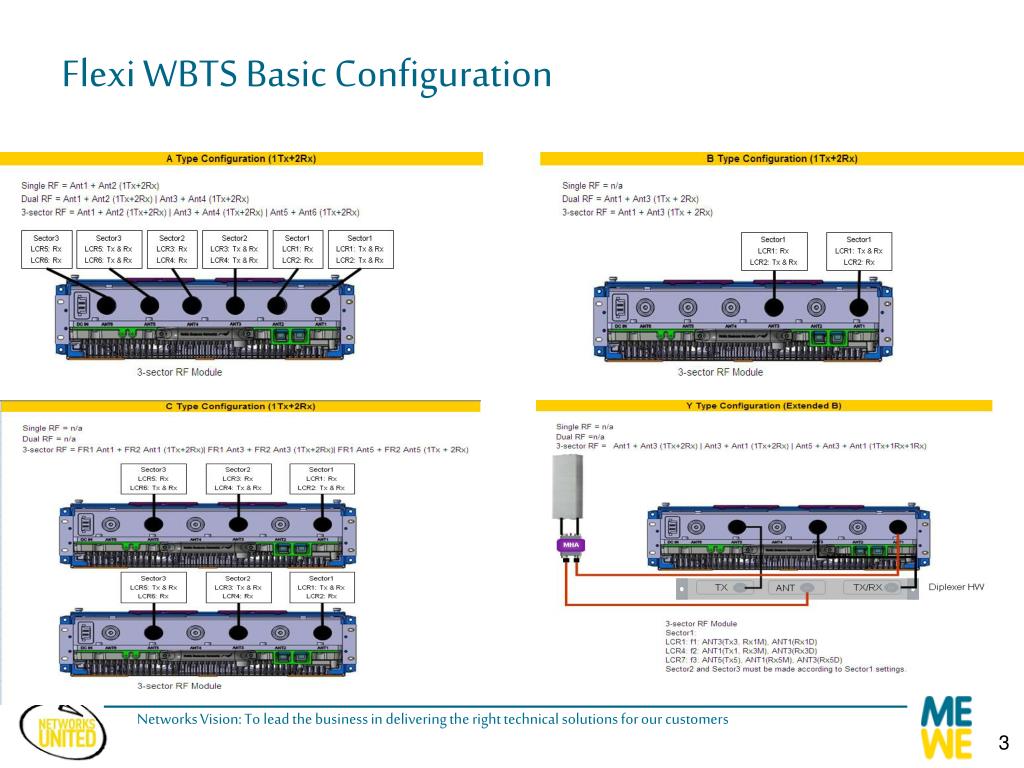

  3. Flexi WBTS Basic Configuration

  4. Current Standard NSN Node B Configuration • UltraSite Configuration • F1 1+1+1 Inner • F2 2+2+2 Inner with WPAD or WPAJ • F1 2+2+2 MORAN • F2 3+3+3 MORAN • F3 3+3+3 Inner • Flexi WBTS Configuration • F1 1+1+1 Inner with 2xFRGC or 1xFRGC+1xFRGD or 1xFRGF • F1 2+2+2 MORAN with 3xFRGC • F2 2+2+2 Inner with 2xFRGC or 1xFRGC+1xFRGD or 1xFRGF • F3 3+3+3 Inner with 2xFRGF or 3xFRGC • F4 4+4+4 Inner with 2xFRGF or 3xFRGC • F1 1+1+1 Mammoth with 1xFRGC+1xFRGD • F2 2+2+2 Mammoth with 2xFRGF or 3xFRGC

  5. Flexi F3/F4 Configuration @20w

  6. Flexi F3 Configuration @40w

  7. G9/U9 Multi-Radio Configuration

  8. Flexi FXDA/FXEA &ESMB Modules Diplexer FXDA FRGF-1 FRGF-2 FSME-1 FSME-2 ESMB

  9. BTS3900 Node B

  10. Capacity Comparison • DBS3800 • BTS3900 • RF Power

  11. RL (Radio Link Limitation)

  12. Current Standard Huawei Node B Configuration • DBS3800 Configuration • U21 F1 1+1+1 • U9 F1 1+1+1 • U21 F2 2+2+2 • U21 F2 2+2+2 @30w • U9/U21 F2 1+1+1/1+1+1 • BTS3900 Configuration • U21 F1 1+1+1 • U9 F1 1+1+1 • U21 F2 2+2+2 • U9/U21 F2 1+1+1/1+1+1

  13. DBS3800 F2 case, 40W per carrier U21 F2 U9+U21 F2

  14. F2 case, 40W per carrier

  15. DBS3800 Upgrade and Write-down P1 P2 P2 P1 Group 4 U9 DBS3800 U9 DBS3800 U21 BTS3900

  16. F3: 3xU21, 40W per carrier • 6 x WRFU + at least 3 x WBBPb needed. • WBBPb in BBU slot 2 & 3 as 1st resource group to serve F1 & F2 • WBBPb in slot 1 as 2nd resource group to serve F3.

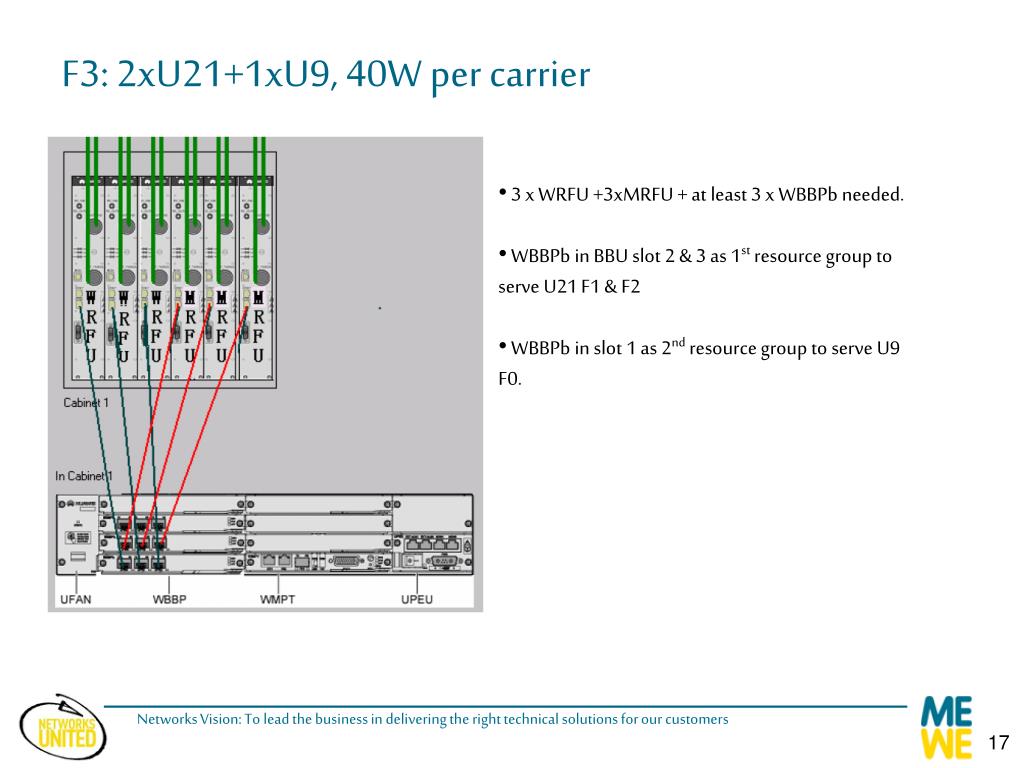

  17. F3: 2xU21+1xU9, 40W per carrier • 3 x WRFU +3xMRFU + at least 3 x WBBPb needed. • WBBPb in BBU slot 2 & 3 as 1st resource group to serve U21 F1 & F2 • WBBPb in slot 1 as 2nd resource group to serve U9 F0.

  18. F4: 4xU21, 40W per carrier • 6 x WRFU + 4x WBBPb needed. • WBBPb in BBU slot 2 & 3 as 1st resource group to serve F1 & F2 • WBBPb in slot 0 &1 as 2nd resource group • to serve F3&F4

  19. F4: 3xU21+1xU9, 40W per carrier • 6 x WRFU + 3x MRFU and 2 x cabinet • 4x WBBPb needed. • WBBPb in BBU slot 2 & 3 as 1st resource group to serve F1 & F2 • WBBPb in slot 0 &1 as 2nd resource group • to server F3& U9 F0

  20. OM Documents • OM37255 NSN F1-F4 Commissioning Work Instruction • OM37251 NSN F3 Upgrade Guideline • OM37234 Huawei BTS3900 F2 Deployment Guideline • OM37078 BTS3900 Optus Deployment • OM36991 Optus Mobile Field Work Instructions
