  1. Lecture 11 Overview

  2. Digital Signature Properties • Unforgeable: Only the signer can produce his/her signature • Authentic: A signature is produced only by the signer deliberately signing the document CS 450/650 Lecture 11: Digital Signatures

  3. Digital Signature Properties • Non-Alterable: A signed document cannot be altered without invalidating the signature • Non-Reusable: A signature from one document cannot be moved to another document • Signatures can be validated by other users • the signer cannot reasonably claim that he/she did not sign a document bearing his/her signature CS 450/650 Lecture 11: Digital Signatures

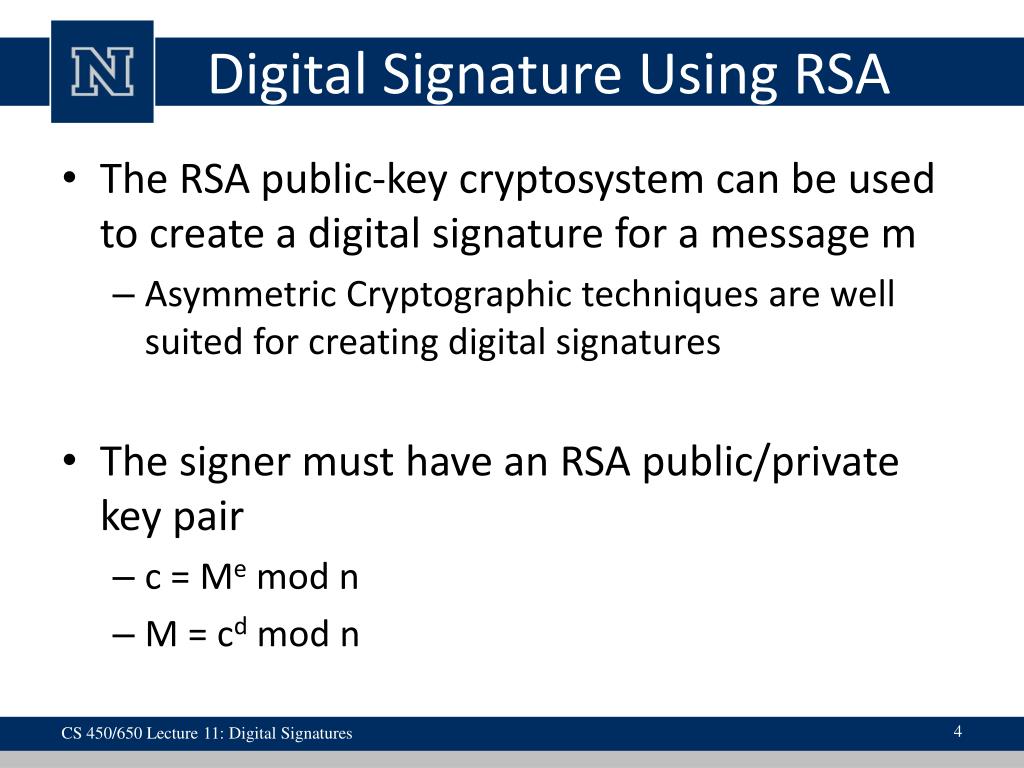

  4. Digital Signature Using RSA • The RSA public-key cryptosystem can be used to create a digital signature for a message m • Asymmetric Cryptographic techniques are well suited for creating digital signatures • The signer must have an RSA public/private key pair • c = Me mod n • M = cd mod n CS 450/650 Lecture 11: Digital Signatures

  5. Signature Generation (Signer) Message Redundancy Function Formatted Message Encrypt Private Key Signature CS 450/650 Lecture 11: Digital Signatures

  6. Signature Verification Signature Public Key Decrypt Formatted Message Verify Message CS 450/650 Lecture 11: Digital Signatures

  7. Redundancy Function • The choice of a poor redundancy function can make RSA vulnerable to forgery • A good redundancy function should make forging signatures much harder CS 450/650 Lecture 11: Digital Signatures

  8. Example • generate signature S • d = 53 • e = 413 • n = 629 • m = 7 • Assume that R(X) = XX • S = R(m)e mod n • S = 7753 mod 629 = 25 CS 450/650 Lecture 11: Digital Signatures

  9. Example • verify signature with message recovery • Public key (e) = 413 • n = 629 • S = 25 • R(m) = Se mod n • R(m) = 25413 mod 629 = 77 • The verifier then checks that R(m) is of the form XX for some message X • m = R-1(m) = 7 CS 450/650 Lecture 11: Digital Signatures

  10. Forging signature (revisited) • Choose a random number between 0 and n-1 for S • S = 323 • Use the signer’s public key to decrypt S • R(m) = 323413 mod 629 = 85 • However, 85 is not a legal value for R(m) • so S = 323 is not a valid signature CS 450/650 Lecture 11: Digital Signatures

  11. Privacy • Signature provides only authenticity. • How can we provide privacy in addition? CS 450/650 Lecture 11: Digital Signatures

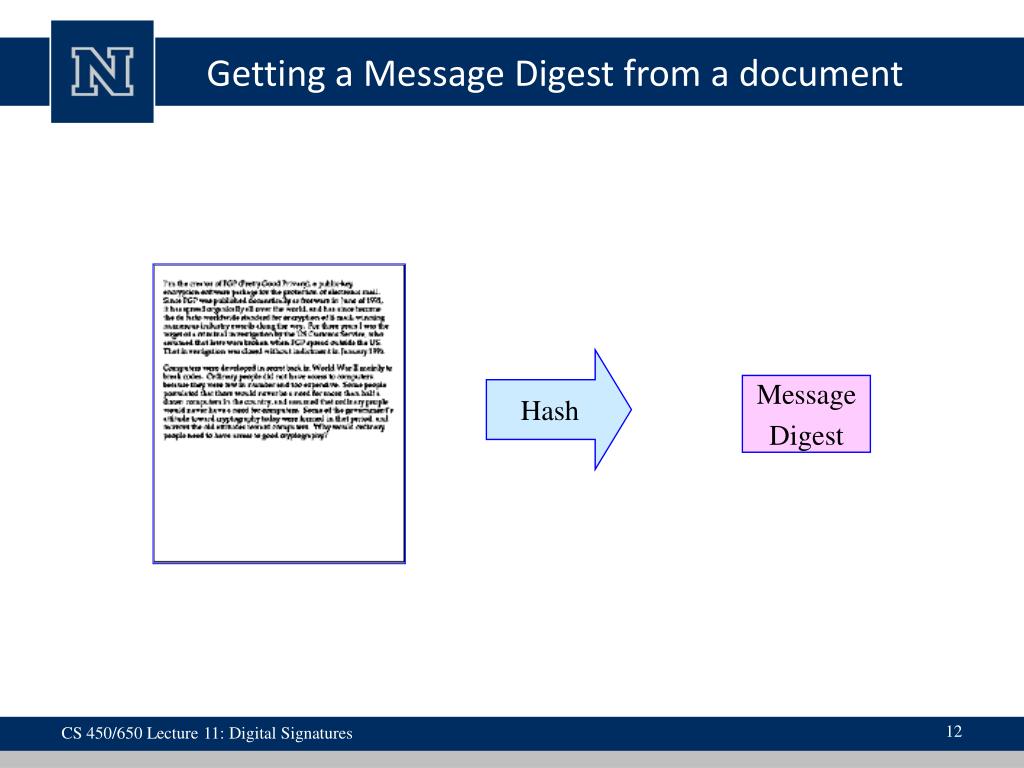

  12. Getting a Message Digest from a document Hash Message Digest CS 450/650 Lecture 11: Digital Signatures

  13. Generating Signature Message Digest Signature Encrypt using private key CS 450/650 Lecture 11: Digital Signatures

  14. Appending Signature to document Append Signature CS 450/650 Lecture 11: Digital Signatures

  15. Verifying Signature Hash Message Digest Message Digest Decrypt using public key CS 450/650 Lecture 11: Digital Signatures

  16. Lecture 12Key Exchange CS 450/650 Fundamentals of Integrated Computer Security Slides are modified from Lawrie Brown (Cryptography and Network Security)

  17. Key Management • public-key encryption helps address key distribution problems • have two aspects of this: • distribution of public keys • use of public-key encryption to distribute secret keys CS 450/650 Lecture 12: Key Exchange

  18. Distribution of Public Keys • can be considered as using one of: • public announcement • publicly available directory • public-key authority • public-key certificates CS 450/650 Lecture 12: Key Exchange

  19. Public Announcement • users distribute public keys to recipients or broadcast to community at large • append PGP keys to email messages or post to news groups or email list • major weakness is forgery • anyone can create a key claiming to be someone else and broadcast it • until forgery is discovered attacker can masquerade as claimed user CS 450/650 Lecture 12: Key Exchange

  20. Publicly Available Directory • can obtain greater security by registering keys with a public directory • directory must be trusted with properties: • contains {name, public-key} entries • participants register securely with directory • participants can replace key at any time • directory is periodically published • directory can be accessed electronically • still vulnerable to tampering or forgery CS 450/650 Lecture 12: Key Exchange

  21. Public-Key Authority • improve security by tightening control over distribution of keys from directory • has properties of directory • requires users to know public key for the directory • users interact with directory to obtain any desired public key securely • requires real-time access to directory when keys are needed CS 450/650 Lecture 12: Key Exchange

  22. Public-Key Authority CS 450/650 Lecture 12: Key Exchange

  23. Public-Key Certificates • certificates allow key exchange without real-time access to public-key authority • a certificate binds identity to public key • usually with other info such as period of validity, rights of use • all contents signed by a trusted Public-Key or Certificate Authority (CA) • can be verified by anyone who knows the public-key authority’s public-key CS 450/650 Lecture 12: Key Exchange

  24. Public-Key Certificates CS 450/650 Lecture 12: Key Exchange

  25. Distribution of Secret Keys • use previous methods to obtain public-key • can use for secrecy or authentication • public-key algorithms are slow • usually prefer to use private-key encryption to protect message contents • hence need a session key • have several alternatives for negotiating a suitable session CS 450/650 Lecture 12: Key Exchange

  26. Simple Secret Key Distribution • proposed by Merkle in 1979 • A generates a new temporary public key pair • A sends B the public key and the identity • B generates a session key K sends it to A encrypted using the supplied public key • A decrypts the session key and both use • Man in the middle attack • an opponent can intercept and impersonate both halves of protocol CS 450/650 Lecture 12: Key Exchange

  27. Public-Key Distribution of Secret Keys • if have securely exchanged public-keys: CS 450/650 Lecture 12: Key Exchange

  28. Hybrid Key Distribution (IBM) • retain use of private-key with a KeyDistribution Center • shares secret master key with each user • distributes session key using master key • public-key used to distribute master keys • especially useful with widely distributed users • rationale • performance • backward compatibility
