  1. NEW ROTARY NiTi INSTRUMENTS FOR MECHANICAL GLIDE PATH & PREFLARING

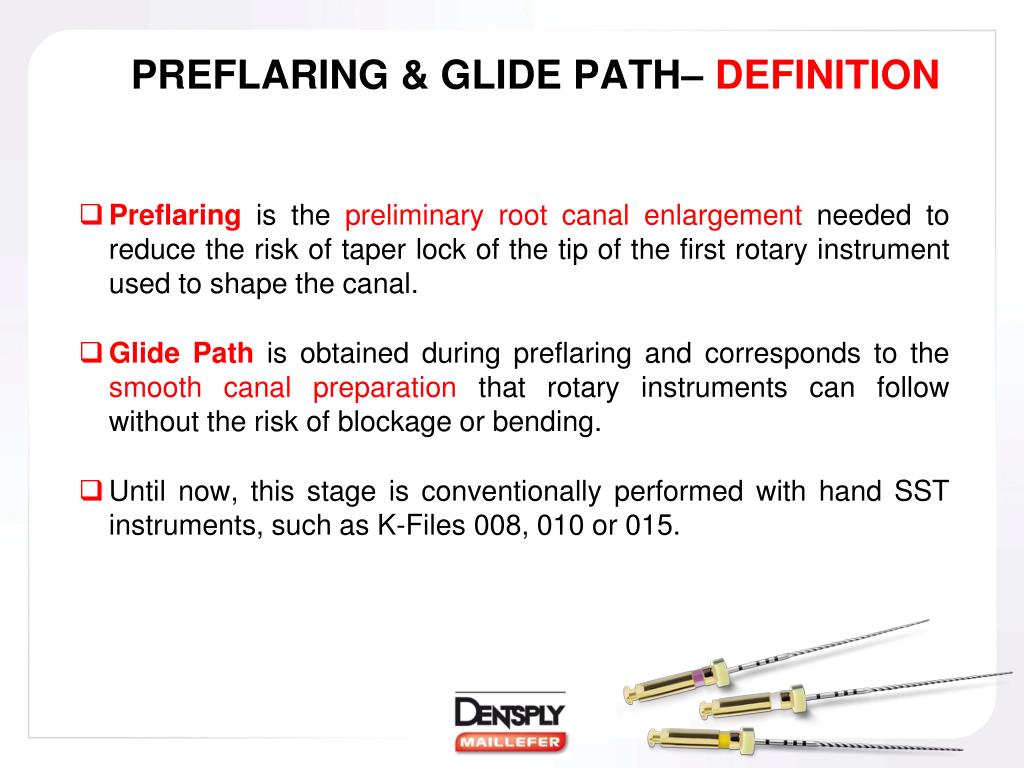

  2. PREFLARING & GLIDE PATH– DEFINITION • Preflaring is the preliminary root canal enlargement needed to reduce the risk of taper lock of the tip of the first rotary instrument used to shape the canal. • Glide Pathis obtained during preflaring and corresponds to the smooth canal preparation that rotary instruments can follow without the risk of blockage or bending. • Until now, this stage is conventionally performed with hand SST instruments, such as K-Files 008, 010 or 015.

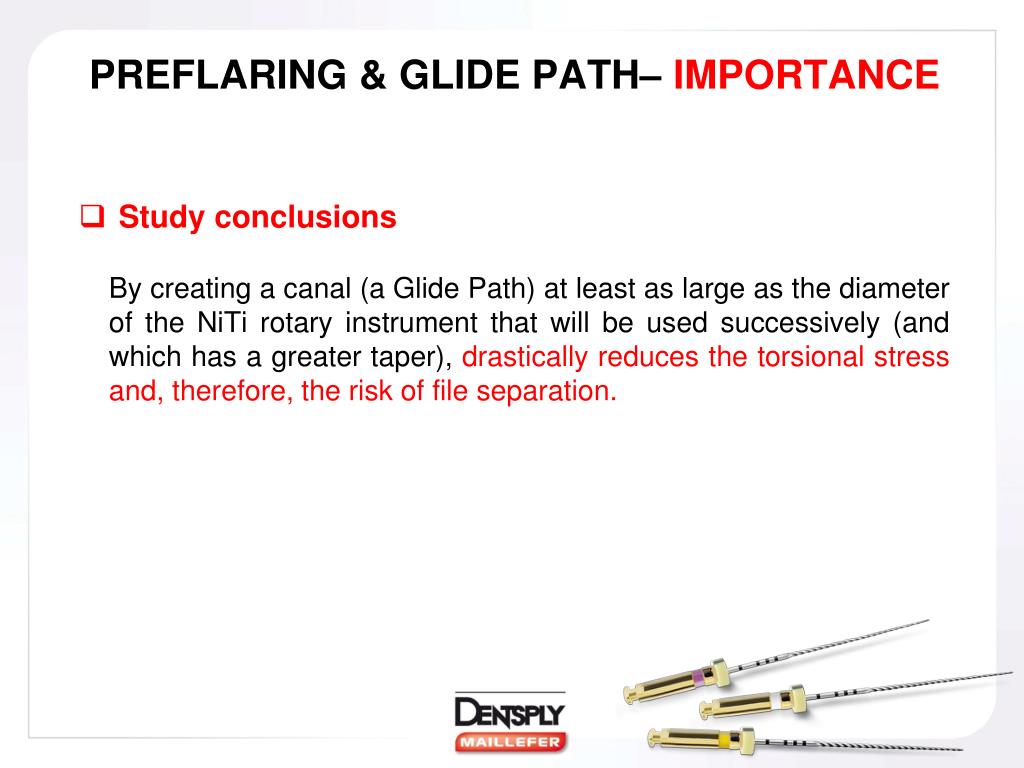

  3. PREFLARING & GLIDE PATH– IMPORTANCE • Study conclusions By creating a canal (a Glide Path) at least as large as the diameter of the NiTi rotary instrument that will be used successively (and which has a greater taper), drastically reduces the torsional stress and, therefore, the risk of file separation.

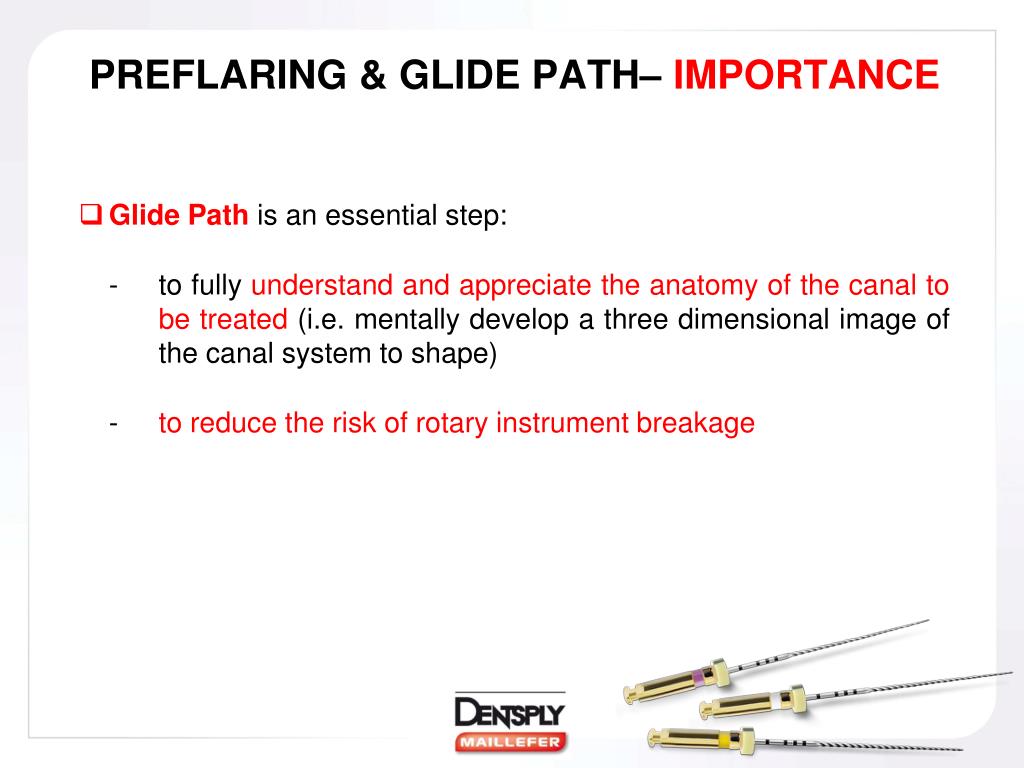

  4. PREFLARING & GLIDE PATH– IMPORTANCE • Glide Path is an essential step: - to fully understand and appreciate the anatomy of the canal to be treated (i.e. mentally develop a three dimensional image of the canal system to shape) - to reduce the risk of rotary instrument breakage

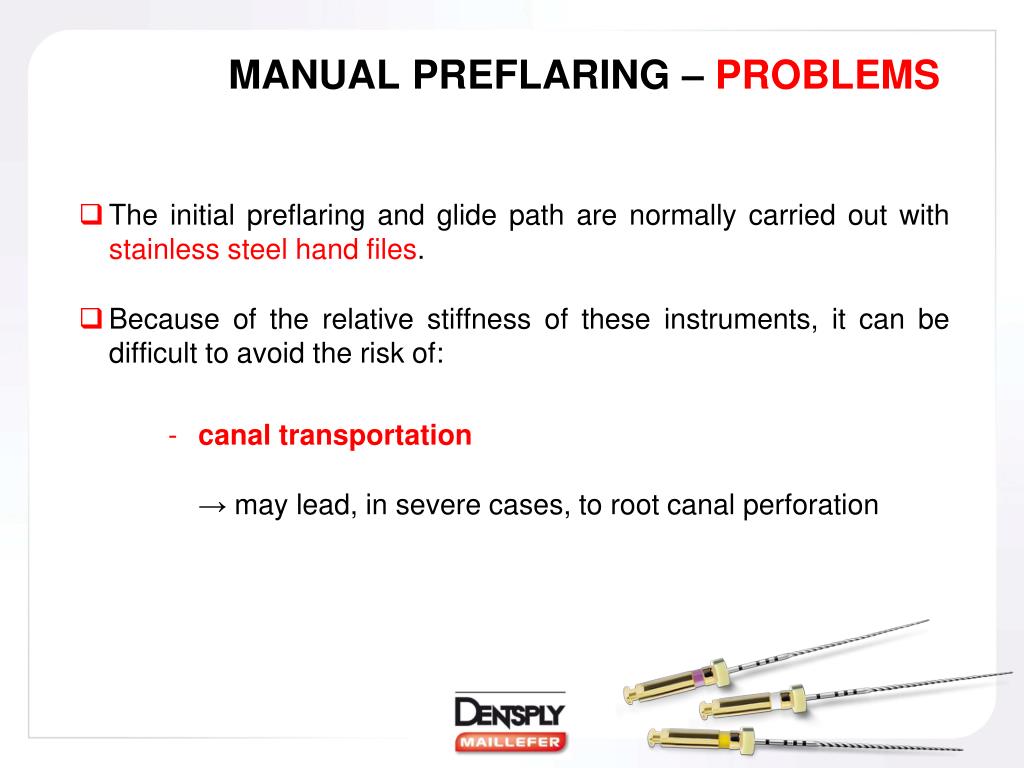

  5. MANUAL PREFLARING – PROBLEMS • The initial preflaring and glide path are normally carried out with stainless steel hand files. • Because of the relative stiffness of these instruments, it can be difficult to avoid the risk of: • canal transportation →may lead, in severe cases, to root canal perforation

  6. MANUAL PREFLARING – PROBLEMS • Because of the relative stiffness of these instruments, it can be difficult to avoid the risk of: • ledges →the tip could block in the canal and, if not withdrawn but pushed apically, could eventually break • apical zip →may lead to obturation difficulties

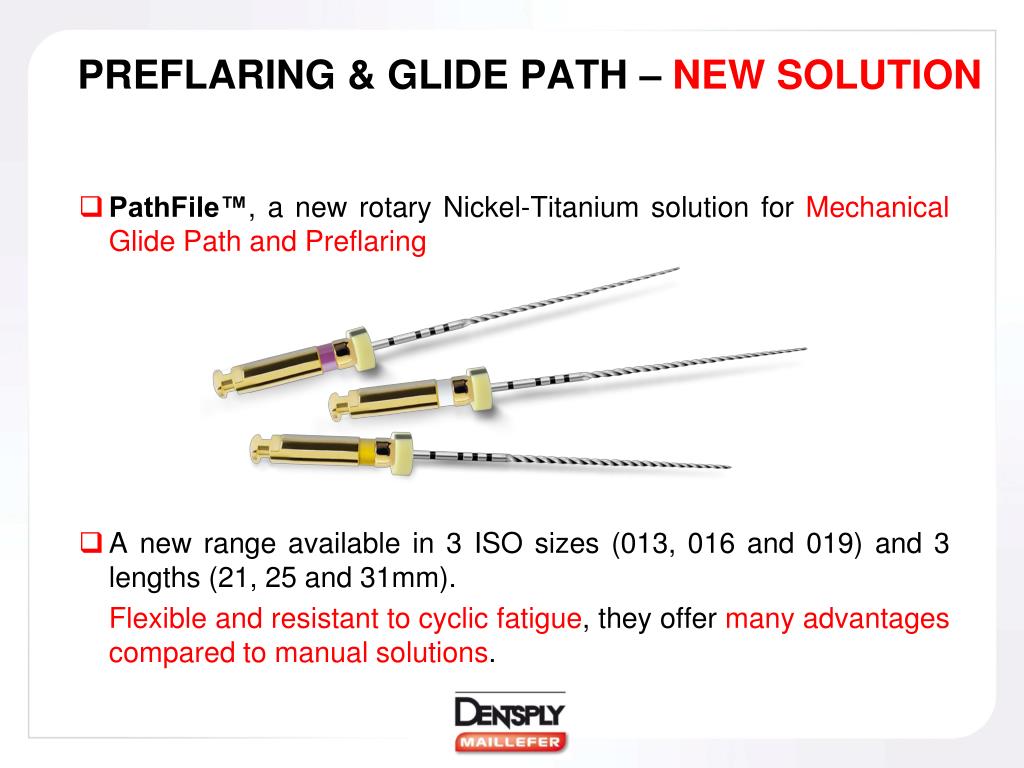

  7. PREFLARING & GLIDE PATH – NEW SOLUTION • PathFile™, a new rotary Nickel-Titanium solution for Mechanical Glide Path and Preflaring • A new range available in 3 ISO sizes (013, 016 and 019) and 3 lengths (21, 25 and 31mm). • Flexible and resistant to cyclic fatigue, they offer many advantages compared to manual solutions.

  8. PATHFILE™ – STANDARDSEQUENCE • Scout and negotiation with a standard K-File #010 until it can move smoothly along the canal • With same file, working length determination in combination with an Apex locator • PathFile™ #013 to working length • PathFile™ #016 to working length • PathFile™ #019 to working length • Canal shaping with any NiTi rotary system

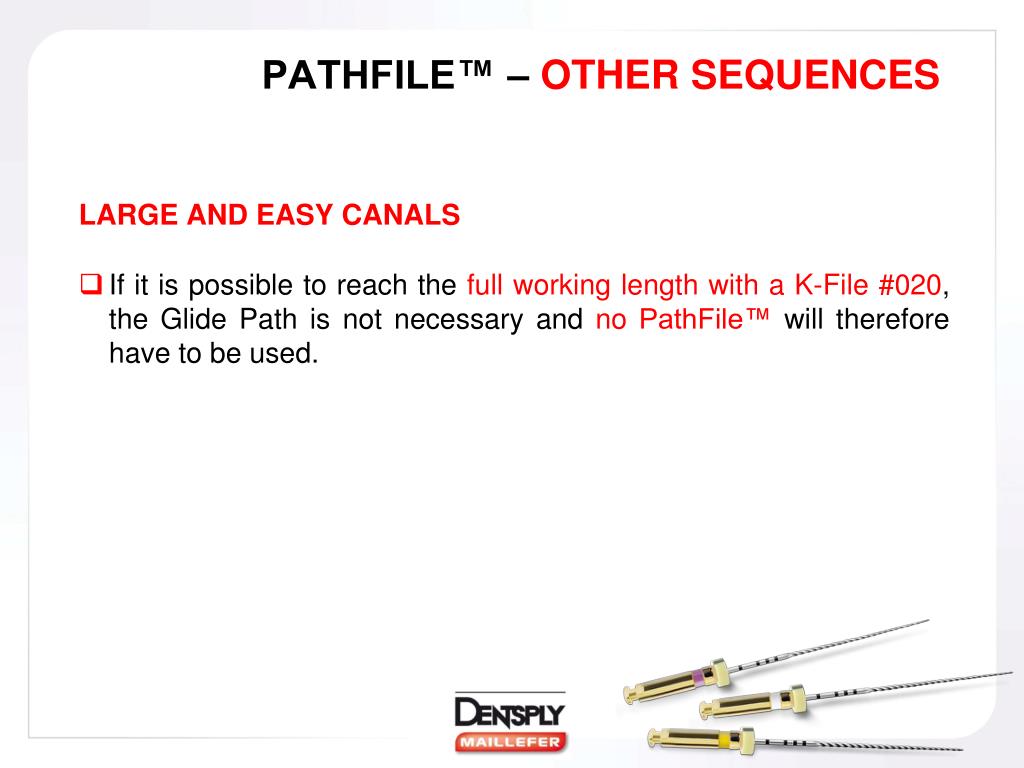

  9. PATHFILE™ – OTHERSEQUENCES LARGE AND EASY CANALS • If it is possible to reach the full working length with a K-File #020, the Glide Path is not necessary and no PathFile™ will therefore have to be used.

  10. PATHFILE™ – OTHERSEQUENCES “INTERMEDIATE” CANALS • If the user feels, during the initial scouting with the K-File 010, that the canal is rather wide, the recommendation is to use either PathFile™ 016 and 019 or even only PathFile™ 019.

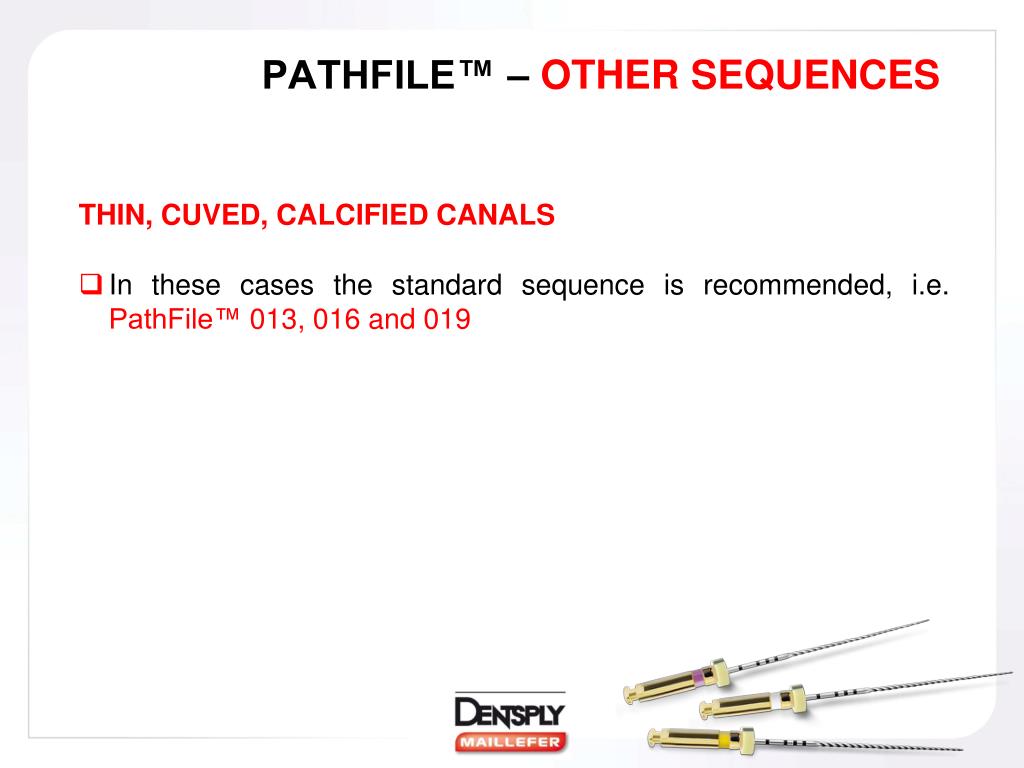

  11. PATHFILE™ – OTHERSEQUENCES THIN, CUVED, CALCIFIED CANALS • In these cases the standard sequence is recommended, i.e. PathFile™ 013, 016 and 019

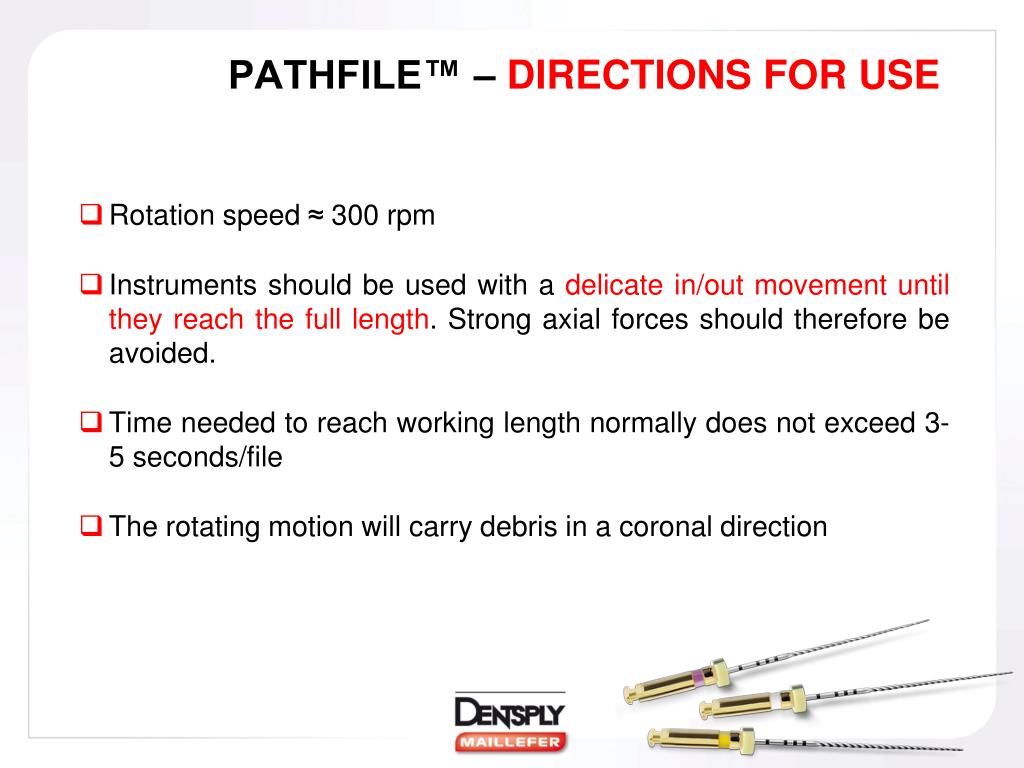

  12. PATHFILE™ – DIRECTIONS FOR USE • Rotation speed ≈ 300 rpm • Instruments should be used with a delicate in/out movement until they reach the full length. Strong axial forces should therefore be avoided. • Time needed to reach working length normally does not exceed 3-5 seconds/file • The rotating motion will carry debris in a coronal direction

  13. FEATURES AND BENEFITS Development in collaboration with Prof Berutti, Prof Cantatore and Dr Castellucci • support of 3 internationally renowned Opinion Leaders as well as of the Dentsply Maillefer OPL network • quality evidence thanks to their expertise

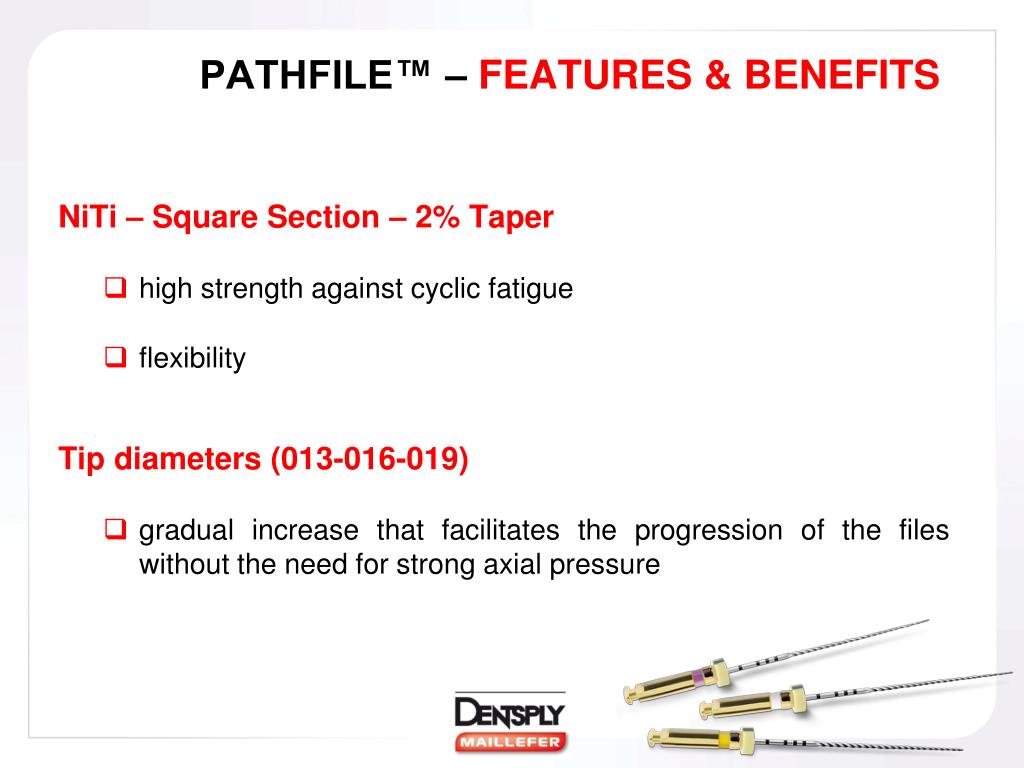

  14. PATHFILE™ – FEATURES & BENEFITS NiTi – Square Section – 2% Taper • high strength against cyclic fatigue • flexibility Tip diameters (013-016-019) • gradual increase that facilitates the progression of the files without the need for strong axial pressure

  15. PATHFILE™ – FEATURES & BENEFITS Tip design (transition angle reduction) • Reduced risk of ledges and canal transportation PathFile™ K-File

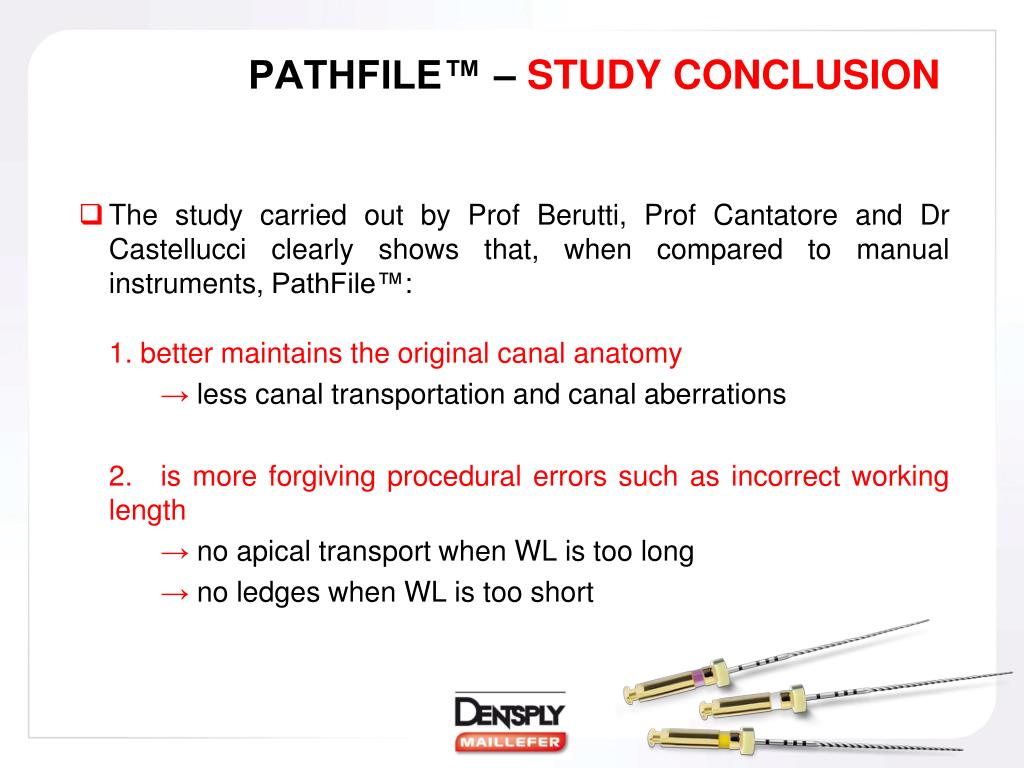

  16. PATHFILE™ – STUDY CONCLUSION • The study carried out by Prof Berutti, Prof Cantatore and Dr Castellucci clearly shows that, when compared to manual instruments, PathFile™: 1. better maintains the original canal anatomy → less canal transportation and canal aberrations 2. is more forgiving procedural errors such as incorrect working length → no apical transport when WL is too long → no ledges when WL is too short

  17. PATHFILE™ – STUDY CONCLUSION • The study carried out by Prof Berutti, Prof Cantatore and Dr Castellucci clearly shows that, when compared to manual instruments, PathFile™: 3. reduces the instrumentation time needed 4. allows General Dental Practitioners to obtain similar results to those achieved by endodontists

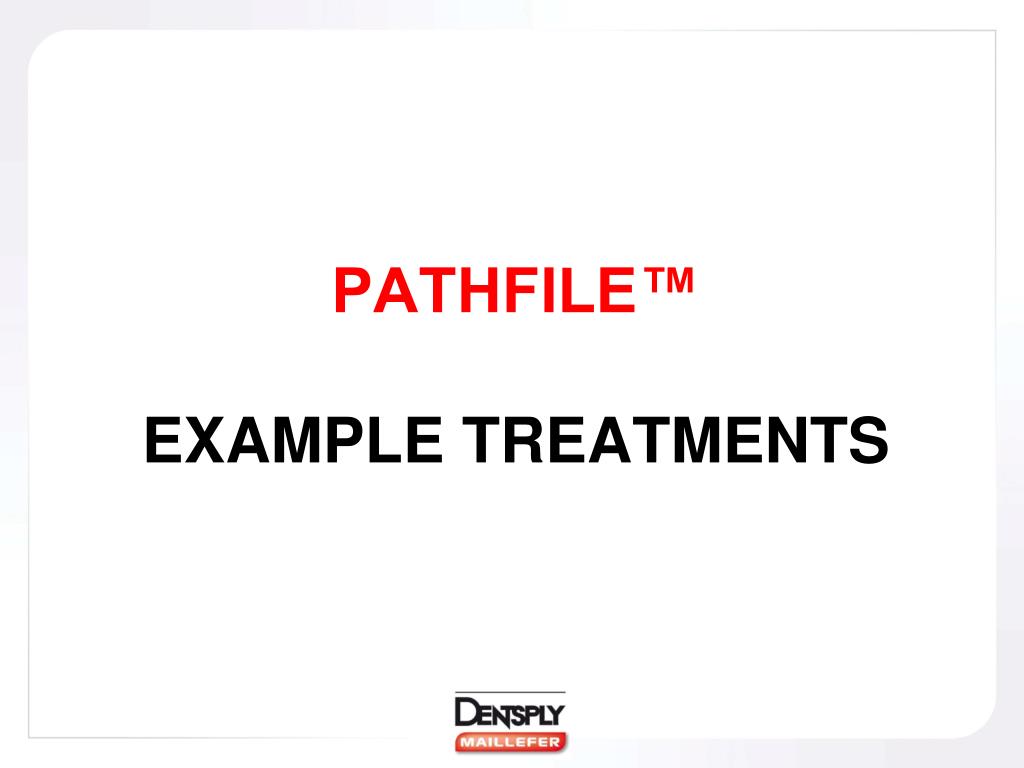

  18. PATHFILE™EXAMPLE TREATMENTS

  19. PATHFILE™ – EXAMPLES Prof. Elio Berutti

  20. PATHFILE™ – EXAMPLES Prof. Elio Berutti

  21. PATHFILE™ – EXAMPLES Prof. Elio Berutti
