  1. GET THE MOST ADVANCED FTTH FIBERINSPECTION AND TEST SOLUTION ON THE MARKET.TK-1-FIP-FP4D NOW ONLY 3’350.- CHF* *(SPECIAL ACTION ONLY UNTIL 30. September 2013. STANDART LIST PRICE 4510.- CHF) • Visual Fault Locator (VFL) • red light laser for short distance troubleshooting • Optical power measurement • Allows measurement storage & reporting • 7 Std cal λ • 20 λ CWDM from 1270 to 1610 nmand High Power options • FIP-400D Inspection Probe • dual magnification 200X / 400X • Adapter Tip: FC-APC and Universal patchcord tip for 2.5 mm ferrules (more Adapter Tips and accessories is available) • FTB-1 Handheldwith large 7" TFT Touchscreen, Intel ATOM Prozessor, Windows XP embedded. Interfaces: 2x USB 2.0, 1x RJ45 10/100/1000Mb/s, FIP-400D, ToolBox Software, Power supply, Akku, Semi-rigidcarrying case • Optional Wireless connectivity; quick & easy data transfer • Optional IP Testing; Multi-layer certification • Upgradeable for Access, SONET/SDH/Ethernet & OTDR/iOLMtesting

  2. TK-1-FIP-FP4D the intelligent Fiber Inspection Test Set * TK-1-FIP-FP4D Includes: • FIP-200x/400x dual magnification inspection probe • FTB-1 • Large 7” Touch screen, color, 800 x 480 TFT, Intel ATOM Prozessor, Windows XP embedded. • Integrated power meter for power and loss measurement. • Integrated 650nm VFL for quick troubleshooting. • Internal memory capacity for more than 4000 inspection results. • Rechargeable lithium-ion batteries, 8 hours of operation as per Telcordia. • Emptybackplane (upgradablewith Access, PDH/SDH/Ethernet & OTDR/iOLMtestingmodul). Optional: • High power and CWDM testing on the power meter. • EXperttestingtools for IP, IPTV and VoIP. • Built-in Wi-Fi and Bluetooth Capability.

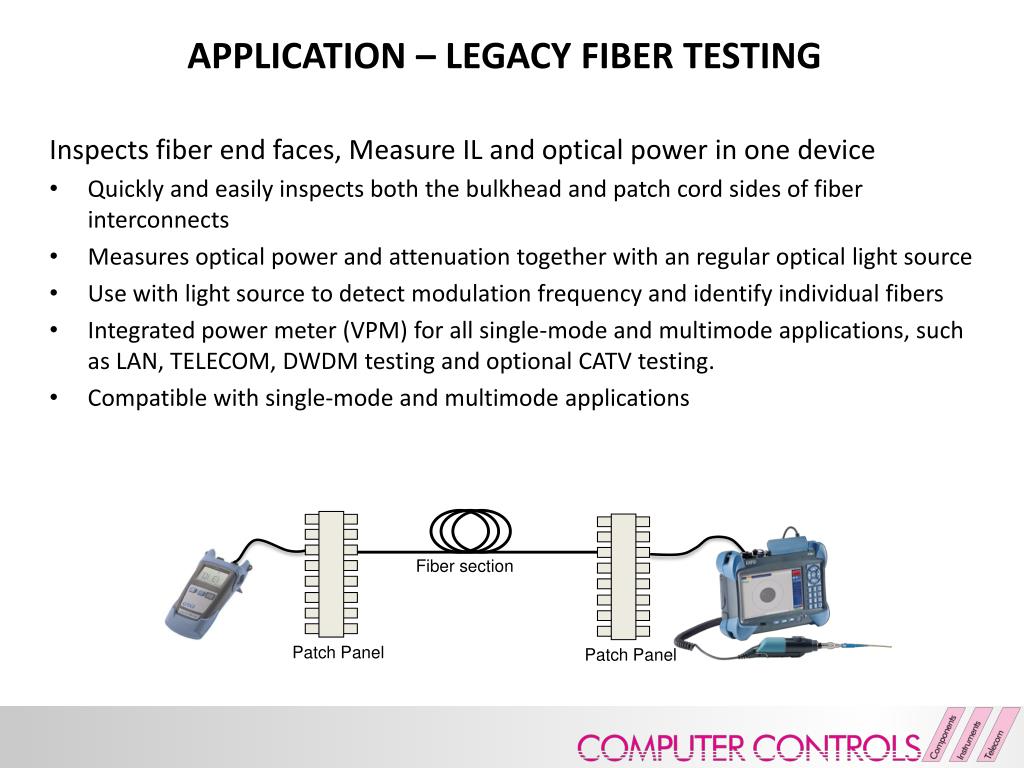

  3. Fiber section Patch Panel Patch Panel APPLICATION – LEGACY FIBER TESTING Inspects fiber end faces, Measure IL and optical power in one device • Quickly and easily inspects both the bulkhead and patch cord sides of fiber interconnects • Measures optical power and attenuation together with an regular optical light source • Use with light source to detect modulation frequency and identify individual fibers • Integrated power meter (VPM) for all single-mode and multimode applications, such as LAN, TELECOM, DWDM testing and optional CATV testing. • Compatible with single-mode and multimode applications

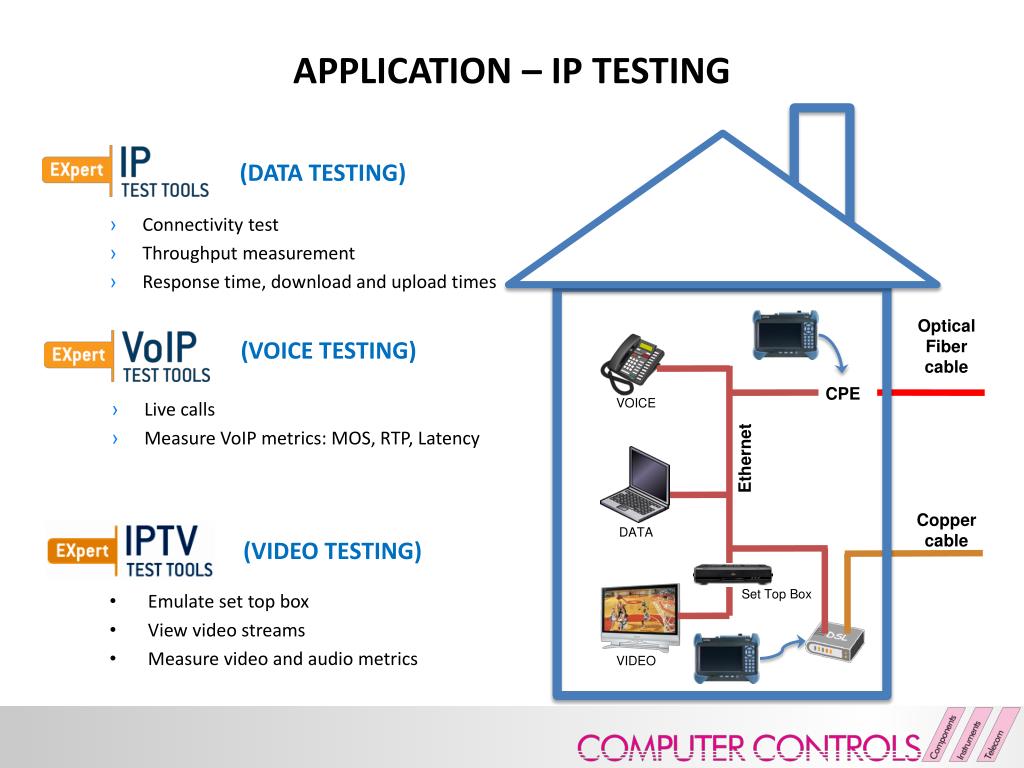

  4. APPLICATION – IP TESTING • (DATA TESTING) • Connectivity test • Throughput measurement • Response time, download and upload times Optical Fiber cable • (VOICE TESTING) CPE VOICE • Live calls • Measure VoIP metrics: MOS, RTP, Latency Ethernet Copper cable DATA • (VIDEO TESTING) Set Top Box • Emulate set top box • View video streams • Measure video and audio metrics VIDEO

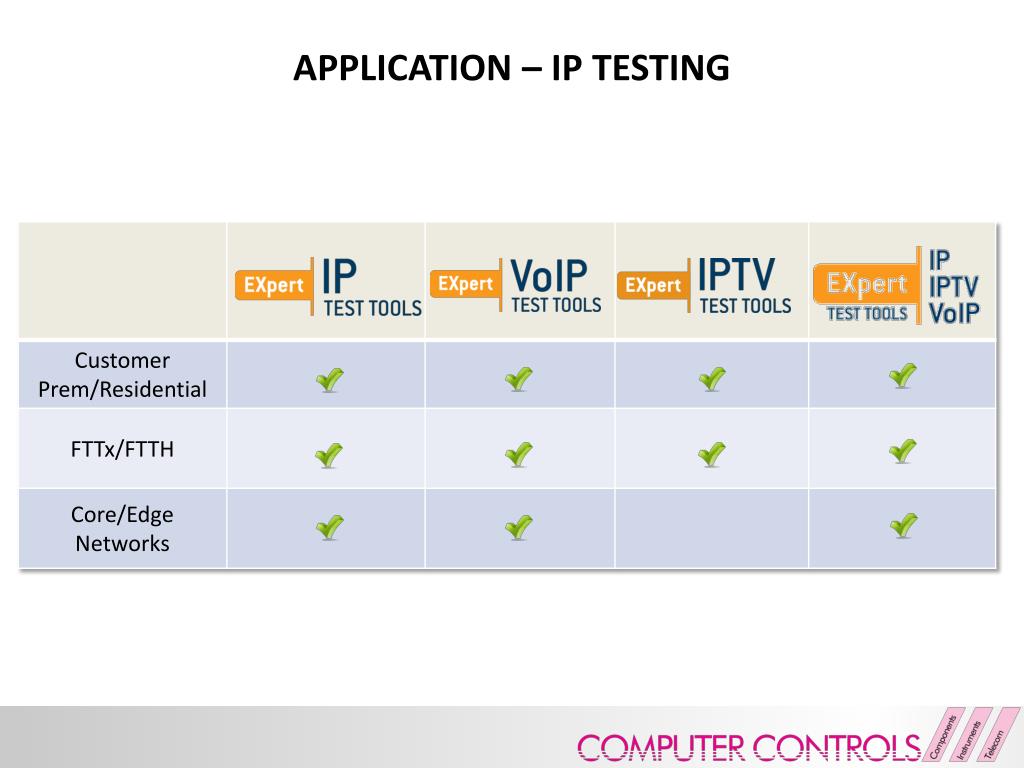

  5. APPLICATION – IP TESTING

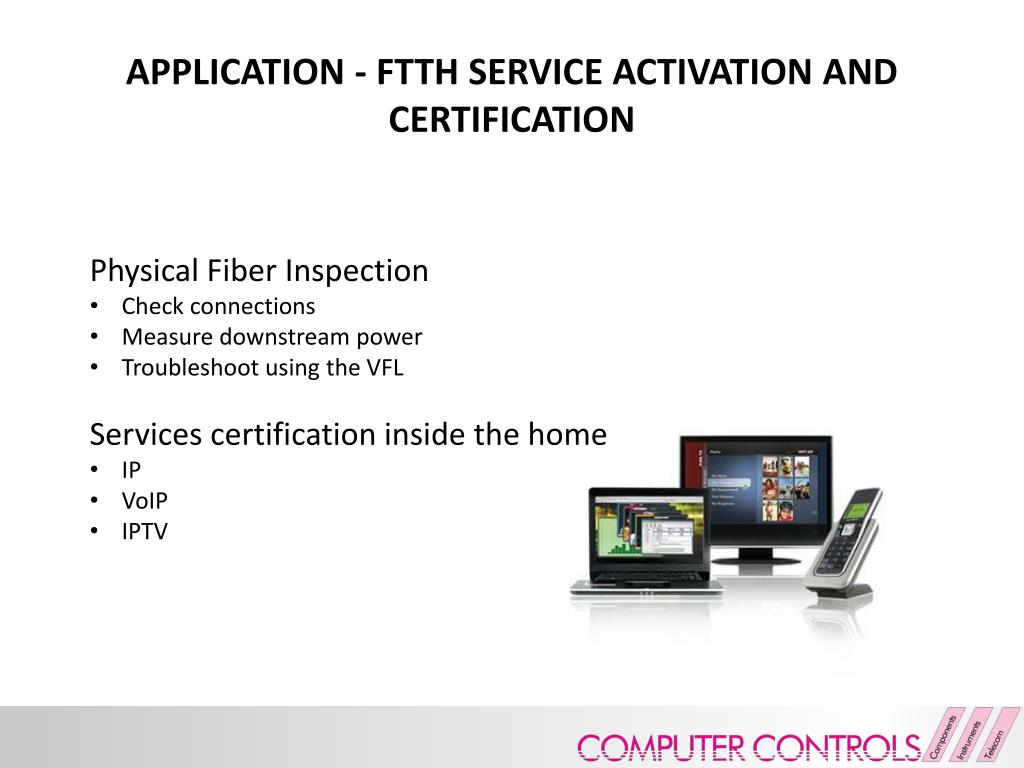

  6. APPLICATION - FTTH SERVICE ACTIVATION AND CERTIFICATION • Physical Fiber Inspection • Check connections • Measuredownstream power • Troubleshootusing the VFL • Services certification inside the home • IP • VoIP • IPTV

  7. Contact us Computer Controls AGIndustrie Strasse 53CH-8112 OtelfingenTel: +41 (0) 44 308 66 66Fax: +41 (0) 44 308 66 55E-Mail: info@ccontrols.ch Computer Controls SAch. Vieux-Moulin 33CH-1373 ChavornayTel: +41 (0) 24 423 82 00Fax: +41 (0) 24 423 82 05E-Mail: romande@ccontrols.ch
