  1. SAP BO Business Intelligence Platform 4.0 LifeCycle Manager (LCM)Changes in BI 4.0 Confidential

  2. Lesson Objectives • After completing this lesson, you will be able to: • Explain the updates in 4.0 for Lifecycle management Console (LCM) • Describe the Overrides new features • Use the LCMBiar command line • Explain Enhanced Change & Transport System (CTS+) integration • Describe the Visual Difference feature • Describe Lifecycle management services

  3. Agenda Basic Concepts What’s new? Overrides Visual Difference Command Line Tool CTS+ integration

  4. What is the right tool?

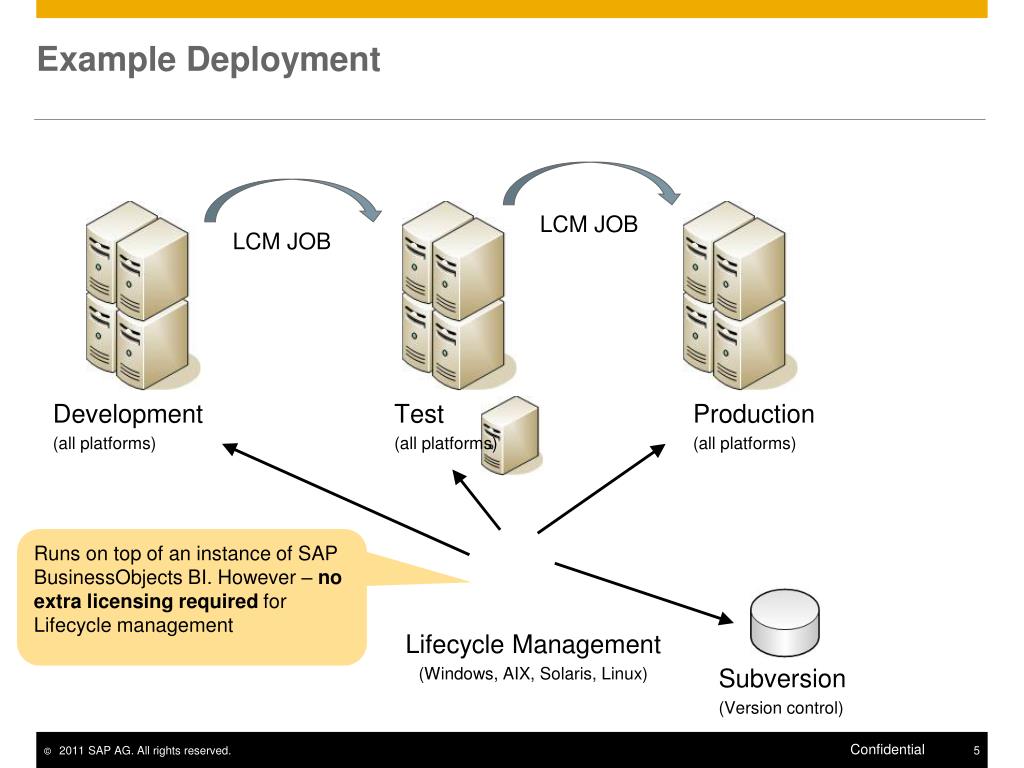

  5. Example Deployment LCM JOB LCM JOB • Development • (all platforms) • Test • (all platforms) • Production • (all platforms) Runs on top of an instance of SAP BusinessObjects BI. However – no extra licensing required for Lifecycle management • Lifecycle Management • (Windows, AIX, Solaris, Linux) • Subversion • (Version control)

  6. Lifecycle Management Console How to promote content from one SAP BusinessObjects Business Intelligence (BI) environment to another?

  7. Agenda Basic Concepts What’s new? Overrides Visual Difference Command Line Tool CTS+ integration

  8. Lifecycle Management – What is new? (1/2)

  9. Lifecycle Management - What is new? (2/2)

  10. Agenda Basic Concepts What’s new? Overrides Visual Difference Command Line Tool CTS+ integration

  11. What are Overrides? Dev HR Database Live HR Database Dev Connection for HR Reports Live Connection for HR Reports Override Connection Development BOE BI 4.0 Production BOE BI 4.0

  12. How does it work in XI 3.X? Dev HR Database Live HR Database Dev Connection for HR Reports Live Connection for HR Reports Job 2 Job 3 Job 1 Override Connection Development BOE BI 4.0 Production BOE BI 4.0

  13. How does it work in BI 4? Dev HR Database Live HR Database Dev Connection for HR Reports Live Connection for HR Reports Job 1 Job 2 Job 3 Create GLOBAL Overrides First in LCM Override Connection Development BOE BI 4.0 Production BOE BI 4.0

  14. Overrides Overview • Updating database connections (overrides) in XI 3.1 are job specific, in BI 4.0 are global. • In 4.0, Lifecycle management scans for all Crystal Reports, OLAP and Universe Connections and QaaWS URLs in the origin system. • Scan information can be updated with values for destination. • When a report connection is promoted, database connection information is automatically promoted. • Overrides can be from one or many origins to one or many destinations.

  15. Overrides – How to configure overrides? • Specify Origin system (Administration Options > Manage Systems) • Scan the Origin system (Administration Options > Override Settings) • Mark desired objects as active. • Promote the overrides to one or multiple destinations. • In destination, mark desired objects as active and edit database connections. • When a promotion job is executed, overrides of objects in the job are applied automatically.

  16. Agenda Basic Concepts What’s new? Overrides Visual Difference Command Line Tool CTS+ integration

  17. Visual Difference • Visual Difference framework allows you to easily identify changes. • It provides comparison plug-in and viewers for BI content • In SAP BusinessObjects BI 4.0 only LCM Jobs and LCMBIAR comparisons are possible. • LCMBIAR to LCMBIAR • LCM Job to LCMBIAR • LCM Job to LCM Job • LCMBIAR comparison includes: • Metadata • Primary Objects. • Dependent Objects. • The differences process results in 3 types of differences • Removed • Modified • Inserted

  18. Agenda Basic Concepts What’s new? Overrides Visual Difference Command Line Tool CTS+ integration

  19. LCM Command Line ToolLCMBIAR Overview

  20. LCM Command Line Tool What can you do?

  21. LCM Command Line Tool How to use? • Prerequisites: • Set the java path if using lcm.jar • Parameters are specified in a properties file. • Properties file name should be: <FileName>.properties. • Example: Myparameters.properties • LCM Command Line tool can be launched via BAT file or JAR file: • lcm_cli.bat • lcm_cli.bat –lcmproperty <property file> • Example: c:\Program Files(x86)\SAP Business Objects\SAP BusinessObjects Enterprise XI4.0\win64_x64\scripts\lcm_cli.bat –lcmpropertyMyparameters.properties • lcm.jar • java -cp "lcm.jar" com.businessobjects.lcm.cli.LCMCLI <property file> • Example: c:\Program Files(x86)\SAP Business Objects\SAP BusinessObjects Enterprise XI4.0\win64_x64\java\lib\ java –cp “lcm.jar” com.businessobjects.lcm.cli.LCMCLIMyparameters.properties

  22. LCM Command Line ToolProperties File example

  23. Basic Concepts What’s new? Overrides Visual Difference Command Line Tool CTS+ integration Agenda

  24. The Past Change and Transport System (CTS) Change and Transport System (CTS) SAP NetWeaver A few designer tools Embedded Lifecycle Management(LCM) Business Objects

  25. Solution: One Common Transport Tool For Multiple Development Types Multiple Development Workbenches ABAP Workbench XI Workbench Portal Content Studio Lifecycle Management Console … Multiple Backend System Types SAP BusinessObjects Business Intelligence ESR/XI/PI on SAP Netweaver Dual Stack Portal System on SAP Netweaver AS Java SAP Netweaver AS ABAP … One central transport tool CTS+ (Enhanced Change & Transport System)

  26. How to promote content with CTS+

  27. Transport Request Transport Request Transport Request Transport Request Transport Request Transport Request ZIP ZIP Job Transporting BI content with the help of LifeCycle management Console and CTS+ TMS System-Landscape Configuration – Representation of BOE Systems TD1 (DEV System) TD2 (Test System) XYZ (Prod System) Transport Organizer Web UI  Promote via CTS  LifeCycle Management for BusinessObjects BI4.0 Start the import in TMS to process the job  Promotion of Jobs SAP BusinessObjects Enterprise Systems  Collect objects TD1 TD2 XYZ TEST TEST TEST

  28. Lesson Summary • After completing this lesson, you are now able to: • Explain the updates in LifeCycle Management Console for BusinessObjects BI 4.0 • Describe the Overrides new features • Use the LCMBiar command line • Explain Enhanced Change & Transport System (CTS+) integration • Describe the Visual Difference feature • Describe Lifecycle management services

  29. Thank you!
