Host Response to Material Implantation

Host Response to Material Implantation. Implantation of a biomaterial is an invasive procedure that initiates a series of events whose outcome ultimately determine the biocompatibility of the material. OBJECTIVES to outline the normal wound healing response

devlin
Télécharger la présentation

Host Response to Material Implantation

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

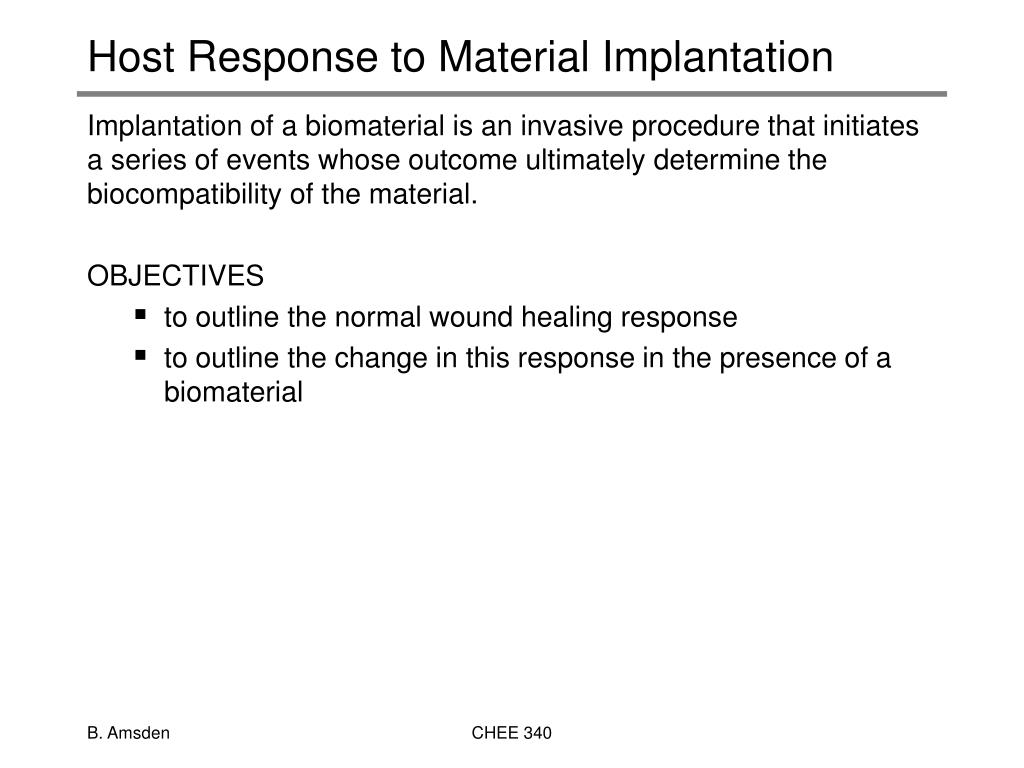

  1. Host Response to Material Implantation • Implantation of a biomaterial is an invasive procedure that initiates a series of events whose outcome ultimately determine the biocompatibility of the material. • OBJECTIVES • to outline the normal wound healing response • to outline the change in this response in the presence of a biomaterial CHEE 340

  2. Normal Wound Healing • wound healing is a dynamic cascade of events initiated by injury • it may be divided into phases characterized by both cellular population and cellular function • blood clotting • inflammation • cellular invasion and remodeling CHEE 340

  3. Clotting or Thrombosis • blood coagulation or clotting is the blood response to damaged blood vessels • objective is to form a patch that isolates the leak and stops blood loss CHEE 340

  4. Coagulation Pathways CHEE 340

  5. Host Defence • The body is under constant attack by microorganisms in the environment. • pathogen : an infectious agent that causes disease • Infectious disease occurs when a microorganism succeeds in evading or overwhelming host defenses to establish a local site of infection and replication. In order for a pathogen to enter the body it must first overcome the epithelium and then the innate immune response. CHEE 340

  6. Intravascular Cells • white blood cells Granulocytes neutrophil eosinophil basophil lymphocyte monocyte CHEE 340

  7. First Line of Defence • Epithelial Tissue • covers the whole surface of the body • made up of closely packed cells • can be divided into simple or stratified • interior epithelium covered with a mucus layer CHEE 340

  8. Stratified Epithelium - Skin CHEE 340

  9. Innate Immune response • If a pathogen breaches the epithelium, • then the innate immune response begins. • The cells of the immune system determine • “self” from “non-self” by recognizing molecules on the microbe surface. • Macrophages and dendritic cells are immune cells (phagocytes) that reside within the tissue. Neutrophils are phagocytes that reside in the blood but can extravasate into tissue during inflammation. • There are circulating proteins, called complement, that either kill microbes or mark them for effective phagocytization. CHEE 340

  10. Phagocytosis • Phagocytosis: • Engulfing and degradation or digestion of fragments of tissue or material • long membrane evaginations, called pseudopodia. • Ingestion forming a "phagosome," which moves toward the lysosome. • Fusion of the lysosome and phagosome (phagolysosome), releasing lysosomal enzymes • Digestion of the ingested material. • Release of digestion products from the cell. CHEE 340

  11. Inflammatory Response • Pathogen recognition and tissue damage begin an inflammation response. This is characterized by : • swelling • pain • redness • heat • Inflammation allows for neutrophil and plasma protein extravasation. Both of these effects aids the immune response. CHEE 340

  12. Diapedesis Movie CHEE 340

  13. Phagocytosis Movie CHEE 340

  14. Leukocyte Invasion at Wound Site CHEE 340

  15. Granulation Tissue Deposition - Remodeling • Due to death of cells following injury, and their removal, there is a local decreased tissue mass • fibroblasts and vascular endothelial cells are recruited to site • Begin to form granulation tissue (ECM and new blood vessels) CHEE 340

  16. Wound Healing CHEE 340

  17. Foreign Body Reaction • The presence of the implant changes the healing response, and this is called the Foreign Body Reaction. • FBR consists of: • protein adsorption • macrophages • multinucleated foreign body giant cells • fibroblasts • angiogenesis CHEE 340

  18. Components of Plasma CHEE 340

  19. Proteins • are polyamides, composed of amino acids CHEE 340

  20. Soluble Proteins (A) A space-filling model of myoglobin with hydrophobic amino acids shown in yellow, charged amino acids shown in blue, and others shown in white. The surface of the molecule has many charged amino acids, as well as some hydrophobic amino acids. (B) A cross-sectional view shows that mostly hydrophobic amino acids are found on the inside of the structure, whereas the charged amino acids are found on the protein surface. albumin CHEE 340

  21. Surfaces and Protein Adsorption Immediately after implantation soluble proteins adsorb to the surface of the biomaterial. CHEE 340

  22. Protein Adsorption - Example Figure 2 Adsorption profiles of (a) BSA and (b) fibrinogen onto CH3 (O) and OH () terminated surfaces. Initial bulk protein concentration was 1 mg mL-1. Inserts show derivative plots with corresponding initial adsorption profiles From Interpretation of Protein Adsorption: Surface-Induced Conformational Changes, P. Roach, D. Farrar,C.C. Perry JACS 127 (2005)8168. CHEE 340

  23. Protein Adsorption - Example From Interpretation of Protein Adsorption: Surface-Induced Conformational Changes, P. Roach, D. Farrar,C.C. Perry JACS 127 (2005)8168. CHEE 340

  24. Vroman Effect From: An Introduction to Tissue-Biomaterial Interactions, Wiley, 2002. CHEE 340

  25. EXAMPLE Data from : Hydrogels based on poly(ethylene oxide) and poly(tetramethylene oxide) or poly(dimethyl siloxane): synthesis, characterization, in vitro protein adsorption and platelet adhesion J. H. Park, Y. H. Bae, Biomaterials 23 (2002) 1797–1808 CHEE 340

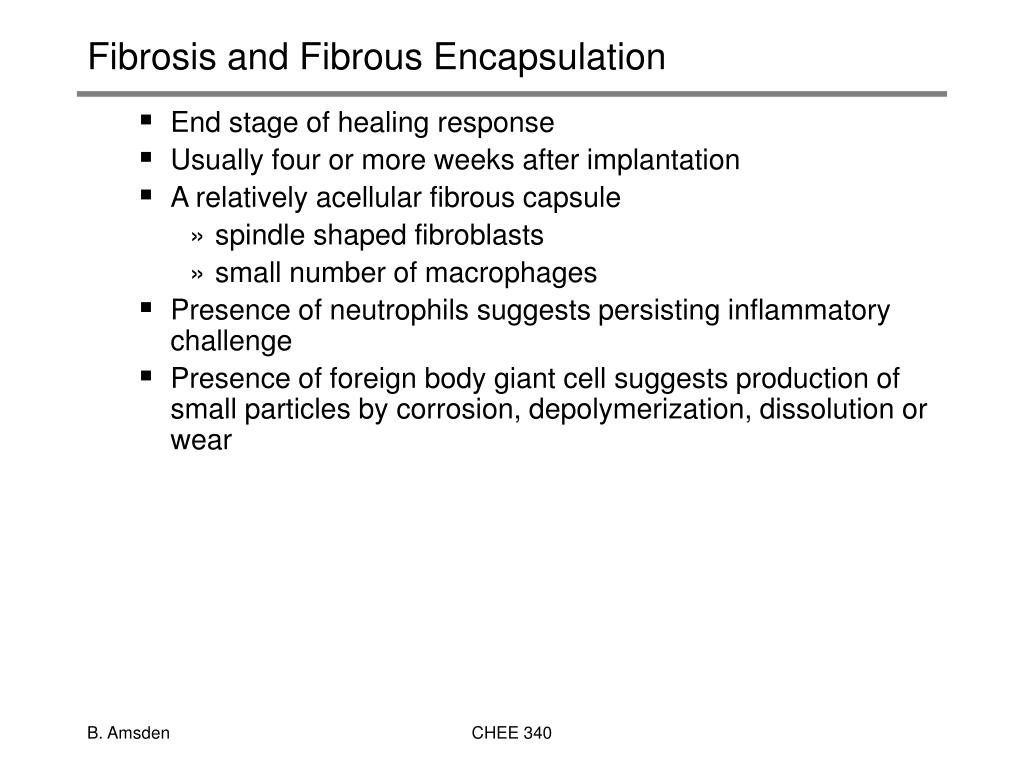

  26. Fibrosis and Fibrous Encapsulation • End stage of healing response • Usually four or more weeks after implantation • A relatively acellular fibrous capsule • spindle shaped fibroblasts • small number of macrophages • Presence of neutrophils suggests persisting inflammatory challenge • Presence of foreign body giant cell suggests production of small particles by corrosion, depolymerization, dissolution or wear CHEE 340

  27. Foreign Body Response - Resolution • continuing presence of an implant may result in the attainment of a final steady-state condition called resolution • there are 3 possible outcomes for the implant : • resorption • integration • encapsulation (fibrosis) CHEE 340

  28. Cell Regeneration After Injury • Possible outcomes for the injured tissue: • replacement of injured tissue with parenchymal cells of the same type • replacement by connective tissue that constitutes the fibrous capsule • The regeneration of cells in the body is tightly controlled • There are essentially 3 categories of cell populations • Renewing or labile • Expanding or stable • Static or permanent CHEE 340

  29. Fibrosis and Fibrous Encapsulation • 78-week PMMA histology (sheep): illustrates soft tissue encapsulation of prepolymerized PMMA CHEE 340

  30. Experimental Results 50:50 CL:LA 18 000 g/mol sterilized with 25kGy rat femur CHEE 340
