  1. Introducing Next Generation of isoPower Products October 2012

  2. ADI is Expanding the isoPower Portfolio • Introducing the Newest Versions of Our Popular isoPower Products • Achieving 150mW of Output Power in a Tiny SSOP-20 Package • Input voltages range from 3.3V to 5V • Output voltage is resistor adjustable from 3.15V to 5V • Regulated output with internal PWM feedback • Power saving Enable feature • Including Digital Isolators which are Superior to Optocouplers • Higher speed – up to 100Mbps • Lower power • Higher reliability • Higher levels of integration making them easier to use

  3. What is isoPower? • isoPower is the Worlds Smallest Isolated DC/DC Module Using ADI’s Patented iCoupler Micro-transformers • Air-core transformers are manufactured on a standard CMOS wafers with 20um of polyimide isolation • 3.75kVrms 1minute withstand • 400Vrms 50year working voltage Isolated DC/DC Top Coil Gold 20um Polyimide Insulation 2 Digital Isolators Bottom Coil Aluminum CMOS Silicon Substrate

  4. isoPower Operation 125MHz Tank Oscillator Regulated output 5V • Secondary side regulation • Current rectified and filtered • Regulator creates PWM based on selected set point • Primary Side • PWM controls tank oscillator • During startup tank stays on until output is in regulation 250MHz Rectified Current 600kHz PWM Tank Control

  5. Smaller and Easier to Use than Traditional Solutions • Discrete designs require many components and lot’s of board space • Certified Isolated DC/DC modules are also large with 2x higher price • Digital isolators are not included • isoPower takes little board space and no additional components – just bypass capacitors • Digital isolators are in the same package for even more space savings ADuM5010 DC/DC Module Discrete Design

  6. Lower cost isoPower products ADuM521x ADuM621x ADuM5010 ADuM6010 • Key Features • Adjustable, Regulated VISO • 3.15V to 5.25V • Up to 150mW • Soft-start • Small SSOP Package • Reinforced insulation up to 3.75kVrms • Dual Channel iCoupler Digital Isolators • Up to 100 Mbps

  7. Newly Released Product Family • Future isoPower products will be available with additional channels and features • For more information on these and other isoPower products go to www.analog.com\icoupler

  8. Many Benefits for Many Applications Self-contained in One Surface Mount Package • Simplifies Isolated System Designs • Reduces Board Space • Lowers Circuit Costs Appropriate For • Industrial Control • Test and Measurement • Communications Infrastructure • Automotive • Industrial Motors • Energy Management • Power Distribution • Transportation • Industrial Test Equipment

  9. Product Selector Guide • Order Code: G10665-.2-5/12

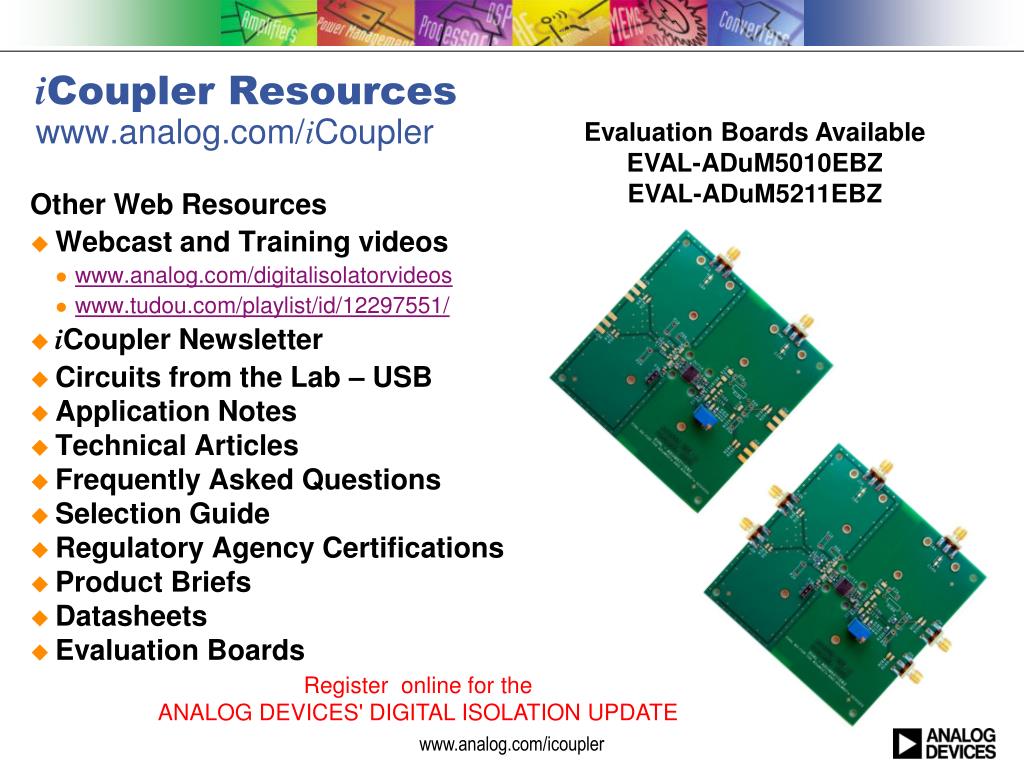

  10. iCoupler Resourceswww.analog.com/iCoupler Evaluation Boards Available EVAL-ADuM5010EBZ EVAL-ADuM5211EBZ Other Web Resources • Webcast and Training videos • www.analog.com/digitalisolatorvideos • www.tudou.com/playlist/id/12297551/ • iCoupler Newsletter • Circuits from the Lab – USB • Application Notes • Technical Articles • Frequently Asked Questions • Selection Guide • Regulatory Agency Certifications • Product Briefs • Datasheets • Evaluation Boards Register online for the ANALOG DEVICES' DIGITAL ISOLATION UPDATE www.analog.com/icoupler
