  1. 100 Gigabit Ethernet Requirements & Implementation Fall 2006 Internet2 Member Meeting December 6, 2006 Serge Melle smelle@infinera.com 408-572-5200 Drew Perkins dperkins@infinera.com 408-572-5208

  2. Internet Backbone Growth • Industry consensus indicates a sustainable growth rate of 75% to 100% per year in aggregate traffic demand • Traffic increased more than 10,000x from 1990 to 2000 • Traffic projected to increase an additional 1,000x from 2000 to 2010 [1] K. G. Coffman and A. M. Odlyzko, ‘Growth of the Internet’, Optical Fiber Telecommunications IV B: Systems and Impairments, I. P. Kaminow and T. Li, eds. Academic Press, 2002, pp. 17-56.

  3. The Future Belongs to Tb/s Links! • Carriers deployed Nx10 Gb/s networks several years ago • ECMP and LAG • N now reaching hardware limit around 16 in some networks • Now evaluating deployment of (Nx) 40 Gb/s router networks • Is this like putting out a 5-alarm fire with a garden hose? • Current Backbone growth rates, if sustained, will require IP link capacity to scale to > 1 Tb/s by 2010

  4. Proposed Requirements for Higher Speed Ethernet • Protocol Extensible for Speed • Ethernet tradition has been 10x scaling • But at current growth rates, 100 Gb/s will be insufficient by 2010 • Desirable to standardize method of extending available speed without re-engineering the protocol stack • Incremental Growth • Most organizations deploy new technologies with a 4-5 yr lifetime • Pre-deploying based on the speed requirement 5 yrs in advance is economically burdensome • Assuming 5 yr window and 100% growth per year, ability to grow link speed incrementally over 25 = 32x without a “forklift upgrade” seems highly desirable

  5. Proposed Requirements (cont’d) • Hitless Growth • Problematic to “take down” core router links for a substantial period of time without customer service degradations • SLAs may be compromised or require complicated temporary workarounds if substantial down time is required for upgrade. • Ideally, upgrade of the link capacity should therefore be hitless, or at least only momentarily service-impacting. • Resiliency and Graceful Degradation • Protocol should provide rapid recovery from failure of an individual channel or component • If the failure is such that full performance can not be provided, degradation should only be proportional to the failed element(s).

  6. Proposed Requirements (cont’d) • Technology Reuse • Highly desirable to leverage existing 10G PHYs, including 10GBASE-R, W, X, S, L, E, Z and LRM in order to foster ubiquity and avoid duplication of standards efforts • Deterministic Performance • Latency/Delay Variation should be low for support of real-time packet based services, e.g. • Streaming video • VOIP • Gaming

  7. Proposed Requirements (cont’d) • WAN Manageability • 100 GbE will be transported over wide area networks • It should include features for low OpEx and should be: • Economical • Reliable • Operationally Manageable (e.g. simple fault isolation) • It should support equivalents for conventional transport network OAM mechanisms, e.g. • Alarm Indication Signal (AIS) • Forward Defect Indication (FDI) • Backward Defect Indication (BDI) • Tandem Connection Monitoring (TCM), etc.) • WAN Transportability • Operation over WAN fiber optic networks • Transport across regional, national and inter-continental networks • The protocol should be resilient to intra-channel/intra-wavelength propagation delay differences (skew)

  8. Time Division Multiplexing (ie: Baud Rate) 100 Gbps Modulation (ie: Bits per Hz) 10 Gbps 8 (e.g. QAM-256) 1 Gbps 4 (e.g. QAM-16) 100 Mbps 2 (e.g. PAM-4, (D)QPSK) 10 Mbps 1 (e.g. NRZ) Wavelength Division Multiplexing (i.e. ls) 1 2 4 6 8 10 1 CWDM DWDM 4 8 12 Space Division Multiplexing (ie: Parallel Optics) Technological Approaches to 100 Gb/s Transport

  9. Time Division Multiplexing (ie: Baud Rate) Modulation (ie: Bits per Hz) Wavelength Division Multiplexing (i.e. ls) Space Division Multiplexing (ie: Parallel Optics) Which Ethernet Application? • Ethernet is used today for many applications over different distances • Distances > 100m primarily use optical technologies • Performance for each application may be best advanced using a different approach

  10. Too many problems! • 65nm CMOS will cap out long before 100Gb/s • 100x shorter reach due to dispersion (modal, chromatic, PMD, etc.) • Bandwidth of copper backplane technology • Fundamental R&D required to develop enabling technologies for low cost Time Division Multiplexing (ie: Baud Rate) 100 Gbaud Modulation (ie: Bits per Hz) 10 Gbaud 8 (e.g. QAM-256) 1 Gbaud 4 (e.g. QAM-16) 100 Mbaud 2 (e.g. PAM-4, (D)QPSK) 10 Mbaud 1 (e.g. NRZ) Wavelength Division Multiplexing (i.e. ls) 1 2 4 6 8 10 1 CWDM DWDM 4 8 12 Space Division Multiplexing (ie: Parallel Optics) Scaling Beyond 10Gb/s: TDM ý 100 Gb/s TDM unlikely to be a low-cost approach for any application in near future

  11. Digital Communication theory is well-established • Proven technology for copper technologies 1000BASE-T, DSL, Cable Modems, etc. • Limited use with optical technology • May be used in conjunction with other approaches Time Division Multiplexing (ie: Baud Rate) 100 Gbps Modulation (ie: Bits per Hz) 10 Gbps 8 (e.g. QAM-256) 1 Gbps 4 (e.g. QAM-16) 100 Mbps 2 (e.g. PAM-4, (D)QPSK) 10 Mbps 1 (e.g. NRZ) Wavelength Division Multiplexing (i.e. ls) 1 2 4 6 8 10 1 CWDM DWDM 4 8 12 Space Division Multiplexing (ie: Parallel Optics) Scaling Beyond 10Gb/s: Modulation ý Has never been applied to a high-volume optical standard and difficult for most applications of interest

  12. Time Division Multiplexing (ie: Baud Rate) 100 Gbps Modulation (ie: Bits per Hz) 10 Gbps • OIF standards for Parallel Optical Interfaces • 10Gb/s VSR4 and 40Gb/s VSR5 • Slow adoption due to minimal market traction • Low volumes limits economic savings • Could be extended to 100 Gbps • 12x 10 Gbps VCSELs 8 (e.g. QAM-256) 1 Gbps 4 (e.g. QAM-16) 100 Mbps 2 (e.g. PAM-4, (D)QPSK) 10 Mbps 1 (e.g. NRZ) Wavelength Division Multiplexing (i.e. ls) 1 2 4 6 8 10 1 CWDM DWDM 4 8 12 Space Division Multiplexing (ie: Parallel Optics) Scaling Beyond 10Gb/s: SDM Most applicable to VSR applications

  13. Time Division Multiplexing (ie: Baud Rate) • Extensive WDM technology development in past decade • Proven deployments in all telecom networks • Focus on cost reduction: CWDM, EMLs, etc. • 10GBASE-LX4 achieved success • 4-color CWDM • SR applications 100 Gbps Modulation (ie: Bits per Hz) 10 Gbps 8 (e.g. QAM-256) 1 Gbps 4 (e.g. QAM-16) 100 Mbps 2 (e.g. PAM-4, (D)QPSK) 100 Gbps 10 Mbps 1 (e.g. NRZ) Wavelength Division Multiplexing (i.e. ls) 1 2 4 6 8 10 1 CWDM DWDM 4 8 12 Space Division Multiplexing (ie: Parallel Optics) Scaling Beyond 10Gb/s: WDM Proven approach to reach Tb/s level bandwidth for even long reach applications

  14. Drivers for a Super-l (Multi-wavelength) Protocol • Per-channel bit rate growth historically and dramatically out-paced by Core Router interconnection demand growth • Requirement for WAN transportability strongly favors approach leveraging multiple wavelengths (Super-l service)

  15. Won’t 802.3ad Link Aggregation (LAG) Solve the Scaling Problem? • LAG and ECMP rely on statistical flow distribution mechanisms • Provide fixed assignment of “conversations” to channels • Unacceptable performance as individual flows reach Gb/s range • A single 10 Gb/s flow will exhaust one LAG member yielding 1/N blocking probability for all other flows • VPN and security technologies make all flows appear as one • True deterministic ≥ 40G link technology required today • Deterministic packet/fragment/word/byte distribution mechanism

  16. Possible Channel Bonding Techniques • Traffic may be distributed over multiple links by a variety of techniques • Bit/Octet/Word Distribution • Fixed units of the serial stream are assigned sequentially to lanes • Small additional overhead allows re-alignment at the receiver • Examples: 10GBASE-X, SONET/SDH/OTN Virtual Concatenation (VCAT) • Packet Distribution • Sequence numbers added to packets to enable re-ordering at the receiver • Large packets within the stream may induce excessive delay/delay variation to smaller, latency-sensitive packets • Examples: Multilink PPP, 802.3ah PME Aggregation Clause 61 • Packet Distribution with Fragmentation • Fragmentation bounds buffering requirements and delay associated with packet size and packet size variation • Overhead/link inefficiency is a function of the maximum fragment size chosen • At 100 Gb/s and above, a fragment size can be chosen such that an effective compromise between link efficiency and the QoS of individual, time-sensitive flows can be readily achieved • Examples: 802.3ah PME Aggregation, Multilink PPP

  17. 10Gigabit Ethernet Protocol (Link Aggregation Group) LAG (Media Access Control) MAC Reconciliation XGMII PCS PMA PHY PMD MDI Medium 1

  18. Multilink Ethernet – N x 10G LAG – Link Aggregation Group MAC – Media Access Control LAG MAC Multilink Reconciliation Reconciliation Reconciliation XGMII XGMII XGMII PCS PCS PCS PMA PMA PMA PHY PHY PHY PMD PMD PMD MDI MDI MDI Medium Medium Medium 2 1 N (ie: N = 10 for 100GbE) MultiLink Ethernet a.k.a. Aggregation at the Physical Layer (APL)

  19. Multilink Ethernet Benefits • Ensures ordered delivery • Resilient and scalable • Incremental hitless growth up to 32 channels • Minimal added latency • Line code independent, preserves all existing 10G PHYs • Orthogonal to and lower level than LAG • Scales into future as individual channel speeds increase

  20. Multilink Ethernet Benefits (Cont.) • Concept well proven • Packet fragmentation, distribution, collection and reassembly similar to 802.3ah PME aggregation • Fits well with multi-port (4x, 5x, 10x, etc.) PHYs • Preserves existing interfaces (e.g. XGMII, XAUI) • Compatible with physical layer transport implementation over N x wavelengths

  21. Live 100 GbE Demo - Chicago to New York 100GbE MAC with packet reordering, implemented by UCSC 10 x 10Gb/s XFP boards, provided by Finisar Infinera DTN, provided by Infinera New internet2 network Chicago – New York FPGA provided by Xilinx Optical loopbacks 2000km 10x10Gb/s electrical 10x10Gb/s 1310nm 10x11.1Gb/s 15xxnm * 100 GbE first demonstrated Nov 13 at SC06 between Tampa and Houston

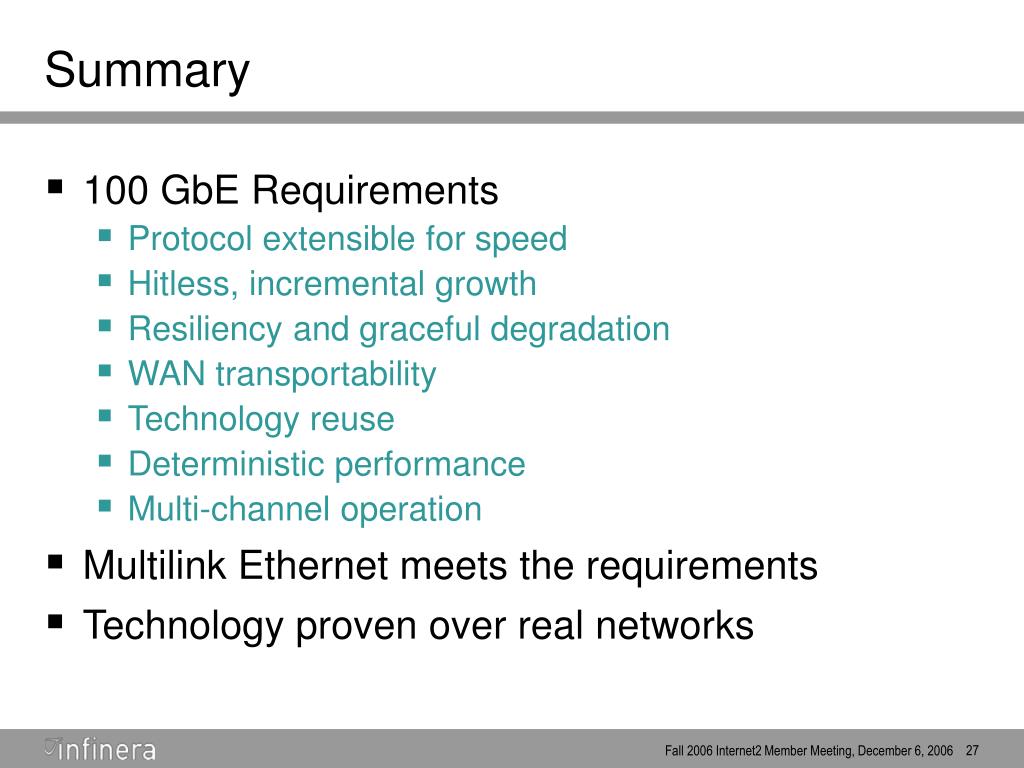

  22. Summary • 100 GbE Requirements • Protocol extensible for speed • Hitless, incremental growth • Resiliency and graceful degradation • WAN transportability • Technology reuse • Deterministic performance • Multi-channel operation • Multilink Ethernet meets the requirements • Technology proven over real networks

  23. Thanks! Serge Melle smelle@infinera.com 408-572-5200 Drew Perkins dperkins@infinera.com 408-572-5308
