  1. Ch. 15 and 6 Polyatomic Ions

  2. Polyatomic Ions Tightly bound groups of atoms that behave as a unit and carry a charge. Examples: Ammonium NH4+ Cyanide CN- Sulfite SO32-

  3. Common Polyatomic Ionswith a -1 charge • ClO-1 hypochlorite • ClO2-1 chlorite • ClO3-1 chlorate • ClO4-1 perchlorate • CN-1 cyanide • MnO4-1 permanganate • NO3-1 nitrate • NO2-1 nitrite

  4. -1 polyatomic ions cont. • OH-1 hydroxide • HCOO-1formate • HCO3-1 hydrogen carbonate or bicarbonate • HSO3-1 hydrogen sulfite • HSO4-1 hydrogen sulfate • CH3COO-1 or C2H3O2-1 acetate

  5. -2 polyatomic ions • C2O4-2 oxalate • CO3-2 carbonate • Cr2O7-2 dichromate • CrO4-2 chromate • SO4-2 sulfate • SO3-2 sulfite

  6. -3 polyatomic ion • PO4-3 phosphate • PO3-3 phosphite

  7. +1 polyatomic ions • NH4+1 ammonium • H3O+1 hydronium

  8. Polyatomic Ions • Examine Relationships • Most end in –ite / -ate Trick to remember: The bigger number ate the little number! SO42- Sulfate SO32- Sulfite

  9. The big number ate the little number! PO43- Phosphate NO3- Nitrate PO33- Phosphite NO2- Nitrite

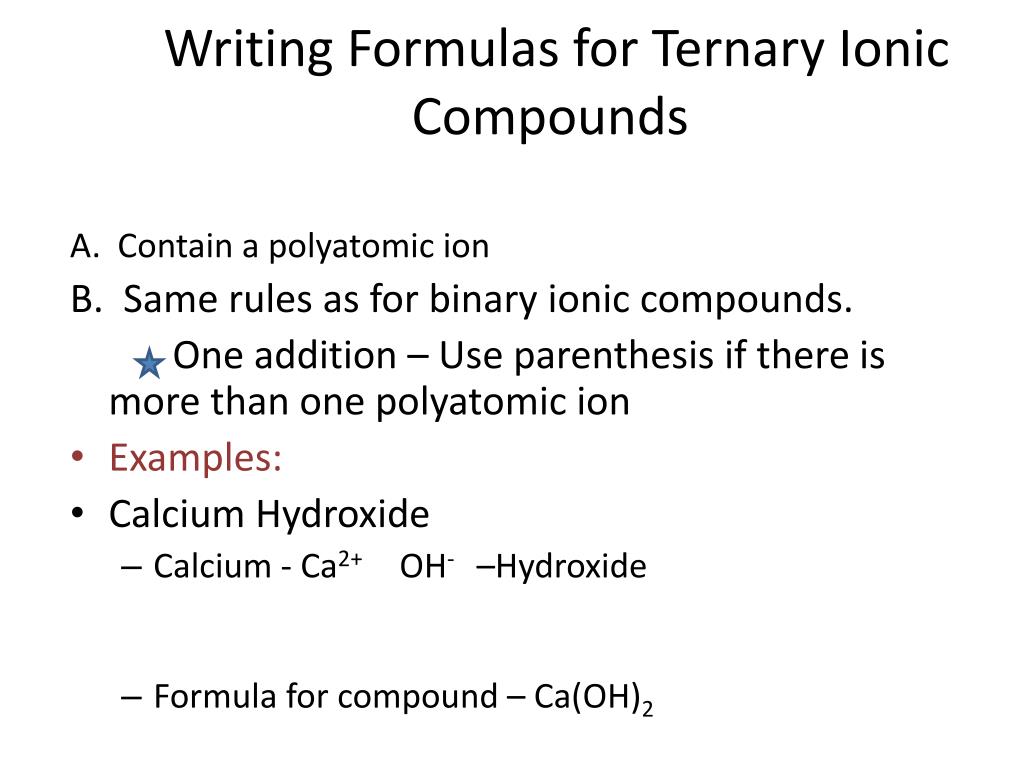

  10. Writing Formulas for Ternary Ionic Compounds A. Contain a polyatomic ion B. Same rules as for binary ionic compounds. One addition – Use parenthesis if there is more than one polyatomic ion • Examples: • Calcium Hydroxide • Calcium - Ca2+ OH- –Hydroxide • Formula for compound – Ca(OH)2

  11. Boron acetate B3+ C2H3O2-1 B(C2H3O2)3 Magnesium Dichromate Mg+2 Cr2O7-2 Mg2(Cr2O7)2 MgCr2O7

  12. Examples (cont.) • Magnesium Nitrate • Magnesium – Mg2+ • Nitrate - ???? • Write the formula for the compound

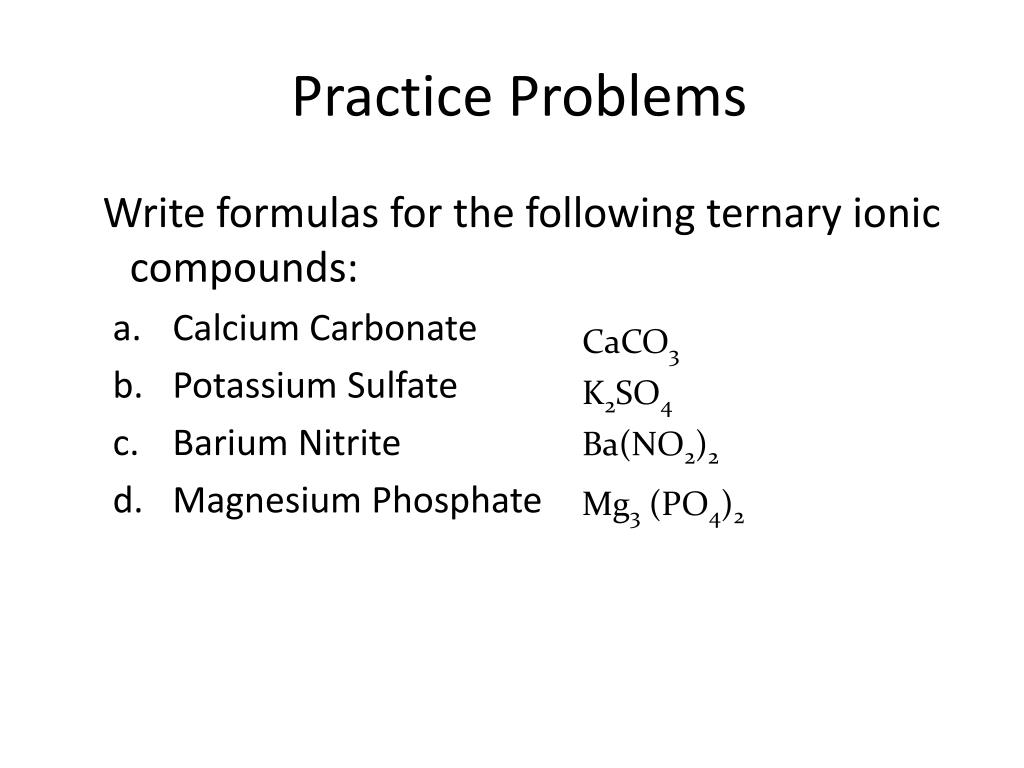

  13. Practice Problems Write formulas for the following ternary ionic compounds: • Calcium Carbonate • Potassium Sulfate • Barium Nitrite • Magnesium Phosphate CaCO3 K2SO4 Ba(NO2)2 Mg3 (PO4)2

  14. Naming Ternary Ionic Compounds • Same rules as for naming binary ionic compounds: • Name the cation – Use a Roman numeral if necessary • Name the anion • Do not use the word “ion” in the compound name

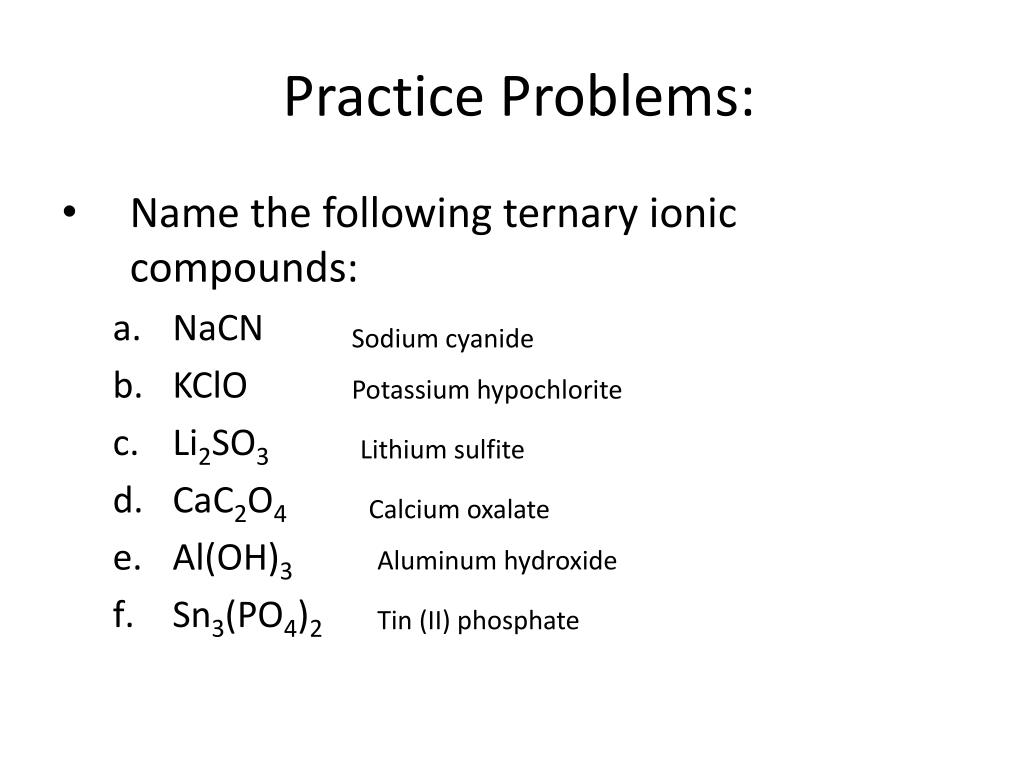

  15. Practice Problems: • Name the following ternary ionic compounds: • NaCN • KClO • Li2SO3 • CaC2O4 • Al(OH)3 • Sn3(PO4)2 Sodium cyanide Potassium hypochlorite Lithium sulfite Calcium oxalate Aluminum hydroxide Tin (II) phosphate

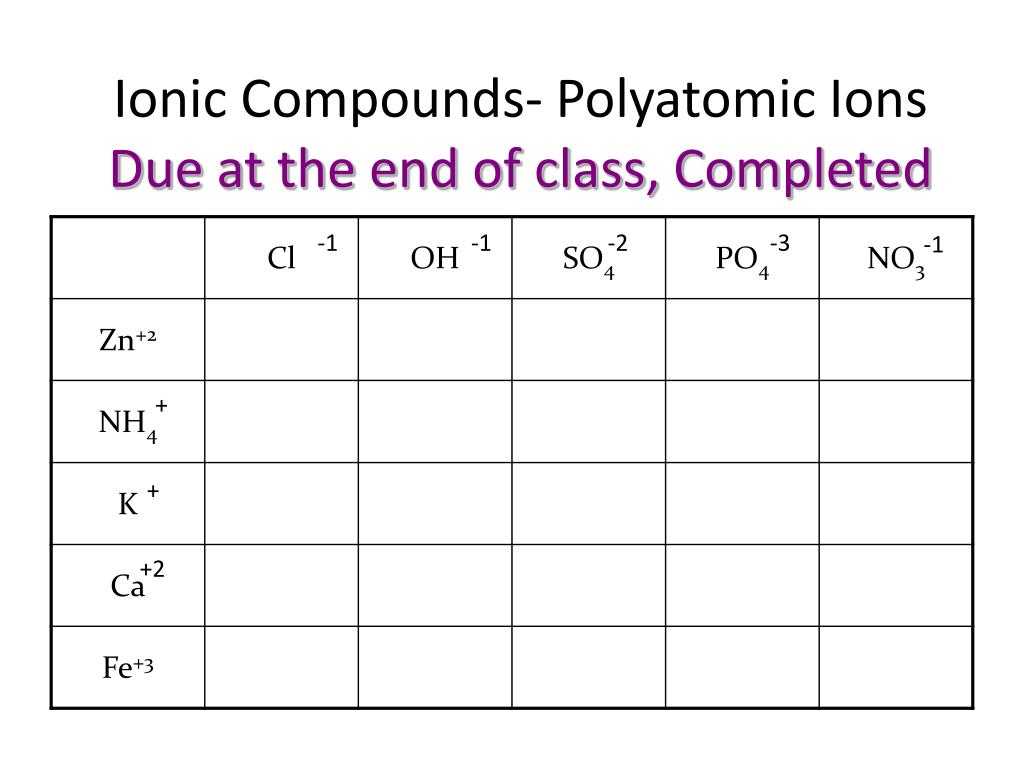

  16. Ionic Compounds- Polyatomic IonsDue at the end of class, Completed -1 -1 -2 -3 -1 + + +2
