  1. CSC Muon Trigger - Annual Review Paul Padley Rice University (On behalf of the CMS Level 1 Muon Trigger Subsystem Collaboration)

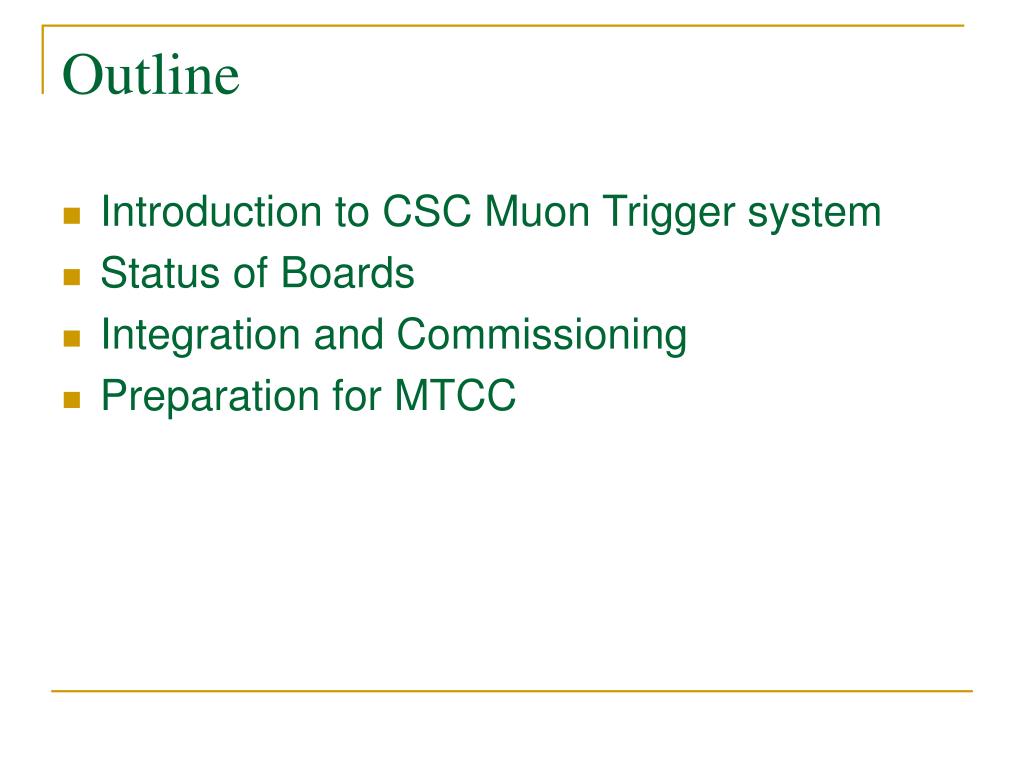

  2. Outline • Introduction to CSC Muon Trigger system • Status of Boards • Integration and Commissioning • Preparation for MTCC

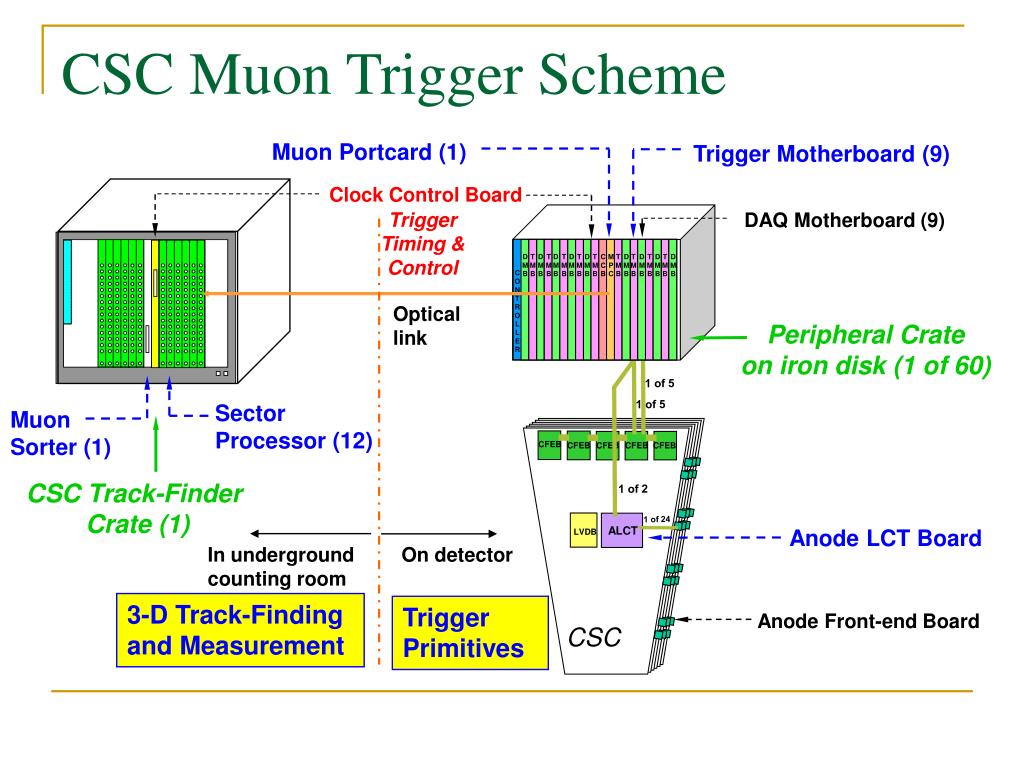

  3. D M B T M B D M B T M B D M B T M B D M B T M B D M B T M B C C B M P C T M B D M B T M B D M B T M B D M B T M B D M B C O N T R O L L E R 1 of 5 1 of 5 CFEB CFEB CFEB CFEB CFEB 1 of 2 1 of 24 ALCT LVDB Anode Front-end Board CSC CSC Muon Trigger Scheme Muon Portcard (1) Trigger Motherboard (9) Clock Control Board Trigger Timing & Control DAQ Motherboard (9) Optical link Peripheral Crate on iron disk (1 of 60) Sector Processor (12) Muon Sorter (1) CSC Track-Finder Crate (1) Anode LCT Board In underground counting room On detector 3-D Track-Finding and Measurement Trigger Primitives

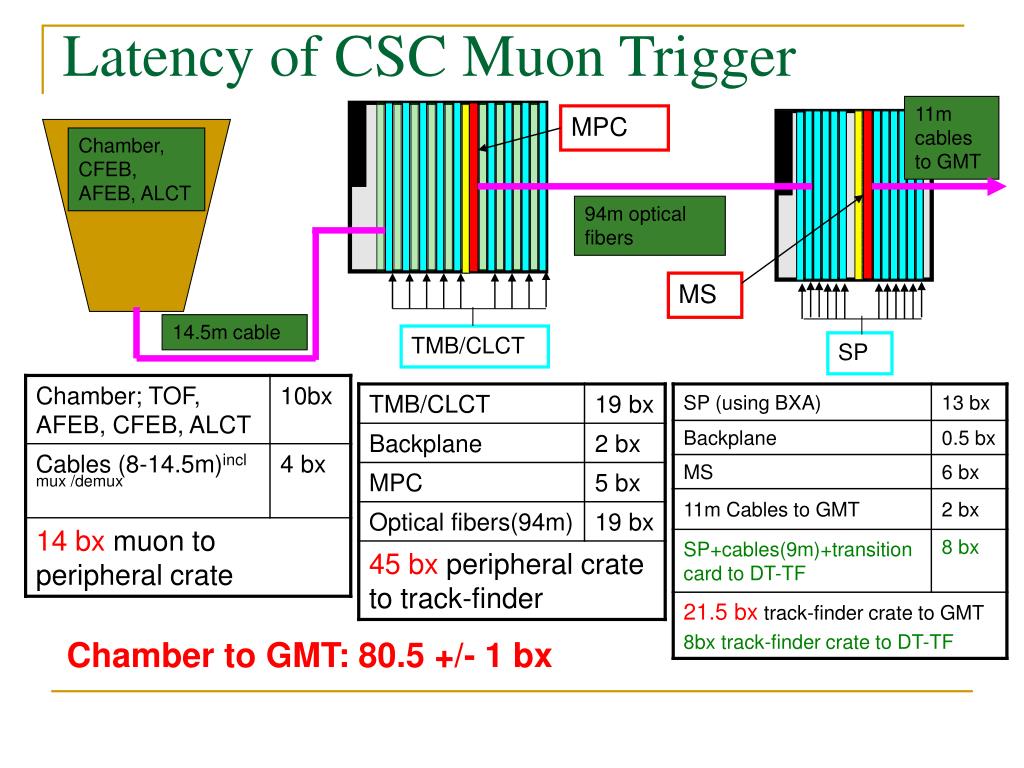

  4. Latency of CSC Muon Trigger 11m cables to GMT MPC Chamber, CFEB, AFEB, ALCT 94m optical fibers MS 14.5m cable TMB/CLCT SP Chamber to GMT: 80.5 +/- 1 bx

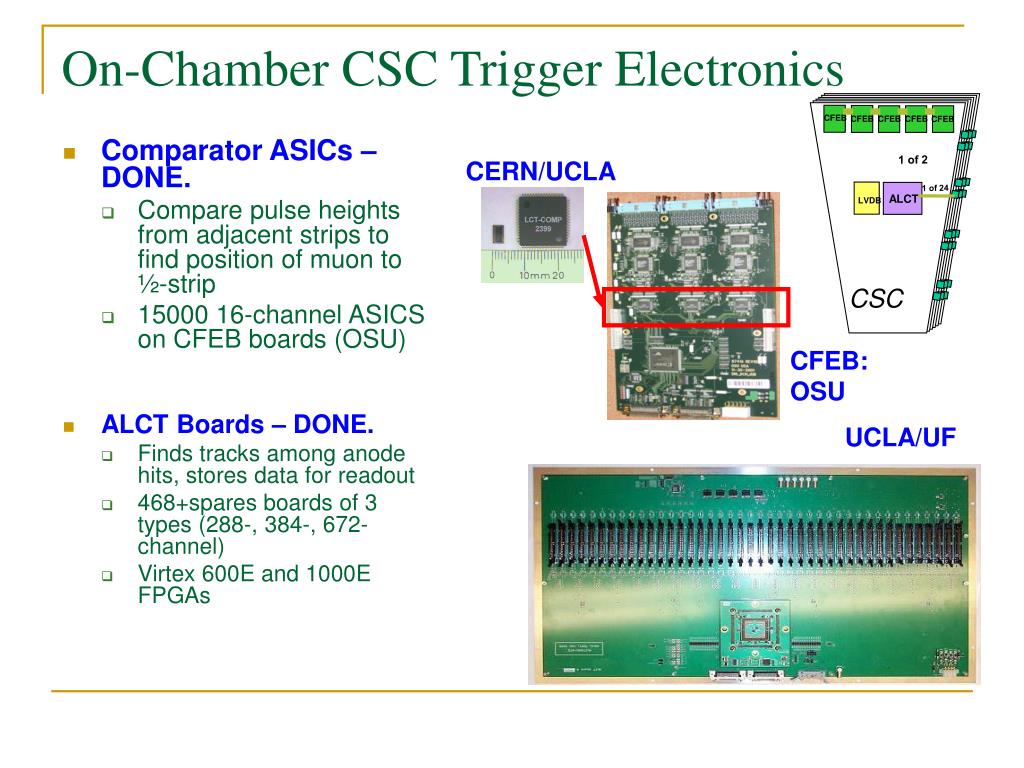

  5. CFEB CFEB CFEB CFEB CFEB 1 of 2 1 of 24 ALCT LVDB CSC On-Chamber CSC Trigger Electronics CERN/UCLA • Comparator ASICs – DONE. • Compare pulse heights from adjacent strips to find position of muon to ½-strip • 15000 16-channel ASICS on CFEB boards (OSU) • ALCT Boards – DONE. • Finds tracks among anode hits, stores data for readout • 468+spares boards of 3 types (288-, 384-, 672-channel) • Virtex 600E and 1000E FPGAs CFEB:OSU UCLA/UF

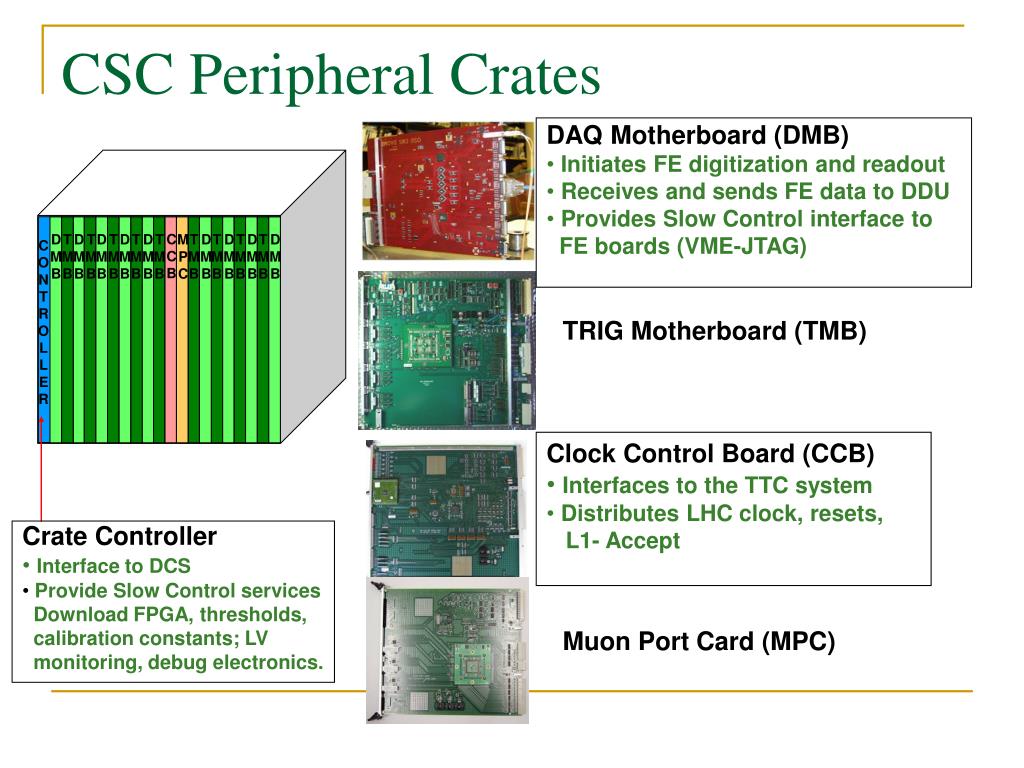

  6. C C B D M B T M B D M B T M B D M B T M B D M B T M B D M B T M B M P C T M B D M B T M B D M B T M B D M B T M B D M B C O N T R O L L E R • Crate Controller • Interface to DCS • Provide Slow Control services • Download FPGA, thresholds, • calibration constants; LV • monitoring, debug electronics. CSC Peripheral Crates • DAQ Motherboard (DMB) • Initiates FE digitization and readout • Receives and sends FE data to DDU • Provides Slow Control interface to • FE boards (VME-JTAG) TRIG Motherboard (TMB) • Clock Control Board (CCB) • Interfaces to the TTC system • Distributes LHC clock, resets, • L1- Accept Muon Port Card (MPC)

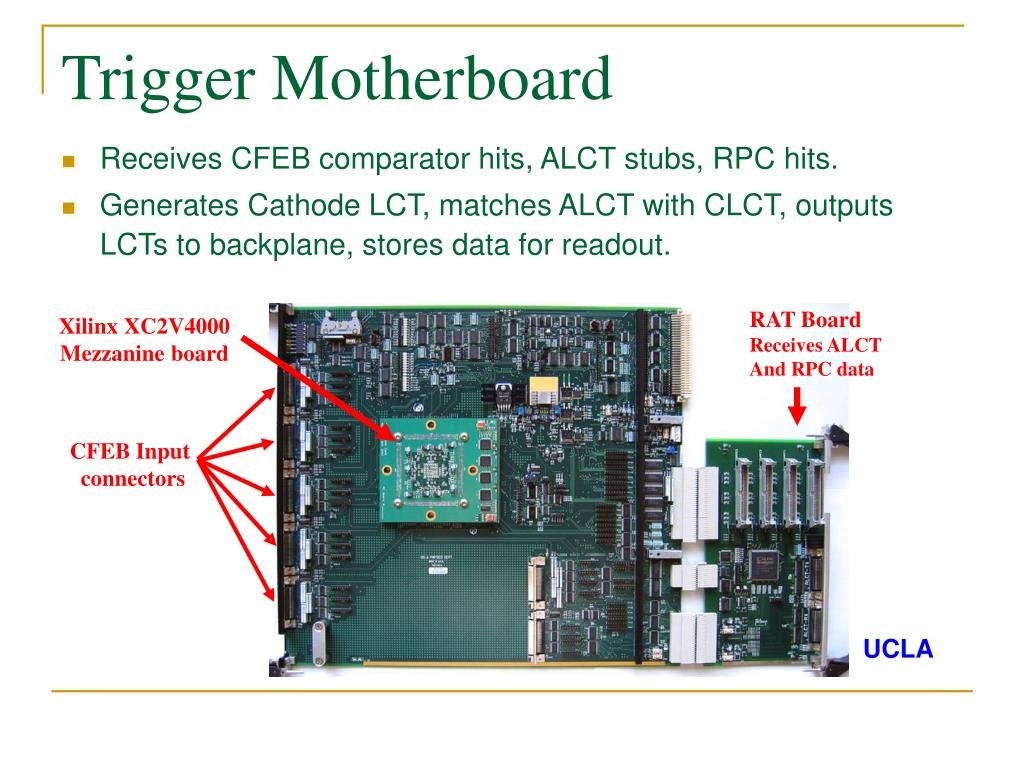

  7. Trigger Motherboard • Receives CFEB comparator hits, ALCT stubs, RPC hits. • Generates Cathode LCT, matches ALCT with CLCT, outputs LCTs to backplane, stores data for readout. RAT Board Receives ALCT And RPC data Xilinx XC2V4000 Mezzanine board CFEB Input connectors UCLA

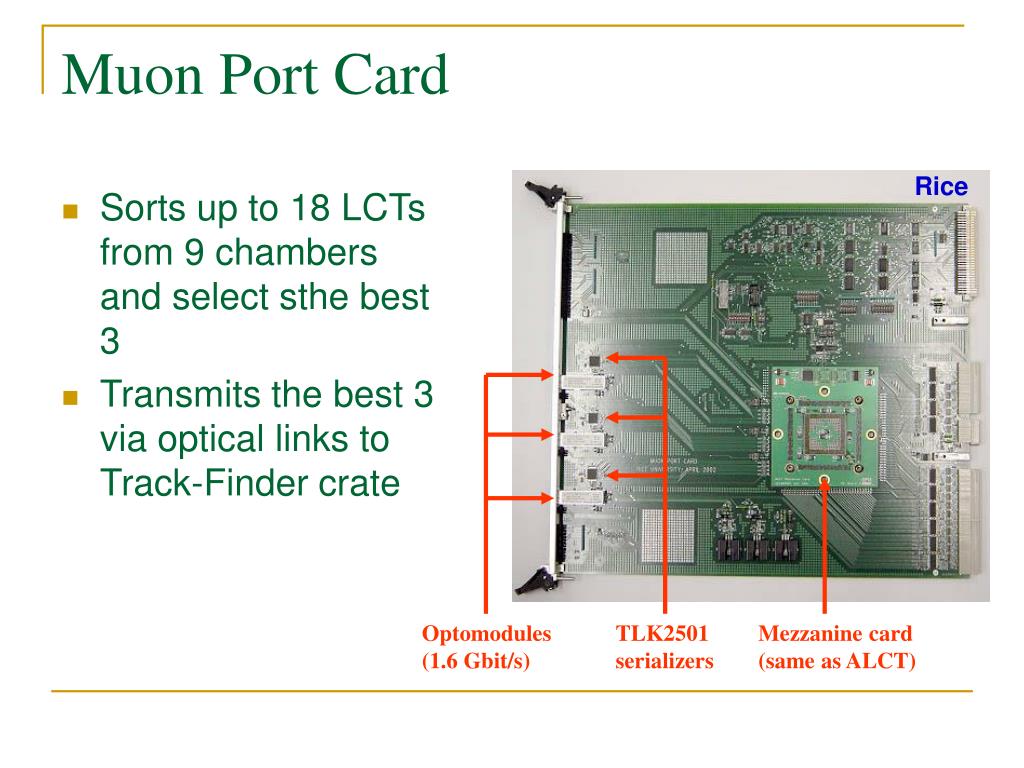

  8. Muon Port Card Rice • Sorts up to 18 LCTs from 9 chambers and select sthe best 3 • Transmits the best 3 via optical links to Track-Finder crate Optomodules (1.6 Gbit/s) TLK2501 serializers Mezzanine card (same as ALCT)

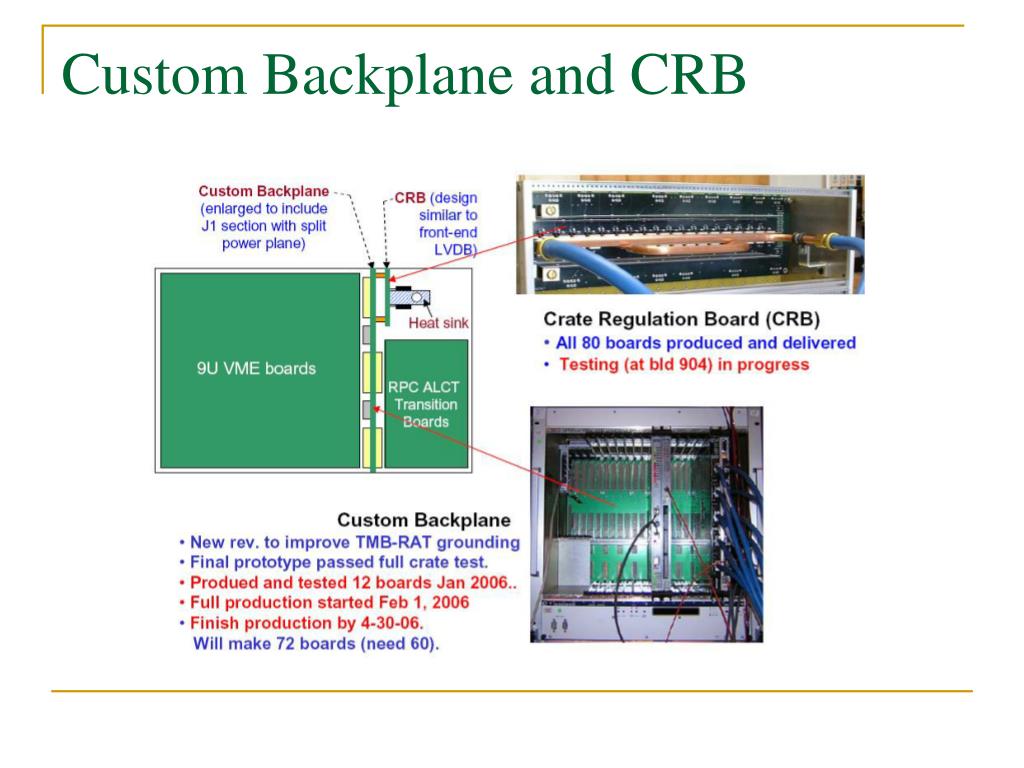

  9. Custom Backplane and CRB

  10. TMB-MPC Chain Test • Test of 9 TMB’s to MPC test took place at Rice University and at CERN –Works!

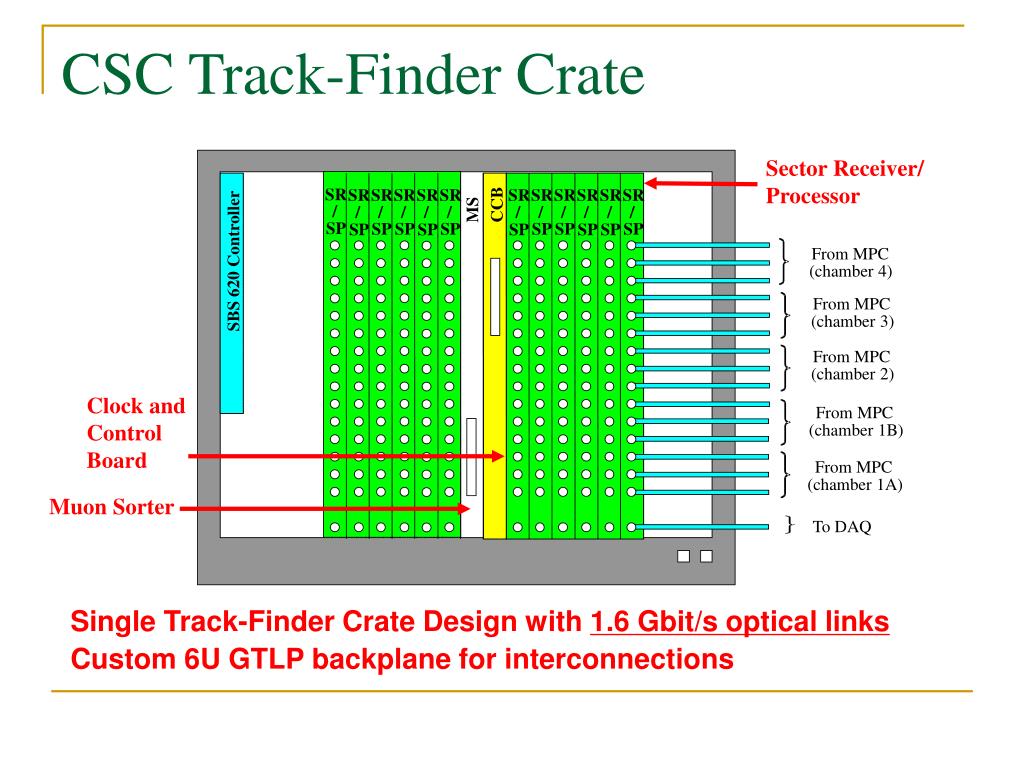

  11. CSC Track-Finder Crate Sector Receiver/Processor SR SR SR SR SR SR SR SR SR SR SR SR CCB MS / / / / / / / / / / / / SP SP SP SP SP SP SP SP SP SP SP SP From MPC SBS 620 Controller (chamber 4) From MPC (chamber 3) From MPC (chamber 2) Clock and Control Board From MPC (chamber 1B) From MPC (chamber 1A) Muon Sorter To DAQ Single Track-Finder Crate Design with 1.6 Gbit/s optical links Custom 6U GTLP backplane for interconnections

  12. Sector Processor Production Board Florida Phi Global LUT Eta Global LUT Phi Local LUT Front FPGA TLK2501 Transceiver • Optical Transceivers • 15 x 1.6 Gbit/s Links TF logic mezz card

  13. SP/MS Mezzanine Card Status • Contains Track-Finding algorithm • Same mezzanine card is used for Muon Sorter • The previous (2002) prototype was fully validated • Production version of mezzanine card fully compatible with prototype • Production is complete

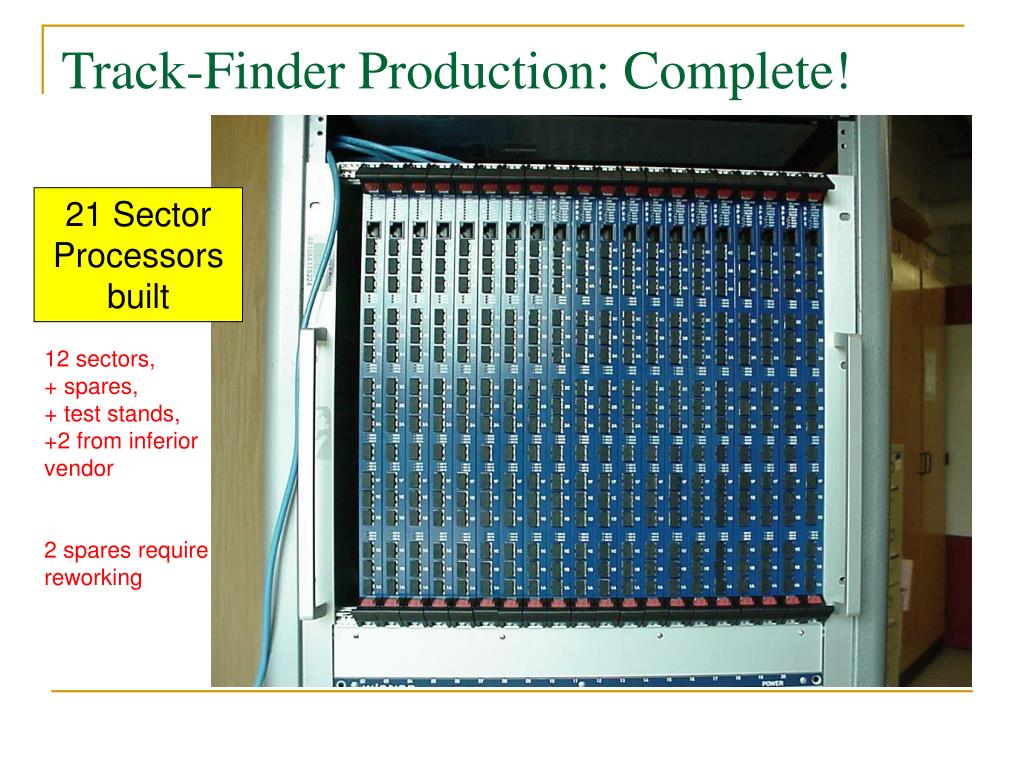

  14. Track-Finder Production: Complete! 21 Sector Processors built 12 sectors, + spares, + test stands,+2 from inferior vendor 2 spares require reworking

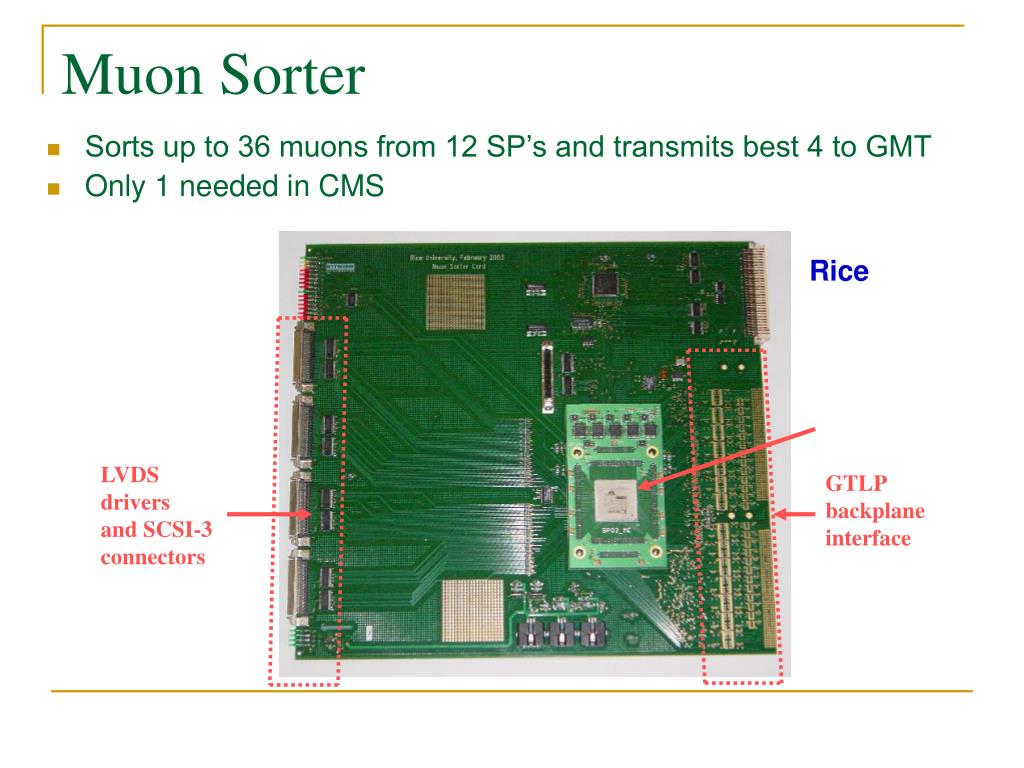

  15. Muon Sorter • Sorts up to 36 muons from 12 SP’s and transmits best 4 to GMT • Only 1 needed in CMS Rice LVDS drivers and SCSI-3 connectors GTLP backplane interface

  16. Full TF Crate Tests • Test of complete system took place at Rice University • Final system works! • All specs met, including overall latency • Ready for data at CERN

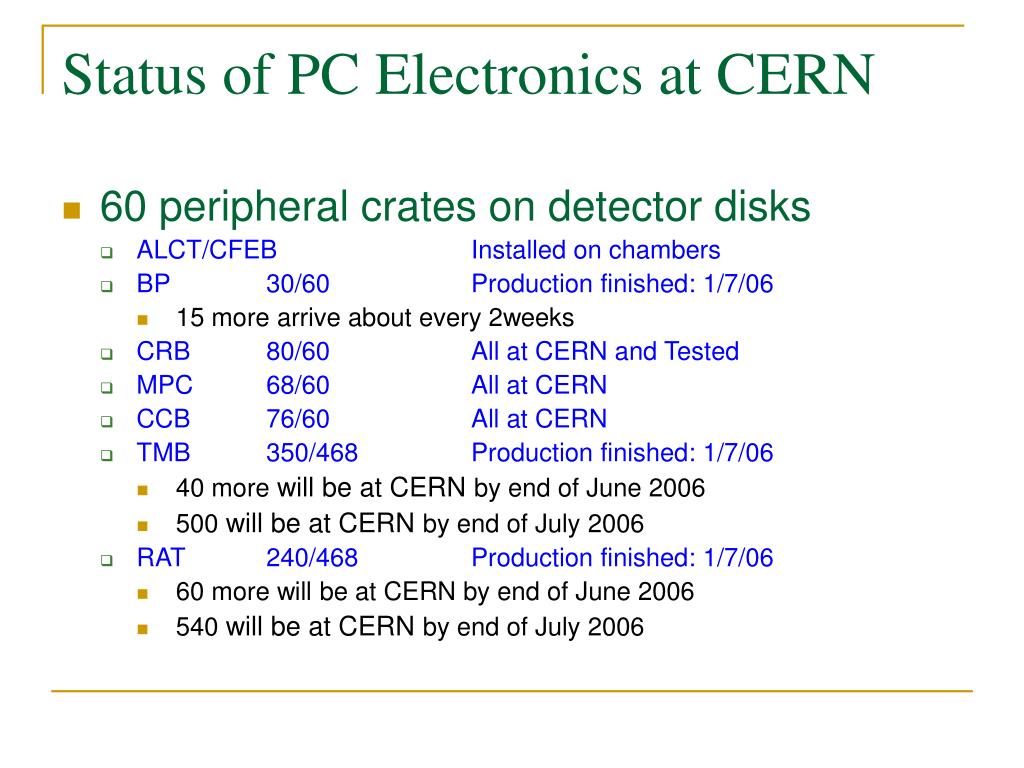

  17. Status of PC Electronics at CERN • 60 peripheral crates on detector disks • ALCT/CFEB Installed on chambers • BP 30/60 Production finished: 1/7/06 • 15 more arrive about every 2weeks • CRB 80/60 All at CERN and Tested • MPC 68/60 All at CERN • CCB 76/60 All at CERN • TMB 350/468 Production finished: 1/7/06 • 40 more will be at CERN by end of June 2006 • 500 will be at CERN by end of July 2006 • RAT 240/468 Production finished: 1/7/06 • 60 more will be at CERN by end of June 2006 • 540 will be at CERN by end of July 2006

  18. Status of TF Electronics at CERN • One Track Find Crate in counting room • SP 5/12 21 SP’s produced • Will be sent as needed • MS 1/1 5 MS’s produced • Will be sent as needed

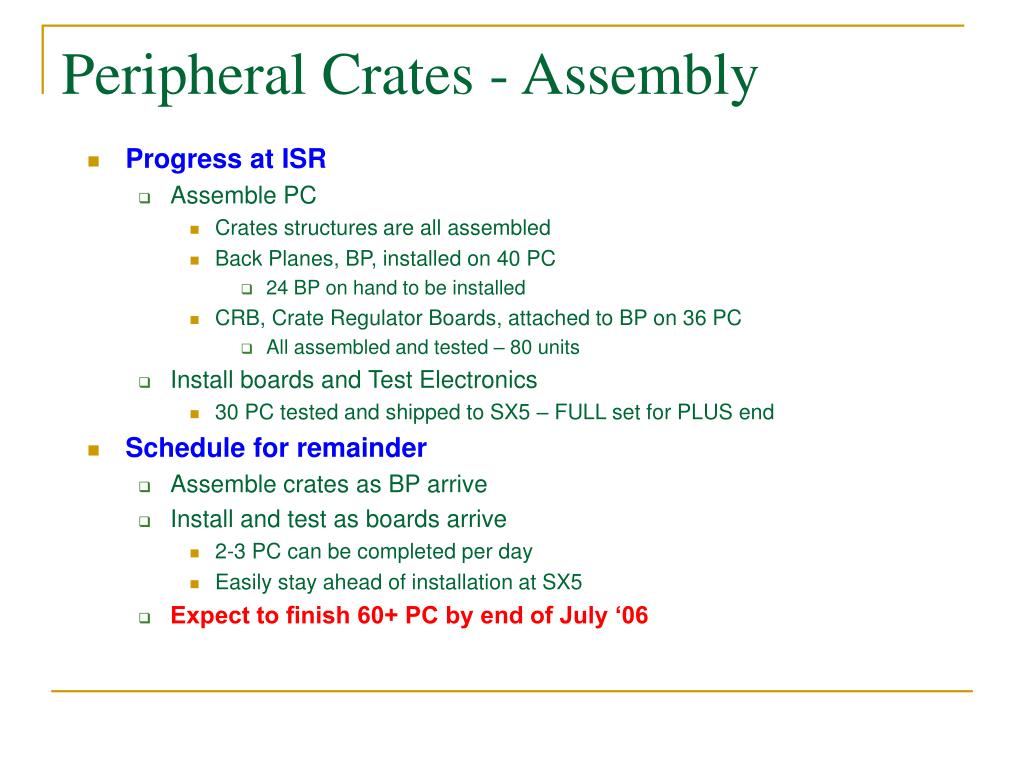

  19. Peripheral Crates - Assembly • Progress at ISR • Assemble PC • Crates structures are all assembled • Back Planes, BP, installed on 40 PC • 24 BP on hand to be installed • CRB, Crate Regulator Boards, attached to BP on 36 PC • All assembled and tested – 80 units • Install boards and Test Electronics • 30 PC tested and shipped to SX5 – FULL set for PLUS end • Schedule for remainder • Assemble crates as BP arrive • Install and test as boards arrive • 2-3 PC can be completed per day • Easily stay ahead of installation at SX5 • Expect to finish 60+ PC by end of July ‘06

  20. Peripheral Crates - Installation • Work Progress at SX5 • Install and prepare Racks • PLUS end racks ALL prepared and installed • MINUS end • All (12) mini-racks prepared and 2 installed, 10 in storage area • 2 x 56U racks installed in ME-1, NOT prepared • NO other 56U racks installed (4) • Have NO turbine units for these racks • NO estimate on turbine delivery to CMS • Install PC, insert boards, and attach skew clear cables • All PC installed in PLUS end • No PC installed in MINUS end • Will be starting installation soon • Making preparations to install while closed

  21. Installed PC • PC on Top of YE+1 • ME+1/3 & ME+1/4 • Mini-rack with 2 PC’s • Each with 9 CSC’s • Installed and Tested

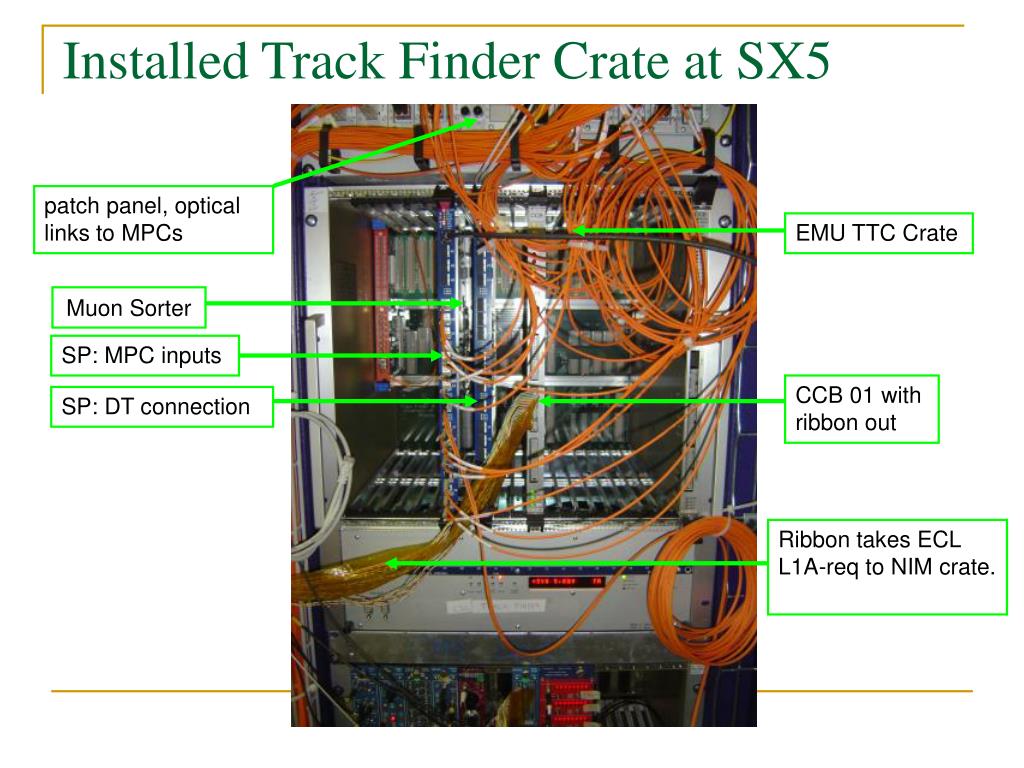

  22. Installed Track Finder Crate at SX5 patch panel, optical links to MPCs EMU TTC Crate Muon Sorter SP: MPC inputs CCB 01 with ribbon out SP: DT connection Ribbon takes ECL L1A-req to NIM crate.

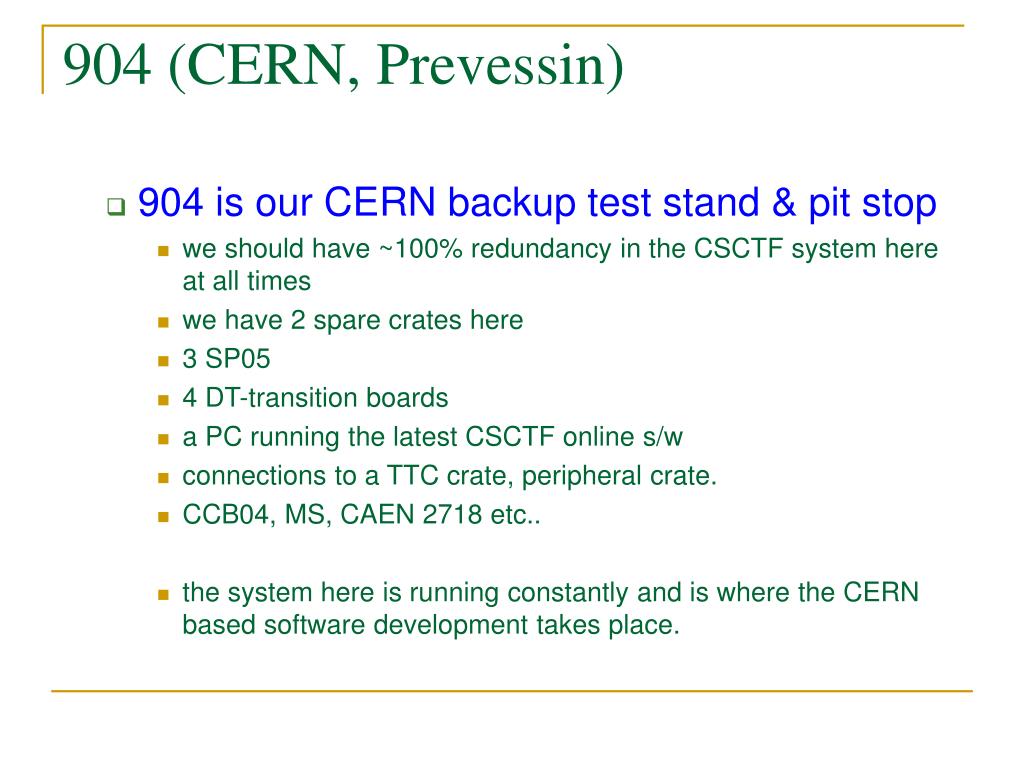

  23. 904 (CERN, Prevessin) • 904 is our CERN backup test stand & pit stop • we should have ~100% redundancy in the CSCTF system here at all times • we have 2 spare crates here • 3 SP05 • 4 DT-transition boards • a PC running the latest CSCTF online s/w • connections to a TTC crate, peripheral crate. • CCB04, MS, CAEN 2718 etc.. • the system here is running constantly and is where the CERN based software development takes place.

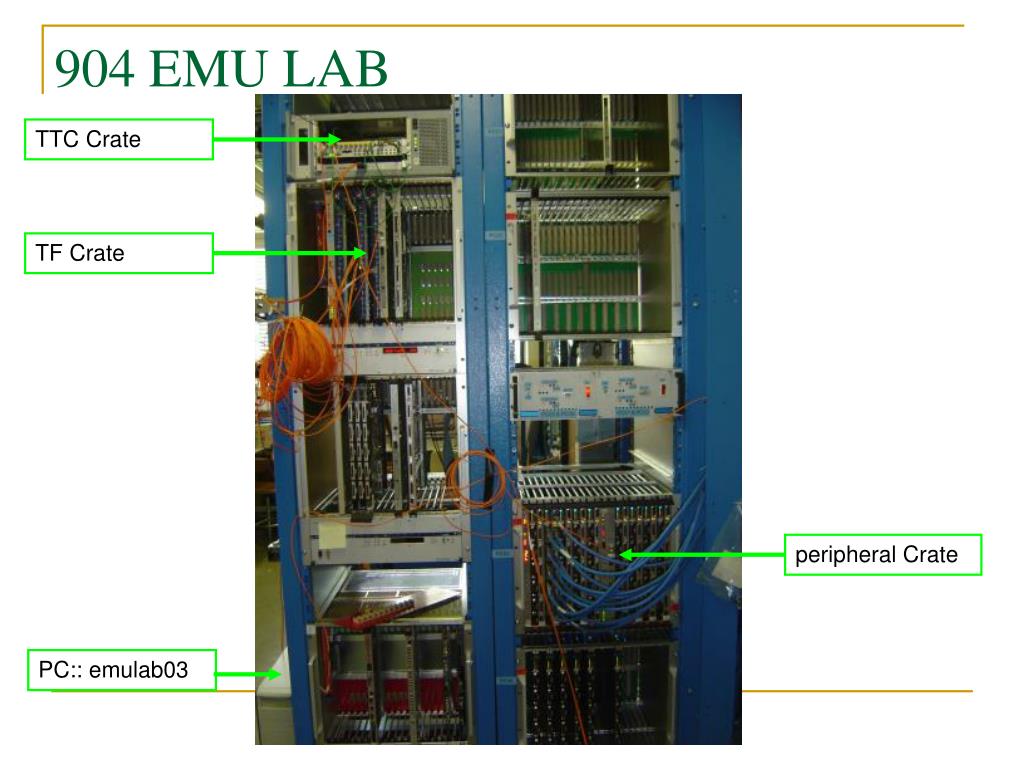

  24. 904 EMU LAB TTC Crate TF Crate peripheral Crate PC:: emulab03

  25. Slice of EMu at MTCC • One 60° Trigger Sector on the Positive Endcap: • Sector 5, overlap with DT sectors 10-11 • Multiple stations on multiple disks • YE+1, YE+2 (and YE+3) • ME+1, ME+2, ME+3 (and ME+4) • Total of up to 36(39) chambers YE2 YE3 YE1 ME4 ME3 ME2 ME1 DT-11 DT-10

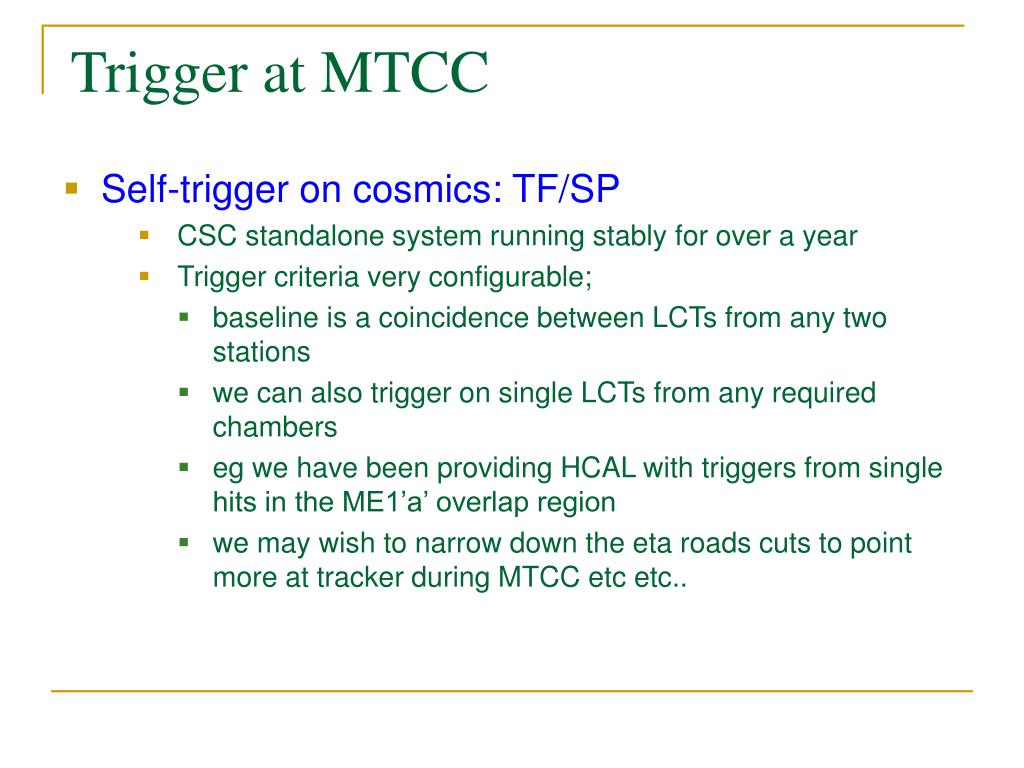

  26. Trigger at MTCC • Self-trigger on cosmics: TF/SP • CSC standalone system running stably for over a year • Trigger criteria very configurable; • baseline is a coincidence between LCTs from any two stations • we can also trigger on single LCTs from any required chambers • eg we have been providing HCAL with triggers from single hits in the ME1’a’ overlap region • we may wish to narrow down the eta roads cuts to point more at tracker during MTCC etc etc..

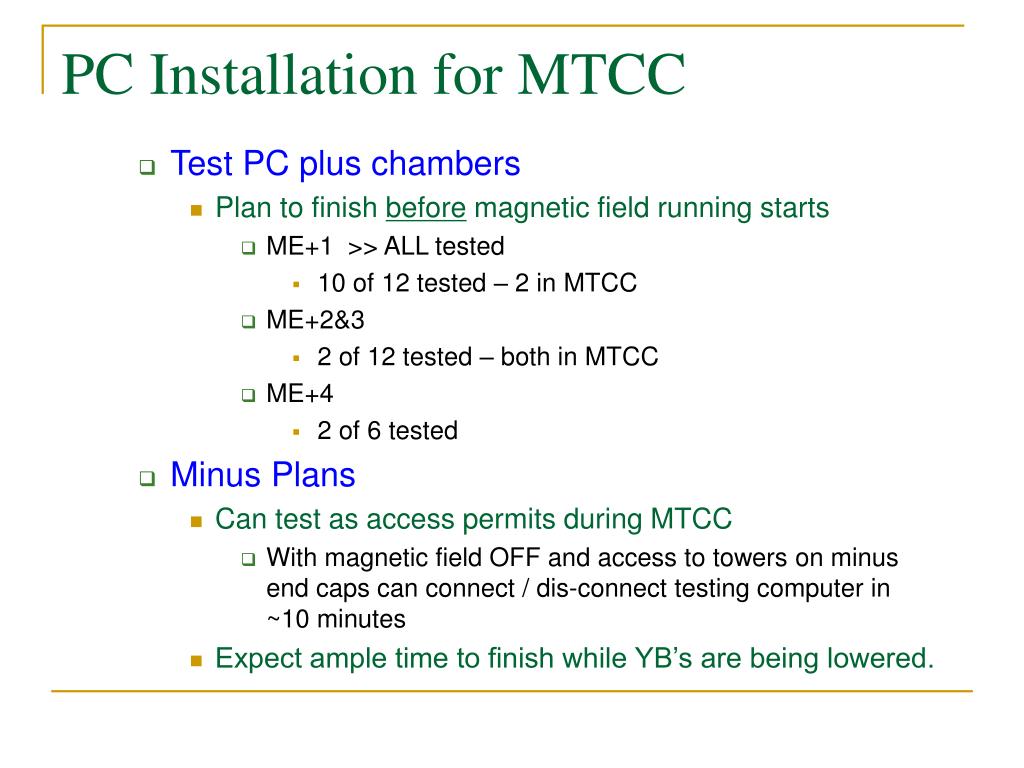

  27. PC Installation for MTCC • Test PC plus chambers • Plan to finish before magnetic field running starts • ME+1 >> ALL tested • 10 of 12 tested – 2 in MTCC • ME+2&3 • 2 of 12 tested – both in MTCC • ME+4 • 2 of 6 tested • Minus Plans • Can test as access permits during MTCC • With magnetic field OFF and access to towers on minus end caps can connect / dis-connect testing computer in ~10 minutes • Expect ample time to finish while YB’s are being lowered.

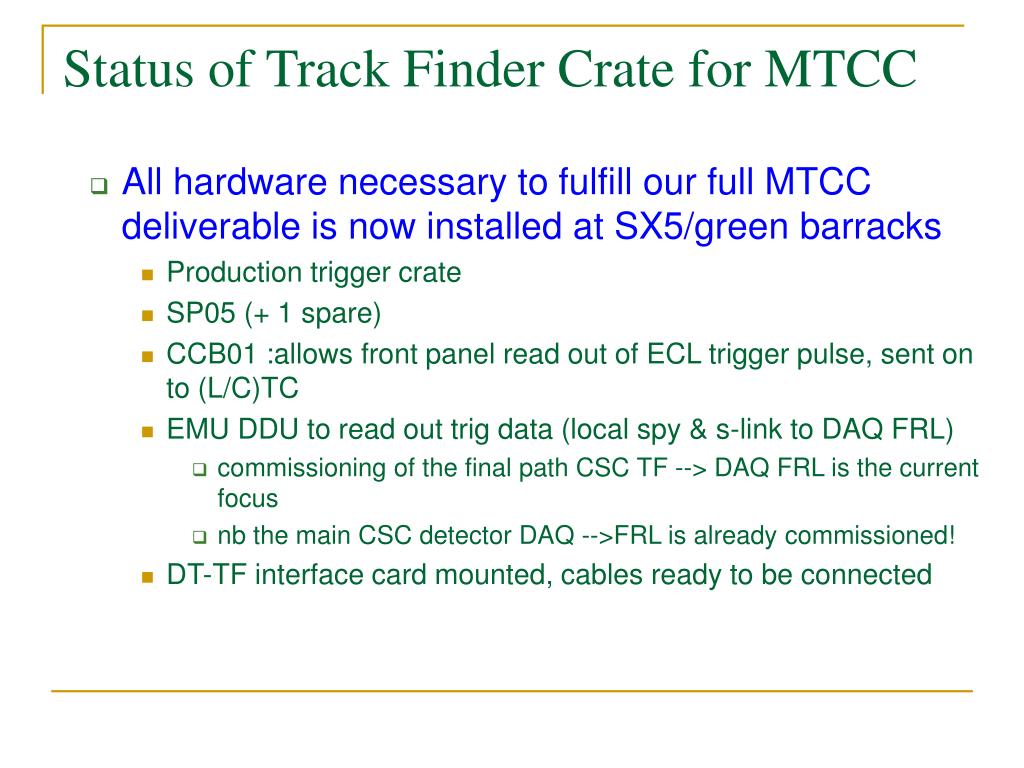

  28. Status of Track Finder Crate for MTCC • All hardware necessary to fulfill our full MTCC deliverable is now installed at SX5/green barracks • Production trigger crate • SP05 (+ 1 spare) • CCB01 :allows front panel read out of ECL trigger pulse, sent on to (L/C)TC • EMU DDU to read out trig data (local spy & s-link to DAQ FRL) • commissioning of the final path CSC TF --> DAQ FRL is the current focus • nb the main CSC detector DAQ -->FRL is already commissioned! • DT-TF interface card mounted, cables ready to be connected

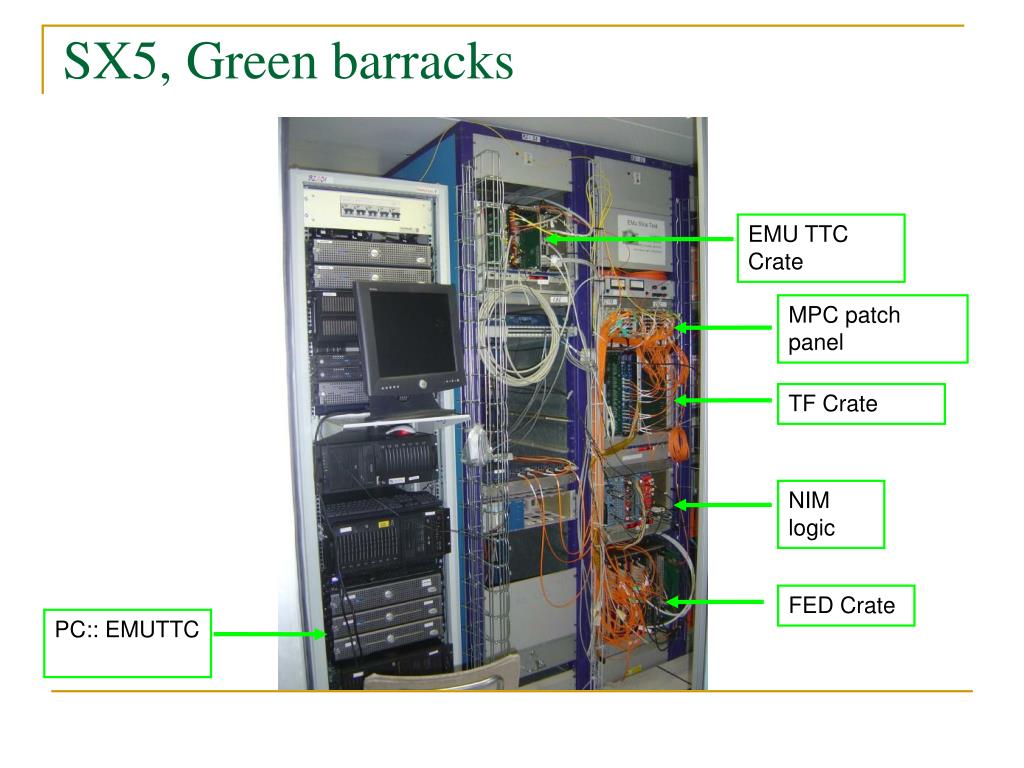

  29. SX5, Green barracks EMU TTC Crate MPC patch panel TF Crate NIM logic FED Crate PC:: EMUTTC

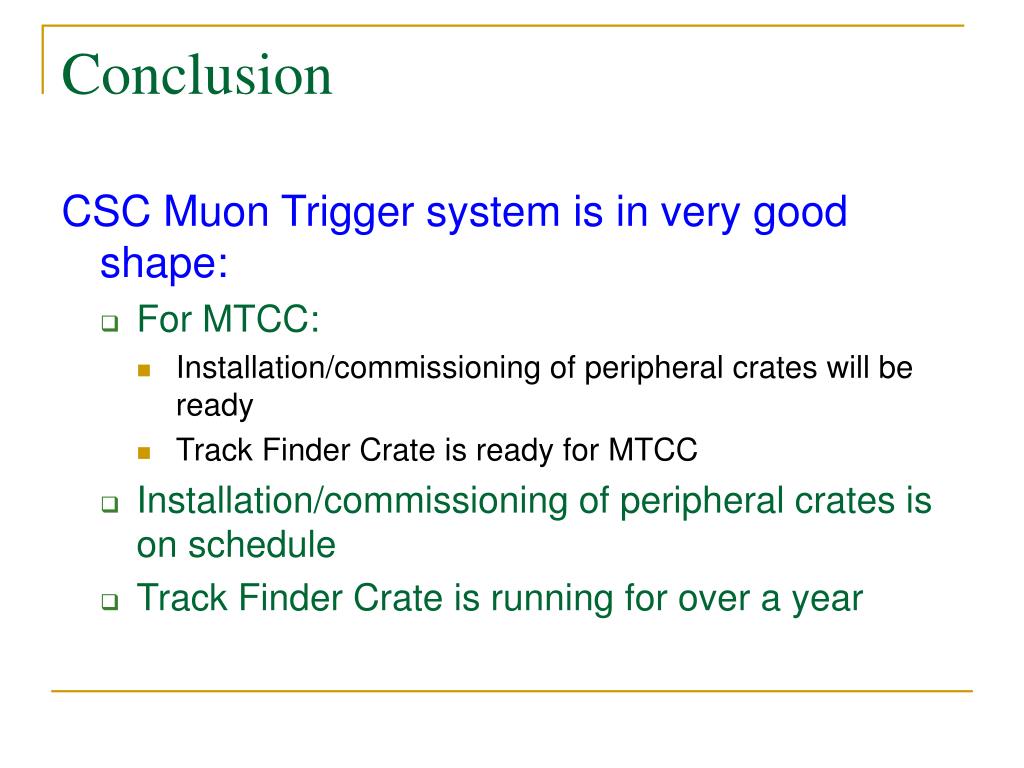

  30. Conclusion CSC Muon Trigger system is in very good shape: • For MTCC: • Installation/commissioning of peripheral crates will be ready • Track Finder Crate is ready for MTCC • Installation/commissioning of peripheral crates is on schedule • Track Finder Crate is running for over a year
