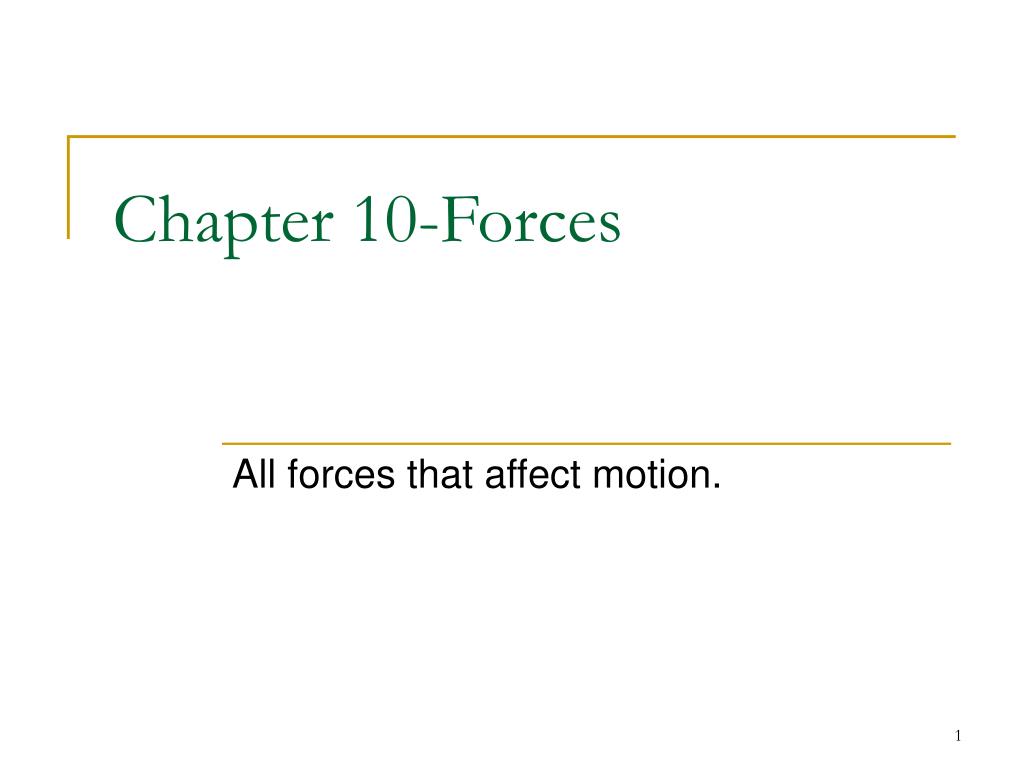

  1. Chapter 10-Forces All forces that affect motion.

  2. Nature of Force • A force is a push or a pull. • Forces have a strength and direction. • Force is measured in units called newtons. • The net force is all the forces that are added together.

  3. Balanced & Unbalanced Forces • Unbalanced forces acting on an object will change the object’s motion. • Balanced forces acting on an object will not change the object’s motion.

  4. :10 What units is force measured in? • grams • joules • kilograms • Newtons

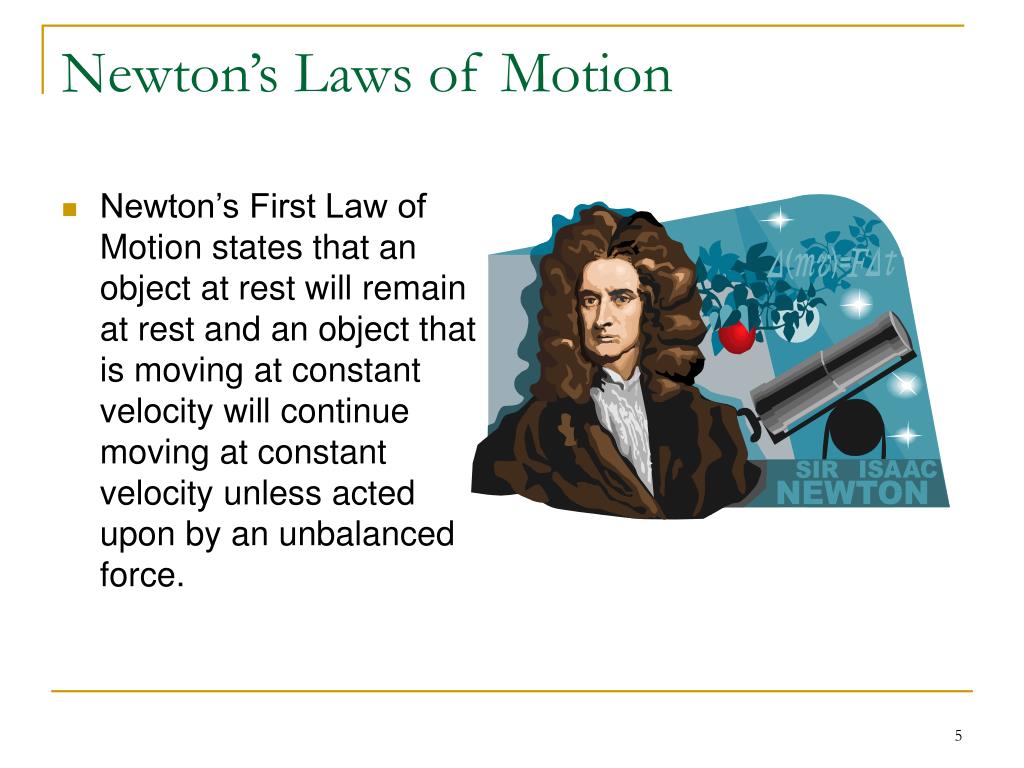

  5. Newton’s Laws of Motion • Newton’s First Law of Motion states that an object at rest will remain at rest and an object that is moving at constant velocity will continue moving at constant velocity unless acted upon by an unbalanced force.

  6. Newton’s First Law of Motion & Inertia • Inertia is the tendency of an object to resist change in its motion. • The amount of inertia of an object depends on its mass. • Law of Inertia

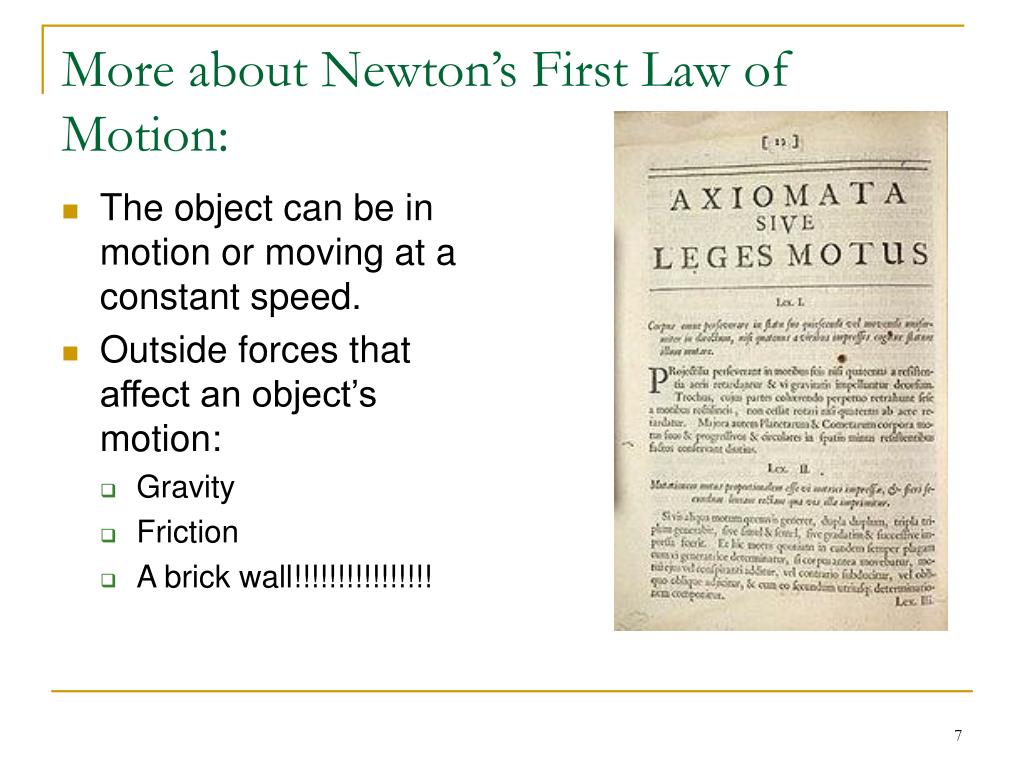

  7. More about Newton’s First Law of Motion: • The object can be in motion or moving at a constant speed. • Outside forces that affect an object’s motion: • Gravity • Friction • A brick wall!!!!!!!!!!!!!!!!

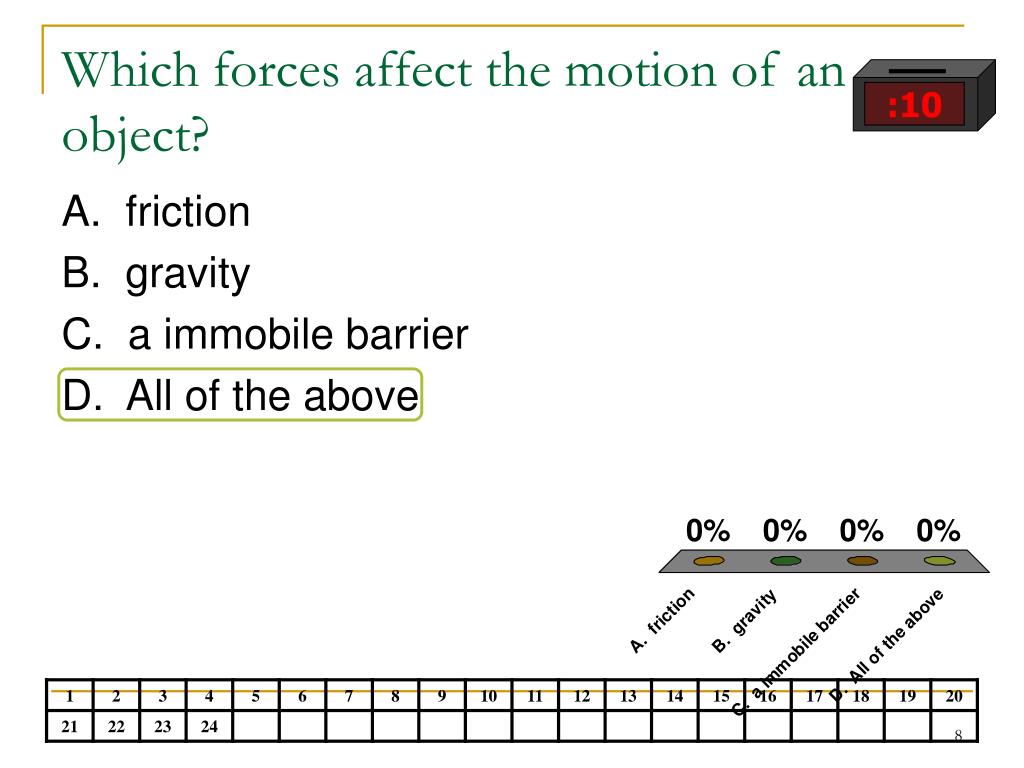

  8. :10 Which forces affect the motion of an object? A. friction B. gravity C. a immobile barrier D. All of the above

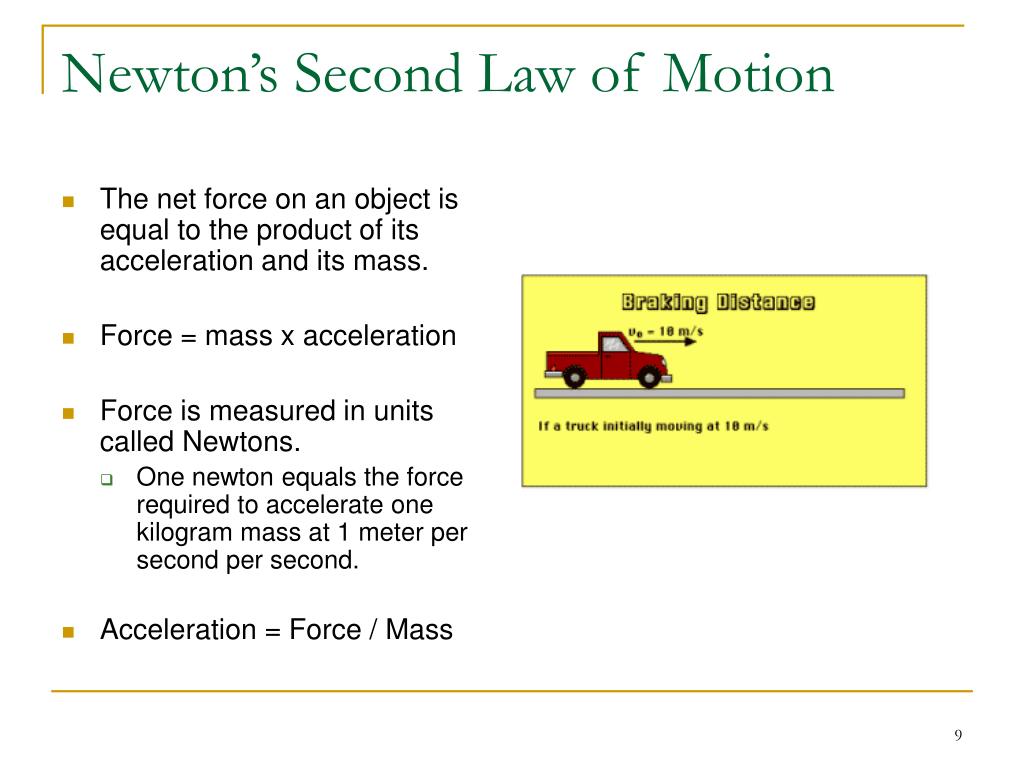

  9. Newton’s Second Law of Motion • The net force on an object is equal to the product of its acceleration and its mass. • Force = mass x acceleration • Force is measured in units called Newtons. • One newton equals the force required to accelerate one kilogram mass at 1 meter per second per second. • Acceleration = Force / Mass

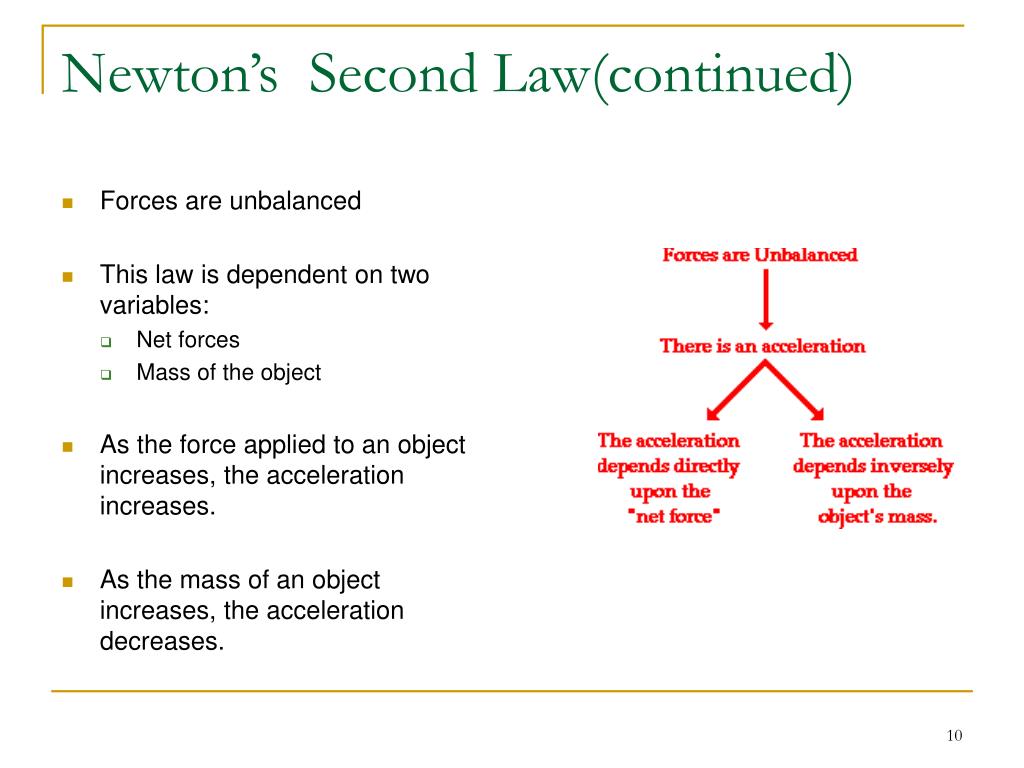

  10. Newton’s Second Law(continued) • Forces are unbalanced • This law is dependent on two variables: • Net forces • Mass of the object • As the force applied to an object increases, the acceleration increases. • As the mass of an object increases, the acceleration decreases.

  11. Understanding the law. • Newton's laws declare loudly that a net force (an unbalanced force) causes an acceleration; the acceleration is in the same direction as the net force. • Free-body diagrams are diagrams used to show the relative magnitude and direction of all forces acting upon an object in a given situation.(diagram on right)

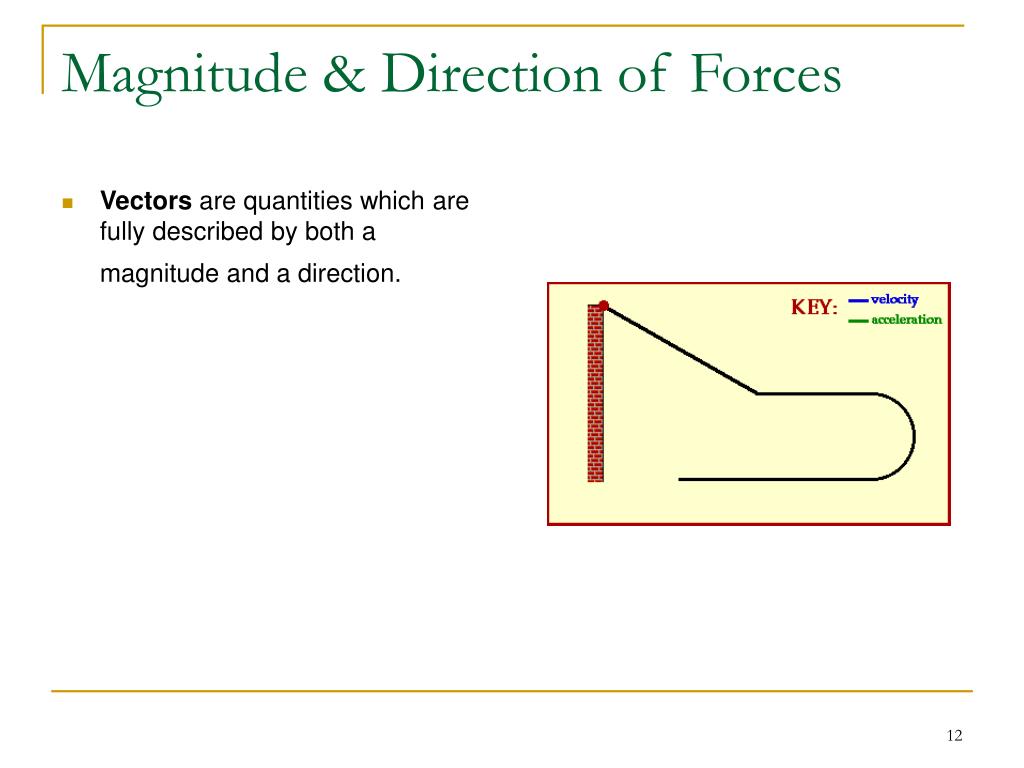

  12. Magnitude & Direction of Forces • Vectors are quantities which are fully described by both a magnitude and a direction.

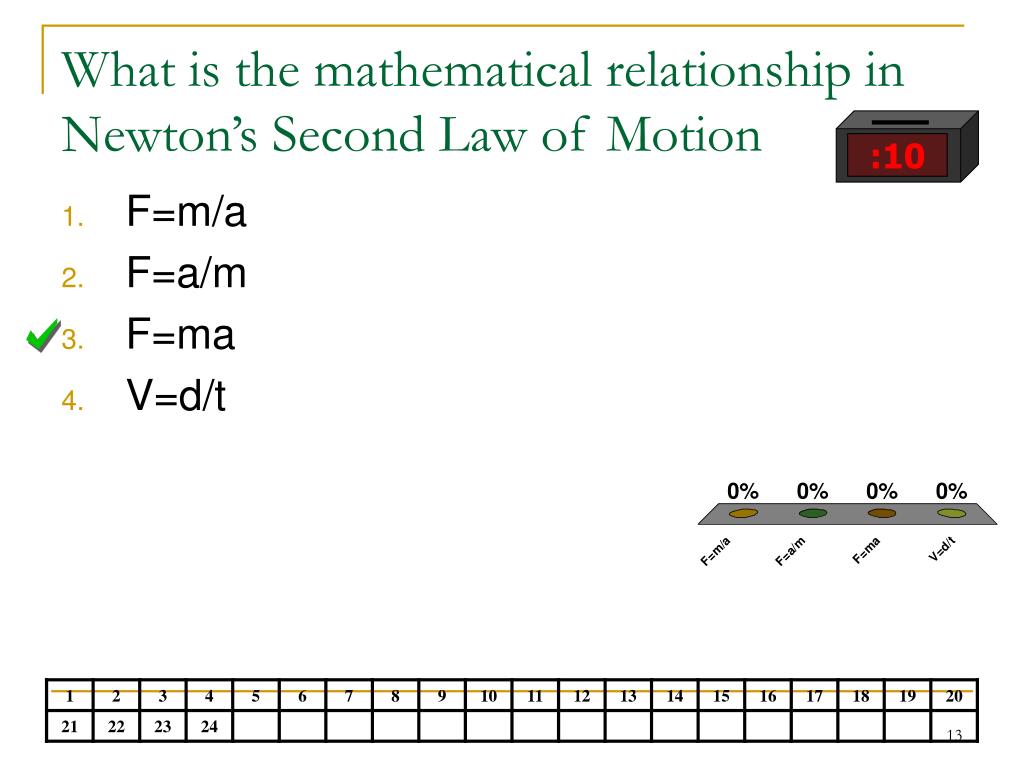

  13. :10 What is the mathematical relationship in Newton’s Second Law of Motion • F=m/a • F=a/m • F=ma • V=d/t

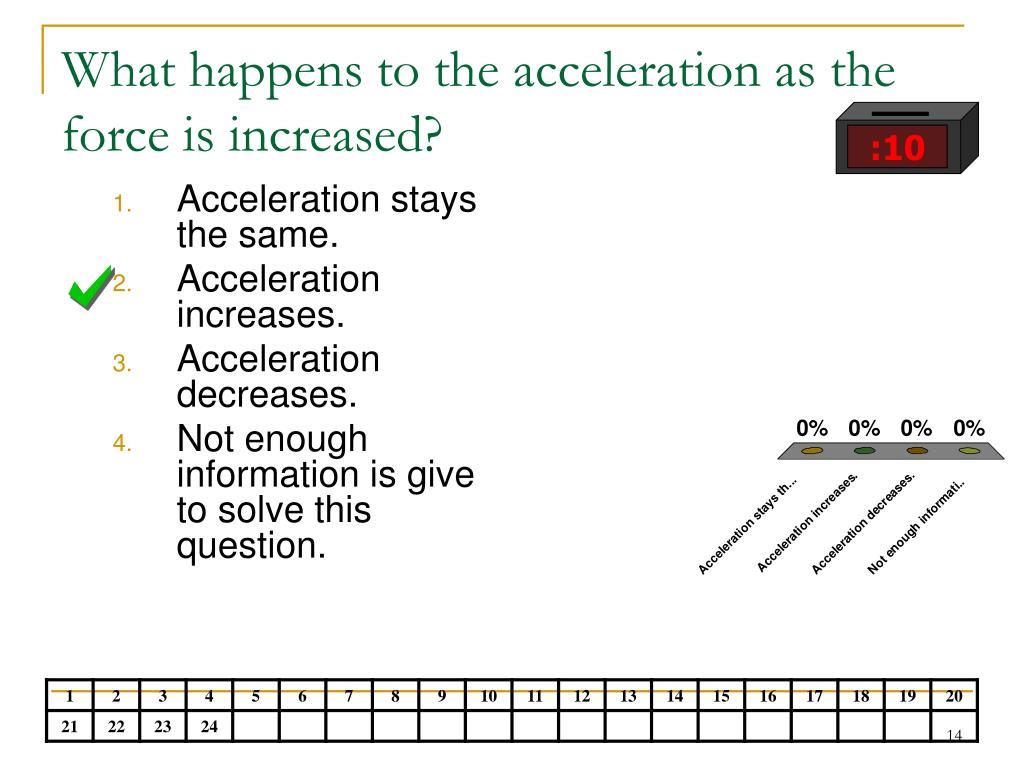

  14. :10 What happens to the acceleration as the force is increased? • Acceleration stays the same. • Acceleration increases. • Acceleration decreases. • Not enough information is give to solve this question.

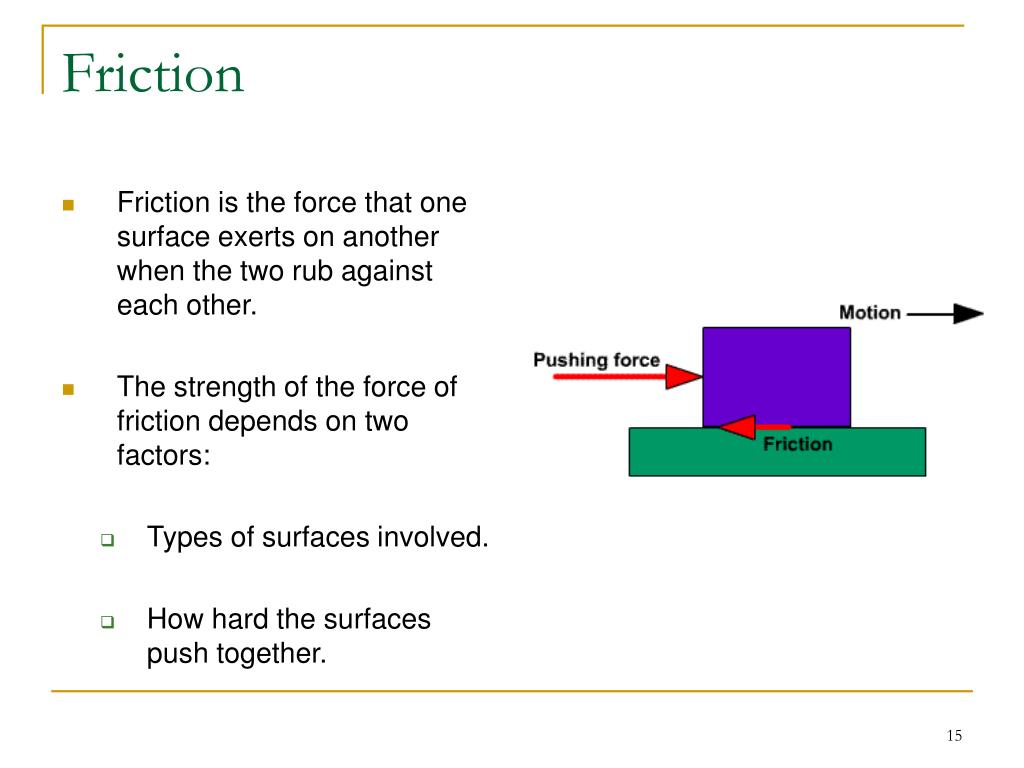

  15. Friction • Friction is the force that one surface exerts on another when the two rub against each other. • The strength of the force of friction depends on two factors: • Types of surfaces involved. • How hard the surfaces push together.

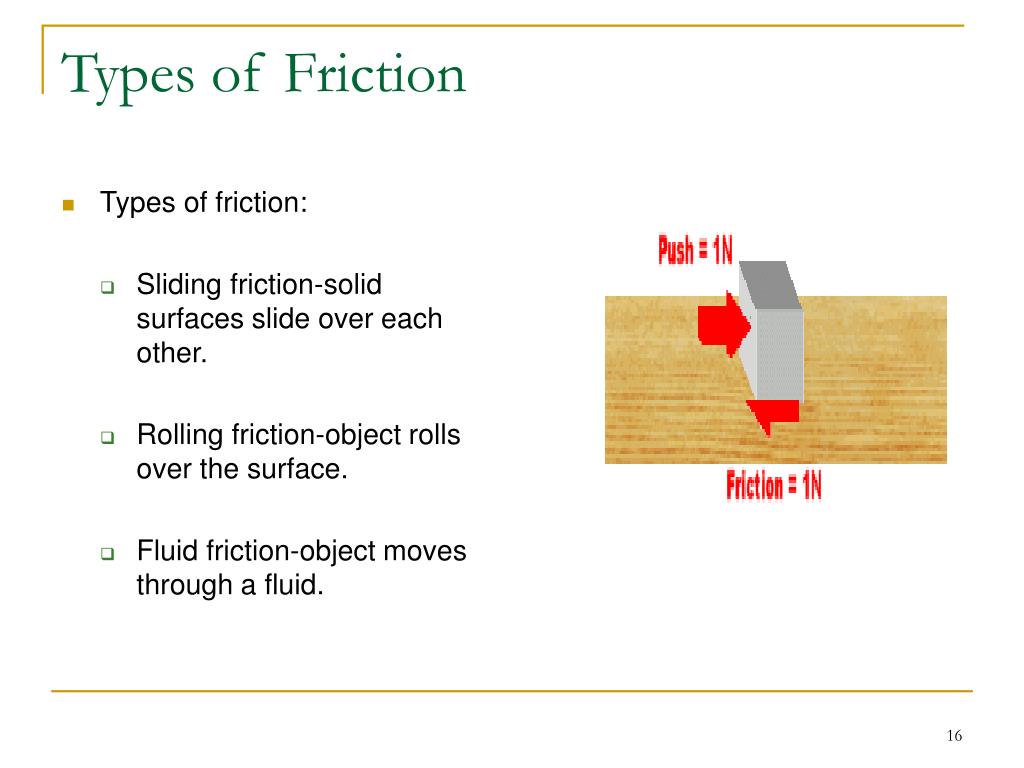

  16. Types of Friction • Types of friction: • Sliding friction-solid surfaces slide over each other. • Rolling friction-object rolls over the surface. • Fluid friction-object moves through a fluid.

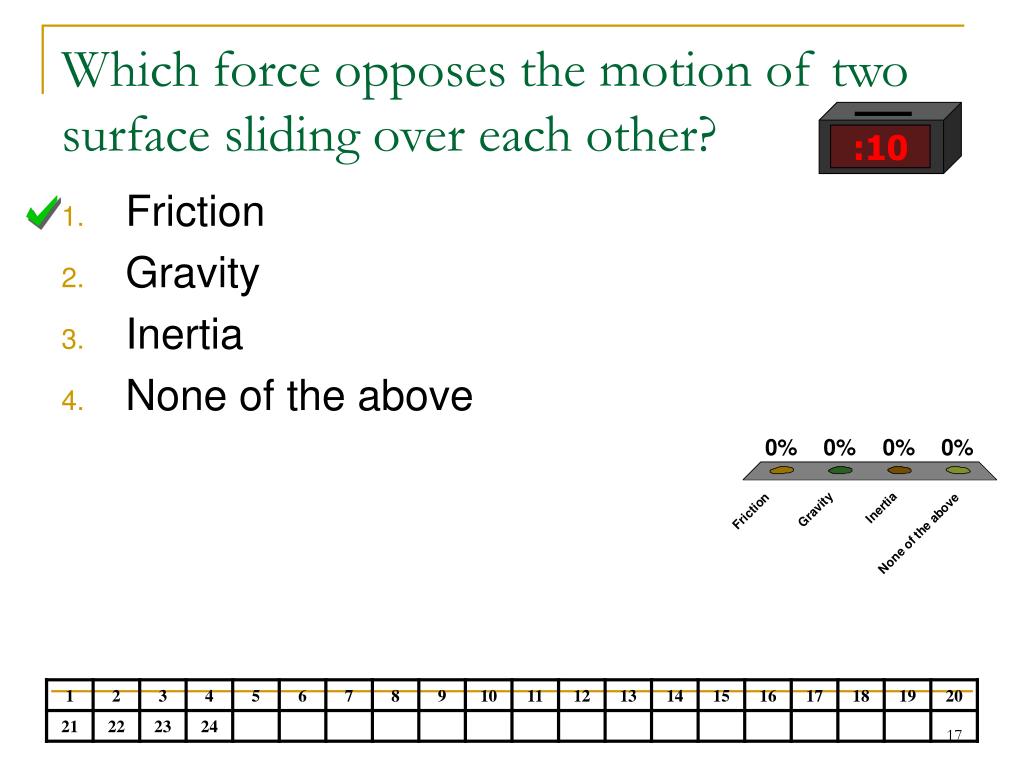

  17. :10 Which force opposes the motion of two surface sliding over each other? • Friction • Gravity • Inertia • None of the above

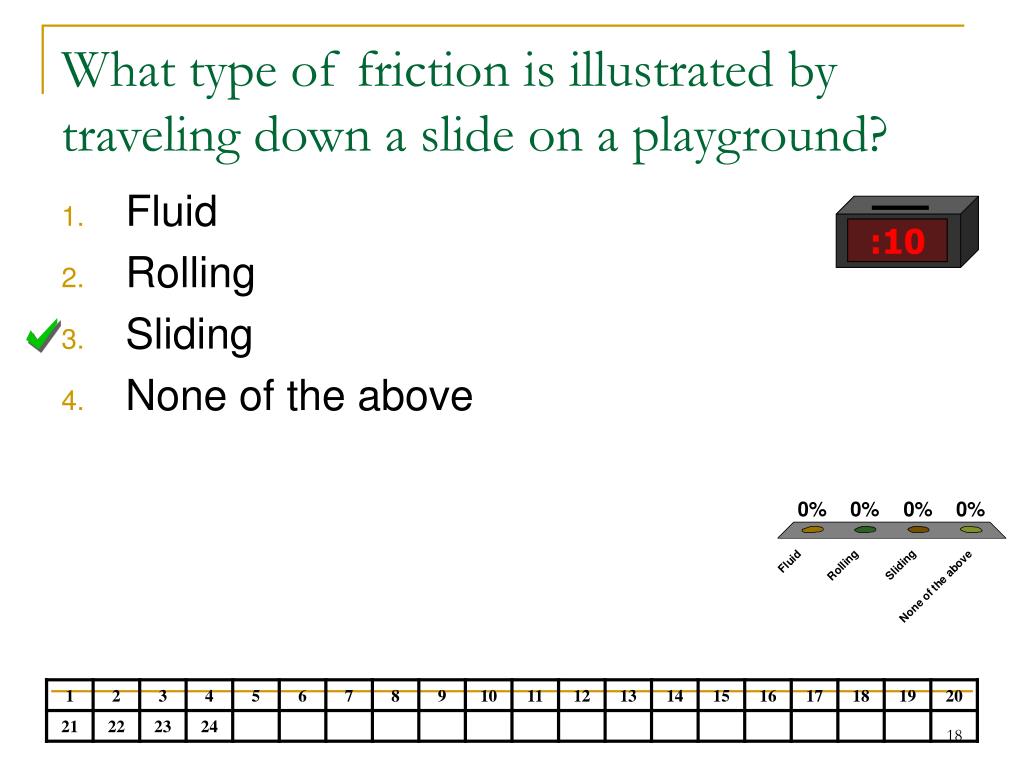

  18. :10 What type of friction is illustrated by traveling down a slide on a playground? • Fluid • Rolling • Sliding • None of the above

  19. Gravity • Gravity is the force that pulls objects towards Earth. • Objects free fall when the only force acting on a falling object is gravity. • The law of universal gravitation states that the force of gravity acts between all objects in the universe. • Weight is a measure of the force of gravity on an object, and mass is a measure of the amount of matter in that object.

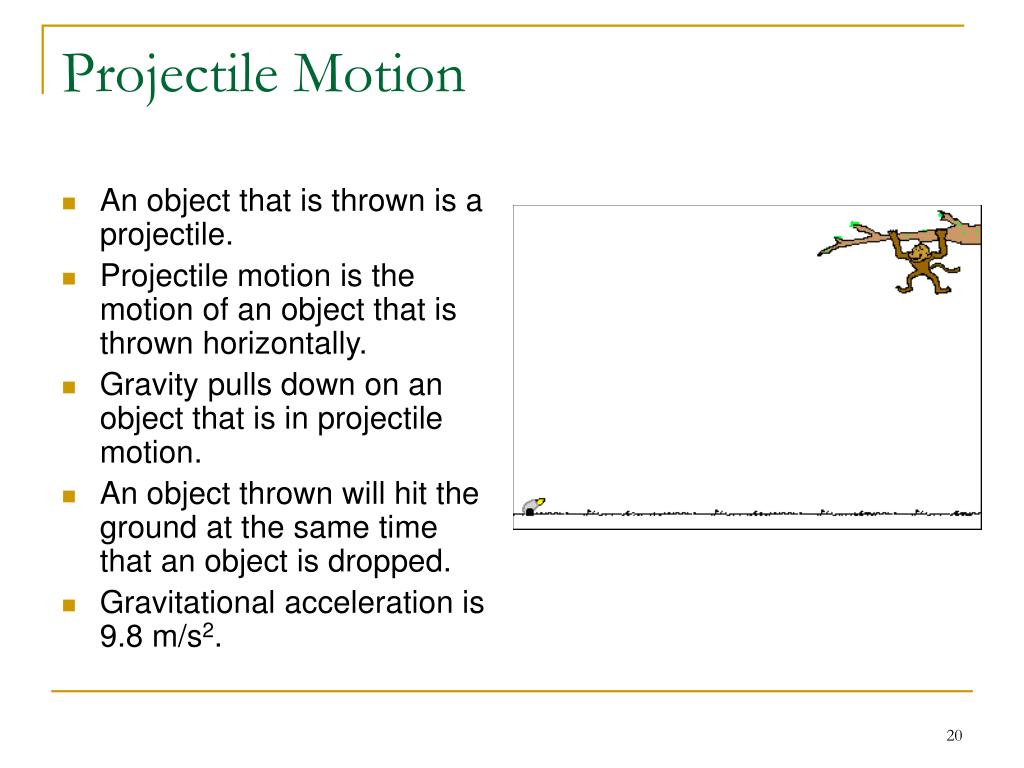

  20. Projectile Motion • An object that is thrown is a projectile. • Projectile motion is the motion of an object that is thrown horizontally. • Gravity pulls down on an object that is in projectile motion. • An object thrown will hit the ground at the same time that an object is dropped. • Gravitational acceleration is 9.8 m/s2.

  21. Air Resistance • Air resistance is a type of fluid friction that an object falling through air experience. • The greater the surface area of an object, the greater the air resistance. • Terminal velocity is the greatest velocity that a falling object can reach. • Terminal velocity is reached when the air resistance equals the force of gravity.

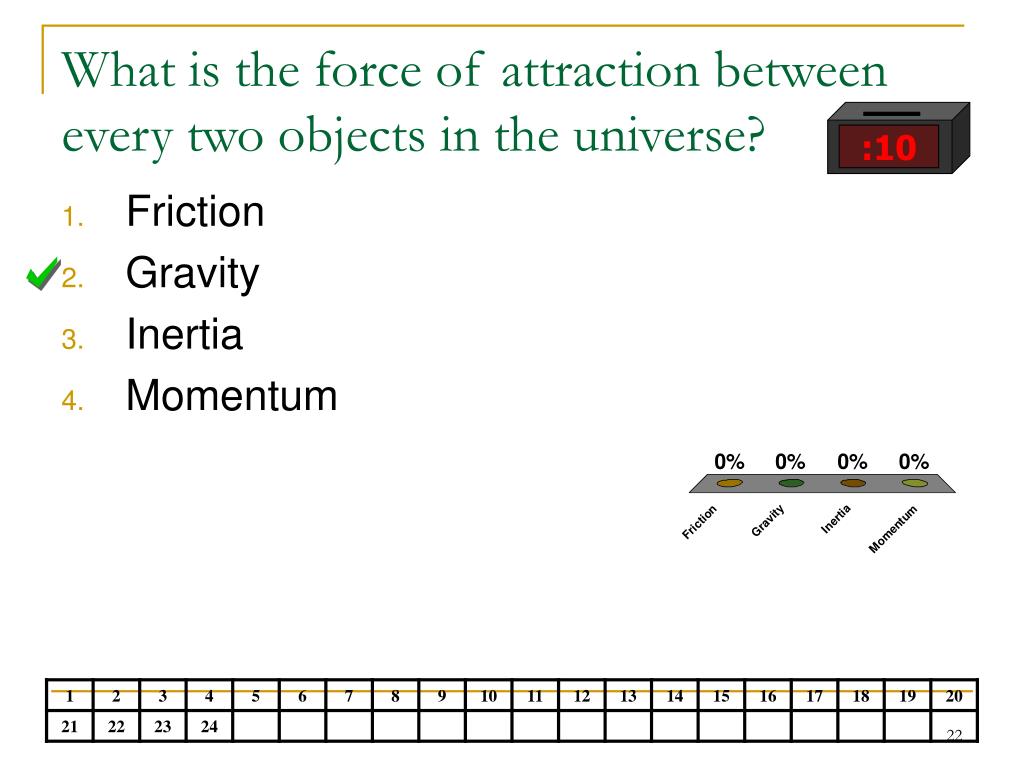

  22. :10 What is the force of attraction between every two objects in the universe? • Friction • Gravity • Inertia • Momentum

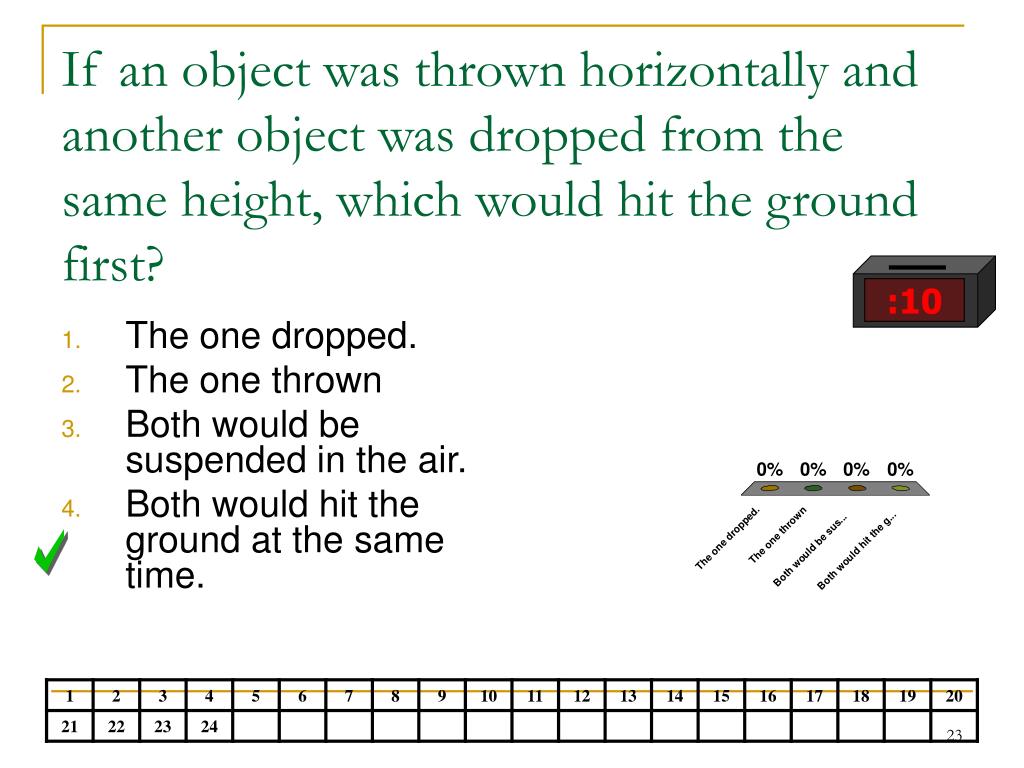

  23. :10 If an object was thrown horizontally and another object was dropped from the same height, which would hit the ground first? • The one dropped. • The one thrown • Both would be suspended in the air. • Both would hit the ground at the same time.

  24. Newton’s Third Law of Motion • If one object exerts a force on another object, then the second object exerts a force of equal strength in the opposite direction on the first object. • Otherwise, for every force there is an equal and opposite reaction force.

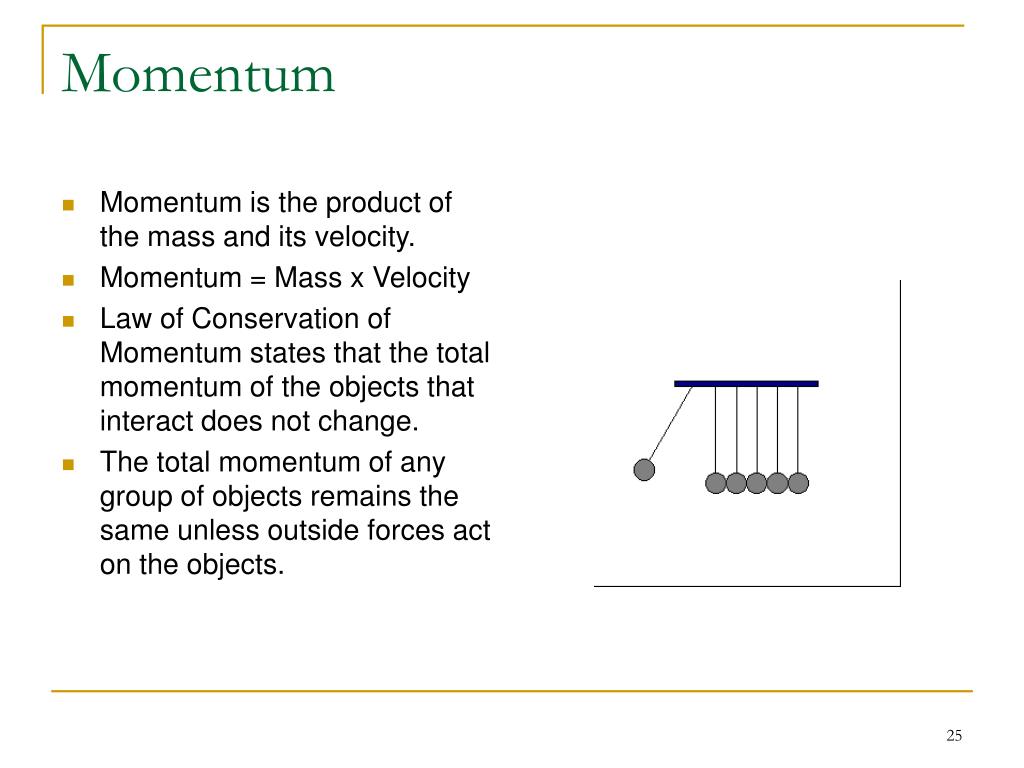

  25. Momentum • Momentum is the product of the mass and its velocity. • Momentum = Mass x Velocity • Law of Conservation of Momentum states that the total momentum of the objects that interact does not change. • The total momentum of any group of objects remains the same unless outside forces act on the objects.

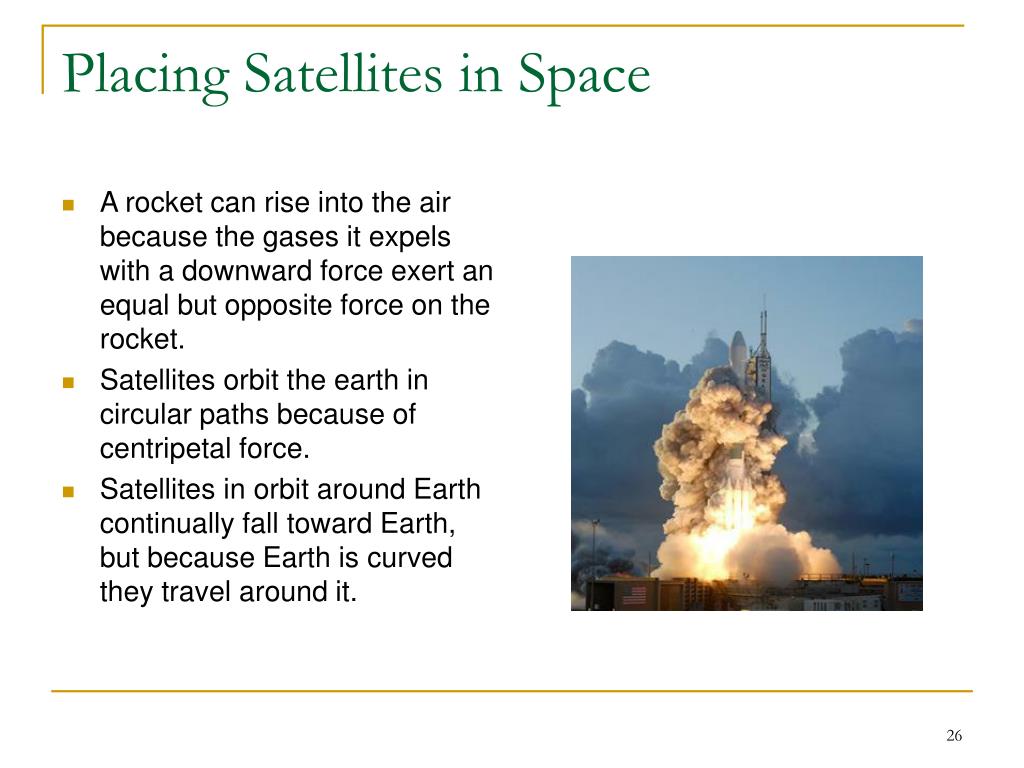

  26. Placing Satellites in Space • A rocket can rise into the air because the gases it expels with a downward force exert an equal but opposite force on the rocket. • Satellites orbit the earth in circular paths because of centripetal force. • Satellites in orbit around Earth continually fall toward Earth, but because Earth is curved they travel around it.

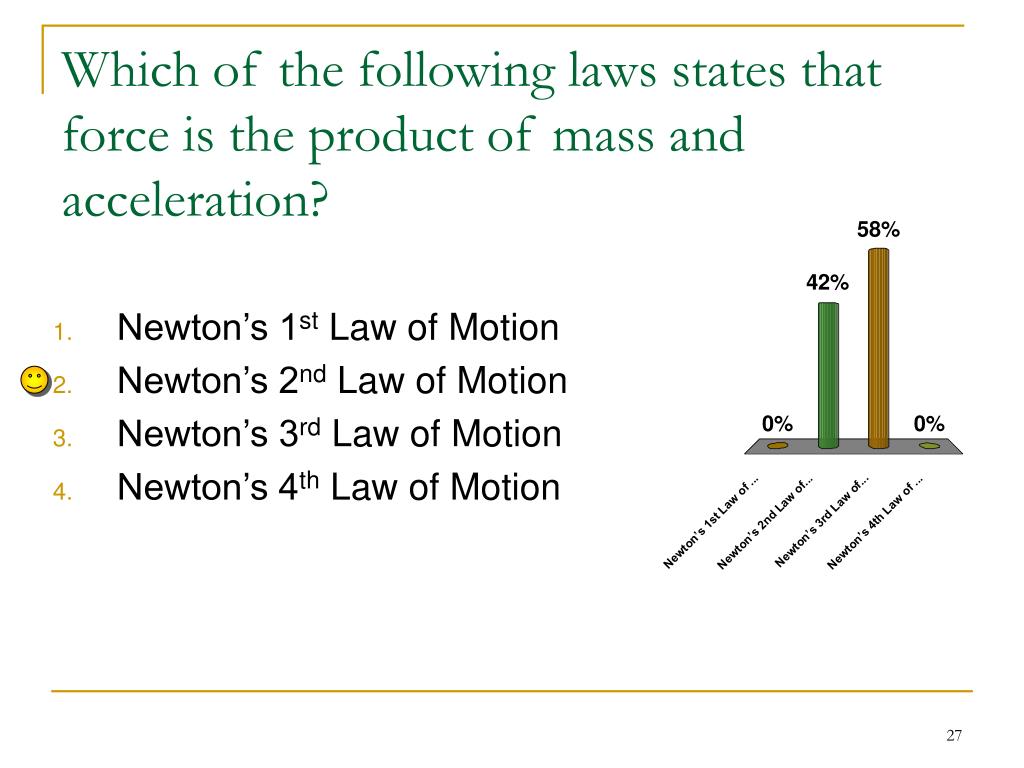

  27. :00 Which of the following laws states that force is the product of mass and acceleration? • Newton’s 1st Law of Motion • Newton’s 2nd Law of Motion • Newton’s 3rd Law of Motion • Newton’s 4th Law of Motion

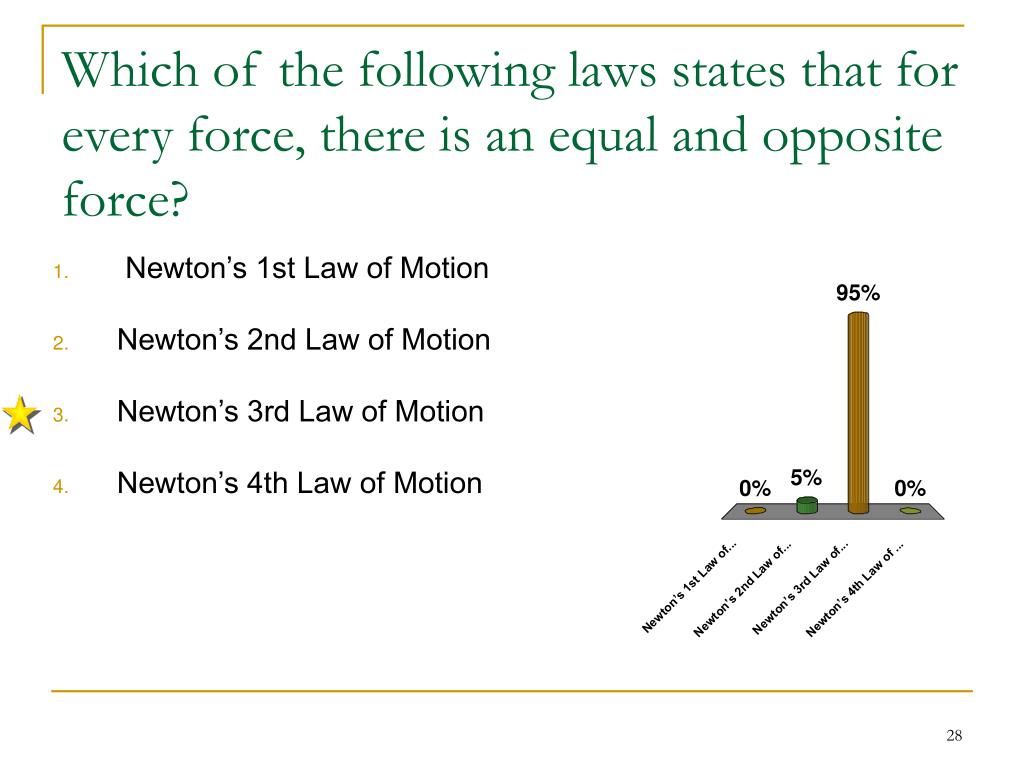

  28. :00 Which of the following laws states that for every force, there is an equal and opposite force? • Newton’s 1st Law of Motion • Newton’s 2nd Law of Motion • Newton’s 3rd Law of Motion • Newton’s 4th Law of Motion

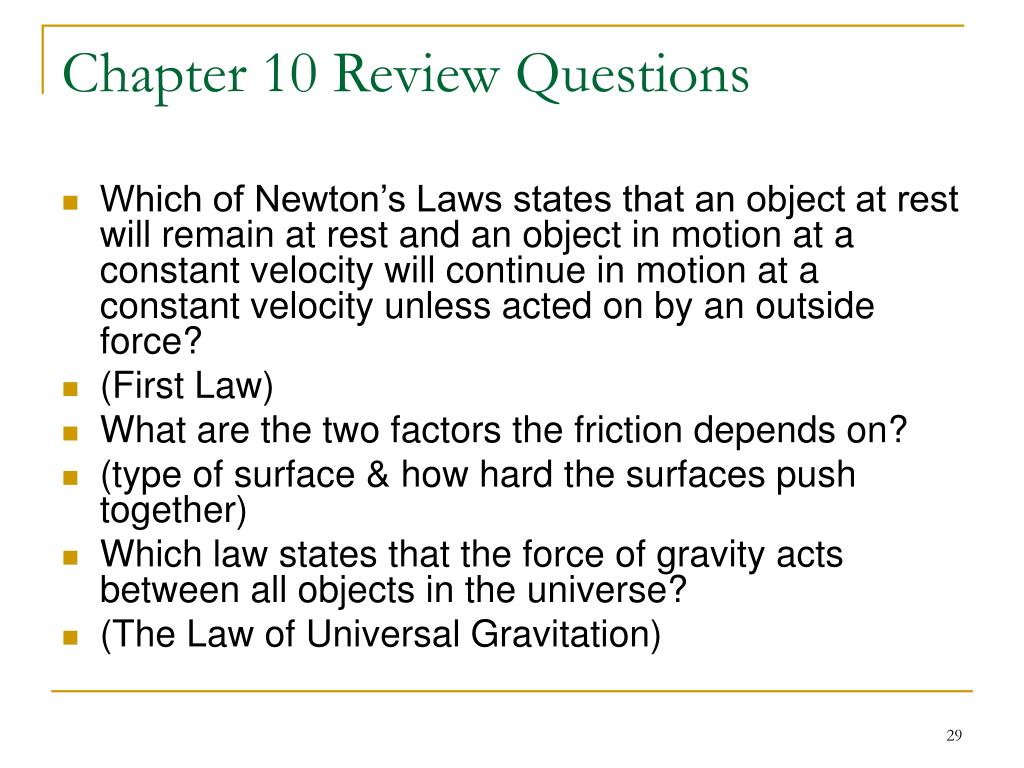

  29. Chapter 10 Review Questions • Which of Newton’s Laws states that an object at rest will remain at rest and an object in motion at a constant velocity will continue in motion at a constant velocity unless acted on by an outside force? • (First Law) • What are the two factors the friction depends on? • (type of surface & how hard the surfaces push together) • Which law states that the force of gravity acts between all objects in the universe? • (The Law of Universal Gravitation)

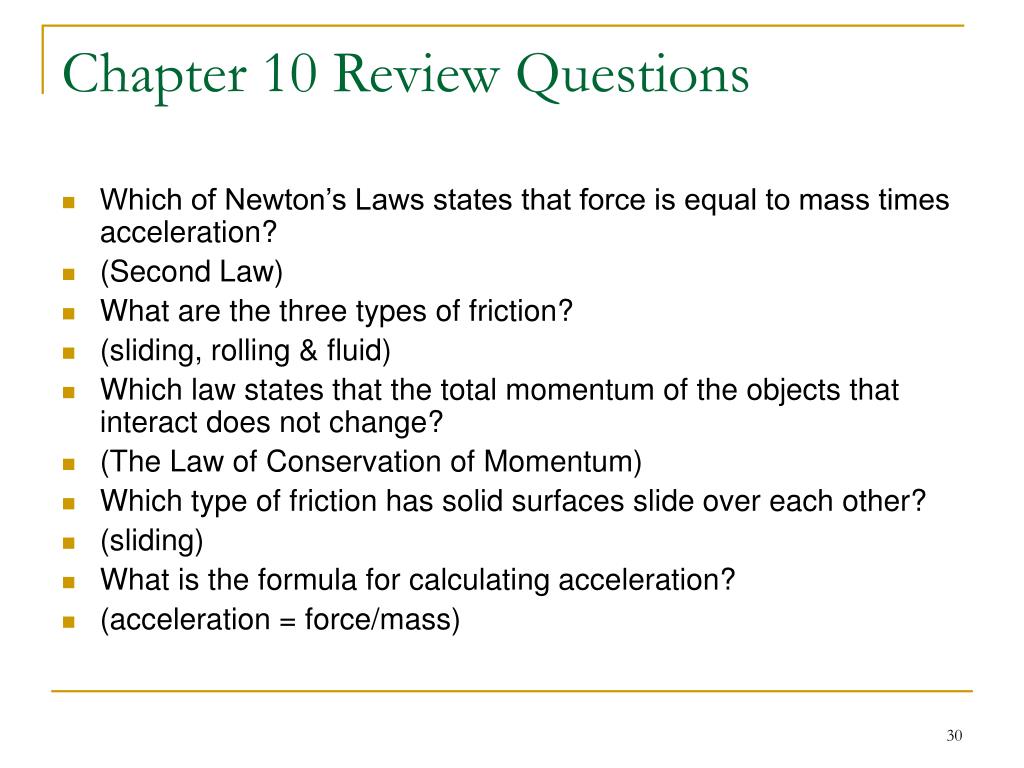

  30. Chapter 10 Review Questions • Which of Newton’s Laws states that force is equal to mass times acceleration? • (Second Law) • What are the three types of friction? • (sliding, rolling & fluid) • Which law states that the total momentum of the objects that interact does not change? • (The Law of Conservation of Momentum) • Which type of friction has solid surfaces slide over each other? • (sliding) • What is the formula for calculating acceleration? • (acceleration = force/mass)

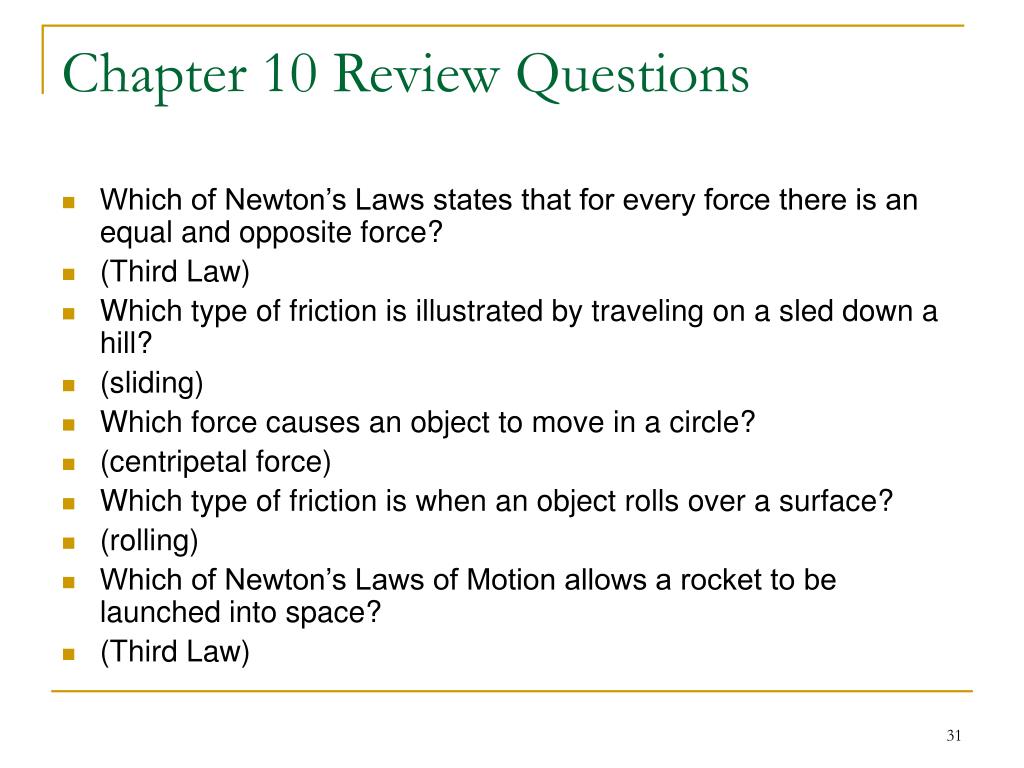

  31. Chapter 10 Review Questions • Which of Newton’s Laws states that for every force there is an equal and opposite force? • (Third Law) • Which type of friction is illustrated by traveling on a sled down a hill? • (sliding) • Which force causes an object to move in a circle? • (centripetal force) • Which type of friction is when an object rolls over a surface? • (rolling) • Which of Newton’s Laws of Motion allows a rocket to be launched into space? • (Third Law)

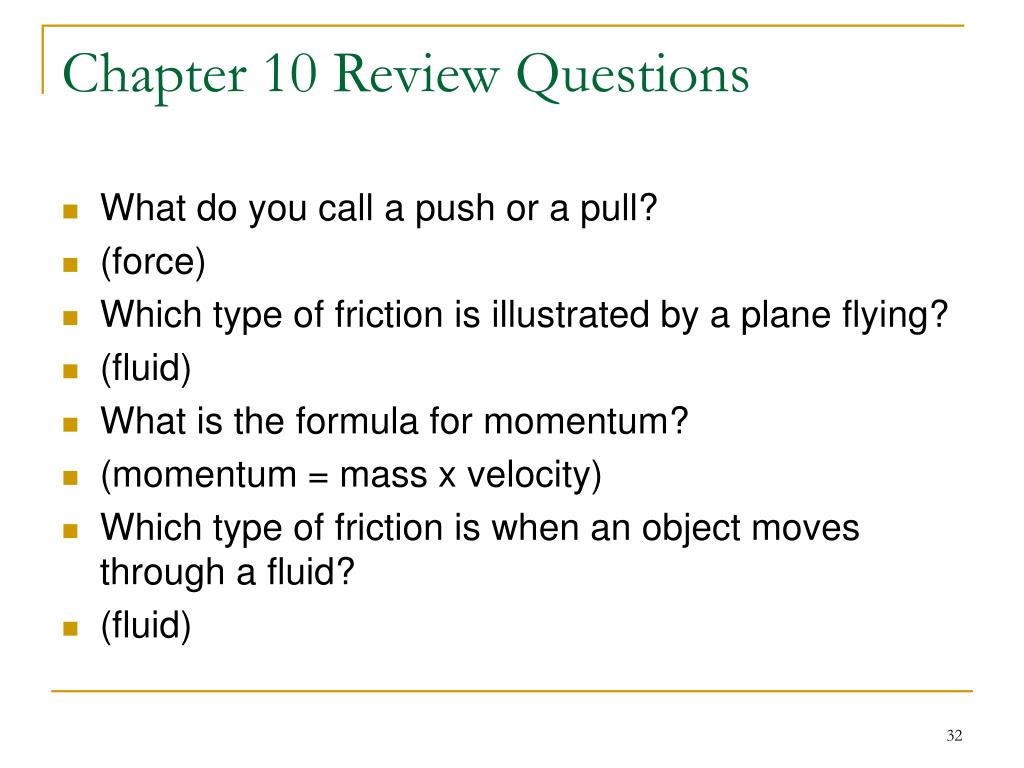

  32. Chapter 10 Review Questions • What do you call a push or a pull? • (force) • Which type of friction is illustrated by a plane flying? • (fluid) • What is the formula for momentum? • (momentum = mass x velocity) • Which type of friction is when an object moves through a fluid? • (fluid)

  33. Chapter 10 Review Questions • What do we call the tendency of an object to resist change in its motion? • (inertia) • Which type of friction is illustrated by a bowling ball traveling down a bowling alley? • (rolling) • What is do we call the greatest velocity of a free falling object? • (terminal velocity) • How does unbalanced forces affect motion? • (start motion or change speed)

  34. Chapter 10 Review Questions • What metric unit is equal to the force required to accelerate one kilogram of mass at 1 meter per second per second? • (Newton) • What is the value of gravitational acceleration? • (9.8 m/s2) • What is the motion called when a horizontally thrown object is pulled down? • (projectile motion) • How does balanced forces affect motion? • (doesn’t change motion)

  35. Chapter 10 Review Questions • What do we call the force that one surface exerts on another when the two rub against each other? • (friction) • What is the formula for calculating weight? • (weight=mass x acceleration due to gravity) • Which object will hit the ground first if dropped from the same height at the same time, a crumpled sheet of paper or an uncrumpled sheet of paper? • (crumpled sheet of paper) • What is the formula for calculating force? • (force = mass x acceleration)
