  1. Automated Theory Formation for Tutoring Tasks in Pure Mathematics Simon Colton, Roy McCasland, Alan Bundy, Toby Walsh

  2. Tools for Maths Teachers • Setting exercises is important in mathematics education • Automated tools available for • High school mathematics and below • No tool available for University level • Use ATF via the HR program • As an aid to setting exercises • Example in group theory

  3. The HR Program • Automated theory formation • Concepts, conjectures, proofs, counters • Concept formation • 10 production rules • Conjecture making • Find patterns empirically • Settling conjectures • Using Otter and MACE (and others) • See CADE system description

  4. Group theory exercises • In most text books/courses: • Determining subgroups • Negative results useful in learning process • Example: centre of a group • Elements which commute with all others • Student has to show: • Closure, associativity, identity, inverse • Or: non-empty and a & b in Z  a * b-1 in Z

  5. Approach using HR • Use HR’s concept formation • Find different types of element • Flag those forming a subgroup empirically • Use Otter • To show that the subset forms a subgroup • Use MACE • To find a counterexample group • Use (human) teacher • Interpret results as exercises

  6. Improvements to HR #1Embed Algebra PR • Designed to be domain independent • Find embedded algebraic structures • In algebras, graphs, integers • Any arity four concept • Triples of subobjects possibly form algebra • User sets algebras to look for • HR abstracts subobjects into Cayley table • MACE used to check axioms • HR checks isomorphism with previous • MACE not asked to search (efficient)

  7. Improvements to HR #2“Reactive” search • Heuristic search  Best first search • BFS often better after delay • Some PRs should be used sparingly • E.g., disjunction, instantiation • Other PRs should be used when poss • E.g., embed algebra rule • HR’s reactive search: after each step: • Java code fragment read by HR • Different to the paper

  8. Experimental Setup • Groups up to order 8 (14 groups) • Reaction to new element type • Force use of embed-algebra • Flag concepts forming non-trivial subgroups • 10,000 theory formation step • No proving or counterexample finding (fast) • Any promising subgroup types • Further investigate with Otter and MACE • Pentium 4 (2.0 Ghz) under Windows XP

  9. Suggestions for Using Results • If subgroup property is proved • Ask student to prove this • If known counterexamples • Ask student to determine smallest • Ask student to identify classes of group • Ask student to characterise all groups •  Caveat  • These problems may be too difficult

  10. Results • 301 seconds to finish search • 330 concepts • 17 element types found • 10 produced subgroups empirically • 8 were non-trivial • Look now at two element types in detail

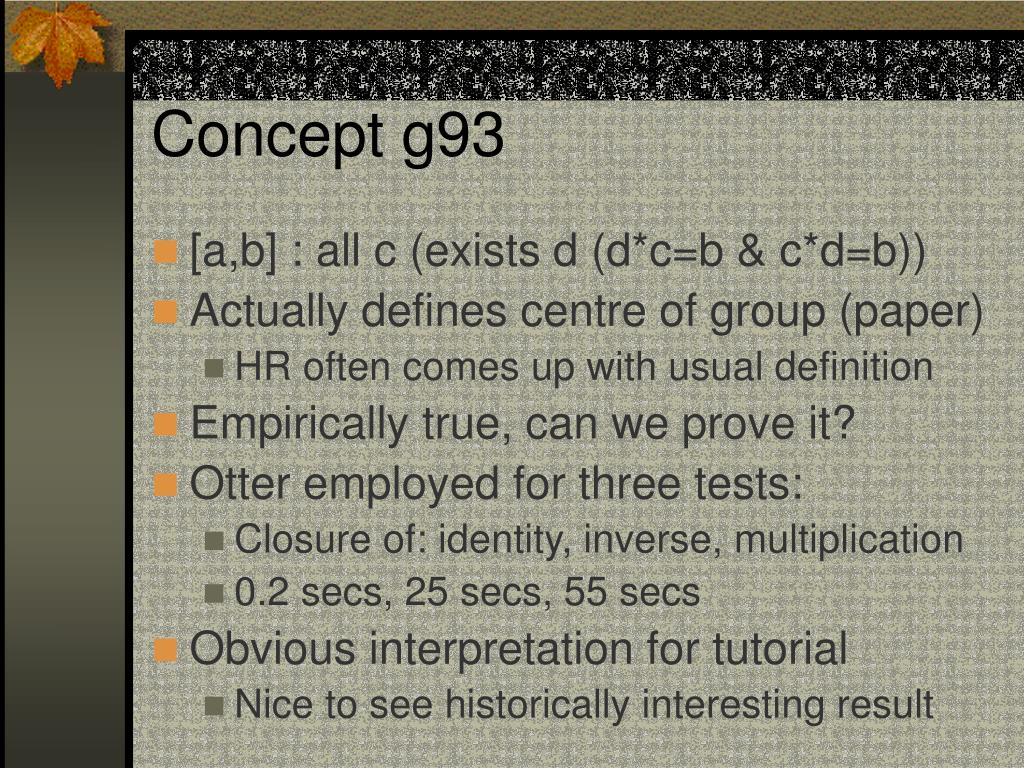

  11. Concept g93 • [a,b] : all c (exists d (d*c=b & c*d=b)) • Actually defines centre of group (paper) • HR often comes up with usual definition • Empirically true, can we prove it? • Otter employed for three tests: • Closure of: identity, inverse, multiplication • 0.2 secs, 25 secs, 55 secs • Obvious interpretation for tutorial • Nice to see historically interesting result

  12. Concept g43 • [a,b] : exists c (c*c = b) • Diagonal elements on Cayley table • Groups up to order 8: forms a subgroup • Fairly certain not in general case • Suggested trying to disprove first • Passed MACE: axioms, g43 definition • And multiplicative closure property • 143 seconds later, MACE produced:

  13. Smallest(?) “Bad” group forconcept g43 * | 0 1 2 3 4 5 6 7 8 9 10 11 --+------------------------------------ 0 | 0 1 2 3 4 5 6 7 8 9 10 11 1 | 1 0 3 2 5 4 7 6 9 8 11 10 2 | 2 3 4 5 0 1 8 9 10 11 6 7 3 | 3 2 5 4 1 0 9 8 11 10 7 6 4 | 4 5 0 1 2 3 10 11 6 7 8 9 5 | 5 4 1 0 3 2 11 10 7 6 9 8 6 | 6 7 10 11 8 9 1 0 5 4 3 2 7 | 7 6 11 10 9 8 0 1 4 5 2 3 8 | 8 9 6 7 10 11 3 2 1 0 5 4 9 | 9 8 7 6 11 10 2 3 0 1 4 5 10 | 10 11 8 9 6 7 5 4 3 2 1 0 11 | 11 10 9 8 7 6 4 5 2 3 0 1

  14. Possible Use of Concept g43 • Could ask student to find MACE’s c-ex. • Alternatively: • Ask for a subclass of groups with property • (Example Abelian groups) • Ask for a characterisation (honors) • See Appendix A of paper • For 10 tutorial questions which arose

  15. Other ways to use results • Some subsets of elements are contained • In other subsets of elements • Both sets identified by HR (and the conjecture) • Intuition of students • Mathematicians use minimal hypotheses • HR sometimes produces conjectures: • With non-minimal and/or convoluted hypotheses • Useful for students to prove theorems with non-minimal or convoluted hypotheses b*c=d & d*b=c & d*d=b  inv(c)=d

  16. Conclusions and Future Work • Performed an initial feasibility study • HR, Otter, MACE help with maths tutorials • Example in group theory • Novel questions arose from non-human results • Possible to use HR semi-automatically • Maybe HR used as a tool in future
