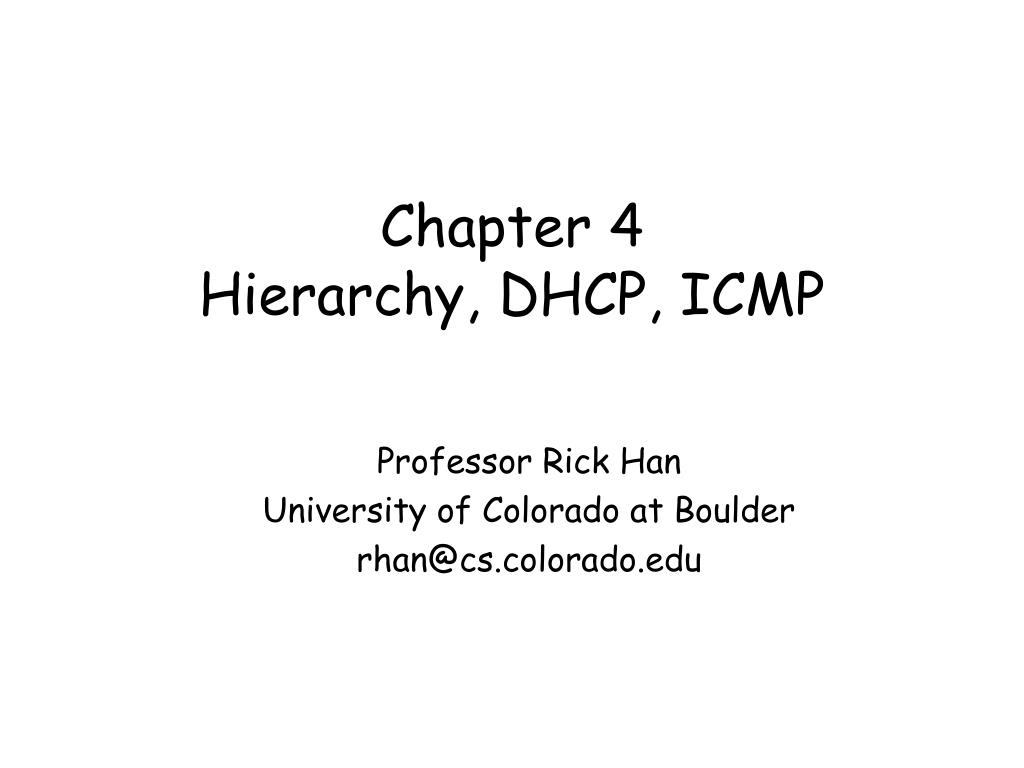

  1. Chapter 4Hierarchy, DHCP, ICMP Professor Rick Han University of Colorado at Boulder rhan@cs.colorado.edu

  2. Announcements • Homework #3 on Web, due March 12 (two weeks), netstat portion online later today • Programming Assignment #2 coming… • Midterm March 14 • Last week’s lectures on Web • Next, more on hierarchy, DHCP, ICMP, … Prof. Rick Han, University of Colorado at Boulder

  3. Recap of Previous Lecture • Link State vs. Distance Vector • Routing Update Size • Routing Update Comm. Overhead • Convergence Speed • Complexity • Space • Robustness • Link State Cost Metric • Queue Length • Delay • Normalized Hop Count • Hierarchical Routing • BGP Prof. Rick Han, University of Colorado at Boulder

  4. Scalability in Internet Routing (2) Inter-Domain Routing AS 1 AS 2 Border/ Gateway Router Border/ Gateway Router RIP OSPF Intra-Domain Routing Prof. Rick Han, University of Colorado at Boulder

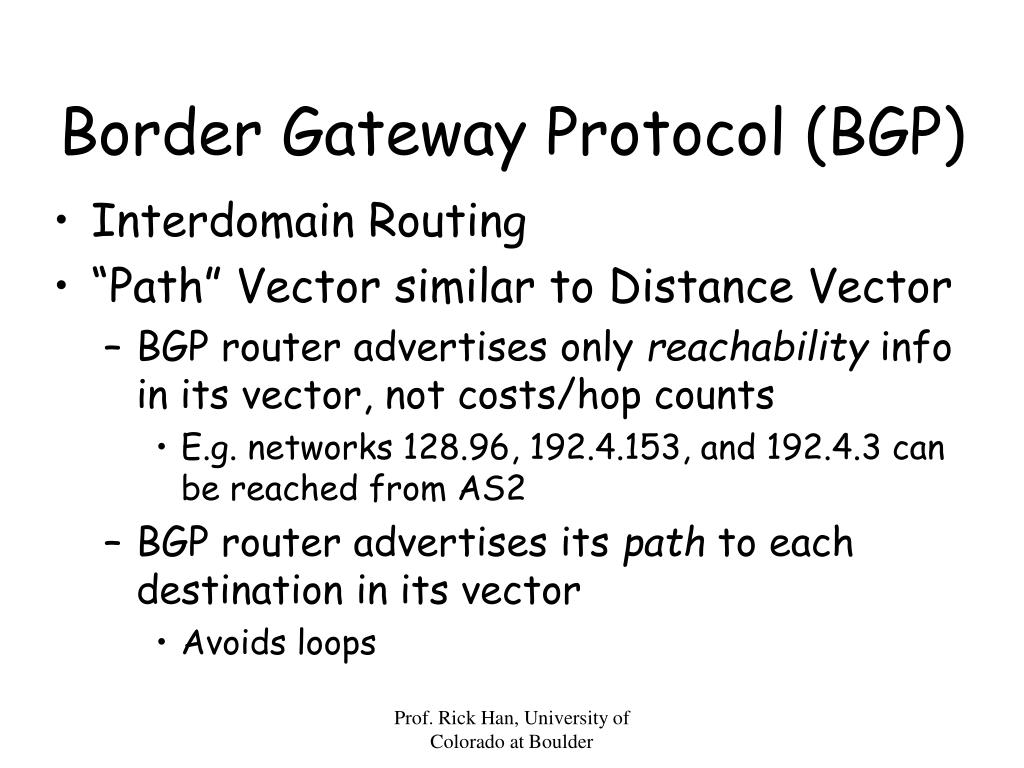

  5. Border Gateway Protocol (BGP) • Interdomain Routing • “Path” Vector similar to Distance Vector • BGP router advertises only reachability info in its vector, not costs/hop counts • E.g. networks 128.96, 192.4.153, and 192.4.3 can be reached from AS2 • BGP router advertises its path to each destination in its vector • Avoids loops Prof. Rick Han, University of Colorado at Boulder

  6. Interior Border Gateway Protocol • Each AS may have many border routers • Each border routers could inject 10000 prefixes from neighboring AS • LSP’s too large • Shortest path calculations too expensive • Border routers use interior BGP (IBGP) to limit routing info received by internal AS routers • IBGP routers determine best route to each destination • Only thebest interior BGP router injects info into AS • Any router in AS learns one best border router to use when sending a packet externally Prof. Rick Han, University of Colorado at Boulder

  7. Hierarchy In Addition To BGP • OSPF has its own hierarchy: group OSPF routers into areas • Hierarchy: AS –> OSPF area -> OSPF network • Subnets: • Fixed Classes A,B,C inefficient - Class B exhaustion • Subdivide a Class B IP address 128.96.34.15 into <Network ID, Subnet ID, Host ID> • IP address is AND’ed with subnet mask to extract subnet address: • Subnet mask 255.255.255.0 AND’ed with IP address 128.96.34.15 gives subnet address 128.96.34 • Subnet mask 255.255.255.128 AND’ed with IP address 128.96.34.15 gives subnet address 128.96.34.0 Prof. Rick Han, University of Colorado at Boulder

  8. Additional Hierarchy (2) • Subnets: • When host 1 wants to send to host 2, AND the subnet mask with the destination IP address • If result is same subnet as sending host 1, then send over local LAN subnet • If result differs, then route to another subnet using subnet-to-subnet routing • Forwarding table changes from <destination IP, next hop> to <destination subnet, subnet mask, next hop> • For each entry, router AND’s subnet mask with dest. IP address and looks for match with destination subnet • Longest match breaks a tie Prof. Rick Han, University of Colorado at Boulder

  9. Additional Hierarchy (3) • CIDR (Classless Interdomain Routing) Subnets: • When subnet mask is top N bits, then have a CIDR network prefix, • 192.4.16 with 20 bit prefix is written 192.4.16/20 • Approaches for fast prefix matching • How do nodes advertise their CIDR prefix/mask? • IP header only has 32-bit address • Where is subnet mask? • BGP-4 path vectors and OSPF LSP’s carry the CIDR prefix along with the IP address, e.g. 192.4.16/20 Prof. Rick Han, University of Colorado at Boulder

  10. Additional Hierarchy (4) • How do CIDR and non-CIDR routing stay compatible? • OSPF and BGP support CIDR, RIP does not • RIP builds a routing table by falling back to the old Class A,B, C network prefixes • makes RIP more inefficient • Packets are still routed correctly • CIDR Bottom line: • Improves address assignment efficiency • Helps aggregate routing to occur between networks rather than nodes Prof. Rick Han, University of Colorado at Boulder

  11. Fast Matching of Variable Prefixes • Need to match CIDR network prefix with IP packet’s destination address • Brute force: for each destination router in list • apply mask to match prefix with destination address’s prefix • choose longest match Prof. Rick Han, University of Colorado at Boulder

  12. Fast Matching of Variable Prefixes (2) • Speeding it up: Organize prefixes into a Patricia tree • If Nth bit is zero, go left, otherwise go right • Automatically finds longest match • Worst case = 32 bit tests Bit to test : 0 = left child,1 = right child 1 0 default 0/0 0 1 0 1 0 1 128.2/16 192.3/20 252.32.150/24 163.32/16 Prof. Rick Han, University of Colorado at Boulder

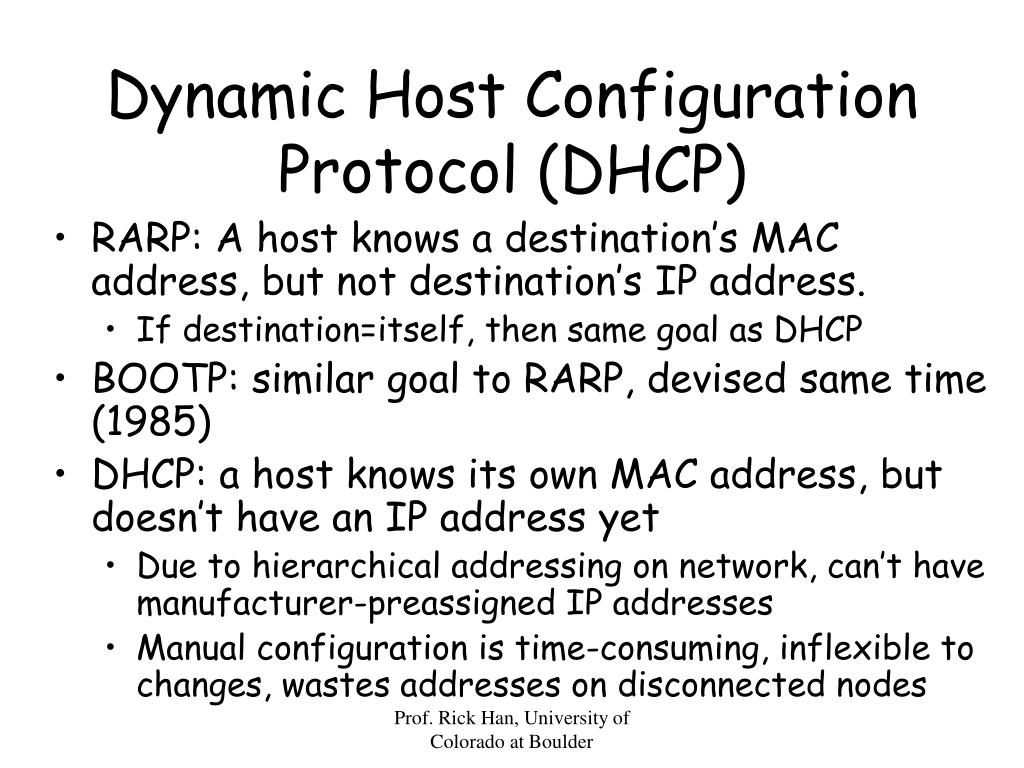

  13. Dynamic Host Configuration Protocol (DHCP) • RARP: A host knows a destination’s MAC address, but not destination’s IP address. • If destination=itself, then same goal as DHCP • BOOTP: similar goal to RARP, devised same time (1985) • DHCP: a host knows its own MAC address, but doesn’t have an IP address yet • Due to hierarchical addressing on network, can’t have manufacturer-preassigned IP addresses • Manual configuration is time-consuming, inflexible to changes, wastes addresses on disconnected nodes Prof. Rick Han, University of Colorado at Boulder

  14. 255.255.255.255 DHCP (2) • Goal: Automatic configuration of a host’s IP address • A host queries a DHCP server to obtain an IP address • How does a host find the address of a DHCP server? • Host sends a DHCPDISCOVER “limited IP broadcast packet”, with destination address 255.255.255.255 • Routers never forward such a packet, so it stays within LAN IP Router LAN1 LAN2 DHCP Server Requesting Host Prof. Rick Han, University of Colorado at Boulder

  15. 255.255.255.255 DHCP (3) • DHCP relays enable one DHCP server per administrative domain, rather than one server per network • Requires a DHCP relay on each network • DHCP relay sends a unicast IP packet to DHCP server when it hears a local IP broadcast packet with DHCPDISCOVER IP Router LAN1 LAN2 DHCP Relay DHCP Server Requesting Host Prof. Rick Han, University of Colorado at Boulder

  16. DHCP (4) • DHCP server selects a dynamic IP addr. from pool • maps host’s MAC address to the dynamic IP address • Another advantage of relays: enable DHCP responses to get back to requesting host • Server can’t send directly back using host’s MAC address • DHCP server sends unicast to known IP address of DHCP relay, which sends to host’s local MAC address IP Router LAN1 LAN2 DHCP Relay DHCP Server Requesting Host Prof. Rick Han, University of Colorado at Boulder

  17. DHCP (5) • Hosts cannot keep dynamic IP addresses indefinitely • Timeout/lease by DHCP • 3 days for Windows NT, 8 days for Windows 2000, 1 day… • Configurable when starting DHCP server • Host must periodically renew lease, otherwise IP address goes back into pool of available addresses • DHCP is implemented as an application-level protocol on top of UDP and IP Prof. Rick Han, University of Colorado at Boulder

  18. IP Header ICMP message Protocol=ICMP Internet Control Message Protocol (ICMP) • Used for reporting errors in the Internet • Most ICMP packets contain diagnostic info sent back to source • Destination unreachable • TTL expired • Implemented at the same level as transport protocols, just above IP • Nevertheless, all IP routers are expected to speak ICMP Prof. Rick Han, University of Colorado at Boulder

  19. Type Code Cksum ICMP body ICMP (2) • Already seen it in use: • Ping • Traceroute • Discovery of local routers on a LAN • Format of an ICMP message: • Some Types: • Echo & Echo Reply • *Destination Unreachable : dest not in routing table, or down • *Source Quench : sent by router during congestion • Redirect • Router Advertisement • Router Solication • *Time Exceeded : TTL Expired * = most frequently used Prof. Rick Han, University of Colorado at Boulder

  20. ICMP (3) • ICMP body often contains a copy of IP header (+ first 8 bytes of payload) of packet that generated the ICMP message • Ping: • A host sends an ICMP “echo” message • As IP packet, “echo” message gets routed to destination • At destination, respond by sending an ICMP “echo reply” message • Swap source and destination IP addresses and recompute checksum Prof. Rick Han, University of Colorado at Boulder

  21. “Smurf” Denial of Service Attack via ICMP echo • Ping an IP broadcast address using spoofed source IP addr, e.g. ping 255.255.255.255 • All nodes on LAN respond to ICMP echo with ICMP echo request, directed at source • LAN and especially source are flooded • Solutions: • Patch OS to disallow ICMP echo request to ICMP echo using IP broadcast address • Don’t allow router to forward external IP broadcast addresses into your LAN Prof. Rick Han, University of Colorado at Boulder

  22. Traceroute and ICMP • Trace the route of an IP packet • A host sends a regular IP packet to destination IP address with TTL of one • First router in path decrements TTL to zero, and sends back to source a “Time exceeded” ICMP message • Source address in ICMP message is first router on path ! • Increment TTL by one (TTL=2), next ICMP error message sent by second router in path • Keep incrementing TTL to find routers in path Prof. Rick Han, University of Colorado at Boulder

  23. TTL=1 TTL=2 Router 1 known TTL=3 Router 2 known Destination known Traceroute and ICMP (2) • Trace the route of an IP packet Source Destination Router 1 Router 2 Timeline: Prof. Rick Han, University of Colorado at Boulder

  24. Traceroute and ICMP (3) • Trace the route of an IP packet • Upon reaching destination, • No “Time exceeded” message generated • How do you know when final destination is reached? • Traceroute sends to unused UDP port (>30000), generating an ICMP “destination unreachable” message • With code “port unreachable” Prof. Rick Han, University of Colorado at Boulder

  25. Router Discovery via ICMP • Routers periodically broadcast their ICMP router advertisement to local LAN • About every 7 minutes • Lifetime of 30 minutes • New hosts can broadcast ICMP router solicitation message, to avoid waiting 7 minutes • ICMP Redirect • Sent when there are two or more routers on the same LAN • Each router will know whether its neighbors on a LAN are closer to a destination • When source sends to higher cost router, that router sends an ICMP Redirect message to the source Prof. Rick Han, University of Colorado at Boulder

  26. IP Tunnelling and VPN’s • IP router 1 builds an IP tunnel to IP router 2 • Router 1 encapsulates packets destined for network/LAN 2 with router 2’s IP address • Router 2 de-encapsulates • Advantages • Secure tunnels = Virtual Private Networks (VPNs) for corporations • Layered functionality = multicast/MBone • Encapsulate non-IP protocols LAN1 LAN2 Internet R1 R2 Prof. Rick Han, University of Colorado at Boulder
