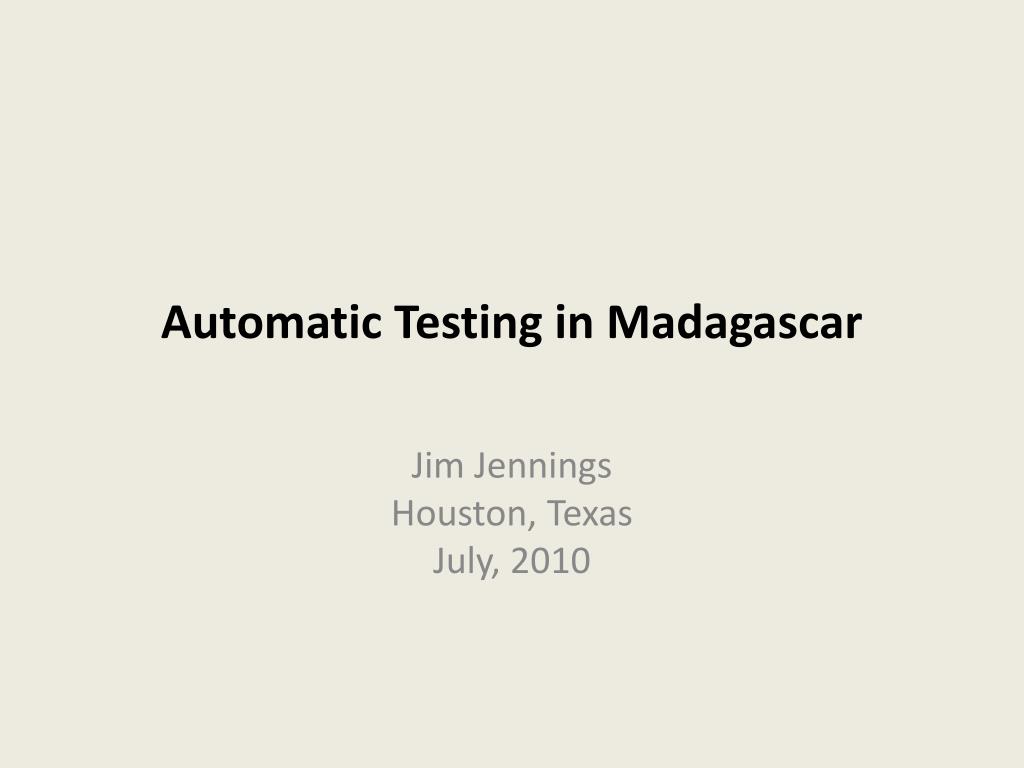

  1. Automatic Testing in Madagascar Jim JenningsHouston, TexasJuly, 2010

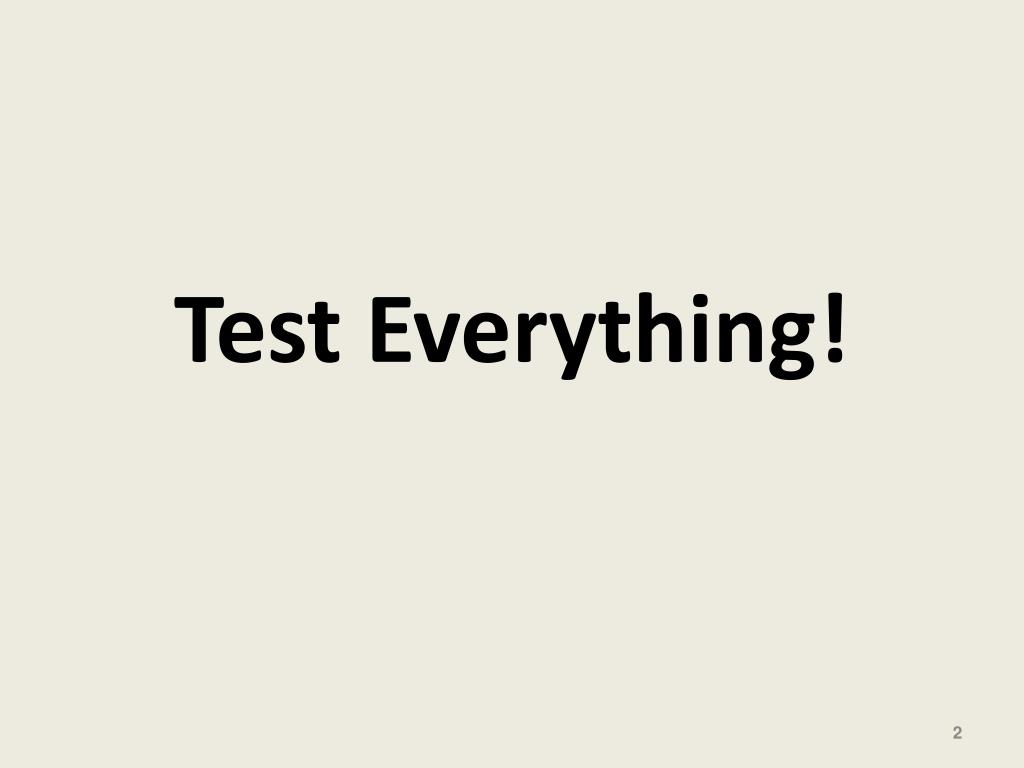

  2. Test Everything!

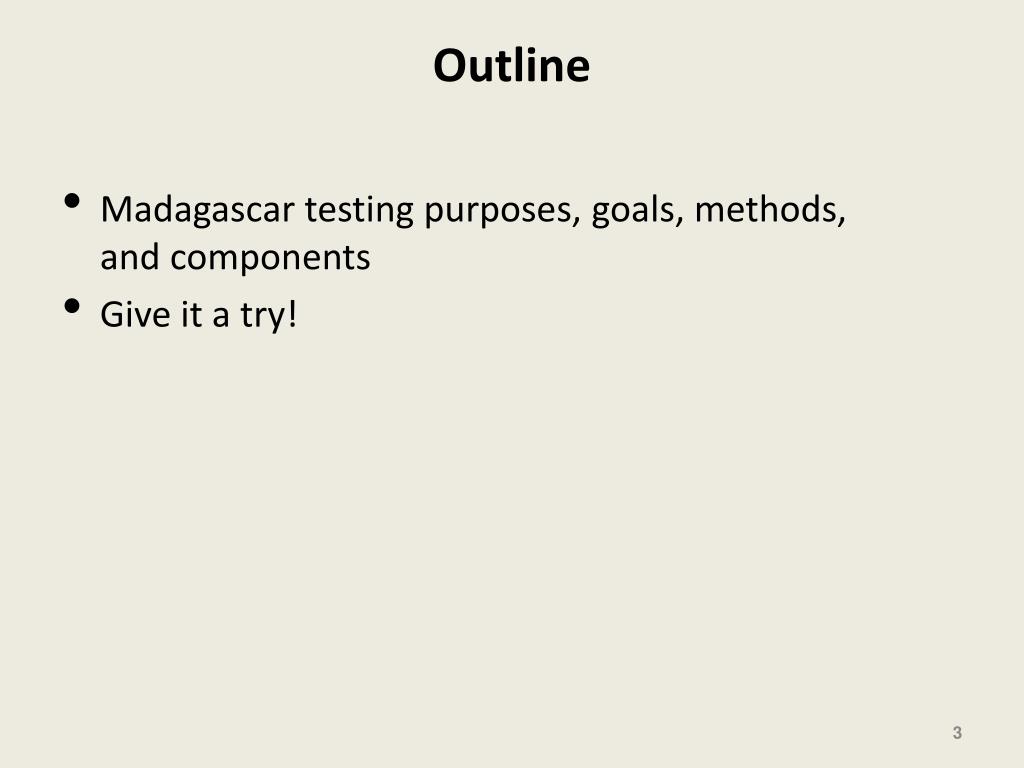

  3. Outline • Madagascar testing purposes, goals, methods, and components • Give it a try!

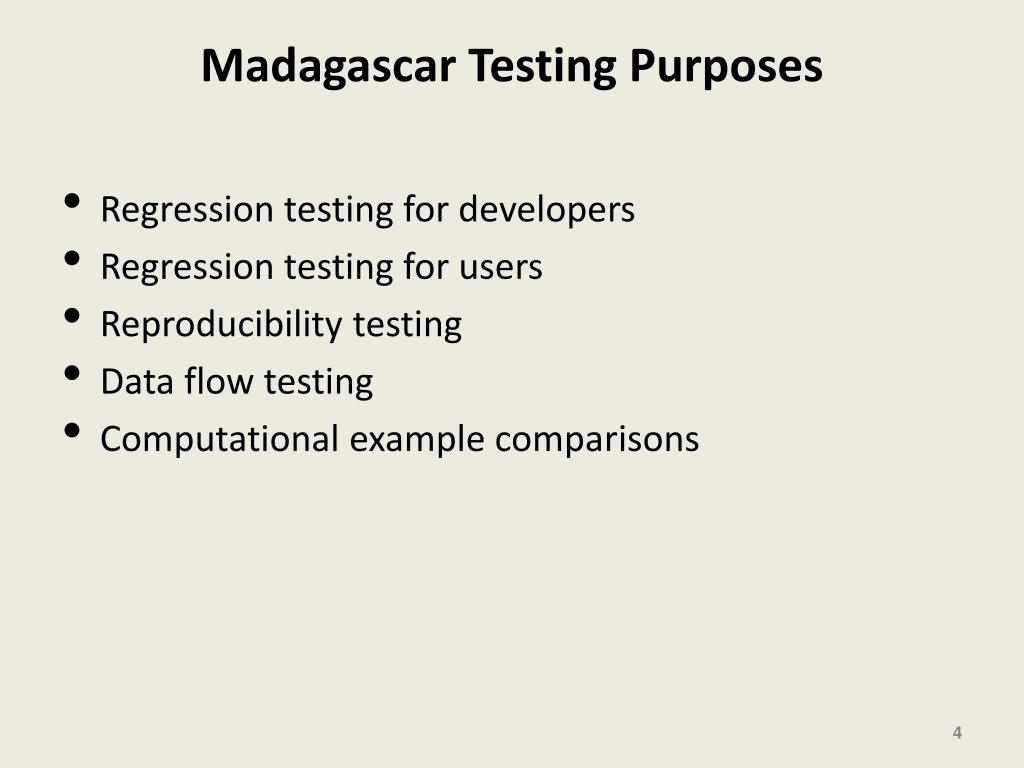

  4. Madagascar Testing Purposes • Regression testing for developers • Regression testing for users • Reproducibility testing • Data flow testing • Computational example comparisons

  5. Madagascar Testing Goals • Make it convenient • Make it automated • Make it flexible • Make it usable

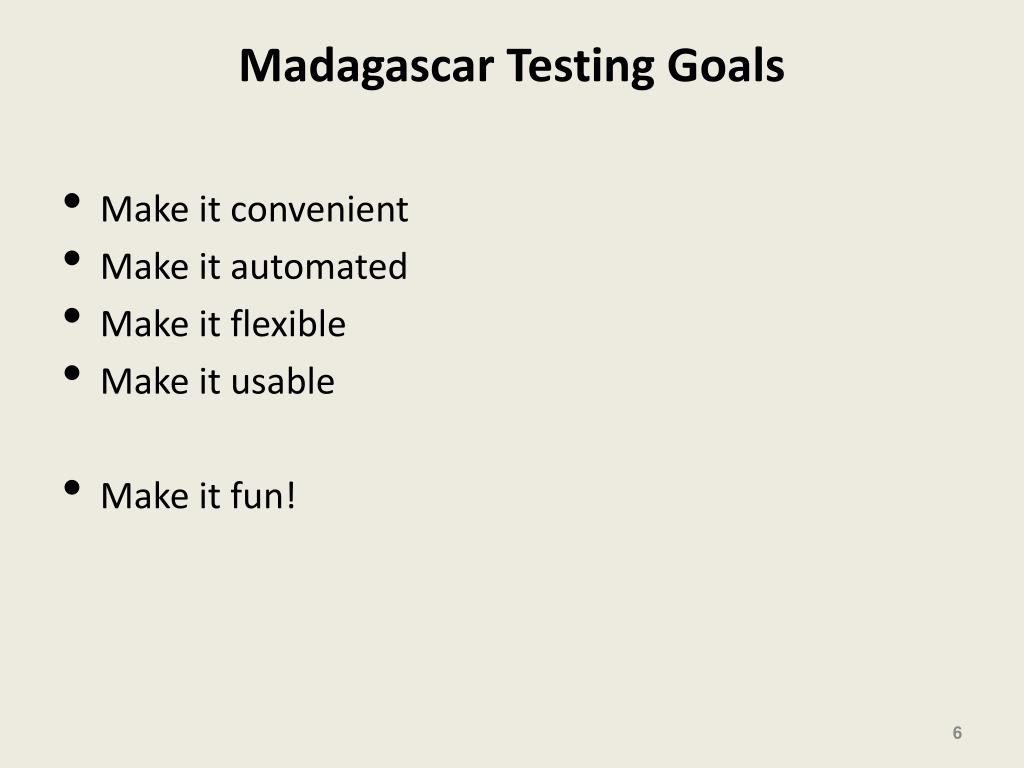

  6. Madagascar Testing Goals • Make it convenient • Make it automated • Make it flexible • Make it usable • Make it fun!

  7. Madagascar Built-in Test Base • Over 300 computational examples in $RSFSRC/book • Over 3,000 figures in a separate repository, https://rsf.svn.sourceforge.net/svnroot/rsf/figs • The basic Madagascar testing method is to run the examples and compare the resulting figures to those downloaded from the repository.

  8. … But it’s not as simple as it sounds • Some of the examples require external data. • Some of the examples require components that might not be installed. • Some of the examples take a long time to run. • Some of the examples use a lot of disk space. • Round off differences make some examples not exactly reproducible.

  9. … But it’s not as simple as it sounds • Some of the examples require external data. • Some of the examples require components that might not be installed. • Some of the examples take a long time to run. • Some of the examples use a lot of disk space. • Round off differences make some examples not exactly reproducible. • We need an easy user-adjustable way to select examples for routine testing.

  10. Madagascar Examples Metadata • Metadata stored for each example in an .rsfproj file: • Madagascar tools used • External data used • Total disk space used • Metadata for $RSFSRC/book examples stored in repository. • Metadata generated automatically as part of “scons lock” operation. • You can store metadata for your own examples.

  11. Madagascar Testing Components • sfbooklist • Make an inventory of examples • Select examples according to optional filters • Run an optional command for each selected example • sffiglist • Make an inventory of figures in one example • List and display figures that are different or missing • sftestlist • Make a summary of test results • $RSFSRC/admin/quick_test.csh • Do everything for a pre-selected collection of examples

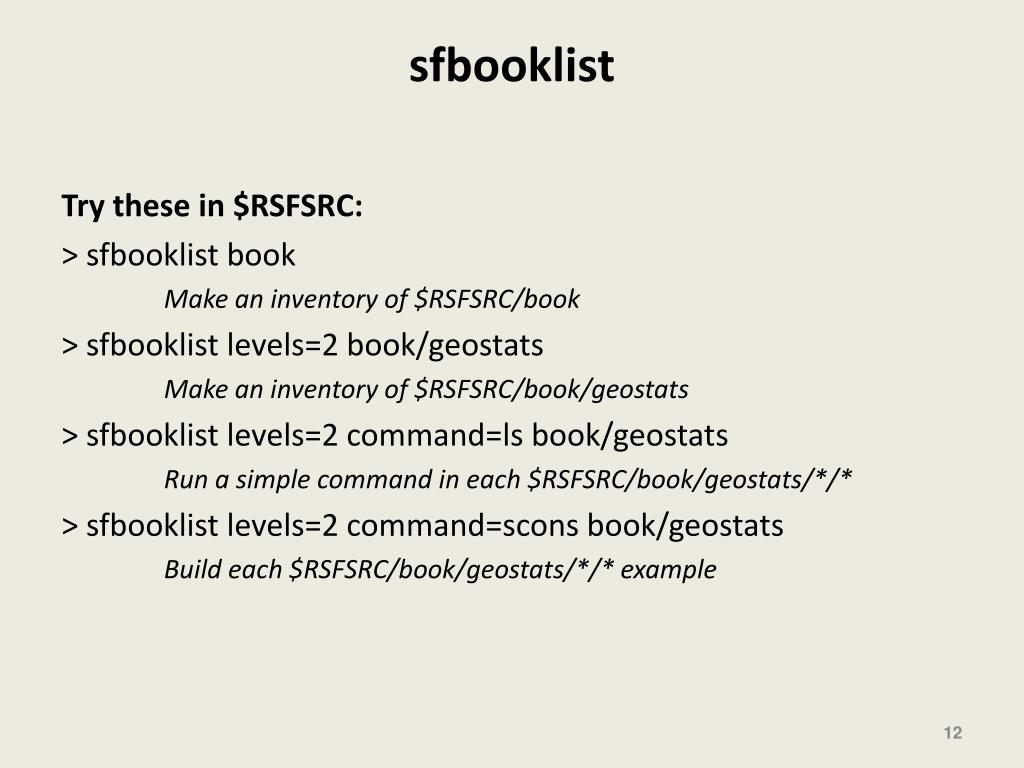

  12. sfbooklist Try these in $RSFSRC: > sfbooklist book • Make an inventory of $RSFSRC/book > sfbooklist levels=2 book/geostats • Make an inventory of $RSFSRC/book/geostats > sfbooklist levels=2 command=ls book/geostats • Run a simple command in each $RSFSRC/book/geostats/*/* > sfbooklist levels=2 command=scons book/geostats • Build each $RSFSRC/book/geostats/*/* example

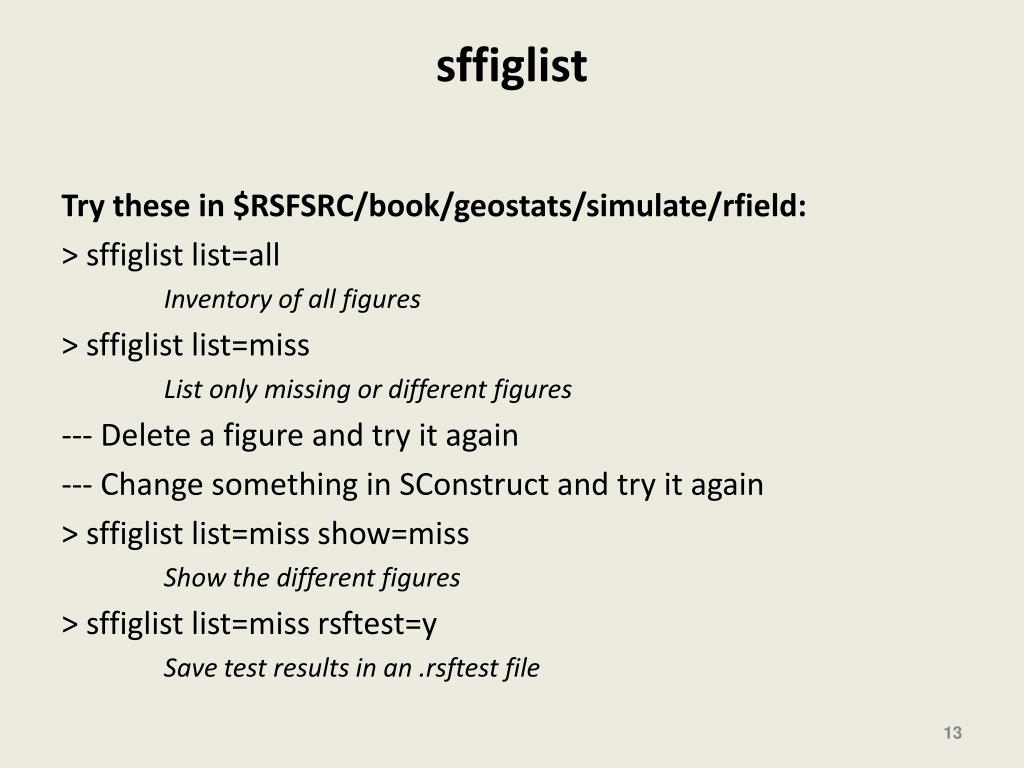

  13. sffiglist Try these in $RSFSRC/book/geostats/simulate/rfield: > sffiglist list=all • Inventory of all figures > sffiglist list=miss • List only missing or different figures --- Delete a figure and try it again --- Change something in SConstruct and try it again > sffiglist list=miss show=miss • Show the different figures > sffiglist list=miss rsftest=y • Save test results in an .rsftest file

  14. sftestlist Try these in $RSFSRC: > sfbooklist levels=2 command="sffiglist rsftest=y" \book/geostats • Compare figures in each $RSFSRC/book/geostats/*/* example > sftestlist book • Make summary of tests in $RSFSRC/book/*/*/* > sftestlist levels=2 book/geostats • Make summary of tests in $RSFSRC/book/geostats/*/*

  15. $RSFSRC/admin/quick_test.csh Try this in $RSFSRC: > admin/quick_test.csh

  16. Test Everything!
