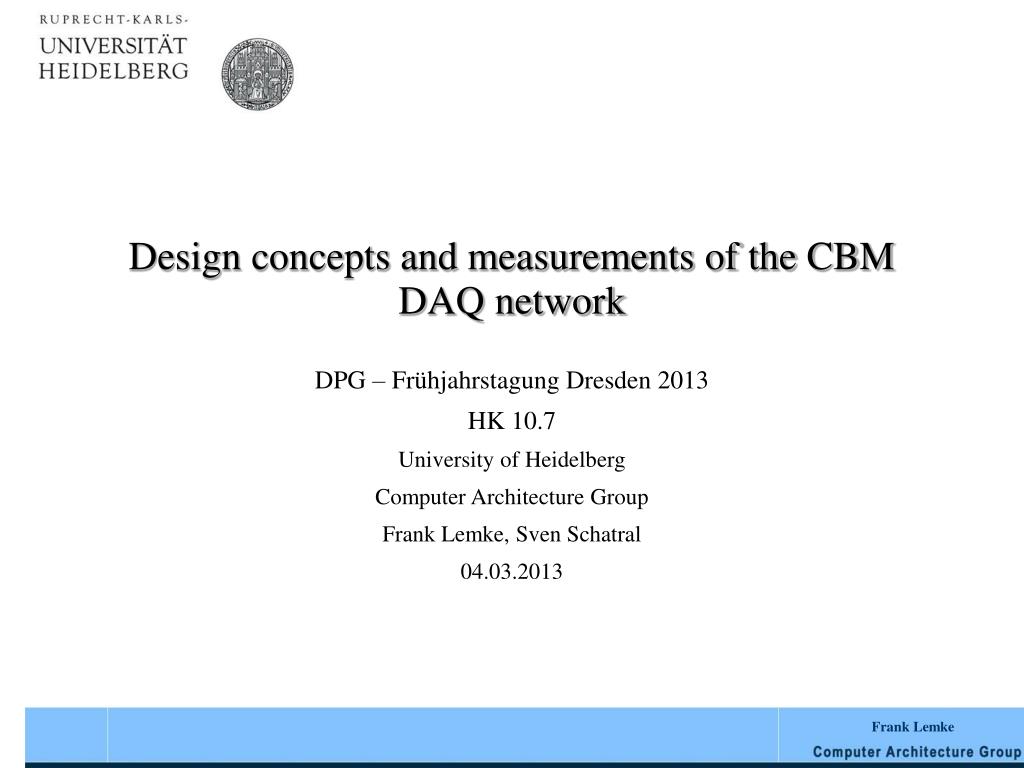

  1. Design concepts and measurements of the CBM DAQ network DPG – Frühjahrstagung Dresden 2013 HK 10.7 University of Heidelberg Computer Architecture Group Frank Lemke, Sven Schatral 04.03.2013

  2. Outline • The Compressed Baryonic Matter Experiment • Motivation • CBM Network Structure • Front-end ASIC Communication • FPGA and ASIC Based Readout Controllers • Conclusion DPG – Frühjahrstagung Dresden 2013 2

  3. FAIR at GSI Darmstadt Germany • Facility for Antiproton and Ion Research (FAIR) extends the existingGSI accelerator and synchrotron • Starting 2018, FAIR will be used to measure atomic nuclei and the particles they are made up of ( https://www.gsi.de ) • Construction work has already begun and makes visible progress • Demonstrator prototypes have been build and development for the experiment readout systems are ongoing ( http://www.fair-center.de , January 2013 ) 3 DPG – Frühjahrstagung Dresden 2013

  4. The Compressed BaryonicMatter Experiment One of the eight FAIR experiments is the Compressed Baryonic Matter (CBM) experiment The CBM experiment • Investigates highly compressed nuclear matter using nucleus-nucleus collisions • Is a self-triggered detector system • Provides eight different kinds of detectors ( https://www.gsi.de ) DPG – Frühjahrstagung Dresden 2013 4

  5. Motivation Create complete DAQ network solution usable within all stages of the network providing the required communication capabilities for CBM • Complete network approach allows design of straight forward and compact solutions fulfilling • Restricted space limits for hardware • High bandwidth requirement • Supporting CBM specific synchronization methodologies • No protocol conversion required • Easy for user adaption and providing reusable blocks for the CBM network DPG – Frühjahrstagung Dresden 2013 5

  6. CBM Network Challenges DAQ network system needs to deliver • Flexibility for various build-up variants • Efficiency for data aggregation • Successive link rate increase • From 0.5 Gb/s up to 10Gb/s per lane • Clock distribution • Reliable system clock from one single master • Delivering up to 250 MHz over LVDS for stable FEE sampling • Precise time synchronization • In the order of the link bit clock cycles -> 2 ns • Support for centralized control system solutions • Dense interconnection solution • Handling of up to several TB/s of raw data 6 DPG – Frühjahrstagung Dresden 2013

  7. CBM Network Structure ( Walter F.J. Mueller, GSI, Darmstadt, 30 March 2012 ) 7 DPG – Frühjahrstagung Dresden 2013

  8. Front-end ASIC Challenges Depending on type and system position FEE bandwidth varies • Starting at 0.5 Gb/s using one lane • Supporting up to four lanes with 2 Gb/s CBMnet has reusable design blocks • Control and status Register File (RF) • I2C support for RF access, debugging and bring-up • CTRL decode for CBMnet ctrl messages • ASIC SERDES implementations supporting synchronization • CBMnet protocol module with Master/Slave support • Unbalanced links: 1 up-stream and up to 4 down-stream links • Shift register chain and sub RF support for analog designed ASIC parts 8 DPG – Frühjahrstagung Dresden 2013

  9. Front-end ASIC Modules 9 DPG – Frühjahrstagung Dresden 2013

  10. CBMnet Implementation at SPADIC & STSXYTER SPADIC - Self-triggered Pulse Amplification and Digitization asIC • Device will be used for the transition radiation sub-detector (TRD) • Device to read-out and process small electrical detector signals on a single silicon • 32-channel mixed signal • Self-triggered hit detection and neighbor readout • Full pulse recording • 1 Gb/s read-out bandwidth • Current version 1.0 using CBMnet protocol communication and design modules ( Please visit http://spadic.uni-hd.de/) STSXYTER • Device will be used for the Silicon Tracking System • 2 Gb/s read-out bandwidth • Currently in production 10 DPG – Frühjahrstagung Dresden 2013

  11. SPADIC Measurement • Synchronization accuracy on bit clock level of 2ns was shown • Configuration registers have been written and control communication using CBMnet protocol was approved • Data was successfully streamed from the SPADIC 11 DPG – Frühjahrstagung Dresden 2013

  12. FPGA Readout - Eval Xilinx Spartan 6 eval-board SP605 with 45T device is used as first evaluation platform for the next generation FPGA Boards It provides • SFP to use old readout chains • FMC adapter to attach specially developed board connecting multiple FEEs • HDMI cables used for first cabling • Identical FPGA type as new ROC used as emulation platform • Small and low cost beam time and laboratory readout chains • Limited synchronization capability 12 DPG – Frühjahrstagung Dresden 2013

  13. FPGA Readout – ROC3 In the collaboration a new universal readout controller is in production using a Xilinx Spartan6 150T device • FMC adapters for attaching FEE readout • Almost identical first readout using SP605 HDMI solution • Designed to provide the full synchronization feature set • Supporting up to 8 FEEs • Substitution of former concentrator and aggregator boards • Clock source or even multiplier • ECS/DCS emulator • Data sink and readout chain source • Emulation platform for HUB testing on limited small functional blocks HK 34.6: Modular CBM-ROC Firmware - Was bisher geschah und wie es weitergeht. SEBASTIAN MANZ und UDO KEBSCHULL (Dienstag, 5. März, 15:30, HSZ-405) 13 DPG – Frühjahrstagung Dresden 2013

  14. ASIC Readout Challenges • Readout ASIC (HUB) needs to support at least 32 link FEE connections • Automatic and flexible initialization and synchronization of FEEs • Aggregation of data from numerous FEE devices • Rate conversion preserving reliable synchronization • Creating an excellent ratio for bandwidth per area • Up to 4x, 5 Gb/s for each lane, 20 Gb/s per HUB • 3 HUBs bundled to 12x links with 60 Gb/s total • Specific SERDES designs • Standard cell SERDES to connect FEE devices (500Mb/s) • Full custom SERDES with CDR to connect back-end (at least 5Gb/s) 14 DPG – Frühjahrstagung Dresden 2013

  15. HUB ASIC Structure • Direct extraction and distribution of synchronization • Deadlock avoiding for data and control communication (VCs) • Large crossbar structures enabling flexible FEE attachment and fault tolerance • Fully remote control through RF • Flexible FEE re-initialization and control 15 DPG – Frühjahrstagung Dresden 2013

  16. Conclusion • The CBM protocol and the module concept have shown their usability • SPADIC front-end ASIC was successfully tested • Tests for STSXYTER are prepared and the chip was submitted • Basic FPGA prototyping for ROC usage and HUB ASIC emulations are ongoing The goal for 2013 is preparing the first HUB ASIC prototype design as miniASIC for testing of • Radiation tolerance of design parts • High-speed SERDES functionality • Data aggregation and synchronization functionalities 16 DPG – Frühjahrstagung Dresden 2013

  17. Thank you for your attention ! Questions ? DPG – Frühjahrstagung Dresden 2013
